1-31 — AIR DUCT (#33186) — 170 parça

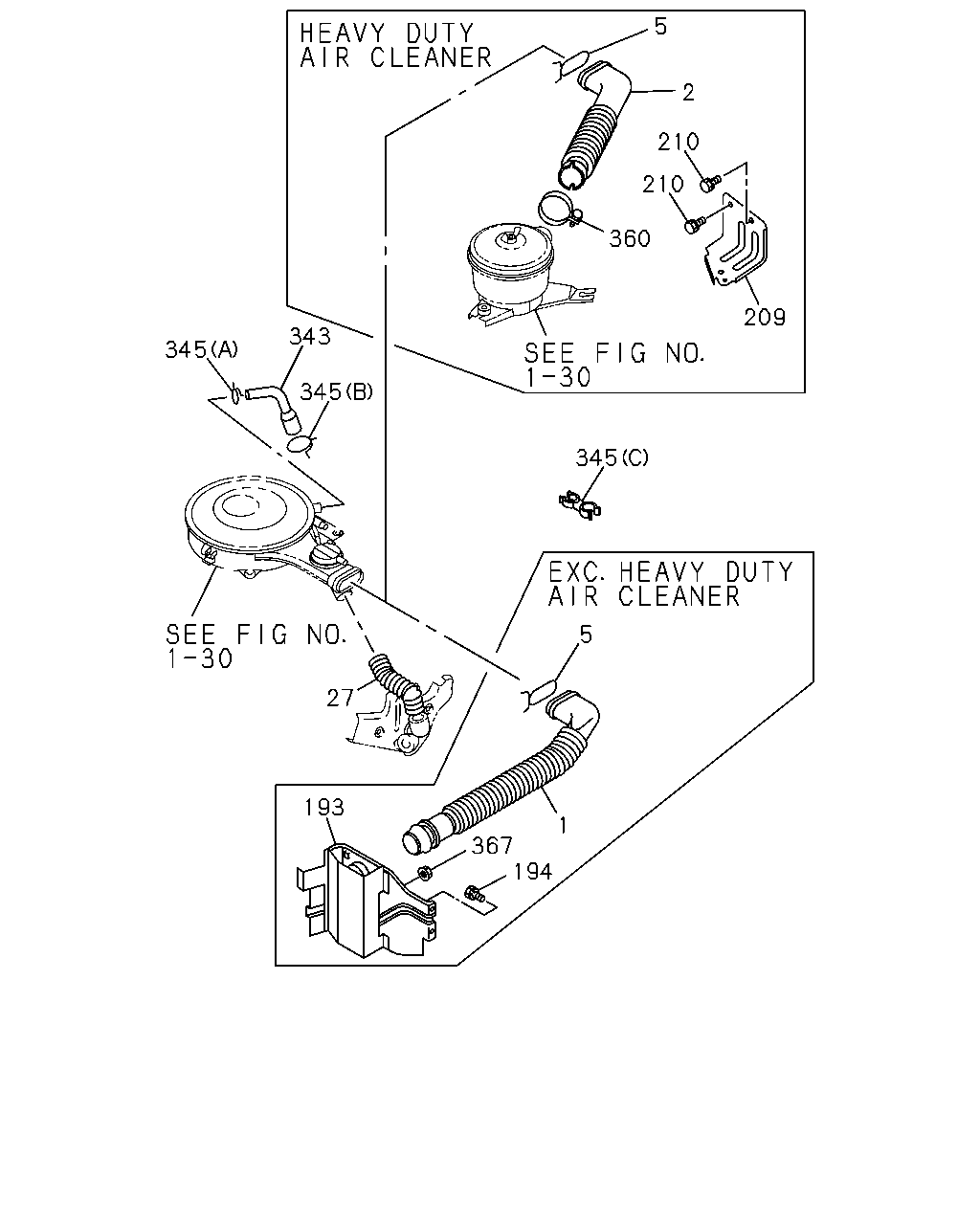

çizim 67213
5 2 210 210 360 209 343 345 345 345 5 27 193 1 367 194
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DUCT; AIR,INL
EXC. HEAVY DUTY AIR CLEANER(K46) 		8-94156-238-1 01 1 9112- ●
2 HOSE; ACL
(C) 		8-97038-180-2 01 1 9112-9408 ●
2 HOSE; ACL
(C) 		8-97120-089-0 01 1 9409-9504 ●
2 HOSE; ACL
EXC. TURBOCHARGER<K51> (C) 		8-97120-089-1 01 1 9505- ●
2 HOSE; ACL
(A) 		8-94386-835-2 01 1 9112-9503 ●
2 HOSE; ACL
(A) 		8-97132-799-0 01 1 9504-9504 ●
2 HOSE; ACL
TURBOCHARGER<K51> (A) 		8-97132-799-0 01 1 9505- ●
2 HOSE; ACL
(B) 		8-97047-061-0 01 1 9112-9504 ●
2 HOSE; ACL
TURBOCHARGER<K51> (B) 		8-97117-272-0 01 1 9505- ●
2 HOSE; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-94321-187-2 01 1 9112- ●
5 CLIP; AIR DUCT
(A) ID=75 		8-94158-977-0 01 1 9112-9208 ● ●
5 CLIP; AIR DUCT
(A) ID=58-79 		8-94126-771-0 01 1 9209-9504 ● ●
5 CLIP; AIR DUCT
(A) ID=58-79 		8-94126-771-0 01 1 9505- ●
5 CLIP; AIR DUCT
(B) ID=100 		8-94158-979-0 01 1 9112-9208 ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9209-9504 ● ●
5 CLIP; AIR DUCT
TURBOCHARGER<K51> (B) ID=77-95 		1-09707-114-0 01 1 9505-9602 ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9603- ●
5 CLIP; AIR DUCT
(E) D6X11 POP RIVET 		8-94298-119-0 01 1 9112-9504 ● ●
5 CLIP; AIR DUCT
(E) D6X11 POP RIVET 		8-94298-119-0 01 1 9505- ●
5 CLIP; AIR DUCT
(C) ID=48-68 		8-94158-976-0 01 1 9112-9208 ●
5 CLIP; AIR DUCT
(C) ID=50-69 		8-94316-991-0 01 1 9209-9504 ●
5 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9505- ●
5 CLIP; AIR DUCT
(D) ID=82 		8-97014-301-0 01 1 9112-9208 ●
5 CLIP; AIR DUCT
(D) ID=68-85 		8-94320-428-0 01 1 9209-9504 ●
5 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9505- ●
5 CLIP; AIR DUCT
EXC. EUROPE/CANARY EQUIPMENT(EK4) (F) ID=11 		8-94238-570-0 01 1 9112-9504 ●
5 CLIP; AIR DUCT
TURBOCHARGER<K51> EXC. EUROPE/CANARY EQUIPMENT(EK4) (F) ID=11 		8-94238-570-0 01 1 9505- ●
5 CLIP; AIR DUCT 8-94216-977-0 01 1 9112- ●
5 CLIP; AIR DUCT
ID=75 		8-94101-706-0 01 1 9112- ●
27 HOSE; HOT AIR,ACL
HOT AIR INTAKE(RN4) 		8-94324-193-1 01 1 9112- ●
193 COVER; DUCT,AIR INT
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97043-855-1 01 1 9112-9410 ● ●
193 COVER; DUCT,AIR INT
EXC. HEAVY DUTY AIR CLEANER(K46) 		8-97044-027-0 01 1 9112- ●
194 BOLT; DUCT COVER
EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X12 		0-28010-612-0 01 1 9112-9204 ● ●
194 BOLT; DUCT COVER
EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X12 FLANGE 		0-28080-612-0 01 1 9205-9410 ● ●
194 BOLT; DUCT COVER
EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X12 		0-28010-812-0 01 1 9112-9204 ● ●
194 BOLT; DUCT COVER
EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X12 FLANGE 		0-28080-812-0 01 1 9205-9410 ● ●
194 BOLT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER(K46) M6X16 W/LK WASHER 		9-01900-616-0 03 1 9112-9204 ●
194 BOLT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER(K46) M6X16 W/LK WASHER 		0-50040-616-0 03 1 9205- ●
209 BRACKET; ACL 8-94386-831-1 01 1 9112-9504 ● ●
209 BRACKET; ACL 8-94386-831-1 01 1 9505- ●
209 BRACKET; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-94480-336-2 01 1 9112- ●
210 BOLT; ACL BRKT
HEAVY DUTY AIR CLEANER(K46) M6X18 		8-94408-386-1 03 1 9112- ●
343 HOSE; ACL TO CYL HD COVER 8-94175-084-2 01 1 9112- ●
345 CLIP; PCV HOSE
(C) ID=13 & 16.5 		8-94169-028-0 01 1 9112-9209 ●
345 CLIP; PCV HOSE
(A) ID=14 		8-94238-572-0 01 1 9112- ●
345 CLIP; PCV HOSE
(B) ID=21 		8-94242-034-0 01 1 9112- ●
345 CLIP; PCV HOSE
ID=16 		8-94238-568-0 01 1 9112- ●
360 CLIP; DUCT TO SUB ACL
HEAVY DUTY AIR CLEANER(K46) 		8-94244-886-1 01 1 9112-9208 ●
360 CLIP; DUCT TO SUB ACL
HEAVY DUTY AIR CLEANER(K46) D=101.6 		9-09915-502-1 01 1 9209- ●
367 NUT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER(K46) M6 FLANGE 		5-09440-004-0 01 1 9112- ●

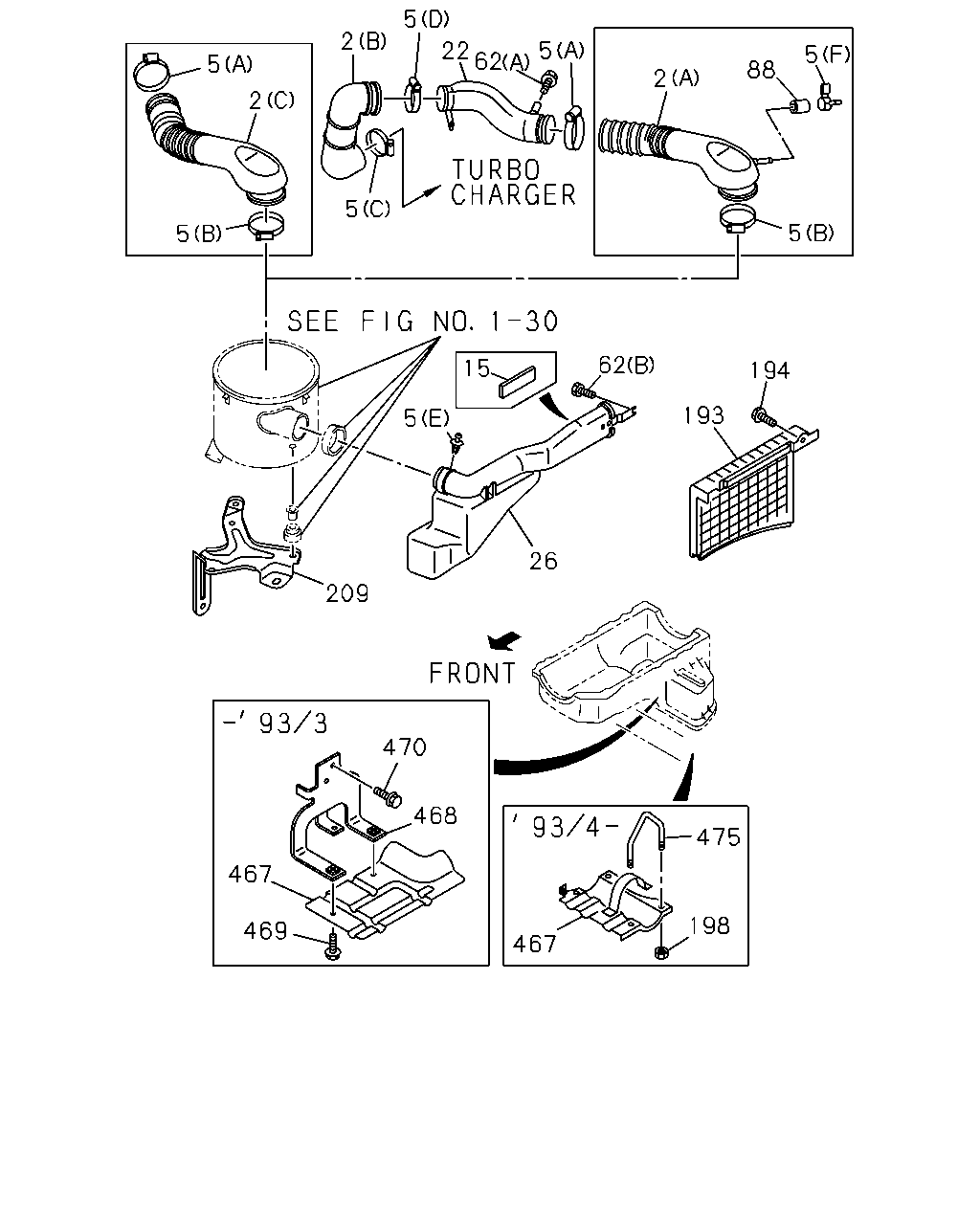

çizim 68592
5 22 5 62 2 5 5 2 88 2 5 5 5 62 15 194 193 5 26 209 470 468 475 198 467 469 467
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 HOSE; ACL
(C) 		8-97038-180-2 01 1 9112-9408 ●
2 HOSE; ACL
(C) 		8-97120-089-0 01 1 9409-9504 ●
2 HOSE; ACL
EXC. TURBOCHARGER<K51> (C) 		8-97120-089-1 01 1 9505- ●
2 HOSE; ACL
(A) 		8-94386-835-2 01 1 9112-9503 ●
2 HOSE; ACL
(A) 		8-97132-799-0 01 1 9504-9504 ●
2 HOSE; ACL
TURBOCHARGER<K51> (A) 		8-97132-799-0 01 1 9505- ●
2 HOSE; ACL
(B) 		8-97047-061-0 01 1 9112-9504 ●
2 HOSE; ACL
TURBOCHARGER<K51> (B) 		8-97117-272-0 01 1 9505- ●
2 HOSE; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-94321-187-2 01 1 9112- ●
5 CLIP; AIR DUCT
(A) ID=75 		8-94158-977-0 01 1 9112-9208 ● ●
5 CLIP; AIR DUCT
(A) ID=58-79 		8-94126-771-0 01 1 9209-9504 ● ●
5 CLIP; AIR DUCT
(A) ID=58-79 		8-94126-771-0 01 1 9505- ●
5 CLIP; AIR DUCT
(B) ID=100 		8-94158-979-0 01 1 9112-9208 ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9209-9504 ● ●
5 CLIP; AIR DUCT
TURBOCHARGER<K51> (B) ID=77-95 		1-09707-114-0 01 1 9505-9602 ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9603- ●
5 CLIP; AIR DUCT
(E) D6X11 POP RIVET 		8-94298-119-0 01 1 9112-9504 ● ●
5 CLIP; AIR DUCT
(E) D6X11 POP RIVET 		8-94298-119-0 01 1 9505- ●
5 CLIP; AIR DUCT
(C) ID=48-68 		8-94158-976-0 01 1 9112-9208 ●
5 CLIP; AIR DUCT
(C) ID=50-69 		8-94316-991-0 01 1 9209-9504 ●
5 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9505- ●
5 CLIP; AIR DUCT
(D) ID=82 		8-97014-301-0 01 1 9112-9208 ●
5 CLIP; AIR DUCT
(D) ID=68-85 		8-94320-428-0 01 1 9209-9504 ●
5 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9505- ●
5 CLIP; AIR DUCT
EXC. EUROPE/CANARY EQUIPMENT(EK4) (F) ID=11 		8-94238-570-0 01 1 9112-9504 ●
5 CLIP; AIR DUCT
TURBOCHARGER<K51> EXC. EUROPE/CANARY EQUIPMENT(EK4) (F) ID=11 		8-94238-570-0 01 1 9505- ●
5 CLIP; AIR DUCT 8-94216-977-0 01 1 9112- ●
5 CLIP; AIR DUCT
ID=75 		8-94101-706-0 01 1 9112- ●
15 INSULATOR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97105-329-0 01 1 9312-9504 ● ●
15 INSULATOR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97105-329-0 01 1 9505-9506 ●
15 INSULATOR
FRIGID ZONE<YL3> 		8-97105-329-0 01 1 9507- ●
22 HOSE; CONNECTOR,ENG TO PIPE 8-94340-601-2 01 1 9112-9503 ●
22 HOSE; CONNECTOR,ENG TO PIPE 8-97128-957-0 01 1 9504-9504 ●
22 HOSE; CONNECTOR,ENG TO PIPE
TURBOCHARGER<K51> 		8-97128-957-0 01 1 9505- ●
26 DUCT; AIR INT 8-97038-179-3 01 1 9112-9504 ● ●
26 DUCT; AIR INT 8-97038-179-3 01 1 9505-9601 ●
26 DUCT; AIR INT
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-179-3 01 1 9602-9607 ●
26 DUCT; AIR INT
EUROPE/CANARY EQUIPMENT(EK4) 		8-97133-651-1 01 1 9602-9607 ●
26 DUCT; AIR INT 8-97133-651-1 01 1 9608- ●
26 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER(K46) (A) 		8-97022-769-1 01 1 9112- ●
26 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER(K46) (B) 		8-97039-001-1 01 1 9112- ●
62 BOLT; AIR INT DUCT
(A),(B) M8X16 FLANGE 		0-28080-816-0 02 1 9112-9302 ● ●
62 BOLT; AIR INT DUCT
(A),(B) M8X16 FLANGE 		0-28080-816-0 02 1 9112-9302 ●
62 BOLT; AIR INT DUCT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9303-9504 ●
62 BOLT; AIR INT DUCT
TURBOCHARGER<K51> (A) M8X16 FLANGE 		0-28080-816-0 02 1 9505- ●
62 BOLT; AIR INT DUCT
(B) M8X16 FLANGE 		0-28480-816-0 02 1 9303-9501 ● ●
62 BOLT; AIR INT DUCT
(B) M8X16 FLANGE 		0-28480-816-0 01 1 9502-9504 ● ●
62 BOLT; AIR INT DUCT
(B) M8X16 FLANGE 		0-28480-816-0 01 1 9505- ●
62 BOLT; AIR INT DUCT
M6X16 		8-97020-619-0 02 1 9112- ●
88 CAP; RUBBER,AIR DUCT
EXC. EUROPE/CANARY EQUIPMENT(EK4) ID=5.4 		8-94156-209-0 01 1 9112-9504 ●
88 CAP; RUBBER,AIR DUCT
TURBOCHARGER<K51> EXC. EUROPE/CANARY EQUIPMENT(EK4) ID=5.4 		8-94156-209-0 01 1 9505- ●
193 COVER; DUCT,AIR INT
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97043-855-1 01 1 9112-9410 ● ●
193 COVER; DUCT,AIR INT
EXC. HEAVY DUTY AIR CLEANER(K46) 		8-97044-027-0 01 1 9112- ●
194 BOLT; DUCT COVER
EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X12 		0-28010-612-0 01 1 9112-9204 ● ●
194 BOLT; DUCT COVER
EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X12 FLANGE 		0-28080-612-0 01 1 9205-9410 ● ●
194 BOLT; DUCT COVER
EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X12 		0-28010-812-0 01 1 9112-9204 ● ●
194 BOLT; DUCT COVER
EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X12 FLANGE 		0-28080-812-0 01 1 9205-9410 ● ●
194 BOLT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER(K46) M6X16 W/LK WASHER 		9-01900-616-0 03 1 9112-9204 ●
194 BOLT; DUCT COVER
EXC. HEAVY DUTY AIR CLEANER(K46) M6X16 W/LK WASHER 		0-50040-616-0 03 1 9205- ●
198 NUT; CLAMP
EXC. EUROPE/CANARY EQUIPMENT(EK4) M8 FLANGE 		0-91150-108-0 04 1 9304-9504 ● ●
198 NUT; CLAMP
EXC. EUROPE/CANARY EQUIPMENT(EK4),SHIFT ON THE FLY(7EX) M8 FLANGE 		0-91150-108-0 04 1 9505- ●
209 BRACKET; ACL 8-94386-831-1 01 1 9112-9504 ● ●
209 BRACKET; ACL 8-94386-831-1 01 1 9505- ●
209 BRACKET; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-94480-336-2 01 1 9112- ●
467 COVER; UNDER,ENGINE
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97065-620-1 01 1 9112-9303 ● ●
467 COVER; UNDER,ENGINE
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97086-982-1 01 1 9304-9504 ● ●
467 COVER; UNDER,ENGINE
EXC. EUROPE/CANARY EQUIPMENT(EK4),SHIFT ON THE FLY(7EX) 		8-97086-982-1 01 1 9505- ●
468 BRACKET; UNDER COVER
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97065-668-1 01 1 9112-9203 ● ●
468 BRACKET; UNDER COVER
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97080-599-0 01 1 9204-9303 ● ●
469 BOLT; UNDER COVER
EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X12 FLANGE 		0-28080-812-0 02 1 9112-9303 ● ●
470 BOLT; BRKT
EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X16 		0-28010-616-0 01 1 9112-9204 ● ●
470 BOLT; BRKT
EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X16 FLANGE 		0-28080-616-0 01 1 9205-9303 ● ●
475 U-BOLT; UNDER COVER
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97087-000-0 02 1 9304-9504 ● ●
475 U-BOLT; UNDER COVER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SHIFT ON THE FLY(7EX) 		8-97087-000-0 02 1 9505- ●

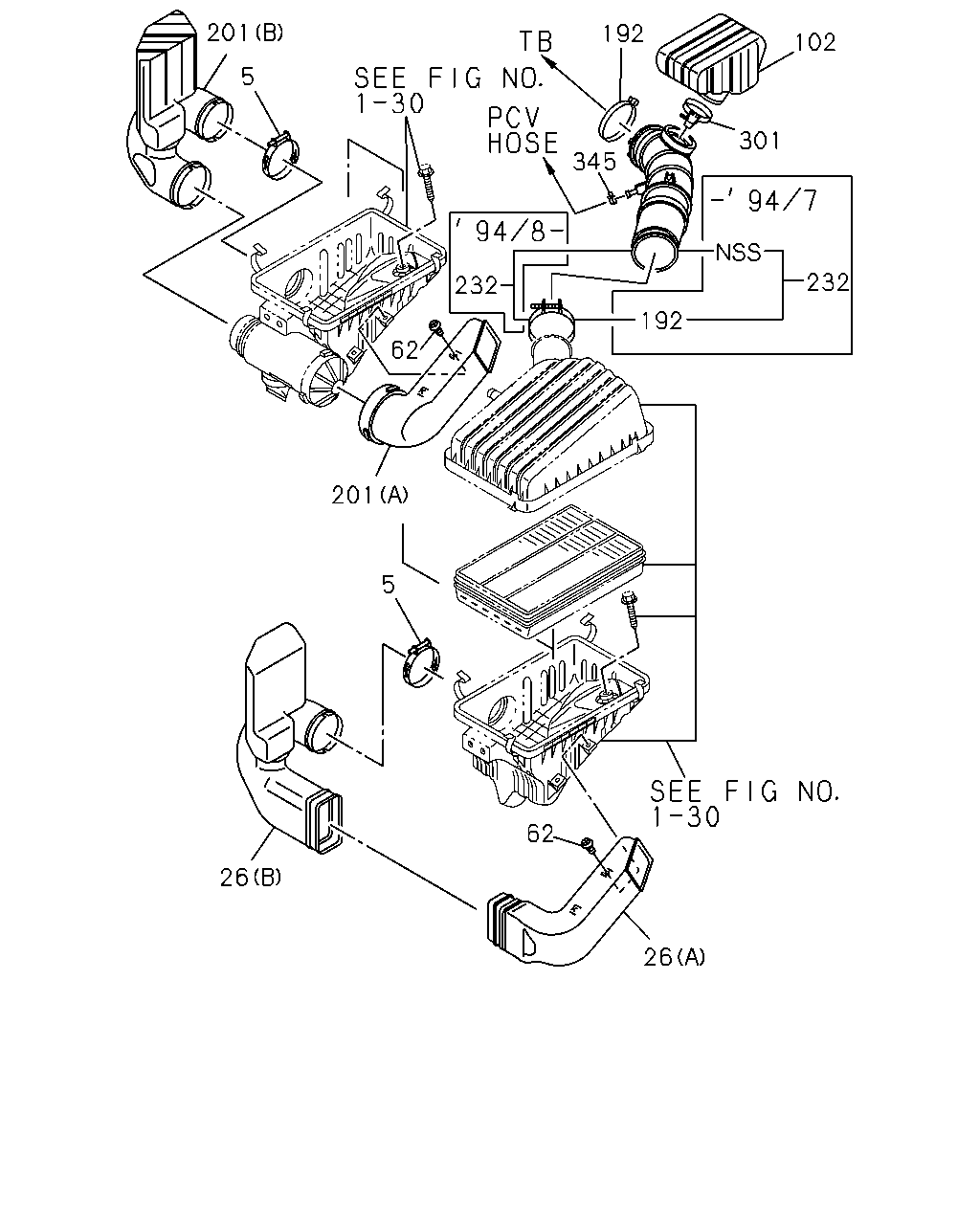

çizim 68596
201 192 102 5 345 301 232 232 62 192 201 5 62 26 26
BalonParca AdiParca NoAdetTipApplied Date A B C D
5 CLIP; AIR DUCT
(A) ID=75 		8-94158-977-0 01 1 9112-9208 ● ●
5 CLIP; AIR DUCT
(A) ID=58-79 		8-94126-771-0 01 1 9209-9504 ● ●
5 CLIP; AIR DUCT
(A) ID=58-79 		8-94126-771-0 01 1 9505- ●
5 CLIP; AIR DUCT
(B) ID=100 		8-94158-979-0 01 1 9112-9208 ● ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9209-9504 ● ●
5 CLIP; AIR DUCT
TURBOCHARGER<K51> (B) ID=77-95 		1-09707-114-0 01 1 9505-9602 ●
5 CLIP; AIR DUCT
(B) ID=77-95 		1-09707-114-0 01 1 9603- ●
5 CLIP; AIR DUCT
(E) D6X11 POP RIVET 		8-94298-119-0 01 1 9112-9504 ● ●
5 CLIP; AIR DUCT
(E) D6X11 POP RIVET 		8-94298-119-0 01 1 9505- ●
5 CLIP; AIR DUCT
(C) ID=48-68 		8-94158-976-0 01 1 9112-9208 ●
5 CLIP; AIR DUCT
(C) ID=50-69 		8-94316-991-0 01 1 9209-9504 ●
5 CLIP; AIR DUCT
TURBOCHARGER<K51> (C) ID=50-69 		8-94316-991-0 01 1 9505- ●
5 CLIP; AIR DUCT
(D) ID=82 		8-97014-301-0 01 1 9112-9208 ●
5 CLIP; AIR DUCT
(D) ID=68-85 		8-94320-428-0 01 1 9209-9504 ●
5 CLIP; AIR DUCT
TURBOCHARGER<K51> (D) ID=68-85 		8-94320-428-0 01 1 9505- ●
5 CLIP; AIR DUCT
EXC. EUROPE/CANARY EQUIPMENT(EK4) (F) ID=11 		8-94238-570-0 01 1 9112-9504 ●
5 CLIP; AIR DUCT
TURBOCHARGER<K51> EXC. EUROPE/CANARY EQUIPMENT(EK4) (F) ID=11 		8-94238-570-0 01 1 9505- ●
5 CLIP; AIR DUCT 8-94216-977-0 01 1 9112- ●
5 CLIP; AIR DUCT
ID=75 		8-94101-706-0 01 1 9112- ●
26 DUCT; AIR INT 8-97038-179-3 01 1 9112-9504 ● ●
26 DUCT; AIR INT 8-97038-179-3 01 1 9505-9601 ●
26 DUCT; AIR INT
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-179-3 01 1 9602-9607 ●
26 DUCT; AIR INT
EUROPE/CANARY EQUIPMENT(EK4) 		8-97133-651-1 01 1 9602-9607 ●
26 DUCT; AIR INT 8-97133-651-1 01 1 9608- ●
26 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER(K46) (A) 		8-97022-769-1 01 1 9112- ●
26 DUCT; AIR INT
EXC. HEAVY DUTY AIR CLEANER(K46) (B) 		8-97039-001-1 01 1 9112- ●
62 BOLT; AIR INT DUCT
(A),(B) M8X16 FLANGE 		0-28080-816-0 02 1 9112-9302 ● ●
62 BOLT; AIR INT DUCT
(A),(B) M8X16 FLANGE 		0-28080-816-0 02 1 9112-9302 ●
62 BOLT; AIR INT DUCT
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9303-9504 ●
62 BOLT; AIR INT DUCT
TURBOCHARGER<K51> (A) M8X16 FLANGE 		0-28080-816-0 02 1 9505- ●
62 BOLT; AIR INT DUCT
(B) M8X16 FLANGE 		0-28480-816-0 02 1 9303-9501 ● ●
62 BOLT; AIR INT DUCT
(B) M8X16 FLANGE 		0-28480-816-0 01 1 9502-9504 ● ●
62 BOLT; AIR INT DUCT
(B) M8X16 FLANGE 		0-28480-816-0 01 1 9505- ●
62 BOLT; AIR INT DUCT
M6X16 		8-97020-619-0 02 1 9112- ●
102 RESONATOR; AIR INT 8-97039-003-2 01 1 9112- ●
192 CLIP; HOSE
ID=65-70 		8-94126-769-0 02 1 9112-9407 ●
192 CLIP; HOSE
ID=65-70 		8-94126-769-0 01 1 9408- ●
201 DUCT; SUB ACL
HEAVY DUTY AIR CLEANER(K46) (B) 		8-97018-433-1 01 1 9112- ●
201 DUCT; SUB ACL
HEAVY DUTY AIR CLEANER(K46) (A) 		8-97018-434-0 01 1 9112- ●
232 HOSE; CONN 8-97039-004-2 01 1 9112-9407 ●
232 HOSE; CONN 8-97115-954-0 01 1 9408- ●
301 CLIP; HOSE,RESONATOR
ID=58-79 		8-94126-771-0 01 1 9112- ●
345 CLIP; PCV HOSE
(C) ID=13 & 16.5 		8-94169-028-0 01 1 9112-9209 ●
345 CLIP; PCV HOSE
(A) ID=14 		8-94238-572-0 01 1 9112- ●
345 CLIP; PCV HOSE
(B) ID=21 		8-94242-034-0 01 1 9112- ●
345 CLIP; PCV HOSE
ID=16 		8-94238-568-0 01 1 9112- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
