◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#33185) — 169 parça

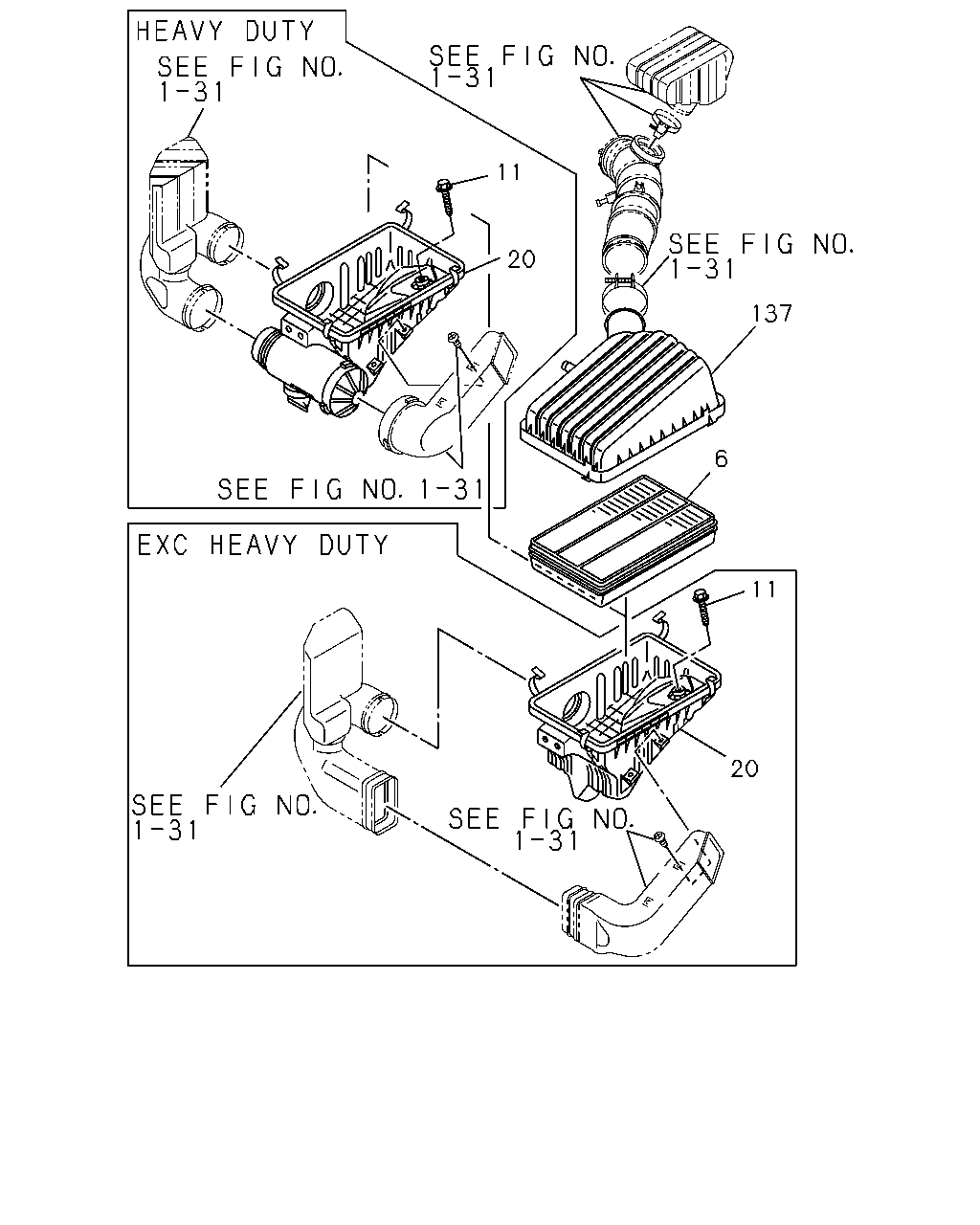

çizim 17212
11 20 137 6 11 20
BalonParca AdiParca NoAdetTipApplied Date A B C D
6 FILTER; ACL 8-97044-227-0 01 1 9112-9504 ●
6 FILTER; ACL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97044-227-0 01 1 9112-9504 ●
6 FILTER; ACL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97044-227-0 01 1 9505- ●
6 FILTER; ACL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97044-226-1 01 1 9112- ●
6 FILTER; ACL 8-94459-945-0 01 1 9112- ●
6 FILTER; ACL
EXC. HEAVY DUTY AIR CLEANER(K46) 		8-97035-303-0 01 1 9112- ●
6 FILTER; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-97039-002-0 01 1 9112- ●
11 BOLT; ACL
M8X32 W/PL WASHER 		8-97035-378-0 02 1 9112- ●
20 CASE ASM; ACL
HOT AIR INTAKE(RN4) 		8-94360-356-0 01 1 9112-9504 ●
20 CASE ASM; ACL
EXC. HEAVY DUTY AIR CLEANER(K46) 		8-97035-302-0 01 1 9112- ●
20 CASE ASM; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-97041-111-0 01 1 9112- ●
137 CAP; ACL 8-94374-738-0 01 1 9112- ●
çizim 65540
8 4 1 6 44 5 37 25 94 145 71
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR 8-97038-178-0 01 1 9112-9308 ●
1 CLEANER ASM; AIR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-178-0 01 1 9112-9308 ●
1 CLEANER ASM; AIR 8-97086-805-0 01 1 9309-9504 ●
1 CLEANER ASM; AIR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97086-805-0 01 1 9309-9504 ●
1 CLEANER ASM; AIR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97116-626-0 01 1 9505-9506 ●
1 CLEANER ASM; AIR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97086-805-2 01 1 9507- ●
1 CLEANER ASM; AIR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-177-0 01 1 9112-9308 ●
1 CLEANER ASM; AIR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97086-804-2 01 1 9309- ●
1 CLEANER ASM; AIR
CHINA EQUIPMENT(YT2) 		8-94340-063-0 01 1 9505- ●
1 CLEANER ASM; AIR
HOT AIR INTAKE(RN4) 		8-94475-047-2 01 1 9112-9504 ●
1 CLEANER ASM; AIR
HOT AIR INTAKE(RN4) EXC. CHINA EQUIPMENT(YT2) 		8-94475-047-2 01 1 9505- ●
1 CLEANER ASM; AIR
EXC. HOT AIR INTAKE(RN4) 		8-97039-442-0 01 1 9112-9504 ●
1 CLEANER ASM; AIR
EXC. HOT AIR INTAKE(RN4),CHINA EQUIPMENT(YT2) 		8-97039-442-0 01 1 9505- ●
4 GASKET; COVER TO BODY 8-94334-908-0 01 1 9112-9504 ● ●
4 GASKET; COVER TO BODY 8-94334-908-0 01 1 9505- ●
5 GASKET; ELEMENT 8-94334-910-0 01 1 9112-9504 ● ●
5 GASKET; ELEMENT 8-94334-910-0 01 1 9505- ●
5 GASKET; ELEMENT 8-94141-431-0 02 1 9112- ●
6 FILTER; ACL 8-97044-227-0 01 1 9112-9504 ●
6 FILTER; ACL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97044-227-0 01 1 9112-9504 ●
6 FILTER; ACL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97044-227-0 01 1 9505- ●
6 FILTER; ACL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97044-226-1 01 1 9112- ●
6 FILTER; ACL 8-94459-945-0 01 1 9112- ●
6 FILTER; ACL
EXC. HEAVY DUTY AIR CLEANER(K46) 		8-97035-303-0 01 1 9112- ●
6 FILTER; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-97039-002-0 01 1 9112- ●
8 COVER ASM; ACL 8-97046-901-0 01 1 9112-9504 ●
8 COVER ASM; ACL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97046-901-0 01 1 9112-9504 ●
8 COVER ASM; ACL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97046-901-0 01 1 9505- ●
8 COVER ASM; ACL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97046-902-0 01 1 9112-9308 ●
8 COVER ASM; ACL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97107-558-0 01 1 9309- ●
8 COVER ASM; ACL 8-94407-304-0 01 1 9112- ●
25 GASKET; CASE,ACL 8-94334-909-0 01 1 9112-9504 ● ●
25 GASKET; CASE,ACL 8-94334-909-0 01 1 9505- ●
37 RUBBER; MTG,ACL 8-94334-912-0 03 1 9112-9504 ● ●
37 RUBBER; MTG,ACL
EUROPE/CANARY EQUIPMENT(EK4) 		8-94334-912-0 03 1 9505-9506 ●
37 RUBBER; MTG,ACL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97112-955-0 03 1 9505-9506 ●
37 RUBBER; MTG,ACL 8-97112-955-0 03 1 9507-9604 ●
37 RUBBER; MTG,ACL 8-97146-135-0 03 1 9605- ●
44 BOLT; ACL
M6X30 		8-97032-128-0 03 1 9112-9504 ● ●
44 BOLT; ACL
M6X30 		8-97032-128-0 03 1 9505- ●
44 BOLT; ACL
M8X25 FLANGE 		0-28080-825-0 01 1 9112- ●
71 WASHER; PL,BRKT
ID=8.4 OD=18 		9-09160-608-0 02 1 9112-9504 ● ●
71 WASHER; PL,BRKT
ID=8.4 OD=18 		9-09160-608-0 02 1 9505- ●
94 VALVE; VACUATOR 8-94447-157-0 01 1 9112-9504 ● ●
94 VALVE; VACUATOR 8-94447-157-0 01 1 9505- ●
145 BOLT; BRKT TO FRAME
M8X14 FLANGE 		0-28080-814-0 03 1 9112-9302 ● ●
145 BOLT; BRKT TO FRAME
M8X16 FLANGE 		0-28480-816-0 03 1 9303-9504 ● ●
145 BOLT; BRKT TO FRAME
M8X16 FLANGE 		0-28480-816-0 03 1 9505- ●

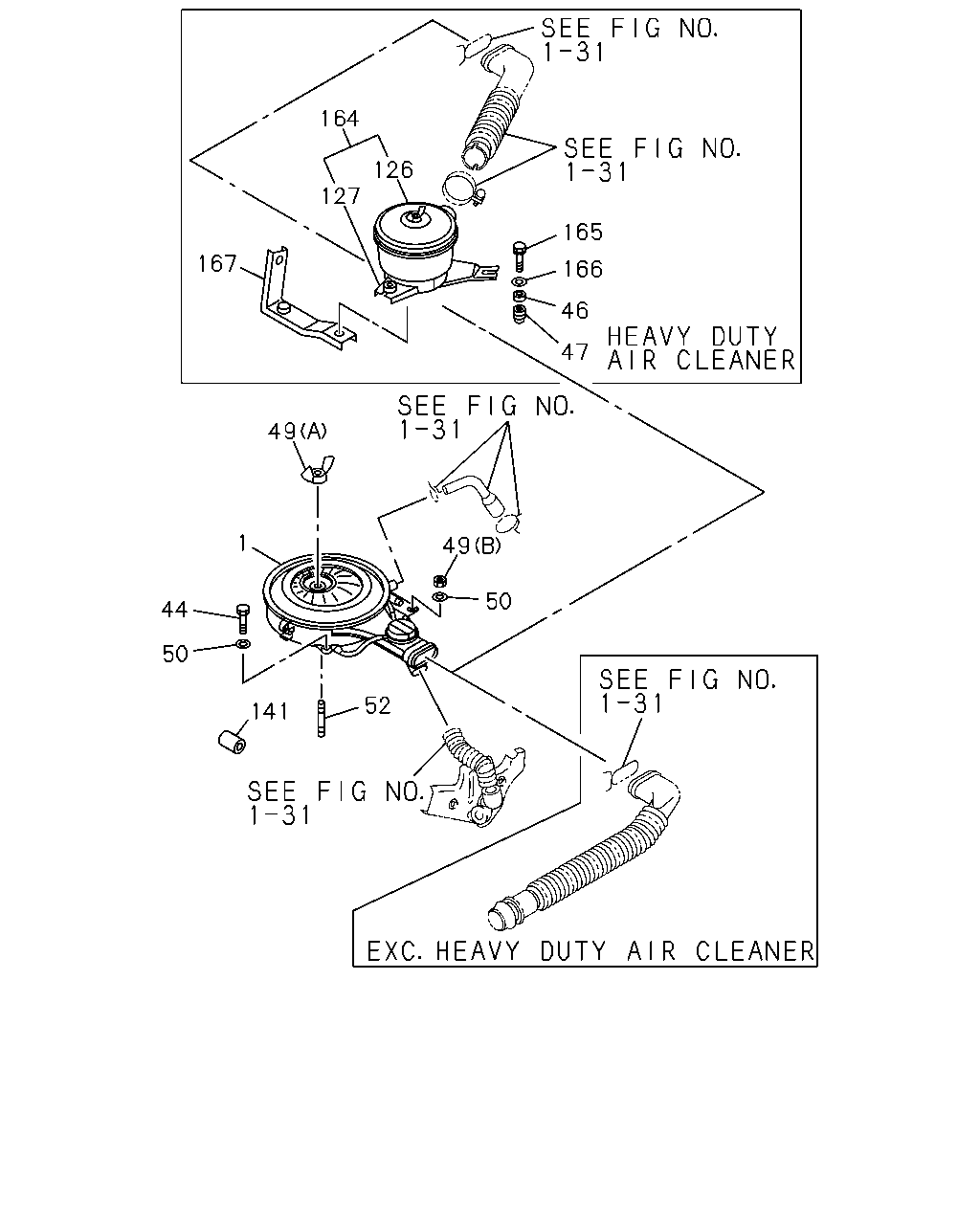

çizim 65658
164 126 127 165 167 166 46 47 49 49 1 50 44 50 52 141
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR 8-97038-178-0 01 1 9112-9308 ●
1 CLEANER ASM; AIR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-178-0 01 1 9112-9308 ●
1 CLEANER ASM; AIR 8-97086-805-0 01 1 9309-9504 ●
1 CLEANER ASM; AIR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97086-805-0 01 1 9309-9504 ●
1 CLEANER ASM; AIR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97116-626-0 01 1 9505-9506 ●
1 CLEANER ASM; AIR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97086-805-2 01 1 9507- ●
1 CLEANER ASM; AIR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-177-0 01 1 9112-9308 ●
1 CLEANER ASM; AIR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97086-804-2 01 1 9309- ●
1 CLEANER ASM; AIR
CHINA EQUIPMENT(YT2) 		8-94340-063-0 01 1 9505- ●
1 CLEANER ASM; AIR
HOT AIR INTAKE(RN4) 		8-94475-047-2 01 1 9112-9504 ●
1 CLEANER ASM; AIR
HOT AIR INTAKE(RN4) EXC. CHINA EQUIPMENT(YT2) 		8-94475-047-2 01 1 9505- ●
1 CLEANER ASM; AIR
EXC. HOT AIR INTAKE(RN4) 		8-97039-442-0 01 1 9112-9504 ●
1 CLEANER ASM; AIR
EXC. HOT AIR INTAKE(RN4),CHINA EQUIPMENT(YT2) 		8-97039-442-0 01 1 9505- ●
44 BOLT; ACL
M6X30 		8-97032-128-0 03 1 9112-9504 ● ●
44 BOLT; ACL
M6X30 		8-97032-128-0 03 1 9505- ●
44 BOLT; ACL
M8X25 FLANGE 		0-28080-825-0 01 1 9112- ●
46 COLLAR; MTG RUBBER,ACL
HEAVY DUTY AIR CLEANER(K46) 		8-94209-014-0 01 1 9112- ●
47 CUSHION; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-94319-428-0 01 1 9112- ●
49 NUT; ACL
(B) M8 FLANGE 		0-91150-108-0 01 1 9112- ●
49 NUT; ACL
(A) M8 WING 		8-94111-617-0 01 1 9112- ●
50 WASHER; PL,ACL
ID=8.4 OD=26 		9-09164-808-0 02 1 9112- ●
52 STUD; ACL
M8X28 L=40 		9-04110-828-0 01 1 9112- ●
126 CYCLONE; PRE ACL
HEAVY DUTY AIR CLEANER(K46) 		8-94341-804-0 01 1 9112- ●
127 BRACKET; PRE ACL
HEAVY DUTY AIR CLEANER(K46) 		8-94341-805-0 01 1 9112- ●
141 CAP; RUBBER,ACL
EXC. HOT AIR INTAKE(RN4) ID=4 		8-94217-809-0 01 1 9112-9504 ●
141 CAP; RUBBER,ACL
EXC. HOT AIR INTAKE(RN4),CHINA EQUIPMENT(YT2) ID=4 		8-94217-809-0 01 1 9505- ●
164 CLEANER ASM; AIR,SUB
HEAVY DUTY AIR CLEANER(K46) 		8-94475-016-2 01 1 9112- ●
165 BOLT; SUB ACL
HEAVY DUTY AIR CLEANER(K46) M6X35 W/LK WASHER 		9-01900-635-0 02 1 9112-9204 ●
165 BOLT; SUB ACL
HEAVY DUTY AIR CLEANER(K46) M6X35 W/LK WASHER 		0-50040-635-0 02 1 9205- ●
165 BOLT; SUB ACL
HEAVY DUTY AIR CLEANER(K46) M8X14 W/LK WASHER 		9-01900-814-0 02 1 9112-9204 ●
165 BOLT; SUB ACL
HEAVY DUTY AIR CLEANER(K46) M8X14 W/LK WASHER 		0-50040-814-0 02 1 9205- ●
165 BOLT; SUB ACL
HEAVY DUTY AIR CLEANER(K46) M8X35 W/LK WASHER 		9-01900-835-0 01 1 9112-9204 ●
165 BOLT; SUB ACL
HEAVY DUTY AIR CLEANER(K46) M8X35 W/LK WASHER 		0-50040-835-0 01 1 9205- ●
166 WASHER; LK,SUB ACL
HEAVY DUTY AIR CLEANER(K46) ID=8.4 OD=26 		9-09164-808-0 03 1 9112- ●
167 BRACKET; SUB ACL
HEAVY DUTY AIR CLEANER(K46) 		8-94340-458-0 01 1 9112- ●

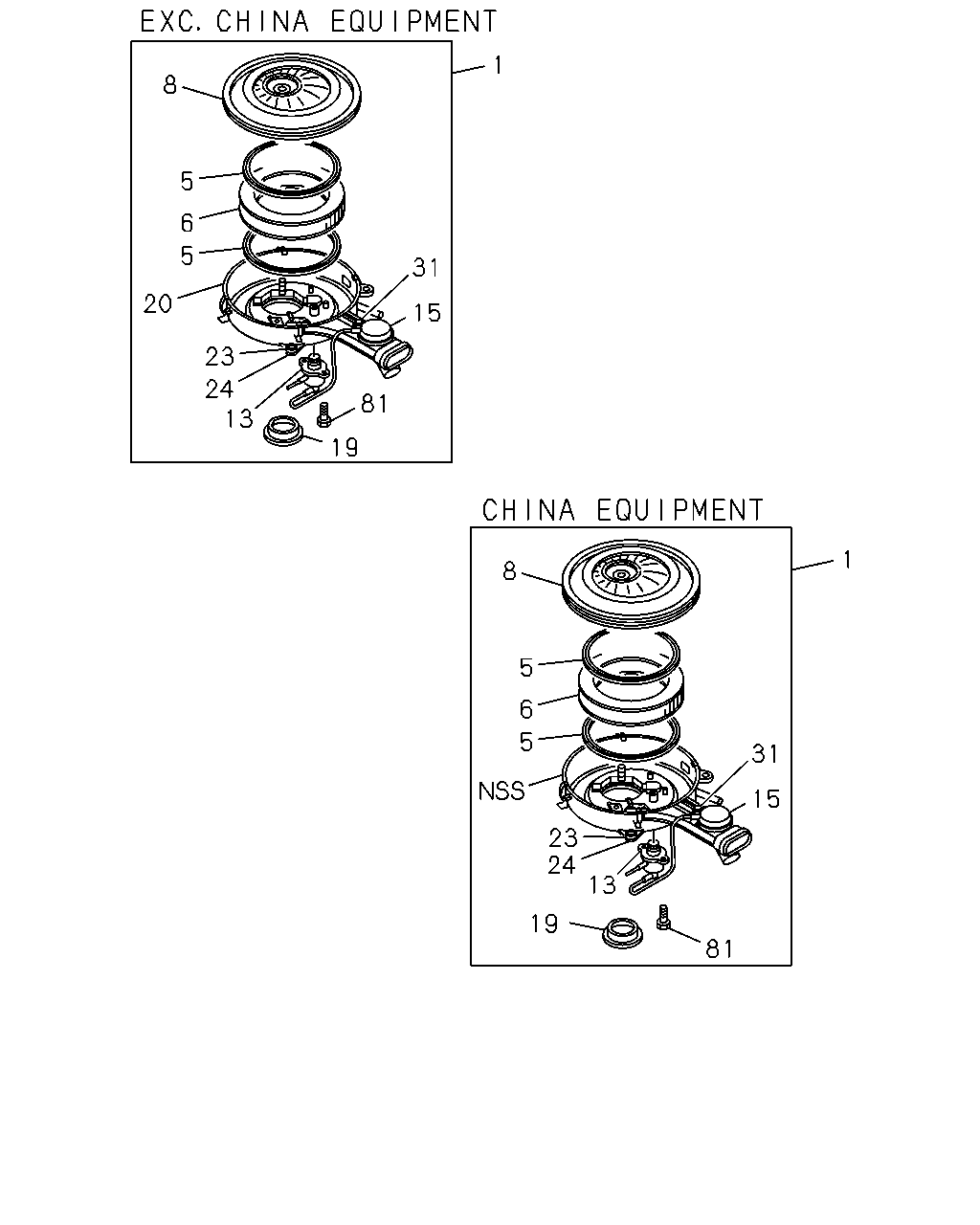

çizim 65659
1 8 5 6 5 31 20 15 23 24 13 81 19 1 8 5 6 5 31 15 23 24 13 19 81
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR 8-97038-178-0 01 1 9112-9308 ●
1 CLEANER ASM; AIR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-178-0 01 1 9112-9308 ●
1 CLEANER ASM; AIR 8-97086-805-0 01 1 9309-9504 ●
1 CLEANER ASM; AIR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97086-805-0 01 1 9309-9504 ●
1 CLEANER ASM; AIR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97116-626-0 01 1 9505-9506 ●
1 CLEANER ASM; AIR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97086-805-2 01 1 9507- ●
1 CLEANER ASM; AIR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-177-0 01 1 9112-9308 ●
1 CLEANER ASM; AIR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97086-804-2 01 1 9309- ●
1 CLEANER ASM; AIR
CHINA EQUIPMENT(YT2) 		8-94340-063-0 01 1 9505- ●
1 CLEANER ASM; AIR
HOT AIR INTAKE(RN4) 		8-94475-047-2 01 1 9112-9504 ●
1 CLEANER ASM; AIR
HOT AIR INTAKE(RN4) EXC. CHINA EQUIPMENT(YT2) 		8-94475-047-2 01 1 9505- ●
1 CLEANER ASM; AIR
EXC. HOT AIR INTAKE(RN4) 		8-97039-442-0 01 1 9112-9504 ●
1 CLEANER ASM; AIR
EXC. HOT AIR INTAKE(RN4),CHINA EQUIPMENT(YT2) 		8-97039-442-0 01 1 9505- ●
5 GASKET; ELEMENT 8-94334-910-0 01 1 9112-9504 ● ●
5 GASKET; ELEMENT 8-94334-910-0 01 1 9505- ●
5 GASKET; ELEMENT 8-94141-431-0 02 1 9112- ●
6 FILTER; ACL 8-97044-227-0 01 1 9112-9504 ●
6 FILTER; ACL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97044-227-0 01 1 9112-9504 ●
6 FILTER; ACL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97044-227-0 01 1 9505- ●
6 FILTER; ACL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97044-226-1 01 1 9112- ●
6 FILTER; ACL 8-94459-945-0 01 1 9112- ●
6 FILTER; ACL
EXC. HEAVY DUTY AIR CLEANER(K46) 		8-97035-303-0 01 1 9112- ●
6 FILTER; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-97039-002-0 01 1 9112- ●
8 COVER ASM; ACL 8-97046-901-0 01 1 9112-9504 ●
8 COVER ASM; ACL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97046-901-0 01 1 9112-9504 ●
8 COVER ASM; ACL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97046-901-0 01 1 9505- ●
8 COVER ASM; ACL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97046-902-0 01 1 9112-9308 ●
8 COVER ASM; ACL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97107-558-0 01 1 9309- ●
8 COVER ASM; ACL 8-94407-304-0 01 1 9112- ●
13 VALVE; THERMO,ACL 8-94237-155-0 01 1 9112- ●
15 DIAPHRAGM; VAC,ACL
HOT AIR INTAKE(RN4) 		8-94402-439-0 01 1 9112- ●
19 GASKET; ACL TO CARB 8-94237-154-0 01 1 9112- ●
20 CASE ASM; ACL
HOT AIR INTAKE(RN4) 		8-94360-356-0 01 1 9112-9504 ●
20 CASE ASM; ACL
EXC. HEAVY DUTY AIR CLEANER(K46) 		8-97035-302-0 01 1 9112- ●
20 CASE ASM; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-97041-111-0 01 1 9112- ●
23 COLLAR; ACL STAY 8-94407-303-0 02 1 9112- ●
24 GROMMET; ACL STAY 8-94407-302-0 02 1 9112- ●
31 SCREW; ACL
HOT AIR INTAKE(RN4) 		1-81229-488-0 02 1 9112- ●
81 SCREW; ACL
HOT AIR INTAKE(RN4) M5X16 W/LK&PL WASHER 		9-03920-516-0 02 1 9112- ●

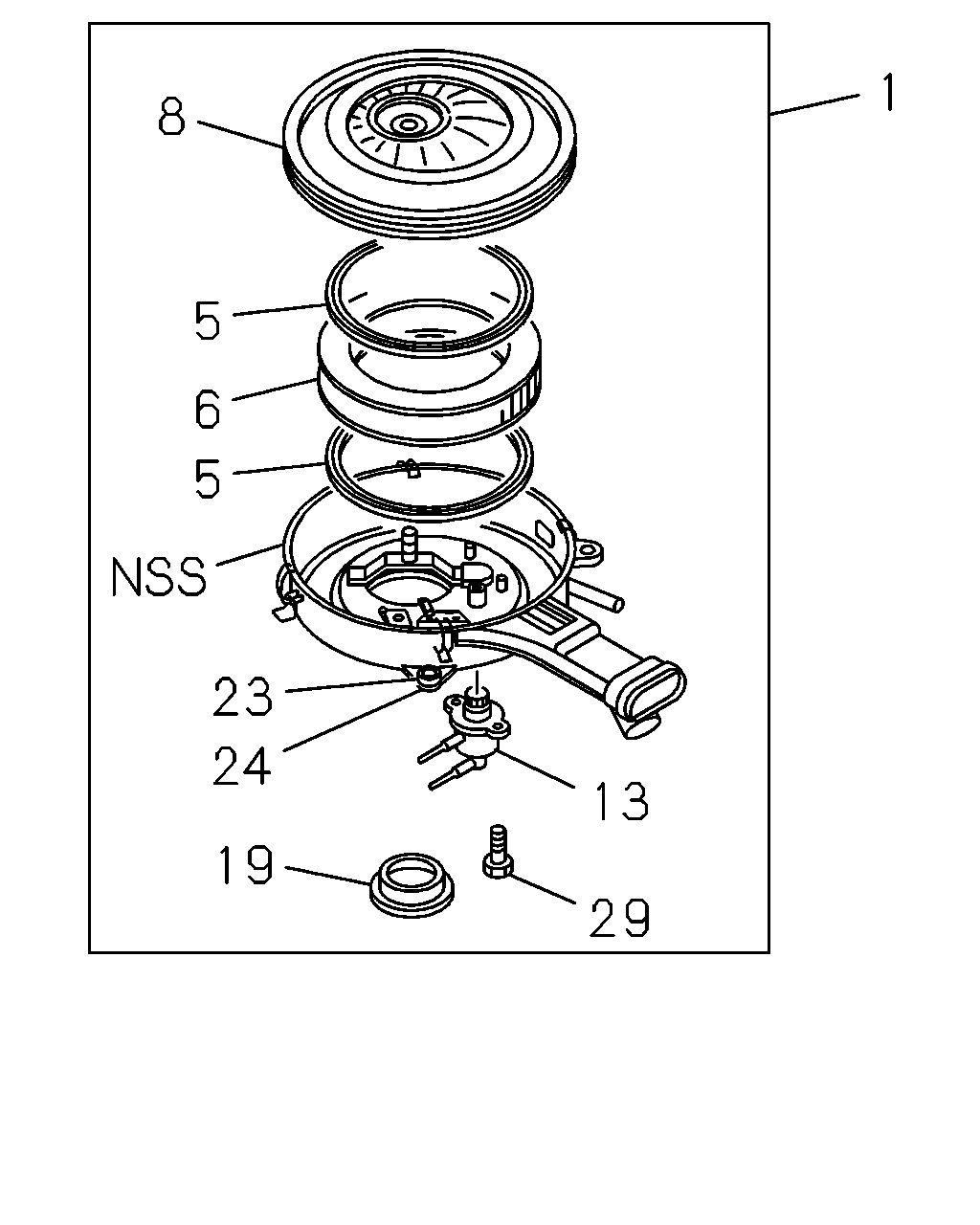

çizim 65661
1 8 5 6 5 23 24 13 19 29
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR 8-97038-178-0 01 1 9112-9308 ●
1 CLEANER ASM; AIR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-178-0 01 1 9112-9308 ●
1 CLEANER ASM; AIR 8-97086-805-0 01 1 9309-9504 ●
1 CLEANER ASM; AIR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97086-805-0 01 1 9309-9504 ●
1 CLEANER ASM; AIR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97116-626-0 01 1 9505-9506 ●
1 CLEANER ASM; AIR
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97086-805-2 01 1 9507- ●
1 CLEANER ASM; AIR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97038-177-0 01 1 9112-9308 ●
1 CLEANER ASM; AIR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97086-804-2 01 1 9309- ●
1 CLEANER ASM; AIR
CHINA EQUIPMENT(YT2) 		8-94340-063-0 01 1 9505- ●
1 CLEANER ASM; AIR
HOT AIR INTAKE(RN4) 		8-94475-047-2 01 1 9112-9504 ●
1 CLEANER ASM; AIR
HOT AIR INTAKE(RN4) EXC. CHINA EQUIPMENT(YT2) 		8-94475-047-2 01 1 9505- ●
1 CLEANER ASM; AIR
EXC. HOT AIR INTAKE(RN4) 		8-97039-442-0 01 1 9112-9504 ●
1 CLEANER ASM; AIR
EXC. HOT AIR INTAKE(RN4),CHINA EQUIPMENT(YT2) 		8-97039-442-0 01 1 9505- ●
5 GASKET; ELEMENT 8-94334-910-0 01 1 9112-9504 ● ●
5 GASKET; ELEMENT 8-94334-910-0 01 1 9505- ●
5 GASKET; ELEMENT 8-94141-431-0 02 1 9112- ●
6 FILTER; ACL 8-97044-227-0 01 1 9112-9504 ●
6 FILTER; ACL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97044-227-0 01 1 9112-9504 ●
6 FILTER; ACL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97044-227-0 01 1 9505- ●
6 FILTER; ACL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97044-226-1 01 1 9112- ●
6 FILTER; ACL 8-94459-945-0 01 1 9112- ●
6 FILTER; ACL
EXC. HEAVY DUTY AIR CLEANER(K46) 		8-97035-303-0 01 1 9112- ●
6 FILTER; ACL
HEAVY DUTY AIR CLEANER(K46) 		8-97039-002-0 01 1 9112- ●
8 COVER ASM; ACL 8-97046-901-0 01 1 9112-9504 ●
8 COVER ASM; ACL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97046-901-0 01 1 9112-9504 ●
8 COVER ASM; ACL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97046-901-0 01 1 9505- ●
8 COVER ASM; ACL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97046-902-0 01 1 9112-9308 ●
8 COVER ASM; ACL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97107-558-0 01 1 9309- ●
8 COVER ASM; ACL 8-94407-304-0 01 1 9112- ●
13 VALVE; THERMO,ACL 8-94237-155-0 01 1 9112- ●
19 GASKET; ACL TO CARB 8-94237-154-0 01 1 9112- ●
23 COLLAR; ACL STAY 8-94407-303-0 02 1 9112- ●
24 GROMMET; ACL STAY 8-94407-302-0 02 1 9112- ●
29 SCREW; WASHER,ACL
EXC. HOT AIR INTAKE(RN4) M5X16 W/LK&PL WASHER 		9-03920-516-0 02 1 9112-9504 ●
29 SCREW; WASHER,ACL
EXC. HOT AIR INTAKE(RN4),CHINA EQUIPMENT(YT2) M5X16 W/LK&PL WASHER 		9-03920-516-0 02 1 9505- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
