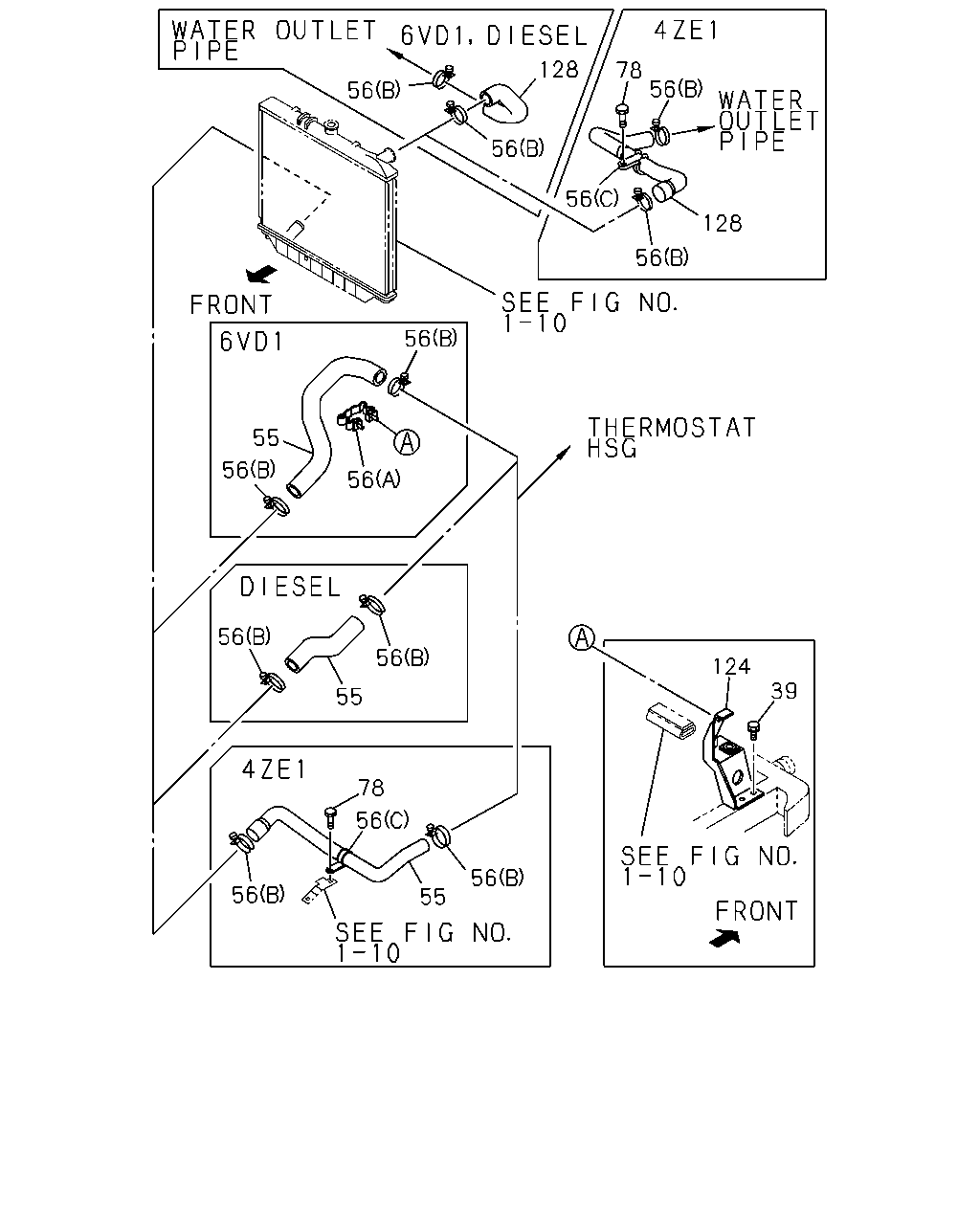

1-11 — RADIATOR HOSE AND SUB TANK (#33184) — 57 parça

128 78 56 56 56 56 128 56 56 55 56 56 56 56 124 39 55 78 56 56 56 55

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
39	BOLT; BRKT FIX M6X16	0-28410-616-0	02	1	9112-9204	●
39	BOLT; BRKT FIX M6X16 FLANGE	0-28480-616-0	02	1	9205-	●
55	HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	9112-9504		●	●
55	HOSE; WATER,RAD OUTLET	8-94375-170-2	01	1	9505-		●
55	HOSE; WATER,RAD OUTLET	8-94375-169-0	01	1	9112-				●
55	HOSE; WATER,RAD OUTLET	8-94375-171-1	01	1	9112-	●
56	CLIP; WATER HOSE,RAD (B) ID=48	5-09704-049-0	03	1	9112-9206		●	●
56	CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	03	1	9207-9504		●	●
56	CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	03	1	9505-		●
56	CLIP; WATER HOSE,RAD (B) ID=42	9-09915-042-1	01	1	9112-9504		●	●	●
56	CLIP; WATER HOSE,RAD (B) ID=42	9-09915-042-1	01	1	9505-		●		●
56	CLIP; WATER HOSE,RAD (B) ID=48	5-09704-049-0	02	1	9112-9206				●
56	CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	02	1	9207-				●
56	CLIP; WATER HOSE,RAD (C)	8-97021-824-1	02	1	9112-				●
56	CLIP; WATER HOSE,RAD (B) ID=45	9-09915-281-1	01	1	9112-9208				●
56	CLIP; WATER HOSE,RAD (B) ID=44	1-09704-077-0	01	1	9209-				●
56	CLIP; WATER HOSE,RAD (A) ID=46	8-97023-235-1	01	1	9112-	●
56	CLIP; WATER HOSE,RAD (B) ID=48	9-09915-512-1	04	1	9112-	●
78	BOLT; CLIP,HOSE M6X12 W/LK WASHER	9-01900-612-0	02	1	9112-9204				●
78	BOLT; CLIP,HOSE M6X12 W/LK WASHER	0-50040-612-0	02	1	9205-				●
124	BRACKET; PIPE	8-97023-161-5	01	1	9112-9504	●
124	BRACKET; PIPE	8-97023-161-5	01	1	9505-	●
128	HOSE; WATER,RAD INL	8-94375-167-1	01	1	9112-9504		●	●
128	HOSE; WATER,RAD INL	8-94375-167-1	01	1	9505-9611		●
128	HOSE; WATER,RAD INL EUROPE/CANARY EQUIPMENT(EK4)	8-94375-167-1	01	1	9612-		●
128	HOSE; WATER,RAD INL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97170-822-0	01	1	9612-		●
128	HOSE; WATER,RAD INL	8-94375-166-1	01	1	9112-				●
128	HOSE; WATER,RAD INL	8-94375-168-2	01	1	9112-9611	●
128	HOSE; WATER,RAD INL EUROPE/CANARY EQUIPMENT(EK4)	8-94375-168-2	01	1	9612-	●
128	HOSE; WATER,RAD INL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97164-267-0	01	1	9612-9612	●
128	HOSE; WATER,RAD INL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97174-843-0	01	1	9701-	●

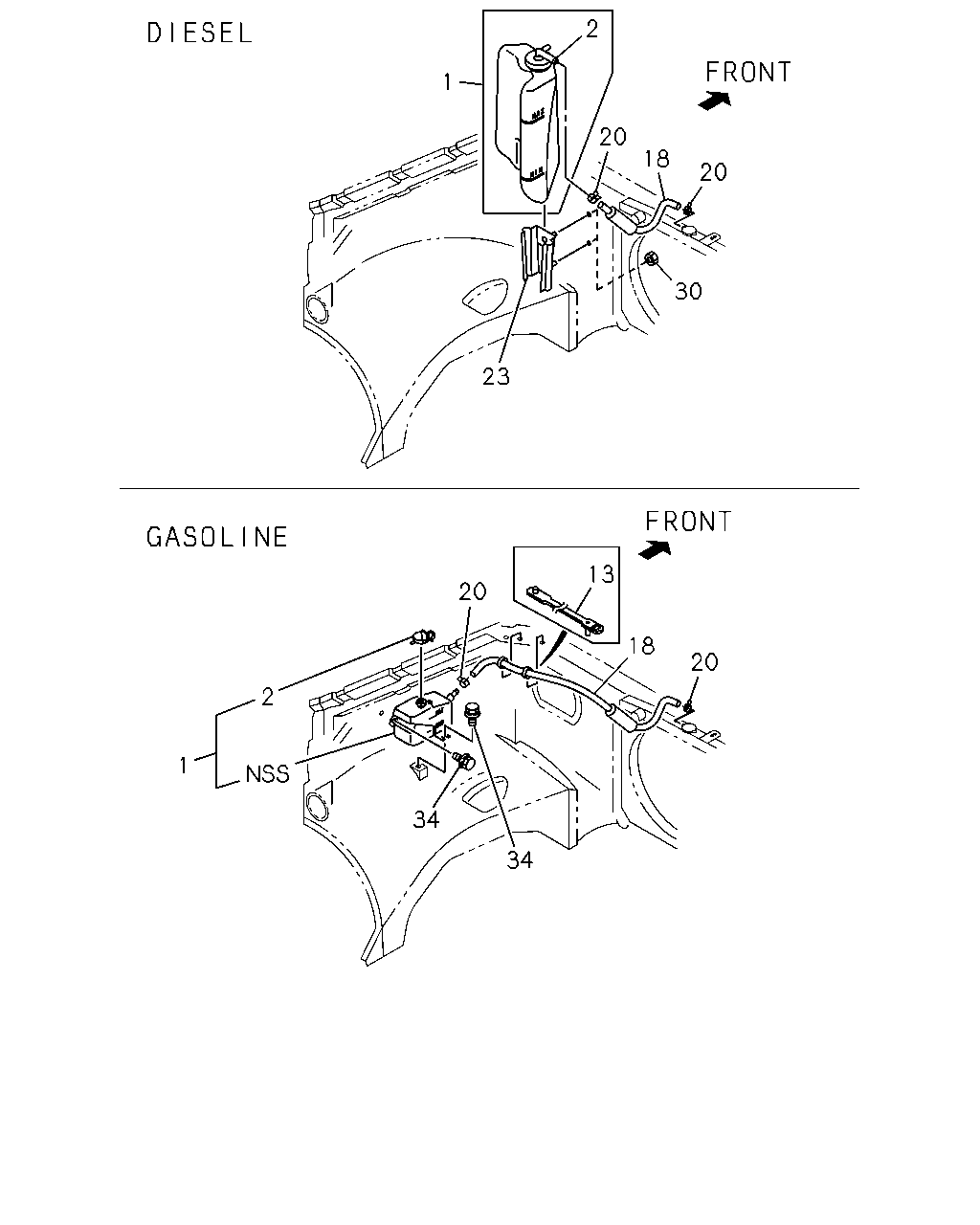

2 1 20 18 20 30 23 13 20 18 20 2 1 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK; SURGE,RAD	8-97039-036-4	01	1	9112-9504		●	●
1	TANK; SURGE,RAD	8-97039-036-5	01	1	9505-		●
1	TANK; SURGE,RAD	8-97032-681-1	01	1	9112-9208	●			●
1	TANK; SURGE,RAD	8-97079-229-1	01	1	9209-9307	●			●
1	TANK; SURGE,RAD	8-97101-189-0	01	1	9308-9410	●			●
1	TANK; SURGE,RAD	8-97101-191-1	01	1	9411-	●			●
2	CAP; SURGE TANK	8-97064-897-0	01	1	9112-9504		●	●
2	CAP; SURGE TANK	8-97064-897-0	01	1	9505-		●
2	CAP; SURGE TANK	8-94449-363-0	01	1	9112-9307	●			●
2	CAP; SURGE TANK	8-97100-665-0	01	1	9308-9506	●			●
2	CAP; SURGE TANK	8-97130-964-0	01	1	9507-	●			●
13	CLIP; HOSE,SURGE TANK L=103	8-94239-339-0	02	1	9112-	●			●
18	HOSE; RAD TO SURGE TANK L=350 W/INSULATOR	8-97039-297-1	01	1	9112-9504		●	●
18	HOSE; RAD TO SURGE TANK L=350 W/INSULATOR	8-97039-297-2	01	1	9505-		●
18	HOSE; RAD TO SURGE TANK L=970 W/INSULATOR	8-97031-889-2	01	1	9112-9705	●			●
18	HOSE; RAD TO SURGE TANK EUROPE/CANARY EQUIPMENT(EK4) L=970 W/INSULATOR	8-97031-889-2	01	1	9706-9708	●			●
18	HOSE; RAD TO SURGE TANK L=970 W/INSULATOR	8-97031-889-2	01	1	9709-				●
18	HOSE; RAD TO SURGE TANK EUROPE/CANARY EQUIPMENT(EK4) L=970 W/INSULATOR	8-97031-889-2	01	1	9709-	●
18	HOSE; RAD TO SURGE TANK EXC. EUROPE/CANARY EQUIPMENT(EK4) L=990 W/INSULATOR	8-97174-766-0	01	1	9706-	●
20	CLIP; HOSE,RAD ID=12	8-94238-610-0	02	1	9112-	●	●	●	●
23	BRACKET; RESERVE TANK	8-97043-993-1	01	1	9112-9504		●	●
23	BRACKET; RESERVE TANK	8-97043-993-1	01	1	9505-		●
30	NUT M8 FLANGE	0-91150-108-0	02	1	9112-9504		●	●
30	NUT M8 FLANGE	0-91150-108-0	02	1	9505-		●
34	BOLT; RESERVE TANK M8X25	8-97017-390-0	02	1	9112-9301	●			●
34	BOLT; RESERVE TANK M8X25	8-97091-076-0	02	1	9302-	●			●
