◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-05 - AUTO CRUISE ACTUATOR ▶
1-05 — AUTO CRUISE ACTUATOR (#33182) — 21 parça

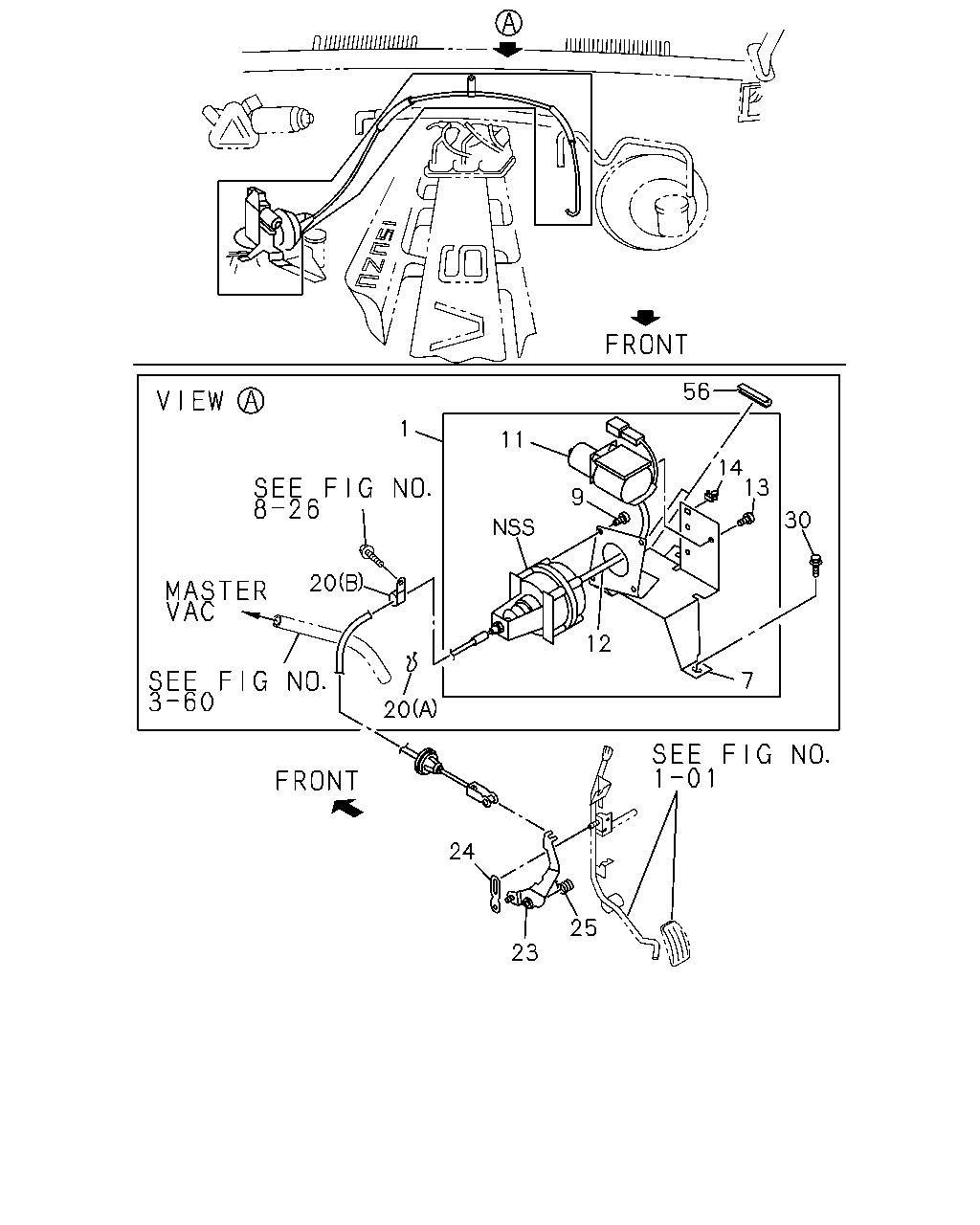

çizim 66066
56 1 11 14 13 30 9 20 12 20 7 24 25 23
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 ACTUATOR UNIT; CRUISE
AUTO CRUISE CONT<K30> 		8-97049-009-2 01 1 9112-9210 ● ● ● ●
1 ACTUATOR UNIT; CRUISE
AUTO CRUISE CONT<K30> 		8-97090-306-2 01 1 9211- ● ● ● ●
7 BRACKET; C ACTUATOR
AUTO CRUISE CONT<K30> 		8-97049-010-0 01 1 9112-9205 ● ● ● ●
7 BRACKET; C ACTUATOR
AUTO CRUISE CONT<K30> 		8-97072-518-0 01 1 9206- ● ● ● ●
9 SCREW; RR BRKT ACTUATOR
AUTO CRUISE CONT<K30> 		8-94376-368-0 08 1 9112-9210 ● ● ● ●
9 SCREW; RR BRKT ACTUATOR
AUTO CRUISE CONT<K30> 		8-94376-368-0 07 1 9211-9311 ● ● ● ●
9 SCREW; RR BRKT ACTUATOR
AUTO CRUISE CONT<K30> 		8-97100-134-0 07 1 9312- ● ● ● ●
11 PUMP; ACTUATOR
AUTO CRUISE CONT<K30> 		8-97013-983-0 01 1 9112- ● ● ● ●
12 HOSE; VAC,ACTUATOR
AUTO CRUISE CONT<K30> 		8-97066-193-0 01 1 9112- ● ● ● ●
13 SCREW; PUMP TO BRKT
AUTO CRUISE CONT<K30> 		8-94389-392-0 03 1 9112-9311 ● ● ● ●
13 SCREW; PUMP TO BRKT
AUTO CRUISE CONT<K30> 		8-97100-131-0 03 1 9312- ● ● ● ●
14 CLIP; HOSE
AUTO CRUISE CONT<K30> 		8-94456-949-0 01 1 9112- ● ● ● ●
20 CLIP; CRUISE CABLE
AUTO CRUISE CONT<K30> (B) ID=25 		8-94120-831-0 01 1 9112- ● ● ● ●
20 CLIP; CRUISE CABLE
AUTO CRUISE CONT<K30> (A) ID=7 L=16 		9-09524-622-0 01 1 9112- ● ● ● ●
23 LEVER; CRUISE
AUTO CRUISE CONT<K30> 		8-97061-864-1 01 1 9112-9502 ●
23 LEVER; CRUISE
AUTO CRUISE CONT<K30> 		8-97117-102-0 01 1 9503- ●
24 LINK; CRUISE
AUTO CRUISE CONT<K30> 		8-94476-217-1 01 1 9112- ●
25 SPRING; RETURN,CRUISE LEVER
AUTO CRUISE CONT<K30> 		8-94478-007-1 01 1 9112- ●
30 BOLT; ACTUATOR
AUTO CRUISE CONT<K30> M6X16 		0-28410-616-0 01 1 9112-9204 ● ● ● ●
30 BOLT; ACTUATOR
AUTO CRUISE CONT<K30> M6X16 FLANGE 		0-28480-616-0 01 1 9205- ● ● ● ●
56 PROTECTOR
AUTO CRUISE CONT<K30> 		8-94443-353-0 02 1 9309-9607 ● ● ● ●
