◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#33181) — 66 parça

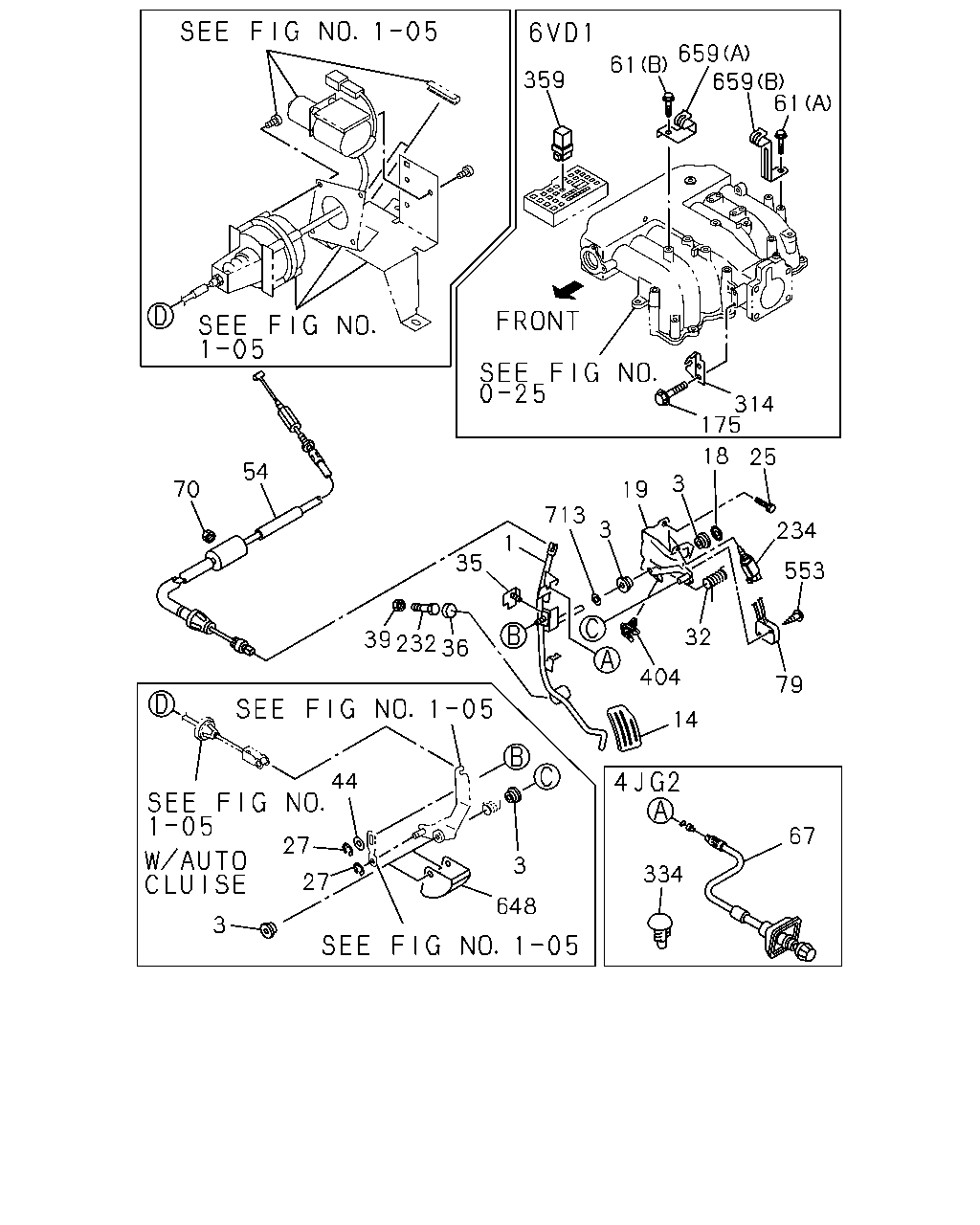

çizim 19340
659 61 659 61 359 314 175 54 3 70 19 713 3 234 1 35 553 32 39 232 36 404 79 14 44 67 27 3 334 27 648 3 1 18 25
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 LEVER; PEDAL SIDE
EXC. AUTO CRUISE CONT<K30> 		8-97035-025-1 01 1 9112-9504 ● ● ● ●
1 LEVER; PEDAL SIDE
EXC. AUTO CRUISE CONT<K30> 		8-97035-025-2 01 1 9505- ● ● ●
1 LEVER; PEDAL SIDE
AUTO CRUISE CONT<K30> 		8-97035-026-2 01 1 9112- ●
3 BUSHING; PEDAL
EXC. AUTO CRUISE CONT<K30> OD=9.9 		8-94279-701-3 02 1 9112-9504 ● ● ● ●
3 BUSHING; PEDAL
AUTO CRUISE CONT<K30> OD=9.9 		8-94279-701-3 04 1 9112-9504 ●
14 PAD; PEDAL,ACCEL 8-97044-894-1 01 1 9112-9504 ● ● ● ●
14 PAD; PEDAL,ACCEL 8-97044-894-2 01 1 9505- ● ● ●
18 NUT; JOINT LK
D=17.5 		8-94368-617-0 01 1 9112-9504 ● ● ● ●
18 NUT; JOINT LK
D=17.5 		8-94368-617-0 01 1 9505- ● ● ●
19 BRACKET; ACCEL PEDAL
EXC. AUTO CRUISE CONT<K30> 		8-97063-839-2 01 1 9112-9502 ● ● ● ●
19 BRACKET; ACCEL PEDAL
EXC. AUTO CRUISE CONT<K30> 		8-97117-115-0 01 1 9503-9504 ● ● ● ●
19 BRACKET; ACCEL PEDAL
EXC. EUROPE/CANARY EQUIPMENT(EK4),AUTO CRUISE CONT<K30> 		8-97121-026-1 01 1 9505- ● ● ●
19 BRACKET; ACCEL PEDAL
EUROPE/CANARY EQUIPMENT(EK4) EXC. AUTO CRUISE CONT<K30> 		8-97131-827-1 01 1 9505- ●
19 BRACKET; ACCEL PEDAL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97131-827-1 01 1 9505- ●
19 BRACKET; ACCEL PEDAL
AUTO CRUISE CONT<K30> 		8-97064-882-2 01 1 9112-9502 ●
19 BRACKET; ACCEL PEDAL
AUTO CRUISE CONT<K30> 		8-97117-116-0 01 1 9503-9504 ●
19 BRACKET; ACCEL PEDAL
AUTO CRUISE CONT<K30> EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97121-027-1 01 1 9505- ●
25 BOLT; SHAFT SIDE
M6X12 W/LK WASHER 		9-01900-612-0 02 1 9112-9204 ● ● ● ●
25 BOLT; SHAFT SIDE
M6X12 W/LK WASHER 		0-50040-612-0 02 1 9205-9710 ● ● ● ●
25 BOLT; SHAFT SIDE
M6X10 FLANGE 		0-28080-610-0 02 1 9711- ● ● ● ●
27 RETAINER; ACCEL PEDAL
AUTO CRUISE CONT<K30> ID=4 		9-09185-404-0 02 1 9112- ●
27 RETAINER; ACCEL PEDAL
AUTO CRUISE CONT<K30> ID=6 		9-09185-406-0 01 1 9112- ●
32 SPRING; RETURN,ACCEL PEDAL 8-97035-035-0 01 1 9112-9310 ● ● ● ●
32 SPRING; RETURN,ACCEL PEDAL 8-97107-141-0 01 1 9311-9504 ● ● ● ●
32 SPRING; RETURN,ACCEL PEDAL 8-97107-141-0 01 1 9505- ● ● ●
35 STOPPER; ACCEL PEDAL 8-97036-050-0 01 1 9112-9504 ● ● ● ●
35 STOPPER; ACCEL PEDAL 8-97036-050-0 01 1 9505- ● ● ●
36 PAD; ACCEL PEDAL STOPPER 8-94328-339-0 01 1 9112-9501 ● ● ● ●
39 NUT; ACCEL PEDAL STOPPER
M8 		9-09110-408-0 01 1 9112-9504 ● ● ● ●
39 NUT; ACCEL PEDAL STOPPER
M8 		9-09110-408-0 01 1 9505- ● ● ●
44 WASHER; ACCEL CONT PEDAL
AUTO CRUISE CONT<K30> ID=5.3 		9-09160-505-0 01 1 9112- ●
54 CABLE; ENG CONT 8-94374-770-1 01 1 9112-9504 ●
54 CABLE; ENG CONT 8-97072-435-0 01 1 9201-9202 ●
54 CABLE; ENG CONT 8-97078-147-2 01 1 9203- ●
54 CABLE; ENG CONT 8-94473-377-3 01 1 9112-9607 ●
54 CABLE; ENG CONT 8-94473-377-4 01 1 9608- ●
54 CABLE; ENG CONT 8-94374-769-3 01 1 9112-9411 ●
54 CABLE; ENG CONT 8-97108-882-2 01 1 9412- ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(A) M6X12 FLANGE 		0-28080-612-0 01 1 9112- ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
(B) M8X12 FLANGE 		0-28080-812-0 01 1 9112- ●
67 CABLE ASM; IDLE CONT 8-94374-772-3 01 1 9112-9310 ● ●
67 CABLE ASM; IDLE CONT 8-97100-932-1 01 1 9310-9504 ● ●
67 CABLE ASM; IDLE CONT
DARK GRAY 		8-97153-188-0 01 1 9505- ●
70 NUT; CONT CABLE
M6 FLANGE 		0-91150-106-0 01 1 9112- ●
79 SWITCH; ACCEL PEDAL 8-94104-602-1 01 1 9112-9205 ●
175 BOLT; BRKT,ACCEL CABLE
M6X14 FLANGE 		0-28080-614-0 02 1 9112-9112 ●
175 BOLT; BRKT,ACCEL CABLE
M6X12 FLANGE 		0-28080-612-0 02 1 9201- ●
232 BOLT; STOPPER,ACCEL PEDAL
M8X28 		9-02040-828-0 01 1 9112-9204 ● ● ● ●
232 BOLT; STOPPER,ACCEL PEDAL
M8X28 		0-20800-828-0 01 1 9205- ● ● ●
234 SWITCH; ACCEL
A/T THM(RMQ) 		8-94368-343-0 01 1 9112- ●
314 BRACKET; ACCEL CABLE 8-94376-255-0 01 1 9112- ●
334 PLUG; ACCEL CABLE
OD=12 L=14.8 		8-94279-921-0 01 1 9112-9504 ● ●
334 PLUG; ACCEL CABLE
OD=12 L=14.8 		8-94279-921-0 01 1 9505- ●
359 RELAY; AUTO CHOKE
12V 20A 		8-97048-665-0 01 1 9112-9303 ●
359 RELAY; AUTO CHOKE
12V 20A 		8-97093-910-1 01 1 9304-9504 ●
359 RELAY; AUTO CHOKE
12V 20A BLUE 		8-94235-627-0 01 1 9505- ●
404 CLIP; CABLE
ID=4.8 		8-94128-483-0 01 1 9505- ● ● ●
553 SCREW; TAP,PEDAL TO SW
M3X16 TAPPING 		0-71280-316-0 02 1 9112-9205 ●
648 PROTECTOR
EUROPE/CANARY EQUIPMENT(EK4) 		8-97131-825-0 01 1 9505- ● ●
659 CLIP; ACCEL CONT CABLE
(A) 		8-97018-544-0 01 1 9112-9405 ●
659 CLIP; ACCEL CONT CABLE
(A) ID=9.5 		8-97115-784-0 01 1 9406- ●
659 CLIP; ACCEL CONT CABLE
(B) 		8-97036-728-4 01 1 9112-9407 ●
659 CLIP; ACCEL CONT CABLE
(B) 		8-97109-923-0 01 1 9408-9602 ●
659 CLIP; ACCEL CONT CABLE
(B) 		8-97138-482-0 01 1 9603- ●
713 WASHER; PL
ID=8.4 		9-09160-508-0 01 1 9503-9504 ● ● ● ●
713 WASHER; PL
ID=8.4 		9-09160-508-0 01 1 9505- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
