0-85D — AUTO TIMER; INJECTION PUMP (#33180) — 63 parça

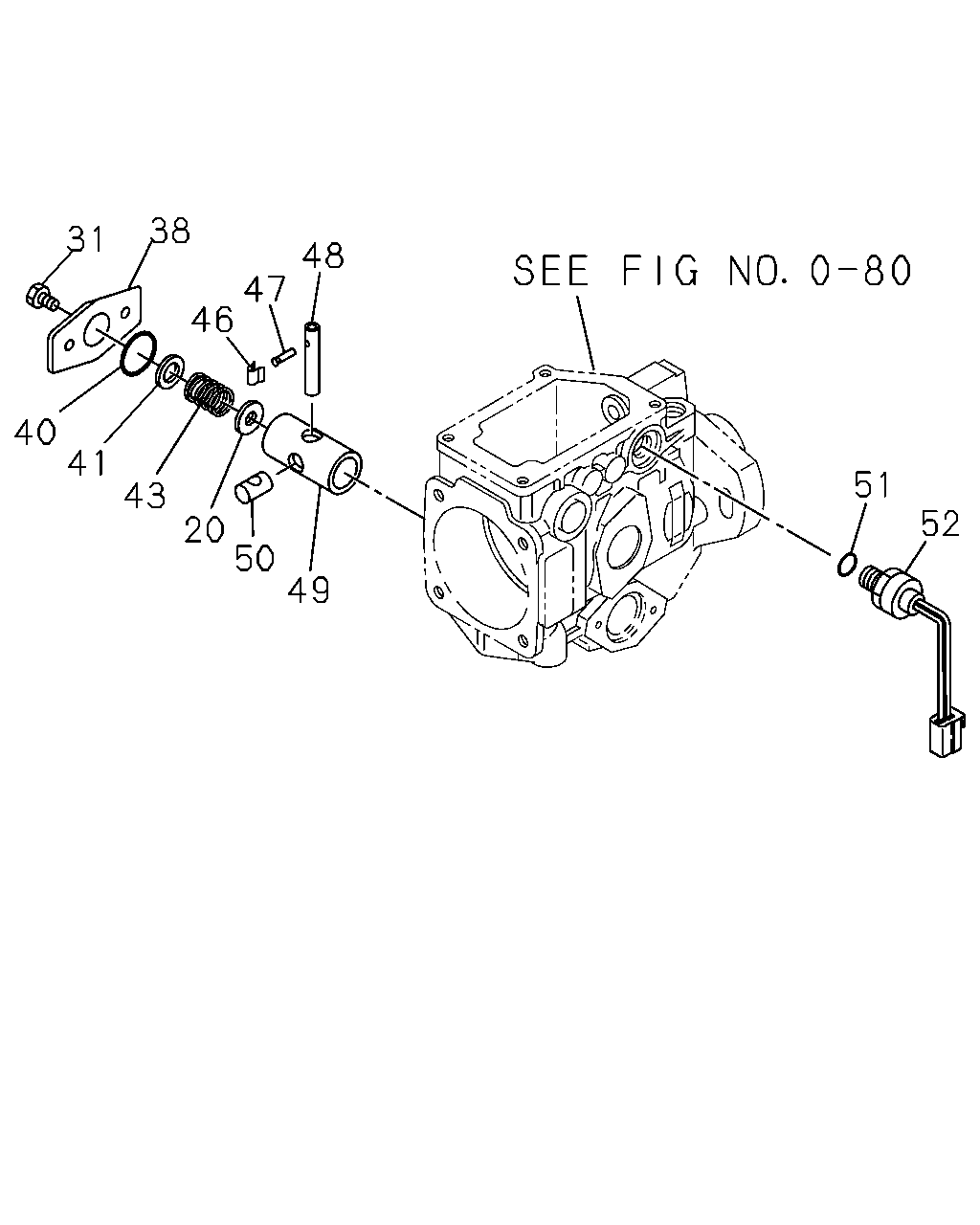

çizim 68324
38 31 48 47 46 40 41 43 20 50 49 51 52
BalonParca AdiParca NoAdetTipApplied Date
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.60 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-495-0 01 1 -9209
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.60 ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94227-495-0 01 1 -
20 SHIM; INNER SPRING,TIMER,INJ PUMP
T=0.60 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-495-0 01 1 9209-
31 SCREW; TIMER COVER,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94313-276-0 02 1 -9209
31 SCREW; TIMER COVER,INJ PUMP
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94313-276-0 02 1 -
31 SCREW; TIMER COVER,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94313-276-0 02 1 9209-
38 COVER; TIMER,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94473-120-0 01 1 9209-
38 COVER; TIMER,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94473-120-0 01 1 -9209
38 COVER; TIMER,INJ PUMP
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94473-120-0 01 1 -
40 GASKET; TIMER COVER,INJ PUMP
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94227-491-0 01 1 -
40 GASKET; TIMER COVER,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-491-0 01 1 9209-
40 GASKET; TIMER COVER,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-491-0 01 1 -9209
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=2.40 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94121-620-0 AR 1 -9209
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=2.40 ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94121-620-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=2.40 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94121-620-0 AR 1 9209-
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.60 ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94227-495-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.60 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-495-0 AR 1 -9209
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.60 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-495-0 AR 1 9209-
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.70 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-496-0 AR 1 -9209
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.70 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-496-0 AR 1 9209-
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.70 ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94227-496-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.90 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-497-0 AR 1 9209-
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.90 ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94227-497-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=0.90 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-497-0 AR 1 -9209
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=1.00 ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94227-498-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=1.00 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-498-0 AR 1 -9209
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=1.20 ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94227-499-0 AR 1 -
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=1.20 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-499-0 AR 1 -9209
41 SHIM; OUTER SPRING,TIMER,INJ PUMP
T=1.20 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-499-0 AR 1 9209-
43 SPRING; PISTON,TIMER,INJ PUMP
OR, L=35.7 EFFECT TURN=5.1 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94313-200-0 01 1 -9209
43 SPRING; PISTON,TIMER,INJ PUMP
OR, L=35.7 EFFECT TURN=5.1 ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94313-200-0 01 1 -
43 SPRING; PISTON,TIMER,INJ PUMP
OR, L=35.7 EFFECT TURN=5.1 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94313-200-0 01 1 9209-
43 SPRING; PISTON,TIMER,INJ PUMP
OR, L=35.5 EFFECT TURN=4.9 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94313-227-0 01 1 -9209
43 SPRING; PISTON,TIMER,INJ PUMP
OR, L=35.5 EFFECT TURN=4.9 ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94313-227-0 01 1 -
43 SPRING; PISTON,TIMER,INJ PUMP
OR, L=35.5 EFFECT TURN=4.9 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94313-227-0 01 1 9209-
43 SPRING; PISTON,TIMER,INJ PUMP
L=35.6 EFFECT TURN=5.4 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94313-241-0 01 1 9209-
43 SPRING; PISTON,TIMER,INJ PUMP
L=35.6 EFFECT TURN=5.4 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94313-241-0 01 1 -9209
43 SPRING; PISTON,TIMER,INJ PUMP
L=35.6 EFFECT TURN=5.4 ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94313-241-0 01 1 -
43 SPRING; PISTON,TIMER,INJ PUMP
L=35.8 EFFECT TURN=5.7 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94386-591-0 01 1 9209-
43 SPRING; PISTON,TIMER,INJ PUMP
L=35.8 EFFECT TURN=5.7 ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94386-591-0 01 1 -9209
43 SPRING; PISTON,TIMER,INJ PUMP
L=35.8 EFFECT TURN=5.7 ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94386-591-0 01 1 -
46 CLIP; HOLDER PIN,TIMER,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-488-0 01 1 -9209
46 CLIP; HOLDER PIN,TIMER,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-488-0 01 1 9209-
46 CLIP; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94227-488-0 01 1 -
47 PIN; HOLDER PIN,TIMER,INJ PUMP
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94227-487-0 01 1 -
47 PIN; HOLDER PIN,TIMER,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-487-0 01 1 -9209
47 PIN; HOLDER PIN,TIMER,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-487-0 01 1 9209-
48 PIN; ROLLER HOLDER,TIMER,INJ PUMP
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94227-486-0 01 1 -
48 PIN; ROLLER HOLDER,TIMER,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-486-0 01 1 -9209
48 PIN; ROLLER HOLDER,TIMER,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-486-0 01 1 9209-
49 PISTON; TIMER,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94111-657-0 01 1 9209-
49 PISTON; TIMER,INJ PUMP
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94111-657-0 01 1 -
49 PISTON; TIMER,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94111-657-0 01 1 -9209
50 SLIDER; TIMER PISTON,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-493-0 01 1 9209-
50 SLIDER; TIMER PISTON,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-493-0 01 1 -9209
50 SLIDER; TIMER PISTON,INJ PUMP
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1 		8-94227-493-0 01 1 -
50 SLIDER; TIMER PISTON,INJ PUMP
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-97119-163-0 01 1 -
51 GASKET; TIMING SENSOR,INJ PUMP
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94227-671-0 01 1 -
51 GASKET; TIMING SENSOR,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-671-0 01 1 -9209
51 GASKET; TIMING SENSOR,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94227-671-0 01 1 9209-
52 SENSOR; TIMING,TACHOMETER,INJ PUMP
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3, E = 8-97086-810-1, F = 8-97086-811-1, G = 8-97117-283-0, H = 8-97117-284-0, I = 8-97124-762-0, J = 8-97124-763-0 		8-94403-289-1 01 1 -
52 SENSOR; TIMING,TACHOMETER,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94403-289-1 01 1 -9209
52 SENSOR; TIMING,TACHOMETER,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2 		8-94403-289-1 01 1 9209-
