1-10A — RADIATOR (#3318) — 76 parça

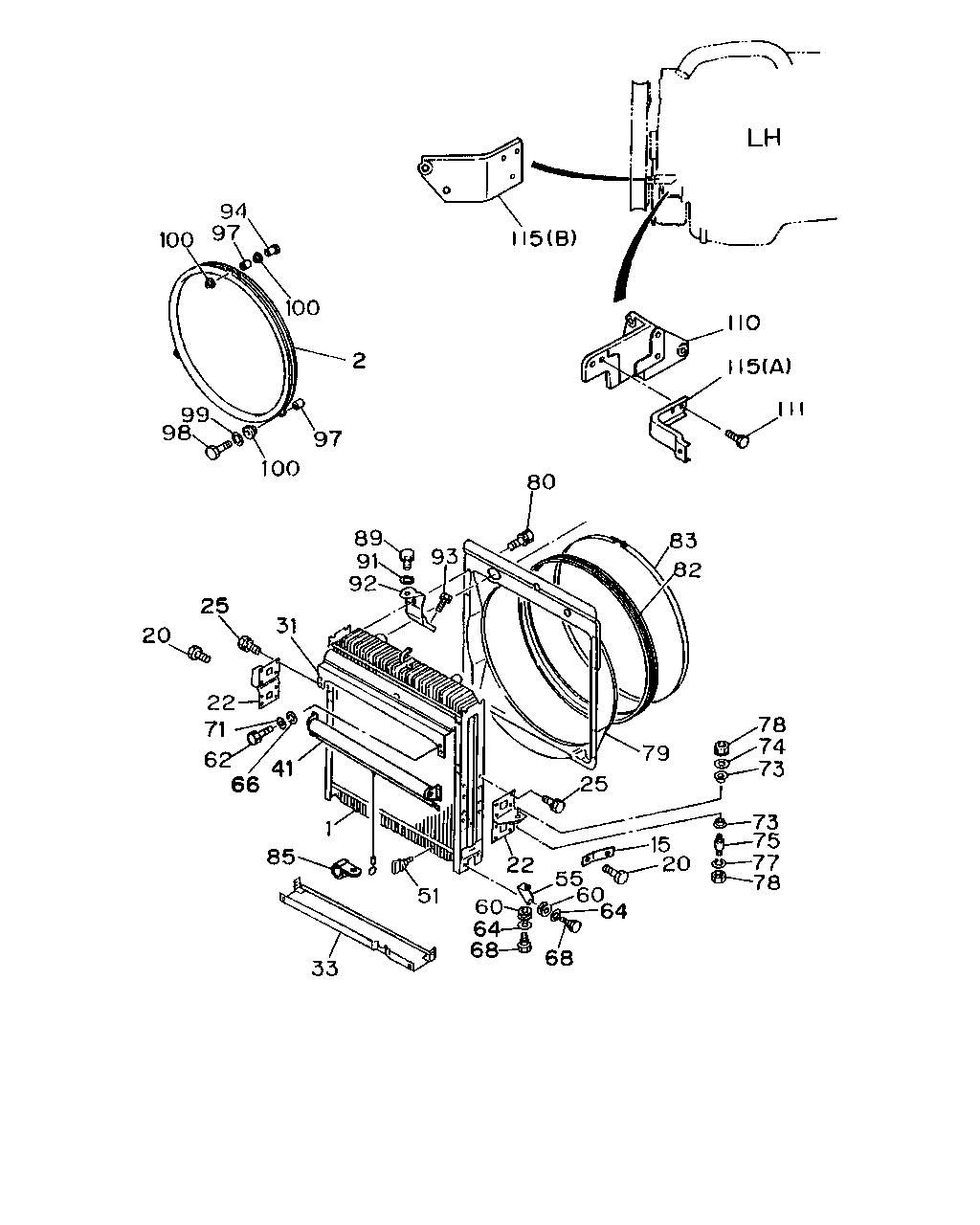

çizim 5246
94 100 97 99 98 100 2 97 100 20 25 31 22 71 62 66 41 85 1 33 51 68 64 60 68 22 55 60 64 20 15 78 77 75 73 73 74 78 79 25 82 83 80 93 89 91 92 115 110 111 115
BalonParca AdiParca NoAdetTipApplied Date
1 RADIATOR ASM
FIRE TRUCK<RA9> 		1-21410-506-1 01 1 9002-
1 RADIATOR ASM
EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05> 		1-21410-501-1 01 1 9002-
1 RADIATOR ASM
RADIATOR HEAVY DUTY<V05> 		1-21410-634-0 01 1 9002-
2 GUIDE; FAN 1-21551-235-3 01 1 9002-
15 BRACKET; PIPE,RAD
RADIATOR HEAVY DUTY<V05> 		1-21464-284-0 01 1 9002-
15 BRACKET; PIPE,RAD
EXC. RADIATOR HEAVY DUTY<V05> 		1-21464-244-0 01 1 9107-
15 BRACKET; PIPE,RAD
EXC. RADIATOR HEAVY DUTY<V05>,CAB SUSPENSION RIGID(W71) 		1-21464-244-0 01 1 9002-9106
15 BRACKET; PIPE,RAD
FIRE TRUCK<RA9> 		1-21464-244-0 01 1 9002-9106
20 BOLT; PIPE BRKT,RAD
RADIATOR HEAVY DUTY<V05> M8X20 		9-01970-820-0 01 1 9002-
20 BOLT; PIPE BRKT,RAD
EXC. RADIATOR HEAVY DUTY<V05> M8X20 W/LK&PL WASHER 		9-01960-820-0 01 1 9002-9405
20 BOLT; PIPE BRKT,RAD
EXC. RADIATOR HEAVY DUTY<V05> M8X20 W/LK&PL WASHER 		9-01960-820-0 01 1 9406-
22 BRACKET; RAD MTG 1-21464-115-1 01 1 9002-
22 BRACKET; RAD MTG 1-21464-114-1 01 1 9002-
25 BOLT; BRKT
RADIATOR HEAVY DUTY<V05> M8X18 W/LK&PL WASHER 		9-01970-818-0 15 1 9002-
25 BOLT; BRKT
EXC. RADIATOR HEAVY DUTY<V05> M8X18 W/LK&PL WASHER 		9-01960-818-0 19 1 9002-
31 BRACKET; UPR,RAD
CAB SUSPENSION RIGID(W71) 		1-21460-078-3 01 1 9002-9106
31 BRACKET; UPR,RAD
FIRE TRUCK<RA9> 		1-21460-078-3 01 1 9107-
31 BRACKET; UPR,RAD
EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05> 		1-21460-076-4 01 1 9107-
31 BRACKET; UPR,RAD
RADIATOR HEAVY DUTY<V05> 		1-21460-080-1 01 1 9002-
31 BRACKET; UPR,RAD
EXC. RADIATOR HEAVY DUTY<V05>,CAB SUSPENSION RIGID(W71) 		1-21460-076-4 01 1 9002-9106
33 PROTECTOR; RAD
FIRE TRUCK<RA9> 		1-21419-034-1 01 1 9002-
33 PROTECTOR; RAD
EXC. FIRE TRUCK<RA9> L=120 		1-21419-030-2 01 1 9002-
41 SHUTTER ASM; RAD
RADIATOR CURTAIN<SK7> 		1-21511-090-1 01 1 9002-
51 PLUG; DRAIN
W/GASKET 		1-09609-009-0 01 1 9002-
55 STAY; RAD TO UPR MBR
RADIATOR HEAVY DUTY<V05> 		1-21464-081-1 01 1 9002-
55 STAY; RAD TO UPR MBR
RADIATOR HEAVY DUTY<V05> 		1-21464-080-1 01 1 9002-
55 STAY; RAD TO UPR MBR
EXC. RADIATOR HEAVY DUTY<V05> 		1-21464-113-1 01 1 9002-
55 STAY; RAD TO UPR MBR
EXC. RADIATOR HEAVY DUTY<V05> 		1-21464-112-1 01 1 9002-
60 GROMMET 1-09332-117-0 04 1 9002-
62 BOLT; STAY
RADIATOR HEAVY DUTY<V05> M10X20 		9-02041-020-0 04 1 9002-
64 WASHER; STAY TO RAD
ID=12.5 OD=26 		9-09160-612-0 04 1 9002-
66 WASHER; LK,STAY
RADIATOR HEAVY DUTY<V05> ID=10.2 		9-09150-510-0 04 1 9002-
68 BOLT; STAY TO BRKT
M8X30 		1-09009-020-1 04 1 9002-
71 WASHER; PL,STAY
RADIATOR HEAVY DUTY<V05> ID=10.5 OD=22 		9-09160-610-0 04 1 9002-
73 RUBBER; CUSHION,RAD MTG
T=14 		1-21467-004-0 04 1 9002-
74 WASHER; PL,CUSHION RUBBER
ID=8.4 OD=22 		1-09503-154-1 02 1 9002-
75 BOLT; CUSHION RUBBER,RAD MTG 1-21466-005-0 02 1 9002-
77 WASHER; LK,CUSHION RUBBER
ID=12.2 		9-09150-512-0 02 1 9002-
78 NUT; CUSHION RUBBER
M10 FLANGE 		5-09440-006-0 02 1 9002-
78 NUT; CUSHION RUBBER
M12 		9-99110-412-0 02 1 9002-9304
78 NUT; CUSHION RUBBER
M12 		9-99110-512-0 02 1 9305-
79 GUIDE; FAN,RAD
RADIATOR HEAVY DUTY<V05> 		1-21551-216-1 01 1 9002-
79 GUIDE; FAN,RAD
EXC. RADIATOR HEAVY DUTY<V05> 		1-21551-242-1 01 1 9002-
80 BOLT; FAN GUIDE
RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER 		9-01960-816-0 17 1 9002-9405
80 BOLT; FAN GUIDE
EXC. RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER 		9-01960-816-0 12 1 9406-
80 BOLT; FAN GUIDE
EXC. RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER 		9-01960-816-0 12 1 9002-9405
80 BOLT; FAN GUIDE
RADIATOR CURTAIN<SK7> M8X16 W/LK&PL WASHER 		9-01960-816-0 17 1 9406-
82 COVER; FAN,RAD 1-21559-134-1 01 1 9002-
83 CLIP; FAN COVER 1-09707-127-1 01 1 9002-
85 CLIP
RADIATOR CURTAIN<SK7> EXC. FIRE TRUCK<RA9>,RADIATOR HEAVY DUTY<V05> 		9-09520-835-0 01 1 9002-
89 BOLT
M8X20 W/LK WASHER 		9-01910-820-0 01 1 9002-9005
89 BOLT
M8X20 W/LK WASHER 		0-50040-820-0 01 1 9006-9302
89 BOLT
M8X20 FLANGE 		0-28080-820-0 01 1 9303-
91 WASHER; PL
ID=8.4 OD=22 		9-09164-708-0 02 1 9002-
92 BRACKET; FAN GUIDE 1-21559-220-1 01 1 9002-
93 BOLT; BRKT FIX
M8X20 W/LK WASHER 		9-01910-820-0 02 1 9002-9005
93 BOLT; BRKT FIX
M8X20 W/LK WASHER 		0-50040-820-0 02 1 9006-9302
93 BOLT; BRKT FIX
M8X25 W/LK WASHER 		9-01910-825-0 01 1 9002-9005
93 BOLT; BRKT FIX
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9006-9302
93 BOLT; BRKT FIX
M8X20 FLANGE 		0-28080-820-0 02 1 9303-
93 BOLT; BRKT FIX
M8X25 FLANGE 		0-28080-825-0 01 1 9303-
94 TUBE; DIST 1-11369-113-2 01 1 9002-
97 TUBE; DIST,FAN GUIDE
ID=11.8 L=27 		1-21559-149-0 03 1 9002-9310
97 TUBE; DIST,FAN GUIDE
ID=11.8 L=27 		1-21559-149-0 03 1 9311-
98 BOLT; RAD FAN GUIDE
M8X45 		9-01055-845-0 02 1 9002-9005
98 BOLT; RAD FAN GUIDE
M8X45 		0-10805-845-0 02 1 9006-9310
98 BOLT; RAD FAN GUIDE
M8X45 FLANGE 		0-28080-845-0 02 1 9311-
98 BOLT; RAD FAN GUIDE
M8X85 		9-01055-885-0 01 1 9002-9005
98 BOLT; RAD FAN GUIDE
M8X85 		0-10805-885-0 01 1 9006-
99 WASHER; PL
ID=8.4 OD=26 		9-09164-808-0 03 1 9002-9310
99 WASHER; PL
ID=8.4 OD=26 		9-09164-808-0 03 1 9311-
100 RUBBER; MTG 1-09337-017-0 06 1 9002-
110 STAY; FAN GUIDE 1-83571-318-1 01 1 9002-
111 BOLT; BRKT
M10X20 W/LK WASHER 		0-50051-020-0 02 1 9002-
115 BRACKET; FAN GUIDE
(A) 		1-21559-210-0 01 1 9002-
115 BRACKET; FAN GUIDE
(B) 		1-21559-219-1 01 1 9002-
