1 |

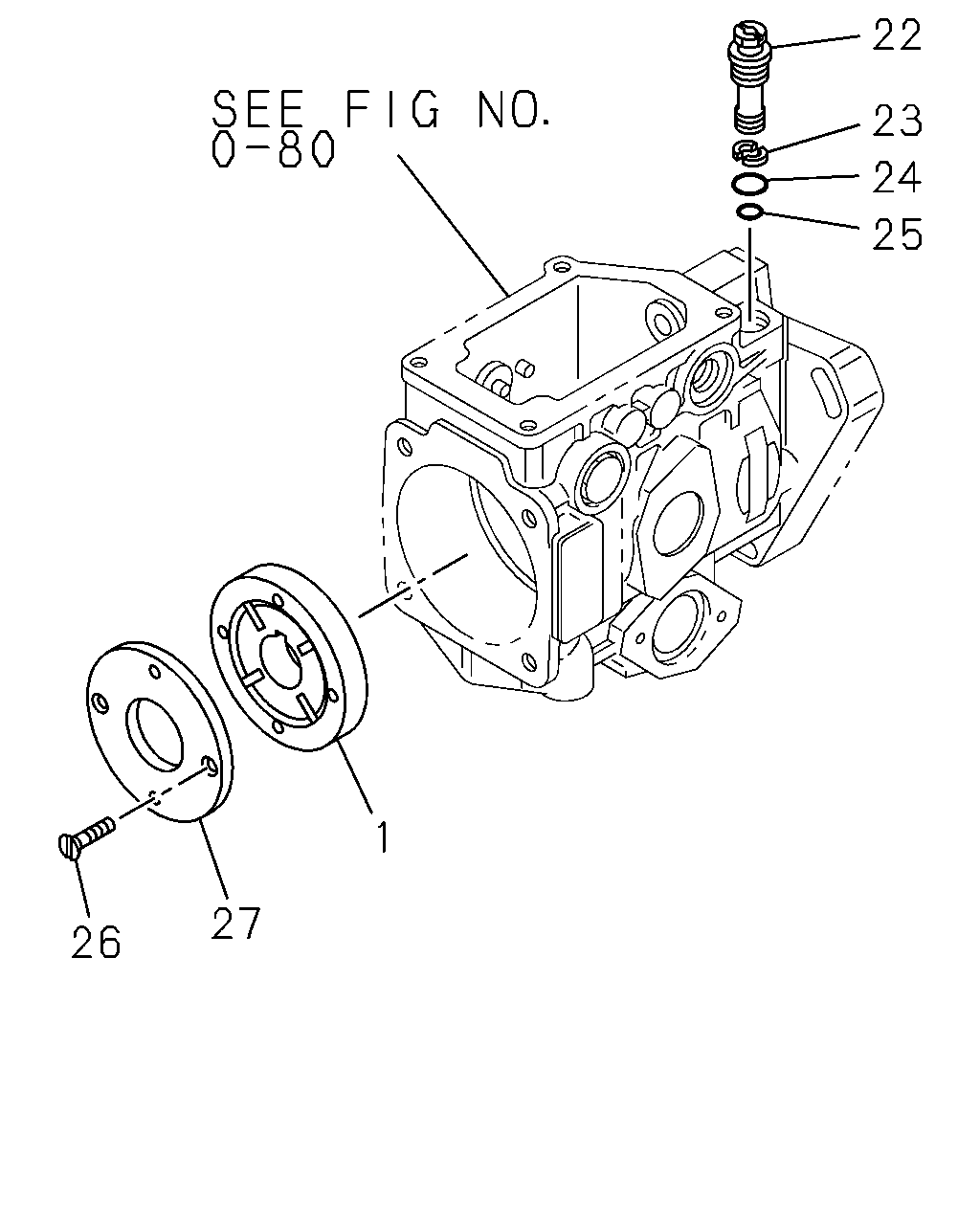

PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: H = 8-97133-845-0, I = 8-97133-846-0,
L = 8-97135-180-0, M = 8-97135-181-0
|
8-94227-477-0 |
01 |
1 |
- |
| |
1 |
PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-97043-022-5, B = 8-97043-023-5,
C = 8-97072-938-0, D = 8-97072-939-1,
E = 8-97080-591-0, F = 8-97086-813-3,
G = 8-97119-566-2, J = 8-97134-839-1,
K = 8-97134-840-1
|
8-94478-848-0 |
01 |
1 |
- |
| |
22 |
VALVE; REGULATING,INJ PUMP
ASM PART: A = 8-97043-022-5, B = 8-97043-023-5,
C = 8-97072-938-0, D = 8-97072-939-1,
E = 8-97080-591-0, F = 8-97086-813-3,
G = 8-97119-566-2, H = 8-97133-845-0,
I = 8-97133-846-0, J = 8-97134-839-1,
K = 8-97134-840-1, L = 8-97135-180-0,
M = 8-97135-181-0
|
8-94424-194-0 |
01 |
1 |
- |
| |
23 |
RING; SPRING,REGULATING VLV,INJ PUMP
ASM PART: G = 8-97119-566-2, H = 8-97133-845-0,
I = 8-97133-846-0, J = 8-97134-839-1,
K = 8-97134-840-1, L = 8-97135-180-0,
M = 8-97135-181-0
|
8-94227-643-0 |
01 |
1 |
- |
| |
23 |
RING; SPRING,REGULATING VLV,INJ PUMP
ASM PART: F = 8-97086-813-3
|
8-94227-643-0 |
01 |
1 |
9411- |
| |
24 |
GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97043-022-5, B = 8-97043-023-5,
C = 8-97072-938-0, D = 8-97072-939-1,
E = 8-97080-591-0, F = 8-97086-813-3,
G = 8-97119-566-2, H = 8-97133-845-0,
I = 8-97133-846-0, J = 8-97134-839-1,
K = 8-97134-840-1, L = 8-97135-180-0,
M = 8-97135-181-0
|
8-94227-641-0 |
01 |
1 |
- |
| |
25 |
GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97043-022-5, B = 8-97043-023-5,
C = 8-97072-938-0, D = 8-97072-939-1,
E = 8-97080-591-0, F = 8-97086-813-3,
G = 8-97119-566-2, H = 8-97133-845-0,
I = 8-97133-846-0, J = 8-97134-839-1,
K = 8-97134-840-1, L = 8-97135-180-0,
M = 8-97135-181-0
|
8-94227-640-0 |
01 |
1 |
- |
| |
26 |
SCREW; COVER FIX,FUEL FEED PUMP
ASM PART: A = 8-97043-022-5, B = 8-97043-023-5,
C = 8-97072-938-0, D = 8-97072-939-1,
E = 8-97080-591-0, F = 8-97086-813-3,
G = 8-97119-566-2, H = 8-97133-845-0,
I = 8-97133-846-0, J = 8-97134-839-1,
K = 8-97134-840-1, L = 8-97135-180-0,
M = 8-97135-181-0
|
8-94227-479-0 |
02 |
1 |
- |
| |
27 |
COVER; FUEL FEED PUMP
ASM PART: A = 8-97043-022-5, B = 8-97043-023-5,
C = 8-97072-938-0, D = 8-97072-939-1,
E = 8-97080-591-0, F = 8-97086-813-3,
G = 8-97119-566-2, H = 8-97133-845-0,
I = 8-97133-846-0, J = 8-97134-839-1,
K = 8-97134-840-1, L = 8-97135-180-0,
M = 8-97135-181-0
|
8-94227-478-0 |
01 |
1 |
- |
