0-84B — FEED PUMP; INJECTION PUMP (#33174) — 11 parça

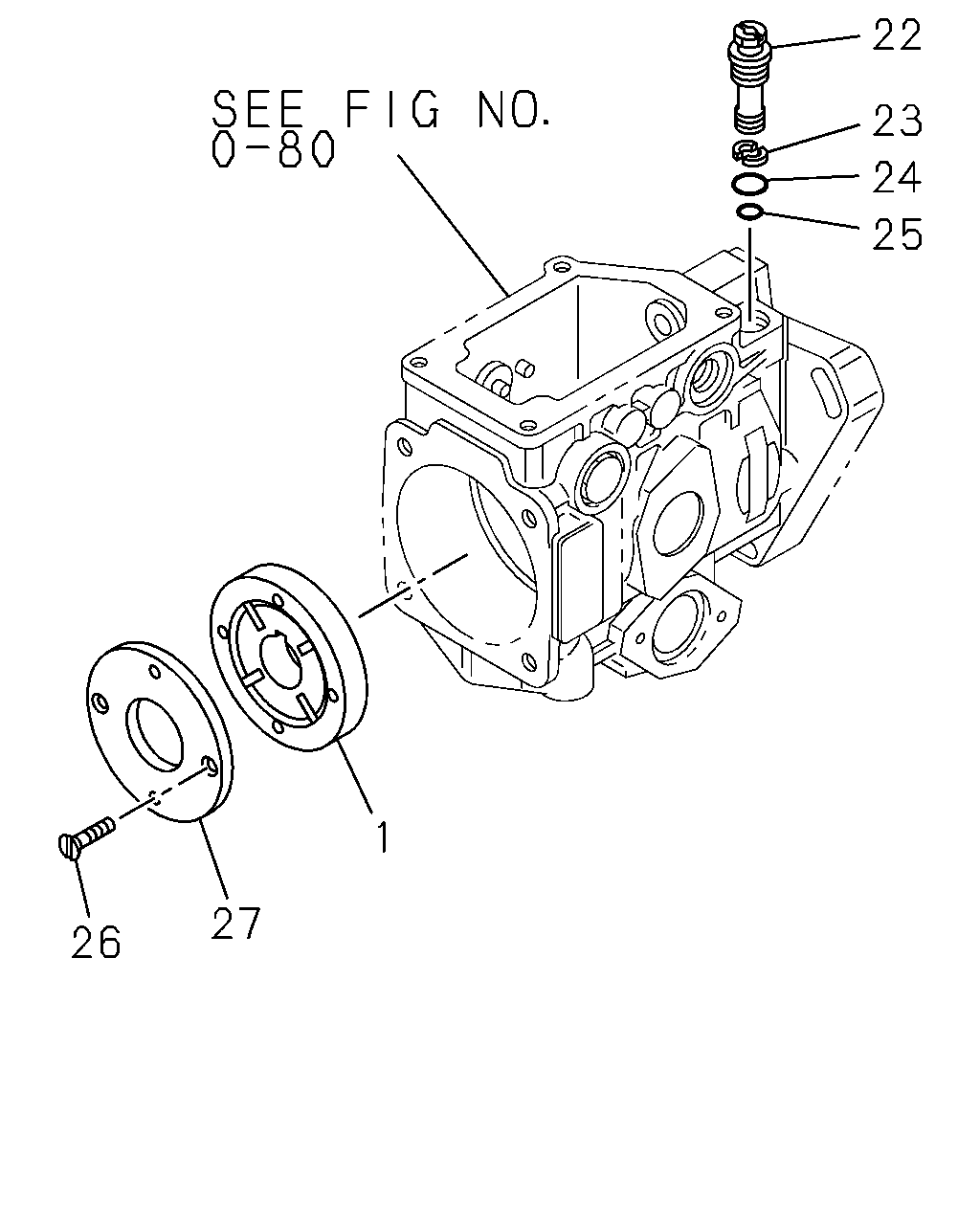

çizim 68595
22 23 24 25 1 27 26
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0 		8-94227-477-0 01 1 -
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2 		8-94478-848-0 01 1 -
22 VALVE; REGULATING,INJ PUMP
OR, STAMP 06 ASM PART: A = 8-97039-032-2, B = 8-97039-033-2 		8-94174-819-0 01 1 -
22 VALVE; REGULATING,INJ PUMP
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0 		8-94424-194-0 01 1 -
22 VALVE; REGULATING,INJ PUMP
STAMP 05 ASM PART: A = 8-97039-032-2, B = 8-97039-033-2 		8-97066-667-0 01 1 -
23 RING; SPRING,REGULATING VLV,INJ PUMP
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0 		8-94227-643-0 01 1 -
23 RING; SPRING,REGULATING VLV,INJ PUMP
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2 		8-94227-643-0 02 1 -
24 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2, C = 8-97110-562-0, D = 8-97110-563-0 		8-94227-641-0 01 1 -
25 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2, C = 8-97110-562-0, D = 8-97110-563-0 		8-94227-640-0 01 1 -
26 SCREW; COVER FIX,FUEL FEED PUMP
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2, C = 8-97110-562-0, D = 8-97110-563-0 		8-94227-479-0 02 1 -
27 COVER; FUEL FEED PUMP
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2, C = 8-97110-562-0, D = 8-97110-563-0 		8-94227-478-0 01 1 -
