1 |

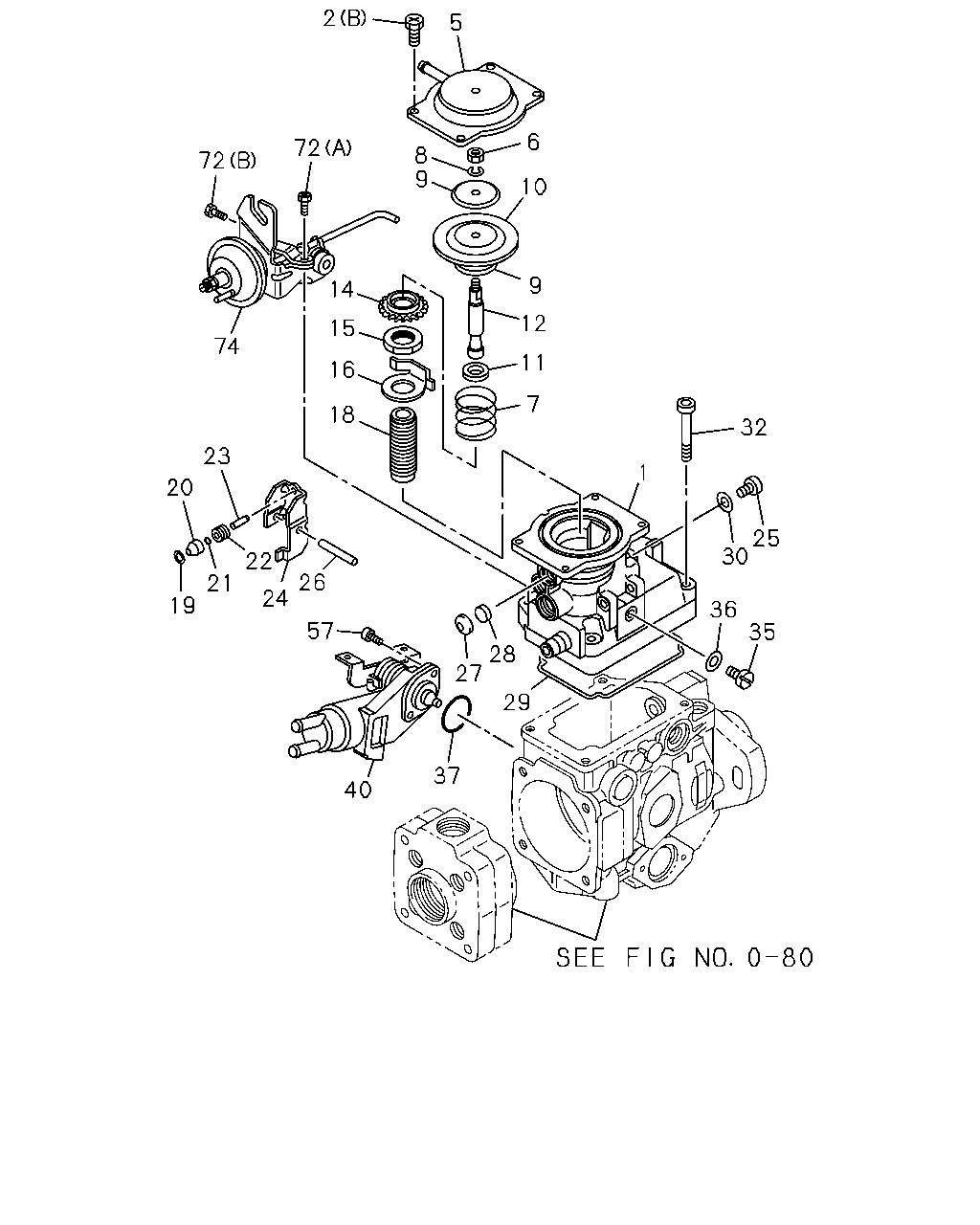

COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3
|
8-97046-320-0 |
01 |
1 |
- |
| |
1 |
COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: C = 8-97072-940-2
|
8-97078-032-0 |
01 |
1 |
-9208 |
| |
1 |
COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: D = 8-97072-941-2
|
8-97078-034-0 |
01 |
1 |
-9208 |
| |
1 |
COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: C = 8-97072-940-2
|
8-97081-288-0 |
01 |
1 |
9209- |
| |
1 |
COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: C = 8-97072-940-2
|
8-97081-288-0 |
01 |
1 |
9209-9209 |
| |
1 |
COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: D = 8-97072-941-2
|
8-97081-289-0 |
01 |
1 |
9209-9209 |
| |
1 |
COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: D = 8-97072-941-2
|
8-97081-289-0 |
01 |
1 |
9209- |
| |
1 |
COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: E = 8-97086-810-1, I = 8-97124-762-0
|
8-97106-565-2 |
01 |
1 |
- |
| |
1 |
COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: F = 8-97086-811-1, J = 8-97124-763-0
|
8-97106-566-2 |
01 |
1 |
- |
| |
1 |
COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: G = 8-97117-283-0
|
8-97125-513-0 |
01 |
1 |
- |
| |
1 |
COMPENSATOR ASM; BOOST,INJ PUMP
ASM PART: H = 8-97117-284-0
|
8-97125-514-0 |
01 |
1 |
- |
| |
2 |
BOLT; COVER FIX,BOOST COMPENSATOR
(B) ASM PART: E = 8-97086-810-1, F = 8-97086-811-1,
I = 8-97124-762-0
|
8-94313-203-0 |
03 |
1 |
- |
| |
2 |
BOLT; COVER FIX,BOOST COMPENSATOR
(B) ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
G = 8-97117-283-0, H = 8-97117-284-0,
J = 8-97124-763-0
|
8-94313-203-0 |
04 |
1 |
- |
| |
2 |
BOLT; COVER FIX,BOOST COMPENSATOR
(B) ASM PART: C = 8-97072-940-2
|
8-94313-203-0 |
04 |
1 |
-9208 |
| |
2 |
BOLT; COVER FIX,BOOST COMPENSATOR
(B) ASM PART: D = 8-97072-941-2
|
8-94313-203-0 |
04 |
1 |
-9209 |
| |
2 |
BOLT; COVER FIX,BOOST COMPENSATOR
(B) ASM PART: C = 8-97072-940-2
|
8-94313-203-0 |
03 |
1 |
9209-9209 |
| |
2 |
BOLT; COVER FIX,BOOST COMPENSATOR
(B) ASM PART: D = 8-97072-941-2
|
8-94313-203-0 |
04 |
1 |
9209- |
| |
2 |
BOLT; COVER FIX,BOOST COMPENSATOR
(B) ASM PART: C = 8-97072-940-2
|
8-94313-203-0 |
03 |
1 |
9209- |
| |
5 |
COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97046-308-0 |
01 |
1 |
9209- |
| |
5 |
COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-97046-308-0 |
01 |
1 |
- |
| |
5 |
COVER; HSG,BOOST COMPENSATOR,GOV
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97046-308-0 |
01 |
1 |
-9209 |
| |
6 |
NUT; DIAPH,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
9-88410-525-0 |
01 |
1 |
-9209 |
| |
6 |
NUT; DIAPH,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
9-88410-525-0 |
01 |
1 |
9209- |
| |
6 |
NUT; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
9-88410-525-0 |
01 |
1 |
- |
| |
7 |
SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94420-969-0 |
01 |
1 |
- |
| |
7 |
SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97078-031-0 |
01 |
1 |
-9209 |
| |
7 |
SPRING; DIAPH,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97078-031-0 |
01 |
1 |
9209- |
| |
8 |
WASHER; LK,DIAPH,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-725-0 |
01 |
1 |
9209- |
| |
8 |
WASHER; LK,DIAPH,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-725-0 |
01 |
1 |
-9209 |
| |
8 |
WASHER; LK,DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-725-0 |
01 |
1 |
- |
| |
9 |
PLATE; DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-723-0 |
02 |
1 |
- |
| |
9 |
PLATE; DIAPH,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-723-0 |
02 |
1 |
9209- |
| |
9 |
PLATE; DIAPH,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-723-0 |
02 |
1 |
-9209 |
| |
10 |
DIAPHRAGM; BOOST COMPENSATOR,GOV
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-724-0 |
01 |
1 |
9209- |
| |
10 |
DIAPHRAGM; BOOST COMPENSATOR,GOV
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-724-0 |
01 |
1 |
- |
| |
10 |
DIAPHRAGM; BOOST COMPENSATOR,GOV
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-724-0 |
01 |
1 |
-9209 |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=3.70
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-729-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=3.90
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-730-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=4.10
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-731-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=4.30
ASM PART: E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-732-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=4.50
ASM PART: E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-733-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=4.70
ASM PART: E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-734-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=4.90
ASM PART: E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-735-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.10
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-736-0 |
01 |
1 |
-9209 |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.10
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-736-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.10
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-736-0 |
01 |
1 |
9209- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.30
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-737-0 |
01 |
1 |
9209- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.30
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-737-0 |
01 |
1 |
-9209 |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.30
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-737-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=2.70
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-738-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=2.90
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-739-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=3.10
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-740-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=3.30
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-741-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=3.50
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-742-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=2.80
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-743-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=3.00
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-744-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=3.20
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-745-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=3.40
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-746-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=3.60
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-747-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=3.80
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-748-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=4.00
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-749-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=4.20
ASM PART: E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-750-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=4.40
ASM PART: E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-751-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=4.60
ASM PART: E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-752-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=4.80
ASM PART: E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-753-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.00
ASM PART: E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-754-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.20
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-755-0 |
01 |
1 |
-9209 |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.20
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-755-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.20
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-755-0 |
01 |
1 |
9209- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.40
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-756-0 |
01 |
1 |
-9209 |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.40
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-756-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.40
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-756-0 |
01 |
1 |
9209- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.50
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-757-0 |
01 |
1 |
9209- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.50
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
C = 8-97072-940-2, D = 8-97072-941-2,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-757-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.60
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-758-0 |
01 |
1 |
9209- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.60
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-758-0 |
01 |
1 |
-9209 |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.60
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-758-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=1.80
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94169-510-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=1.90
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94169-511-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=2.00
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94169-512-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=2.10
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94169-513-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=2.20
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94169-514-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=2.30
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94169-515-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=2.40
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94169-516-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=2.50
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94169-517-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=2.60
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94169-518-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.70
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97046-102-0 |
01 |
1 |
9209- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.70
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97046-102-0 |
01 |
1 |
-9209 |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.70
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-97046-102-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.80
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-97046-103-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.80
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97046-103-0 |
01 |
1 |
-9209 |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.80
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97046-103-0 |
01 |
1 |
9209- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.90
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-97046-104-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.90
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97046-104-0 |
01 |
1 |
-9209 |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=5.90
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97046-104-0 |
01 |
1 |
9209- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=6.00
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97046-105-0 |
01 |
1 |
-9209 |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=6.00
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97046-105-0 |
01 |
1 |
9209- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=6.00
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-97046-105-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=6.10
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97046-106-0 |
01 |
1 |
9209- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=6.10
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97046-106-0 |
01 |
1 |
-9209 |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=6.10
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-97046-106-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=6.20
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97046-107-0 |
01 |
1 |
9209- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=6.20
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-97046-107-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=6.20
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97046-107-0 |
01 |
1 |
-9209 |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=6.30
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97046-108-0 |
01 |
1 |
-9209 |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=6.30
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-97046-108-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=6.30
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97046-108-0 |
01 |
1 |
9209- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=6.40
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-97046-109-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=6.50
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-97046-110-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=6.60
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-97046-111-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=6.70
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-97046-112-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=6.80
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-97046-113-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=6.90
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-97046-114-0 |
01 |
1 |
- |
| |
11 |
SPACER; DIAPH,BOOST COMPENSATOR
L=7.00
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-97046-115-0 |
01 |
1 |
- |
| |
12 |
PIN; ADJ,DIAPH,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-722-0 |
01 |
1 |
-9209 |
| |
12 |
PIN; ADJ,DIAPH,BOOST COMPENSATOR
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1
|
8-94122-722-0 |
01 |
1 |
- |
| |
12 |
PIN; ADJ,DIAPH,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-722-0 |
01 |
1 |
9209- |
| |
12 |
PIN; ADJ,DIAPH,BOOST COMPENSATOR
ASM PART: G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-97120-314-0 |
01 |
1 |
- |
| |
14 |
NUT; DIAPH ADJ,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-726-0 |
01 |
1 |
9209- |
| |
14 |
NUT; DIAPH ADJ,BOOST COMPENSATOR
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
F = 8-97086-811-1, G = 8-97117-283-0,
H = 8-97117-284-0, I = 8-97124-762-0,
J = 8-97124-763-0
|
8-94122-726-0 |
01 |
1 |
- |
| |
14 |
NUT; DIAPH ADJ,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-726-0 |
01 |
1 |
-9209 |
| |
14 |
NUT; DIAPH ADJ,BOOST COMPENSATOR
ASM PART: E = 8-97086-810-1
|
9-84122-726-0 |
01 |
1 |
- |
| |
15 |
NUT; BUSHING LK,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-720-0 |
01 |
1 |
-9209 |
| |
15 |
NUT; BUSHING LK,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-720-0 |
01 |
1 |
9209- |
| |
15 |
NUT; BUSHING LK,BOOST COMPENSATOR
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-720-0 |
01 |
1 |
- |
| |
16 |
PLATE; BUSHING,ADJ
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94122-719-0 |
01 |
1 |
- |
| |
16 |
PLATE; BUSHING,ADJ
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-719-0 |
01 |
1 |
-9209 |
| |
16 |
PLATE; BUSHING,ADJ
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94122-719-0 |
01 |
1 |
9209- |
| |
18 |
BUSHING; ADJ PIN,BOOST COMPENSATOR
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94151-391-0 |
01 |
1 |
- |
| |
18 |
BUSHING; ADJ PIN,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94151-391-0 |
01 |
1 |
9209- |
| |
18 |
BUSHING; ADJ PIN,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94151-391-0 |
01 |
1 |
-9209 |
| |
19 |
GASKET; BUSHING,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94257-686-0 |
01 |
1 |
-9209 |
| |
19 |
GASKET; BUSHING,BOOST COMPENSATOR
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94257-686-0 |
01 |
1 |
- |
| |
19 |
GASKET; BUSHING,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94257-686-0 |
01 |
1 |
9209- |
| |
20 |
BUSHING; CONT PIN,BOOST COMPENSATOR
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94257-685-0 |
01 |
1 |
- |
| |
20 |
BUSHING; CONT PIN,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94257-685-0 |
01 |
1 |
-9209 |
| |
20 |
BUSHING; CONT PIN,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94257-685-0 |
01 |
1 |
9209- |
| |
21 |
GASKET; CONT PIN,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94257-684-0 |
01 |
1 |
9209- |
| |
21 |
GASKET; CONT PIN,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94257-684-0 |
01 |
1 |
-9209 |
| |
21 |
GASKET; CONT PIN,BOOST COMPENSATOR
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94257-684-0 |
01 |
1 |
- |
| |
22 |
NUT; BUSHING,CONT PIN,BOOST COMPENSATO
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94257-683-0 |
01 |
1 |
- |
| |
22 |
NUT; BUSHING,CONT PIN,BOOST COMPENSATO
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94257-683-0 |
01 |
1 |
9209- |
| |
22 |
NUT; BUSHING,CONT PIN,BOOST COMPENSATO
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94257-683-0 |
01 |
1 |
-9209 |
| |
23 |
PIN; CONT,BOOST COMPENSATOR
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94151-392-0 |
01 |
1 |
- |
| |
23 |
PIN; CONT,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94151-392-0 |
01 |
1 |
9209- |
| |
23 |
PIN; CONT,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94151-392-0 |
01 |
1 |
-9209 |
| |
24 |
LEVER; BOOST COMPENSATOR,GOV
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94177-918-0 |
01 |
1 |
-9209 |
| |
24 |
LEVER; BOOST COMPENSATOR,GOV
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94177-918-0 |
01 |
1 |
9209- |
| |
24 |
LEVER; BOOST COMPENSATOR,GOV
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94177-918-0 |
01 |
1 |
- |
| |
25 |
PLUG; HSG,BOOST COMPENSATOR
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94257-687-0 |
01 |
1 |
- |
| |
25 |
PLUG; HSG,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94257-687-0 |
01 |
1 |
-9209 |
| |
25 |
PLUG; HSG,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94257-687-0 |
01 |
1 |
9209- |
| |
26 |
PIN; CONT LEVER,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94257-693-0 |
01 |
1 |
9209- |
| |
26 |
PIN; CONT LEVER,BOOST COMPENSATOR
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94257-693-0 |
01 |
1 |
- |
| |
26 |
PIN; CONT LEVER,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94257-693-0 |
01 |
1 |
-9209 |
| |
27 |
PLUG; ELEMENT
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94151-395-0 |
01 |
1 |
9209- |
| |
27 |
PLUG; ELEMENT
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94151-395-0 |
01 |
1 |
- |
| |
27 |
PLUG; ELEMENT
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94151-395-0 |
01 |
1 |
-9209 |
| |
28 |
ELEMENT; BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94159-096-0 |
01 |
1 |
-9209 |
| |
28 |
ELEMENT; BOOST COMPENSATOR
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94159-096-0 |
01 |
1 |
- |
| |
28 |
ELEMENT; BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94159-096-0 |
01 |
1 |
9209- |
| |
29 |
GASKET; HSG,BOOST COMPENSATOR
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94227-599-0 |
01 |
1 |
- |
| |
29 |
GASKET; HSG,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94227-599-0 |
01 |
1 |
-9209 |
| |
29 |
GASKET; HSG,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94227-599-0 |
01 |
1 |
9209- |
| |
30 |
GASKET; HSG PLUG,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94144-588-0 |
01 |
1 |
-9209 |
| |
30 |
GASKET; HSG PLUG,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94144-588-0 |
01 |
1 |
9209- |
| |
30 |
GASKET; HSG PLUG,BOOST COMPENSATOR
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94144-588-0 |
01 |
1 |
- |
| |
32 |
BOLT; BOOST COMPENSATOR FIX,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94242-298-0 |
04 |
1 |
-9209 |
| |
32 |
BOLT; BOOST COMPENSATOR FIX,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94242-298-0 |
04 |
1 |
9209- |
| |
32 |
BOLT; BOOST COMPENSATOR FIX,INJ PUMP
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94242-298-0 |
04 |
1 |
- |
| |
35 |
PLUG; CONT LEVER PIN,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94257-694-0 |
02 |
1 |
9209- |
| |
35 |
PLUG; CONT LEVER PIN,BOOST COMPENSATOR
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94257-694-0 |
02 |
1 |
- |
| |
35 |
PLUG; CONT LEVER PIN,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94257-694-0 |
02 |
1 |
-9209 |
| |
36 |
GASKET; LEVER PIN,BOOST COMPENSATOR
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
5-15729-099-0 |
02 |
1 |
- |
| |
36 |
GASKET; LEVER PIN,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
5-15729-099-0 |
02 |
1 |
9209- |
| |
36 |
GASKET; LEVER PIN,BOOST COMPENSATOR
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
5-15729-099-0 |
02 |
1 |
-9209 |
| |
37 |
GASKET; STARTING ADVANCER,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94227-491-0 |
01 |
1 |
-9209 |
| |
37 |
GASKET; STARTING ADVANCER,INJ PUMP
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-94227-491-0 |
01 |
1 |
- |
| |
37 |
GASKET; STARTING ADVANCER,INJ PUMP
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-94227-491-0 |
01 |
1 |
9209- |
| |
40 |
ADVANCER ASM; STARTING,GOV
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
8-97065-836-3 |
01 |
1 |
- |
| |
40 |
ADVANCER ASM; STARTING,GOV
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97065-836-3 |
01 |
1 |
9209- |
| |
40 |
ADVANCER ASM; STARTING,GOV
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
8-97065-836-3 |
01 |
1 |
-9209 |
| |
57 |
BOLT; START ADVANCE
ASM PART: A = 8-97038-745-3, B = 8-97038-746-3,
E = 8-97086-810-1, F = 8-97086-811-1,
G = 8-97117-283-0, H = 8-97117-284-0,
I = 8-97124-762-0, J = 8-97124-763-0
|
1-15619-276-0 |
02 |
1 |
- |
| |
57 |
BOLT; START ADVANCE
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
1-15619-276-0 |
02 |
1 |
9209- |
| |
57 |
BOLT; START ADVANCE
ASM PART: C = 8-97072-940-2, D = 8-97072-941-2
|
1-15619-276-0 |
02 |
1 |
-9209 |
| |
72 |
BOLT; BRKT FIX,INJ PUMP
(B) ASM PART: D = 8-97072-941-2
|
8-94313-254-0 |
01 |
1 |
9209- |
| |
72 |
BOLT; BRKT FIX,INJ PUMP
(B) ASM PART: C = 8-97072-940-2
|
8-94313-254-0 |
01 |
1 |
9209-9209 |
| |
72 |
BOLT; BRKT FIX,INJ PUMP
(B) ASM PART: D = 8-97072-941-2
|
8-94313-254-0 |
01 |
1 |
-9209 |
| |
72 |
BOLT; BRKT FIX,INJ PUMP
(B) ASM PART: B = 8-97038-746-3, F = 8-97086-811-1,
H = 8-97117-284-0, J = 8-97124-763-0
|
8-94313-254-0 |
01 |
1 |
- |
| |
72 |
BOLT; BRKT FIX,INJ PUMP
(A), M6X14
ASM PART: D = 8-97072-941-2
|
8-94331-551-0 |
01 |
1 |
-9209 |
| |
72 |
BOLT; BRKT FIX,INJ PUMP
(A), M6X14
ASM PART: B = 8-97038-746-3, F = 8-97086-811-1,
H = 8-97117-284-0, J = 8-97124-763-0
|
8-94331-551-0 |
01 |
1 |
- |
| |
74 |
ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP
ASM PART: B = 8-97038-746-3
|
8-97071-945-0 |
01 |
1 |
- |
| |
74 |
ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP
ASM PART: D = 8-97072-941-2
|
8-97078-030-2 |
01 |
1 |
9209- |
| |
74 |
ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP
ASM PART: F = 8-97086-811-1, H = 8-97117-284-0,
J = 8-97124-763-0
|
8-97078-030-2 |
01 |
1 |
- |
| |
74 |
ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP
ASM PART: D = 8-97072-941-2
|
8-97078-030-2 |
01 |
1 |
-9209 |
