◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-82B - BOOST COMPENSATOR; INJECTION GOVERNOR ▶
0-82B — BOOST COMPENSATOR; INJECTION GOVERNOR (#33169) — 14 parça

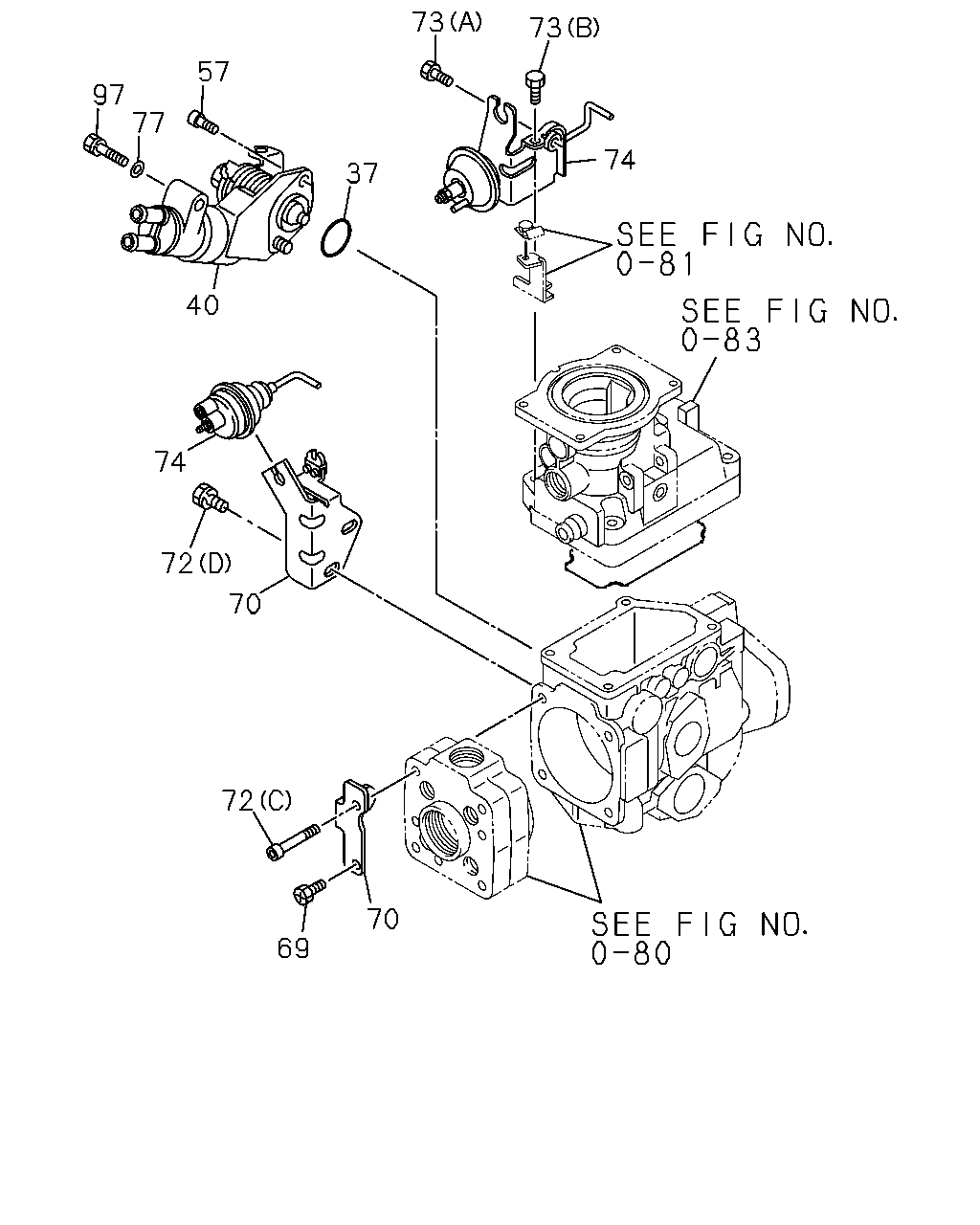

çizim 68671
73 73 57 97 77 74 37 40 74 72 70 72 70 69
BalonParca AdiParca NoAdetTipApplied Date
37 GASKET; STARTING ADVANCER,INJ PUMP
ASM PART: B = 8-97110-562-0, C = 8-97110-563-0 		8-94227-491-0 01 1 -
40 ADVANCER ASM; STARTING,GOV
ASM PART: B = 8-97110-562-0, C = 8-97110-563-0 		8-97105-393-1 01 1 -
57 BOLT; START ADVANCE
ASM PART: B = 8-97110-562-0, C = 8-97110-563-0 		1-15619-276-0 01 1 -
69 SCREW; BRKT,INJ PUMP
ASM PART: C = 8-97110-563-0 		8-94313-264-0 01 1 -
70 BRACKET; ACTUATOR,FAST IDLE,INJ PUMP
ASM PART: A = 8-97039-033-2 		8-94313-226-0 01 1 -
70 BRACKET; ACTUATOR,FAST IDLE,INJ PUMP
ASM PART: C = 8-97110-563-0 		8-97126-370-0 01 1 -
72 BOLT; BRKT FIX,INJ PUMP
(C) ASM PART: C = 8-97110-563-0 		8-94242-278-0 01 1 -
72 BOLT; BRKT FIX,INJ PUMP
(D) ASM PART: A = 8-97039-033-2 		8-97071-946-0 02 1 -
73 BOLT; ACTUATOR
(B) ASM PART: C = 8-97110-563-0 		8-94313-254-0 01 1 -
73 BOLT; ACTUATOR
(A), M6X14 ASM PART: C = 8-97110-563-0 		8-94331-551-0 01 1 -
74 ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP
ASM PART: A = 8-97039-033-2 		8-94313-225-0 01 1 -
74 ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP
ASM PART: C = 8-97110-563-0 		8-97126-378-0 01 1 -
77 WASHER; LK,START ADVANCE FIX
ID=6.4 OD=14 ASM PART: B = 8-97110-562-0, C = 8-97110-563-0 		9-09160-606-0 01 1 -
97 BOLT; PLATE,START ADVANCE
ASM PART: B = 8-97110-562-0, C = 8-97110-563-0 		8-97029-204-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
