◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-82A - BOOST COMPENSATOR; INJECTION GOVERNOR ▶
0-82A — BOOST COMPENSATOR; INJECTION GOVERNOR (#33168) — 15 parça

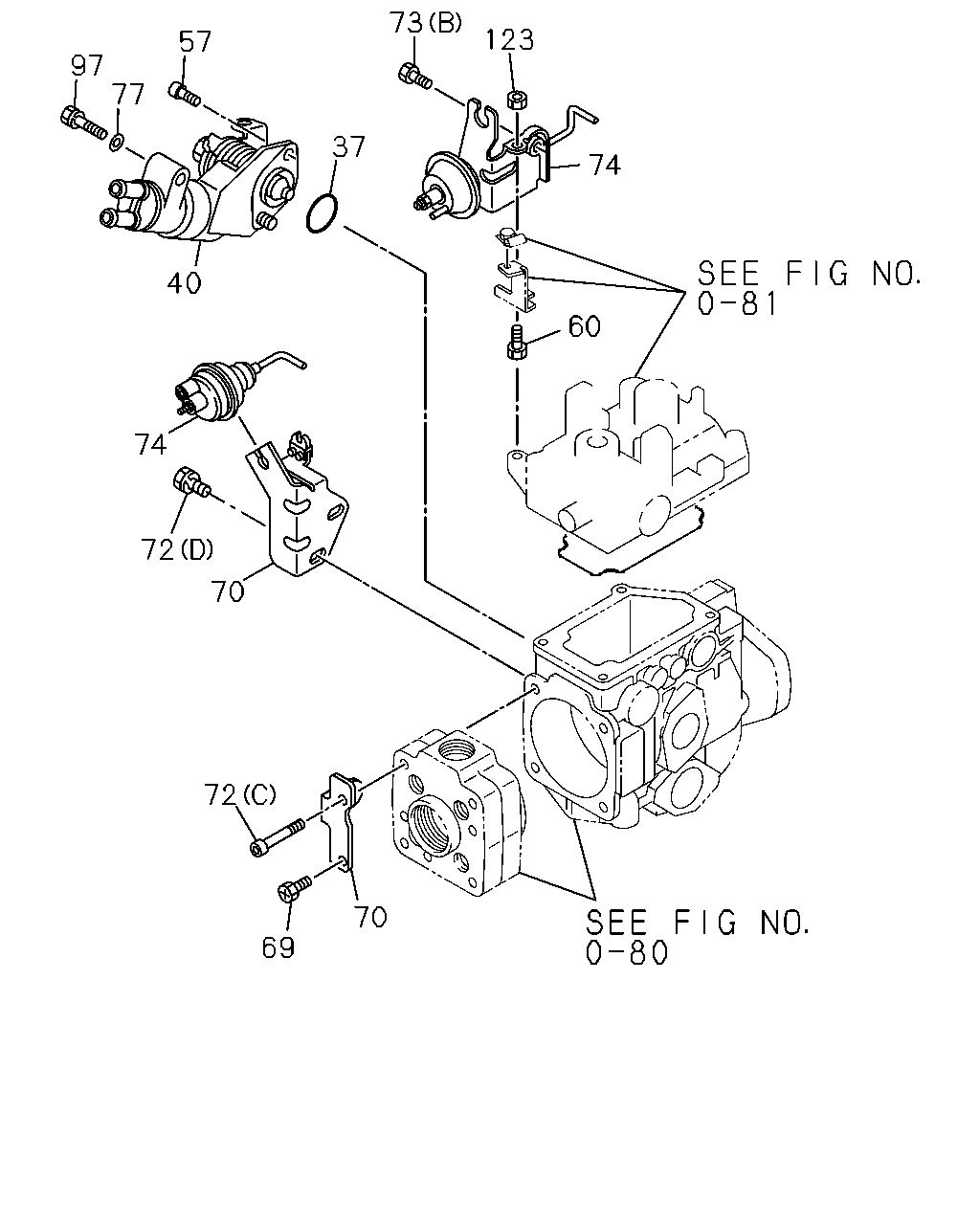

çizim 66967
73 123 57 97 77 37 74 40 60 74 72 70 72 70 69
BalonParca AdiParca NoAdetTipApplied Date
37 GASKET; STARTING ADVANCER,INJ PUMP
ASM PART: C = 8-97110-560-0, D = 8-97110-561-0 		8-94227-491-0 01 1 -
40 ADVANCER ASM; STARTING,GOV
ASM PART: C = 8-97110-560-0, D = 8-97110-561-0 		8-97105-393-1 01 1 -
57 BOLT; START ADVANCE
ASM PART: C = 8-97110-560-0, D = 8-97110-561-0 		1-15619-276-0 01 1 -
60 BOLT; BRKT
ASM PART: D = 8-97110-561-0 		8-94313-264-0 01 1 -
69 SCREW; BRKT,INJ PUMP
ASM PART: C = 8-97110-560-0, D = 8-97110-561-0 		8-94313-264-0 01 1 -
70 BRACKET; ACTUATOR,FAST IDLE,INJ PUMP
ASM PART: A = 8-97038-748-2, B = 8-97038-750-2 		8-94313-226-0 01 1 -
70 BRACKET; ACTUATOR,FAST IDLE,INJ PUMP
ASM PART: C = 8-97110-560-0, D = 8-97110-561-0 		8-97126-370-0 01 1 -
72 BOLT; BRKT FIX,INJ PUMP
(C) ASM PART: C = 8-97110-560-0, D = 8-97110-561-0 		8-94242-278-0 01 1 -
72 BOLT; BRKT FIX,INJ PUMP
(D) ASM PART: A = 8-97038-748-2, B = 8-97038-750-2 		8-97071-946-0 02 1 -
73 BOLT; ACTUATOR
(B) ASM PART: D = 8-97110-561-0 		8-94313-254-0 01 1 -
74 ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP
ASM PART: A = 8-97038-748-2, B = 8-97038-750-2 		8-94313-225-0 01 1 -
74 ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP
ASM PART: D = 8-97110-561-0 		8-97126-378-0 01 1 -
77 WASHER; LK,START ADVANCE FIX
ID=6.4 OD=14 ASM PART: C = 8-97110-560-0, D = 8-97110-561-0 		9-09160-606-0 01 1 -
97 BOLT; PLATE,START ADVANCE
ASM PART: C = 8-97110-560-0, D = 8-97110-561-0 		8-97029-204-0 01 1 -
123 NUT; ACTUATOR
M6 ASM PART: D = 8-97110-561-0 		9-09110-406-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
