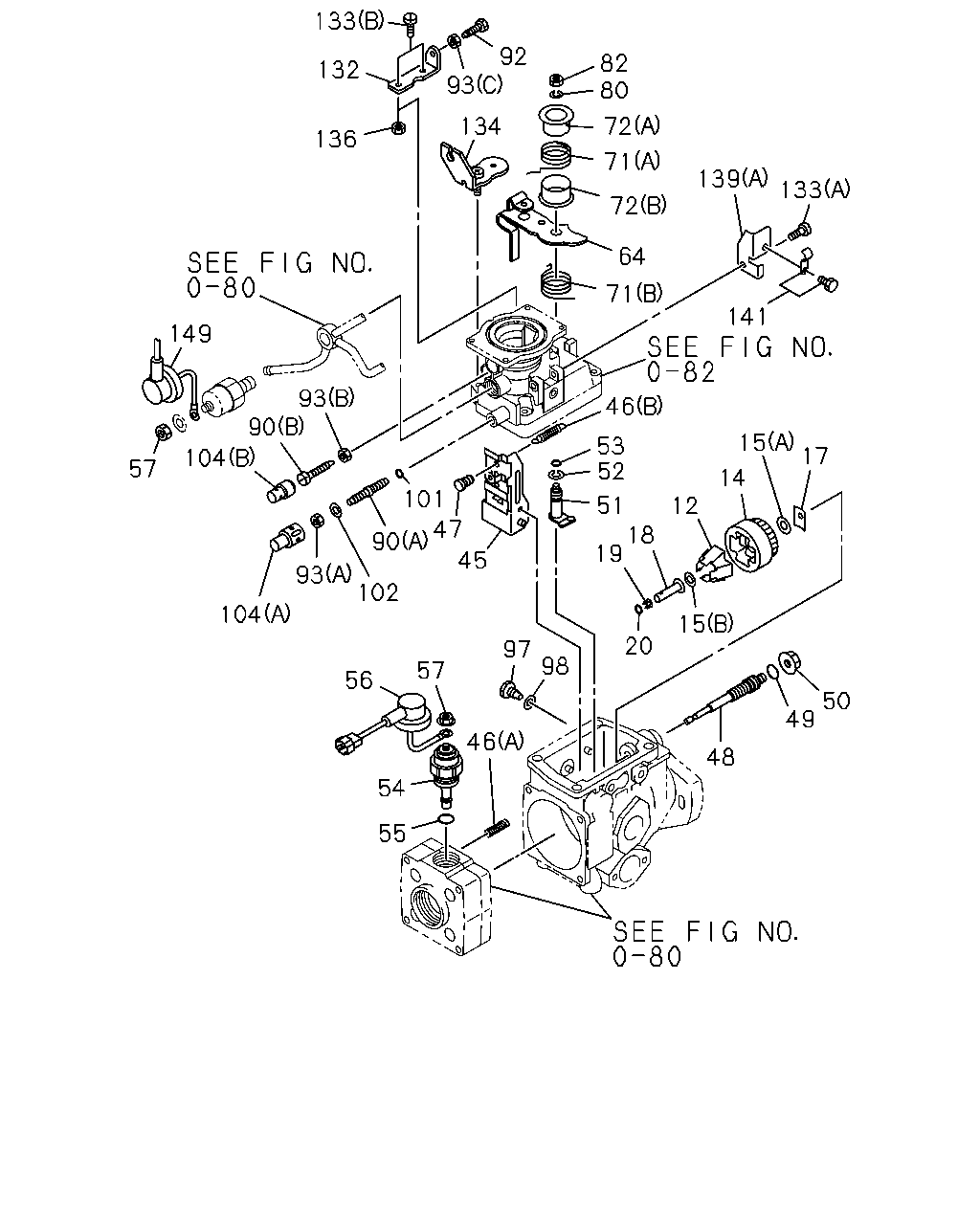

12 |
FLYWEIGHT ASM; GOV
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94228-403-0 |
01 |
1 |
- |
| |
14 |
HOLDER; GOV FLYWEIGHT,INJ PUMP
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94227-613-0 |
01 |
1 |
- |
| |
15 |
WASHER; LK,FLYWEIGHT FIX,GOV
(A) ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94227-612-0 |
01 |
1 |
- |
| |
15 |
WASHER; LK,FLYWEIGHT FIX,GOV
(B) ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94227-614-0 |
01 |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.05
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94227-607-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.25
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94227-608-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.45
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94227-609-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.65
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94227-610-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.85
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94227-611-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.15
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94231-123-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.35
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94231-124-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.55
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94231-125-0 |
AR |
1 |
- |
| |
17 |
SHIM; FLYWEIGHT SLEEVE,GOV
T=1.75
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94231-126-0 |
AR |
1 |
- |
| |
18 |
SLEEVE; GOV
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2
|
8-94433-222-0 |
01 |
1 |
- |
| |
18 |
SLEEVE; GOV
ASM PART: D = 8-97110-563-0
|
8-97102-532-0 |
01 |
1 |
- |
| |
19 |
CAP; GOV SLEEVE,INJ PUMP
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94408-519-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.20
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94372-499-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.30
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94372-500-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.40
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94372-501-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.50
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94372-502-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.10
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94408-520-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.30
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94408-521-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.50
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94408-522-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.70
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94408-523-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.90
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94408-524-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.10
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94408-525-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.30
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94408-526-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.50
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94408-527-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.70
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94408-528-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.90
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94408-529-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.10
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94408-530-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.30
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94408-531-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.50
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94408-532-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.70
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94408-533-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.90
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94408-534-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.10
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94408-535-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.20
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94428-868-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.40
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94428-869-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.60
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94428-870-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=2.80
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94428-871-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.00
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94428-872-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.20
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94428-873-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.40
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94428-874-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.60
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94428-875-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=3.80
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94428-876-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.00
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94428-877-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.20
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94428-878-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.40
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94428-879-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.60
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94428-880-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=4.80
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94428-881-0 |
01 |
1 |
- |
| |
20 |
PLUG; CLOSING,GOV SLEEVE
L=5.00
ASM PART: B = 8-97039-033-2, C = 8-97110-562-0,
D = 8-97110-563-0
|
8-94428-882-0 |
01 |
1 |
- |
| |
45 |
LEVER ASM; GOV,INJ PUMP
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2
|
8-97066-666-0 |
01 |
1 |
- |
| |
45 |
LEVER ASM; GOV,INJ PUMP
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-97126-373-0 |
01 |
1 |
- |
| |
46 |
SPRING; GOV,INJ PUMP
(B) ASM PART: A = 8-97039-032-2, B = 8-97039-033-2
|
8-94454-252-0 |
01 |
1 |
- |
| |
46 |
SPRING; GOV,INJ PUMP
(A) ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94473-128-0 |
02 |
1 |
- |
| |
46 |
SPRING; GOV,INJ PUMP
(B) ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-97032-170-0 |
01 |
1 |
- |
| |
47 |
PIN; RET
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2
|
8-97045-511-0 |
01 |
1 |
- |
| |
47 |
PIN; RET
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-97126-374-0 |
01 |
1 |
- |
| |
48 |
SHAFT; GOV,INJ PUMP
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2
|
8-94248-002-0 |
01 |
1 |
- |
| |
48 |
SHAFT; GOV,INJ PUMP
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94473-130-0 |
01 |
1 |
- |
| |
49 |
GASKET; GOV SHAFT,INJ PUMP
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94227-606-0 |
01 |
1 |
- |
| |
50 |
NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94473-129-0 |
01 |
1 |
- |
| |
51 |
SHAFT; LOAD CONT LEVER,GOV
ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94174-828-0 |
01 |
1 |
- |
| |
51 |
SHAFT; LOAD CONT LEVER,GOV
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2
|
8-94174-841-0 |
01 |
1 |
- |
| |
52 |
WASHER; CONT SHAFT,GOV
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94227-590-0 |
01 |
1 |
- |
| |
53 |
GASKET; CONT SHAFT,GOV
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94227-585-0 |
01 |
1 |
- |
| |
54 |
VALVE; MAG,ENG STOP,INJ PUMP
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94242-275-0 |
01 |
1 |
- |
| |
55 |
GASKET; MAG VLV,INJ PUMP
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94239-373-0 |
01 |
1 |
- |
| |
56 |
WIRE; LEAD,MAG VLV,INJ PUMP
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94470-582-0 |
01 |
1 |
- |
| |
57 |
NUT; VLV
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
D = 8-97110-563-0
|
8-94473-135-0 |
02 |
1 |
- |
| |
57 |
NUT; VLV
ASM PART: C = 8-97110-562-0
|
8-97138-042-0 |
01 |
1 |
- |
| |
64 |
LEVER; LOAD CONT,GOV
OR, STAMP 961
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-97066-664-0 |
01 |
1 |
- |
| |
64 |
LEVER; LOAD CONT,GOV
STAMP 962
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-97066-665-0 |
01 |
1 |
- |
| |
71 |
SPRING; CONT LEVER,GOV
(A) ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-97071-942-0 |
01 |
1 |
- |
| |
71 |
SPRING; CONT LEVER,GOV
(B) ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-97071-943-0 |
01 |
1 |
- |
| |
72 |
SEAT; SPRING,CONT LEVER,GOV
(B) ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94389-434-0 |
01 |
1 |
- |
| |
72 |
SEAT; SPRING,CONT LEVER,GOV
(A) ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-97047-009-0 |
01 |
1 |
- |
| |
80 |
WASHER; LK,CONT LEVER,GOV
ID=6.1
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
9-09150-506-0 |
01 |
1 |
- |
| |
82 |
NUT; CONT LEVER FIX,GOV
M6 ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
D = 8-97110-563-0
|
9-09110-406-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(B) ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94313-253-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), L=53.0
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94316-274-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), L=55.0
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94316-275-0 |
01 |
1 |
- |
| |
90 |
SCREW; FULL LOAD ADJ,GOV
(A), L=57.0
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94316-276-0 |
01 |
1 |
- |
| |
92 |
BOLT; FULL LOAD STOPPER,GOV
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94426-049-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94316-277-0 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: A = 8-97039-032-2, B = 8-97039-033-2
|
8-94426-047-1 |
02 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: C = 8-97110-562-0, D = 8-97110-563-0
|
8-94426-047-1 |
01 |
1 |
- |
| |
93 |
NUT; ADJ SCREW LK,INJ PUMP GOV
(C), M6
ASM PART: D = 8-97110-563-0
|
9-09110-406-0 |
01 |
1 |
- |
| |
97 |
BOLT; PIVOT,GOV LEVER
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94227-601-0 |
02 |
1 |
- |
| |
98 |
GASKET; PIVOT BOLT,GOV LEVER
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94227-602-0 |
02 |
1 |
- |
| |
101 |
GASKET; ADJ SPRING CAPSULE,GOV
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94227-598-0 |
01 |
1 |
- |
| |
102 |
WASHER; FULL LOAD ADJ SCREW,GOV
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94227-593-0 |
01 |
1 |
- |
| |
104 |
CAP; LOCK NUT,ADJ SCREW
(A), L=16.5
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94316-262-0 |
01 |
1 |
- |
| |
104 |
CAP; LOCK NUT,ADJ SCREW
(B), L=18.0
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94316-263-0 |
01 |
1 |
- |
| |
104 |
CAP; LOCK NUT,ADJ SCREW
(B), L=21.0
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94316-264-0 |
01 |
1 |
- |
| |
104 |
CAP; LOCK NUT,ADJ SCREW
(B), L=24.0
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94316-265-0 |
01 |
1 |
- |
| |
104 |
CAP; LOCK NUT,ADJ SCREW
(B), L=27.0
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94316-266-0 |
01 |
1 |
- |
| |
132 |
BRACKET; ADJ SCREW,GOV
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94457-165-0 |
01 |
1 |
- |
| |
133 |
BOLT; BRKT FIX,GOV
(A), M6X12
ASM PART: C = 8-97110-562-0
|
8-94313-267-0 |
02 |
1 |
- |
| |
133 |
BOLT; BRKT FIX,GOV
(A), M6X12
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
D = 8-97110-563-0
|
8-94313-267-0 |
01 |
1 |
- |
| |
133 |
BOLT; BRKT FIX,GOV
(B) ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94454-245-0 |
02 |
1 |
- |
| |
134 |
BRACKET; CONT CABLE,GOV
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2
|
8-94313-219-0 |
01 |
1 |
- |
| |
134 |
BRACKET; CONT CABLE,GOV
ASM PART: C = 8-97110-562-0
|
8-97126-371-0 |
01 |
1 |
- |
| |
136 |
NUT; BRKT BOLT
M6 ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
D = 8-97110-563-0
|
9-09110-406-0 |
02 |
1 |
- |
| |
139 |
BRACKET; INJ PUMP
(A) ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94457-164-0 |
01 |
1 |
- |
| |
141 |
PLATE ASM; PIPE BRKT
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
C = 8-97110-562-0, D = 8-97110-563-0
|
8-94174-822-0 |
01 |
1 |
- |
| |
149 |
WIRE; VLV
ASM PART: A = 8-97039-032-2, B = 8-97039-033-2,
D = 8-97110-563-0
|
8-94316-278-0 |
01 |
1 |
- |
