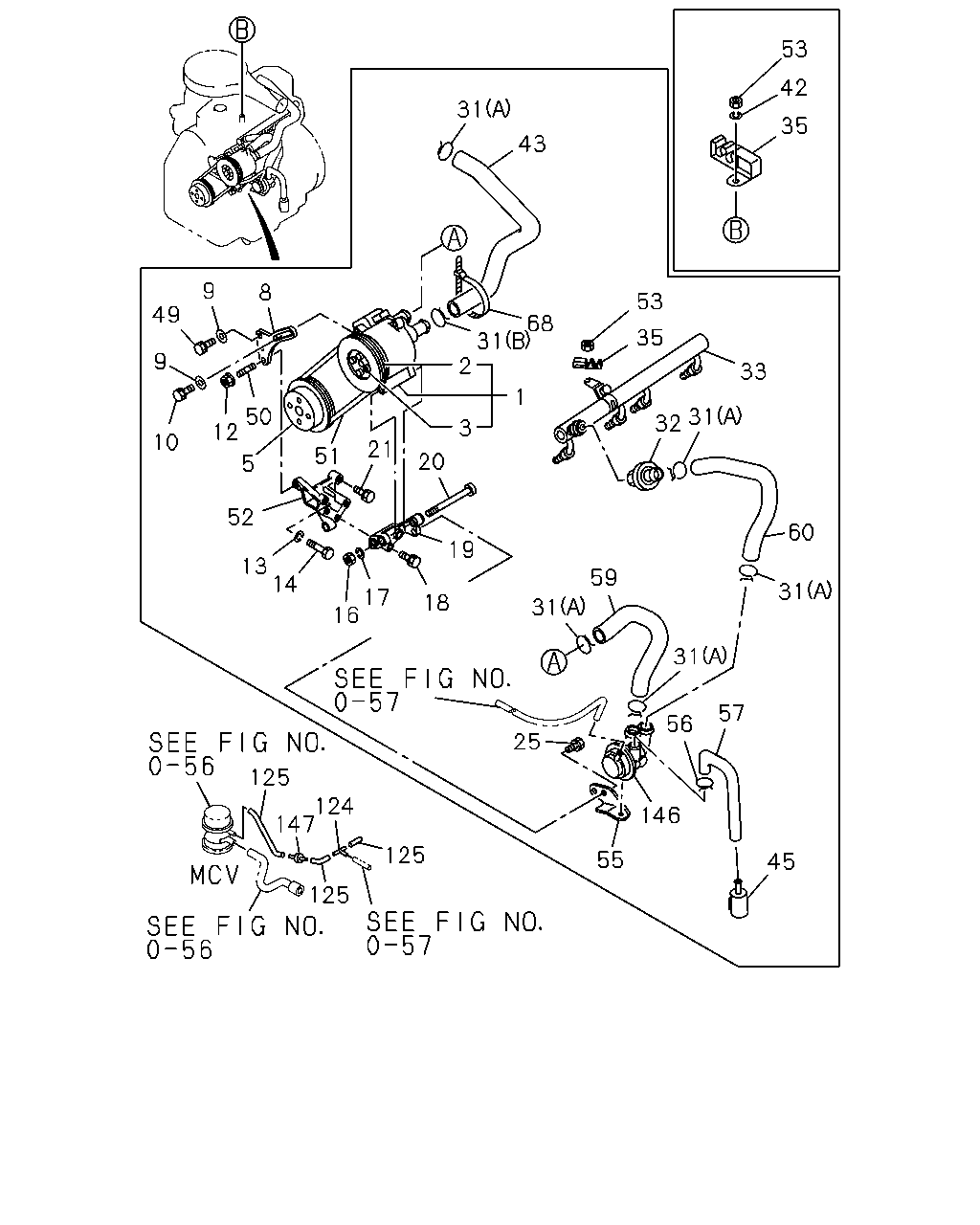

0-72 — VAPORIZER (#33159) — 52 parça

53 42 31 35 43 9 8 53 49 68 31 2 35 9 33 1 50 12 51 5 31 32 3 20 10 21 52 60 19 13 14 59 31 31 17 16 18 31 57 56 25 125 124 147 146 125 55 45 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AIR PUMP ASM 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94339-026-0	01	1	9505-
2	PULLEY; AIR INJ PUMP 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94223-813-0	01	1	9505-
3	BOLT; PULLEY,AIR PUMP 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94223-814-0	03	1	9505-
5	PULLEY; AIR PUMP DRIVE 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94136-783-1	01	1	9505-
8	PLATE; ADJ,AIR PUMP 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94449-592-1	01	1	9505-
9	WASHER; PL,ADJ PLATE,AIR PUMP 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) ID=8.4 OD=22	9-09164-708-0	02	1	9505-
10	BOLT; AIR PUMP TO ADJ PLATE 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X25 W/LK WASHER	0-50040-825-0	01	1	9505-
12	NUT; ADJ PLATE,AIR PUMP M8 FLANGE	5-09440-005-0	01	1	9112-
13	WASHER; LK,BRKT (A) ID=10.2	9-09150-610-0	02	1	9112-9405
14	BOLT; BRKT (A) TO C/BL M10X40	9-01061-055-0	02	1	9112-9405
14	BOLT; BRKT (A) TO C/BL M10X50 FLANGE	0-28081-050-0	02	1	9406-
16	NUT; AIR PUMP 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8	9-09110-508-0	01	1	9505-
17	WASHER; LK,AIR PUMP 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) ID=8.2	9-09150-508-0	01	1	9505-
18	BOLT; BRKT (B) TO BRKT (A) 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X30 W/LK WASHER	0-50040-830-0	03	1	9505-
19	BRACKET; AIR PUMP 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94449-590-1	01	1	9505-
20	BOLT; AIR PUMP 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X115	9-09600-109-0	01	1	9505-
21	BOLT; AIR PUMP BRKT (A) M10X30	8-94238-617-0	01	1	9112-
25	BOLT; BRKT,AIR BYPASS VLV 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X16 W/LK WASHER	0-50040-816-0	03	1	9505-
31	CLIP; HOSE,AIR INJ 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) (B) ID=27	8-94411-850-0	02	1	9505-
31	CLIP; HOSE,AIR INJ 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) (A) ID=27	8-94411-850-0	04	1	9505-
32	VALVE; CHECK 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94204-935-0	01	1	9505-
33	MANIFOLD ASM; AIR 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94344-903-0	01	1	9505-
35	CLIP; CABLE,FRT	8-94160-679-0	01	1	9112-
42	WASHER; LK,ASV ID=6.1	9-09150-506-0	01	1	9112-9504
42	WASHER; LK,ASV EXC. CHINA EQUIPMENT(YT2) ID=6.1	9-09150-506-0	01	1	9505-
43	HOSE; RUBBER,AIR CLEANER TO AIR PUMP 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94146-264-3	01	1	9505-
45	SILENCER; DIVERT AIR 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94310-849-0	01	1	9505-
49	BOLT; ADJ PLATE,AIR PUMP 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X25 W/LK WASHER	0-50040-825-0	01	1	9505-
50	STUD; ADJ PLATE,AIR PUMP M8X25 L=37	9-04110-825-0	01	1	9112-9204
50	STUD; ADJ PLATE,AIR PUMP M8X20 L=32	9-04110-820-0	01	1	9205-9605
50	STUD; ADJ PLATE,AIR PUMP EXC. CHINA EQUIPMENT(YT2) M8X20 L=32	9-04110-820-0	01	1	9606-
50	STUD; ADJ PLATE,AIR PUMP 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X25 L=37	9-04110-825-0	01	1	9606-
51	BELT; AIR PUMP DRIVE 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94232-287-3	01	1	9505-
52	BRACKET; AIR PUMP,ENG SIDE	8-94140-911-1	01	1	9112-9502
52	BRACKET; AIR PUMP,ENG SIDE	8-97129-607-0	01	1	9503-
53	NUT; CLIP M6	9-09110-406-0	01	1	9112-9208
53	NUT; CLIP M6	9-09110-506-0	01	1	9209-9504
53	NUT; CLIP EXC. CHINA EQUIPMENT(YT2) M6	9-09110-406-0	01	1	9505-
53	NUT; CLIP 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M6 FLANGE	5-09440-004-0	01	1	9505-
55	BRACKET; ASV 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94148-843-0	01	1	9505-
56	CLIP; WIRE,DIVERT HOSE 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) ID=21	8-94411-849-0	02	1	9505-
57	HOSE; RUBBER,DIVERT,ASV TO ACL 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94364-478-0	01	1	9505-
59	HOSE; RUBBER,AIR PUMP TO ASV 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94146-265-0	01	1	9505-
60	HOSE; RUBBER,ASV TO AIR MANIF 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94146-267-1	01	1	9505-
68	CLIP; BAND,RUBBER HOSE 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94362-189-0	01	1	9505-
124	JOINT; 3 WAY 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) 3WAY	8-94165-537-0	01	1	9507-
125	HOSE; RUBBER 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) L=40 SERVICED BY L=3000	0-04740-300-0	02	1	9507-
125	HOSE; RUBBER 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) L=230 SERVICED BY L=3000	0-04740-300-0	01	1	9507-9507
125	HOSE; RUBBER 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) L=160 SERVICED BY L=3000	0-04740-300-0	01	1	9507-
146	VALVE; SW,AIR 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94387-070-0	01	1	9505-9505
146	VALVE; SW,AIR 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-97128-021-0	01	1	9506-
147	FILTER; GAS 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94236-909-0	01	1	9507-
