◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-71 - DISTRIBUTOR ▶

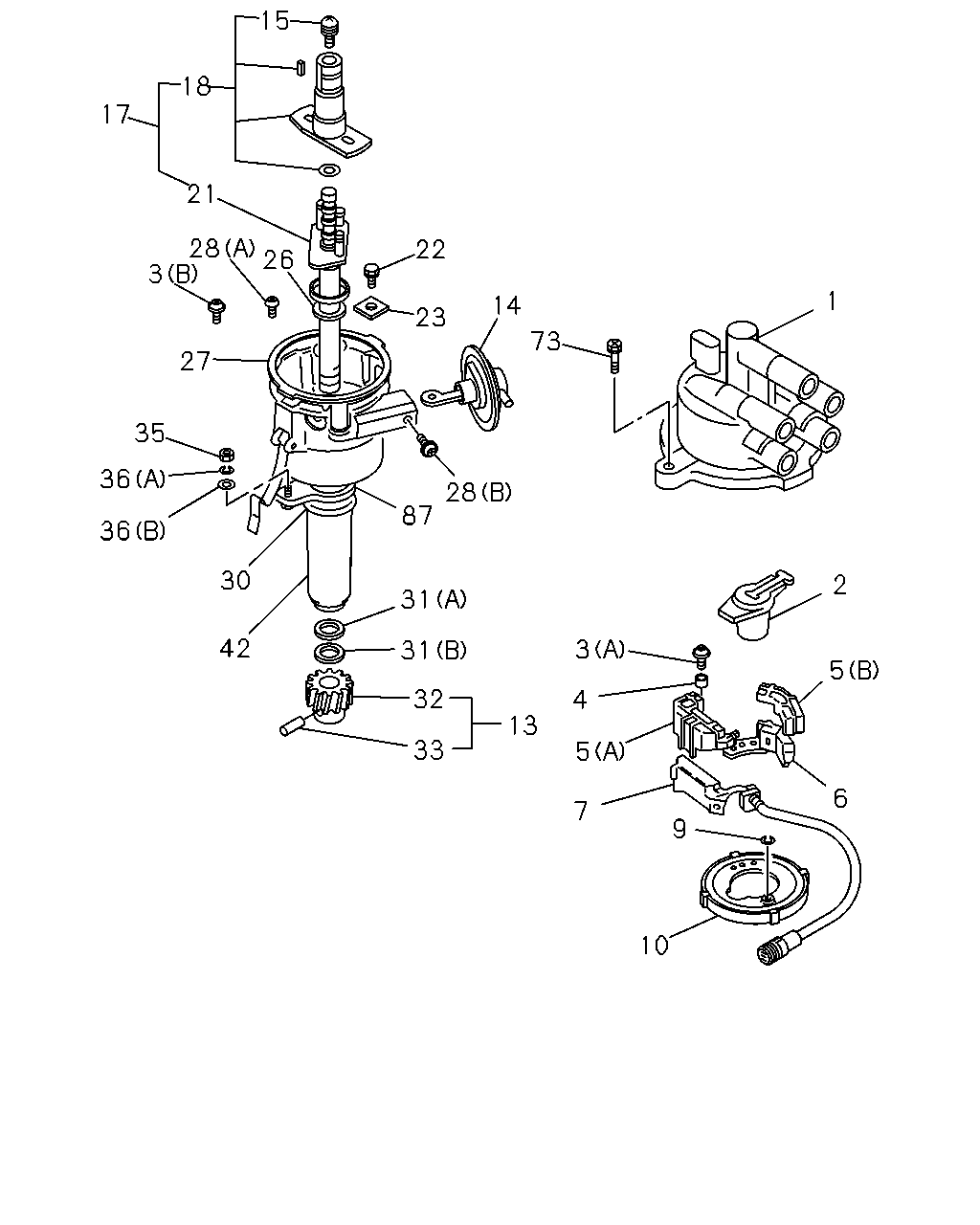

0-71 — DISTRIBUTOR (#33158) — 38 parça
çizim 16517
15 18 17 21 28 26 3 22 1 14 73 23 27 35 36 28 87 36 30 2 31 42 3 31 5 32 4 13 33 5 6 7 9 10
BalonParca AdiParca NoAdetTipApplied Date
1 CAP; DISTR
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94321-537-0 01 1 -
2 ROTOR; DISTR
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94338-910-0 01 1 -
3 SCREW; BREAKER,DISTR
(A) ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94206-155-0 02 1 -
3 SCREW; BREAKER,DISTR
(B) ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94212-645-0 02 1 -
4 NUT; SPACER
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94147-857-0 01 1 -
5 COVER; DUST,BREAKER,DISTR
(A) ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94129-193-0 01 1 -
5 COVER; DUST,BREAKER,DISTR
(B) ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94129-194-0 01 1 -
6 GENERATOR; DISTR
ASM PART: A = 8-94476-142-1 		8-94321-533-0 01 1 -9209
6 GENERATOR; DISTR
ASM PART: B = 8-97129-748-0 		8-97080-226-0 01 1 -
6 GENERATOR; DISTR
ASM PART: A = 8-94476-142-1 		8-97080-226-0 01 1 9210-
7 IGNITER; DISTR
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94321-528-0 01 1 -
9 WASHER; SNAP,BREAKER,DISTR
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94207-822-0 01 1 -
10 PLATE; BREAKER,DIST
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94129-198-0 01 1 -
13 COUPLING; DISTR
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94237-156-0 01 1 -
14 CONTROL; VAC,DISTR
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94321-532-0 01 1 -
15 SCREW; CAM,DISTR
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94206-155-0 01 1 -
17 GOVERNOR; DISTR
ASM PART: A = 8-94476-142-1 		8-94321-534-0 01 1 -
17 GOVERNOR; DISTR
ASM PART: B = 8-97129-748-0 		8-97131-345-0 01 1 -
18 CAM; DISTR
ASM PART: A = 8-94476-142-1 		8-94129-218-0 01 1 -
18 CAM; DISTR
ASM PART: B = 8-97129-748-0 		8-97131-344-0 01 1 -
21 SHAFT; DISTR
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94480-330-0 01 1 -
22 SCREW; CLAMP,DISTR
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94480-331-0 02 1 -
23 WASHER; CLAMP SCREW,DISTR
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94216-700-0 02 1 -
26 WASHER; SHAFT,DISTR
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94480-332-0 01 1 -
27 GASKET; HSG,DISTR
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94321-530-0 01 1 -
28 SCREW; VAC CONT
(A) ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94108-473-0 02 1 -
28 SCREW; VAC CONT
(B) ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94237-241-0 01 1 -
30 GASKET; HSG,DISTR
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94206-165-0 01 1 -
31 WASHER; THRUST,DISTR
(A), T=0.20 ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94206-157-0 01 1 -
31 WASHER; THRUST,DISTR
(B), T=0.30 ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94207-823-0 01 1 -
32 GEAR; DRIVE,DISTR
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94237-176-0 01 1 -
33 PIN; STRAIGHT,DISTR
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94237-157-0 01 1 -
35 NUT; PLATE,DISTR
M8 ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		9-09110-508-0 01 1 -
36 WASHER; PLATE,DISTR
(A), ID=8.2 ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		9-09150-508-0 01 1 -
36 WASHER; PLATE,DISTR
(B), ID=8.4 OD=18 ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		9-09160-608-0 01 1 -
42 HOUSING; DISTR
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94321-531-0 01 1 -
73 BOLT; PLATE,DISTR
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94405-199-0 03 1 -
87 PLATE; DISTR
ASM PART: A = 8-94476-142-1, B = 8-97129-748-0 		8-94321-527-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
