0-70 — CARBURETOR (#33157) — 85 parça

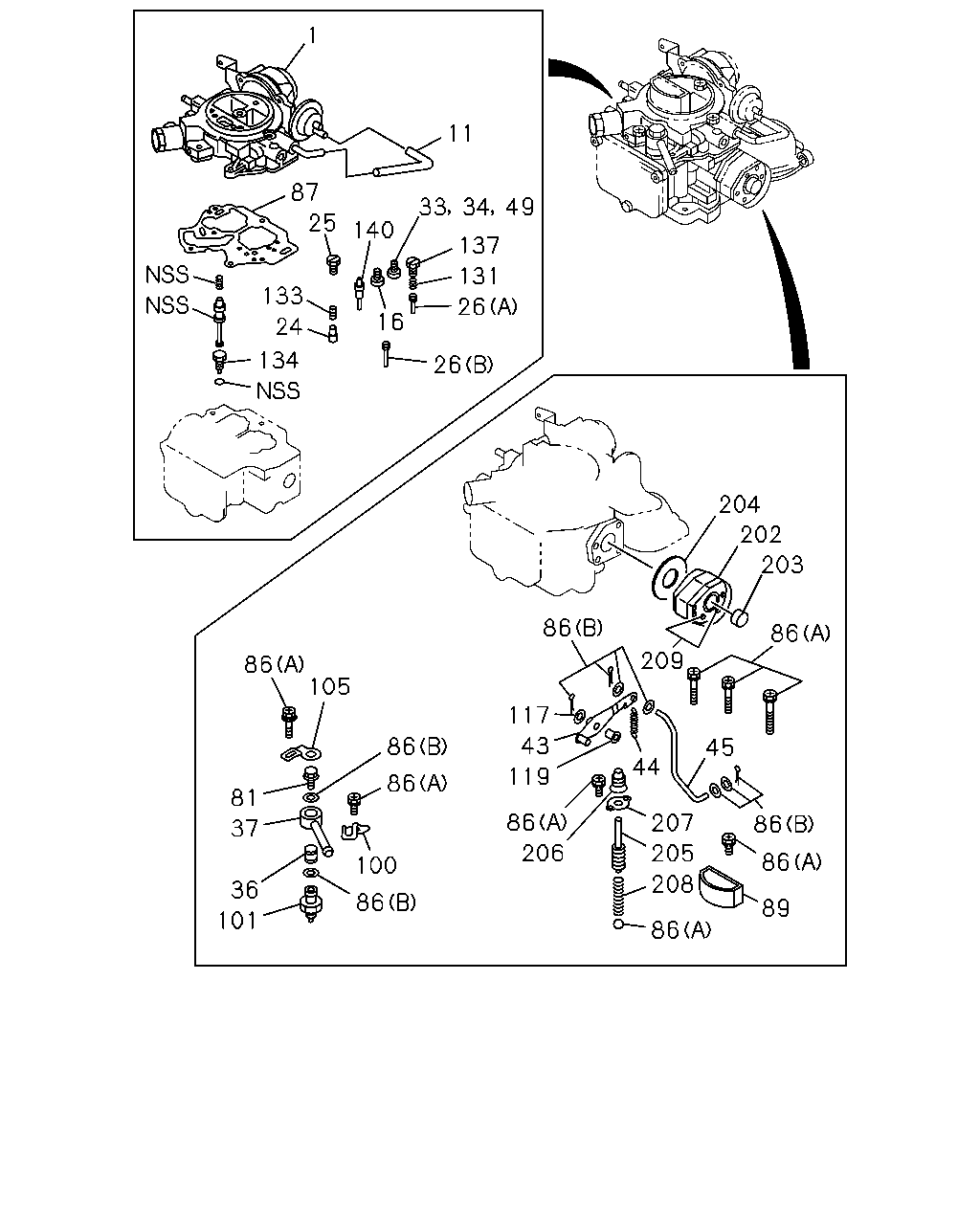

1 11 87 25 140 137 131 26 133 24 134 16 26 204 202 203 86 86 209 86 105 44 117 43 119 86 45 86 81 37 86 206 207 205 208 86 86 100 36 101 86 89 86 33 34 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AIR HORN COMPL; CARB ASM PART: A = 8-97042-802-1	8-97048-993-0	01	1	-9312
1	AIR HORN COMPL; CARB ASM PART: B = 8-97128-394-0	8-97102-559-0	01	1	-
1	AIR HORN COMPL; CARB ASM PART: A = 8-97042-802-1	8-97102-559-0	01	1	9401-
11	HOSE; VAC,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-372-0	01	1	-
16	JET; COASTING,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94467-482-0	01	1	-
24	WEIGHT; PUMP,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94248-489-0	01	1	-
25	PLUG; OUTLET VLV,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94215-716-0	01	1	-
26	JET ASM; SLOW,CARB (A) ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94237-506-0	01	1	-
26	JET ASM; SLOW,CARB (B) ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-386-0	01	1	-
33	JET ASM; 2ND MAIN AIR BLEED,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-385-0	01	1	-
34	JET ASM; 1ST MAIN AIR BLEED,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-384-0	01	1	-
36	STRAINER ASM; CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94237-492-0	01	1	-
37	UNION; FUEL,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94250-233-0	01	1	-
43	ARM; PUMP,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94434-214-0	01	1	-
44	SPRING; SUB RETURN,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94434-216-0	01	1	-
45	ROD; PUMP CONNECTOR,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94434-215-0	01	1	-
49	JET; AIR BLEED,2ND,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-387-0	01	1	-
81	BOLT; UNION,FUEL RETURN,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	9-81115-072-0	01	1	-
86	SCREW SET; CARB (A) ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94178-636-0	01	1	-
86	SCREW SET; CARB (B) ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94447-230-0	01	1	-
87	GASKET SET; CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94447-229-0	01	1	-
89	COVER; VENT,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94407-976-0	01	1	-
100	PLATE; STOPPING,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-374-0	01	1	-
101	VALVE; NEEDLE,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-363-0	01	1	-
105	HOLDER; CHOKE WIRE,CARB ASM PART: A = 8-97042-802-1	8-94401-375-0	01	1	-9312
117	WASHER; ARM PUMP,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-361-0	01	1	-
119	COLLAR; ARM,PUMP ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-360-0	01	1	-
131	SPRING; PUMP,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94215-710-0	01	1	-
133	SPRING; INJECTOR,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94248-488-0	01	1	-
134	VALVE; POWER,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-388-0	01	1	-
137	PLUG; SLOW PASSAGE,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94215-711-0	01	1	-
140	JET; COASTING AIR BLEED,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94467-483-0	01	1	-
202	DEVICE; BOOST CONT ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94467-473-0	01	1	-
203	CAP; BOOST CONT DEVICE ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94467-474-0	01	1	-
204	GASKET; BOOST CONT DEVICE ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94467-475-0	01	1	-
205	PISTON; CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94440-975-0	01	1	-
206	COVER; PUMP,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-365-0	01	1	-
207	PLATE; CYL,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-367-0	01	1	-
208	SPRING; PISTON,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94252-518-0	01	1	-
209	SCREW; BOOST CONT DEVICE ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94467-476-0	03	1	-

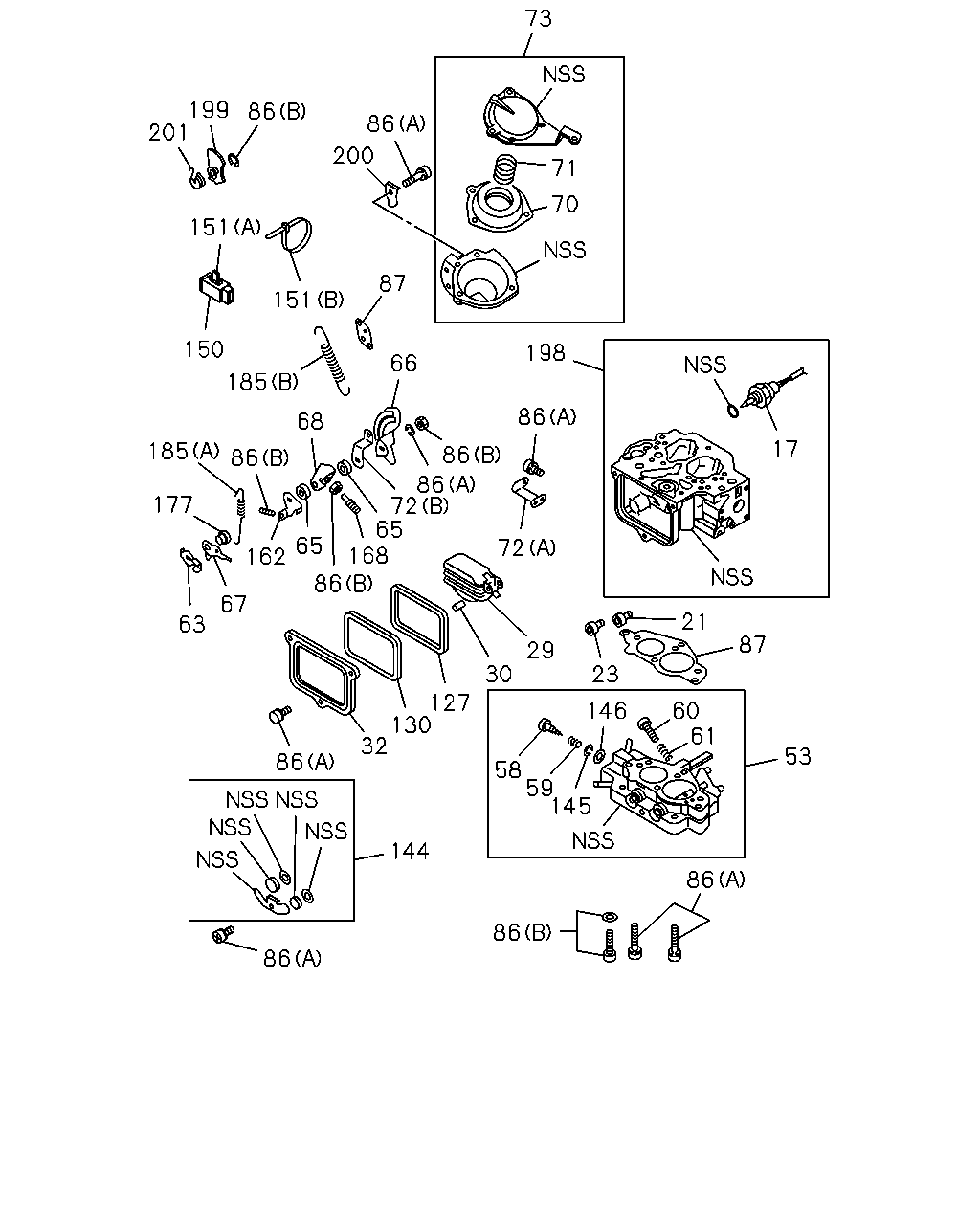

73 199 201 86 86 200 71 70 151 87 151 68 150 185 198 66 86 17 185 86 86 86 72 65 168 86 177 65 162 72 67 63 21 87 29 30 127 130 32 23 146 60 61 53 86 58 59 145 144 86 86 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	VALVE ASM; SOLENOID,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-97048-995-0	01	1	-
21	JET; 2ND MAIN,CARB ASM PART: A = 8-97042-802-1	8-94467-481-0	01	1	-
21	JET; 2ND MAIN,CARB ASM PART: B = 8-97128-394-0	8-97131-503-0	01	1	-
23	JET; 1ST MAIN,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94467-480-0	01	1	-
29	FLOAT; CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-362-0	01	1	-
30	COLLAR; FLOAT PIN,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94215-713-0	01	1	-
32	COVER; FUEL LEVEL GLASS,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94215-682-1	01	1	-
53	BODY; THROTTLE,CARB ASM PART: A = 8-97042-802-1	8-94467-477-0	01	1	-
53	BODY; THROTTLE,CARB ASM PART: B = 8-97128-394-0	8-97129-715-0	01	1	-
58	SCREW; IDLE ADJ,CARB ASM PART: A = 8-97042-802-1	8-94122-179-0	01	1	-9312
58	SCREW; IDLE ADJ,CARB ASM PART: A = 8-97042-802-1	8-97102-586-0	01	1	9401-
58	SCREW; IDLE ADJ,CARB ASM PART: B = 8-97128-394-0	8-97102-586-0	01	1	-
59	SPRING; IDLE ADJ,SCREW,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94237-481-0	01	1	-
60	SCREW; THROTTLE ADJ,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94178-631-0	01	1	-
61	SPRING; THROTTLE ADJ,SCREW,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94178-632-0	01	1	-
63	ARM; THROTTLE SHAFT,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94215-679-0	01	1	-
65	COLLAR; THROTTLE SHAFT "A",CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94248-439-0	02	1	-
66	LEVER ASM; THROTTLE,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-380-0	01	1	-
67	ARM ASM; FAST IDLE CAM ADJ,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94252-516-0	01	1	-
68	LEVER ASM; FAST IDLE,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-357-0	01	1	-
70	DIAPHRAGM ASM; CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94402-185-0	01	1	-
71	SPRING; DIAPH,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94467-479-0	01	1	-
72	HANGER; SPRING,CARB (B) ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-381-0	01	1	-
72	HANGER; SPRING,CARB (A) ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-382-0	01	1	-
73	CHAMBER ASM; CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94467-478-0	01	1	-
86	SCREW SET; CARB (A) ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94178-636-0	01	1	-
86	SCREW SET; CARB (B) ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94447-230-0	01	1	-
87	GASKET SET; CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94447-229-0	01	1	-
127	SEAL; RUBBER,GLASS,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	9-81113-913-0	01	1	-
130	COVER; FLOAT,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94360-703-0	01	1	-
144	COVER SET; DUST,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-364-0	01	1	-
145	WASHER; IDLE,ADJ SCREW ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94237-480-0	01	1	-
146	SEAL; IDLE,ADJ SCREW ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94237-479-0	01	1	-
150	CONNECTOR; CABLE,CARB 4P MALE GRAY ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94447-519-0	01	1	-
151	CLAMP; CABLE CONNECTOR,CARB (A), L=15 ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94315-436-1	01	1	-
151	CLAMP; CABLE CONNECTOR,CARB (B) ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94407-977-0	01	1	-
162	LEVER ASM; DOWN SHIFT,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94248-447-0	01	1	-
168	SCREW; FAST IDLE ADJ,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94215-720-0	01	1	-
177	COLLAR; ROLLING,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94252-515-0	01	1	-
185	SPRING COMPL; THROTTLE RETURN,CARB (A) ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-355-0	01	1	-
185	SPRING COMPL; THROTTLE RETURN,CARB (B) ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-383-0	01	1	-
198	CHAMBER ASM; FLOAT,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-97048-994-0	01	1	-
199	CAM; IDLE,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-373-0	01	1	-
200	STOPPER; CAM,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-366-0	01	1	-
201	SPRING; CAM,CARB ASM PART: A = 8-97042-802-1, B = 8-97128-394-0	8-94401-358-0	01	1	-
