Sayfa 0-65 - Isuzu EPC

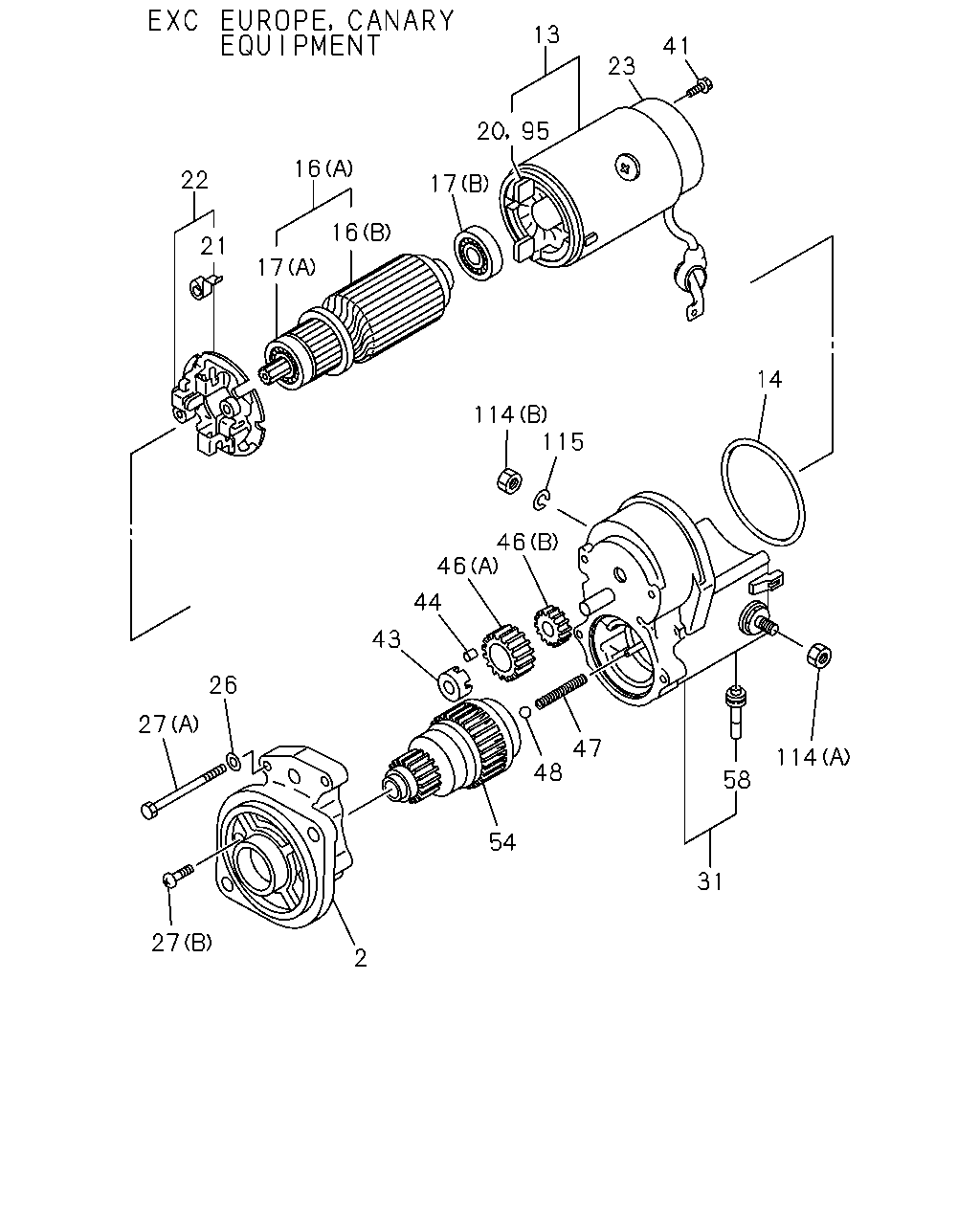

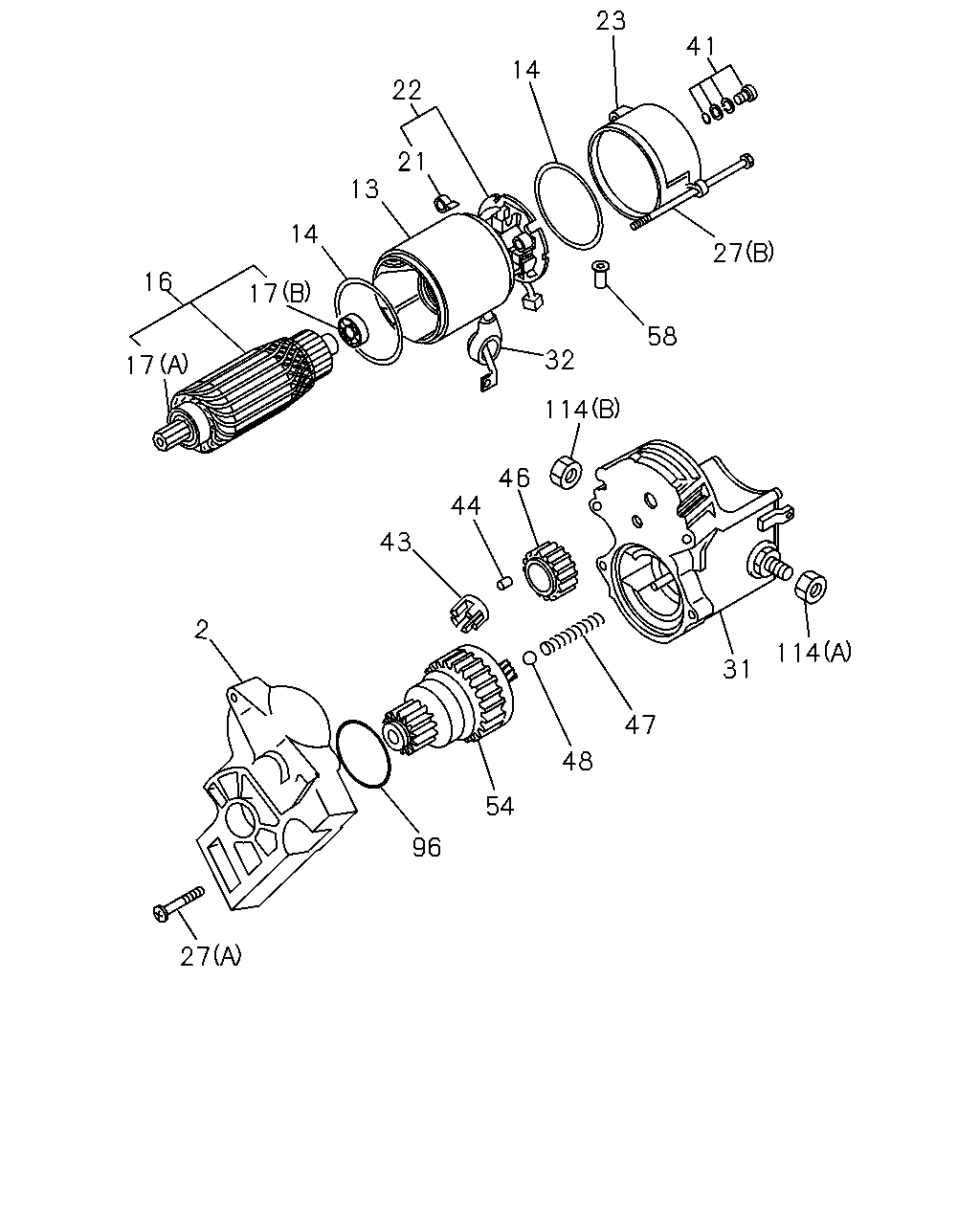

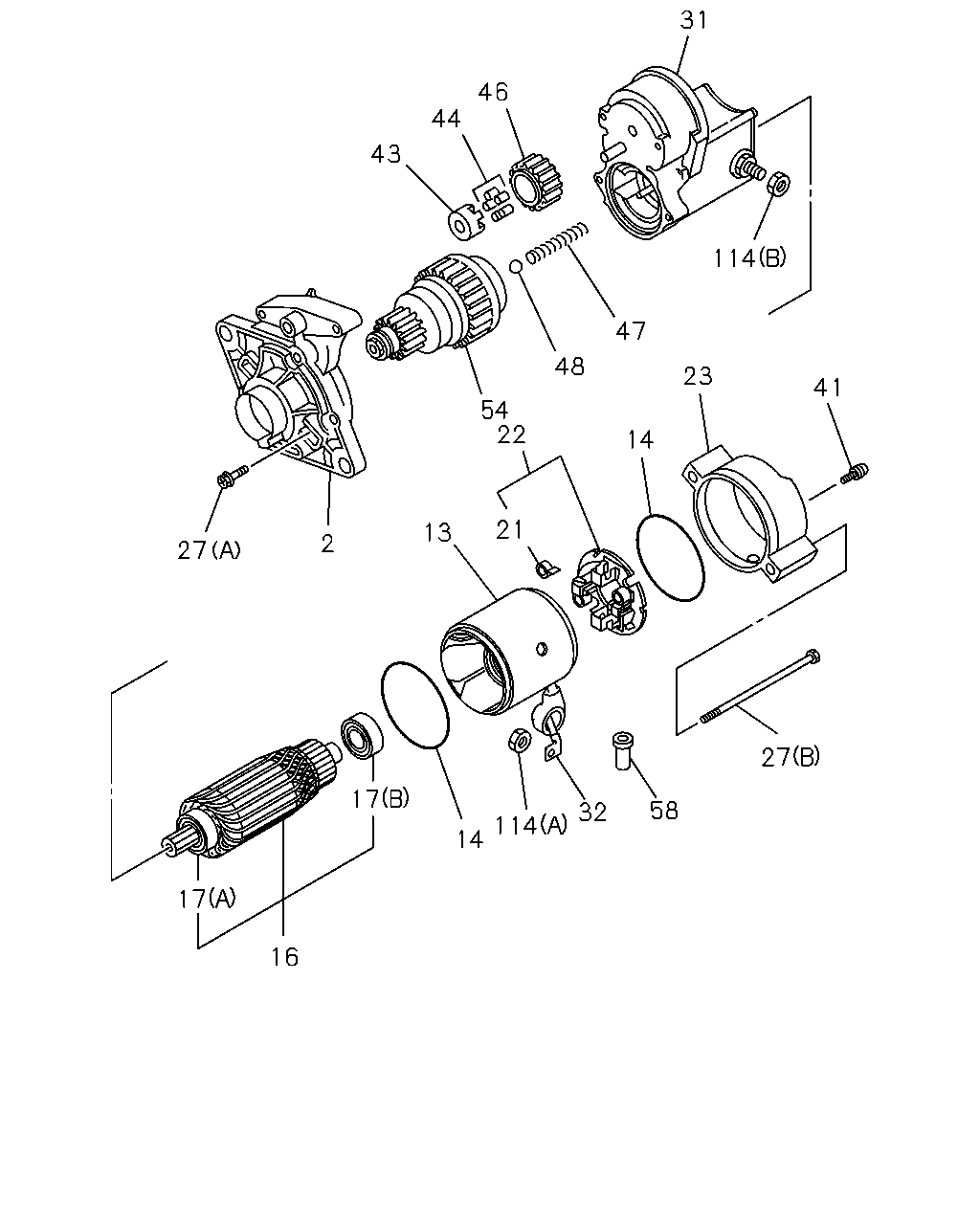

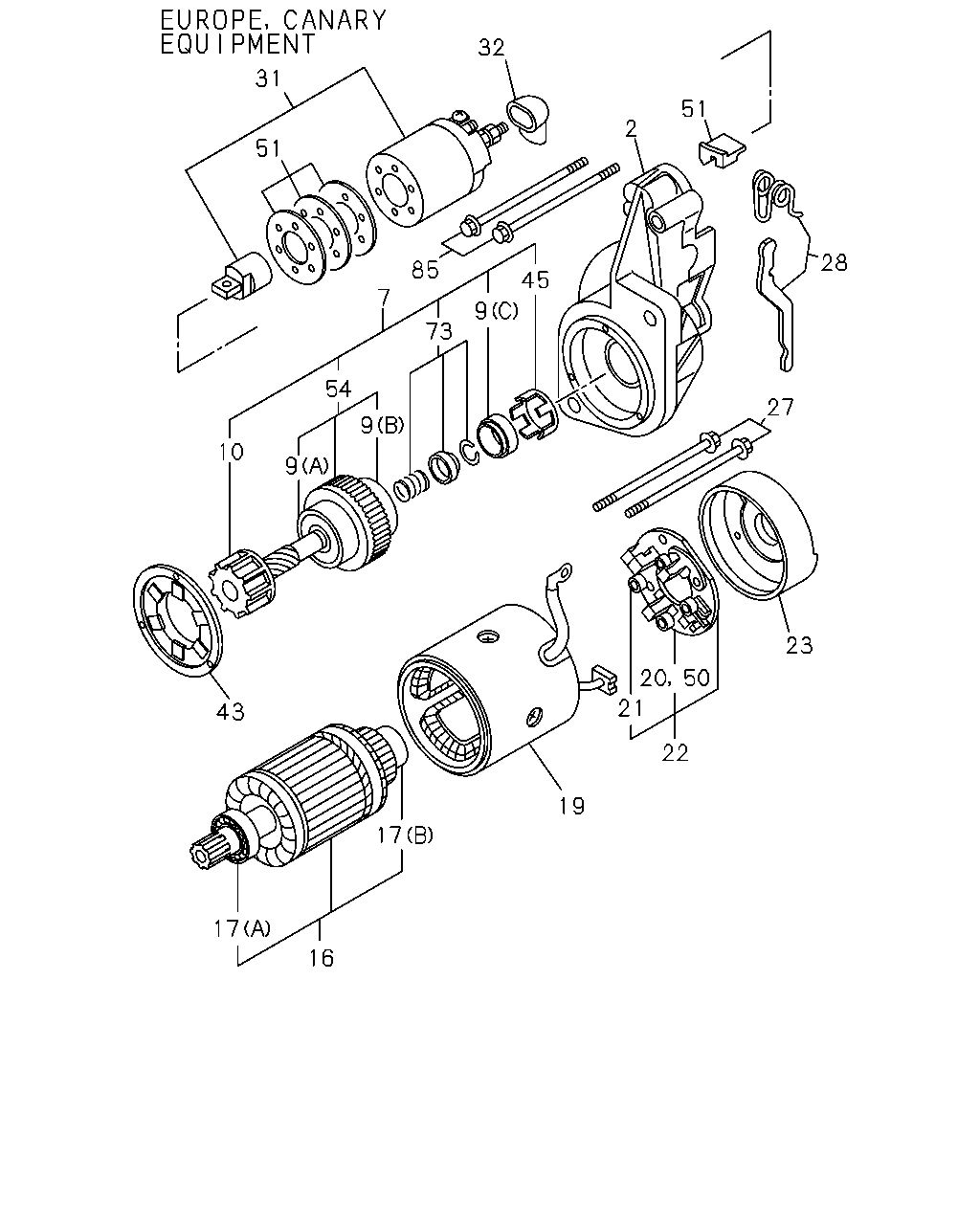

0-65 — STARTER (#33155) — 374 parça

31 46 44 43 114 47 48 23 41 54 22 14 21 13 2 27 27 17 58 32 114 14 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-435-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-94371-833-1	8-94381-935-0	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 8-94384-314-1	8-97041-426-1	01	1	-
2	CASE; PINION,STARTER ASM PART: D = 8-94387-653-0	8-97047-552-0	01	1	-
2	CASE; PINION,STARTER ASM PART: F = 8-97112-549-0, H = 8-97136-688-0	8-97112-560-0	01	1	-
2	CASE; PINION,STARTER ASM PART: G = 8-97120-356-1	8-97142-908-0	01	1	-
13	YOKE; STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-425-0	01	1	-
13	YOKE; STARTER ASM PART: C = 8-94384-314-1	8-94377-254-0	01	1	-
13	YOKE; STARTER ASM PART: B = 8-94371-833-1	8-94377-260-0	01	1	-9503
13	YOKE; STARTER ASM PART: B = 8-94371-833-1	8-97125-855-0	01	1	9504-
13	YOKE; STARTER ASM PART: G = 8-97120-356-1	8-97135-497-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-428-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: B = 8-94371-833-1, C = 8-94384-314-1	8-94170-214-0	02	1	-
16	ARMATURE; STARTER (B) ASM PART: A = 8-94133-758-4	8-94167-426-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 8-94384-314-1	8-94377-253-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-94371-833-1	8-94377-259-0	01	1	-
16	ARMATURE; STARTER ASM PART: D = 8-94387-653-0	8-94435-561-0	01	1	-
16	ARMATURE; STARTER (A) ASM PART: E = 8-97042-997-0	8-97083-193-0	01	1	-
16	ARMATURE; STARTER ASM PART: F = 8-97112-549-0, H = 8-97136-688-0	8-97112-555-0	01	1	-
16	ARMATURE; STARTER (B) ASM PART: G = 8-97120-356-1	8-97112-869-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-94133-758-4	8-94167-431-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94228-437-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94371-833-1, C = 8-94384-314-1, G = 8-97120-356-1	8-94377-240-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94371-833-1, C = 8-94384-314-1	8-94377-241-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: E = 8-97042-997-0	8-97083-195-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: G = 8-97120-356-1	8-97112-954-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-81117-015-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94371-833-1	5-81177-007-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94242-064-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-94384-314-1	8-94377-244-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: G = 8-97120-356-1	8-97112-880-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-430-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-94371-833-1	8-94377-258-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-94387-653-0	8-94478-863-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: C = 8-94384-314-1	8-97041-424-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: F = 8-97112-549-0	8-97112-559-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: G = 8-97120-356-1	8-97112-873-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: H = 8-97136-688-0	8-97142-597-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-94371-833-1	8-94377-257-0	01	1	-9503
23	COVER; RR COVER STARTER ASM PART: B = 8-94371-833-1	8-97032-145-0	01	1	9504-
23	COVER; RR COVER STARTER ASM PART: C = 8-94384-314-1	8-97041-423-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: D = 8-94387-653-0	8-97047-546-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: F = 8-97112-549-0, H = 8-97136-688-0	8-97112-558-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: G = 8-97120-356-1	8-97112-875-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-433-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-434-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: D = 8-94387-653-0	8-94242-071-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 8-94371-833-1, C = 8-94384-314-1	8-94377-243-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94371-833-1	8-94381-944-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: C = 8-94384-314-1	8-97041-422-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: F = 8-97112-549-0, H = 8-97136-688-0	8-97112-565-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: G = 8-97120-356-1	8-97112-881-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: G = 8-97120-356-1	8-97112-957-0	02	1	-
31	SWITCH; ENGAGE STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94337-444-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-94371-833-1	8-94381-936-0	01	1	-9503
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-94133-758-4	8-94450-046-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 8-94384-314-1	8-97041-425-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: E = 8-97042-997-0	8-97083-196-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-94371-833-1	8-97125-854-0	01	1	9504-
31	SWITCH; ENGAGE STARTER ASM PART: G = 8-97120-356-1	8-97142-907-0	01	1	-
32	COVER; RUBBER,STARTER HITACHI ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	5-81129-069-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: B = 8-94371-833-1	8-94129-182-0	01	1	-9503
32	COVER; RUBBER,STARTER ASM PART: C = 8-94384-314-1	8-97041-420-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: B = 8-94371-833-1	8-97125-852-0	01	1	9504-
41	SCREW; RR COVER,STARTER ASM PART: B = 8-94371-833-1	8-94170-216-0	02	1	-9503
41	SCREW; RR COVER,STARTER ASM PART: C = 8-94384-314-1	8-94170-216-0	02	1	-
41	SCREW; RR COVER,STARTER ASM PART: B = 8-94371-833-1	8-97125-853-0	02	1	9504-
41	SCREW; RR COVER,STARTER ASM PART: G = 8-97120-356-1	8-97142-903-0	02	1	-
43	RETAINER; PINION STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-81129-100-0	01	1	-
43	RETAINER; PINION STARTER ASM PART: B = 8-94371-833-1, C = 8-94384-314-1, G = 8-97120-356-1	8-94377-246-0	01	1	-
43	RETAINER; PINION STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94435-570-0	01	1	-
44	ROLLER; PINION STARTER ASM PART: A = 8-94133-758-4, B = 8-94371-833-1, C = 8-94384-314-1, E = 8-97042-997-0, G = 8-97120-356-1	5-81129-099-0	05	1	-
46	GEAR; CLU STARTER (B) ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-81123-010-0	01	1	-
46	GEAR; CLU STARTER (A) ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-427-0	01	1	-
46	GEAR; CLU STARTER ASM PART: B = 8-94371-833-1, C = 8-94384-314-1	8-94377-247-0	01	1	-
46	GEAR; CLU STARTER (A) ASM PART: G = 8-97120-356-1	8-97078-649-0	01	1	-
46	GEAR; CLU STARTER (B) ASM PART: G = 8-97120-356-1	8-97142-904-0	01	1	-
47	SPRING; PINION STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-81129-096-0	01	1	-
47	SPRING; PINION STARTER ASM PART: B = 8-94371-833-1, C = 8-94384-314-1, G = 8-97120-356-1	8-94377-245-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 8-94133-758-4, B = 8-94371-833-1, C = 8-94384-314-1, E = 8-97042-997-0, G = 8-97120-356-1	5-81129-092-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-81124-003-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-94371-833-1	8-94377-252-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 8-94384-314-1	8-97041-427-0	01	1	-9208
54	CLUTCH; PINION,STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-97047-548-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 8-94384-314-1	8-97078-002-0	01	1	9209-
54	CLUTCH; PINION,STARTER ASM PART: G = 8-97120-356-1	8-97148-687-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: E = 8-97042-997-0	1-81129-677-0	02	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: B = 8-94371-833-1	8-94377-239-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: C = 8-94384-314-1, G = 8-97120-356-1	8-97041-421-0	01	1	-
114	NUT; TERMINAL (A) ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-09400-042-0	01	1	-
114	NUT; TERMINAL (A) ASM PART: B = 8-94371-833-1, C = 8-94384-314-1, G = 8-97120-356-1	8-94109-763-0	01	1	-
114	NUT; TERMINAL (B) ASM PART: B = 8-94371-833-1, C = 8-94384-314-1, G = 8-97120-356-1	8-94377-238-0	01	1	-
114	NUT; TERMINAL (B), M8 ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	9-09110-508-0	01	1	-

23 41 14 22 21 13 14 27 16 17 58 32 17 114 46 44 43 114 31 47 48 54 96 27 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-435-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-94371-833-1	8-94381-935-0	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 8-94384-314-1	8-97041-426-1	01	1	-
2	CASE; PINION,STARTER ASM PART: D = 8-94387-653-0	8-97047-552-0	01	1	-
2	CASE; PINION,STARTER ASM PART: F = 8-97112-549-0, H = 8-97136-688-0	8-97112-560-0	01	1	-
2	CASE; PINION,STARTER ASM PART: G = 8-97120-356-1	8-97142-908-0	01	1	-
13	YOKE; STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-425-0	01	1	-
13	YOKE; STARTER ASM PART: C = 8-94384-314-1	8-94377-254-0	01	1	-
13	YOKE; STARTER ASM PART: B = 8-94371-833-1	8-94377-260-0	01	1	-9503
13	YOKE; STARTER ASM PART: B = 8-94371-833-1	8-97125-855-0	01	1	9504-
13	YOKE; STARTER ASM PART: G = 8-97120-356-1	8-97135-497-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-428-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: B = 8-94371-833-1, C = 8-94384-314-1	8-94170-214-0	02	1	-
16	ARMATURE; STARTER (B) ASM PART: A = 8-94133-758-4	8-94167-426-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 8-94384-314-1	8-94377-253-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-94371-833-1	8-94377-259-0	01	1	-
16	ARMATURE; STARTER ASM PART: D = 8-94387-653-0	8-94435-561-0	01	1	-
16	ARMATURE; STARTER (A) ASM PART: E = 8-97042-997-0	8-97083-193-0	01	1	-
16	ARMATURE; STARTER ASM PART: F = 8-97112-549-0, H = 8-97136-688-0	8-97112-555-0	01	1	-
16	ARMATURE; STARTER (B) ASM PART: G = 8-97120-356-1	8-97112-869-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-94133-758-4	8-94167-431-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94228-437-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94371-833-1, C = 8-94384-314-1, G = 8-97120-356-1	8-94377-240-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94371-833-1, C = 8-94384-314-1	8-94377-241-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: E = 8-97042-997-0	8-97083-195-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: G = 8-97120-356-1	8-97112-954-0	01	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-81117-015-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94371-833-1	5-81177-007-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94242-064-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-94384-314-1	8-94377-244-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: G = 8-97120-356-1	8-97112-880-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-430-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-94371-833-1	8-94377-258-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-94387-653-0	8-94478-863-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: C = 8-94384-314-1	8-97041-424-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: F = 8-97112-549-0	8-97112-559-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: G = 8-97120-356-1	8-97112-873-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: H = 8-97136-688-0	8-97142-597-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-94371-833-1	8-94377-257-0	01	1	-9503
23	COVER; RR COVER STARTER ASM PART: B = 8-94371-833-1	8-97032-145-0	01	1	9504-
23	COVER; RR COVER STARTER ASM PART: C = 8-94384-314-1	8-97041-423-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: D = 8-94387-653-0	8-97047-546-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: F = 8-97112-549-0, H = 8-97136-688-0	8-97112-558-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: G = 8-97120-356-1	8-97112-875-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-433-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-434-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: D = 8-94387-653-0	8-94242-071-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 8-94371-833-1, C = 8-94384-314-1	8-94377-243-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94371-833-1	8-94381-944-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: C = 8-94384-314-1	8-97041-422-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: F = 8-97112-549-0, H = 8-97136-688-0	8-97112-565-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: G = 8-97120-356-1	8-97112-881-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: G = 8-97120-356-1	8-97112-957-0	02	1	-
31	SWITCH; ENGAGE STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94337-444-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-94371-833-1	8-94381-936-0	01	1	-9503
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-94133-758-4	8-94450-046-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 8-94384-314-1	8-97041-425-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: E = 8-97042-997-0	8-97083-196-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-94371-833-1	8-97125-854-0	01	1	9504-
31	SWITCH; ENGAGE STARTER ASM PART: G = 8-97120-356-1	8-97142-907-0	01	1	-
32	COVER; RUBBER,STARTER HITACHI ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	5-81129-069-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: B = 8-94371-833-1	8-94129-182-0	01	1	-9503
32	COVER; RUBBER,STARTER ASM PART: C = 8-94384-314-1	8-97041-420-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: B = 8-94371-833-1	8-97125-852-0	01	1	9504-
41	SCREW; RR COVER,STARTER ASM PART: B = 8-94371-833-1	8-94170-216-0	02	1	-9503
41	SCREW; RR COVER,STARTER ASM PART: C = 8-94384-314-1	8-94170-216-0	02	1	-
41	SCREW; RR COVER,STARTER ASM PART: B = 8-94371-833-1	8-97125-853-0	02	1	9504-
41	SCREW; RR COVER,STARTER ASM PART: G = 8-97120-356-1	8-97142-903-0	02	1	-
43	RETAINER; PINION STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-81129-100-0	01	1	-
43	RETAINER; PINION STARTER ASM PART: B = 8-94371-833-1, C = 8-94384-314-1, G = 8-97120-356-1	8-94377-246-0	01	1	-
43	RETAINER; PINION STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94435-570-0	01	1	-
44	ROLLER; PINION STARTER ASM PART: A = 8-94133-758-4, B = 8-94371-833-1, C = 8-94384-314-1, E = 8-97042-997-0, G = 8-97120-356-1	5-81129-099-0	05	1	-
46	GEAR; CLU STARTER (B) ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-81123-010-0	01	1	-
46	GEAR; CLU STARTER (A) ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-427-0	01	1	-
46	GEAR; CLU STARTER ASM PART: B = 8-94371-833-1, C = 8-94384-314-1	8-94377-247-0	01	1	-
46	GEAR; CLU STARTER (A) ASM PART: G = 8-97120-356-1	8-97078-649-0	01	1	-
46	GEAR; CLU STARTER (B) ASM PART: G = 8-97120-356-1	8-97142-904-0	01	1	-
47	SPRING; PINION STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-81129-096-0	01	1	-
47	SPRING; PINION STARTER ASM PART: B = 8-94371-833-1, C = 8-94384-314-1, G = 8-97120-356-1	8-94377-245-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 8-94133-758-4, B = 8-94371-833-1, C = 8-94384-314-1, E = 8-97042-997-0, G = 8-97120-356-1	5-81129-092-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-81124-003-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-94371-833-1	8-94377-252-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 8-94384-314-1	8-97041-427-0	01	1	-9208
54	CLUTCH; PINION,STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-97047-548-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 8-94384-314-1	8-97078-002-0	01	1	9209-
54	CLUTCH; PINION,STARTER ASM PART: G = 8-97120-356-1	8-97148-687-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: E = 8-97042-997-0	1-81129-677-0	02	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: B = 8-94371-833-1	8-94377-239-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: C = 8-94384-314-1, G = 8-97120-356-1	8-97041-421-0	01	1	-
96	GASKET; FRT CASE ASM PART: C = 8-94384-314-1	8-97078-001-0	01	1	9209-
114	NUT; TERMINAL (A) ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-09400-042-0	01	1	-
114	NUT; TERMINAL (A) ASM PART: B = 8-94371-833-1, C = 8-94384-314-1, G = 8-97120-356-1	8-94109-763-0	01	1	-
114	NUT; TERMINAL (B) ASM PART: B = 8-94371-833-1, C = 8-94384-314-1, G = 8-97120-356-1	8-94377-238-0	01	1	-
114	NUT; TERMINAL (B), M8 ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	9-09110-508-0	01	1	-

31 32 51 2 51 28 85 45 9 7 73 54 27 9 10 9 23 20 21 50 43 22 19 17 17 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-435-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-94371-833-1	8-94381-935-0	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 8-94384-314-1	8-97041-426-1	01	1	-
2	CASE; PINION,STARTER ASM PART: D = 8-94387-653-0	8-97047-552-0	01	1	-
2	CASE; PINION,STARTER ASM PART: F = 8-97112-549-0, H = 8-97136-688-0	8-97112-560-0	01	1	-
2	CASE; PINION,STARTER ASM PART: G = 8-97120-356-1	8-97142-908-0	01	1	-
7	CLUTCH ASM; PINION,STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-97047-547-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (A) ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-97047-549-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (B) ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-97047-550-0	01	1	-
9	BEARING; GEAR SHAFT STARTER (C) ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-97047-551-0	01	1	-
10	SHAFT; GEAR STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94324-622-0	01	1	-
16	ARMATURE; STARTER (B) ASM PART: A = 8-94133-758-4	8-94167-426-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 8-94384-314-1	8-94377-253-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-94371-833-1	8-94377-259-0	01	1	-
16	ARMATURE; STARTER ASM PART: D = 8-94387-653-0	8-94435-561-0	01	1	-
16	ARMATURE; STARTER (A) ASM PART: E = 8-97042-997-0	8-97083-193-0	01	1	-
16	ARMATURE; STARTER ASM PART: F = 8-97112-549-0, H = 8-97136-688-0	8-97112-555-0	01	1	-
16	ARMATURE; STARTER (B) ASM PART: G = 8-97120-356-1	8-97112-869-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-94133-758-4	8-94167-431-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94228-437-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94371-833-1, C = 8-94384-314-1, G = 8-97120-356-1	8-94377-240-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94371-833-1, C = 8-94384-314-1	8-94377-241-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: E = 8-97042-997-0	8-97083-195-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: G = 8-97120-356-1	8-97112-954-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: D = 8-94387-653-0	8-97047-544-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: F = 8-97112-549-0	8-97112-556-0	01	1	-
19	COIL; FIELD,STARTER ASM PART: H = 8-97136-688-0	8-97142-596-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 8-94133-758-4	8-94167-429-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: D = 8-94387-653-0	8-94478-862-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: F = 8-97112-549-0	8-97112-557-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: H = 8-97136-688-0	8-97113-286-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-81117-015-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94371-833-1	5-81177-007-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94242-064-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-94384-314-1	8-94377-244-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: G = 8-97120-356-1	8-97112-880-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-430-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-94371-833-1	8-94377-258-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-94387-653-0	8-94478-863-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: C = 8-94384-314-1	8-97041-424-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: F = 8-97112-549-0	8-97112-559-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: G = 8-97120-356-1	8-97112-873-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: H = 8-97136-688-0	8-97142-597-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-94371-833-1	8-94377-257-0	01	1	-9503
23	COVER; RR COVER STARTER ASM PART: B = 8-94371-833-1	8-97032-145-0	01	1	9504-
23	COVER; RR COVER STARTER ASM PART: C = 8-94384-314-1	8-97041-423-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: D = 8-94387-653-0	8-97047-546-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: F = 8-97112-549-0, H = 8-97136-688-0	8-97112-558-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: G = 8-97120-356-1	8-97112-875-0	01	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-433-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-434-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: D = 8-94387-653-0	8-94242-071-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 8-94371-833-1, C = 8-94384-314-1	8-94377-243-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94371-833-1	8-94381-944-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: C = 8-94384-314-1	8-97041-422-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: F = 8-97112-549-0, H = 8-97136-688-0	8-97112-565-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: G = 8-97120-356-1	8-97112-881-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: G = 8-97120-356-1	8-97112-957-0	02	1	-
28	LEVER; SHIFT,STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94435-571-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94337-444-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-94371-833-1	8-94381-936-0	01	1	-9503
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-94133-758-4	8-94450-046-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 8-94384-314-1	8-97041-425-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: E = 8-97042-997-0	8-97083-196-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-94371-833-1	8-97125-854-0	01	1	9504-
31	SWITCH; ENGAGE STARTER ASM PART: G = 8-97120-356-1	8-97142-907-0	01	1	-
32	COVER; RUBBER,STARTER HITACHI ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	5-81129-069-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: B = 8-94371-833-1	8-94129-182-0	01	1	-9503
32	COVER; RUBBER,STARTER ASM PART: C = 8-94384-314-1	8-97041-420-0	01	1	-
32	COVER; RUBBER,STARTER ASM PART: B = 8-94371-833-1	8-97125-852-0	01	1	9504-
43	RETAINER; PINION STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-81129-100-0	01	1	-
43	RETAINER; PINION STARTER ASM PART: B = 8-94371-833-1, C = 8-94384-314-1, G = 8-97120-356-1	8-94377-246-0	01	1	-
43	RETAINER; PINION STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94435-570-0	01	1	-
45	RETAINER; BEARING,STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94435-567-0	01	1	-
50	BRUSH; (-),STARTER ASM PART: D = 8-94387-653-0	8-94478-862-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: F = 8-97112-549-0	8-97112-557-0	02	1	-
50	BRUSH; (-),STARTER ASM PART: H = 8-97136-688-0	8-97113-286-0	02	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: F = 8-97112-549-0, H = 8-97136-688-0	8-94435-572-0	01	1	-
51	COVER SET; DUST ENGAGE SW STARTER ASM PART: D = 8-94387-653-0	8-97047-553-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-81124-003-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-94371-833-1	8-94377-252-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 8-94384-314-1	8-97041-427-0	01	1	-9208
54	CLUTCH; PINION,STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-97047-548-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 8-94384-314-1	8-97078-002-0	01	1	9209-
54	CLUTCH; PINION,STARTER ASM PART: G = 8-97120-356-1	8-97148-687-0	01	1	-
73	STOPPER SET; PINION ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94228-450-0	01	1	-
85	BOLT; ENGAGE SW FIX,STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	5-81129-294-0	02	1	-

13 41 23 20 95 16 22 17 16 21 17 14 114 115 46 46 44 43 26 27 47 48 114 58 54 31 27 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CASE; PINION,STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-435-0	01	1	-
2	CASE; PINION,STARTER ASM PART: B = 8-94371-833-1	8-94381-935-0	01	1	-
2	CASE; PINION,STARTER ASM PART: C = 8-94384-314-1	8-97041-426-1	01	1	-
2	CASE; PINION,STARTER ASM PART: D = 8-94387-653-0	8-97047-552-0	01	1	-
2	CASE; PINION,STARTER ASM PART: F = 8-97112-549-0, H = 8-97136-688-0	8-97112-560-0	01	1	-
2	CASE; PINION,STARTER ASM PART: G = 8-97120-356-1	8-97142-908-0	01	1	-
13	YOKE; STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-425-0	01	1	-
13	YOKE; STARTER ASM PART: C = 8-94384-314-1	8-94377-254-0	01	1	-
13	YOKE; STARTER ASM PART: B = 8-94371-833-1	8-94377-260-0	01	1	-9503
13	YOKE; STARTER ASM PART: B = 8-94371-833-1	8-97125-855-0	01	1	9504-
13	YOKE; STARTER ASM PART: G = 8-97120-356-1	8-97135-497-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-428-0	01	1	-
14	GASKET; YOKE,STARTER ASM PART: B = 8-94371-833-1, C = 8-94384-314-1	8-94170-214-0	02	1	-
16	ARMATURE; STARTER (B) ASM PART: A = 8-94133-758-4	8-94167-426-0	01	1	-
16	ARMATURE; STARTER ASM PART: C = 8-94384-314-1	8-94377-253-0	01	1	-
16	ARMATURE; STARTER ASM PART: B = 8-94371-833-1	8-94377-259-0	01	1	-
16	ARMATURE; STARTER ASM PART: D = 8-94387-653-0	8-94435-561-0	01	1	-
16	ARMATURE; STARTER (A) ASM PART: E = 8-97042-997-0	8-97083-193-0	01	1	-
16	ARMATURE; STARTER ASM PART: F = 8-97112-549-0, H = 8-97136-688-0	8-97112-555-0	01	1	-
16	ARMATURE; STARTER (B) ASM PART: G = 8-97120-356-1	8-97112-869-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: A = 8-94133-758-4	8-94167-431-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94228-436-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94228-437-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: B = 8-94371-833-1, C = 8-94384-314-1, G = 8-97120-356-1	8-94377-240-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: B = 8-94371-833-1, C = 8-94384-314-1	8-94377-241-0	01	1	-
17	BEARING; ARMATURE,STARTER (A) ASM PART: E = 8-97042-997-0	8-97083-195-0	01	1	-
17	BEARING; ARMATURE,STARTER (B) ASM PART: G = 8-97120-356-1	8-97112-954-0	01	1	-
20	BRUSH; (+),STARTER ASM PART: A = 8-94133-758-4	8-94167-429-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: D = 8-94387-653-0	8-94478-862-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: F = 8-97112-549-0	8-97112-557-0	02	1	-
20	BRUSH; (+),STARTER ASM PART: H = 8-97136-688-0	8-97113-286-0	02	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-81117-015-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: B = 8-94371-833-1	5-81177-007-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94242-064-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: C = 8-94384-314-1	8-94377-244-0	04	1	-
21	SPRING; BRUSH HOLDER STARTER ASM PART: G = 8-97120-356-1	8-97112-880-0	04	1	-
22	HOLDER; BRUSH STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-430-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: B = 8-94371-833-1	8-94377-258-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: D = 8-94387-653-0	8-94478-863-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: C = 8-94384-314-1	8-97041-424-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: F = 8-97112-549-0	8-97112-559-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: G = 8-97120-356-1	8-97112-873-0	01	1	-
22	HOLDER; BRUSH STARTER ASM PART: H = 8-97136-688-0	8-97142-597-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: B = 8-94371-833-1	8-94377-257-0	01	1	-9503
23	COVER; RR COVER STARTER ASM PART: B = 8-94371-833-1	8-97032-145-0	01	1	9504-
23	COVER; RR COVER STARTER ASM PART: C = 8-94384-314-1	8-97041-423-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: D = 8-94387-653-0	8-97047-546-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: F = 8-97112-549-0, H = 8-97136-688-0	8-97112-558-0	01	1	-
23	COVER; RR COVER STARTER ASM PART: G = 8-97120-356-1	8-97112-875-0	01	1	-
26	SEAL; THROUGH BOLT STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-81129-211-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-433-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-434-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: D = 8-94387-653-0	8-94242-071-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: B = 8-94371-833-1, C = 8-94384-314-1	8-94377-243-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: B = 8-94371-833-1	8-94381-944-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: C = 8-94384-314-1	8-97041-422-0	02	1	-
27	BOLT; THROUGH,STARTER ASM PART: F = 8-97112-549-0, H = 8-97136-688-0	8-97112-565-0	02	1	-
27	BOLT; THROUGH,STARTER (A) ASM PART: G = 8-97120-356-1	8-97112-881-0	02	1	-
27	BOLT; THROUGH,STARTER (B) ASM PART: G = 8-97120-356-1	8-97112-957-0	02	1	-
31	SWITCH; ENGAGE STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94337-444-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-94371-833-1	8-94381-936-0	01	1	-9503
31	SWITCH; ENGAGE STARTER ASM PART: A = 8-94133-758-4	8-94450-046-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: C = 8-94384-314-1	8-97041-425-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: E = 8-97042-997-0	8-97083-196-0	01	1	-
31	SWITCH; ENGAGE STARTER ASM PART: B = 8-94371-833-1	8-97125-854-0	01	1	9504-
31	SWITCH; ENGAGE STARTER ASM PART: G = 8-97120-356-1	8-97142-907-0	01	1	-
41	SCREW; RR COVER,STARTER ASM PART: B = 8-94371-833-1	8-94170-216-0	02	1	-9503
41	SCREW; RR COVER,STARTER ASM PART: C = 8-94384-314-1	8-94170-216-0	02	1	-
41	SCREW; RR COVER,STARTER ASM PART: B = 8-94371-833-1	8-97125-853-0	02	1	9504-
41	SCREW; RR COVER,STARTER ASM PART: G = 8-97120-356-1	8-97142-903-0	02	1	-
43	RETAINER; PINION STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-81129-100-0	01	1	-
43	RETAINER; PINION STARTER ASM PART: B = 8-94371-833-1, C = 8-94384-314-1, G = 8-97120-356-1	8-94377-246-0	01	1	-
43	RETAINER; PINION STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-94435-570-0	01	1	-
44	ROLLER; PINION STARTER ASM PART: A = 8-94133-758-4, B = 8-94371-833-1, C = 8-94384-314-1, E = 8-97042-997-0, G = 8-97120-356-1	5-81129-099-0	05	1	-
46	GEAR; CLU STARTER (B) ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-81123-010-0	01	1	-
46	GEAR; CLU STARTER (A) ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	8-94167-427-0	01	1	-
46	GEAR; CLU STARTER ASM PART: B = 8-94371-833-1, C = 8-94384-314-1	8-94377-247-0	01	1	-
46	GEAR; CLU STARTER (A) ASM PART: G = 8-97120-356-1	8-97078-649-0	01	1	-
46	GEAR; CLU STARTER (B) ASM PART: G = 8-97120-356-1	8-97142-904-0	01	1	-
47	SPRING; PINION STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-81129-096-0	01	1	-
47	SPRING; PINION STARTER ASM PART: B = 8-94371-833-1, C = 8-94384-314-1, G = 8-97120-356-1	8-94377-245-0	01	1	-
48	BALL; PINION,STARTER ASM PART: A = 8-94133-758-4, B = 8-94371-833-1, C = 8-94384-314-1, E = 8-97042-997-0, G = 8-97120-356-1	5-81129-092-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-81124-003-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: B = 8-94371-833-1	8-94377-252-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 8-94384-314-1	8-97041-427-0	01	1	-9208
54	CLUTCH; PINION,STARTER ASM PART: D = 8-94387-653-0, F = 8-97112-549-0, H = 8-97136-688-0	8-97047-548-0	01	1	-
54	CLUTCH; PINION,STARTER ASM PART: C = 8-94384-314-1	8-97078-002-0	01	1	9209-
54	CLUTCH; PINION,STARTER ASM PART: G = 8-97120-356-1	8-97148-687-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: E = 8-97042-997-0	1-81129-677-0	02	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: B = 8-94371-833-1	8-94377-239-0	01	1	-
58	PIPE; DRAIN RR COVER STARTER ASM PART: C = 8-94384-314-1, G = 8-97120-356-1	8-97041-421-0	01	1	-
95	BRUSH ASM; STARTER ASM PART: E = 8-97042-997-0	8-97083-194-0	01	1	-
114	NUT; TERMINAL (A) ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	5-09400-042-0	01	1	-
114	NUT; TERMINAL (A) ASM PART: B = 8-94371-833-1, C = 8-94384-314-1, G = 8-97120-356-1	8-94109-763-0	01	1	-
114	NUT; TERMINAL (B) ASM PART: B = 8-94371-833-1, C = 8-94384-314-1, G = 8-97120-356-1	8-94377-238-0	01	1	-
114	NUT; TERMINAL (B), M8 ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	9-09110-508-0	01	1	-
115	WASHER; TERMINAL ID=8.2 ASM PART: A = 8-94133-758-4, E = 8-97042-997-0	9-09150-508-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
