0-60 — ENGINE ELECTRICAL CONTROL PARTS (#33153) — 351 parça

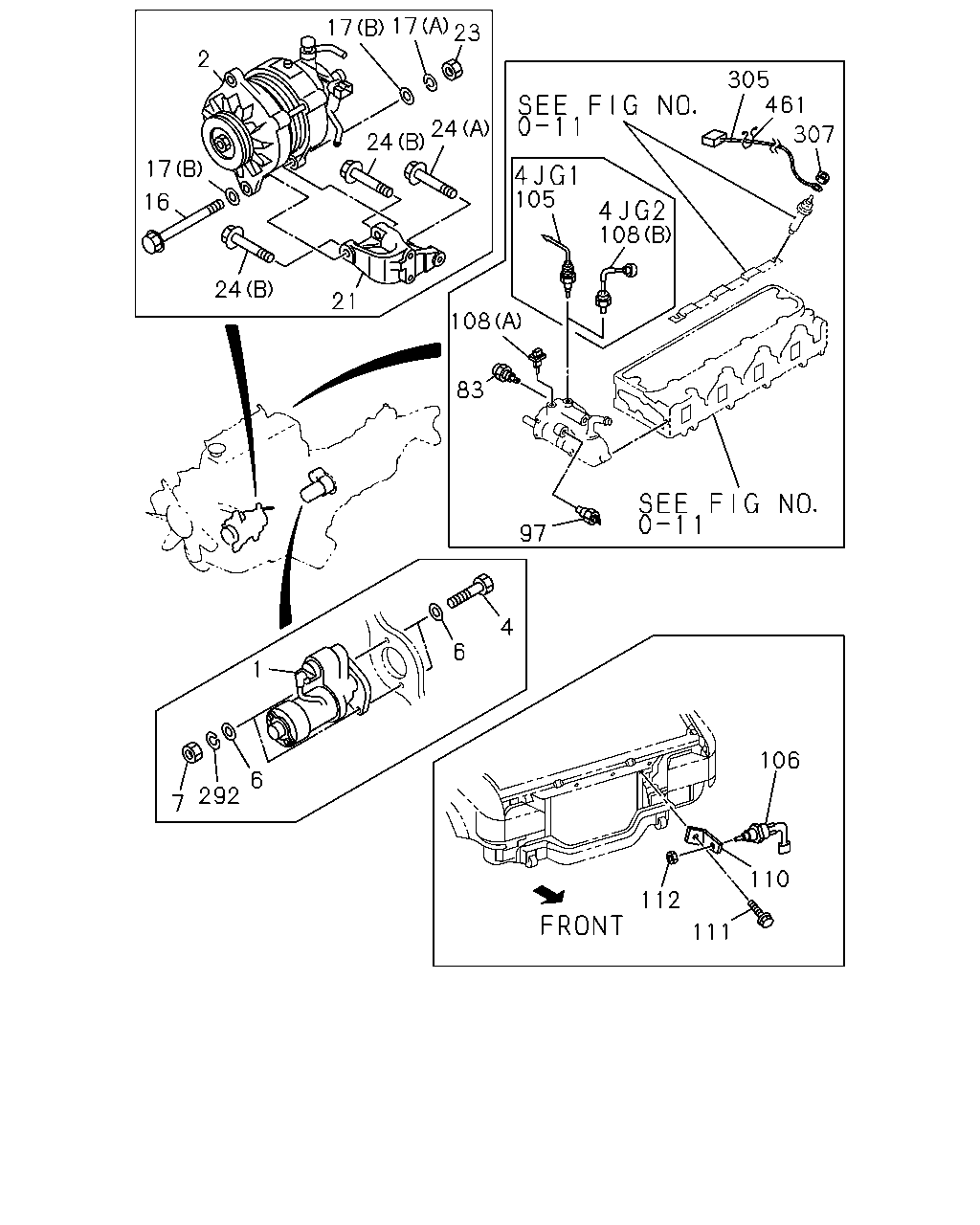

499 205 375 205 499 64 733

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	SENSOR; REVOLUTION 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94337-779-0	01	1	9505-	●
205	SCREW; BRKT 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M6X14 W/PL WASHER	9-03900-614-0	03	1	9505-	●
375	BRACKET 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-97130-371-0	01	1	9505-	●
499	GROMMET 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) D=9X9 L=8 M6	8-94222-314-0	02	1	9505-	●
733	NUT; BRKT M5 FLANGE	8-94178-699-0	02	1	9505-		●
733	NUT; BRKT 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M5 FLANGE	8-94178-699-0	02	1	9505-	●

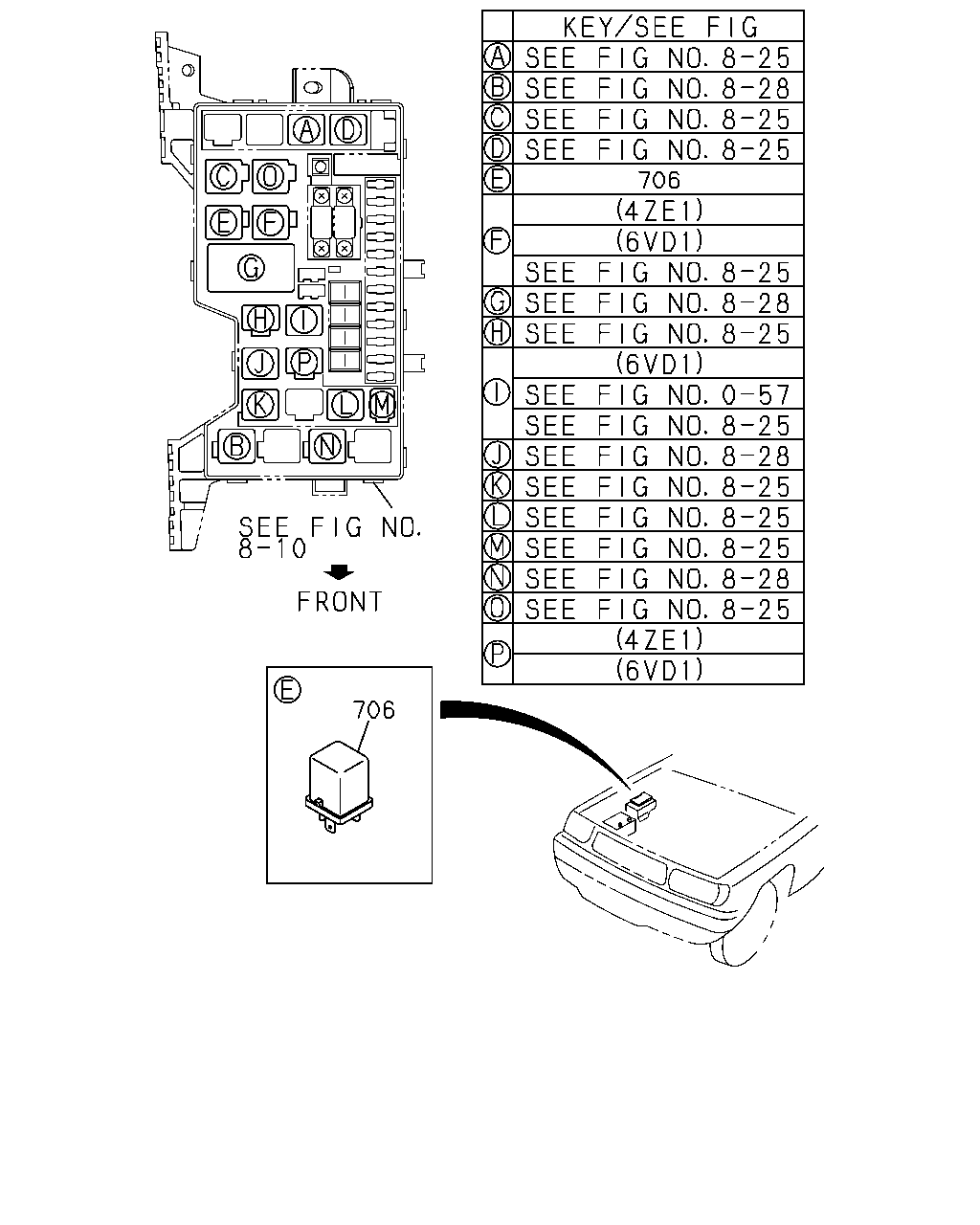

706 706

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	706	RELAY; QWS EUROPE/CANARY EQUIPMENT(EK4) 12V 20A	8-94218-497-0	01	1	9112-9607		●
	706	RELAY; QWS ENG QUICK WARM UP SYSTEM<6JZ> 12V 20A	8-94218-497-0	01	1	9608-		●

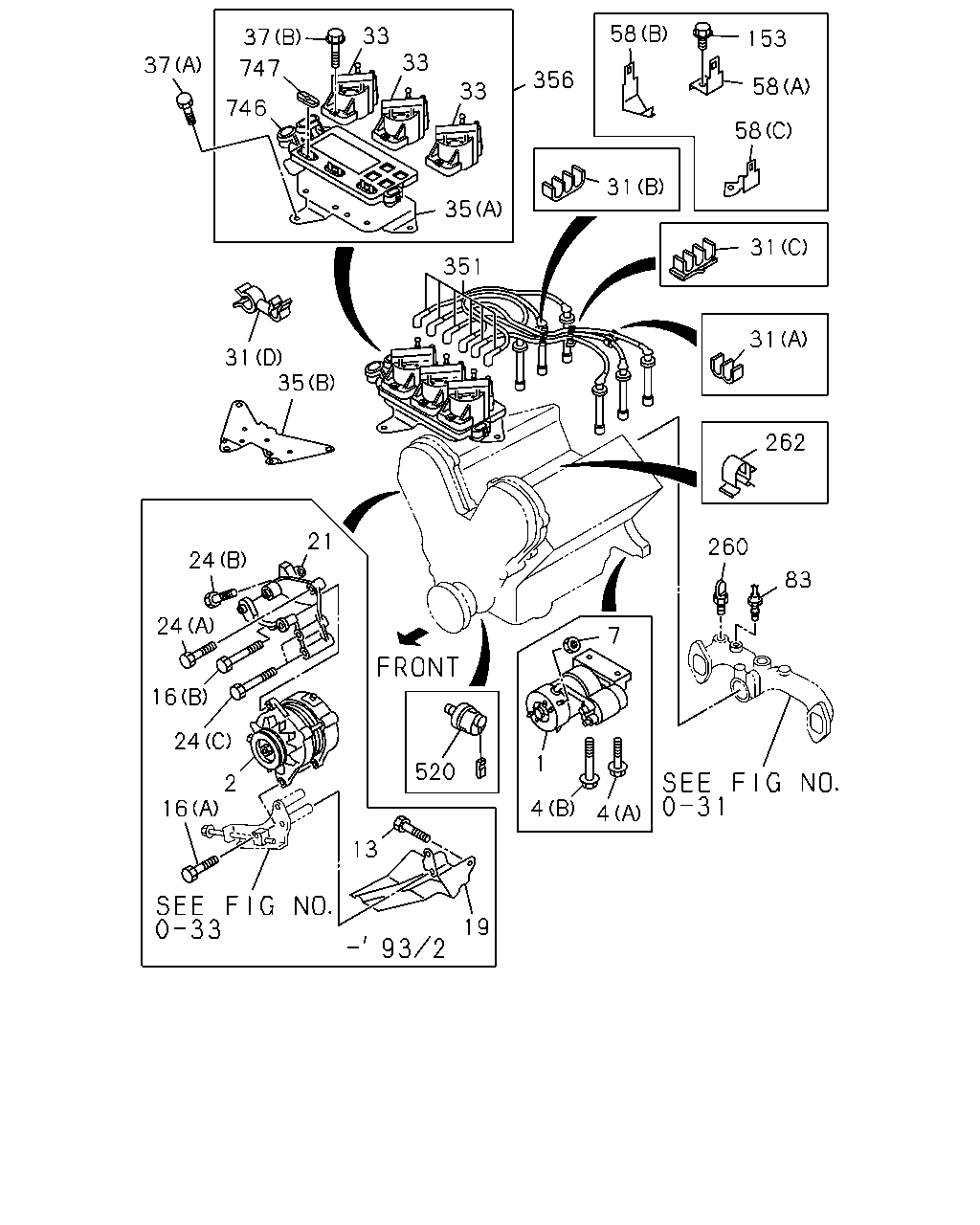

58 33 33 37 747 153 37 356 58 33 746 58 31 35 31 351 31 31 35 262 21 260 24 83 24 7 16 24 1 2 16 520 4 4 13 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.2KW DENSO	8-94133-758-4	01	1	9112-9306		●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.2KW DENSO	8-97042-997-0	01	1	9307-9504		●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.2KW DENSO	8-97042-997-0	01	1	9505-9603		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.0KW	8-97120-356-1	01	1	9604-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.8KW	8-94387-653-0	01	1	9112-9410		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.8KW	8-97112-549-0	01	1	9411-9606		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.3KW	8-97136-688-0	01	1	9607-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW	8-94371-833-1	01	1	9112-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW	8-94384-314-1	01	1	9112-				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2) 12V 80A	8-97062-641-0	01	1	9112-9202			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97062-641-0	01	1	9112-9202		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2) 12V 50A	8-97037-724-1	01	1	9112-9202			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97037-724-1	01	1	9112-9202		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) 12V 50A	8-97074-611-0	01	1	9203-9208		●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) 12V 80A	8-97074-612-0	01	1	9203-9504		●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2) 12V 80A	8-97074-612-0	01	1	9505-9508		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97074-612-0	01	1	9505-9508		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2) 12V 80A	8-97134-866-0	01	1	9509-9603		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97134-866-0	01	1	9509-9603		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2) 12V 80A	8-97133-854-0	01	1	9604-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97133-854-0	01	1	9604-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) 12V 50A	8-97074-611-0	01	1	9209-9406		●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) 12V 50A	8-97113-770-0	01	1	9407-9504		●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97113-770-0	01	1	9505-9505		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2),CERAMIC HEATER<6YX> 12V 50A	8-97113-770-0	01	1	9506-9508		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2),CERAMIC HEATER<6YX> 12V 50A	8-97134-762-0	01	1	9509-9607		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2),CERAMIC HEATER<6YX> 12V 60A	8-97147-851-0	01	1	9608-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 55A(S9S) 12V 55A	8-94156-672-1	01	1	9112-9504	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 55A	8-94472-817-4	01	1	9505-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 55A(S9S) 12V 45A	8-94454-188-1	01	1	9112-9504	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 75A(6WN) 12V 75A	8-97034-899-2	01	1	9112-9410				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 75A(6WN) 12V 75A	8-97121-180-1	01	1	9411-				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 75A(6WN) 12V 60A	8-97042-852-2	01	1	9112-9410				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 75A(6WN) 12V 60A	8-97121-193-0	01	1	9411-				●
4	BOLT; STARTER M12X35	9-92041-235-0	02	1	9112-9204		●	●
4	BOLT; STARTER M12X35	0-20801-235-0	02	1	9205-9402		●	●
4	BOLT; STARTER M12X50	0-10806-250-0	02	1	9403-9504		●	●
4	BOLT; STARTER M12X50	0-10806-250-0	02	1	9505-		●
4	BOLT; STARTER (A) M10X50 FLANGE	0-28181-050-0	01	1	9112-				●
4	BOLT; STARTER (B) M10X75 FLANGE	8-94399-669-1	01	1	9112-				●
7	NUT; STARTER M12	9-99110-412-0	02	1	9112-9504		●	●
7	NUT; STARTER M12	9-99110-412-0	02	1	9505-		●
7	NUT; STARTER M8 W/LK WASHER	8-94413-537-0	01	1	9112-				●
13	BOLT; BRKT M10X20 W/LK&PL WASHER	0-50151-020-0	01	1	9112-9302				●
16	BOLT; GEN M10X125	9-09801-325-0	01	1	9112-9202		●	●
16	BOLT; GEN M10X130	8-94402-322-1	01	1	9203-9304		●	●
16	BOLT; GEN M10X133	5-09000-169-1	01	1	9305-9504		●	●
16	BOLT; GEN M10X133	5-09000-169-1	01	1	9505-9612		●
16	BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	9701-		●
16	BOLT; GEN (A) M8X35 FLANGE	0-28080-835-0	01	1	9112-				●
16	BOLT; GEN (B) M10X90 W/LK WASHER	0-50041-090-0	01	1	9112-				●
19	BRACKET; GEN	8-97041-830-3	01	1	9112-9302				●
21	BRACKET; GEN	8-94437-276-2	01	1	9112-9504		●	●
21	BRACKET; GEN	8-94437-276-2	01	1	9505-		●
21	BRACKET; GEN	8-94436-180-3	01	1	9112-9205	●
21	BRACKET; GEN	8-97071-652-1	01	1	9206-	●
21	BRACKET; GEN	8-94379-094-5	01	1	9112-				●
24	BOLT; GEN BRKT (A) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-9504		●	●
24	BOLT; GEN BRKT (A) M10X35 W/LK WASHER	0-50041-035-0	01	1	9505-		●
24	BOLT; GEN BRKT (B) M10X70 W/LK WASHER	0-50041-070-0	02	1	9112-9504		●	●
24	BOLT; GEN BRKT (B) M10X70 W/LK WASHER	0-50041-070-0	02	1	9505-		●
24	BOLT; GEN BRKT (B) M10X100	0-10806-000-0	01	1	9112-	●
24	BOLT; GEN BRKT (A) M10X25 W/LK WASHER	0-50041-025-0	02	1	9112-	●
24	BOLT; GEN BRKT (A) M8X30 FLANGE	0-28080-830-0	01	1	9112-				●
24	BOLT; GEN BRKT (B) M8X60 FLANGE	0-28080-860-0	02	1	9112-				●
24	BOLT; GEN BRKT (C) M8X80 FLANGE	0-28080-880-0	02	1	9112-				●
31	CLIP; HIGH TENSION CABLE (C) ID=6.8X2	8-94126-636-0	02	1	9112-				●
31	CLIP; HIGH TENSION CABLE (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9112-				●
31	CLIP; HIGH TENSION CABLE (D) ID=10 & 8	8-94470-684-0	01	1	9112-				●
31	CLIP; HIGH TENSION CABLE (A) ID=6.8 (X3)	8-97032-586-0	03	1	9112-				●
33	COIL ASM; IGN	8-94136-766-0	01	1	9112-	●
33	COIL ASM; IGN	8-10468-391-0	03	1	9112-9309				●
33	COIL ASM; IGN	8-10472-401-0	03	1	9310-				●
35	BRACKET; IGN COIL (A)	8-10496-145-0	01	1	9112-				●
35	BRACKET; IGN COIL (B)	8-97020-690-1	01	1	9112-9206				●
35	BRACKET; IGN COIL (B)	8-97080-059-1	01	1	9207-				●
37	BOLT; IGN COIL M6X35 W/LK WASHER	0-50040-635-0	02	1	9112-	●
37	BOLT; IGN COIL (A) M8X16 FLANGE	0-28080-816-0	03	1	9112-9206				●
37	BOLT; IGN COIL (A) M8X22	8-94122-771-0	03	1	9207-9307				●
37	BOLT; IGN COIL (A) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	9308-				●
37	BOLT; IGN COIL (B) W/LK WASHER	8-10498-731-0	06	1	9112-				●
58	BRACKET; CLIP (A)	8-97027-400-1	01	1	9112-				●
58	BRACKET; CLIP (B)	8-97027-401-2	01	1	9112-				●
58	BRACKET; CLIP (C)	8-97060-081-1	01	1	9112-				●
83	THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9112-9504		●	●
83	THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9505-		●
83	THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9112-9504		●	●
83	THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9505-		●
83	THERMOMETER UNIT DENSO	8-94247-437-1	01	1	9112-	●			●
153	BOLT; BRKT FIX M6X16 W/LK&PL WASHER	0-50140-616-0	01	1	9112-9302				●
153	BOLT; BRKT FIX M6X12 FLANGE	0-28080-612-0	01	1	9303-9308				●
153	BOLT; BRKT FIX M6X12 FLANGE	0-28080-612-0	03	1	9309-				●
260	SENSOR; WATER TEMP	8-25036-979-0	01	1	9112-				●
262	CLIP; HARNESS	8-94386-489-0	02	1	9112-				●
351	CABLE KIT; HIGH TENSION	8-94433-364-1	01	1	9112-	●
351	CABLE KIT; HIGH TENSION	8-94377-271-0	01	1	9112-				●
356	COIL ASM; IGNITION	8-01103-759-0	01	1	9112-9309				●
356	COIL ASM; IGNITION GM DELCO REMY	8-01103-962-0	01	1	9310-9504				●
520	SENSOR; PRESSURE	8-97033-290-0	01	1	9112-9504				●
520	SENSOR; PRESSURE	8-97106-478-2	01	1	9505-				●
746	MODULE; IGN C0NTROL	8-10467-202-0	01	1	9112-				●
747	SEAL; IGN COIL	8-01989-579-0	03	1	9112-				●

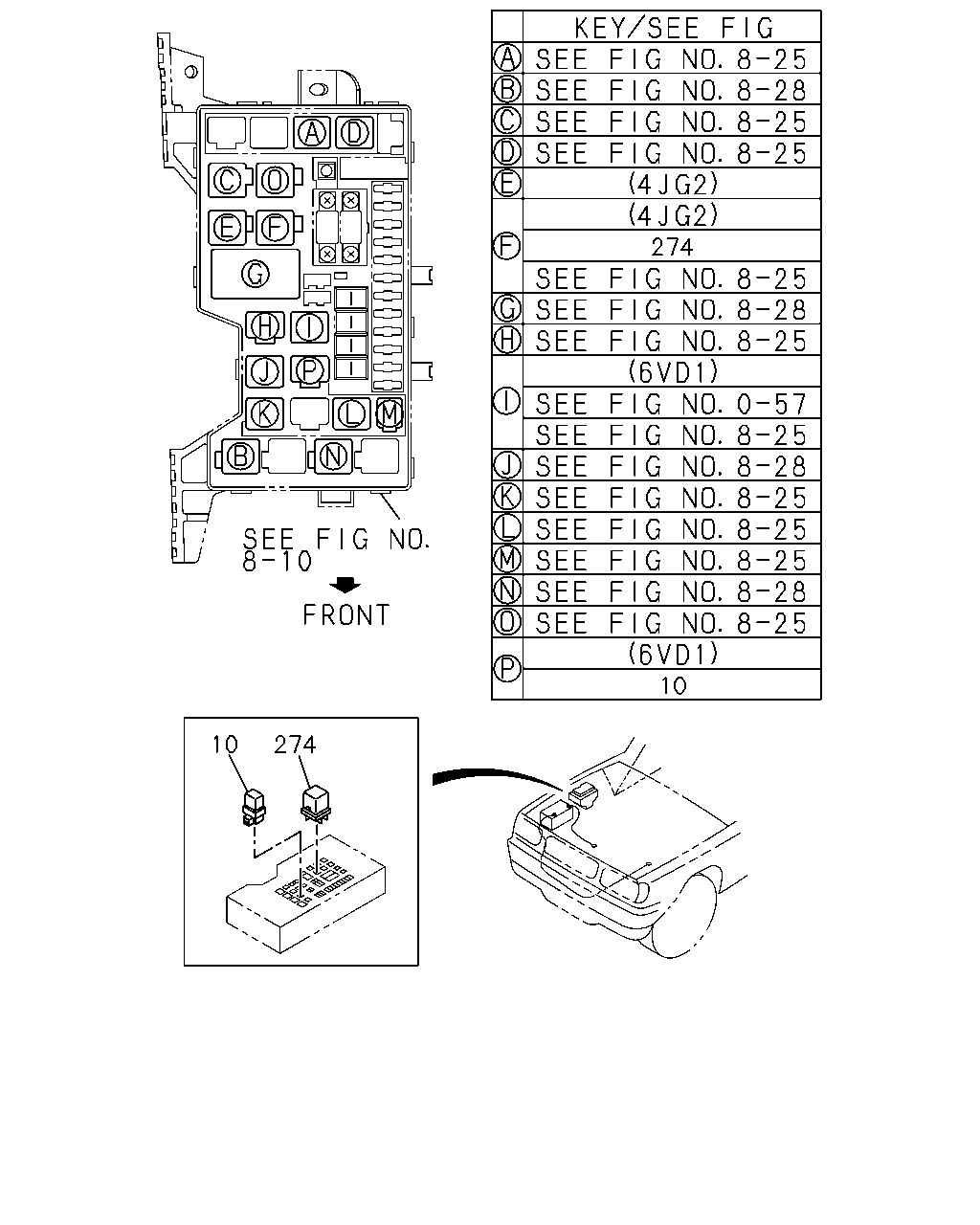

274 10 10 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D
10	RELAY; STARTER 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
10	RELAY; STARTER 12V 20A	8-97093-910-1	01	1	9304-9504	●	●
10	RELAY; STARTER 12V 20A	8-97093-910-1	01	1	9505-	●
10	RELAY; STARTER 12V 15A	8-94147-095-0	01	1	9505-		●
274	RELAY; ENG RESTART 12V 20A	8-94218-497-0	01	1	9112-9504	●	●

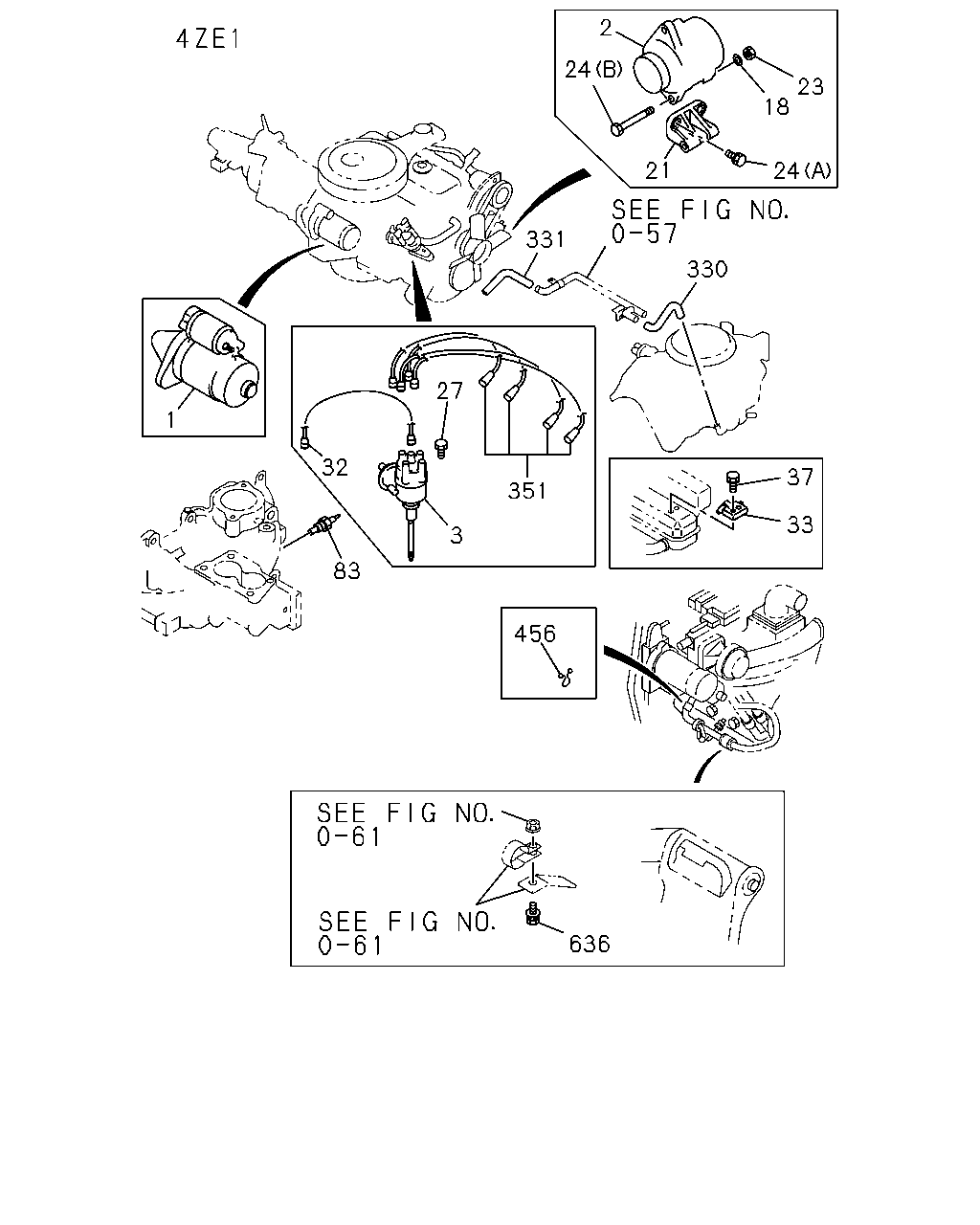

2 24 23 18 21 24 330 331 27 1 32 37 351 33 3 83 456 636

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.2KW DENSO	8-94133-758-4	01	1	9112-9306		●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.2KW DENSO	8-97042-997-0	01	1	9307-9504		●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.2KW DENSO	8-97042-997-0	01	1	9505-9603		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.0KW	8-97120-356-1	01	1	9604-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.8KW	8-94387-653-0	01	1	9112-9410		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.8KW	8-97112-549-0	01	1	9411-9606		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.3KW	8-97136-688-0	01	1	9607-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW	8-94371-833-1	01	1	9112-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW	8-94384-314-1	01	1	9112-				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2) 12V 80A	8-97062-641-0	01	1	9112-9202			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97062-641-0	01	1	9112-9202		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2) 12V 50A	8-97037-724-1	01	1	9112-9202			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97037-724-1	01	1	9112-9202		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) 12V 50A	8-97074-611-0	01	1	9203-9208		●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) 12V 80A	8-97074-612-0	01	1	9203-9504		●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2) 12V 80A	8-97074-612-0	01	1	9505-9508		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97074-612-0	01	1	9505-9508		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2) 12V 80A	8-97134-866-0	01	1	9509-9603		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97134-866-0	01	1	9509-9603		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2) 12V 80A	8-97133-854-0	01	1	9604-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97133-854-0	01	1	9604-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) 12V 50A	8-97074-611-0	01	1	9209-9406		●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) 12V 50A	8-97113-770-0	01	1	9407-9504		●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97113-770-0	01	1	9505-9505		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2),CERAMIC HEATER<6YX> 12V 50A	8-97113-770-0	01	1	9506-9508		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2),CERAMIC HEATER<6YX> 12V 50A	8-97134-762-0	01	1	9509-9607		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2),CERAMIC HEATER<6YX> 12V 60A	8-97147-851-0	01	1	9608-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 55A(S9S) 12V 55A	8-94156-672-1	01	1	9112-9504	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 55A	8-94472-817-4	01	1	9505-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 55A(S9S) 12V 45A	8-94454-188-1	01	1	9112-9504	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 75A(6WN) 12V 75A	8-97034-899-2	01	1	9112-9410				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 75A(6WN) 12V 75A	8-97121-180-1	01	1	9411-				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 75A(6WN) 12V 60A	8-97042-852-2	01	1	9112-9410				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 75A(6WN) 12V 60A	8-97121-193-0	01	1	9411-				●
3	DISTRIBUTOR ASM SEE FIG-NO 0-71 FOR COMPONENT.	8-94476-142-1	01	1	9112-9504	●
3	DISTRIBUTOR ASM SEE FIG-NO 0-71 FOR COMPONENT. EXC. CHINA EQUIPMENT(YT2)	8-94476-142-1	01	1	9505-	●
3	DISTRIBUTOR ASM SEE FIG-NO 0-71 FOR COMPONENT. 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-97129-748-0	01	1	9505-	●
18	WASHER; LK,GEN ID=10.2	9-09150-510-0	01	1	9112-9703	●
21	BRACKET; GEN	8-94437-276-2	01	1	9112-9504		●	●
21	BRACKET; GEN	8-94437-276-2	01	1	9505-		●
21	BRACKET; GEN	8-94436-180-3	01	1	9112-9205	●
21	BRACKET; GEN	8-97071-652-1	01	1	9206-	●
21	BRACKET; GEN	8-94379-094-5	01	1	9112-				●
23	NUT; GEN M10	9-09110-510-0	01	1	9112-9504	●	●	●
23	NUT; GEN M10	9-09110-510-0	01	1	9505-9612	●	●
23	NUT; GEN M10	9-09110-510-0	01	1	9701-9703	●
23	NUT; GEN M10 FLANGE	0-91150-210-0	01	1	9701-9703		●
23	NUT; GEN M10 FLANGE	0-91150-210-0	01	1	9704-	●	●
24	BOLT; GEN BRKT (A) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-9504		●	●
24	BOLT; GEN BRKT (A) M10X35 W/LK WASHER	0-50041-035-0	01	1	9505-		●
24	BOLT; GEN BRKT (B) M10X70 W/LK WASHER	0-50041-070-0	02	1	9112-9504		●	●
24	BOLT; GEN BRKT (B) M10X70 W/LK WASHER	0-50041-070-0	02	1	9505-		●
24	BOLT; GEN BRKT (B) M10X100	0-10806-000-0	01	1	9112-	●
24	BOLT; GEN BRKT (A) M10X25 W/LK WASHER	0-50041-025-0	02	1	9112-	●
24	BOLT; GEN BRKT (A) M8X30 FLANGE	0-28080-830-0	01	1	9112-				●
24	BOLT; GEN BRKT (B) M8X60 FLANGE	0-28080-860-0	02	1	9112-				●
24	BOLT; GEN BRKT (C) M8X80 FLANGE	0-28080-880-0	02	1	9112-				●
27	BOLT; DISTR M8X22 W/LK&PL WASHER	0-50140-822-0	01	1	9112-9612	●
27	BOLT; DISTR M8X20 FLANGE	0-28680-820-0	01	1	9701-	●
32	CABLE; DISTR TO IGN COIL	8-94136-794-0	01	1	9112-	●
33	COIL ASM; IGN	8-94136-766-0	01	1	9112-	●
33	COIL ASM; IGN	8-10468-391-0	03	1	9112-9309				●
33	COIL ASM; IGN	8-10472-401-0	03	1	9310-				●
37	BOLT; IGN COIL M6X35 W/LK WASHER	0-50040-635-0	02	1	9112-	●
37	BOLT; IGN COIL (A) M8X16 FLANGE	0-28080-816-0	03	1	9112-9206				●
37	BOLT; IGN COIL (A) M8X22	8-94122-771-0	03	1	9207-9307				●
37	BOLT; IGN COIL (A) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	9308-				●
37	BOLT; IGN COIL (B) W/LK WASHER	8-10498-731-0	06	1	9112-				●
83	THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9112-9504		●	●
83	THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9505-		●
83	THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9112-9504		●	●
83	THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9505-		●
83	THERMOMETER UNIT DENSO	8-94247-437-1	01	1	9112-	●			●
330	HOSE; CARBURETOR TO DISTR L=70 SERVICED BY L=3000	0-04742-300-0	01	1	9112-	●
331	HOSE; CARB TO 3 WAY L=150 SERVICED BY L=3000	0-04742-300-0	01	1	9112-9607	●
351	CABLE KIT; HIGH TENSION	8-94433-364-1	01	1	9112-	●
351	CABLE KIT; HIGH TENSION	8-94377-271-0	01	1	9112-				●
456	CLIP; OIL PRESSURE SW ID=20	1-09709-068-0	01	1	9112-9504	●
456	CLIP; OIL PRESSURE SW ID=20	1-09709-068-0	01	1	9505-	●
636	BOLT; BRKT M6X16 FLANGE	8-94380-676-1	03	1	9112-9407		●	●
636	BOLT; BRKT M6X16 FLANGE	0-28480-616-0	03	1	9408-9504		●	●
636	BOLT; BRKT M6X16 FLANGE	0-28480-616-0	03	1	9505-		●
636	BOLT; BRKT EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9505-		●
636	BOLT; BRKT M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9505-	●

17 17 23 2 305 461 307 24 24 17 16 105 21 108 24 108 83 97 4 6 1 106 6 292 7 110 112 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.2KW DENSO	8-94133-758-4	01	1	9112-9306		●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.2KW DENSO	8-97042-997-0	01	1	9307-9504		●	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.2KW DENSO	8-97042-997-0	01	1	9505-9603		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.0KW	8-97120-356-1	01	1	9604-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.8KW	8-94387-653-0	01	1	9112-9410		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.8KW	8-97112-549-0	01	1	9411-9606		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. EUROPE/CANARY EQUIPMENT(EK4) 12V 2.3KW	8-97136-688-0	01	1	9607-		●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.2KW	8-94371-833-1	01	1	9112-	●
1	STARTER ASM SEE FIG-NO 0-65 FOR COMPONENT. 12V 1.4KW	8-94384-314-1	01	1	9112-				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2) 12V 80A	8-97062-641-0	01	1	9112-9202			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97062-641-0	01	1	9112-9202		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2) 12V 50A	8-97037-724-1	01	1	9112-9202			●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97037-724-1	01	1	9112-9202		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) 12V 50A	8-97074-611-0	01	1	9203-9208		●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) 12V 80A	8-97074-612-0	01	1	9203-9504		●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2) 12V 80A	8-97074-612-0	01	1	9505-9508		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97074-612-0	01	1	9505-9508		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2) 12V 80A	8-97134-866-0	01	1	9509-9603		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97134-866-0	01	1	9509-9603		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. SAUDI ARABIA EQUIPMENT(EU2) 12V 80A	8-97133-854-0	01	1	9604-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. CERAMIC HEATER<6YX> 12V 80A	8-97133-854-0	01	1	9604-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) 12V 50A	8-97074-611-0	01	1	9209-9406		●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) 12V 50A	8-97113-770-0	01	1	9407-9504		●	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. CERAMIC HEATER<6YX> 12V 50A	8-97113-770-0	01	1	9505-9505		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2),CERAMIC HEATER<6YX> 12V 50A	8-97113-770-0	01	1	9506-9508		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2),CERAMIC HEATER<6YX> 12V 50A	8-97134-762-0	01	1	9509-9607		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. SAUDI ARABIA EQUIPMENT(EU2),CERAMIC HEATER<6YX> 12V 60A	8-97147-851-0	01	1	9608-		●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 55A(S9S) 12V 55A	8-94156-672-1	01	1	9112-9504	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. 12V 55A	8-94472-817-4	01	1	9505-	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. GENERATOR 55A(S9S) 12V 45A	8-94454-188-1	01	1	9112-9504	●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 75A(6WN) 12V 75A	8-97034-899-2	01	1	9112-9410				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. AC GENERATOR 12V 75A(6WN) 12V 75A	8-97121-180-1	01	1	9411-				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 75A(6WN) 12V 60A	8-97042-852-2	01	1	9112-9410				●
2	GENERATOR ASM SEE FIG-NO 0-66 FOR COMPONENT. EXC. AC GENERATOR 12V 75A(6WN) 12V 60A	8-97121-193-0	01	1	9411-				●
4	BOLT; STARTER M12X35	9-92041-235-0	02	1	9112-9204		●	●
4	BOLT; STARTER M12X35	0-20801-235-0	02	1	9205-9402		●	●
4	BOLT; STARTER M12X50	0-10806-250-0	02	1	9403-9504		●	●
4	BOLT; STARTER M12X50	0-10806-250-0	02	1	9505-		●
4	BOLT; STARTER (A) M10X50 FLANGE	0-28181-050-0	01	1	9112-				●
4	BOLT; STARTER (B) M10X75 FLANGE	8-94399-669-1	01	1	9112-				●
6	WASHER; PL,STARTER ID=12.5	9-09160-512-0	04	1	9112-9502		●	●
7	NUT; STARTER M12	9-99110-412-0	02	1	9112-9504		●	●
7	NUT; STARTER M12	9-99110-412-0	02	1	9505-		●
7	NUT; STARTER M8 W/LK WASHER	8-94413-537-0	01	1	9112-				●
16	BOLT; GEN M10X125	9-09801-325-0	01	1	9112-9202		●	●
16	BOLT; GEN M10X130	8-94402-322-1	01	1	9203-9304		●	●
16	BOLT; GEN M10X133	5-09000-169-1	01	1	9305-9504		●	●
16	BOLT; GEN M10X133	5-09000-169-1	01	1	9505-9612		●
16	BOLT; GEN M10X130 FLANGE	0-28086-013-0	01	1	9701-		●
16	BOLT; GEN (A) M8X35 FLANGE	0-28080-835-0	01	1	9112-				●
16	BOLT; GEN (B) M10X90 W/LK WASHER	0-50041-090-0	01	1	9112-				●
17	WASHER; PL,GEN (A) ID=10.2	9-09150-510-0	01	1	9112-9504		●	●
17	WASHER; PL,GEN (A) ID=10.2	9-09150-510-0	01	1	9505-9612		●
17	WASHER; PL,GEN (B) ID=10.5 OD=22	9-09160-610-0	02	1	9112-9504		●	●
17	WASHER; PL,GEN (B) ID=10.5 OD=22	9-09160-610-0	02	1	9505-9612		●
21	BRACKET; GEN	8-94437-276-2	01	1	9112-9504		●	●
21	BRACKET; GEN	8-94437-276-2	01	1	9505-		●
21	BRACKET; GEN	8-94436-180-3	01	1	9112-9205	●
21	BRACKET; GEN	8-97071-652-1	01	1	9206-	●
21	BRACKET; GEN	8-94379-094-5	01	1	9112-				●
23	NUT; GEN M10	9-09110-510-0	01	1	9112-9504	●	●	●
23	NUT; GEN M10	9-09110-510-0	01	1	9505-9612	●	●
23	NUT; GEN M10	9-09110-510-0	01	1	9701-9703	●
23	NUT; GEN M10 FLANGE	0-91150-210-0	01	1	9701-9703		●
23	NUT; GEN M10 FLANGE	0-91150-210-0	01	1	9704-	●	●
24	BOLT; GEN BRKT (A) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-9504		●	●
24	BOLT; GEN BRKT (A) M10X35 W/LK WASHER	0-50041-035-0	01	1	9505-		●
24	BOLT; GEN BRKT (B) M10X70 W/LK WASHER	0-50041-070-0	02	1	9112-9504		●	●
24	BOLT; GEN BRKT (B) M10X70 W/LK WASHER	0-50041-070-0	02	1	9505-		●
24	BOLT; GEN BRKT (B) M10X100	0-10806-000-0	01	1	9112-	●
24	BOLT; GEN BRKT (A) M10X25 W/LK WASHER	0-50041-025-0	02	1	9112-	●
24	BOLT; GEN BRKT (A) M8X30 FLANGE	0-28080-830-0	01	1	9112-				●
24	BOLT; GEN BRKT (B) M8X60 FLANGE	0-28080-860-0	02	1	9112-				●
24	BOLT; GEN BRKT (C) M8X80 FLANGE	0-28080-880-0	02	1	9112-				●
83	THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9112-9504		●	●
83	THERMOMETER UNIT DENSO	8-94235-691-0	01	1	9505-		●
83	THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9112-9504		●	●
83	THERMOMETER UNIT YAZAKI	8-94237-861-0	01	1	9505-		●
83	THERMOMETER UNIT DENSO	8-94247-437-1	01	1	9112-	●			●
97	SWITCH; THERMO,EGR CONT EUROPE/CANARY EQUIPMENT(EK4)	8-94368-591-0	01	1	9112-9504		●
105	SWITCH; THERMO,QOS	8-97038-957-0	01	1	9112-9504			●
106	SWITCH; THERMO,AIR EUROPE/CANARY EQUIPMENT(EK4)	8-97043-749-0	01	1	9112-		●
108	SWITCH; THERMO (A)	8-97036-606-0	01	1	9112-9308		●
108	SWITCH; THERMO (A)	8-97069-786-1	01	1	9309-		●
108	SWITCH; THERMO EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97038-956-0	01	1	9112-		●
108	SWITCH; THERMO EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97069-786-1	01	1	9308-9308		●
110	BRACKET; THERMO SW CONNECTOR EUROPE/CANARY EQUIPMENT(EK4)	8-97043-565-0	01	1	9112-		●
111	BOLT; SWITCH BRKT EUROPE/CANARY EQUIPMENT(EK4) EXC. AIR CONDITIONER MANUAL CONT(C60) M6X12 W/LK WASHER	0-50040-612-0	01	1	9112-		●
112	NUT; SWITCH BRKT EUROPE/CANARY EQUIPMENT(EK4) M16	9-99111-416-0	01	1	9112-		●
292	WASHER; LK,STARTER ID=8.2	9-09150-508-0	01	1	9112-9207		●	●
292	WASHER; LK,STARTER ID=12.2	9-09150-512-0	02	1	9112-9502		●	●
305	HARNESS; EXT,GLOW PLUG	8-97038-742-0	01	1	9112-9504		●	●
305	HARNESS; EXT,GLOW PLUG	8-97038-742-3	01	1	9505-		●
307	NUT; EXT HARNESS M4 FLANGE	8-94178-698-0	01	1	9112-9504		●	●
307	NUT; EXT HARNESS M4 FLANGE	8-94178-698-0	01	1	9505-9511		●
461	CLIP; PURSE LOCK AIR CONDITIONER MANUAL CONT(C60) ID=30	8-94315-423-0	02	1	9112-9504		●	●
461	CLIP; PURSE LOCK AIR CONDITIONER MANUAL CONT(C60) ID=30	8-94315-423-0	02	1	9505-		●
461	CLIP; PURSE LOCK EXC. AIR CONDITIONER MANUAL CONT(C60) ID=20	1-09709-068-0	02	1	9112-9504		●	●
461	CLIP; PURSE LOCK EXC. AIR CONDITIONER MANUAL CONT(C60) ID=20	1-09709-068-0	02	1	9505-		●

124 797

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
124	SENSOR; OXYGEN EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-97024-256-0	01	1	9309-9506	●
124	SENSOR; OXYGEN EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97024-256-0	01	1	9507-	●
124	SENSOR; OXYGEN SAUDI ARABIA EQUIPMENT(EU2)	8-97062-293-0	01	1	9309-9505	●
124	SENSOR; OXYGEN SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2)	8-97062-293-0	01	1	9506-	●
797	SENSOR; MAT	8-25037-334-0	01	1	9309-	●

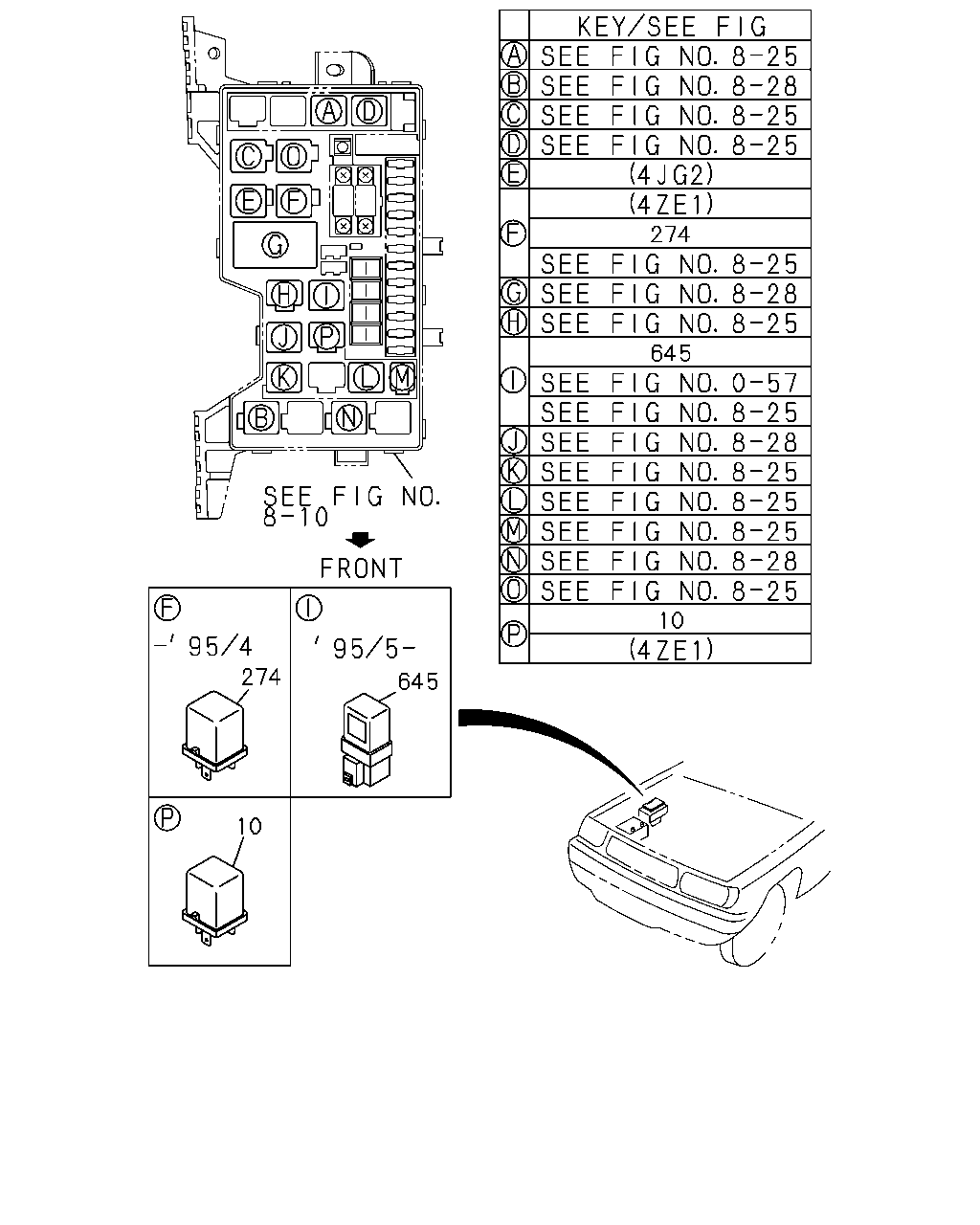

274 645 10 274 645 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D
10	RELAY; STARTER 12V 20A	8-97048-665-0	01	1	9112-9303	●	●
10	RELAY; STARTER 12V 20A	8-97093-910-1	01	1	9304-9504	●	●
10	RELAY; STARTER 12V 20A	8-97093-910-1	01	1	9505-	●
10	RELAY; STARTER 12V 15A	8-94147-095-0	01	1	9505-		●
274	RELAY; ENG RESTART 12V 20A	8-94218-497-0	01	1	9112-9504	●	●
645	RELAY; ENG CONT 12V 20A	8-97093-910-1	01	1	9505-		●

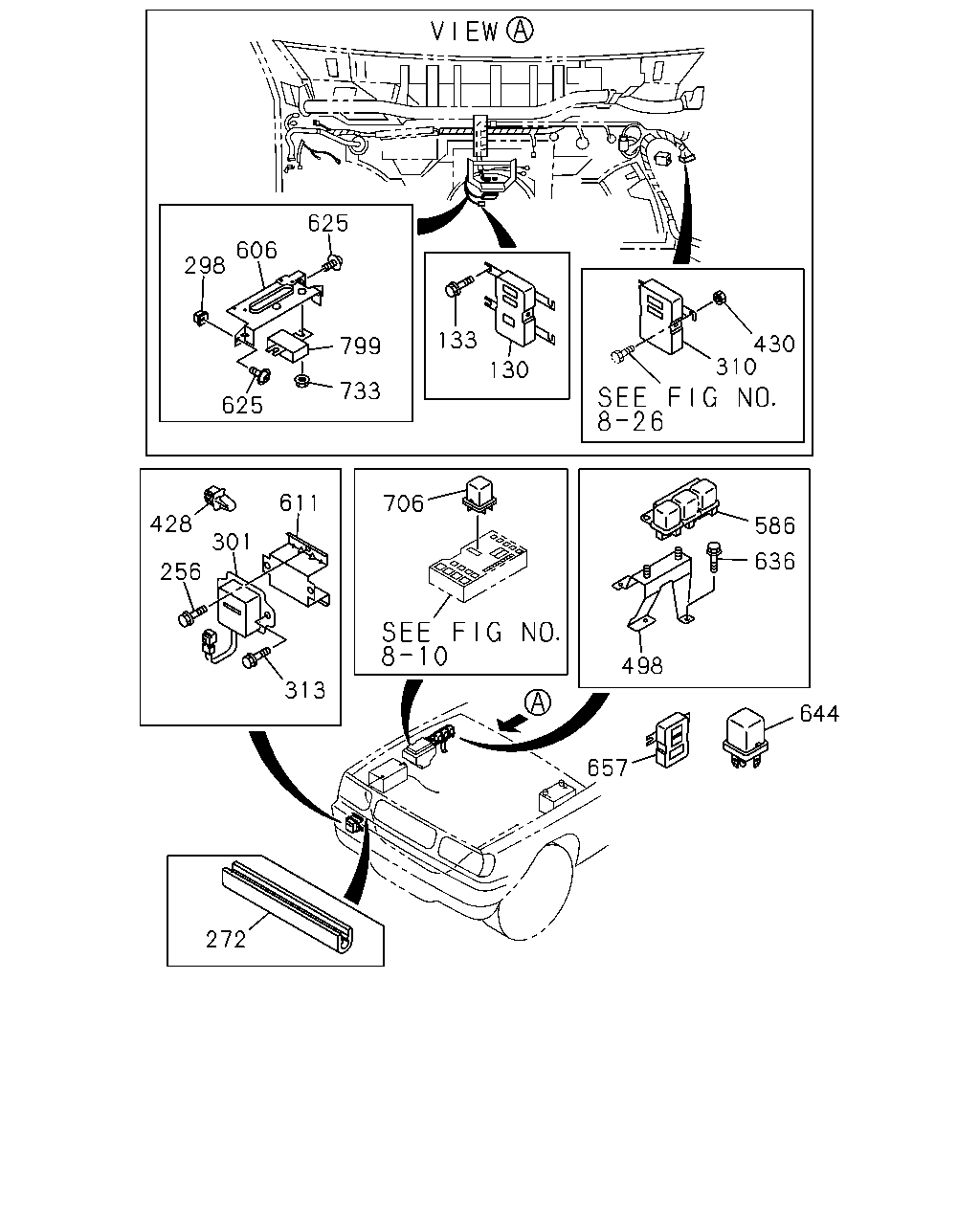

625 606 298 133 130 430 310 799 733 625 611 706 428 586 301 256 636 498 313 644 657 272

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
130	CONTROLLER; EGR EUROPE/CANARY EQUIPMENT(EK4)	8-97086-801-3	01	1	9309-9504		●
130	CONTROLLER; EGR EUROPE/CANARY EQUIPMENT(EK4) CHILE EQUIPMENT(S2G)	8-97038-188-4	01	1	9112-9308		●
130	CONTROLLER; EGR EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G)	8-97038-187-4	01	1	9112-9308		●
133	BOLT; EGR CONTROLLER EUROPE/CANARY EQUIPMENT(EK4) CHILE EQUIPMENT(S2G) M6X14	0-28010-614-0	04	1	9112-9204		●
133	BOLT; EGR CONTROLLER EUROPE/CANARY EQUIPMENT(EK4) CHILE EQUIPMENT(S2G) M6X14 FLANGE	0-28080-614-0	04	1	9205-9211		●
133	BOLT; EGR CONTROLLER EUROPE/CANARY EQUIPMENT(EK4) M6X14 FLANGE	0-28080-614-0	04	1	9212-9504		●
256	BOLT; BRKT,RESISTOR EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X14 W/LK&PL WASHER	9-01960-614-0	02	1	9112-9204		●
256	BOLT; BRKT,RESISTOR EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9205-9308		●
256	BOLT; BRKT,RESISTOR M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9309-		●
272	PROTECTOR; EDGE L=65	8-94235-856-0	01	1	9201-9504		●
298	GROMMET; SCREW D=9X9 L=8 M6	8-94222-314-0	02	1	9505-		●
301	RESISTOR; DROPPING	8-94389-802-1	01	1	9112-		●
310	CONTROLLER; QOS	8-94364-590-0	01	1	9112-9208		●
310	CONTROLLER; QOS	8-97068-787-0	01	1	9209-9504		●
310	CONTROLLER; QOS EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97047-029-0	01	1	9505-		●
313	BOLT; RESISTOR TO BRKT M6X14 W/LK WASHER	9-01900-614-0	02	1	9112-9204		●
313	BOLT; RESISTOR TO BRKT M6X14 W/LK WASHER	0-50040-614-0	02	1	9205-9504		●
313	BOLT; RESISTOR TO BRKT M6X14 W/LK WASHER	0-50040-614-0	02	1	9505-		●
428	CLIP; HARNESS	8-94225-098-0	01	1	9505-		●
430	NUT; RELAY FIX M6 FLANGE	0-91150-106-0	02	1	9112-9504		●	●
430	NUT; RELAY FIX M6 FLANGE	0-91150-106-0	02	1	9505-		●
498	BRACKET; RELAY	8-94389-761-4	01	1	9112-9504		●	●
498	BRACKET; RELAY	8-94389-761-4	01	1	9505-		●
586	RELAY; QOS	8-94389-801-1	01	1	9112-9504			●
586	RELAY; QOS	8-94389-760-1	01	1	9112-		●
606	BRACKET; CONT UNIT EUROPE/CANARY EQUIPMENT(EK4)	8-97110-328-0	01	1	9505-		●
606	BRACKET; CONT UNIT EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97110-370-0	01	1	9505-		●
611	BRACKET; SENSOR	8-97038-641-0	01	1	9112-		●
625	SCREW; CONT UNIT M6X14 W/PL WASHER	9-03900-614-0	03	1	9505-		●
636	BOLT; BRKT M6X16 FLANGE	8-94380-676-1	03	1	9112-9407		●	●
636	BOLT; BRKT M6X16 FLANGE	0-28480-616-0	03	1	9408-9504		●	●
636	BOLT; BRKT M6X16 FLANGE	0-28480-616-0	03	1	9505-		●
636	BOLT; BRKT EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X14 W/LK&PL WASHER	0-50140-614-0	02	1	9505-		●
636	BOLT; BRKT M6X14 W/LK&PL WASHER	0-50140-614-0	01	1	9505-	●
644	RELAY; COLD START DEVICE 12V 20A	8-94218-497-0	01	1	9112-9504			●
657	TIMER; GLOW PLUG	8-94434-876-0	01	1	9112-9208			●
657	TIMER; GLOW PLUG	8-97068-786-0	01	1	9209-9504			●
706	RELAY; QWS EUROPE/CANARY EQUIPMENT(EK4) 12V 20A	8-94218-497-0	01	1	9112-9607		●
706	RELAY; QWS ENG QUICK WARM UP SYSTEM<6JZ> 12V 20A	8-94218-497-0	01	1	9608-		●
733	NUT; BRKT M5 FLANGE	8-94178-699-0	02	1	9505-		●
733	NUT; BRKT 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M5 FLANGE	8-94178-699-0	02	1	9505-	●
799	CONTROLLER; EGR/QOS EUROPE/CANARY EQUIPMENT(EK4)	8-97110-340-1	01	1	9505-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
