0-57 — EMISSION PIPING (#33152) — 534 parça

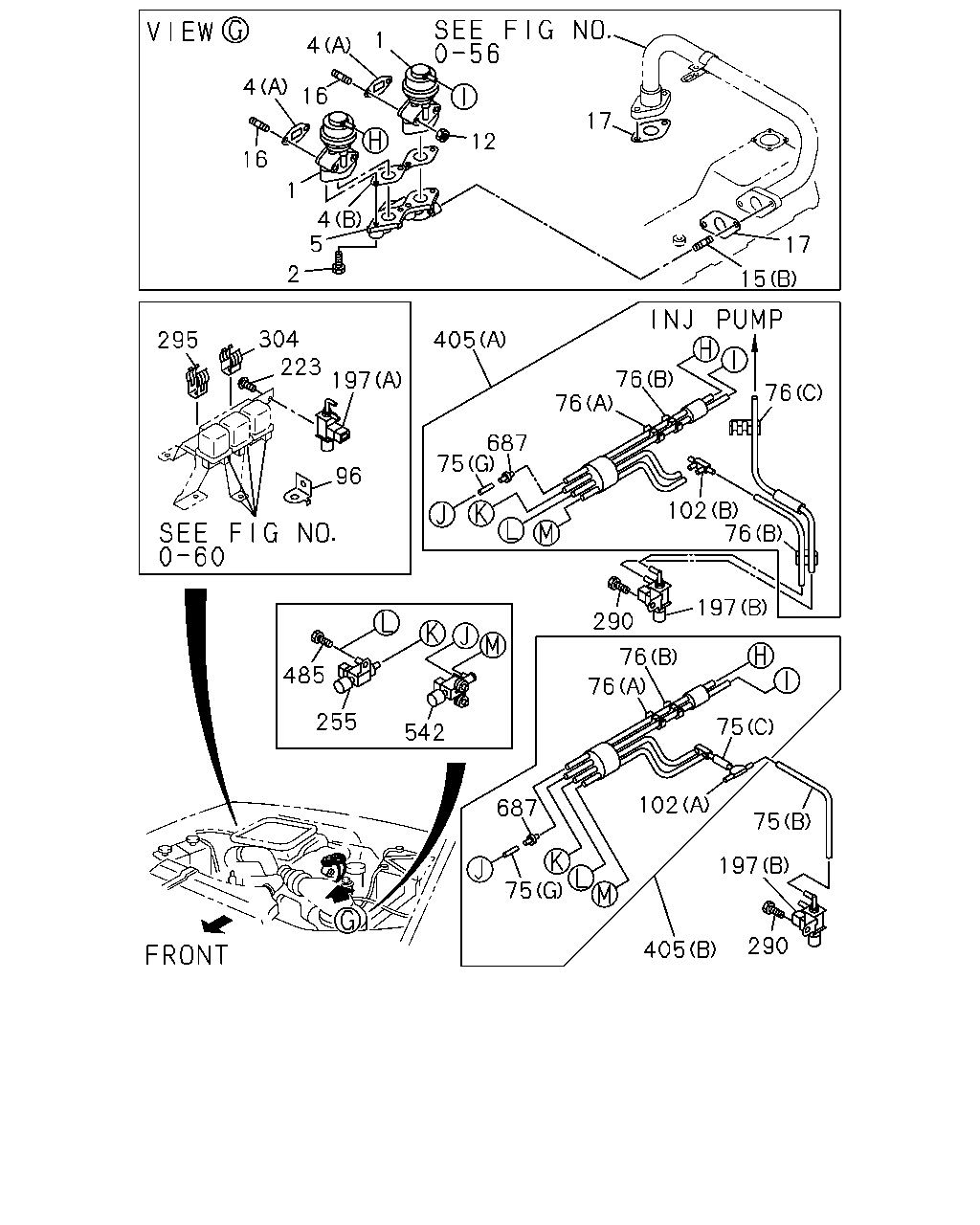

1 4 4 4 5 2 16 17 16 12 1 17 15 76 304 223 197 295 405 76 76 687 75 96 102 76 197 290 76 76 485 255 75 542 102 687 75 75 197 290 405

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	VALVE; EGR EUROPE/CANARY EQUIPMENT(EK4)	8-97043-021-4	02	1	9112-9607	●
1	VALVE; EGR EUROPE/CANARY EQUIPMENT(EK4)	8-97135-674-2	02	1	9608-	●
1	VALVE; EGR 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94248-646-0	01	1	9505-		●
1	VALVE; EGR EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-94364-874-1	01	1	9112-9506			●
1	VALVE; EGR EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-94364-874-1	01	1	9507-			●
2	BOLT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4) M8X40 W/LK WASHER	0-50040-840-0	04	1	9112-9606	●
2	BOLT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4) M8X40 FLANGE	0-28080-840-0	04	1	9607-	●
2	BOLT; EGR VLV 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X20 W/LK WASHER	0-50040-820-0	02	1	9505-		●
2	BOLT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) M6X20 FLANGE	0-28080-620-0	02	1	9112-9506			●
2	BOLT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M6X20 FLANGE	0-28080-620-0	02	1	9507-			●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94334-338-0	02	1	9112-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4) (B)	8-94379-754-0	01	1	9112-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94324-191-0	01	1	9505-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-195-0	01	1	9112-			●
5	ADAPTER ASM EUROPE/CANARY EQUIPMENT(EK4)	8-94379-755-2	01	1	9112-9406	●
5	ADAPTER ASM EUROPE/CANARY EQUIPMENT(EK4)	8-97117-260-0	01	1	9408-	●
5	ADAPTER ASM 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94150-147-0	01	1	9505-		●
12	NUT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4) M8 FLANGE	5-09440-005-0	04	1	9112-9606	●
12	NUT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4) M8 FLANGE	0-91150-208-0	04	1	9607-	●
15	STUD; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (A) M8X25 L=36	8-94156-470-2	01	1	9112-9311	●
15	STUD; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (B) M8X25 L=37	9-04110-825-0	02	1	9112-	●
16	STUD; EGR VLV EUROPE/CANARY EQUIPMENT(EK4) M8X45 L=57	9-04110-845-0	04	1	9112-9606	●
16	STUD; EGR VLV EUROPE/CANARY EQUIPMENT(EK4) M8X45 L=57	8-94105-162-1	04	1	9607-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4)	8-94340-670-0	02	1	9112-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-97061-325-0	01	1	9505-		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-97060-414-0	01	1	9112-9506			●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97060-414-0	01	1	9507-			●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (A) L=410 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9504	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (G) L=50 SERVICED BY L=3000	0-04735-300-0	01	1	9505-	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (C) L=130 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9308	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (C) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	9309-9504	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (C) L=35 SERVICED BY L=3000	0-04730-300-0	01	1	9505-	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (D) L=350 SERVICED BY L=3000	0-04733-300-0	01	1	9112-9308	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (D) L=430 SERVICED BY L=3000	0-04730-300-0	01	1	9309-9504	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (D) L=410 SERVICED BY L=3000	0-04730-300-0	01	1	9505-9505	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (B),(F) L=130 SERVICED BY L=3000	0-04734-300-0	02	1	9112-9308	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (E) L=400 SERVICED BY L=3000	0-04735-300-0	01	1	9112-9308	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (B) L=120 SERVICED BY L=3000	0-04730-300-0	01	1	9309-	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (E) L=480 SERVICED BY L=3000	0-04730-300-0	01	1	9309-9504	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (F) L=160 SERVICED BY L=3000	0-04730-300-0	01	1	9309-9504	●
76	CLIP; RUBBER HOSE,VSV EUROPE/CANARY EQUIPMENT(EK4) (B) ID=6.8X2	8-94126-636-0	01	1	9506-9607	●
76	CLIP; RUBBER HOSE,VSV EUROPE/CANARY EQUIPMENT(EK4) (B) ID=6.8X2	8-94126-636-0	02	1	9510-9607	●
76	CLIP; RUBBER HOSE,VSV EUROPE/CANARY EQUIPMENT(EK4) (B) ID=6.8X2	8-94126-636-0	01	1	9608-	●
76	CLIP; RUBBER HOSE,VSV EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94366-035-0	02	1	9506-9509	●
76	CLIP; RUBBER HOSE,VSV EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94366-035-0	01	1	9510-	●
76	CLIP; RUBBER HOSE,VSV EUROPE/CANARY EQUIPMENT(EK4) (C) ID=20 & 7X4	8-94368-500-0	01	1	9506-	●
96	BRACKET; HOSE EUROPE/CANARY EQUIPMENT(EK4)	8-97043-563-1	01	1	9112-9504	●
96	BRACKET; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97043-563-1	01	1	9505-	●
102	JOINT; HOSE EUROPE/CANARY EQUIPMENT(EK4) (B) 4WAY	8-94429-994-0	01	1	9112-	●
102	JOINT; HOSE EUROPE/CANARY EQUIPMENT(EK4) (A) 3WAY	8-94208-695-0	01	1	9505-	●
197	VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94178-888-0	01	1	9112-9504	●			●
197	VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) (B)	8-94178-888-0	01	1	9505-	●
197	VALVE; VAC SWITCHING EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97043-750-0	01	1	9112-9504	●
197	VALVE; VAC SWITCHING EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97043-750-0	01	1	9505-	●
223	SCREW; VSV EUROPE/CANARY EQUIPMENT(EK4)	9-93490-506-0	01	1	9112-9303	●
223	SCREW; VSV EUROPE/CANARY EQUIPMENT(EK4) M5X8 W/LK WASHER	9-03910-508-0	01	1	9304-9504	●
223	SCREW; VSV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> M5X8 W/LK WASHER	9-03910-508-0	01	1	9505-	●
255	VALVE; VAC SW,EGR CONT EUROPE/CANARY EQUIPMENT(EK4)	8-94340-699-0	01	1	9112-9308	●
255	VALVE; VAC SW,EGR CONT EUROPE/CANARY EQUIPMENT(EK4)	8-94366-692-0	01	1	9309-	●
290	BOLT; VAC CONT SW VLV AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M8X12	0-28010-812-0	01	1	9112-9204	●			●
290	BOLT; VAC CONT SW VLV AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M8X12 FLANGE	0-28080-812-0	01	1	9205-9504	●			●
290	BOLT; VAC CONT SW VLV AIR CONDITIONER MANUAL CONT(C60) M8X12 FLANGE	0-28080-812-0	01	1	9505-	●
295	BRACKET; DELAY VLV EUROPE/CANARY EQUIPMENT(EK4)	8-94315-281-1	01	1	9112-9504	●
295	BRACKET; DELAY VLV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-94315-281-1	01	1	9505-9607	●
304	BRACKET; VCV EUROPE/CANARY EQUIPMENT(EK4)	8-94209-610-0	01	1	9112-9504	●
304	BRACKET; VCV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-94209-610-0	01	1	9505-9607	●
405	HOSE; RUBBER VAC SWITCHING VLV EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97121-084-4	01	1	9505-9607	●
405	HOSE; RUBBER VAC SWITCHING VLV EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97136-599-3	01	1	9608-	●
405	HOSE; RUBBER VAC SWITCHING VLV EUROPE/CANARY EQUIPMENT(EK4) EXC. AIR CONDITIONER MANUAL CONT(C60),ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97116-994-5	01	1	9505-9607	●
405	HOSE; RUBBER VAC SWITCHING VLV EUROPE/CANARY EQUIPMENT(EK4) EXC. AIR CONDITIONER MANUAL CONT(C60),ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97136-600-3	01	1	9608-	●
485	BOLT; VSV EUROPE/CANARY EQUIPMENT(EK4) M6X12	0-28010-612-0	02	1	9112-9204	●
485	BOLT; VSV EUROPE/CANARY EQUIPMENT(EK4) M6X12 FLANGE	0-28080-612-0	02	1	9205-9308	●
485	BOLT; VSV EUROPE/CANARY EQUIPMENT(EK4) M8X12 FLANGE	0-28080-812-0	01	1	9309-	●
542	VALVE; VAC REGULATING EUROPE/CANARY EQUIPMENT(EK4)	8-97069-803-0	01	1	9309-	●
687	DAMPER; VAC HOSE EUROPE/CANARY EQUIPMENT(EK4)	8-97086-816-0	01	1	9505-	●

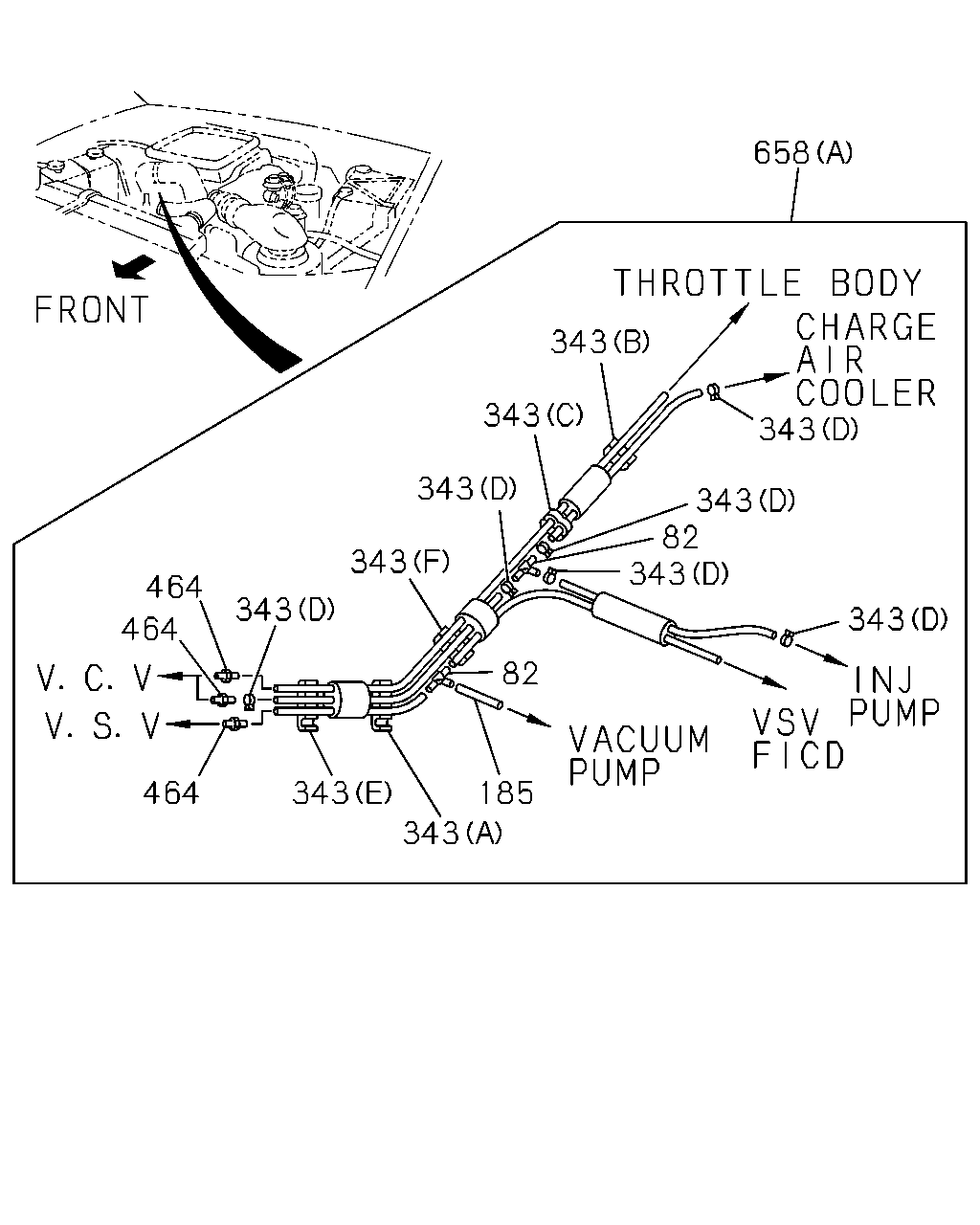

343 343 343 343 82 343 343 82 658 343 343 343 185 343 343 343 464 464 49 49 541 166 464 464 78 343 343 343 185 82 343 343 464 78 343 49 49 541 166 343 464

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (A) ID=6.8X2	8-94126-636-0	02	1	9112-9503	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (A) ID=6.8X2	8-94126-636-0	01	1	9504-9504	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=6.8X2	8-94126-636-0	01	1	9505-	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (B) 4XID=6.8	8-94132-799-0	01	1	9112-9504	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B) 4XID=6.8	8-94132-799-0	01	1	9505-9607	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-94366-035-0	01	1	9608-	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (E) ID=7	8-94208-596-0	02	1	9112-9504	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (E) ID=7	8-94208-596-0	02	1	9505-9607	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (C) 4XID=6.7	8-94315-422-0	02	1	9112-9504	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (C) 4XID=6.7	8-94315-422-0	02	1	9505-	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (D) ID=14.5 & 7X4	8-94368-499-0	02	1	9112-9503	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (D) ID=14.5 & 7X4	8-94368-499-0	01	1	9504-9504	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (D) ID=14.5 & 7X4	8-94368-499-0	01	1	9505-9607	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (F) ID=6 & 13	8-94459-564-0	02	1	9505-	●
78	HOSE ASM; RUBBER,ASV EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97079-425-0	01	1	9112-9503	●
78	HOSE ASM; RUBBER,ASV EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97115-750-0	01	1	9504-9504	●
78	HOSE ASM; RUBBER,ASV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97110-806-0	01	1	9505-9607	●
78	HOSE ASM; RUBBER,ASV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97131-637-1	01	1	9608-	●
78	HOSE ASM; RUBBER,ASV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B) L=560	8-97110-816-1	01	1	9505-	●
82	JOINT; 3 WAY EUROPE/CANARY EQUIPMENT(EK4) 3WAY	8-94208-695-0	02	1	9112-9504	●
82	JOINT; 3 WAY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 3WAY	8-94208-695-0	02	1	9505-9607	●
82	JOINT; 3 WAY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 3WAY	8-94208-695-0	01	1	9608-	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) (A) L=30 SERVICED BY L=3000	0-04731-300-0	01	1	9206-9504	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A) L=30 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) (B) L=40 SERVICED BY L=3000	0-04731-300-0	01	1	9206-9504	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B) L=40 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) (C) L=140 SERVICED BY L=3000	0-04731-300-0	01	1	9206-9504	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (C) L=140 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (D) L=270 SERVICED BY L=3000	0-04730-300-0	01	1	9505-9601	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (D) L=270 SERVICED BY L=3000	0-04740-300-0	01	1	9602-	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (E) L=90 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (F) L=200 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER CHILE EQUIPMENT(S2G) (A) L=40	8-97049-644-0	01	1	9112-9308			●
166	HOSE; RUBBER CHILE EQUIPMENT(S2G) (B) L=140	8-97049-645-0	01	1	9112-9308			●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) (C) L=375	8-97049-646-1	01	1	9112-9203			●
166	HOSE; RUBBER CHILE EQUIPMENT(S2G) (C) L=375	8-97078-302-0	01	1	9204-9308			●
185	HOSE; RUBBER,VSV EUROPE/CANARY EQUIPMENT(EK4) L=130 SERVICED BY L=3000	0-04734-300-0	01	1	9112-9504	●
185	HOSE; RUBBER,VSV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> L=130 SERVICED BY L=3000	0-04734-300-0	01	1	9505-	●
185	HOSE; RUBBER,VSV 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) (A) L=400 SERVICED BY L=3000	0-04740-300-0	01	1	9505-		●
185	HOSE; RUBBER,VSV 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) (B) L=500 SERVICED BY L=3000	0-04740-300-0	01	1	9505-		●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) (B) ID=6.8X2	8-94126-636-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=6.8X2	8-94126-636-0	01	1	9505-	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) (D) ID=7	8-94208-596-0	06	1	9112-9504	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (D) ID=7	8-94208-596-0	06	1	9505-9607	●
343	CLIP; RUBBER HOSE TURBOCHARGER<K51> EXC. CERAMIC HEATER<6YX> (D) ID=7	8-94208-596-0	02	1	9608-	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) (F) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (F) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9505-9607	●
343	CLIP; RUBBER HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (F) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9608-	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) (C) ID=23/7.3X2	8-94315-425-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (C) ID=23/7.3X2	8-94315-425-0	01	1	9505-	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) (E) ID=14.5 & 7X4	8-94368-499-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (E) ID=14.5 & 7X4	8-94368-499-0	01	1	9505-9607	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) (A) ID=20 & 7X4	8-94368-500-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=20 & 7X4	8-94368-500-0	01	1	9505-	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (G) 4XID=6.8	8-94132-799-0	01	1	9505-9607	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (H)	8-94366-035-0	01	1	9608-	●
464	JOINT; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) 2WAY	8-94313-805-0	03	1	9112-9504	●
464	JOINT; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 2WAY	8-94313-805-0	04	1	9505-9607	●
464	JOINT; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 2WAY	8-94313-805-0	02	1	9608-	●
541	JOINT; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) 3WAY	8-94208-695-0	01	1	9112-9504	●
541	JOINT; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 3WAY	8-94208-695-0	01	1	9505-9607	●
541	JOINT; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 2WAY	8-94313-805-0	01	1	9505-	●
658	HOSE ASM; VSV TO PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C)	8-97049-573-2	01	1	9112-9504				●
658	HOSE ASM; VSV TO PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97049-572-2	01	1	9112-9504	●
658	HOSE ASM; VSV TO PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97131-414-0	01	1	9505-9607	●
658	HOSE ASM; VSV TO PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97131-414-0	01	1	9608-	●
658	HOSE ASM; VSV TO PIPE EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97049-570-3	01	1	9309-9504	●
658	HOSE ASM; VSV TO PIPE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97112-224-2	01	1	9505-9607	●
658	HOSE ASM; VSV TO PIPE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97142-154-1	01	1	9608-	●
658	HOSE ASM; VSV TO PIPE EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> (C)	8-97117-273-2	01	1	9505-	●

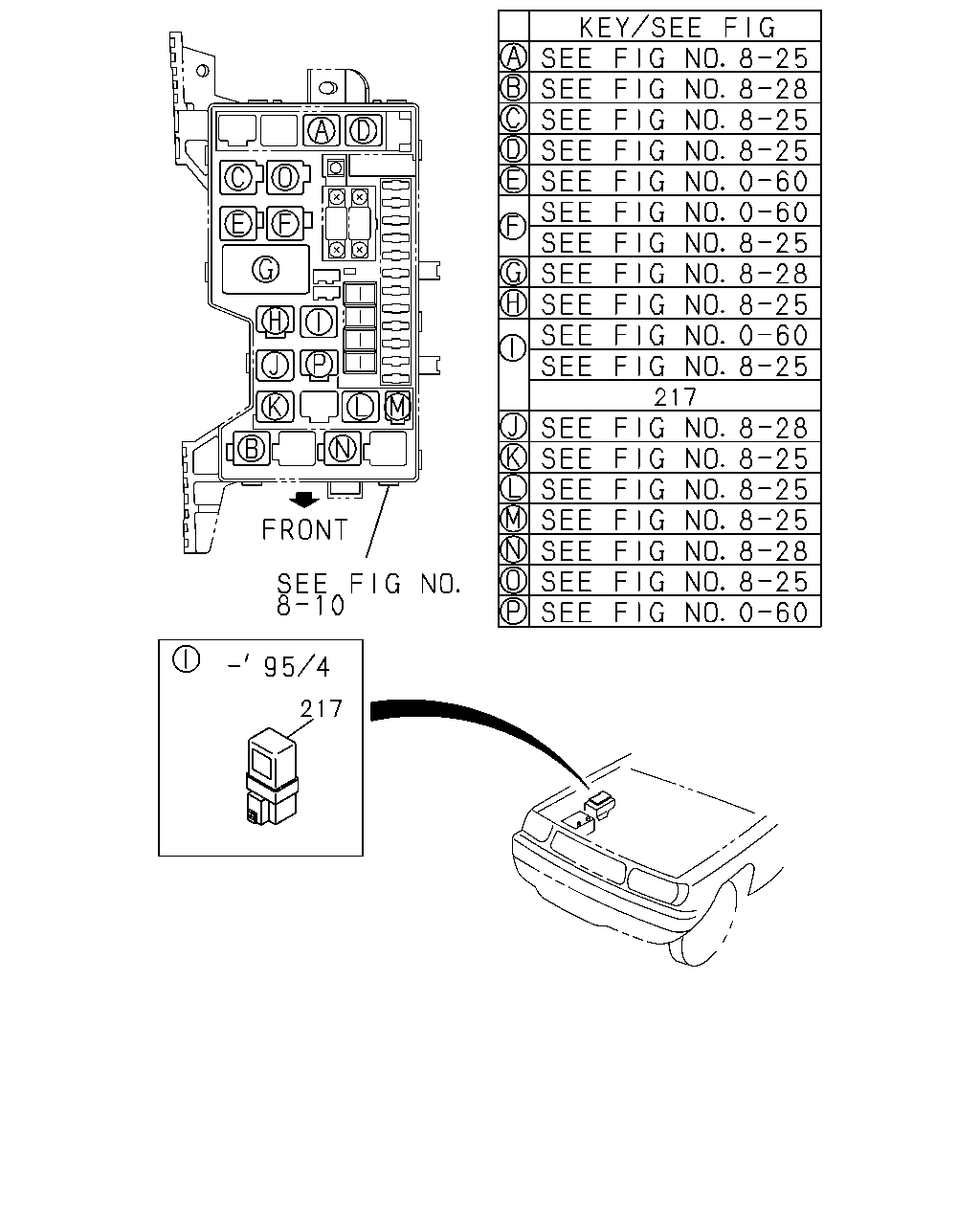

217 217

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	217	RELAY; EMISSION CONT 12V 20A	8-97048-665-0	01	1	9112-9303			●
	217	RELAY; EMISSION CONT 12V 20A	8-97093-910-1	01	1	9304-9504			●

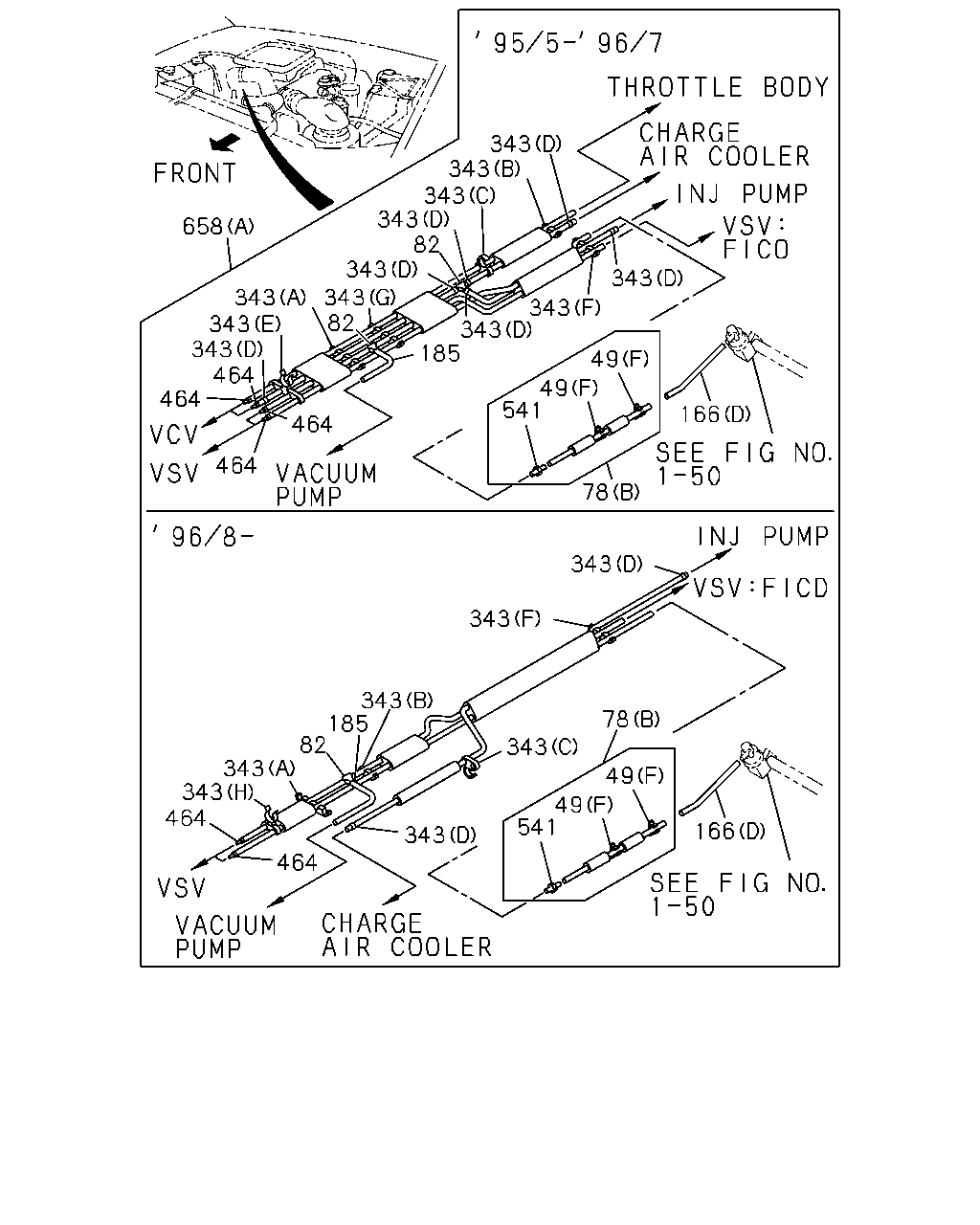

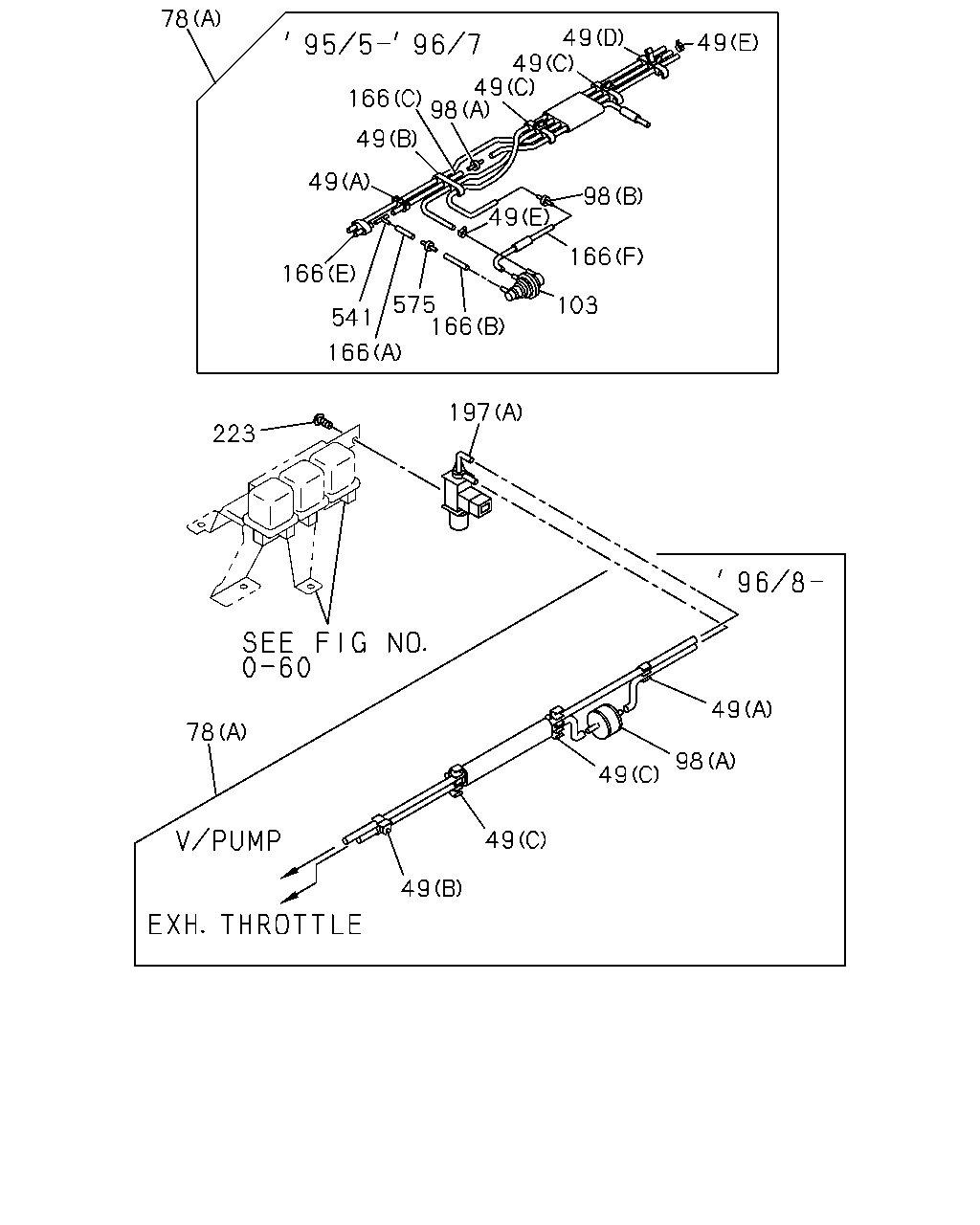

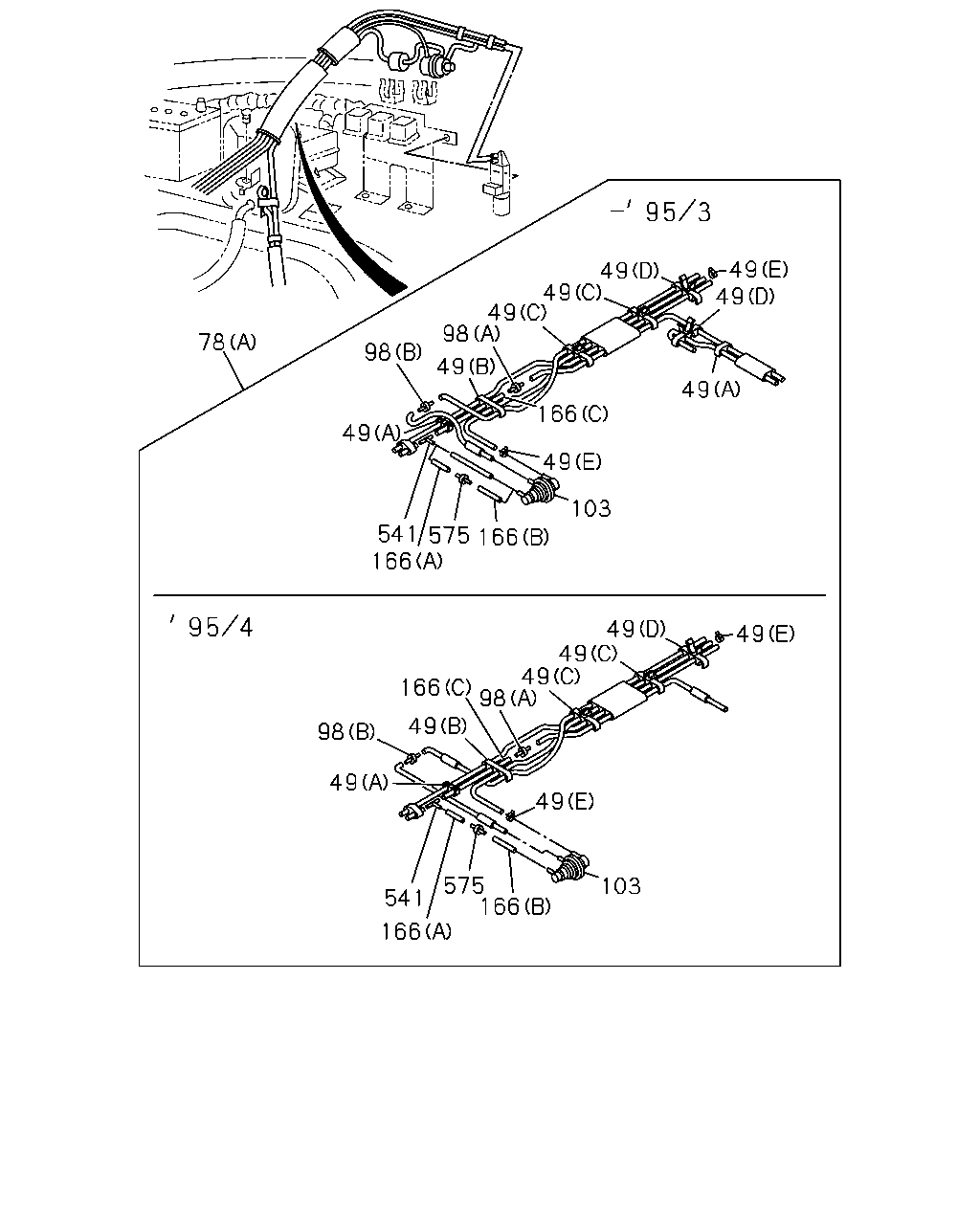

49 49 49 49 49 98 98 49 78 49 166 49 49 103 166 166 49 49 49 166 98 49 49 98 49 49 575 166 103 541 166 541 575

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (A) ID=6.8X2	8-94126-636-0	02	1	9112-9503	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (A) ID=6.8X2	8-94126-636-0	01	1	9504-9504	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=6.8X2	8-94126-636-0	01	1	9505-	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (B) 4XID=6.8	8-94132-799-0	01	1	9112-9504	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B) 4XID=6.8	8-94132-799-0	01	1	9505-9607	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-94366-035-0	01	1	9608-	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (E) ID=7	8-94208-596-0	02	1	9112-9504	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (E) ID=7	8-94208-596-0	02	1	9505-9607	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (C) 4XID=6.7	8-94315-422-0	02	1	9112-9504	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (C) 4XID=6.7	8-94315-422-0	02	1	9505-	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (D) ID=14.5 & 7X4	8-94368-499-0	02	1	9112-9503	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (D) ID=14.5 & 7X4	8-94368-499-0	01	1	9504-9504	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (D) ID=14.5 & 7X4	8-94368-499-0	01	1	9505-9607	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (F) ID=6 & 13	8-94459-564-0	02	1	9505-	●
78	HOSE ASM; RUBBER,ASV EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97079-425-0	01	1	9112-9503	●
78	HOSE ASM; RUBBER,ASV EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97115-750-0	01	1	9504-9504	●
78	HOSE ASM; RUBBER,ASV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97110-806-0	01	1	9505-9607	●
78	HOSE ASM; RUBBER,ASV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97131-637-1	01	1	9608-	●
78	HOSE ASM; RUBBER,ASV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B) L=560	8-97110-816-1	01	1	9505-	●
98	VALVE; DELAY EUROPE/CANARY EQUIPMENT(EK4) (A) PINK	8-94145-108-0	01	1	9112-9504	●
98	VALVE; DELAY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A) PINK	8-94145-108-0	01	1	9505-	●
98	VALVE; DELAY EUROPE/CANARY EQUIPMENT(EK4) (B) DARK BLUE	8-94412-768-0	01	1	9112-9504	●
98	VALVE; DELAY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B) DARK BLUE	8-94412-768-0	01	1	9505-9607	●
103	VALVE; VAC CONT EUROPE/CANARY EQUIPMENT(EK4)	8-94436-201-0	01	1	9112-9504	●
103	VALVE; VAC CONT EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-94436-201-0	01	1	9505-9607	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) (A) L=30 SERVICED BY L=3000	0-04731-300-0	01	1	9206-9504	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A) L=30 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) (B) L=40 SERVICED BY L=3000	0-04731-300-0	01	1	9206-9504	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B) L=40 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) (C) L=140 SERVICED BY L=3000	0-04731-300-0	01	1	9206-9504	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (C) L=140 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (D) L=270 SERVICED BY L=3000	0-04730-300-0	01	1	9505-9601	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (D) L=270 SERVICED BY L=3000	0-04740-300-0	01	1	9602-	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (E) L=90 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (F) L=200 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER CHILE EQUIPMENT(S2G) (A) L=40	8-97049-644-0	01	1	9112-9308		●
166	HOSE; RUBBER CHILE EQUIPMENT(S2G) (B) L=140	8-97049-645-0	01	1	9112-9308		●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) (C) L=375	8-97049-646-1	01	1	9112-9203		●
166	HOSE; RUBBER CHILE EQUIPMENT(S2G) (C) L=375	8-97078-302-0	01	1	9204-9308		●
541	JOINT; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) 3WAY	8-94208-695-0	01	1	9112-9504	●
541	JOINT; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 3WAY	8-94208-695-0	01	1	9505-9607	●
541	JOINT; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 2WAY	8-94313-805-0	01	1	9505-	●
575	ORIFICE; HOSE EUROPE/CANARY EQUIPMENT(EK4)	8-97079-527-0	01	1	9206-9504	●
575	ORIFICE; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97079-527-0	01	1	9505-9607	●

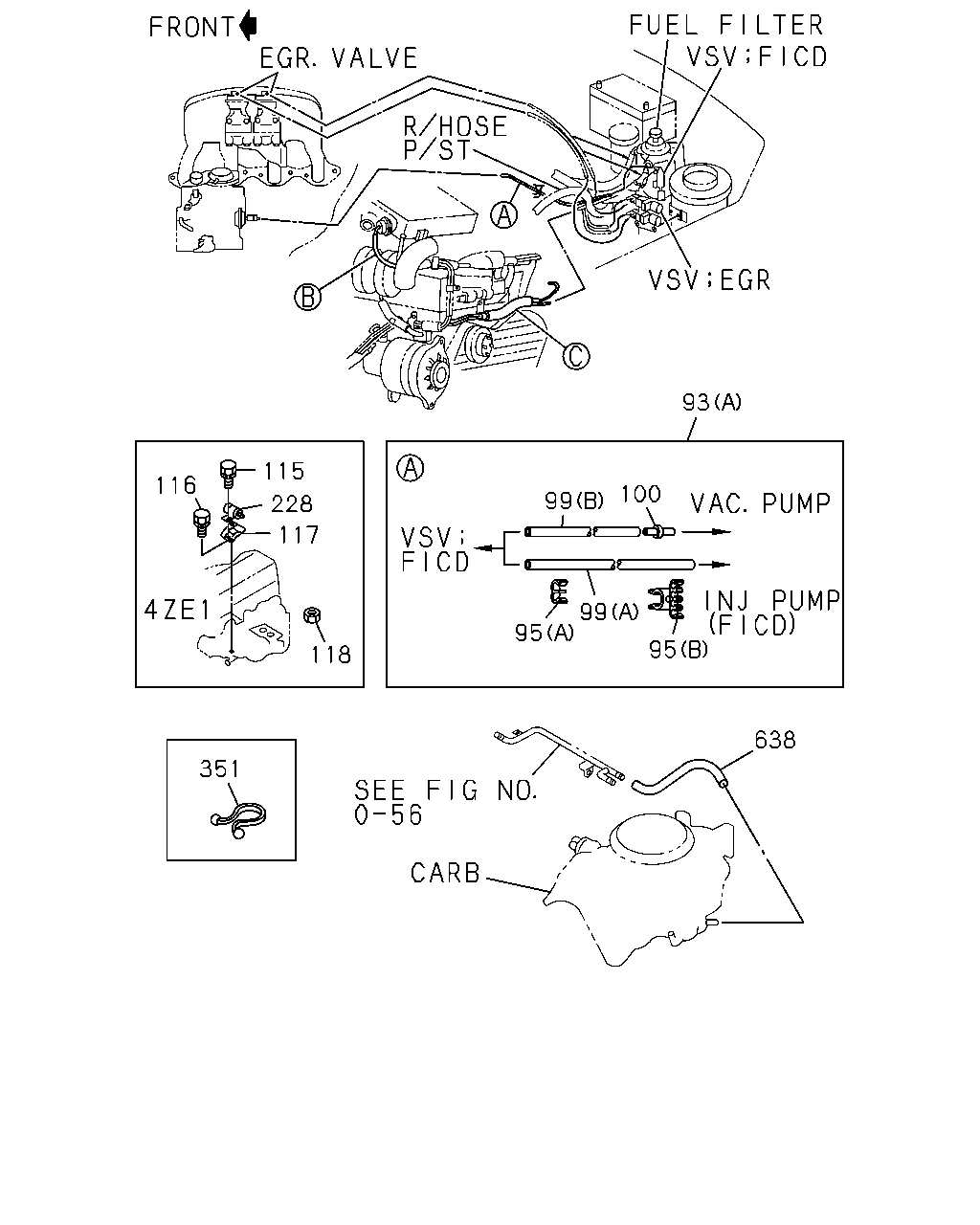

93 115 228 117 116 100 99 95 99 95 118 638 351

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D
93	HOSE ASM AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97049-574-3	01	1	9112-			●
93	HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97049-574-3	01	1	9112-	●
93	HOSE ASM EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97048-997-2	01	1	9112-9504	●
93	HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97131-415-0	01	1	9505-	●
95	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) ID=6.8X2	8-94126-636-0	01	1	9112-9504			●
95	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) ID=6.8X2	8-94126-636-0	01	1	9112-9504	●
95	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) ID=6.8X2	8-94126-636-0	01	1	9505-	●
95	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) ID=20 & 7X4	8-94368-500-0	01	1	9112-9504			●
95	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=20 & 7X4	8-94368-500-0	01	1	9112-9504	●
95	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=20 & 7X4	8-94368-500-0	01	1	9505-	●
95	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) ID=7	8-94208-596-0	02	1	9112-9504	●
95	CLIP; HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) ID=7	8-94208-596-0	02	1	9505-9607	●
95	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (D) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9207-9504	●
95	CLIP; HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (D) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9505-9607	●
95	CLIP; HOSE EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4) (C) ID=7	8-94208-596-0	02	1	9112-	●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) L=410 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9504			●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) L=410 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9504	●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) L=180 SERVICED BY L=3000	0-04730-300-0	01	1	9505-	●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) L=140 SERVICED BY L=3000	0-04734-300-0	01	1	9112-9308			●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) L=140 SERVICED BY L=3000	0-04734-300-0	01	1	9112-9308	●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C) L=670 STRIPE RED SERVICED BY L=3000	0-04734-300-0	01	1	9112-9504			●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) L=670 STRIPE RED SERVICED BY L=3000	0-04734-300-0	01	1	9112-9504	●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) L=140	0-04234-140-0	01	1	9309-			●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) L=140	0-04234-140-0	01	1	9309-	●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (D) L=970 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9206	●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (D) L=950 SERVICED BY L=3000	0-04730-300-0	01	1	9207-9308	●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (D) L=950	0-04231-950-0	01	1	9309-9504	●
99	HOSE; RUBBER EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4) (D) L=970 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9206	●
100	JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 2WAY	8-94313-805-0	01	1	9112-			●
100	JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) 2WAY	8-94313-805-0	01	1	9112-	●
100	JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) 3WAY	8-94208-695-0	01	1	9505-	●
115	BOLT; FAST IDLE SOLENOID AIR CONDITIONER MANUAL CONT(C60) M6X14 W/LK WASHER	9-01900-614-0	02	1	9112-9204		●
115	BOLT; FAST IDLE SOLENOID AIR CONDITIONER MANUAL CONT(C60) M6X14 W/LK WASHER	0-50040-614-0	02	1	9205-9503		●
116	BOLT; BRKT,FAST IDLE SOLENOID AIR CONDITIONER MANUAL CONT(C60) M8X14 W/LK WASHERT	8-94208-228-0	02	1	9112-		●
117	BRACKET; FAST IDLE SOLENOID AIR CONDITIONER MANUAL CONT(C60)	8-94146-261-0	01	1	9112-9503		●
117	BRACKET; FAST IDLE SOLENOID AIR CONDITIONER MANUAL CONT(C60)	8-94367-869-1	01	1	9504-		●
118	NUT; SOLENOID VLV AIR CONDITIONER MANUAL CONT(C60) M6 FLANGE	5-09440-004-0	02	1	9504-		●
228	VALVE; FAST IDLE SOLENOID GENERATOR 55A(S9S)	5-81910-005-0	01	1	9112-9504		●
228	VALVE; FAST IDLE SOLENOID AIR CONDITIONER MANUAL CONT(C60)	5-81910-005-0	01	1	9505-		●
351	CLIP; VAC HOSE EXC. EUROPE/CANARY EQUIPMENT(EK4) ID=25	8-94120-831-0	02	1	9112-9504	●
351	CLIP; VAC HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> ID=25	8-94120-831-0	02	1	9505-	●
638	HOSE; CARB TO JOINT M/T MUA 5 SPEED(RMN) L=150 SERVICED BY L=3000	0-04742-300-0	01	1	9608-		●

658 343 343 343 343 343 82 343 343 464 464 343 343 82 464 343 185 343

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D
82	JOINT; 3 WAY EUROPE/CANARY EQUIPMENT(EK4) 3WAY	8-94208-695-0	02	1	9112-9504	●
82	JOINT; 3 WAY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 3WAY	8-94208-695-0	02	1	9505-9607	●
82	JOINT; 3 WAY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 3WAY	8-94208-695-0	01	1	9608-	●
185	HOSE; RUBBER,VSV EUROPE/CANARY EQUIPMENT(EK4) L=130 SERVICED BY L=3000	0-04734-300-0	01	1	9112-9504	●
185	HOSE; RUBBER,VSV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> L=130 SERVICED BY L=3000	0-04734-300-0	01	1	9505-	●
185	HOSE; RUBBER,VSV 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) (A) L=400 SERVICED BY L=3000	0-04740-300-0	01	1	9505-		●
185	HOSE; RUBBER,VSV 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) (B) L=500 SERVICED BY L=3000	0-04740-300-0	01	1	9505-		●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) (B) ID=6.8X2	8-94126-636-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B) ID=6.8X2	8-94126-636-0	01	1	9505-	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) (D) ID=7	8-94208-596-0	06	1	9112-9504	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (D) ID=7	8-94208-596-0	06	1	9505-9607	●
343	CLIP; RUBBER HOSE TURBOCHARGER<K51> EXC. CERAMIC HEATER<6YX> (D) ID=7	8-94208-596-0	02	1	9608-	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) (F) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (F) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9505-9607	●
343	CLIP; RUBBER HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (F) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9608-	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) (C) ID=23/7.3X2	8-94315-425-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (C) ID=23/7.3X2	8-94315-425-0	01	1	9505-	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) (E) ID=14.5 & 7X4	8-94368-499-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (E) ID=14.5 & 7X4	8-94368-499-0	01	1	9505-9607	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) (A) ID=20 & 7X4	8-94368-500-0	01	1	9112-9504	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=20 & 7X4	8-94368-500-0	01	1	9505-	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (G) 4XID=6.8	8-94132-799-0	01	1	9505-9607	●
343	CLIP; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (H)	8-94366-035-0	01	1	9608-	●
464	JOINT; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) 2WAY	8-94313-805-0	03	1	9112-9504	●
464	JOINT; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 2WAY	8-94313-805-0	04	1	9505-9607	●
464	JOINT; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 2WAY	8-94313-805-0	02	1	9608-	●
658	HOSE ASM; VSV TO PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C)	8-97049-573-2	01	1	9112-9504			●
658	HOSE ASM; VSV TO PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97049-572-2	01	1	9112-9504	●
658	HOSE ASM; VSV TO PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97131-414-0	01	1	9505-9607	●
658	HOSE ASM; VSV TO PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97131-414-0	01	1	9608-	●
658	HOSE ASM; VSV TO PIPE EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97049-570-3	01	1	9309-9504	●
658	HOSE ASM; VSV TO PIPE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97112-224-2	01	1	9505-9607	●
658	HOSE ASM; VSV TO PIPE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97142-154-1	01	1	9608-	●
658	HOSE ASM; VSV TO PIPE EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> (C)	8-97117-273-2	01	1	9505-	●

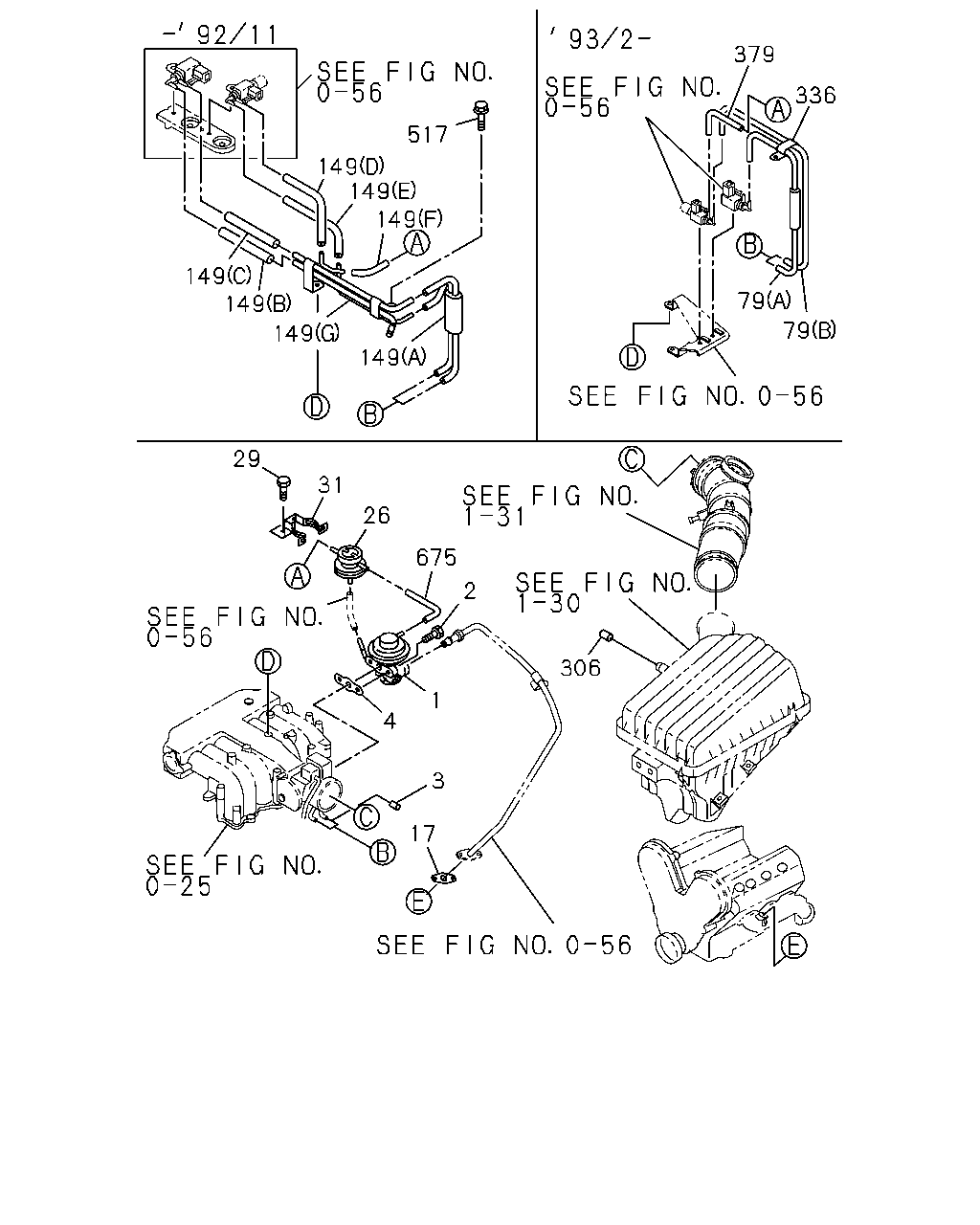

379 336 517 149 149 149 149 149 149 79 79 149 29 31 26 675 2 306 1 4 3 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	VALVE; EGR EUROPE/CANARY EQUIPMENT(EK4)	8-97043-021-4	02	1	9112-9607	●
1	VALVE; EGR EUROPE/CANARY EQUIPMENT(EK4)	8-97135-674-2	02	1	9608-	●
1	VALVE; EGR 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94248-646-0	01	1	9505-		●
1	VALVE; EGR EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-94364-874-1	01	1	9112-9506			●
1	VALVE; EGR EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-94364-874-1	01	1	9507-			●
2	BOLT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4) M8X40 W/LK WASHER	0-50040-840-0	04	1	9112-9606	●
2	BOLT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4) M8X40 FLANGE	0-28080-840-0	04	1	9607-	●
2	BOLT; EGR VLV 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X20 W/LK WASHER	0-50040-820-0	02	1	9505-		●
2	BOLT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) M6X20 FLANGE	0-28080-620-0	02	1	9112-9506			●
2	BOLT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M6X20 FLANGE	0-28080-620-0	02	1	9507-			●
3	CAP; RUBBER EXC. EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) ID=4	8-94217-809-0	01	1	9112-9506			●
3	CAP; RUBBER EXC. EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=4	8-94217-809-0	01	1	9507-			●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94334-338-0	02	1	9112-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4) (B)	8-94379-754-0	01	1	9112-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94324-191-0	01	1	9505-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-195-0	01	1	9112-			●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4)	8-94340-670-0	02	1	9112-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-97061-325-0	01	1	9505-		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-97060-414-0	01	1	9112-9506			●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97060-414-0	01	1	9507-			●
26	TRANSDUCER; BACK PRESSURE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-94450-811-0	01	1	9112-9506			●
26	TRANSDUCER; BACK PRESSURE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-94450-811-0	01	1	9507-			●
29	BOLT; BPT BRKT EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) M8X12 FLANGE	0-28080-812-0	01	1	9112-9506			●
29	BOLT; BPT BRKT EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M8X12 FLANGE	0-28080-812-0	01	1	9507-			●
31	BRACKET; BPT EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-94174-510-1	01	1	9112-9506			●
31	BRACKET; BPT EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-94174-510-1	01	1	9507-			●
79	HOSE; RUBBER,THROTTLE BODY TO PIPE (B) L=370 SERVICED BY L=3000	0-04750-300-0	01	1	9302-			●
79	HOSE; RUBBER,THROTTLE BODY TO PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (A) L=390 SERVICED BY L=3000	0-04740-300-0	01	1	9302-9506			●
79	HOSE; RUBBER,THROTTLE BODY TO PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) L=390 SERVICED BY L=3000	0-04740-300-0	01	1	9507-			●
149	HOSE; VAC PIPE (B) L=150 SERVICED BY L=3000	0-04750-300-0	01	1	9112-9211			●
149	HOSE; VAC PIPE (C) L=150 SERVICED BY L=3000	0-04751-300-0	01	1	9112-9211			●
149	HOSE; VAC PIPE EUROPE/CANARY EQUIPMENT(EK4) (D) L=120 SERVICED BY L=3000	0-04740-300-0	01	1	9112-9211			●
149	HOSE; VAC PIPE EUROPE/CANARY EQUIPMENT(EK4) (E) L=140 SERVICED BY L=3000	0-04745-300-0	01	1	9112-9211			●
149	HOSE; VAC PIPE EUROPE/CANARY EQUIPMENT(EK4) (G)	8-97037-383-0	01	1	9112-9211			●
149	HOSE; VAC PIPE EXC. EUROPE/CANARY EQUIPMENT(EK4) (G)	8-97040-669-0	01	1	9112-9211			●
149	HOSE; VAC PIPE EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97037-618-0	01	1	9112-9211			●
149	HOSE; VAC PIPE EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97040-670-0	01	1	9112-9211			●
149	HOSE; VAC PIPE EUROPE/CANARY EQUIPMENT(EK4) (F)	8-97046-429-0	01	1	9112-9211			●
306	CAP; RUBBER EXC. CHILE EQUIPMENT(S2G)	8-94373-247-0	01	1	9112-9308			●
306	CAP; RUBBER	8-94373-247-0	01	1	9309-			●
336	CLIP; RUBBER HOSE ID=11X2 L=16	9-09535-025-0	01	1	9302-			●
379	HOSE; BPT EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) L=140	8-97086-352-1	01	1	9302-9506			●
379	HOSE; BPT EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) L=140	8-97086-352-1	01	1	9507-			●
517	BOLT; VAC PIPE M6X12 FLANGE	0-28080-612-0	02	1	9112-9211			●
675	HOSE; EPT TO EGR VLV EUROPE/CANARY EQUIPMENT(EK4) -920906 L=150 SERVICED BY L=3000	0-04740-300-0	01	1	9112-9209			●
675	HOSE; EPT TO EGR VLV EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) 920907- L=130 SERVICED BY L=3000	0-04740-300-0	01	1	9209-9506			●
675	HOSE; EPT TO EGR VLV EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) L=130 SERVICED BY L=3000	0-04740-300-0	01	1	9507-			●

93 95 99 95 95 100 93 99 95 99 95 658 95 95 95 658 658 99 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	D
93	HOSE ASM AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97049-574-3	01	1	9112-		●
93	HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97049-574-3	01	1	9112-	●
93	HOSE ASM EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97048-997-2	01	1	9112-9504	●
93	HOSE ASM AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97131-415-0	01	1	9505-	●
95	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) ID=6.8X2	8-94126-636-0	01	1	9112-9504		●
95	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) ID=6.8X2	8-94126-636-0	01	1	9112-9504	●
95	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) ID=6.8X2	8-94126-636-0	01	1	9505-	●
95	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) ID=20 & 7X4	8-94368-500-0	01	1	9112-9504		●
95	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=20 & 7X4	8-94368-500-0	01	1	9112-9504	●
95	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) ID=20 & 7X4	8-94368-500-0	01	1	9505-	●
95	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) ID=7	8-94208-596-0	02	1	9112-9504	●
95	CLIP; HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (C) ID=7	8-94208-596-0	02	1	9505-9607	●
95	CLIP; HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (D) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9207-9504	●
95	CLIP; HOSE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (D) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9505-9607	●
95	CLIP; HOSE EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4) (C) ID=7	8-94208-596-0	02	1	9112-	●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) L=410 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9504		●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) L=410 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9504	●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) L=180 SERVICED BY L=3000	0-04730-300-0	01	1	9505-	●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) L=140 SERVICED BY L=3000	0-04734-300-0	01	1	9112-9308		●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) L=140 SERVICED BY L=3000	0-04734-300-0	01	1	9112-9308	●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C) L=670 STRIPE RED SERVICED BY L=3000	0-04734-300-0	01	1	9112-9504		●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (C) L=670 STRIPE RED SERVICED BY L=3000	0-04734-300-0	01	1	9112-9504	●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) L=140	0-04234-140-0	01	1	9309-		●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) L=140	0-04234-140-0	01	1	9309-	●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (D) L=970 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9206	●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (D) L=950 SERVICED BY L=3000	0-04730-300-0	01	1	9207-9308	●
99	HOSE; RUBBER AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (D) L=950	0-04231-950-0	01	1	9309-9504	●
99	HOSE; RUBBER EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4) (D) L=970 SERVICED BY L=3000	0-04731-300-0	01	1	9112-9206	●
100	JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 2WAY	8-94313-805-0	01	1	9112-		●
100	JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) 2WAY	8-94313-805-0	01	1	9112-	●
100	JOINT; HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) 3WAY	8-94208-695-0	01	1	9505-	●
658	HOSE ASM; VSV TO PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C)	8-97049-573-2	01	1	9112-9504		●
658	HOSE ASM; VSV TO PIPE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4) (B)	8-97049-572-2	01	1	9112-9504	●
658	HOSE ASM; VSV TO PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97131-414-0	01	1	9505-9607	●
658	HOSE ASM; VSV TO PIPE TURBOCHARGER<K51> CHARGE AIR COOLER<6PL> EXC. ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-97131-414-0	01	1	9608-	●
658	HOSE ASM; VSV TO PIPE EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97049-570-3	01	1	9309-9504	●
658	HOSE ASM; VSV TO PIPE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97112-224-2	01	1	9505-9607	●
658	HOSE ASM; VSV TO PIPE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97142-154-1	01	1	9608-	●
658	HOSE ASM; VSV TO PIPE EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> (C)	8-97117-273-2	01	1	9505-	●

78 49 49 49 166 98 49 49 49 98 49 166 166 575 166 103 541 166 197 223 49 78 98 49 49 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C	D
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (A) ID=6.8X2	8-94126-636-0	02	1	9112-9503	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (A) ID=6.8X2	8-94126-636-0	01	1	9504-9504	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A) ID=6.8X2	8-94126-636-0	01	1	9505-	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (B) 4XID=6.8	8-94132-799-0	01	1	9112-9504	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B) 4XID=6.8	8-94132-799-0	01	1	9505-9607	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B)	8-94366-035-0	01	1	9608-	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (E) ID=7	8-94208-596-0	02	1	9112-9504	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (E) ID=7	8-94208-596-0	02	1	9505-9607	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (C) 4XID=6.7	8-94315-422-0	02	1	9112-9504	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (C) 4XID=6.7	8-94315-422-0	02	1	9505-	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (D) ID=14.5 & 7X4	8-94368-499-0	02	1	9112-9503	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (D) ID=14.5 & 7X4	8-94368-499-0	01	1	9504-9504	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (D) ID=14.5 & 7X4	8-94368-499-0	01	1	9505-9607	●
49	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (F) ID=6 & 13	8-94459-564-0	02	1	9505-	●
78	HOSE ASM; RUBBER,ASV EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97079-425-0	01	1	9112-9503	●
78	HOSE ASM; RUBBER,ASV EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97115-750-0	01	1	9504-9504	●
78	HOSE ASM; RUBBER,ASV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97110-806-0	01	1	9505-9607	●
78	HOSE ASM; RUBBER,ASV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97131-637-1	01	1	9608-	●
78	HOSE ASM; RUBBER,ASV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B) L=560	8-97110-816-1	01	1	9505-	●
98	VALVE; DELAY EUROPE/CANARY EQUIPMENT(EK4) (A) PINK	8-94145-108-0	01	1	9112-9504	●
98	VALVE; DELAY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A) PINK	8-94145-108-0	01	1	9505-	●
98	VALVE; DELAY EUROPE/CANARY EQUIPMENT(EK4) (B) DARK BLUE	8-94412-768-0	01	1	9112-9504	●
98	VALVE; DELAY EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B) DARK BLUE	8-94412-768-0	01	1	9505-9607	●
103	VALVE; VAC CONT EUROPE/CANARY EQUIPMENT(EK4)	8-94436-201-0	01	1	9112-9504	●
103	VALVE; VAC CONT EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-94436-201-0	01	1	9505-9607	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) (A) L=30 SERVICED BY L=3000	0-04731-300-0	01	1	9206-9504	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A) L=30 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) (B) L=40 SERVICED BY L=3000	0-04731-300-0	01	1	9206-9504	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B) L=40 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) (C) L=140 SERVICED BY L=3000	0-04731-300-0	01	1	9206-9504	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (C) L=140 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (D) L=270 SERVICED BY L=3000	0-04730-300-0	01	1	9505-9601	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (D) L=270 SERVICED BY L=3000	0-04740-300-0	01	1	9602-	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (E) L=90 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (F) L=200 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER CHILE EQUIPMENT(S2G) (A) L=40	8-97049-644-0	01	1	9112-9308		●
166	HOSE; RUBBER CHILE EQUIPMENT(S2G) (B) L=140	8-97049-645-0	01	1	9112-9308		●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) (C) L=375	8-97049-646-1	01	1	9112-9203		●
166	HOSE; RUBBER CHILE EQUIPMENT(S2G) (C) L=375	8-97078-302-0	01	1	9204-9308		●
197	VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94178-888-0	01	1	9112-9504	●		●
197	VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) (B)	8-94178-888-0	01	1	9505-	●
197	VALVE; VAC SWITCHING EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97043-750-0	01	1	9112-9504	●
197	VALVE; VAC SWITCHING EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97043-750-0	01	1	9505-	●
223	SCREW; VSV EUROPE/CANARY EQUIPMENT(EK4)	9-93490-506-0	01	1	9112-9303	●
223	SCREW; VSV EUROPE/CANARY EQUIPMENT(EK4) M5X8 W/LK WASHER	9-03910-508-0	01	1	9304-9504	●
223	SCREW; VSV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> M5X8 W/LK WASHER	9-03910-508-0	01	1	9505-	●
541	JOINT; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) 3WAY	8-94208-695-0	01	1	9112-9504	●
541	JOINT; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 3WAY	8-94208-695-0	01	1	9505-9607	●
541	JOINT; RUBBER HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> 2WAY	8-94313-805-0	01	1	9505-	●
575	ORIFICE; HOSE EUROPE/CANARY EQUIPMENT(EK4)	8-97079-527-0	01	1	9206-9504	●
575	ORIFICE; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97079-527-0	01	1	9505-9607	●

679 71 166 58 166 166 71 401 60 71 57 676 60 58 60 59 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	C
57	PIPE; SUCTION,AIR CHILE EQUIPMENT(S2G)	8-94389-903-1	01	1	9112-9308		●
58	BOLT; PIPE CHILE EQUIPMENT(S2G) (A) M8X12 FLANGE	0-28080-812-0	01	1	9112-9308		●
58	BOLT; PIPE CHILE EQUIPMENT(S2G) (B) M8X20	8-97012-321-0	02	1	9112-9308		●
59	HOSE; AIR CHILE EQUIPMENT(S2G)	8-97021-243-0	01	1	9112-9308		●
60	CLIP; HOSE CHILE EQUIPMENT(S2G) (A) ID=21	8-94242-034-0	01	1	9112-9308		●
60	CLIP; HOSE CHILE EQUIPMENT(S2G) (B) ID=25	8-94330-291-0	01	1	9112-9308		●
60	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (C) ID=27	8-94411-850-0	02	1	9112-9204		●
60	CLIP; HOSE EUROPE/CANARY EQUIPMENT(EK4) (C) ID=36	1-09704-094-0	02	1	9205-9208		●
60	CLIP; HOSE CHILE EQUIPMENT(S2G) (C) ID=36	1-09704-094-0	02	1	9209-9308		●
71	CLIP; RUBBER HOSE CHILE EQUIPMENT(S2G) (C) ID=11.8 & 7.5	1-09709-182-0	01	1	9112-9308		●
71	CLIP; RUBBER HOSE CHILE EQUIPMENT(S2G) (B) ID=6.8X2	8-94126-636-0	01	1	9112-9308		●
71	CLIP; RUBBER HOSE CHILE EQUIPMENT(S2G) (A) ID=10 & 8	8-94470-684-0	01	1	9112-9308		●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) (A) L=30 SERVICED BY L=3000	0-04731-300-0	01	1	9206-9504	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A) L=30 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) (B) L=40 SERVICED BY L=3000	0-04731-300-0	01	1	9206-9504	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (B) L=40 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) (C) L=140 SERVICED BY L=3000	0-04731-300-0	01	1	9206-9504	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (C) L=140 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (D) L=270 SERVICED BY L=3000	0-04730-300-0	01	1	9505-9601	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (D) L=270 SERVICED BY L=3000	0-04740-300-0	01	1	9602-	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (E) L=90 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (F) L=200 SERVICED BY L=3000	0-04731-300-0	01	1	9505-9607	●
166	HOSE; RUBBER CHILE EQUIPMENT(S2G) (A) L=40	8-97049-644-0	01	1	9112-9308		●
166	HOSE; RUBBER CHILE EQUIPMENT(S2G) (B) L=140	8-97049-645-0	01	1	9112-9308		●
166	HOSE; RUBBER EUROPE/CANARY EQUIPMENT(EK4) (C) L=375	8-97049-646-1	01	1	9112-9203		●
166	HOSE; RUBBER CHILE EQUIPMENT(S2G) (C) L=375	8-97078-302-0	01	1	9204-9308		●
401	HOSE; REED VLV TO ACL CHILE EQUIPMENT(S2G)	8-97066-709-0	01	1	9112-9308		●
676	GASKET; PIPE CHILE EQUIPMENT(S2G)	8-97021-242-0	01	1	9112-9308		●
679	VALVE; CHECK CHILE EQUIPMENT(S2G)	8-97024-129-2	01	1	9112-9308		●

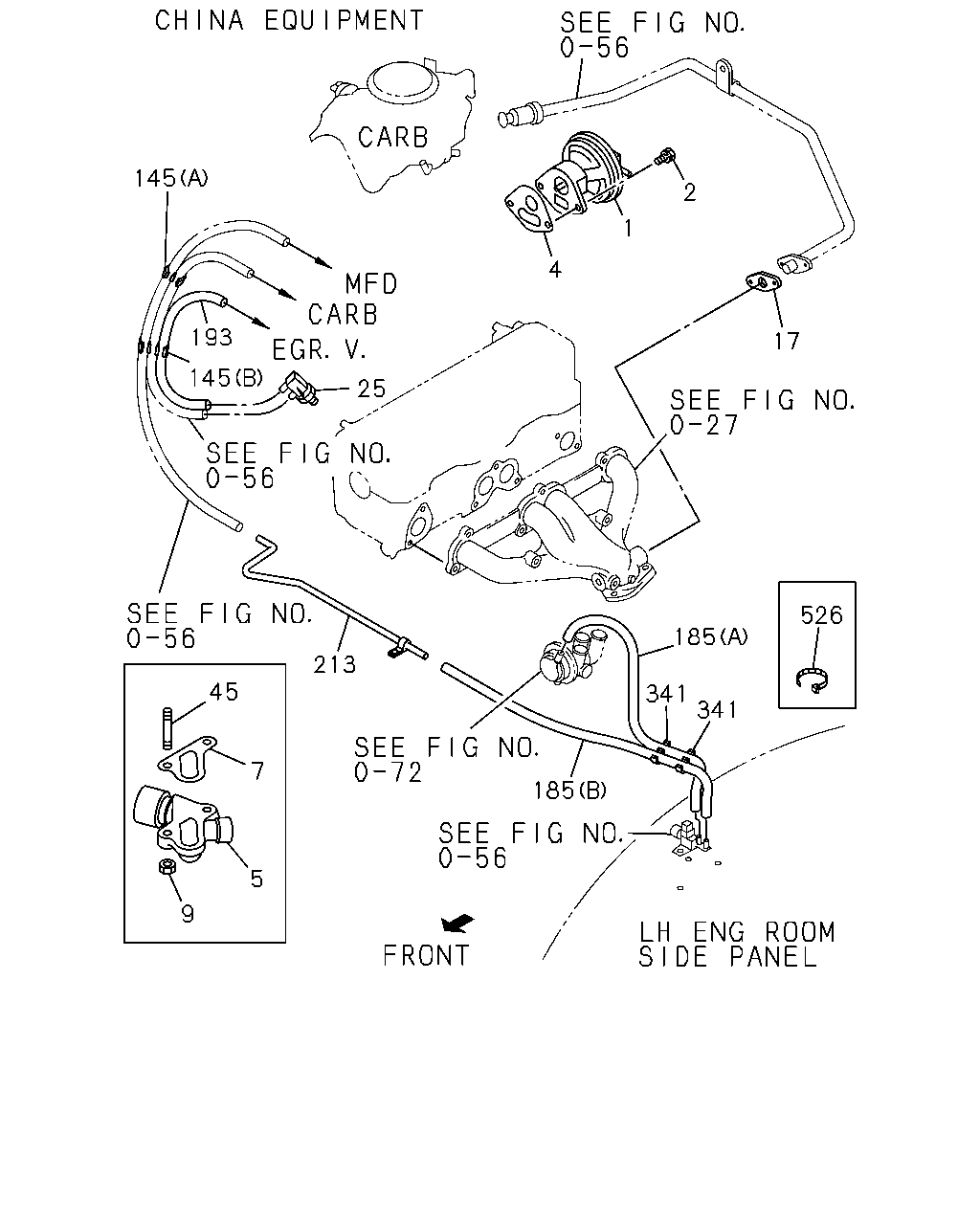

145 2 1 4 145 193 17 25 526 185 213 45 341 341 7 185 5 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	VALVE; EGR EUROPE/CANARY EQUIPMENT(EK4)	8-97043-021-4	02	1	9112-9607	●
1	VALVE; EGR EUROPE/CANARY EQUIPMENT(EK4)	8-97135-674-2	02	1	9608-	●
1	VALVE; EGR 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94248-646-0	01	1	9505-		●
1	VALVE; EGR EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-94364-874-1	01	1	9112-9506			●
1	VALVE; EGR EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-94364-874-1	01	1	9507-			●
2	BOLT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4) M8X40 W/LK WASHER	0-50040-840-0	04	1	9112-9606	●
2	BOLT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4) M8X40 FLANGE	0-28080-840-0	04	1	9607-	●
2	BOLT; EGR VLV 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X20 W/LK WASHER	0-50040-820-0	02	1	9505-		●
2	BOLT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) M6X20 FLANGE	0-28080-620-0	02	1	9112-9506			●
2	BOLT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M6X20 FLANGE	0-28080-620-0	02	1	9507-			●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94334-338-0	02	1	9112-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4) (B)	8-94379-754-0	01	1	9112-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94324-191-0	01	1	9505-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-195-0	01	1	9112-			●
5	ADAPTER ASM EUROPE/CANARY EQUIPMENT(EK4)	8-94379-755-2	01	1	9112-9406	●
5	ADAPTER ASM EUROPE/CANARY EQUIPMENT(EK4)	8-97117-260-0	01	1	9408-	●
5	ADAPTER ASM 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94150-147-0	01	1	9505-		●
7	GASKET; ADAPTER 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94324-192-0	01	1	9505-		●
9	NUT; EGR ADAPTER 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8 FLANGE	5-09440-005-0	02	1	9505-		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4)	8-94340-670-0	02	1	9112-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-97061-325-0	01	1	9505-		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-97060-414-0	01	1	9112-9506			●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97060-414-0	01	1	9507-			●
25	VALVE; THERMAL VAC 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94213-554-0	01	1	9505-		●
45	STUD; ADAPTER,EGR 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X22 L=34	9-04110-822-0	02	1	9505-		●
145	CLIP; RUBBER HOSE 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) (A) ID=6.8X2	8-94126-636-0	01	1	9505-		●
145	CLIP; RUBBER HOSE 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) (B) ID=6.8 & 6.8 & 6.8	8-94208-734-0	01	1	9505-		●
185	HOSE; RUBBER,VSV EUROPE/CANARY EQUIPMENT(EK4) L=130 SERVICED BY L=3000	0-04734-300-0	01	1	9112-9504	●
185	HOSE; RUBBER,VSV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> L=130 SERVICED BY L=3000	0-04734-300-0	01	1	9505-	●
185	HOSE; RUBBER,VSV 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) (A) L=400 SERVICED BY L=3000	0-04740-300-0	01	1	9505-		●
185	HOSE; RUBBER,VSV 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) (B) L=500 SERVICED BY L=3000	0-04740-300-0	01	1	9505-		●
193	HOSE; TVV TO EGR VLV 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) L=190 SERVICED BY L=3000	0-04744-300-0	01	1	9505-		●
213	PIPE; ABV SIGNAL 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94344-984-1	01	1	9505-		●
341	CLIP; RUBBER HOSE 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) ID=6.8X2	8-94126-636-0	02	1	9505-		●
526	CLIP; BAND 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) L=450	1-09707-142-0	01	1	9505-9507		●
526	CLIP; BAND 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) L=350	8-94152-256-0	01	1	9508-		●

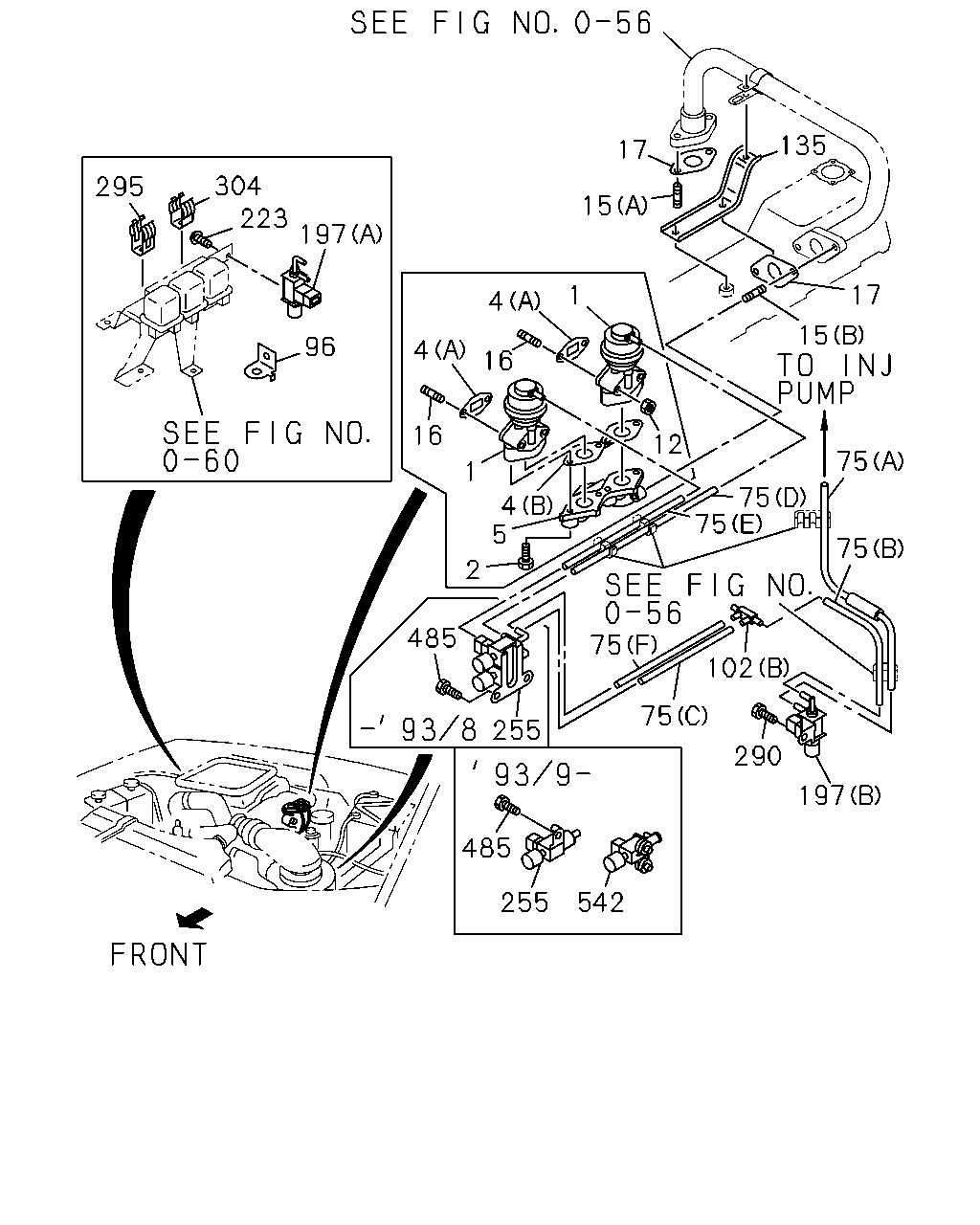

17 135 304 223 197 295 15 17 1 4 15 96 4 16 12 4 5 2 16 75 1 75 75 75 75 485 102 75 290 197 485 255 542 255

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	VALVE; EGR EUROPE/CANARY EQUIPMENT(EK4)	8-97043-021-4	02	1	9112-9607	●
1	VALVE; EGR EUROPE/CANARY EQUIPMENT(EK4)	8-97135-674-2	02	1	9608-	●
1	VALVE; EGR 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94248-646-0	01	1	9505-		●
1	VALVE; EGR EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-94364-874-1	01	1	9112-9506			●
1	VALVE; EGR EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-94364-874-1	01	1	9507-			●
2	BOLT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4) M8X40 W/LK WASHER	0-50040-840-0	04	1	9112-9606	●
2	BOLT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4) M8X40 FLANGE	0-28080-840-0	04	1	9607-	●
2	BOLT; EGR VLV 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X20 W/LK WASHER	0-50040-820-0	02	1	9505-		●
2	BOLT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) M6X20 FLANGE	0-28080-620-0	02	1	9112-9506			●
2	BOLT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M6X20 FLANGE	0-28080-620-0	02	1	9507-			●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4) (A)	8-94334-338-0	02	1	9112-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4) (B)	8-94379-754-0	01	1	9112-	●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94324-191-0	01	1	9505-		●
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-94340-195-0	01	1	9112-			●
5	ADAPTER ASM EUROPE/CANARY EQUIPMENT(EK4)	8-94379-755-2	01	1	9112-9406	●
5	ADAPTER ASM EUROPE/CANARY EQUIPMENT(EK4)	8-97117-260-0	01	1	9408-	●
5	ADAPTER ASM 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94150-147-0	01	1	9505-		●
12	NUT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4) M8 FLANGE	5-09440-005-0	04	1	9112-9606	●
12	NUT; EGR VLV EUROPE/CANARY EQUIPMENT(EK4) M8 FLANGE	0-91150-208-0	04	1	9607-	●
15	STUD; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (A) M8X25 L=36	8-94156-470-2	01	1	9112-9311	●
15	STUD; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (B) M8X25 L=37	9-04110-825-0	02	1	9112-	●
16	STUD; EGR VLV EUROPE/CANARY EQUIPMENT(EK4) M8X45 L=57	9-04110-845-0	04	1	9112-9606	●
16	STUD; EGR VLV EUROPE/CANARY EQUIPMENT(EK4) M8X45 L=57	8-94105-162-1	04	1	9607-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4)	8-94340-670-0	02	1	9112-	●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-97061-325-0	01	1	9505-		●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-97060-414-0	01	1	9112-9506			●
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97060-414-0	01	1	9507-			●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (A) L=410 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9504	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (G) L=50 SERVICED BY L=3000	0-04735-300-0	01	1	9505-	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (C) L=130 SERVICED BY L=3000	0-04730-300-0	01	1	9112-9308	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (C) L=200 SERVICED BY L=3000	0-04730-300-0	01	1	9309-9504	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (C) L=35 SERVICED BY L=3000	0-04730-300-0	01	1	9505-	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (D) L=350 SERVICED BY L=3000	0-04733-300-0	01	1	9112-9308	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (D) L=430 SERVICED BY L=3000	0-04730-300-0	01	1	9309-9504	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (D) L=410 SERVICED BY L=3000	0-04730-300-0	01	1	9505-9505	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (B),(F) L=130 SERVICED BY L=3000	0-04734-300-0	02	1	9112-9308	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (E) L=400 SERVICED BY L=3000	0-04735-300-0	01	1	9112-9308	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (B) L=120 SERVICED BY L=3000	0-04730-300-0	01	1	9309-	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (E) L=480 SERVICED BY L=3000	0-04730-300-0	01	1	9309-9504	●
75	HOSE; CONNECTOR TO VSV & COMMON CHAMBE EUROPE/CANARY EQUIPMENT(EK4) (F) L=160 SERVICED BY L=3000	0-04730-300-0	01	1	9309-9504	●
96	BRACKET; HOSE EUROPE/CANARY EQUIPMENT(EK4)	8-97043-563-1	01	1	9112-9504	●
96	BRACKET; HOSE EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-97043-563-1	01	1	9505-	●
102	JOINT; HOSE EUROPE/CANARY EQUIPMENT(EK4) (B) 4WAY	8-94429-994-0	01	1	9112-	●
102	JOINT; HOSE EUROPE/CANARY EQUIPMENT(EK4) (A) 3WAY	8-94208-695-0	01	1	9505-	●
135	BRACKET; EGR EUROPE/CANARY EQUIPMENT(EK4)	8-97061-741-1	01	1	9112-9411	●
197	VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-94178-888-0	01	1	9112-9504	●			●
197	VALVE; VAC SWITCHING AIR CONDITIONER MANUAL CONT(C60) (B)	8-94178-888-0	01	1	9505-	●
197	VALVE; VAC SWITCHING EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97043-750-0	01	1	9112-9504	●
197	VALVE; VAC SWITCHING EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> (A)	8-97043-750-0	01	1	9505-	●
223	SCREW; VSV EUROPE/CANARY EQUIPMENT(EK4)	9-93490-506-0	01	1	9112-9303	●
223	SCREW; VSV EUROPE/CANARY EQUIPMENT(EK4) M5X8 W/LK WASHER	9-03910-508-0	01	1	9304-9504	●
223	SCREW; VSV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ> M5X8 W/LK WASHER	9-03910-508-0	01	1	9505-	●
255	VALVE; VAC SW,EGR CONT EUROPE/CANARY EQUIPMENT(EK4)	8-94340-699-0	01	1	9112-9308	●
255	VALVE; VAC SW,EGR CONT EUROPE/CANARY EQUIPMENT(EK4)	8-94366-692-0	01	1	9309-	●
290	BOLT; VAC CONT SW VLV AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M8X12	0-28010-812-0	01	1	9112-9204	●			●
290	BOLT; VAC CONT SW VLV AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M8X12 FLANGE	0-28080-812-0	01	1	9205-9504	●			●
290	BOLT; VAC CONT SW VLV AIR CONDITIONER MANUAL CONT(C60) M8X12 FLANGE	0-28080-812-0	01	1	9505-	●
295	BRACKET; DELAY VLV EUROPE/CANARY EQUIPMENT(EK4)	8-94315-281-1	01	1	9112-9504	●
295	BRACKET; DELAY VLV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-94315-281-1	01	1	9505-9607	●
304	BRACKET; VCV EUROPE/CANARY EQUIPMENT(EK4)	8-94209-610-0	01	1	9112-9504	●
304	BRACKET; VCV EUROPE/CANARY EQUIPMENT(EK4) ENG QUICK WARM UP SYSTEM<6JZ>	8-94209-610-0	01	1	9505-9607	●
485	BOLT; VSV EUROPE/CANARY EQUIPMENT(EK4) M6X12	0-28010-612-0	02	1	9112-9204	●
485	BOLT; VSV EUROPE/CANARY EQUIPMENT(EK4) M6X12 FLANGE	0-28080-612-0	02	1	9205-9308	●
485	BOLT; VSV EUROPE/CANARY EQUIPMENT(EK4) M8X12 FLANGE	0-28080-812-0	01	1	9309-	●
542	VALVE; VAC REGULATING EUROPE/CANARY EQUIPMENT(EK4)	8-97069-803-0	01	1	9309-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
