Sayfa 0-56 - Isuzu EPC

0-56 — EMISSION SYSTEM (#33151) — 199 parça

22 114 106 183 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
22	PIPE; VAC,AIR SWITCHING VLV L=160.5	8-94159-232-1	01	1	9112-	●
106	COVER; ECM A/T THM(RMQ) BLACK	8-97805-295-4	01	1	9112-9307	●	●	●	●
106	COVER; ECM A/T THM(RMQ) BLACK	8-97805-297-5	01	1	9308-9504	●	●	●	●
106	COVER; ECM M/T MUA 5 SPEED(RMN) BLACK	8-97805-296-4	01	1	9112-9504	●	●	●	●
114	SCREW; ENG CONT (A) M5X16 TAPPING	9-09829-323-1	04	1	9112-9112	●	●	●	●
114	SCREW; ENG CONT (A) M5X16	8-94384-690-0	04	1	9201-9504	●	●	●	●
114	SCREW; ENG CONT (B) M6X14 W/PL WASHER	9-03900-614-0	04	1	9112-9504				●
114	SCREW; ENG CONT (B) M6X14 W/PL WASHER	9-03900-614-0	03	1	9505-				●
183	COVER; HOLE ECM BLACK	8-97805-298-1	01	1	9112-9504	●	●	●	●

76 15 146 145 20 146 114 106 183 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
15	VALVE; VAC SW CHILE EQUIPMENT(S2G)	8-94375-331-1	01	1	9112-9308				●
20	VALVE; REED CHILE EQUIPMENT(S2G)	8-94388-863-5	01	1	9112-9308				●
76	BOLT; VSV CHILE EQUIPMENT(S2G) M8X12 FLANGE	0-28080-812-0	01	1	9112-9308				●
106	COVER; ECM A/T THM(RMQ) BLACK	8-97805-295-4	01	1	9112-9307	●	●	●	●
106	COVER; ECM A/T THM(RMQ) BLACK	8-97805-297-5	01	1	9308-9504	●	●	●	●
106	COVER; ECM M/T MUA 5 SPEED(RMN) BLACK	8-97805-296-4	01	1	9112-9504	●	●	●	●
114	SCREW; ENG CONT (A) M5X16 TAPPING	9-09829-323-1	04	1	9112-9112	●	●	●	●
114	SCREW; ENG CONT (A) M5X16	8-94384-690-0	04	1	9201-9504	●	●	●	●
114	SCREW; ENG CONT (B) M6X14 W/PL WASHER	9-03900-614-0	04	1	9112-9504				●
114	SCREW; ENG CONT (B) M6X14 W/PL WASHER	9-03900-614-0	03	1	9505-				●
145	BRACKET; REED VLV CHILE EQUIPMENT(S2G)	8-94389-902-1	01	1	9112-9308				●
146	BOLT; REED VLV CHILE EQUIPMENT(S2G) M8X14 FLANGE	0-28080-814-0	02	1	9112-9308				●
146	BOLT; REED VLV CHILE EQUIPMENT(S2G) M8X25 FLANGE	0-28080-825-0	02	1	9112-9308				●
183	COVER; HOLE ECM BLACK	8-97805-298-1	01	1	9112-9504	●	●	●	●

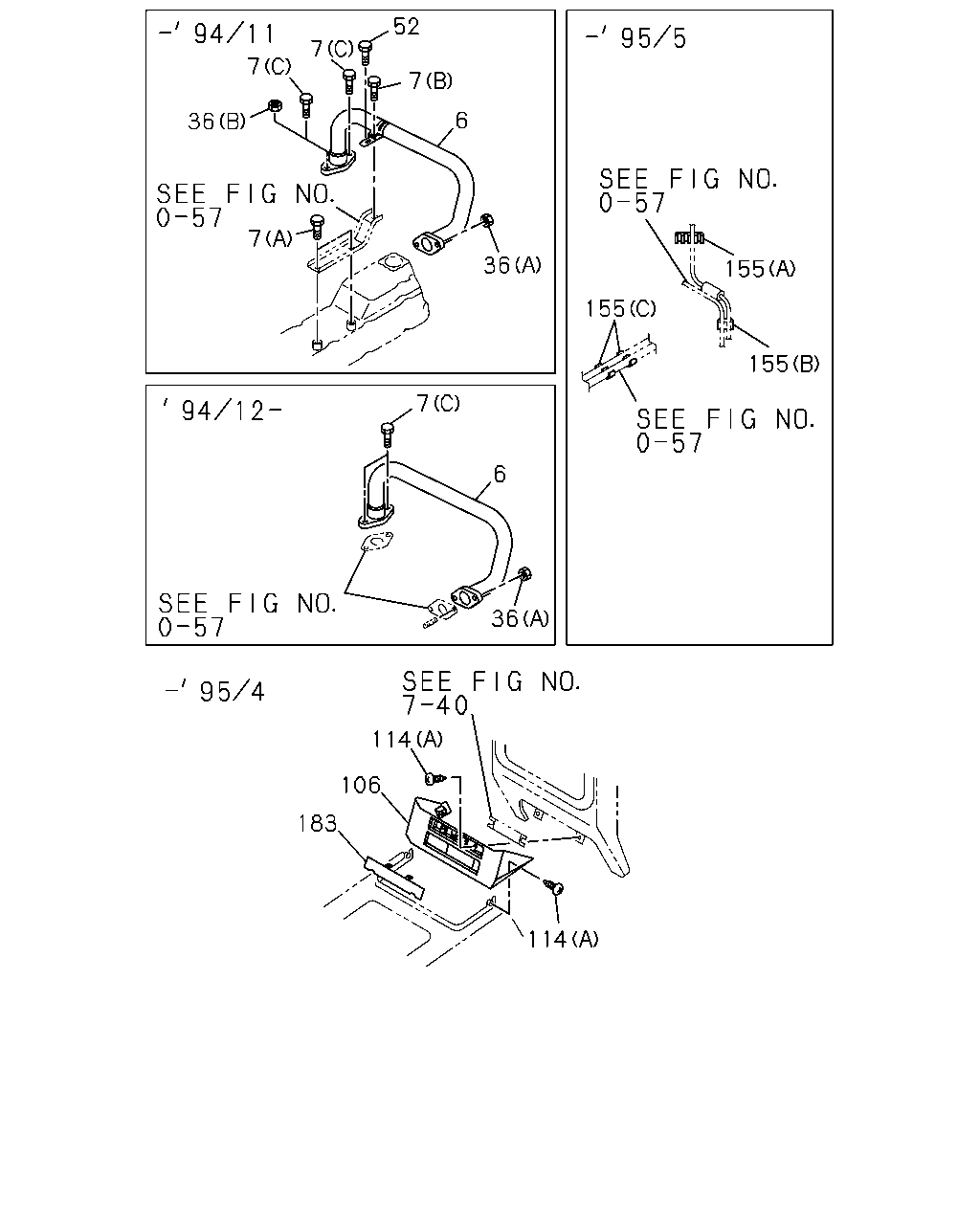

52 7 7 7 6 36 7 36 155 155 155 7 6 36 114 106 183 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	PIPE; EGR EUROPE/CANARY EQUIPMENT(EK4)	8-97069-626-1	01	1	9112-9411		●
6	PIPE; EGR EUROPE/CANARY EQUIPMENT(EK4)	8-97118-378-1	01	1	9412-		●
6	PIPE; EGR 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-97127-544-0	01	1	9505-9602	●
6	PIPE; EGR 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-97135-380-0	01	1	9603-	●
6	PIPE; EGR EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-94364-870-4	01	1	9112-9506				●
6	PIPE; EGR EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-94364-870-4	01	1	9507-9510				●
6	PIPE; EGR EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97134-870-0	01	1	9511-				●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9112-9411		●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (B) M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9112-9411		●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (C) M8X23 FLANGE	8-94103-629-0	01	1	9112-9311		●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (C) M8X23 FLANGE	8-94103-629-2	02	1	9312-		●
7	BOLT; BRKT,EGR PIPE 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X14 W/LK WASHER	0-50040-814-0	01	1	9505-9509	●
7	BOLT; BRKT,EGR PIPE 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X12 FLANGE	0-28080-812-0	01	1	9510-	●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (A) M6X12 FLANGE	0-28080-612-0	01	1	9112-9211				●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (B) M8X18 FLANGE	8-94368-563-0	01	1	9112-9211				●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (A) M6X12 FLANGE	0-28080-612-0	01	1	9212-9506				●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) M6X12 FLANGE	0-28080-612-0	01	1	9507-				●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (B) M8X18 FLANGE	8-94368-563-0	01	1	9212-9506				●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) M8X18 FLANGE	8-94368-563-1	01	1	9507-				●
36	NUT; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (A) M8 FLANGE	5-09440-005-0	02	1	9112-9606		●
36	NUT; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (A) M8 FLANGE	0-91150-208-0	02	1	9607-		●
36	NUT; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (B) M8 FLANGE	8-94170-486-0	01	1	9112-9311		●
36	NUT; EGR PIPE 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8 FLANGE	8-97061-401-0	02	1	9505-	●
36	NUT; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) M8 FLANGE	8-97061-401-0	01	1	9112-9506				●
36	NUT; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M8 FLANGE	8-97061-401-0	01	1	9507-				●
52	BOLT; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) M8X20 W/LK WASHER	0-50040-820-0	01	1	9112-9308		●
106	COVER; ECM A/T THM(RMQ) BLACK	8-97805-295-4	01	1	9112-9307	●	●	●	●
106	COVER; ECM A/T THM(RMQ) BLACK	8-97805-297-5	01	1	9308-9504	●	●	●	●
106	COVER; ECM M/T MUA 5 SPEED(RMN) BLACK	8-97805-296-4	01	1	9112-9504	●	●	●	●
114	SCREW; ENG CONT (A) M5X16 TAPPING	9-09829-323-1	04	1	9112-9112	●	●	●	●
114	SCREW; ENG CONT (A) M5X16	8-94384-690-0	04	1	9201-9504	●	●	●	●
114	SCREW; ENG CONT (B) M6X14 W/PL WASHER	9-03900-614-0	04	1	9112-9504				●
114	SCREW; ENG CONT (B) M6X14 W/PL WASHER	9-03900-614-0	03	1	9505-				●
155	CLIP; RUBBER HOSE,VSV EUROPE/CANARY EQUIPMENT(EK4) (B) ID=6.8X2	8-94126-636-0	01	1	9112-9505		●
155	CLIP; RUBBER HOSE,VSV EUROPE/CANARY EQUIPMENT(EK4) (C)	8-94366-035-0	02	1	9112-9505		●
155	CLIP; RUBBER HOSE,VSV EUROPE/CANARY EQUIPMENT(EK4) (A) ID=20 & 7X4	8-94368-500-0	01	1	9112-9505		●
183	COVER; HOLE ECM BLACK	8-97805-298-1	01	1	9112-9504	●	●	●	●

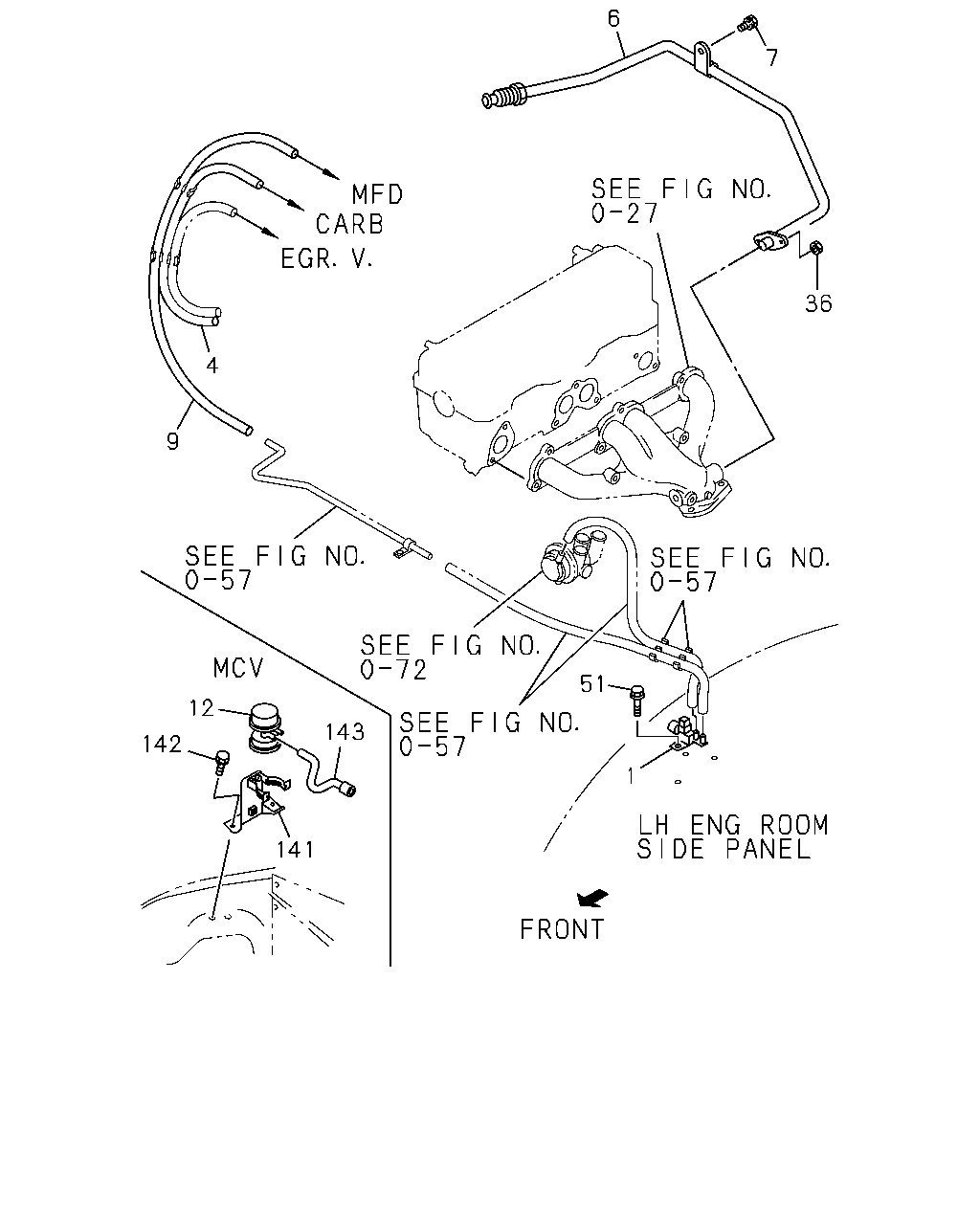

6 7 36 4 9 51 12 143 142 1 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D
1	VALVE; VAC SW 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94459-951-0	01	1	9505-	●
4	HOSE; CARB TO TVV 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) L=240 SERVICED BY L=3000	0-04741-300-0	01	1	9505-	●
6	PIPE; EGR EUROPE/CANARY EQUIPMENT(EK4)	8-97069-626-1	01	1	9112-9411		●
6	PIPE; EGR EUROPE/CANARY EQUIPMENT(EK4)	8-97118-378-1	01	1	9412-		●
6	PIPE; EGR 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-97127-544-0	01	1	9505-9602	●
6	PIPE; EGR 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-97135-380-0	01	1	9603-	●
6	PIPE; EGR EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-94364-870-4	01	1	9112-9506			●
6	PIPE; EGR EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-94364-870-4	01	1	9507-9510			●
6	PIPE; EGR EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97134-870-0	01	1	9511-			●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9112-9411		●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (B) M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9112-9411		●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (C) M8X23 FLANGE	8-94103-629-0	01	1	9112-9311		●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (C) M8X23 FLANGE	8-94103-629-2	02	1	9312-		●
7	BOLT; BRKT,EGR PIPE 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X14 W/LK WASHER	0-50040-814-0	01	1	9505-9509	●
7	BOLT; BRKT,EGR PIPE 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X12 FLANGE	0-28080-812-0	01	1	9510-	●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (A) M6X12 FLANGE	0-28080-612-0	01	1	9112-9211			●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (B) M8X18 FLANGE	8-94368-563-0	01	1	9112-9211			●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (A) M6X12 FLANGE	0-28080-612-0	01	1	9212-9506			●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) M6X12 FLANGE	0-28080-612-0	01	1	9507-			●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (B) M8X18 FLANGE	8-94368-563-0	01	1	9212-9506			●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) M8X18 FLANGE	8-94368-563-1	01	1	9507-			●
9	HOSE; RUBBER,MCV,VAC 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) L=400 SERVICED BY L=3000	0-04740-300-0	01	1	9505-	●
12	VALVE; MIXTURE CONT 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94145-956-0	01	1	9507-	●
36	NUT; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (A) M8 FLANGE	5-09440-005-0	02	1	9112-9606		●
36	NUT; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (A) M8 FLANGE	0-91150-208-0	02	1	9607-		●
36	NUT; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (B) M8 FLANGE	8-94170-486-0	01	1	9112-9311		●
36	NUT; EGR PIPE 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8 FLANGE	8-97061-401-0	02	1	9505-	●
36	NUT; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) M8 FLANGE	8-97061-401-0	01	1	9112-9506			●
36	NUT; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M8 FLANGE	8-97061-401-0	01	1	9507-			●
51	BOLT; VAC SW 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X12 FLANGE	0-28080-812-0	01	1	9505-	●
141	BRACKET; MCV 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94318-451-3	01	1	9507-	●
142	BOLT; MCV BRKT 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M6X14 W/LK WASHER	0-50040-614-0	01	1	9507-9507	●
142	BOLT; MCV BRKT 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M6X12 FLANGE	0-28080-612-0	01	1	9508-	●
143	HOSE; RUBBER,MCV 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94337-137-0	01	1	9507-	●

115 115 112 114 116 115 115 114 112 105 115 115 115 116 105 114 116 112 116 115 116 112 114 115 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) CHILE EQUIPMENT(S2G)	8-16175-809-0	01	1	9112-9208				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) CHILE EQUIPMENT(S2G)	8-16178-349-0	01	1	9209-9303				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) CHILE EQUIPMENT(S2G)	8-16192-709-0	01	1	9304-9306				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) CHILE EQUIPMENT(S2G)	8-16195-199-0	01	1	9307-9308				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G)	8-16175-819-0	01	1	9112-9208				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G)	8-16178-359-0	01	1	9209-9211				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G)	8-16185-909-0	01	1	9212-9301				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G)	8-16178-359-0	01	1	9302-9303				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G)	8-16192-689-0	01	1	9304-9306				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G)	8-16195-179-0	01	1	9307-9308				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) IMMOBILIZER SYSTEM<7KC>	8-16217-759-0	01	1	9505-9506				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) IMMOBILIZER SYSTEM<7KC>	8-16217-759-0	01	1	9507-				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-16197-069-0	01	1	9309-9504				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) EXC. IMMOBILIZER SYSTEM<7KC>	8-16197-069-0	01	1	9505-9506				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. IMMOBILIZER SYSTEM<7KC>	8-16197-069-0	01	1	9507-				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-16163-339-0	01	1	9112-9208				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-16178-419-0	01	1	9209-9303				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-16185-969-0	01	1	9304-9304				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-16192-729-0	01	1	9305-9306				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-16195-219-0	01	1	9307-9308				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB)	8-16197-089-0	01	1	9309-9505				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB)	8-16197-089-0	01	1	9506-9506				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-16197-089-0	01	1	9507-				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) SAUDI ARABIA EQUIPMENT(EU2)	8-16178-399-0	01	1	9209-9303				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) SAUDI ARABIA EQUIPMENT(EU2)	8-16192-769-0	01	1	9304-9306				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) SAUDI ARABIA EQUIPMENT(EU2)	8-16195-259-0	01	1	9307-9308				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) SAUDI ARABIA EQUIPMENT(EU2)	8-16197-109-0	01	1	9309-9505				●
105	CONTROLLER; MODULE,ENGINE A/T THM(RMQ) EXC. SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2)	8-16197-109-0	01	1	9506-				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) CHILE EQUIPMENT(S2G)	8-16183-889-0	01	1	9209-9304				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) CHILE EQUIPMENT(S2G)	8-16195-209-0	01	1	9305-9308				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4)	8-16175-799-0	01	1	9112-9208				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G)	8-16178-339-0	01	1	9209-9211				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G)	8-16185-889-0	01	1	9212-9301				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G)	8-16178-339-0	01	1	9302-9304				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G)	8-16195-189-0	01	1	9305-9308				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) IMMOBILIZER SYSTEM<7KC>	8-16217-749-0	01	1	9505-9506				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) IMMOBILIZER SYSTEM<7KC>	8-16217-749-0	01	1	9507-				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-16197-079-0	01	1	9309-9504				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) EXC. IMMOBILIZER SYSTEM<7KC>	8-16197-079-0	01	1	9505-9506				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EXC. IMMOBILIZER SYSTEM<7KC>	8-16197-079-0	01	1	9507-				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-16163-329-0	01	1	9112-9208				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-16178-409-0	01	1	9209-9304				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-16195-229-0	01	1	9305-9308				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB)	8-16197-099-0	01	1	9309-9505				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB)	8-16197-099-0	01	1	9506-9506				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-16197-099-0	01	1	9507-				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2)	8-16175-889-0	01	1	9112-9208				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2)	8-16178-389-0	01	1	9209-9304				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2)	8-16195-269-0	01	1	9305-9308				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2)	8-16197-119-0	01	1	9309-9505				●
105	CONTROLLER; MODULE,ENGINE M/T MUA 5 SPEED(RMN) SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2)	8-16197-119-0	01	1	9506-				●
112	BRACKET; ECM	8-94374-949-0	02	1	9112-9504				●
112	BRACKET; ECM (A)	8-97083-023-1	01	1	9505-				●
112	BRACKET; ECM (B)	8-97084-959-1	01	1	9505-				●
114	SCREW; ENG CONT (A) M5X16 TAPPING	9-09829-323-1	04	1	9112-9112	●	●	●	●
114	SCREW; ENG CONT (A) M5X16	8-94384-690-0	04	1	9201-9504	●	●	●	●
114	SCREW; ENG CONT (B) M6X14 W/PL WASHER	9-03900-614-0	04	1	9112-9504				●
114	SCREW; ENG CONT (B) M6X14 W/PL WASHER	9-03900-614-0	03	1	9505-				●
115	NUT; ENG CONT MODULE (A) M5 FLANGE	5-09440-003-0	04	1	9112-				●
115	NUT; ENG CONT MODULE (B) D=9X9 L=8 M6	8-94222-314-0	04	1	9112-9504				●
115	NUT; ENG CONT MODULE (B) D=9X9 L=8 M6	8-94222-314-0	03	1	9505-				●
116	BOLT; ENG CONT MODULE M5X12 W/CLIP	8-94443-197-0	04	1	9112-				●

7 2 14 14 104 14 130 14 100 84 23 23 7 56 71 6 36 7

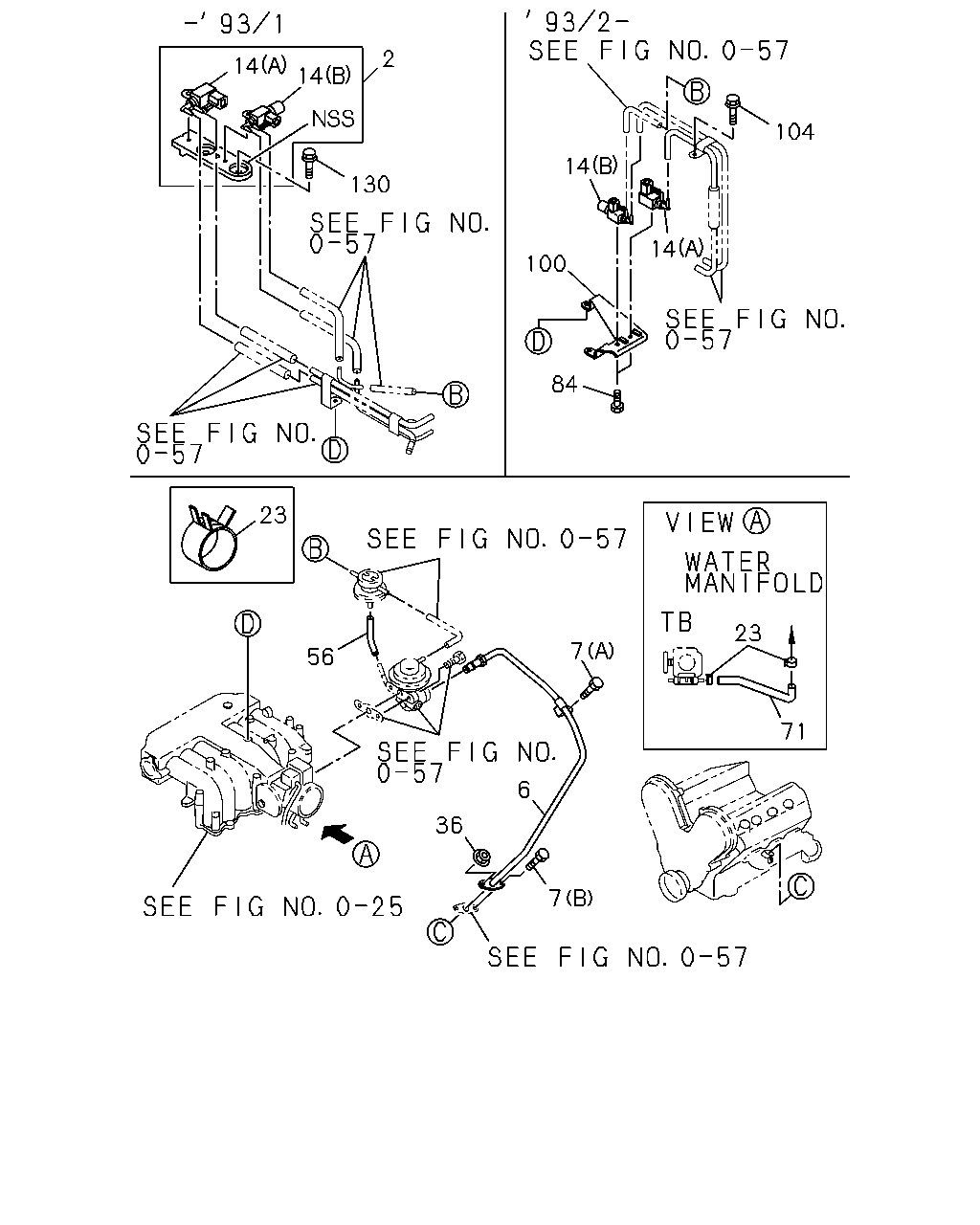

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D
2	BRACKET; VSV EUROPE/CANARY EQUIPMENT(EK4)	8-97033-105-2	01	1	9112-9301			●
2	BRACKET; VSV EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97040-637-2	01	1	9112-9301			●
6	PIPE; EGR EUROPE/CANARY EQUIPMENT(EK4)	8-97069-626-1	01	1	9112-9411		●
6	PIPE; EGR EUROPE/CANARY EQUIPMENT(EK4)	8-97118-378-1	01	1	9412-		●
6	PIPE; EGR 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-97127-544-0	01	1	9505-9602	●
6	PIPE; EGR 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-97135-380-0	01	1	9603-	●
6	PIPE; EGR EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-94364-870-4	01	1	9112-9506			●
6	PIPE; EGR EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-94364-870-4	01	1	9507-9510			●
6	PIPE; EGR EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97134-870-0	01	1	9511-			●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9112-9411		●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (B) M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9112-9411		●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (C) M8X23 FLANGE	8-94103-629-0	01	1	9112-9311		●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (C) M8X23 FLANGE	8-94103-629-2	02	1	9312-		●
7	BOLT; BRKT,EGR PIPE 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X14 W/LK WASHER	0-50040-814-0	01	1	9505-9509	●
7	BOLT; BRKT,EGR PIPE 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X12 FLANGE	0-28080-812-0	01	1	9510-	●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (A) M6X12 FLANGE	0-28080-612-0	01	1	9112-9211			●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (B) M8X18 FLANGE	8-94368-563-0	01	1	9112-9211			●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (A) M6X12 FLANGE	0-28080-612-0	01	1	9212-9506			●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) M6X12 FLANGE	0-28080-612-0	01	1	9507-			●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (B) M8X18 FLANGE	8-94368-563-0	01	1	9212-9506			●
7	BOLT; BRKT,EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) M8X18 FLANGE	8-94368-563-1	01	1	9507-			●
14	VALVE; VAC SW (B)	8-97033-107-0	01	1	9112-9301			●
14	VALVE; VAC SW (B)	8-97086-349-0	01	1	9302-			●
14	VALVE; VAC SW EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97033-106-0	01	1	9112-9301			●
14	VALVE; VAC SW EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97086-348-0	01	1	9302-9308			●
14	VALVE; VAC SW (A)	8-97086-348-0	01	1	9309-			●
23	CLIP; RUBBER HOSE,THROTTLE ID=12.8	8-94367-943-0	04	1	9112-			●
36	NUT; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (A) M8 FLANGE	5-09440-005-0	02	1	9112-9606		●
36	NUT; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (A) M8 FLANGE	0-91150-208-0	02	1	9607-		●
36	NUT; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4) (B) M8 FLANGE	8-94170-486-0	01	1	9112-9311		●
36	NUT; EGR PIPE 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8 FLANGE	8-97061-401-0	02	1	9505-	●
36	NUT; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) M8 FLANGE	8-97061-401-0	01	1	9112-9506			●
36	NUT; EGR PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M8 FLANGE	8-97061-401-0	01	1	9507-			●
56	HOSE; BPT TO SIGNAL PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-97039-786-1	01	1	9112-9506			●
56	HOSE; BPT TO SIGNAL PIPE EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97039-786-1	01	1	9507-			●
71	HOSE; RUBBER,THROTTLE,WATER INL	8-94379-199-0	01	1	9112-			●
84	BOLT; VSV EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9302-9506			●
84	BOLT; VSV EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	9507-			●
84	BOLT; VSV EXC. EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	9302-9506			●
84	BOLT; VSV EXC. EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M5X10 W/LK+PL WASHER	9-03920-510-0	01	1	9507-			●
100	BRACKET; VLV	8-97086-347-1	01	1	9302-			●
104	BOLT; CLIP,HOSE M6X12 FLANGE	0-28080-612-0	01	1	9302-			●
130	BOLT; VSV BRKT M8X12 FLANGE	0-28080-812-0	02	1	9112-9211			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
