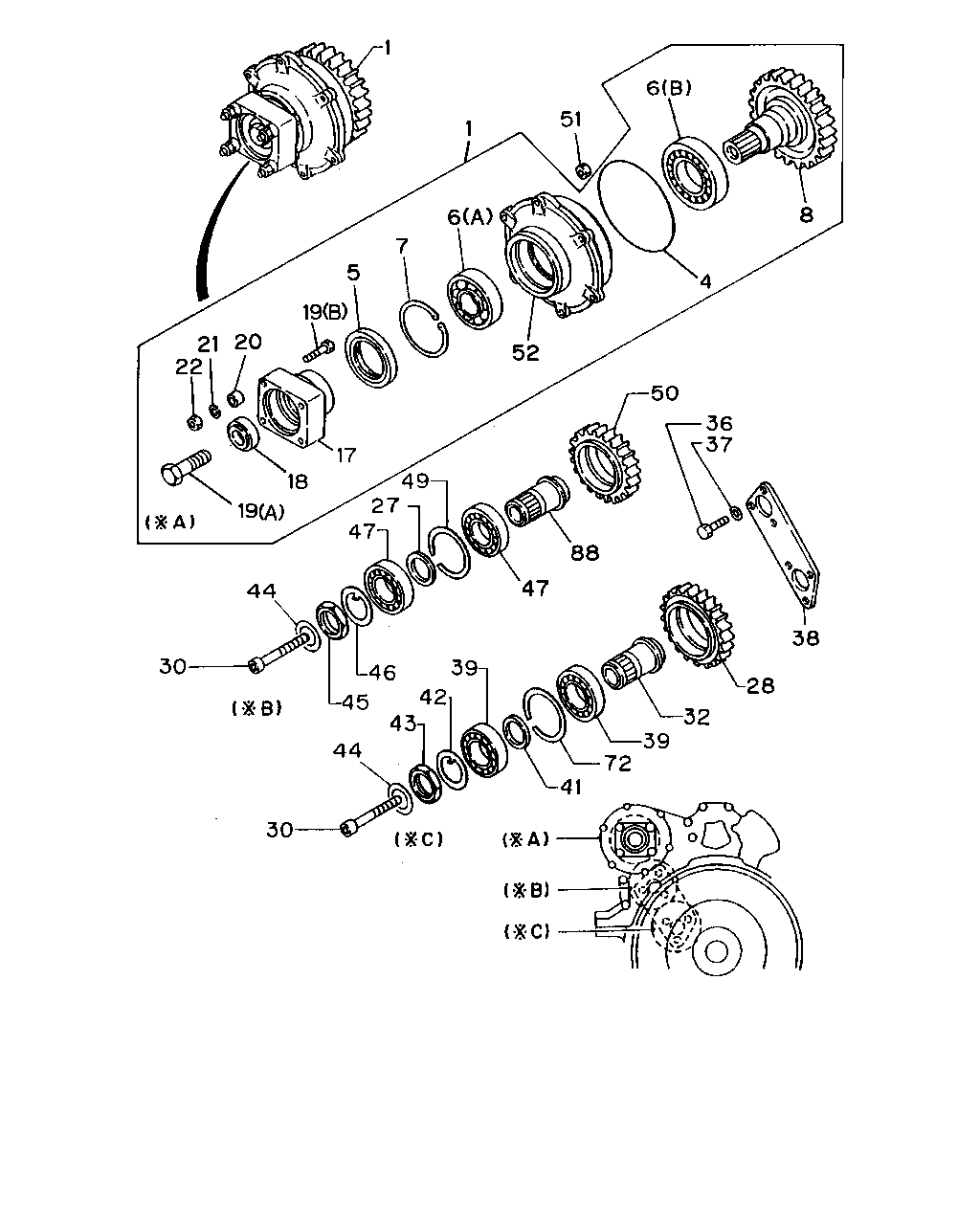

0-90B — POWER TAKE OFF; FLYWHEEL (#3315) — 76 parça

41 72 39 32 28 38 37 36 50 88 47 39 42 43 44 30 45 46 30 44 47 27 49 19 18 17 22 21 20 19 5 7 6 1 1 51 52 4 8 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	POWER TAKE OFF ASM; ENG RR ENGINE REAR PTO(SV1)	1-38000-159-2	01	1	9002-
4	GASKET; BRG CASE ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1)	1-09623-003-0	01	1	9002-
5	SEAL; OIL,BRG CASE,PTO ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1)	1-09625-062-0	01	1	9002-
6	BEARING; FLYWHEEL PTO ENGINE REAR PTO(SV1) (A) NSK	9-00090-047-0	01	1	9002-
6	BEARING; FLYWHEEL PTO ENGINE REAR PTO(SV1) (B) NSK	9-00094-107-0	01	1	9002-
7	RING; SNAP BALL BRG ENGINE REAR PTO(SV1) OD=105.5	9-09180-100-0	01	1	9002-
8	GEAR; FLYWHEEL PTO ENGINE REAR PTO(SV1)	1-38241-003-0	01	1	9002-9111
8	GEAR; FLYWHEEL PTO ENGINE REAR PTO(SV1) Z=36	1-38241-097-0	01	1	9112-
17	FLANGE; PTO,FLYWHEEL ENGINE REAR PTO(SV1)	1-38189-010-0	01	1	9002-
18	WASHER; FLANGE,FLYWHEEL PTO ENGINE REAR PTO(SV1)	1-09509-014-0	01	1	9002-
19	BOLT; FLANGE ENGINE REAR PTO(SV1) (A) M20X60	9-92052-060-0	01	1	9002-
19	BOLT; FLANGE ENGINE REAR PTO(SV1) (B) M12X70	9-92621-270-0	04	1	9002-
20	SPACER; FLANGE,FLYWHEEL PTO ENGINE REAR PTO(SV1) T=13 ID=22.2	9-38189-005-0	04	1	9002-
21	WASHER; LK,FLANGE ENGINE REAR PTO(SV1) ID=12.2	9-09150-612-0	04	1	9002-
22	NUT; FLANGE ENGINE REAR PTO(SV1) M12	9-99110-512-0	04	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=6.05	1-38226-016-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=6.12	1-38226-017-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=6.19	1-38226-018-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=6.26	1-38226-019-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=6.33	1-38226-020-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=6.40	1-38226-021-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=6.47	1-38226-022-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=6.54	1-38226-023-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=6.61	1-38226-024-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=6.68	1-38226-025-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=6.75	1-38226-026-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=6.82	1-38226-027-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=6.89	1-38226-028-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=6.96	1-38226-029-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=7.03	1-38226-030-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=7.10	1-38226-031-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=7.17	1-38226-032-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=7.24	1-38226-033-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=7.31	1-38226-034-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=7.38	1-38226-035-0	01	1	9002-
27	SPACER; INNER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=7.45	1-38226-036-0	01	1	9002-
28	GEAR; IDLE ENGINE REAR PTO(SV1) Z=30	1-38261-012-2	01	1	9002-
30	BOLT; SPINDLE ENGINE REAR PTO(SV1)	1-09054-007-1	02	1	9002-
32	SPINDLE; IDLE GEAR ENGINE REAR PTO(SV1)	1-12531-003-1	01	1	9002-
36	BOLT; HOLDER ENGINE REAR PTO(SV1)	1-09009-038-1	06	1	9002-
37	WASHER; HOLDER ENGINE REAR PTO(SV1) ID=12.2	1-09503-008-0	06	1	9002-
38	HOLDER; IDLE GEAR SPINDLE ENGINE REAR PTO(SV1)	1-11349-062-0	01	1	9002-
39	BEARING; TAPER ROLLER ENGINE REAR PTO(SV1) ID=45 OD=85	9-00032-209-0	02	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=6.05	1-38226-016-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=6.12	1-38226-017-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=6.19	1-38226-018-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=6.26	1-38226-019-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=6.33	1-38226-020-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=6.40	1-38226-021-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=6.47	1-38226-022-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=6.54	1-38226-023-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=6.61	1-38226-024-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=6.68	1-38226-025-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=6.75	1-38226-026-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=6.82	1-38226-027-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=6.89	1-38226-028-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=6.96	1-38226-029-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=7.03	1-38226-030-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=7.10	1-38226-031-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=7.17	1-38226-032-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=7.24	1-38226-033-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=7.31	1-38226-034-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=7.38	1-38226-035-0	01	1	9002-
41	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=7.45	1-38226-036-0	01	1	9002-
42	WASHER; LK,BRG ENGINE REAR PTO(SV1) ID=47	1-09533-003-0	01	1	9002-
43	NUT; BRG IDLE GEAR ENGINE REAR PTO(SV1)	1-09840-005-0	01	1	9002-
44	WASHER; SPINDLE ENGINE REAR PTO(SV1) ID=16.2	1-09503-022-1	02	1	9002-
45	NUT; BRG,IDLE GEAR ENGINE REAR PTO(SV1)	1-09840-005-0	01	1	9002-
46	WASHER; LK,BRG ENGINE REAR PTO(SV1) ID=47	1-09533-003-0	01	1	9002-
47	BEARING; TAPER ROLLER ENGINE REAR PTO(SV1) ID=45 OD=85	9-00032-209-0	02	1	9002-
49	SPACER; IDLE GEAR ENGINE REAR PTO(SV1) T=3	1-38226-015-0	01	1	9002-
50	GEAR; IDLE A ENGINE REAR PTO(SV1) Z=29	1-38261-011-2	01	1	9002-
51	NUT; PTO ENGINE REAR PTO(SV1) M10 FLANGE	0-91150-110-0	06	1	9002-
52	CASE; BRG,PTO ENGINE REAR PTO(SV1)	1-38181-004-0	01	1	9002-
72	SPACER; OUTER,IDLE DRIVEN GEAR,PTO ENGINE REAR PTO(SV1) T=3	1-38226-015-0	01	1	9002-
88	SPINDLE; IDLE GEAR ENGINE REAR PTO(SV1)	1-12531-003-1	01	1	9002-
