Sayfa 0-52 - Isuzu EPC

47 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	PIPE; OIL,OIL PUMP	8-94381-146-3	01	1	9112-	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9112-9504		●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9505-		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=16.0	9-09571-410-0	03	1	9112-9504		●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=16.0	9-09571-410-0	03	1	9505-		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) W/PLATE ID=18.2	8-94329-964-0	02	1	9112-	●

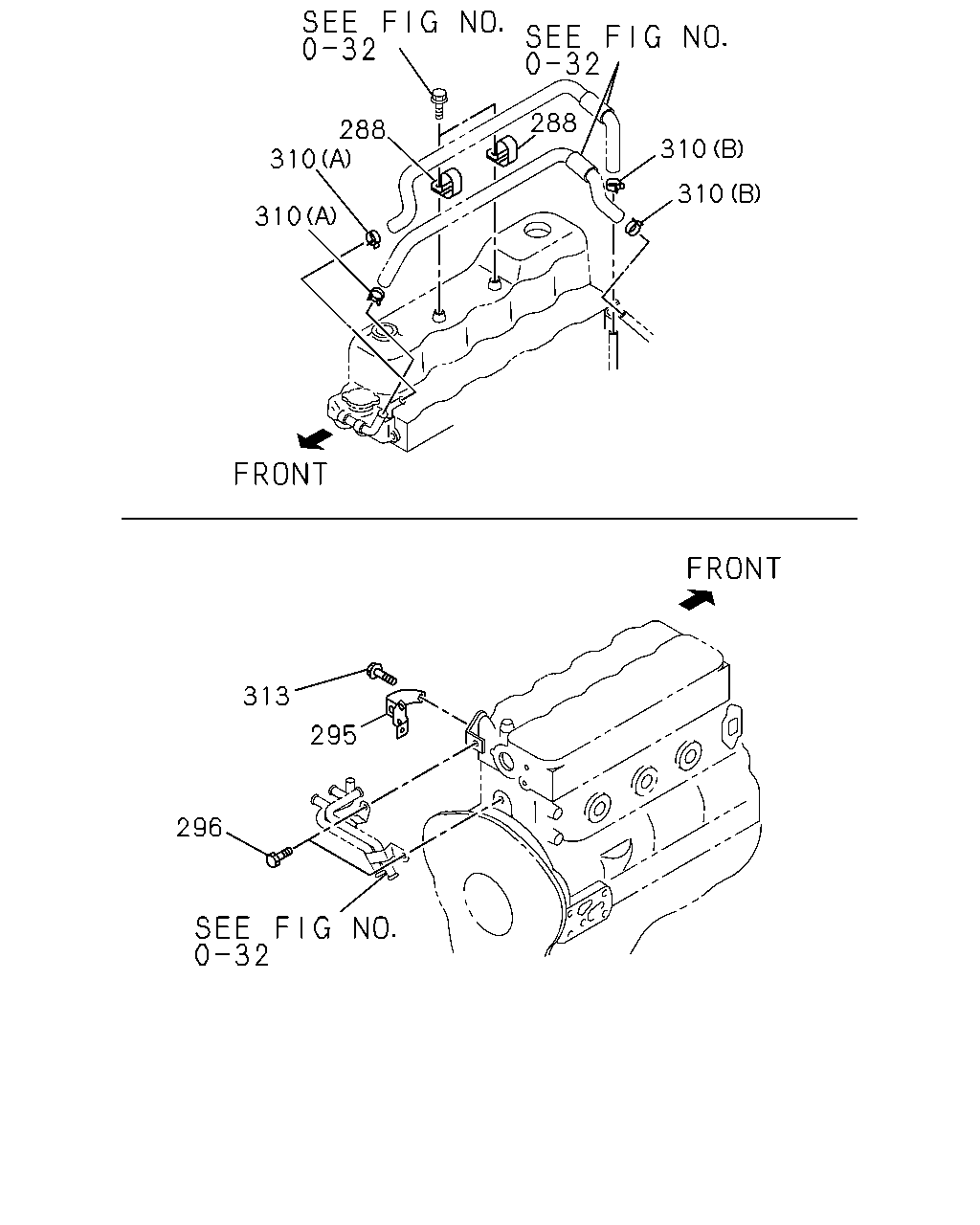

288 288 310 310 310 310 313 295 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
288	CLIP; HOSE,OIL COOLER	5-83574-006-0	02	1	9112-9404		●
288	CLIP; HOSE,OIL COOLER	5-83574-006-0	01	1	9405-9504		●
288	CLIP; HOSE,OIL COOLER EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51>	5-83574-006-0	01	1	9505-	●
295	BRACKET; PIPE OIL COOLER	8-97066-330-0	01	1	9112-9504		●
295	BRACKET; PIPE OIL COOLER EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51>	8-97123-892-0	01	1	9505-	●
296	BOLT; RETURN PIPE M8X14 W/LK WASHER	0-50040-814-0	02	1	9112-9504		●
296	BOLT; RETURN PIPE EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> M8X14 W/LK WASHER	0-50040-814-0	01	1	9505-	●
310	CLIP; WATER HOSE FIX EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) ID=20.8	8-94125-862-0	06	1	9112-9410	●	●
310	CLIP; WATER HOSE FIX (B) ID=24	8-97010-605-0	02	1	9112-9504	●
310	CLIP; WATER HOSE FIX TURBOCHARGER<K51> (B) ID=24	8-97010-605-0	02	1	9505-	●
310	CLIP; WATER HOSE FIX EUROPE/CANARY EQUIPMENT(EK4) (A) ID=20.8	8-94125-862-0	08	1	9112-9410	●
310	CLIP; WATER HOSE FIX (A) ID=20.8	8-94125-862-0	06	1	9411-9504	●	●
310	CLIP; WATER HOSE FIX (A) ID=20.8	8-94125-862-0	06	1	9505-	●
313	BOLT; PIPE BRKT M8X20 W/LK WASHER	0-50040-820-0	02	1	9112-9504		●
313	BOLT; PIPE BRKT EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> M8X20 W/LK WASHER	0-50040-820-0	02	1	9505-	●

9 9 10 11 8 9 9 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
7	PIPE; OIL PASSAGE,FRT	8-94475-324-2	01	1	9112-	●
8	PIPE; OIL PASSAGE,CTR	8-94475-325-2	01	1	9112-	●
9	BOLT; OIL PASSAGE (A) M6X14	8-94479-695-1	02	1	9112-	●
9	BOLT; OIL PASSAGE (B) M8X12 FLANGE	8-94479-696-1	02	1	9112-	●
10	PLUG; OIL PASSAGE PIPE	8-94474-942-0	01	1	9112-	●
11	GASKET; PLUG,OIL PIPE ID=20.5 OD=28.0	9-09571-420-0	01	1	9112-	●

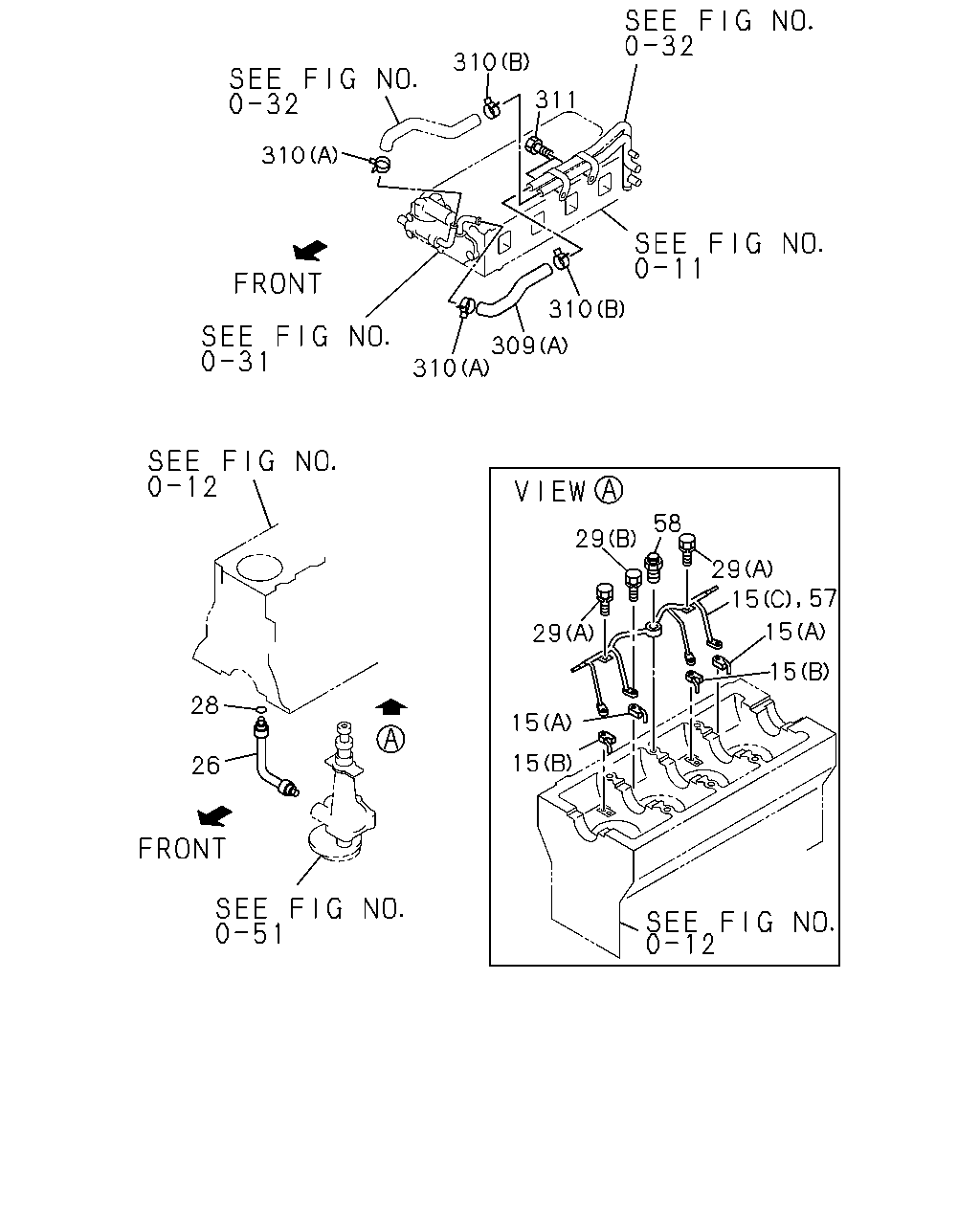

310 311 310 310 309 310 58 29 29 15 29 15 15 28 15 26 15 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C
15	PIPE; OIL JET,PISTON COOLING (A)	8-97062-303-0	02	1	9112-9504		●
15	PIPE; OIL JET,PISTON COOLING (B)	8-97062-304-0	02	1	9112-9504		●
15	PIPE; OIL JET,PISTON COOLING (C)	8-97030-784-0	01	1	9112-9504	●	●
15	PIPE; OIL JET,PISTON COOLING TURBOCHARGER<K51> (C)	8-97030-784-0	01	1	9505-9512	●
15	PIPE; OIL JET,PISTON COOLING TURBOCHARGER<K51> (A)	8-94372-004-1	02	1	9112-9308	●
15	PIPE; OIL JET,PISTON COOLING (A)	8-94372-004-1	02	1	9309-9504	●
15	PIPE; OIL JET,PISTON COOLING TURBOCHARGER<K51> (A)	8-94372-004-1	02	1	9505-9611	●
15	PIPE; OIL JET,PISTON COOLING TURBOCHARGER<K51> (B)	8-94372-005-1	02	1	9112-9611	●
15	PIPE; OIL JET,PISTON COOLING EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> (A)	8-97043-741-0	02	1	9505-	●
26	PIPE; OIL,PUMP TO C/BL	8-94434-828-1	01	1	9112-9504	●	●
26	PIPE; OIL,PUMP TO C/BL	8-94434-828-2	01	1	9505-	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9112-9504	●	●
28	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=11	5-09623-002-0	01	1	9505-	●
29	BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9112-9504	●	●
29	BOLT; OIL PIPE,OIL JET (A) M8X12 W/LK WASHER	0-50040-812-0	02	1	9505-	●
29	BOLT; OIL PIPE,OIL JET (B) PISTON COOLING M6X28	8-94372-730-1	04	1	9112-9504	●	●
29	BOLT; OIL PIPE,OIL JET (B) M6X28	8-94372-730-1	04	1	9505-9512	●
29	BOLT; OIL PIPE,OIL JET TURBOCHARGER<K51> (B) M6X28	8-94372-730-1	04	1	9601-9611	●
29	BOLT; OIL PIPE,OIL JET TURBOCHARGER<K51> (B) M6X20	8-97117-298-0	04	1	9612-	●
29	BOLT; OIL PIPE,OIL JET EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> (B) M6X25 W/LK&PL WASHER	0-50140-625-0	04	1	9505-	●
29	BOLT; OIL PIPE,OIL JET TURBOCHARGER<K51> (A) M8X12 W/LK WASHER	0-50040-812-0	01	1	9612-	●
57	PIPE; OIL,OIL JET TURBOCHARGER<K51>	8-97030-784-0	01	1	9601-9611	●
57	PIPE; OIL,OIL JET TURBOCHARGER<K51>	8-97116-971-0	01	1	9612-	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-94177-189-3	01	1	9112-9504	●	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-94177-189-3	01	1	9505-9603	●
58	VALVE; RELIEF,OIL JET,PISTON COOLING	8-97145-612-0	01	1	9604-	●
309	HOSE; OIL COOLER RETURN (A)	8-94442-162-1	01	1	9112-9504		●
309	HOSE; OIL COOLER RETURN EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> (A)	8-97086-463-1	01	1	9505-9709	●
309	HOSE; OIL COOLER RETURN EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> (A)	8-97147-993-0	01	1	9710-	●
309	HOSE; OIL COOLER RETURN (A)	8-97039-199-2	01	1	9112-9307	●
309	HOSE; OIL COOLER RETURN EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97039-199-2	01	1	9308-9308	●
309	HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	9112-9504	●
309	HOSE; OIL COOLER RETURN TURBOCHARGER<K51> (B)	8-97049-285-0	01	1	9505-	●
309	HOSE; OIL COOLER RETURN EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97069-793-1	01	1	9308-9308	●
309	HOSE; OIL COOLER RETURN (A)	8-97069-793-1	01	1	9309-9504	●
309	HOSE; OIL COOLER RETURN TURBOCHARGER<K51> (A)	8-97069-793-1	01	1	9505-	●
310	CLIP; WATER HOSE FIX EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) ID=20.8	8-94125-862-0	06	1	9112-9410	●	●
310	CLIP; WATER HOSE FIX (B) ID=24	8-97010-605-0	02	1	9112-9504	●
310	CLIP; WATER HOSE FIX TURBOCHARGER<K51> (B) ID=24	8-97010-605-0	02	1	9505-	●
310	CLIP; WATER HOSE FIX EUROPE/CANARY EQUIPMENT(EK4) (A) ID=20.8	8-94125-862-0	08	1	9112-9410	●
310	CLIP; WATER HOSE FIX (A) ID=20.8	8-94125-862-0	06	1	9411-9504	●	●
310	CLIP; WATER HOSE FIX (A) ID=20.8	8-94125-862-0	06	1	9505-	●
311	BOLT; PIPE FIX M8X14 W/LK WASHER	0-50040-814-0	02	1	9112-9504	●	●
311	BOLT; PIPE FIX TURBOCHARGER<K51> M8X14 W/LK WASHER	0-50040-814-0	02	1	9505-9607	●
311	BOLT; PIPE FIX TURBOCHARGER<K51> M8X12 FLANGE	0-28080-812-0	02	1	9608-9608	●
311	BOLT; PIPE FIX TURBOCHARGER<K51> M8X14 W/LK WASHER	0-50040-814-0	02	1	9609-	●
311	BOLT; PIPE FIX EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> M6X12 FLANGE	0-28080-612-0	01	1	9505-	●
311	BOLT; PIPE FIX EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> M8X14 FLANGE	0-28080-814-0	01	1	9505-	●

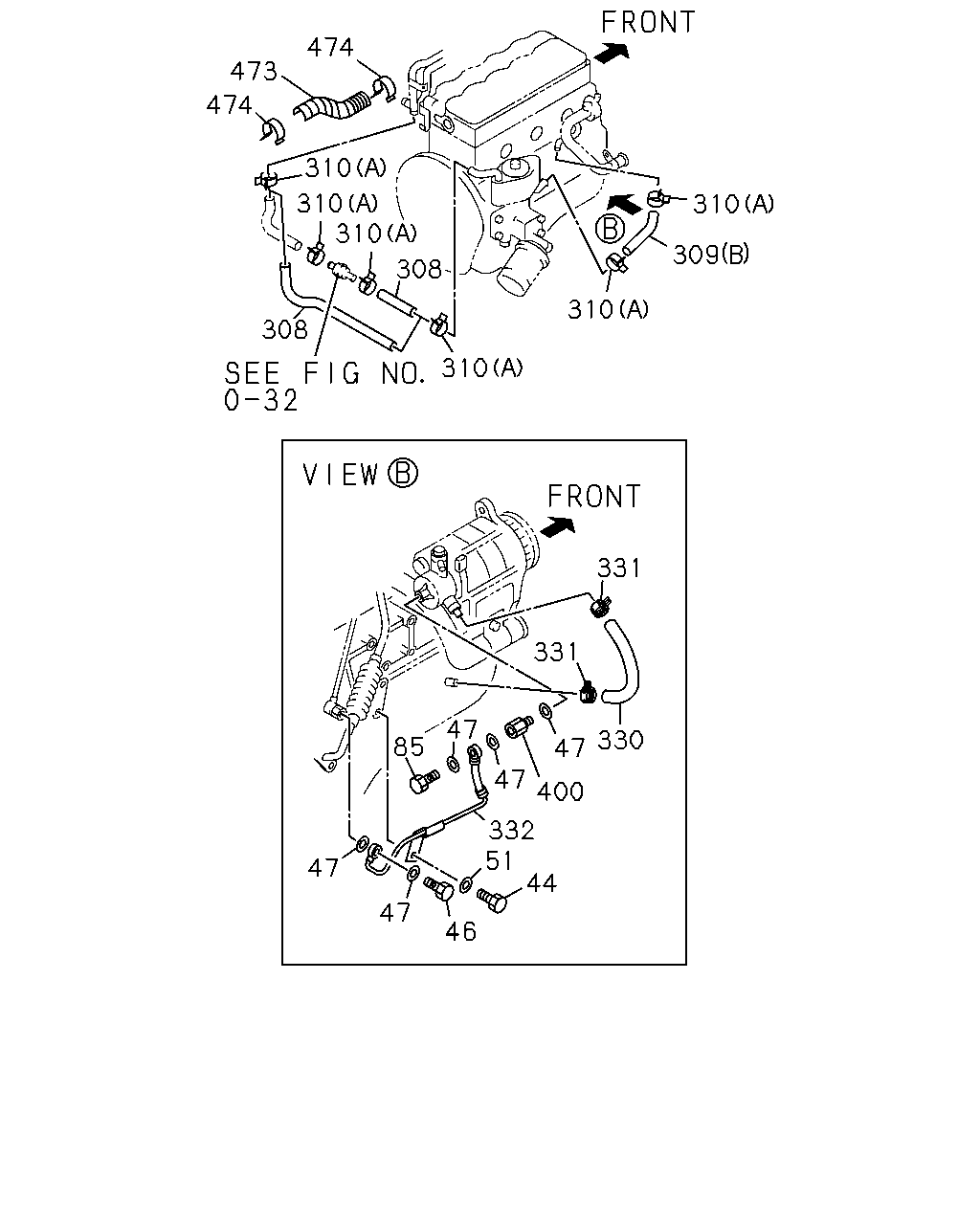

474 473 474 310 310 310 308 310 309 310 308 310 331 331 47 85 47 400 330 47 47 332 51 44 47 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
44	BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50040-816-0	01	1	9112-9504		●	●
44	BOLT; CLIP,OIL PIPE M8X16 W/LK WASHER	0-50040-816-0	01	1	9505-		●
46	BOLT; JOINT,OIL FEED PIPE,VAC PUMP M8X24	5-09675-024-0	01	1	9112-9404			●
46	BOLT; JOINT,OIL FEED PIPE,VAC PUMP M8X20 FLANGE	5-09675-018-1	01	1	9112-9404		●
46	BOLT; JOINT,OIL FEED PIPE,VAC PUMP M8X20 FLANGE	5-09675-018-1	01	1	9405-9504		●	●
46	BOLT; JOINT,OIL FEED PIPE,VAC PUMP M8X20 FLANGE	5-09675-018-1	01	1	9505-		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9112-9504		●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0	9-09571-408-0	02	1	9505-		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=16.0	9-09571-410-0	03	1	9112-9504		●	●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=10.2 OD=16.0	9-09571-410-0	03	1	9505-		●
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) W/PLATE ID=18.2	8-94329-964-0	02	1	9112-	●
51	WASHER; PL,OIL PIPE,VAC PUMP ID=8.4 OD=18	9-09164-608-0	01	1	9112-9504		●	●
51	WASHER; PL,OIL PIPE,VAC PUMP ID=8.4 OD=18	9-09164-608-0	01	1	9505-		●
85	BOLT; EYE,OIL PIPE FIX M10X21 FLANGE	1-09675-078-0	01	1	9112-9504		●	●
85	BOLT; EYE,OIL PIPE FIX M10X21 FLANGE	1-09675-078-0	01	1	9505-		●
308	HOSE; OIL COOLER FEED L=220 SERVICED BY L=3000	0-03266-300-0	01	1	9112-9408			●
308	HOSE; OIL COOLER FEED L=220	8-97119-575-0	01	1	9409-9504			●
308	HOSE; OIL COOLER FEED EUROPE/CANARY EQUIPMENT(EK4) L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9112-9410		●
308	HOSE; OIL COOLER FEED EXC. EUROPE/CANARY EQUIPMENT(EK4) L=319	8-97039-414-0	01	1	9112-9410		●
308	HOSE; OIL COOLER FEED L=319	8-97039-414-0	01	1	9411-9504		●
308	HOSE; OIL COOLER FEED TURBOCHARGER<K51>	8-97039-414-0	01	1	9505-		●
308	HOSE; OIL COOLER FEED EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51>	8-97101-601-0	01	1	9505-		●
309	HOSE; OIL COOLER RETURN (A)	8-94442-162-1	01	1	9112-9504			●
309	HOSE; OIL COOLER RETURN EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> (A)	8-97086-463-1	01	1	9505-9709		●
309	HOSE; OIL COOLER RETURN EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> (A)	8-97147-993-0	01	1	9710-		●
309	HOSE; OIL COOLER RETURN (A)	8-97039-199-2	01	1	9112-9307		●
309	HOSE; OIL COOLER RETURN EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97039-199-2	01	1	9308-9308		●
309	HOSE; OIL COOLER RETURN (B)	8-97049-285-0	01	1	9112-9504		●
309	HOSE; OIL COOLER RETURN TURBOCHARGER<K51> (B)	8-97049-285-0	01	1	9505-		●
309	HOSE; OIL COOLER RETURN EXC. EUROPE/CANARY EQUIPMENT(EK4) (A)	8-97069-793-1	01	1	9308-9308		●
309	HOSE; OIL COOLER RETURN (A)	8-97069-793-1	01	1	9309-9504		●
309	HOSE; OIL COOLER RETURN TURBOCHARGER<K51> (A)	8-97069-793-1	01	1	9505-		●
310	CLIP; WATER HOSE FIX EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) ID=20.8	8-94125-862-0	06	1	9112-9410		●	●
310	CLIP; WATER HOSE FIX (B) ID=24	8-97010-605-0	02	1	9112-9504		●
310	CLIP; WATER HOSE FIX TURBOCHARGER<K51> (B) ID=24	8-97010-605-0	02	1	9505-		●
310	CLIP; WATER HOSE FIX EUROPE/CANARY EQUIPMENT(EK4) (A) ID=20.8	8-94125-862-0	08	1	9112-9410		●
310	CLIP; WATER HOSE FIX (A) ID=20.8	8-94125-862-0	06	1	9411-9504		●	●
310	CLIP; WATER HOSE FIX (A) ID=20.8	8-94125-862-0	06	1	9505-		●
330	HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	9112-9504		●	●
330	HOSE; VAC PUMP,RETURN	8-97063-052-0	01	1	9505-		●
331	CLAMP; VAC HOSE,PUMP RETURN ID=17	1-09707-158-0	02	1	9112-9402		●	●
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9403-9504		●	●
331	CLAMP; VAC HOSE,PUMP RETURN	8-97108-102-0	02	1	9505-		●
332	PIPE; OIL,C/BL TO VAC PUMP	8-97042-697-0	01	1	9112-9504		●	●
332	PIPE; OIL,C/BL TO VAC PUMP	8-97042-697-0	01	1	9505-		●
400	NIPPLE; VAC PUMP,OIL	8-97061-857-0	01	1	9112-9504		●	●
400	NIPPLE; VAC PUMP,OIL	8-97061-857-0	01	1	9505-		●
473	INSULATOR; HOSE EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51>	8-97102-426-0	01	1	9505-		●
474	CLIP; INSULATOR EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51>	8-97101-337-0	02	1	9505-		●

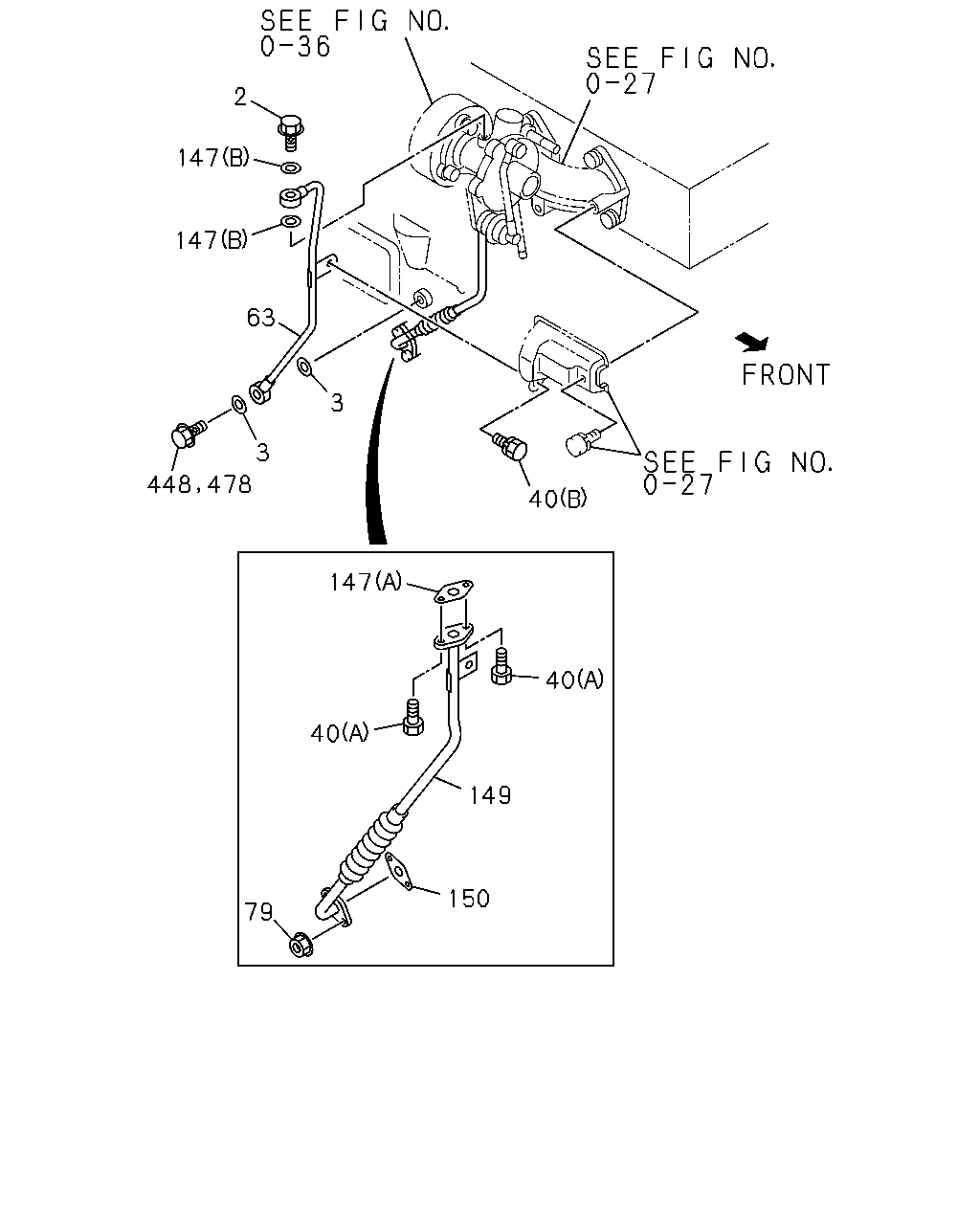

2 147 147 63 3 3 40 147 40 40 149 150 79 448 478

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
2	BOLT; EYE,OIL PIPE M10X27	8-94443-535-0	01	1	9112-9504	●
2	BOLT; EYE,OIL PIPE TURBOCHARGER<K51> M10X27	8-94443-535-0	01	1	9505-	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=20.0	9-09571-414-0	02	1	9112-9504	●
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> ID=14.2 OD=20.0	9-09571-414-0	02	1	9505-	●
40	BOLT; OIL PIPE (A) M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9112-9504	●
40	BOLT; OIL PIPE TURBOCHARGER<K51> (A) M6X20 W/LK&PL WASHER	0-50140-620-0	02	1	9505-	●
40	BOLT; OIL PIPE (B) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9112-9504	●
40	BOLT; OIL PIPE TURBOCHARGER<K51> (B) M8X16 W/LK&PL WASHER	0-50140-816-0	01	1	9505-9611	●
40	BOLT; OIL PIPE TURBOCHARGER<K51> (B) M8X12 FLANGE	0-28080-812-0	01	1	9612-	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97038-130-1	01	1	9112-9307	●
63	PIPE; OIL,TURBOCHARGER FEED EUROPE/CANARY EQUIPMENT(EK4)	8-97038-130-1	01	1	9308-9308	●
63	PIPE; OIL,TURBOCHARGER FEED EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97086-341-0	01	1	9308-9308	●
63	PIPE; OIL,TURBOCHARGER FEED	8-97086-341-0	01	1	9309-9504	●
63	PIPE; OIL,TURBOCHARGER FEED TURBOCHARGER<K51>	8-97086-341-0	01	1	9505-	●
79	NUT; OIL DRAIN PIPE M8 FLANGE	5-09440-005-0	02	1	9112-9504	●
79	NUT; OIL DRAIN PIPE TURBOCHARGER<K51> M8 FLANGE	5-09440-005-0	02	1	9505-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14	8-97041-638-0	01	1	9112-9504	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> (A) ID=14	8-97041-638-0	01	1	9505-	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9112-9504	●
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	9505-	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97066-501-0	01	1	9112-9307	●
149	PIPE; OIL RETURN,TURBOCHARGER EUROPE/CANARY EQUIPMENT(EK4)	8-97066-501-0	01	1	9308-9308	●
149	PIPE; OIL RETURN,TURBOCHARGER EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97086-340-0	01	1	9308-9308	●
149	PIPE; OIL RETURN,TURBOCHARGER	8-97086-340-1	01	1	9309-9504	●
149	PIPE; OIL RETURN,TURBOCHARGER TURBOCHARGER<K51>	8-97086-340-1	01	1	9505-9610	●
149	PIPE; OIL RETURN,TURBOCHARGER TURBOCHARGER<K51>	8-97162-106-0	01	1	9611-	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-326-0	01	1	9112-9504	●
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>	8-97045-326-0	01	1	9505-	●
448	FILLER; OIL M14X25	8-94315-336-1	01	1	9112-9504	●
478	FILTER TURBOCHARGER<K51>	8-97132-686-0	01	1	9505-	●
