0-50 — OIL COOLER AND OIL FILTER (#33147) — 172 parça

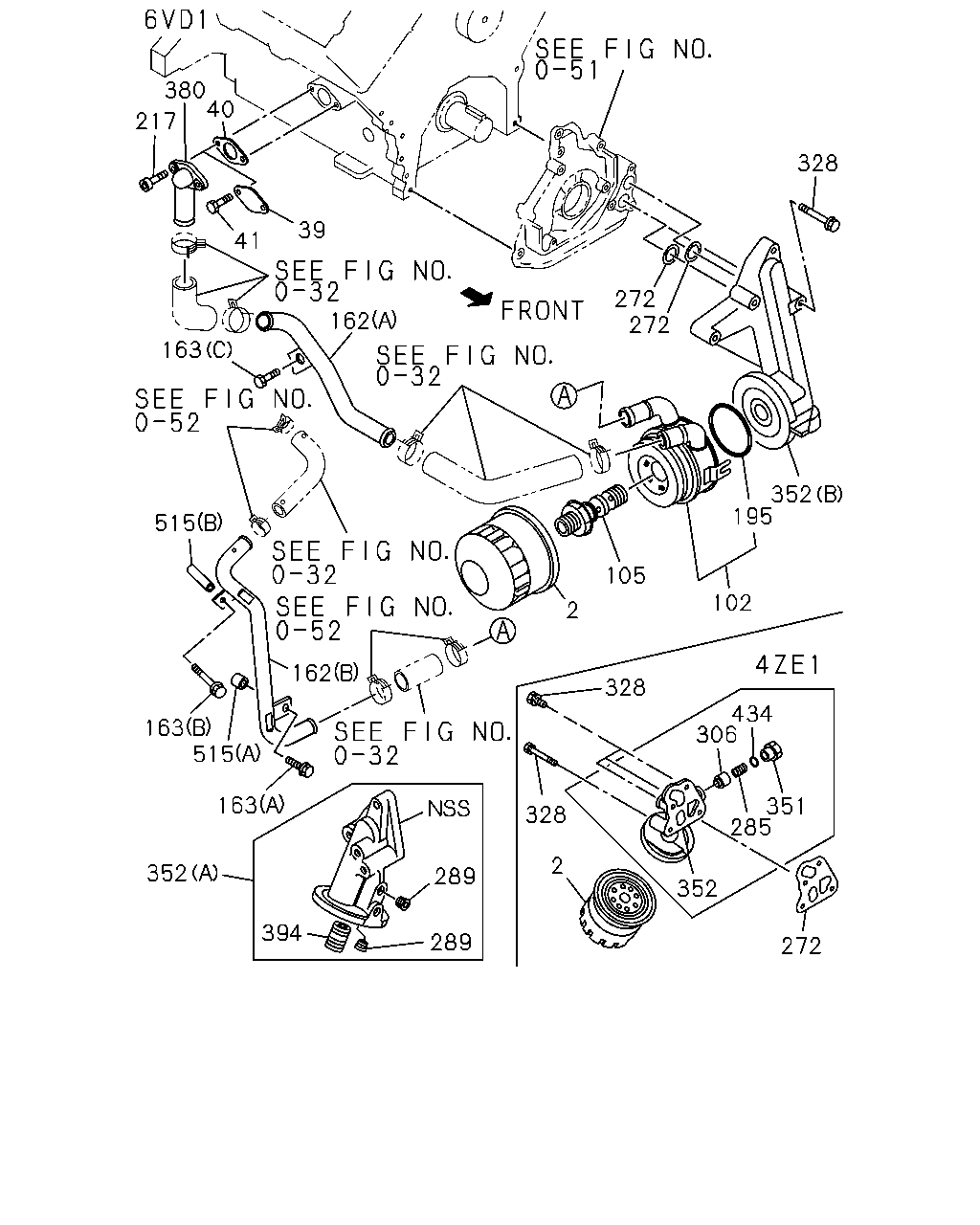

çizim 68616
380 40 217 328 39 41 162 272 272 163 515 352 195 105 102 2 162 328 434 306 163 515 163 351 285 328 2 352 289 352 394 289 272
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 ELEMENT; OIL FILTER 8-94360-426-0 01 1 9112-9209 ●
2 ELEMENT; OIL FILTER
920915- 		8-97049-708-0 01 1 9209-9504 ●
2 ELEMENT; OIL FILTER 8-94340-697-0 01 1 9112-9504 ●
2 ELEMENT; OIL FILTER
TURBOCHARGER<K51> 		8-94340-697-1 01 1 9505- ●
2 ELEMENT; OIL FILTER
EXC. TURBOCHARGER<K51> 		8-94360-427-1 01 1 9505- ●
2 ELEMENT; OIL FILTER 8-94430-411-2 01 1 9112-9304 ● ●
2 ELEMENT; OIL FILTER
930419- 		8-94430-411-2 01 1 9304-9304 ●
2 ELEMENT; OIL FILTER
930419- 		8-94456-741-1 01 1 9304-9304 ●
2 ELEMENT; OIL FILTER 8-94456-741-1 01 1 9305-9504 ● ●
2 ELEMENT; OIL FILTER 8-94456-741-2 01 1 9505- ● ●
39 COVER; OIL COOLER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 		8-97031-507-1 01 1 9112-9505 ●
39 COVER; OIL COOLER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 		8-97031-507-1 01 1 9506-9506 ●
39 COVER; OIL COOLER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97031-507-1 01 1 9507-9611 ●
39 COVER; OIL COOLER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COST A RICA EQUIPMENT(7LD) 		8-97031-507-1 01 1 9612- ●
40 GASKET; COVER TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97031-084-0 01 1 9112- ●
41 BOLT; COVER FIX
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) M6X16 FLANGE 		0-28080-616-0 02 1 9112-9505 ●
41 BOLT; COVER FIX
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) M6X16 FLANGE 		0-28080-616-0 02 1 9506-9506 ●
41 BOLT; COVER FIX
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M6X16 FLANGE 		0-28080-616-0 02 1 9507-9611 ●
41 BOLT; COVER FIX
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COST A RICA EQUIPMENT(7LD) M6X16 FLANGE 		0-28080-616-0 02 1 9612- ●
102 COOLER ASM; OIL
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) -920906 		8-97048-752-0 01 1 9112-9209 ●
102 COOLER ASM; OIL
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 920907- 		8-97080-000-1 01 1 9209-9505 ●
102 COOLER ASM; OIL
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 		8-97080-000-1 01 1 9506-9506 ●
102 COOLER ASM; OIL
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97118-507-0 01 1 9507-9611 ●
102 COOLER ASM; OIL
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97118-507-1 01 1 9612- ●
105 STUD; OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 		8-97037-384-1 01 1 9112-9505 ●
105 STUD; OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 		8-97037-384-1 01 1 9506-9506 ●
105 STUD; OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97119-661-0 01 1 9507-9611 ●
105 STUD; OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97119-661-0 01 1 9612- ●
162 PIPE; WATER,OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) (A) -920906 		8-97031-420-3 01 1 9112-9209 ●
162 PIPE; WATER,OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (A) 920907- 		8-97079-998-1 01 1 9209-9211 ●
162 PIPE; WATER,OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) (B) -920906 		8-97031-421-2 01 1 9112-9209 ●
162 PIPE; WATER,OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (B) 920907- 		8-97080-512-0 01 1 9209-9505 ●
162 PIPE; WATER,OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (B) 		8-97080-512-0 01 1 9506-9506 ●
162 PIPE; WATER,OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97080-512-0 01 1 9507-9611 ●
162 PIPE; WATER,OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97080-512-0 01 1 9612- ●
162 PIPE; WATER,OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (A) 		8-97087-698-0 01 1 9212-9505 ●
162 PIPE; WATER,OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (A) 		8-97087-698-0 01 1 9506-9506 ●
162 PIPE; WATER,OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97119-656-0 01 1 9507-9611 ●
162 PIPE; WATER,OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97119-656-0 01 1 9612- ●
163 BOLT; WATER PIPE
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) (B) M8X75 		8-94239-147-0 01 1 9112-9305 ●
163 BOLT; WATER PIPE
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (B) M8X80 FLANGE 		0-28080-880-0 01 1 9306-9505 ●
163 BOLT; WATER PIPE
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (B) M8X80 FLANGE 		0-28080-880-0 01 1 9506-9506 ●
163 BOLT; WATER PIPE
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) M8X80 FLANGE 		0-28080-880-0 01 1 9507-9611 ●
163 BOLT; WATER PIPE
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) M8X80 FLANGE 		0-28080-880-0 01 1 9612- ●
163 BOLT; WATER PIPE
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (A) M8X45 FLANGE 		0-28080-845-0 01 1 9112-9505 ●
163 BOLT; WATER PIPE
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (A) M8X45 FLANGE 		0-28080-845-0 01 1 9506-9506 ●
163 BOLT; WATER PIPE
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) M8X45 FLANGE 		0-28080-845-0 01 1 9507-9611 ●
163 BOLT; WATER PIPE
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) M8X45 FLANGE 		0-28080-845-0 01 1 9612- ●
163 BOLT; WATER PIPE
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (C) M10X16 FLANGE 		0-28181-016-0 01 1 9309-9505 ●
163 BOLT; WATER PIPE
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (C) M10X16 FLANGE 		0-28181-016-0 01 1 9506-9506 ●
163 BOLT; WATER PIPE
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (C) M10X16 FLANGE 		0-28181-016-0 01 1 9507-9611 ●
163 BOLT; WATER PIPE
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (C) M10X16 FLANGE 		0-28181-016-0 01 1 9612- ●
195 GASKET; OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 		8-97101-953-0 01 1 9112-9505 ●
195 GASKET; OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 		8-97101-953-0 01 1 9506-9506 ●
195 GASKET; OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97101-953-0 01 1 9507-9611 ●
195 GASKET; OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97101-953-1 01 1 9612- ●
217 BOLT; CONNECTOR
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) M6X16 FLANGE 		0-28080-616-0 02 1 9112-9505 ●
217 BOLT; CONNECTOR
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) M6X16 FLANGE 		0-28080-616-0 02 1 9506-9506 ●
217 BOLT; CONNECTOR
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M6X16 FLANGE 		0-28080-616-0 02 1 9507-9611 ●
217 BOLT; CONNECTOR
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M6X16 FLANGE 		0-28080-616-0 02 1 9612- ●
272 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94425-298-0 01 1 9112-9307 ● ●
272 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-0 01 1 9308-9504 ● ●
272 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-0 01 1 9505- ●
272 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94324-199-0 01 1 9112- ●
272 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). W/PLATE ID=18.2 		8-94329-964-0 02 1 9112- ●
285 SPRING; OIL FILTER 8-94114-512-0 01 1 9112- ●
289 PLUG; ADAPTER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 		8-94130-346-0 02 1 9112-9505 ●
289 PLUG; ADAPTER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 		8-94130-346-0 02 1 9506-9506 ●
289 PLUG; ADAPTER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-94130-346-0 02 1 9507-9611 ●
289 PLUG; ADAPTER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COST A RICA EQUIPMENT(7LD) 		8-94130-346-0 02 1 9612- ●
306 VALVE; OIL FILTER 8-94235-567-1 01 1 9112- ●
328 BOLT; OIL FILTER
M8X22 W/LK WASHER 		0-50040-822-0 01 1 9112- ●
328 BOLT; OIL FILTER
M8X28 W/LK WASHER 		0-50040-828-0 01 1 9112- ●
328 BOLT; OIL FILTER
M8X35 W/LK WASHER 		0-50040-835-0 01 1 9112- ●
328 BOLT; OIL FILTER
M8X70 W/LK WASHER 		0-50040-870-0 01 1 9112- ●
328 BOLT; OIL FILTER
M8X100 FLANGE 		0-28080-800-0 01 1 9112- ●
328 BOLT; OIL FILTER
M8X70 FLANGE 		0-28080-870-0 01 1 9112- ●
328 BOLT; OIL FILTER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) M8X45 FLANGE 		0-28080-845-0 02 1 9112-9505 ●
328 BOLT; OIL FILTER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) M8X45 FLANGE 		0-28080-845-0 02 1 9506-9506 ●
328 BOLT; OIL FILTER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M8X45 FLANGE 		0-28080-845-0 02 1 9507-9611 ●
328 BOLT; OIL FILTER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M8X45 FLANGE 		0-28080-845-0 02 1 9612- ●
328 BOLT; OIL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) M8X45 FLANGE 		0-28080-845-0 01 1 9112-9505 ●
328 BOLT; OIL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) M8X45 FLANGE 		0-28080-845-0 01 1 9506-9506 ●
328 BOLT; OIL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M8X45 FLANGE 		0-28080-845-0 01 1 9507-9611 ●
328 BOLT; OIL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COST A RICA EQUIPMENT(7LD) M8X45 FLANGE 		0-28080-845-0 01 1 9612- ●
351 PLUG; OIL FILTER 8-94244-655-0 01 1 9112- ●
352 ADAPTER; OIL FILTER 8-94476-127-0 01 1 9112- ●
352 ADAPTER; OIL FILTER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (B) 		8-97048-642-5 01 1 9112-9505 ●
352 ADAPTER; OIL FILTER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (B) 		8-97048-642-5 01 1 9506-9506 ●
352 ADAPTER; OIL FILTER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97048-642-5 01 1 9507-9611 ●
352 ADAPTER; OIL FILTER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) 		8-97048-642-5 01 1 9612- ●
352 ADAPTER; OIL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (A) 		8-97027-782-2 01 1 9112-9505 ●
352 ADAPTER; OIL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (A) 		8-97027-782-2 01 1 9506-9506 ●
352 ADAPTER; OIL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) 		8-97027-782-2 01 1 9507-9611 ●
352 ADAPTER; OIL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COST A RICA EQUIPMENT(7LD) (A) 		8-97027-782-2 01 1 9612- ●
380 CONNECTOR; WATER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 		8-97031-439-3 01 1 9112-9505 ●
380 CONNECTOR; WATER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 		8-97031-439-3 01 1 9506-9506 ●
380 CONNECTOR; WATER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97031-439-4 01 1 9507-9611 ●
380 CONNECTOR; WATER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97031-439-4 01 1 9612- ●
394 STUD; OIL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 		8-97022-473-0 01 1 9112-9505 ●
394 STUD; OIL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) 		8-97022-473-0 01 1 9506-9506 ●
394 STUD; OIL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) 		8-97022-473-0 01 1 9507-9611 ●
394 STUD; OIL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COST A RICA EQUIPMENT(7LD) 		8-97022-473-0 01 1 9612- ●
434 GASKET; PLUG,OIL FILTER 8-94244-656-0 01 1 9112- ●
515 SPACER; PIPE,OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (A) OD=15 L=18.7 		8-97087-703-0 01 1 9302-9505 ●
515 SPACER; PIPE,OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (A) OD=15 L=18.7 		8-97087-703-0 01 1 9506-9506 ●
515 SPACER; PIPE,OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) OD=15 L=18.7 		8-97087-703-0 01 1 9507-9611 ●
515 SPACER; PIPE,OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) OD=15 L=18.7 		8-97087-703-0 01 1 9612- ●
515 SPACER; PIPE,OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (B) OD=15 L=56.7 		8-97087-704-0 01 1 9302-9505 ●
515 SPACER; PIPE,OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (B) OD=15 L=56.7 		8-97087-704-0 01 1 9506-9506 ●
515 SPACER; PIPE,OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) OD=15 L=56.7 		8-97087-704-0 01 1 9507-9611 ●
515 SPACER; PIPE,OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) OD=15 L=56.7 		8-97087-704-0 01 1 9612- ●

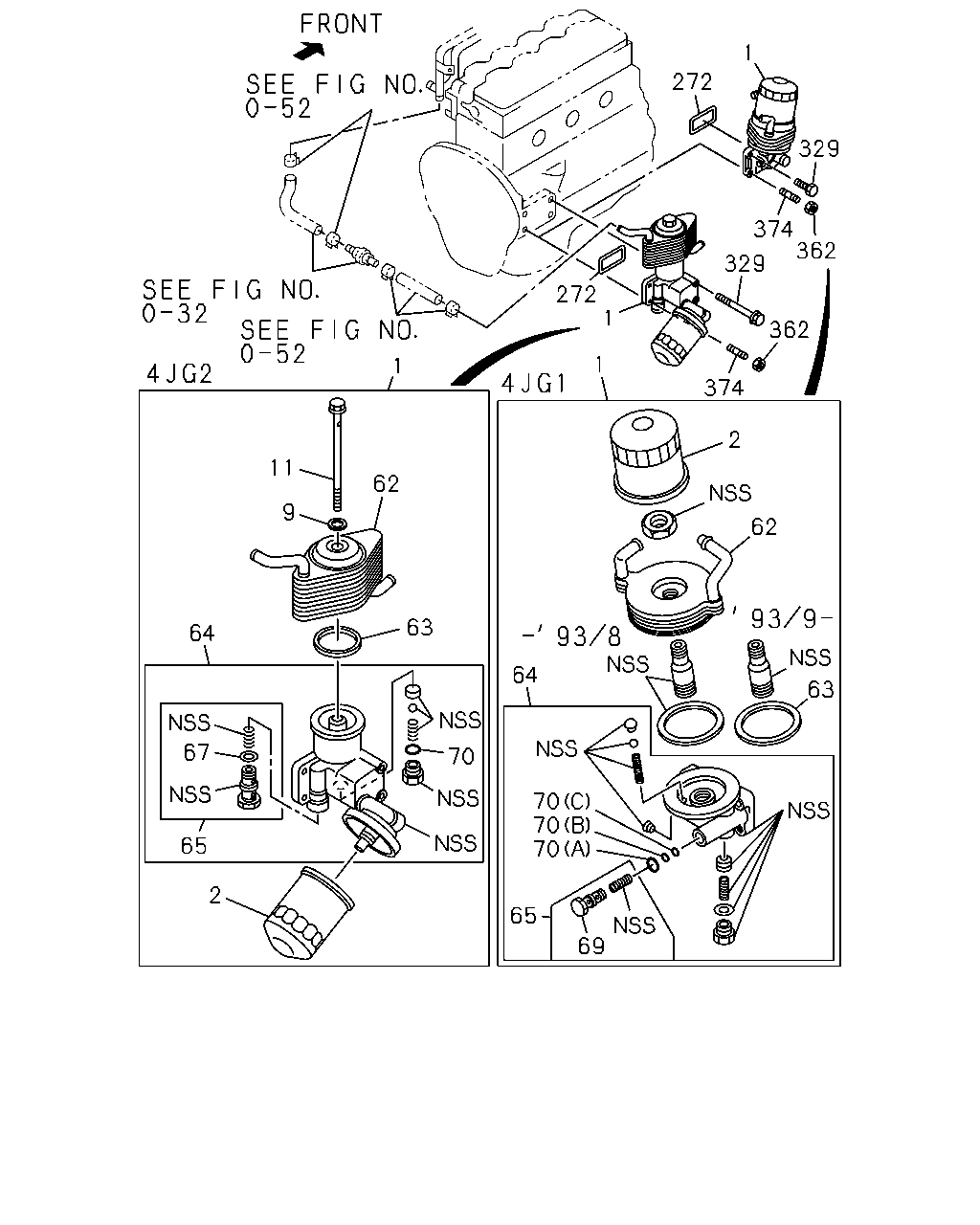

çizim 70833
1 272 329 374 362 329 272 1 362 1 1 374 2 11 62 62 9 63 64 63 64 67 70 70 70 70 65 2 65 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 FILTER & COOLER ASM; OIL 8-94328-099-1 01 1 9112-9504 ●
1 FILTER & COOLER ASM; OIL 8-97021-406-1 01 1 9112-9307 ●
1 FILTER & COOLER ASM; OIL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97021-406-1 01 1 9308-9308 ●
1 FILTER & COOLER ASM; OIL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97069-792-0 01 1 9308-9308 ●
1 FILTER & COOLER ASM; OIL 8-97069-792-0 01 1 9309-9504 ●
1 FILTER & COOLER ASM; OIL
TURBOCHARGER<K51> 		8-97069-792-1 01 1 9505- ●
1 FILTER & COOLER ASM; OIL
EXC. TURBOCHARGER<K51> 		8-97086-425-1 01 1 9505- ●
2 ELEMENT; OIL FILTER 8-94360-426-0 01 1 9112-9209 ●
2 ELEMENT; OIL FILTER
920915- 		8-97049-708-0 01 1 9209-9504 ●
2 ELEMENT; OIL FILTER 8-94340-697-0 01 1 9112-9504 ●
2 ELEMENT; OIL FILTER
TURBOCHARGER<K51> 		8-94340-697-1 01 1 9505- ●
2 ELEMENT; OIL FILTER
EXC. TURBOCHARGER<K51> 		8-94360-427-1 01 1 9505- ●
2 ELEMENT; OIL FILTER 8-94430-411-2 01 1 9112-9304 ● ●
2 ELEMENT; OIL FILTER
930419- 		8-94430-411-2 01 1 9304-9304 ●
2 ELEMENT; OIL FILTER
930419- 		8-94456-741-1 01 1 9304-9304 ●
2 ELEMENT; OIL FILTER 8-94456-741-1 01 1 9305-9504 ● ●
2 ELEMENT; OIL FILTER 8-94456-741-2 01 1 9505- ● ●
9 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97047-000-0 01 1 9112- ●
11 BOLT; CENTER 8-97046-999-0 01 1 9112-9504 ●
11 BOLT; CENTER
TURBOCHARGER<K51> 		8-97046-999-1 01 1 9505- ●
11 BOLT; CENTER
EXC. TURBOCHARGER<K51> 		8-97094-724-1 01 1 9505- ●
62 COOLER ASM; OIL
-920913 		8-94360-407-0 01 1 9112-9209 ●
62 COOLER ASM; OIL
920914- 		8-94360-428-0 01 1 9209-9504 ●
62 COOLER ASM; OIL 8-97047-001-1 01 1 9112-9307 ●
62 COOLER ASM; OIL
EUROPE/CANARY EQUIPMENT(EK4) 		8-97047-001-1 01 1 9308-9308 ●
62 COOLER ASM; OIL
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97078-376-0 01 1 9308-9308 ●
62 COOLER ASM; OIL 8-97078-376-0 01 1 9309-9504 ●
62 COOLER ASM; OIL
TURBOCHARGER<K51> 		8-97078-376-1 01 1 9505- ●
62 COOLER ASM; OIL
EXC. TURBOCHARGER<K51> 		8-97094-665-1 01 1 9505- ●
63 GASKET; COOLER TO BRKT 8-97126-492-0 01 1 9309-9504 ●
63 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 9112-9504 ●
63 GASKET; COOLER TO BRKT
TURBOCHARGER<K51> 		8-94383-720-0 01 1 9505- ●
64 BODY; OIL FILTER & OIL COOLER
-920913 		8-94360-403-0 01 1 9112-9209 ●
64 BODY; OIL FILTER & OIL COOLER
920914- 		8-97081-759-0 01 1 9209-9504 ●
64 BODY; OIL FILTER & OIL COOLER 8-97046-992-0 01 1 9112-9307 ●
64 BODY; OIL FILTER & OIL COOLER
EUROPE/CANARY EQUIPMENT(EK4) 		8-97046-992-0 01 1 9308-9308 ●
64 BODY; OIL FILTER & OIL COOLER
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97078-377-0 01 1 9308-9308 ●
64 BODY; OIL FILTER & OIL COOLER 8-97078-377-0 01 1 9309- ●
65 VALVE; OIL COOLER 8-94450-772-0 01 1 9112-9504 ● ●
65 VALVE; OIL COOLER 8-94450-772-0 01 1 9505- ●
67 GASKET; VLV
EXC. TURBOCHARGER<K51> 		9-09920-975-0 01 1 9505- ●
69 PLUG; BODY,OIL FILTER 8-94167-883-0 01 1 9112-9504 ●
70 GASKET; PLUG,OIL FILTER
(A) ID=13.6 		8-94167-884-0 01 1 9112-9504 ●
70 GASKET; PLUG,OIL FILTER
(B) ID=8.8 		8-94167-885-0 01 1 9112-9504 ●
70 GASKET; PLUG,OIL FILTER
(C) ID=6.8 		8-94167-886-0 01 1 9112-9504 ●
70 GASKET; PLUG,OIL FILTER 9-09921-193-0 01 1 9309- ●
272 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94425-298-0 01 1 9112-9307 ● ●
272 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-0 01 1 9308-9504 ● ●
272 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-0 01 1 9505- ●
272 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94324-199-0 01 1 9112- ●
272 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). W/PLATE ID=18.2 		8-94329-964-0 02 1 9112- ●
329 BOLT; OIL FILTER
M8X30 W/LK WASHER 		0-50040-830-0 04 1 9112-9203 ●
329 BOLT; OIL FILTER
M8X30 W/LK WASHER 		0-50040-830-0 02 1 9204-9504 ●
329 BOLT; OIL FILTER
M8X100 W/LK WASHER 		0-50040-800-0 02 1 9112- ●
362 NUT; OIL FILTER
M8 FLANGE 		0-91150-108-0 02 1 9112-9203 ●
362 NUT; OIL FILTER
M8 FLANGE 		0-91150-108-0 02 1 9204-9504 ● ●
362 NUT; OIL FILTER
M8 FLANGE 		0-91150-108-0 02 1 9505- ●
374 STUD; OIL FILTER
M8X25 L=37 		9-04110-825-0 02 1 9112-9203 ●
374 STUD; OIL FILTER
M8X25 L=37 		9-04110-825-0 02 1 9204-9504 ● ●
374 STUD; OIL FILTER
M8X25 L=37 		9-04110-825-0 02 1 9505- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
