Isuzu WW
▶
SUV
▶
UBS
▶
50659 - UBS-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

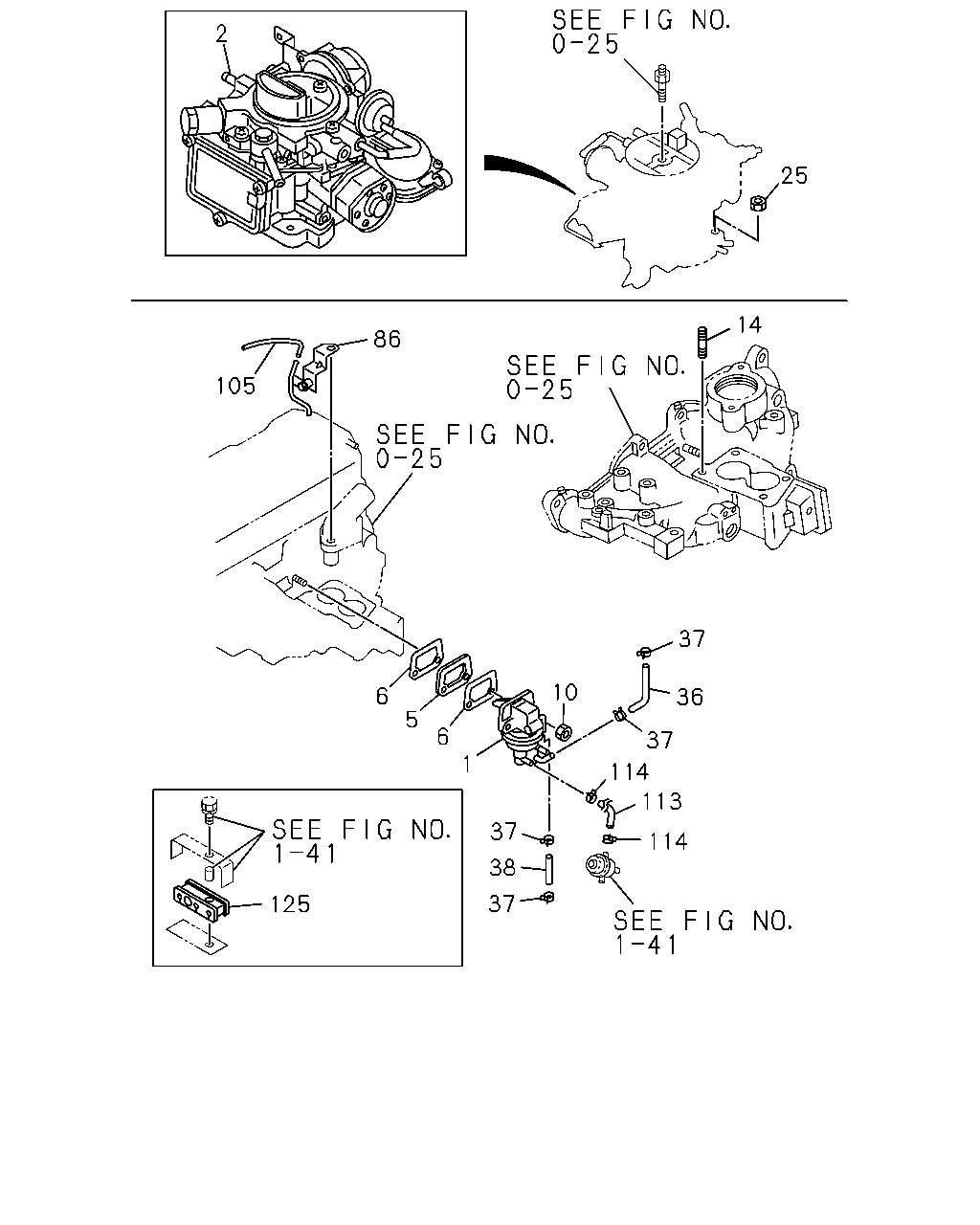

0-42 — FUEL PUMP AND PIPE
(#33145) — 21 parça
2
25
14
86
105
37
10
6
1
6
36
5
37
114
113
37
114
38
37
125
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; FUEL
8-94438-533-0
01
1
9112-
2
CARBURETOR ASM
SEE FIG-NO 0-70 FOR COMPONENT.
8-97042-802-1
01
1
9112-9504
2
CARBURETOR ASM
SEE FIG-NO 0-70 FOR COMPONENT. EXC. CHINA EQUIPMENT(YT2)
8-97042-802-1
01
1
9505-
2
CARBURETOR ASM
SEE FIG-NO 0-70 FOR COMPONENT. CHINA EQUIPMENT(YT2)
8-97128-394-0
01
1
9505-
5
INSULATOR; HEAT,FUEL PUMP
8-94146-258-0
01
1
9112-
6
GASKET; FUEL PUMP
8-94324-196-0
02
1
9112-
10
NUT; FUEL PUMP
M8 FLANGE
5-09440-005-0
02
1
9112-
14
STUD; CARB TO INL MANIF
M8X27 L=39
8-94202-304-0
04
1
9112-
25
NUT; CARB TO INL MANIF
M8 W/LK WASHER
8-94279-050-0
04
1
9112-
36
HOSE; FUEL PUMP TO CARB
L=110 SERVICED BY L=3000
0-01158-300-0
01
1
9112-9307
36
HOSE; FUEL PUMP TO CARB
L=110 SERVICED BY L=3000
0-01258-300-0
01
1
9308-
37
CLIP; FUEL HOSE
ID=14
8-94238-572-0
04
1
9112-
38
HOSE; RUBBER,FUEL DRAIN,FUEL PUMP
L=200 SERVICED BY L=3000
0-04750-300-0
01
1
9112-9705
38
HOSE; RUBBER,FUEL DRAIN,FUEL PUMP
L=180 SERVICED BY L=3000
0-04750-300-0
01
1
9706-
86
PIPE; FUEL,PUMP TO CARBURETOR
8-94328-844-0
01
1
9112-
105
HOSE; RUBBER,FUEL PIPE TO CARBURETOR
L=160 SERVICED BY L=3000
0-01158-300-0
01
1
9112-9204
105
HOSE; RUBBER,FUEL PIPE TO CARBURETOR
L=160
8-94362-089-0
01
1
9205-
113
HOSE; FUEL,FUEL PUMP TO DAMPER
L=60 SERVICED BY L=3000
0-01158-300-0
01
1
9112-9307
113
HOSE; FUEL,FUEL PUMP TO DAMPER
L=60 SERVICED BY L=3000
0-01258-300-0
01
1
9308-
114
CLIP; FUEL HOSE,DAMPER
ID=14
8-94238-572-0
02
1
9112-
125
CLIP; FUEL PIPE
8-94182-922-0
01
1
9112-9208
