Isuzu WW
▶
SUV
▶
UBS
▶
50659 - UBS-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-41 - FUEL FILTER AND BRACKET
▶

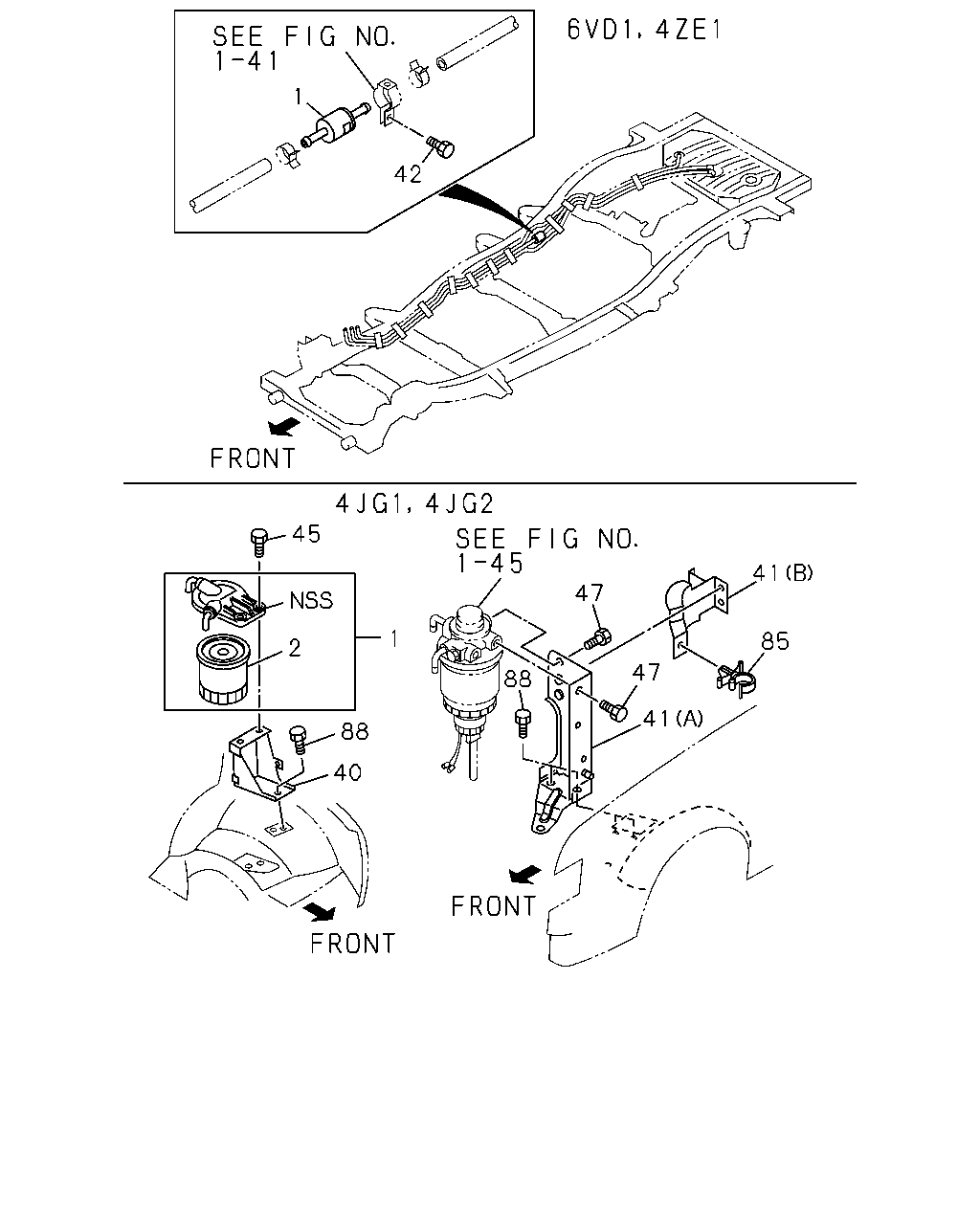

0-41 — FUEL FILTER AND BRACKET
(#33144) — 26 parça
Tümü
A - 4JG2 ENG
B - 4JG1 ENG
C - 4ZE1 ENG
D - 6VD1 SOHC ENG
1
42
45
1
41
47
1
85
2
88
47
41
88
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
FILTER ASM; FUEL
EXC. EUROPE/CANARY EQUIPMENT(EK4)
8-94420-201-0
01
1
9112-9504
●
●
1
FILTER ASM; FUEL
EXC. EUROPE/CANARY EQUIPMENT(EK4)
8-94420-201-0
01
1
9505-
●
1
FILTER ASM; FUEL
5-13200-066-1
01
1
9112-
●
1
FILTER ASM; FUEL
8-25055-364-0
01
1
9112-
●
2
ELEMENT KIT; FUEL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4)
8-94144-613-0
01
1
9112-9504
●
●
2
ELEMENT KIT; FUEL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4)
8-94144-613-0
01
1
9505-
●
40
BRACKET; FUEL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4)
8-97038-181-1
01
1
9112-9504
●
●
40
BRACKET; FUEL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4)
8-97038-181-1
01
1
9505-
●
41
BRACKET; FUEL FILTER
(A)
8-97038-182-3
01
1
9112-9206
●
●
41
BRACKET; FUEL FILTER
EUROPE/CANARY EQUIPMENT(EK4) (A)
8-97038-182-3
01
1
9207-
●
41
BRACKET; FUEL FILTER
EUROPE/CANARY EQUIPMENT(EK4) (B)
8-97132-351-1
01
1
9608-
●
42
BOLT; FUEL FILTER
M6X20 W/LK WASHER
9-01900-620-0
01
1
9112-9204
●
42
BOLT; FUEL FILTER
M6X20 W/LK WASHER
0-50040-620-0
01
1
9205-9212
●
42
BOLT; FUEL FILTER
M6X16 W/LK WASHER
0-50040-616-0
01
1
9301-
●
45
BOLT; FUEL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) M10X32 W/LK WASHER
9-01901-032-0
02
1
9112-9204
●
●
45
BOLT; FUEL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) M10X32 W/LK WASHER
0-50041-032-0
02
1
9205-9504
●
●
45
BOLT; FUEL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) M10X32 W/LK WASHER
0-50041-032-0
02
1
9505-
●
47
BOLT; BRKT,FUEL FILTER
M8X18 W/LK WASHER
9-01900-818-0
02
1
9112-9204
●
●
47
BOLT; BRKT,FUEL FILTER
M8X18 W/LK WASHER
0-50040-818-0
02
1
9205-9504
●
●
47
BOLT; BRKT,FUEL FILTER
M8X18 W/LK WASHER
0-50040-818-0
02
1
9505-
●
85
CLIP; FUEL
EUROPE/CANARY EQUIPMENT(EK4)
8-97038-800-0
01
1
9608-
●
88
BOLT; BRKT,FUEL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X14 FLANGE
0-28080-814-0
05
1
9112-9302
●
●
88
BOLT; BRKT,FUEL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X16 FLANGE
0-28480-816-0
05
1
9303-9504
●
●
88
BOLT; BRKT,FUEL FILTER
EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X16 FLANGE
0-28480-816-0
05
1
9505-
●
88
BOLT; BRKT,FUEL FILTER
EUROPE/CANARY EQUIPMENT(EK4) M8X14 FLANGE
0-28080-814-0
02
1
9112-9302
●
88
BOLT; BRKT,FUEL FILTER
EUROPE/CANARY EQUIPMENT(EK4) M8X16 FLANGE
0-28480-816-0
02
1
9303-
●
