0-90A — POWER TAKE OFF; FLYWHEEL (#3314) — 71 parça

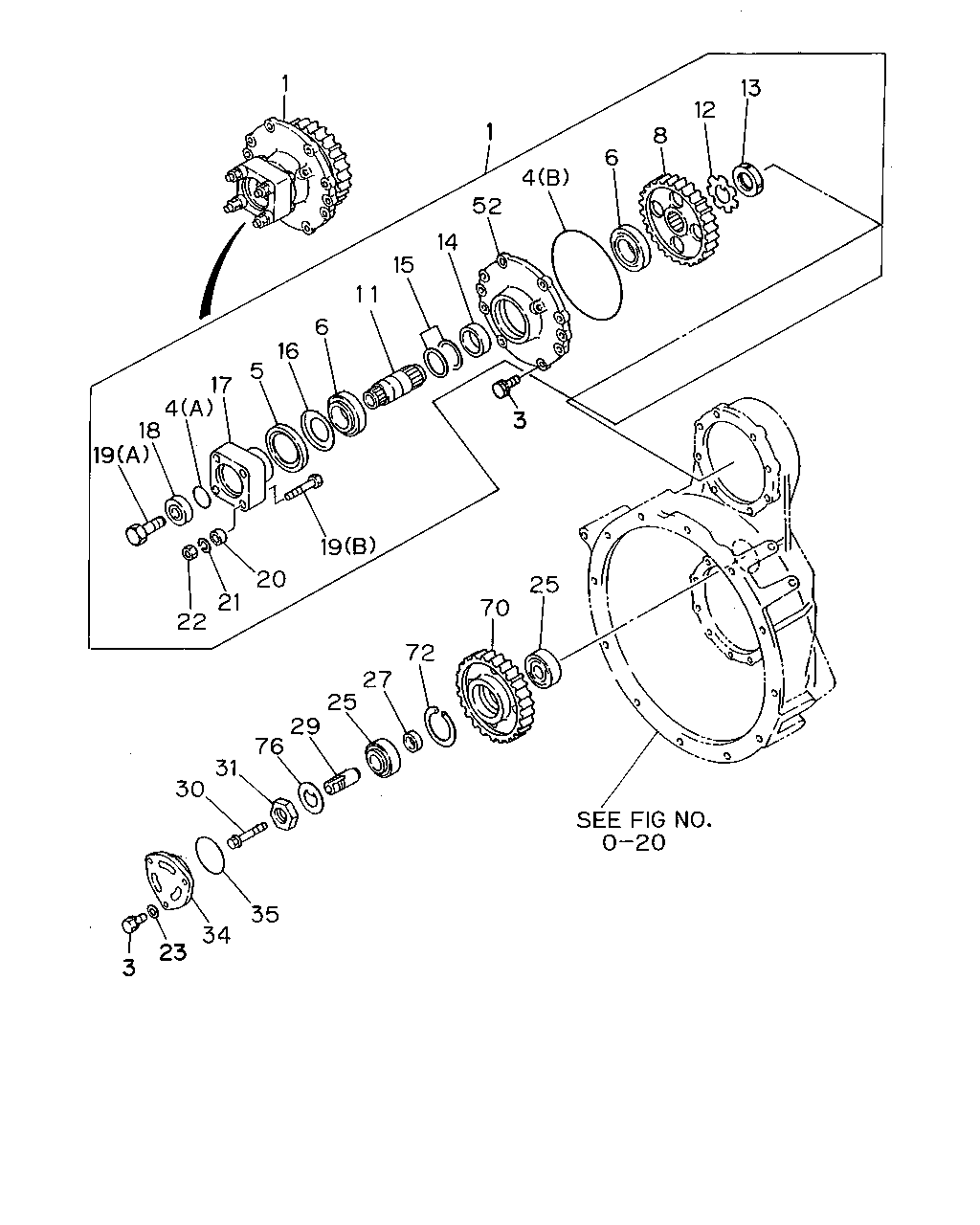

çizim 6359
13 12 8 6 4 1 52 14 15 11 6 16 5 17 4 18 19 1 22 21 20 19 30 31 76 29 25 27 72 70 25 35 34 23 3 3
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; ENG RR
ENGINE REAR PTO(SV1) 		1-38000-166-0 01 1 9002-9306
3 BOLT; BRG CASE
ENGINE REAR PTO(SV1) M10X25 W/LK WASHER 		0-50051-025-0 03 1 9002-9306
3 BOLT; BRG CASE
ENGINE REAR PTO(SV1) M10X35 W/LK WASHER 		0-50051-035-0 08 1 9002-9306
4 GASKET; BRG CASE
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1) (A) 		9-09920-533-0 01 1 9002-9306
4 GASKET; BRG CASE
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1) (B) 		9-09920-778-0 01 1 9002-9306
5 SEAL; OIL,BRG CASE,PTO
ALSO INCLUDED IN GASKET SET(ENGINE). ENGINE REAR PTO(SV1) 		1-09625-128-0 01 1 9002-9306
6 BEARING; FLYWHEEL PTO
ENGINE REAR PTO(SV1) NSK 		9-00093-149-0 02 1 9002-9306
8 GEAR; FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		9-38241-076-0 01 1 9002-9306
11 SHAFT; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		1-38221-031-0 01 1 9002-9306
12 WASHER; LK,SHAFT NUT,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		9-09853-865-0 01 1 9002-9306
13 NUT; SHAFT,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		9-09843-720-0 01 1 9002-9306
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=17.95 		9-38226-045-0 01 1 9002-9306
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.20 		9-38226-046-0 01 1 9002-9306
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.45 		9-38226-047-0 01 1 9002-9306
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.70 		9-38226-048-0 01 1 9002-9306
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=18.95 		9-38226-049-0 01 1 9002-9306
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=19.20 		9-38226-050-0 01 1 9002-9306
14 SPACER; FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=19.45 		9-38226-051-0 01 1 9002-9306
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.50 		9-41229-324-0 AR 1 9002-9306
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.51 		9-41229-325-0 AR 1 9002-9306
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.52 		9-41229-326-0 AR 1 9002-9306
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.53 		9-41229-327-0 AR 1 9002-9306
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.54 		9-41229-328-0 AR 1 9002-9306
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.55 		9-41229-329-0 AR 1 9002-9306
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.56 		9-41229-330-0 AR 1 9002-9306
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.57 		9-41229-331-0 AR 1 9002-9306
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.58 		9-41229-332-0 AR 1 9002-9306
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.59 		9-41229-333-0 AR 1 9002-9306
15 SHIM; PTO
ENGINE REAR PTO(SV1) T=3.60 		9-41229-334-0 AR 1 9002-9306
16 THROWER; OIL,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		9-38175-011-0 01 1 9002-9306
17 FLANGE; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		1-38189-010-0 01 1 9002-9306
18 WASHER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		1-09509-014-0 01 1 9002-9306
19 BOLT; FLANGE
ENGINE REAR PTO(SV1) (A) M20X60 		9-92052-060-0 01 1 9002-9306
19 BOLT; FLANGE
ENGINE REAR PTO(SV1) (B) M12X70 		9-92621-270-0 04 1 9002-9306
20 SPACER; FLANGE,FLYWHEEL PTO
ENGINE REAR PTO(SV1) T=13 ID=22.2 		9-38189-005-0 04 1 9002-9306
21 WASHER; LK,FLANGE
ENGINE REAR PTO(SV1) ID=12.2 		9-09150-612-0 04 1 9002-9306
22 NUT; FLANGE
ENGINE REAR PTO(SV1) M12 		9-99110-512-0 04 1 9002-9306
23 WASHER; PL,BRG CASE
ENGINE REAR PTO(SV1) ID=10.5 		9-09164-510-0 11 1 9002-9306
25 BEARING; IDLE DRIVEN GEAR,FLYWHEEL PTO
ENGINE REAR PTO(SV1) 		9-00093-076-0 02 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=9.28 		9-38226-022-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=9.21 		9-38226-023-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=9.14 		9-38226-024-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=9.07 		9-38226-025-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=9.00 		9-38226-026-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=8.93 		9-38226-027-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=8.86 		9-38226-028-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=8.79 		9-38226-029-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=8.72 		9-38226-030-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=8.65 		9-38226-031-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=8.58 		9-38226-032-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=8.51 		9-38226-033-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=8.44 		9-38226-034-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=8.37 		9-38226-035-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=8.30 		9-38226-036-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=8.23 		9-38226-037-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=8.16 		9-38226-038-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=8.09 		9-38226-039-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=8.02 		9-38226-040-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=7.95 		9-38226-041-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=7.88 		9-38226-042-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=7.81 		9-38226-043-0 01 1 9002-9306
27 SPACER; INNER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=7.74 		9-38226-044-0 01 1 9002-9306
29 SPINDLE; IDLE GEAR,PTO
ENGINE REAR PTO(SV1) 		9-12531-041-0 01 1 9002-9306
30 BOLT; SPINDLE
ENGINE REAR PTO(SV1) 		9-09805-081-1 01 1 9002-9306
31 NUT; IDLE GEAR
ENGINE REAR PTO(SV1) 		9-09843-063-0 01 1 9002-9306
34 COVER; PTO,FLYWHEEL
ENGINE REAR PTO(SV1) 		9-11343-046-0 01 1 9002-9306
35 GASKET; COVER
ENGINE REAR PTO(SV1) 		9-09920-528-0 01 1 9002-9306
52 CASE; BRG,PTO
ENGINE REAR PTO(SV1) 		9-38181-007-1 01 1 9002-9306
70 GEAR; IDLE DRIVEN,PTO
ENGINE REAR PTO(SV1) 		9-38261-012-0 01 1 9002-9306
72 SPACER; OUTER,IDLE DRIVEN GEAR,PTO
ENGINE REAR PTO(SV1) T=4.80 		9-38226-021-0 01 1 9002-9306
76 WASHER; LK,IDLE GEAR
ENGINE REAR PTO(SV1) 		9-09854-034-0 01 1 9002-9306
