0-33 — FAN AND FAN BELT (#33139) — 242 parça

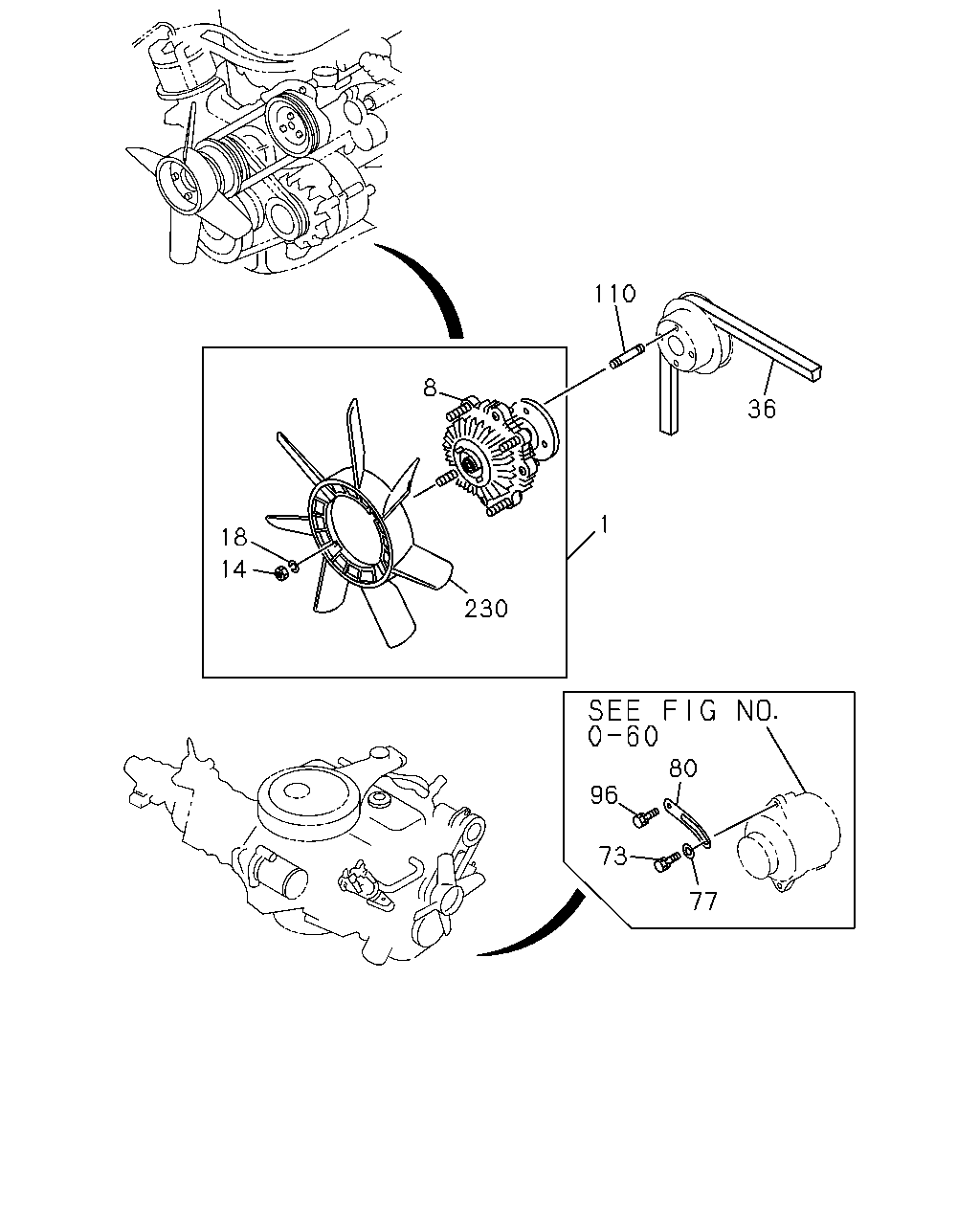

çizim 67080
110 8 36 1 18 14 230 80 96 73 77
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 FAN; COOLING
EXC. SAUDI ARABIA EQUIPMENT(EU2) OD=410 		8-94103-469-0 01 1 9112-9504 ●
1 FAN; COOLING
EXC. SAUDI ARABIA EQUIPMENT(EU2) OD=410 		8-94103-469-0 01 1 9505- ●
1 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) OD=410 		8-94454-187-0 01 1 9112-9504 ●
1 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60) OD=410 		8-94454-187-0 01 1 9505- ●
1 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) OD=410 		8-94436-150-0 01 1 9112-9504 ●
1 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60) OD=410 		8-94436-150-0 01 1 9505- ●
8 CLUTCH; COOLING FAN
SAUDI ARABIA EQUIPMENT(EU2) 		8-97039-034-0 01 1 9112-9504 ●
8 CLUTCH; COOLING FAN 8-97039-034-0 01 1 9112-9504 ●
8 CLUTCH; COOLING FAN
SAUDI ARABIA EQUIPMENT(EU2) 		8-97039-034-0 01 1 9505- ●
8 CLUTCH; COOLING FAN
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94244-409-0 01 1 9112-9504 ●
8 CLUTCH; COOLING FAN
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94244-409-0 01 1 9505- ●
8 CLUTCH; COOLING FAN
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94412-030-0 01 1 9112-9504 ●
8 CLUTCH; COOLING FAN
AIR CONDITIONER MANUAL CONT(C60) 		8-94412-030-0 01 1 9505- ●
8 CLUTCH; COOLING FAN
EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94311-252-0 01 1 9112-9504 ●
8 CLUTCH; COOLING FAN
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-252-0 01 1 9505- ●
8 CLUTCH; COOLING FAN 8-97018-918-1 01 1 9112-9311 ●
8 CLUTCH; COOLING FAN 8-97102-903-0 01 1 9312-9511 ●
8 CLUTCH; COOLING FAN 8-97135-167-0 01 1 9512- ●
14 NUT; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2) M6 		9-09110-506-0 04 1 9112-9504 ●
14 NUT; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6 		9-09110-506-0 04 1 9112-9504 ●
14 NUT; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER<K51> M6 		9-09110-506-0 04 1 9505- ●
14 NUT; FAN TO CLU
M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) M6 		9-09110-506-0 04 1 9505- ●
14 NUT; FAN TO CLU
EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94311-253-0 04 1 9112-9504 ●
14 NUT; FAN TO CLU
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-253-0 04 1 9505- ●
18 WASHER; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2) ID=6.1 		9-09150-506-0 04 1 9112-9504 ●
18 WASHER; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=6.1 		9-09150-506-0 04 1 9112-9504 ●
18 WASHER; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER<K51> ID=6.1 		9-09150-506-0 04 1 9505- ●
18 WASHER; FAN TO CLU
M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) ID=6.1 		9-09150-506-0 04 1 9505- ●
18 WASHER; FAN TO CLU
EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94311-254-0 04 1 9112-9504 ●
18 WASHER; FAN TO CLU
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-254-0 04 1 9505- ●
36 BELT; COOLING FAN
SAUDI ARABIA EQUIPMENT(EU2) 		8-97062-913-1 01 1 9112-9504 ●
36 BELT; COOLING FAN
EUROPE/CANARY EQUIPMENT(EK4) SAUDI ARABIA EQUIPMENT(EU2) CERAMIC HEATER<6YX> 		8-97062-913-1 01 1 9505-9711 ●
36 BELT; COOLING FAN
EUROPE/CANARY EQUIPMENT(EK4) SAUDI ARABIA EQUIPMENT(EU2) CERAMIC HEATER<6YX> L=1031 MITSUBOSHI 		8-97188-281-0 01 1 9712- ●
36 BELT; COOLING FAN
EXC. SAUDI ARABIA EQUIPMENT(EU2) L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9112-9504 ●
36 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9112-9504 ●
36 BELT; COOLING FAN
EXC. CERAMIC HEATER<6YX> L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9505-9505 ●
36 BELT; COOLING FAN
EXC. SAUDI ARABIA EQUIPMENT(EU2),CERAMIC HEATER<6YX> L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9506-9701 ●
36 BELT; COOLING FAN
EXC. SAUDI ARABIA EQUIPMENT(EU2),CERAMIC HEATER<6YX> L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9702- ●
36 BELT; COOLING FAN 8-94472-378-0 01 1 9112-9304 ●
36 BELT; COOLING FAN
L=875 		8-97100-606-0 01 1 9305- ●
73 BOLT; GEN TO ADJ PLATE
M8X25 W/LK WASHER 		0-50040-825-0 01 1 9112- ●
77 WASHER; PL,GEN TO ADJ PLATE
ID=8.4 OD=22 		9-09164-708-0 01 1 9112- ●
80 PLATE; ADJ
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97038-402-1 01 1 9112-9504 ●
80 PLATE; ADJ
AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (B) 		8-97038-402-1 01 1 9112-9504 ●
80 PLATE; ADJ
EUROPE/CANARY EQUIPMENT(EK4) SAUDI ARABIA EQUIPMENT(EU2) CERAMIC HEATER<6YX> (B) 		8-97038-402-1 01 1 9505-9603 ●
80 PLATE; ADJ
EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-94367-300-0 01 1 9112-9504 ●
80 PLATE; ADJ
AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (B) 		8-94367-300-0 01 1 9112-9504 ●
80 PLATE; ADJ
HEATER&DEFROSTER(C41) EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4),CERAMIC HEATER<6YX> (A) 		8-94367-300-0 01 1 9505-9512 ●
80 PLATE; ADJ
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) 		8-94438-403-0 01 1 9112-9504 ● ●
80 PLATE; ADJ
EXC. AIR CONDITIONER MANUAL CONT(C60),CERAMIC HEATER<6YX> (C) 		8-94438-403-0 01 1 9505-9512 ●
80 PLATE; ADJ
(B) 		8-97132-049-0 01 1 9601- ●
80 PLATE; ADJ
GENERATOR 55A(S9S) 		8-94436-178-2 01 1 9112-9504 ●
80 PLATE; ADJ
EXC. GENERATOR 55A(S9S) 		8-94460-846-1 01 1 9112-9504 ●
80 PLATE; ADJ 8-97123-738-1 01 1 9505- ●
80 PLATE; ADJ 8-97018-939-2 01 1 9112-9302 ●
80 PLATE; ADJ 8-97087-142-2 01 1 9303- ●
96 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60),SAUDI ARABIA EQUIPMENT(EU2),COOLER WO/HEATER(YL1) (A) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9112-9504 ●
96 BOLT; ADJ PLATE
HEATER&DEFROSTER(C41) EXC. CERAMIC HEATER<6YX> (A) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9112-9504 ●
96 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60),CERAMIC HEATER<6YX> (A) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9505-9603 ●
96 BOLT; ADJ PLATE
HEATER&DEFROSTER(C41) EXC. AIR CONDITIONER MANUAL CONT(C60),CERAMIC HEATER<6YX> (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9604- ●
96 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (B) M8X45 W/LK WASHER 		0-50040-845-0 02 1 9112-9504 ● ●
96 BOLT; ADJ PLATE
(B) M8X45 W/LK WASHER 		0-50040-845-0 02 1 9505-9603 ●
96 BOLT; ADJ PLATE
(B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9604-9607 ●
96 BOLT; ADJ PLATE
EXC. CERAMIC HEATER<6YX> (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9608- ●
96 BOLT; ADJ PLATE
M8X18 W/LK WASHER 		0-50040-818-0 01 1 9505-9505 ●
96 BOLT; ADJ PLATE
M8X30 W/LK WASHER 		0-50040-830-0 01 1 9506- ●
96 BOLT; ADJ PLATE
M6X75 FLANGE 		8-97028-681-0 01 1 9112- ●
96 BOLT; ADJ PLATE
M8X70 FLANGE 		0-28080-870-0 02 1 9112-9208 ●
96 BOLT; ADJ PLATE
M8X70 W/LK WASHER 		0-50040-870-0 02 1 9209-9302 ●
96 BOLT; ADJ PLATE
M8X70 FLANGE 		0-28080-870-0 02 1 9303- ●
110 SCREW; PULLEY
M8X20 L=32 		9-04110-820-0 04 1 9112- ●
230 FAN; COOLING
SAUDI ARABIA EQUIPMENT(EU2) OD=450 8-BLADE 		8-97049-499-0 01 1 9112-9504 ●
230 FAN; COOLING
OD=450 8-BLADE 		8-97049-499-0 01 1 9112-9504 ●
230 FAN; COOLING
SAUDI ARABIA EQUIPMENT(EU2) OD=450 8-BLADE 		8-97049-499-0 01 1 9505- ●
230 FAN; COOLING
EXC. SAUDI ARABIA EQUIPMENT(EU2) OD=410 7-BLADE 		8-94117-866-0 01 1 9112-9504 ●
230 FAN; COOLING
EXC. SAUDI ARABIA EQUIPMENT(EU2) OD=410 7-BLADE 		8-94117-866-0 01 1 9505- ●
230 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94310-517-0 01 1 9112-9504 ●
230 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60) 		8-94310-517-0 01 1 9505- ●
230 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94311-255-0 01 1 9112-9504 ●
230 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-255-0 01 1 9505- ●

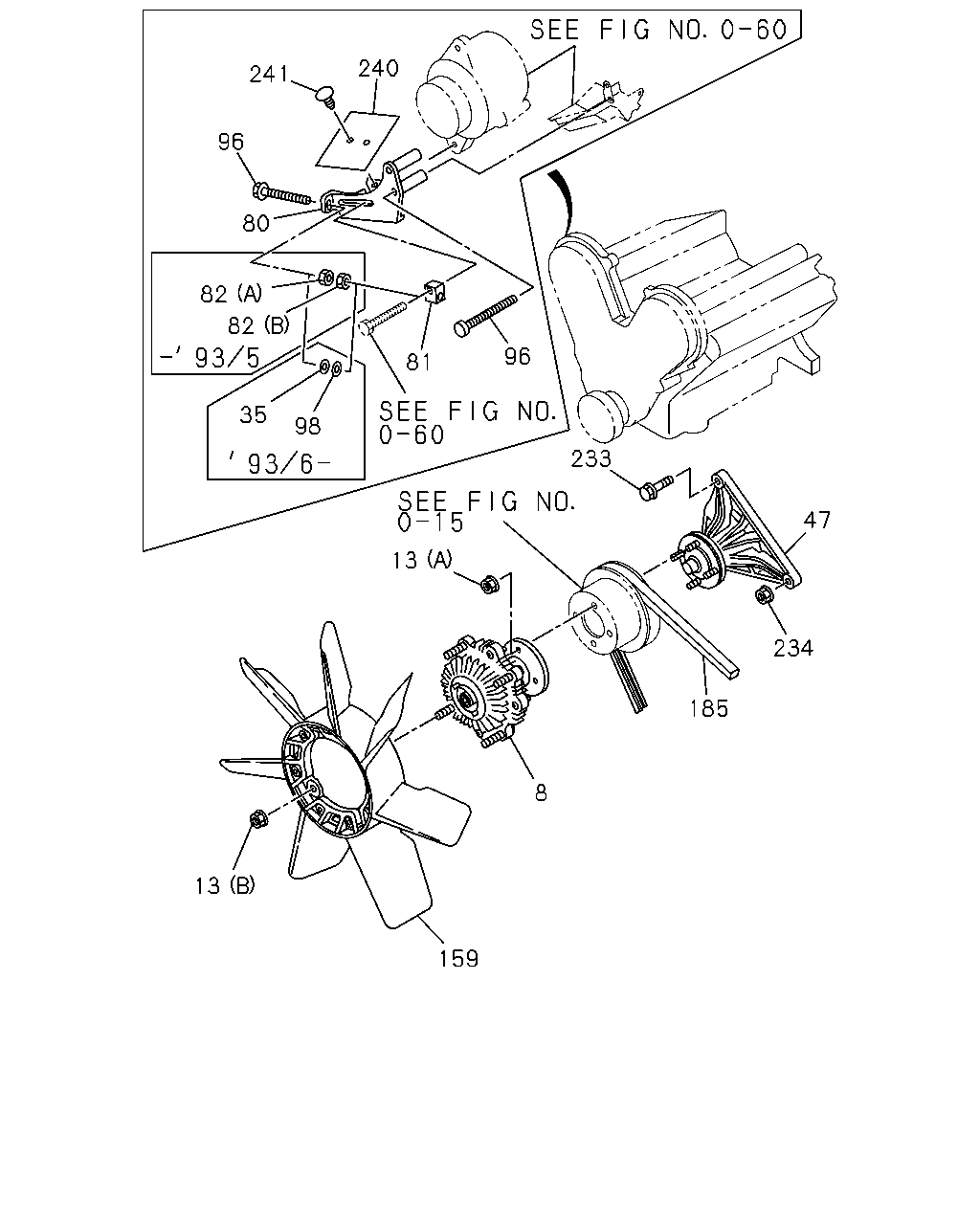

çizim 68477
240 241 96 80 82 82 96 81 35 98 233 47 13 234 185 8 13 159
BalonParca AdiParca NoAdetTipApplied Date A B C D
8 CLUTCH; COOLING FAN
SAUDI ARABIA EQUIPMENT(EU2) 		8-97039-034-0 01 1 9112-9504 ●
8 CLUTCH; COOLING FAN 8-97039-034-0 01 1 9112-9504 ●
8 CLUTCH; COOLING FAN
SAUDI ARABIA EQUIPMENT(EU2) 		8-97039-034-0 01 1 9505- ●
8 CLUTCH; COOLING FAN
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94244-409-0 01 1 9112-9504 ●
8 CLUTCH; COOLING FAN
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94244-409-0 01 1 9505- ●
8 CLUTCH; COOLING FAN
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94412-030-0 01 1 9112-9504 ●
8 CLUTCH; COOLING FAN
AIR CONDITIONER MANUAL CONT(C60) 		8-94412-030-0 01 1 9505- ●
8 CLUTCH; COOLING FAN
EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94311-252-0 01 1 9112-9504 ●
8 CLUTCH; COOLING FAN
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-252-0 01 1 9505- ●
8 CLUTCH; COOLING FAN 8-97018-918-1 01 1 9112-9311 ●
8 CLUTCH; COOLING FAN 8-97102-903-0 01 1 9312-9511 ●
8 CLUTCH; COOLING FAN 8-97135-167-0 01 1 9512- ●
13 NUT; COOLING FAN
SAUDI ARABIA EQUIPMENT(EU2) M6 FLANGE 		5-09440-004-0 08 1 9112-9210 ●
13 NUT; COOLING FAN
M6 FLANGE 		5-09440-004-0 08 1 9112-9210 ●
13 NUT; COOLING FAN
M6 FLANGE 		5-09440-004-0 04 1 9112-9504 ● ●
13 NUT; COOLING FAN
M6 FLANGE 		5-09440-004-0 04 1 9505- ●
13 NUT; COOLING FAN
(B) M6 FLANGE 		0-91150-106-0 04 1 9112- ●
13 NUT; COOLING FAN
(A) M8 FLANGE 		0-91150-108-0 04 1 9112- ●
35 WASHER; PL
ID=6.4 		9-09160-506-0 01 1 9306- ●
47 BRACKET; FAN 8-97018-655-0 01 1 9112-9311 ●
47 BRACKET; FAN 8-97108-785-0 01 1 9312- ●
80 PLATE; ADJ
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97038-402-1 01 1 9112-9504 ●
80 PLATE; ADJ
AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (B) 		8-97038-402-1 01 1 9112-9504 ●
80 PLATE; ADJ
EUROPE/CANARY EQUIPMENT(EK4) SAUDI ARABIA EQUIPMENT(EU2) CERAMIC HEATER<6YX> (B) 		8-97038-402-1 01 1 9505-9603 ●
80 PLATE; ADJ
EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-94367-300-0 01 1 9112-9504 ●
80 PLATE; ADJ
AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (B) 		8-94367-300-0 01 1 9112-9504 ●
80 PLATE; ADJ
HEATER&DEFROSTER(C41) EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4),CERAMIC HEATER<6YX> (A) 		8-94367-300-0 01 1 9505-9512 ●
80 PLATE; ADJ
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) 		8-94438-403-0 01 1 9112-9504 ● ●
80 PLATE; ADJ
EXC. AIR CONDITIONER MANUAL CONT(C60),CERAMIC HEATER<6YX> (C) 		8-94438-403-0 01 1 9505-9512 ●
80 PLATE; ADJ
(B) 		8-97132-049-0 01 1 9601- ●
80 PLATE; ADJ
GENERATOR 55A(S9S) 		8-94436-178-2 01 1 9112-9504 ●
80 PLATE; ADJ
EXC. GENERATOR 55A(S9S) 		8-94460-846-1 01 1 9112-9504 ●
80 PLATE; ADJ 8-97123-738-1 01 1 9505- ●
80 PLATE; ADJ 8-97018-939-2 01 1 9112-9302 ●
80 PLATE; ADJ 8-97087-142-2 01 1 9303- ●
81 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94453-774-0 01 1 9112-9504 ● ●
81 PIECE; SLIDING 8-94453-774-0 01 1 9505-9603 ●
81 PIECE; SLIDING 8-97031-664-0 01 1 9112- ●
82 NUT; ADJ PLATE
(A) M6 		9-09110-406-0 01 1 9112-9305 ●
82 NUT; ADJ PLATE
(B) M6 		9-09111-406-0 01 1 9112-9305 ●
96 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60),SAUDI ARABIA EQUIPMENT(EU2),COOLER WO/HEATER(YL1) (A) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9112-9504 ●
96 BOLT; ADJ PLATE
HEATER&DEFROSTER(C41) EXC. CERAMIC HEATER<6YX> (A) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9112-9504 ●
96 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60),CERAMIC HEATER<6YX> (A) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9505-9603 ●
96 BOLT; ADJ PLATE
HEATER&DEFROSTER(C41) EXC. AIR CONDITIONER MANUAL CONT(C60),CERAMIC HEATER<6YX> (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9604- ●
96 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (B) M8X45 W/LK WASHER 		0-50040-845-0 02 1 9112-9504 ● ●
96 BOLT; ADJ PLATE
(B) M8X45 W/LK WASHER 		0-50040-845-0 02 1 9505-9603 ●
96 BOLT; ADJ PLATE
(B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9604-9607 ●
96 BOLT; ADJ PLATE
EXC. CERAMIC HEATER<6YX> (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9608- ●
96 BOLT; ADJ PLATE
M8X18 W/LK WASHER 		0-50040-818-0 01 1 9505-9505 ●
96 BOLT; ADJ PLATE
M8X30 W/LK WASHER 		0-50040-830-0 01 1 9506- ●
96 BOLT; ADJ PLATE
M6X75 FLANGE 		8-97028-681-0 01 1 9112- ●
96 BOLT; ADJ PLATE
M8X70 FLANGE 		0-28080-870-0 02 1 9112-9208 ●
96 BOLT; ADJ PLATE
M8X70 W/LK WASHER 		0-50040-870-0 02 1 9209-9302 ●
96 BOLT; ADJ PLATE
M8X70 FLANGE 		0-28080-870-0 02 1 9303- ●
98 RETAINER; ADJ PLATE 8-97101-664-0 01 1 9306- ●
159 BLADE; COOLING FAN
OD=470 7-BLADE 		8-97018-917-0 01 1 9112- ●
185 BELT; GEN DRIVE
L=965 BANDO 		8-94382-106-0 01 1 9112- ●
233 BOLT; FAN BRKT
M8X90 FLANGE 		0-28080-890-0 01 1 9112- ●
234 NUT; FAN BRKT
M8 FLANGE 		0-91150-108-0 02 1 9112- ●
240 COVER; MUD,GEN
100X160 T=1.5 BLACK 		8-97089-940-0 01 1 9303- ●
241 RIVET; COVER
D5.8 SCREW & GROMMET NYLON 		8-94242-150-0 02 1 9303-9303 ●
241 RIVET; COVER
DARK GRAY 		8-97804-484-0 02 1 9304- ●

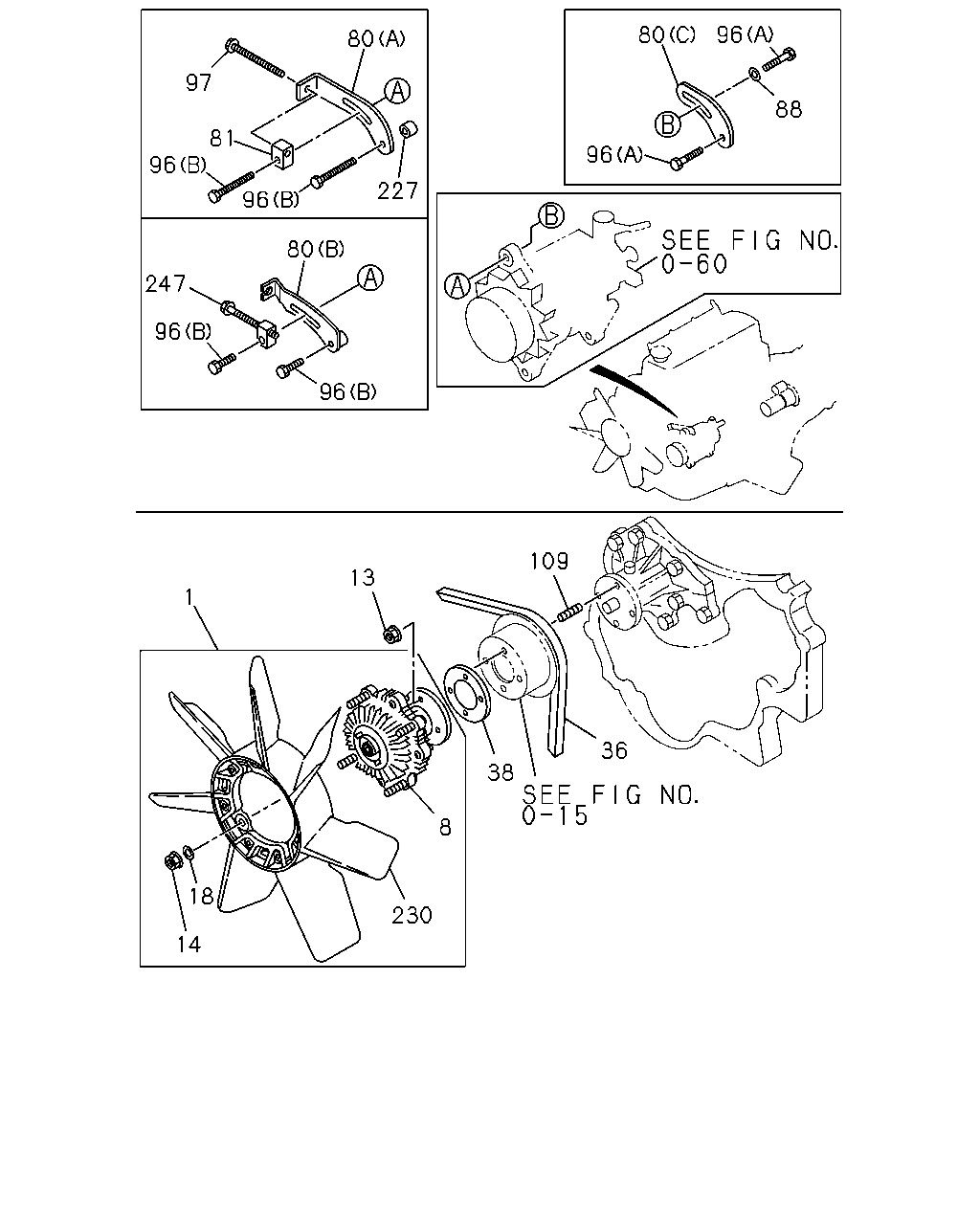

çizim 68581
96 80 80 97 88 81 96 96 227 96 80 247 96 96 109 13 1 36 38 8 18 230 14
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 FAN; COOLING
EXC. SAUDI ARABIA EQUIPMENT(EU2) OD=410 		8-94103-469-0 01 1 9112-9504 ●
1 FAN; COOLING
EXC. SAUDI ARABIA EQUIPMENT(EU2) OD=410 		8-94103-469-0 01 1 9505- ●
1 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) OD=410 		8-94454-187-0 01 1 9112-9504 ●
1 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60) OD=410 		8-94454-187-0 01 1 9505- ●
1 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) OD=410 		8-94436-150-0 01 1 9112-9504 ●
1 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60) OD=410 		8-94436-150-0 01 1 9505- ●
8 CLUTCH; COOLING FAN
SAUDI ARABIA EQUIPMENT(EU2) 		8-97039-034-0 01 1 9112-9504 ●
8 CLUTCH; COOLING FAN 8-97039-034-0 01 1 9112-9504 ●
8 CLUTCH; COOLING FAN
SAUDI ARABIA EQUIPMENT(EU2) 		8-97039-034-0 01 1 9505- ●
8 CLUTCH; COOLING FAN
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94244-409-0 01 1 9112-9504 ●
8 CLUTCH; COOLING FAN
EXC. SAUDI ARABIA EQUIPMENT(EU2) 		8-94244-409-0 01 1 9505- ●
8 CLUTCH; COOLING FAN
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94412-030-0 01 1 9112-9504 ●
8 CLUTCH; COOLING FAN
AIR CONDITIONER MANUAL CONT(C60) 		8-94412-030-0 01 1 9505- ●
8 CLUTCH; COOLING FAN
EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94311-252-0 01 1 9112-9504 ●
8 CLUTCH; COOLING FAN
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-252-0 01 1 9505- ●
8 CLUTCH; COOLING FAN 8-97018-918-1 01 1 9112-9311 ●
8 CLUTCH; COOLING FAN 8-97102-903-0 01 1 9312-9511 ●
8 CLUTCH; COOLING FAN 8-97135-167-0 01 1 9512- ●
13 NUT; COOLING FAN
SAUDI ARABIA EQUIPMENT(EU2) M6 FLANGE 		5-09440-004-0 08 1 9112-9210 ●
13 NUT; COOLING FAN
M6 FLANGE 		5-09440-004-0 08 1 9112-9210 ●
13 NUT; COOLING FAN
M6 FLANGE 		5-09440-004-0 04 1 9112-9504 ● ●
13 NUT; COOLING FAN
M6 FLANGE 		5-09440-004-0 04 1 9505- ●
13 NUT; COOLING FAN
(B) M6 FLANGE 		0-91150-106-0 04 1 9112- ●
13 NUT; COOLING FAN
(A) M8 FLANGE 		0-91150-108-0 04 1 9112- ●
14 NUT; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2) M6 		9-09110-506-0 04 1 9112-9504 ●
14 NUT; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6 		9-09110-506-0 04 1 9112-9504 ●
14 NUT; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER<K51> M6 		9-09110-506-0 04 1 9505- ●
14 NUT; FAN TO CLU
M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) M6 		9-09110-506-0 04 1 9505- ●
14 NUT; FAN TO CLU
EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94311-253-0 04 1 9112-9504 ●
14 NUT; FAN TO CLU
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-253-0 04 1 9505- ●
18 WASHER; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2) ID=6.1 		9-09150-506-0 04 1 9112-9504 ●
18 WASHER; FAN TO CLU
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=6.1 		9-09150-506-0 04 1 9112-9504 ●
18 WASHER; FAN TO CLU
EXC. SAUDI ARABIA EQUIPMENT(EU2), TURBOCHARGER<K51> ID=6.1 		9-09150-506-0 04 1 9505- ●
18 WASHER; FAN TO CLU
M/T MUA 5 SPEED(RMN) AIR CONDITIONER MANUAL CONT(C60) ID=6.1 		9-09150-506-0 04 1 9505- ●
18 WASHER; FAN TO CLU
EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94311-254-0 04 1 9112-9504 ●
18 WASHER; FAN TO CLU
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-254-0 04 1 9505- ●
36 BELT; COOLING FAN
SAUDI ARABIA EQUIPMENT(EU2) 		8-97062-913-1 01 1 9112-9504 ●
36 BELT; COOLING FAN
EUROPE/CANARY EQUIPMENT(EK4) SAUDI ARABIA EQUIPMENT(EU2) CERAMIC HEATER<6YX> 		8-97062-913-1 01 1 9505-9711 ●
36 BELT; COOLING FAN
EUROPE/CANARY EQUIPMENT(EK4) SAUDI ARABIA EQUIPMENT(EU2) CERAMIC HEATER<6YX> L=1031 MITSUBOSHI 		8-97188-281-0 01 1 9712- ●
36 BELT; COOLING FAN
EXC. SAUDI ARABIA EQUIPMENT(EU2) L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9112-9504 ●
36 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9112-9504 ●
36 BELT; COOLING FAN
EXC. CERAMIC HEATER<6YX> L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9505-9505 ●
36 BELT; COOLING FAN
EXC. SAUDI ARABIA EQUIPMENT(EU2),CERAMIC HEATER<6YX> L=1041 MITSUBOSHI 		8-97043-551-0 01 1 9506-9701 ●
36 BELT; COOLING FAN
EXC. SAUDI ARABIA EQUIPMENT(EU2),CERAMIC HEATER<6YX> L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9702- ●
36 BELT; COOLING FAN 8-94472-378-0 01 1 9112-9304 ●
36 BELT; COOLING FAN
L=875 		8-97100-606-0 01 1 9305- ●
38 SPACER; FAN 8-94441-848-0 01 1 9112-9504 ● ●
38 SPACER; FAN 8-94441-848-0 01 1 9505- ●
80 PLATE; ADJ
SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-97038-402-1 01 1 9112-9504 ●
80 PLATE; ADJ
AIR CONDITIONER MANUAL CONT(C60) CERAMIC HEATER<6YX> (B) 		8-97038-402-1 01 1 9112-9504 ●
80 PLATE; ADJ
EUROPE/CANARY EQUIPMENT(EK4) SAUDI ARABIA EQUIPMENT(EU2) CERAMIC HEATER<6YX> (B) 		8-97038-402-1 01 1 9505-9603 ●
80 PLATE; ADJ
EXC. SAUDI ARABIA EQUIPMENT(EU2) (B) 		8-94367-300-0 01 1 9112-9504 ●
80 PLATE; ADJ
AIR CONDITIONER MANUAL CONT(C60) EXC. CERAMIC HEATER<6YX> (B) 		8-94367-300-0 01 1 9112-9504 ●
80 PLATE; ADJ
HEATER&DEFROSTER(C41) EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4),CERAMIC HEATER<6YX> (A) 		8-94367-300-0 01 1 9505-9512 ●
80 PLATE; ADJ
EXC. AIR CONDITIONER MANUAL CONT(C60) (C) 		8-94438-403-0 01 1 9112-9504 ● ●
80 PLATE; ADJ
EXC. AIR CONDITIONER MANUAL CONT(C60),CERAMIC HEATER<6YX> (C) 		8-94438-403-0 01 1 9505-9512 ●
80 PLATE; ADJ
(B) 		8-97132-049-0 01 1 9601- ●
80 PLATE; ADJ
GENERATOR 55A(S9S) 		8-94436-178-2 01 1 9112-9504 ●
80 PLATE; ADJ
EXC. GENERATOR 55A(S9S) 		8-94460-846-1 01 1 9112-9504 ●
80 PLATE; ADJ 8-97123-738-1 01 1 9505- ●
80 PLATE; ADJ 8-97018-939-2 01 1 9112-9302 ●
80 PLATE; ADJ 8-97087-142-2 01 1 9303- ●
81 PIECE; SLIDING
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94453-774-0 01 1 9112-9504 ● ●
81 PIECE; SLIDING 8-94453-774-0 01 1 9505-9603 ●
81 PIECE; SLIDING 8-97031-664-0 01 1 9112- ●
88 WASHER; PL,ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60),SAUDI ARABIA EQUIPMENT(EU2),COOLER WO/HEATER(YL1) ID=8.4 OD=22 		9-09164-708-0 01 1 9112-9504 ●
88 WASHER; PL,ADJ PLATE
HEATER&DEFROSTER(C41) EXC. CERAMIC HEATER<6YX> ID=8.4 OD=22 		9-09164-708-0 01 1 9112-9504 ●
88 WASHER; PL,ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60),CERAMIC HEATER<6YX> ID=8.4 OD=22 		9-09164-708-0 01 1 9505-9603 ●
88 WASHER; PL,ADJ PLATE
HEATER&DEFROSTER(C41) EXC. AIR CONDITIONER MANUAL CONT(C60),CERAMIC HEATER<6YX> ID=8.4 OD=22 		9-09164-708-0 01 1 9604- ●
96 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60),SAUDI ARABIA EQUIPMENT(EU2),COOLER WO/HEATER(YL1) (A) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9112-9504 ●
96 BOLT; ADJ PLATE
HEATER&DEFROSTER(C41) EXC. CERAMIC HEATER<6YX> (A) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9112-9504 ●
96 BOLT; ADJ PLATE
EXC. AIR CONDITIONER MANUAL CONT(C60),CERAMIC HEATER<6YX> (A) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9505-9603 ●
96 BOLT; ADJ PLATE
HEATER&DEFROSTER(C41) EXC. AIR CONDITIONER MANUAL CONT(C60),CERAMIC HEATER<6YX> (A) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9604- ●
96 BOLT; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60) (B) M8X45 W/LK WASHER 		0-50040-845-0 02 1 9112-9504 ● ●
96 BOLT; ADJ PLATE
(B) M8X45 W/LK WASHER 		0-50040-845-0 02 1 9505-9603 ●
96 BOLT; ADJ PLATE
(B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9604-9607 ●
96 BOLT; ADJ PLATE
EXC. CERAMIC HEATER<6YX> (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9608- ●
96 BOLT; ADJ PLATE
M8X18 W/LK WASHER 		0-50040-818-0 01 1 9505-9505 ●
96 BOLT; ADJ PLATE
M8X30 W/LK WASHER 		0-50040-830-0 01 1 9506- ●
96 BOLT; ADJ PLATE
M6X75 FLANGE 		8-97028-681-0 01 1 9112- ●
96 BOLT; ADJ PLATE
M8X70 FLANGE 		0-28080-870-0 02 1 9112-9208 ●
96 BOLT; ADJ PLATE
M8X70 W/LK WASHER 		0-50040-870-0 02 1 9209-9302 ●
96 BOLT; ADJ PLATE
M8X70 FLANGE 		0-28080-870-0 02 1 9303- ●
97 SCREW; ADJ PLATE
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94126-866-0 01 1 9112-9504 ● ●
97 SCREW; ADJ PLATE 8-94126-866-0 01 1 9505-9603 ●
109 STUD; FAN CLU
M6X25 L=33 		8-94340-628-0 04 1 9112-9504 ● ●
109 STUD; FAN CLU
M6X25 L=33 		8-94340-628-0 04 1 9505- ●
227 PIECE; DIST
AIR CONDITIONER MANUAL CONT(C60) 		8-94367-309-0 01 1 9112-9504 ● ●
227 PIECE; DIST
HEATER&DEFROSTER(C41) EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4),CERAMIC HEATER<6YX> 		8-94367-309-0 01 1 9505-9512 ●
230 FAN; COOLING
SAUDI ARABIA EQUIPMENT(EU2) OD=450 8-BLADE 		8-97049-499-0 01 1 9112-9504 ●
230 FAN; COOLING
OD=450 8-BLADE 		8-97049-499-0 01 1 9112-9504 ●
230 FAN; COOLING
SAUDI ARABIA EQUIPMENT(EU2) OD=450 8-BLADE 		8-97049-499-0 01 1 9505- ●
230 FAN; COOLING
EXC. SAUDI ARABIA EQUIPMENT(EU2) OD=410 7-BLADE 		8-94117-866-0 01 1 9112-9504 ●
230 FAN; COOLING
EXC. SAUDI ARABIA EQUIPMENT(EU2) OD=410 7-BLADE 		8-94117-866-0 01 1 9505- ●
230 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94310-517-0 01 1 9112-9504 ●
230 FAN; COOLING
AIR CONDITIONER MANUAL CONT(C60) 		8-94310-517-0 01 1 9505- ●
230 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 		8-94311-255-0 01 1 9112-9504 ●
230 FAN; COOLING
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94311-255-0 01 1 9505- ●
247 SLIDER
HEATER&DEFROSTER(C41) EXC. AIR CONDITIONER MANUAL CONT(C60), EUROPE/CANARY EQUIPMENT(EK4),CERAMIC HEATER<6YX> 		8-97132-048-0 01 1 9601-9603 ●
247 SLIDER
AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> EXC. CERAMIC HEATER<6YX> 		8-97132-048-0 01 1 9604- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
