Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#33138) — 222 parça

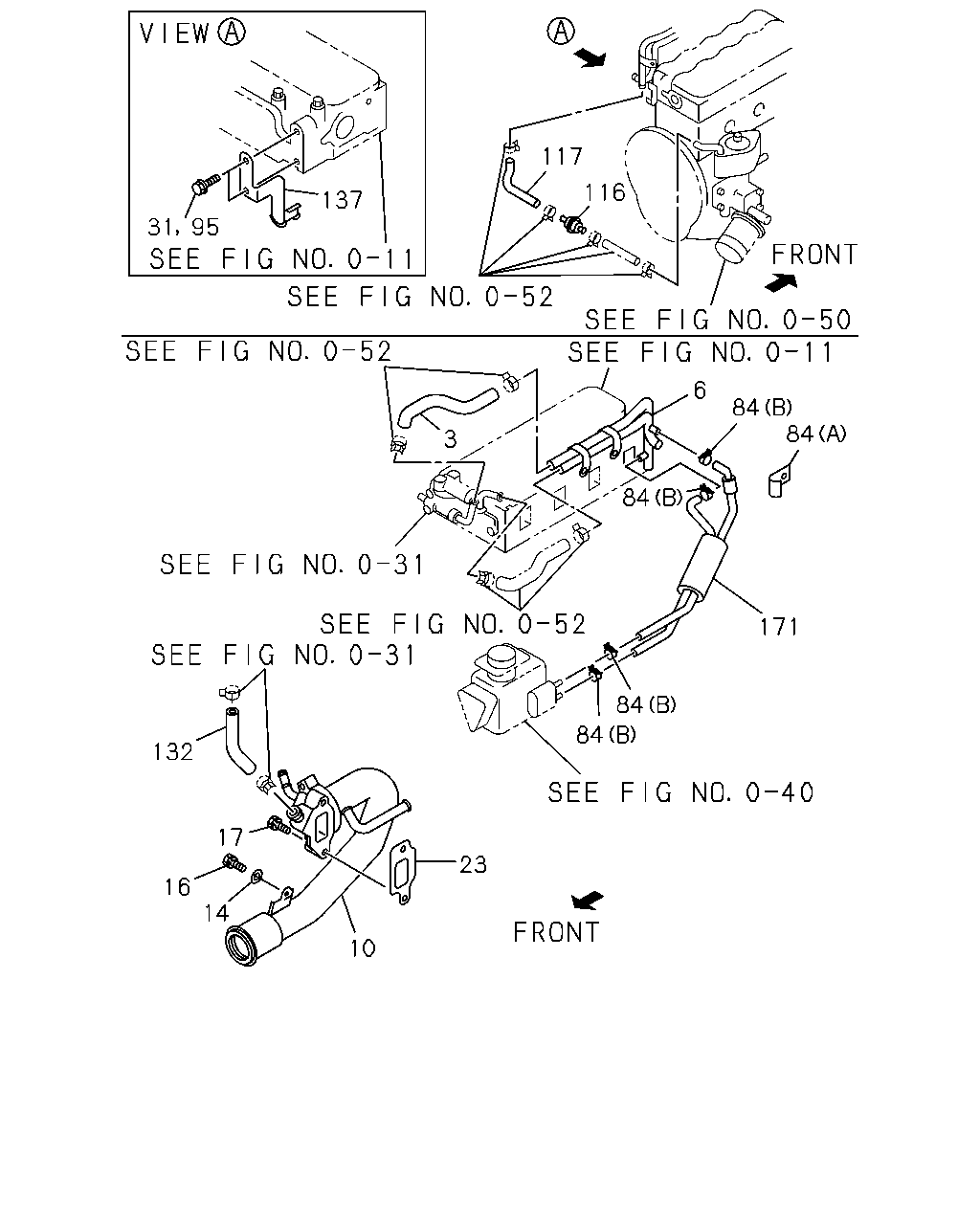

117 116 137 6 84 84 3 84 171 84 84 132 17 23 16 14 10 31 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	HOSE; WATER,OIL COOLER	8-97038-809-1	01	1	9112-9504	●
3	HOSE; WATER,OIL COOLER	8-97043-720-1	01	1	9112-9504		●
3	HOSE; WATER,OIL COOLER TURBOCHARGER<K51>	8-97043-720-1	01	1	9505-		●
3	HOSE; WATER,OIL COOLER EXC. TURBOCHARGER<K51> (A)	8-97110-425-0	01	1	9505-		●
3	HOSE; WATER,OIL COOLER EXC. TURBOCHARGER<K51> (B)	8-97110-426-0	01	1	9505-		●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97031-438-0	01	1	9112-9209			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (A) 920907-	8-97079-997-0	01	1	9209-9211			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97037-387-1	01	1	9112-9209			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (B) 920907-	8-97079-995-0	01	1	9209-9505			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (B)	8-97079-995-0	01	1	9506-9506			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B)	8-97119-654-0	01	1	9507-9611			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97119-654-0	01	1	9612-			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (A)	8-97079-997-0	01	1	9212-9505			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (A)	8-97079-997-0	01	1	9506-9506			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A)	8-97079-997-0	01	1	9507-9611			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A)	8-97079-997-0	01	1	9612-			●
6	CONNECTOR; HTR & COOLER HOSE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97038-114-1	01	1	9112-9504	●
6	CONNECTOR; HTR & COOLER HOSE EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97038-113-1	01	1	9112-9504	●
6	CONNECTOR; HTR & COOLER HOSE	8-97049-193-4	01	1	9112-9504		●
6	CONNECTOR; HTR & COOLER HOSE TURBOCHARGER<K51>	8-97049-193-4	01	1	9505-		●
6	CONNECTOR; HTR & COOLER HOSE EXC. TURBOCHARGER<K51>	8-97110-511-2	01	1	9505-		●
10	PIPE; SUCTION	8-94340-786-3	01	1	9112-9504	●
10	PIPE; SUCTION	8-97041-039-3	01	1	9112-		●
14	WASHER; PL,INL PIPE TO BRKT ID=8.4 OD=18	9-09160-608-0	01	1	9112-9211	●	●
14	WASHER; PL,INL PIPE TO BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	9212-9504	●	●
14	WASHER; PL,INL PIPE TO BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	9505-		●
16	BOLT; INL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9112-9504	●	●
16	BOLT; INL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9505-		●
17	BOLT; SUCTION PIPE M8X22 W/LK WASHER	0-50040-822-0	01	1	9112-9504	●	●
17	BOLT; SUCTION PIPE M8X22 W/LK WASHER	0-50040-822-0	01	1	9505-		●
17	BOLT; SUCTION PIPE M8X45 W/LK WASHER	0-50040-845-0	01	1	9112-9504	●	●
17	BOLT; SUCTION PIPE M8X45 W/LK WASHER	0-50040-845-0	01	1	9505-		●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9112-9504	●	●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9505-		●
31	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=12	5-09700-331-0	01	1	9112-9504	●
31	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> ID=12	5-09700-331-0	01	1	9505-9506		●
31	BOLT; CLIP EXC. TURBOCHARGER<K51> ID=12	5-09700-331-0	01	1	9507-		●
31	BOLT; CLIP TURBOCHARGER<K51> M8X12 FLANGE	0-28080-812-0	02	1	9608-		●
84	CLIP; HOSE,W/CSD (B) ID=15.5	8-94221-519-0	04	1	9112-		●
84	CLIP; HOSE,W/CSD TURBOCHARGER<K51> (A) ID=12	5-09700-331-0	01	1	9112-		●
95	BOLT; CLIP M8X12	0-28010-812-0	02	1	9112-9204	●
95	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	02	1	9205-9404	●
95	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	01	1	9405-9504	●
95	BOLT; CLIP EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> M8X12 FLANGE	0-28080-812-0	01	1	9505-		●
95	BOLT; CLIP M8X14 W/LK WASHER	0-50040-814-0	02	1	9112-9504		●
95	BOLT; CLIP TURBOCHARGER<K51> M8X14 W/LK WASHER	0-50040-814-0	02	1	9505-9507		●
95	BOLT; CLIP TURBOCHARGER<K51> M8X12 FLANGE	0-28080-812-0	02	1	9508-9607		●
116	VALVE ASM; THERMO,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4)	5-21770-001-1	01	1	9112-9410		●
117	HOSE; RUBBER,OIL COOLER TO THERMO VLV EUROPE/CANARY EQUIPMENT(EK4)	8-97039-420-0	01	1	9112-9410		●
132	HOSE; WATER PIPE	8-94382-247-1	01	1	9112-9504	●	●
132	HOSE; WATER PIPE	8-94382-247-1	01	1	9505-		●
137	CLIP; HOSE,OIL COOLER	8-97039-302-0	01	1	9112-9504		●
137	CLIP; HOSE,OIL COOLER TURBOCHARGER<K51>	8-97039-302-0	01	1	9505-9505		●
171	HOSE; RUBBER,WAX CSD EUROPE/CANARY EQUIPMENT(EK4)	8-97048-903-3	01	1	9112-		●
171	HOSE; RUBBER,WAX CSD EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97049-001-2	01	1	9112-		●
171	HOSE; RUBBER,WAX CSD HEATER&DEFROSTER(C41)	8-97110-423-0	01	1	9505-		●

75 11 72 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
11	PIPE; INL,WATER PUMP	8-94474-078-3	01	1	9112-	●
69	NUT; WATER PIPE M6 FLANGE	5-09440-004-0	01	1	9112-	●
72	BOLT; WATER PIPE M8X14 W/LK WASHER	0-50040-814-0	02	1	9112-	●
75	GASKET; INL PIPE TO WATER PUMP	8-94235-013-0	01	1	9112-	●

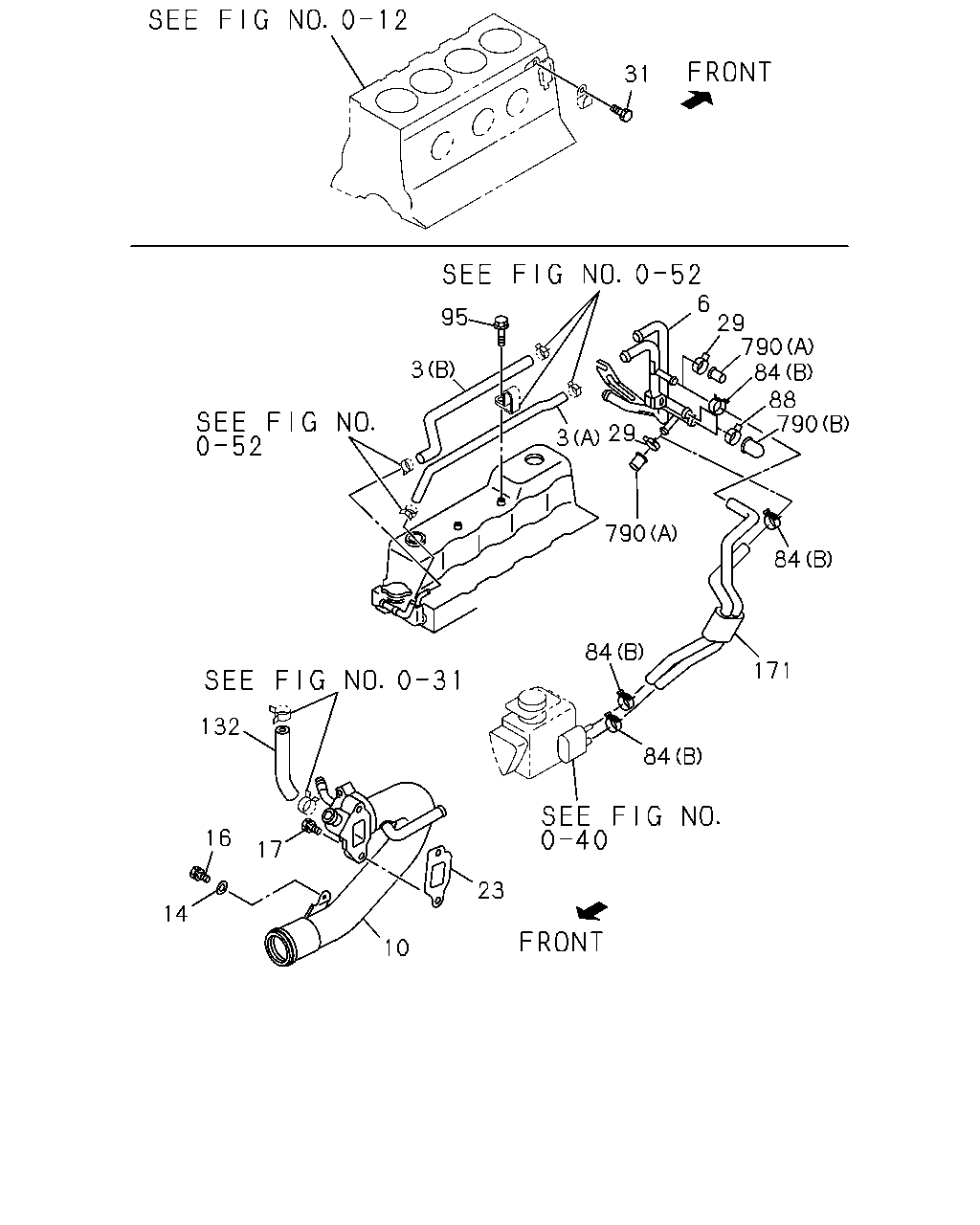

31 6 29 790 84 88 790 95 3 3 29 790 84 84 171 132 84 16 17 23 14 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	HOSE; WATER,OIL COOLER	8-97038-809-1	01	1	9112-9504	●
3	HOSE; WATER,OIL COOLER	8-97043-720-1	01	1	9112-9504		●
3	HOSE; WATER,OIL COOLER TURBOCHARGER<K51>	8-97043-720-1	01	1	9505-		●
3	HOSE; WATER,OIL COOLER EXC. TURBOCHARGER<K51> (A)	8-97110-425-0	01	1	9505-		●
3	HOSE; WATER,OIL COOLER EXC. TURBOCHARGER<K51> (B)	8-97110-426-0	01	1	9505-		●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97031-438-0	01	1	9112-9209			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (A) 920907-	8-97079-997-0	01	1	9209-9211			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97037-387-1	01	1	9112-9209			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (B) 920907-	8-97079-995-0	01	1	9209-9505			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (B)	8-97079-995-0	01	1	9506-9506			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B)	8-97119-654-0	01	1	9507-9611			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97119-654-0	01	1	9612-			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (A)	8-97079-997-0	01	1	9212-9505			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (A)	8-97079-997-0	01	1	9506-9506			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A)	8-97079-997-0	01	1	9507-9611			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A)	8-97079-997-0	01	1	9612-			●
6	CONNECTOR; HTR & COOLER HOSE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97038-114-1	01	1	9112-9504	●
6	CONNECTOR; HTR & COOLER HOSE EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97038-113-1	01	1	9112-9504	●
6	CONNECTOR; HTR & COOLER HOSE	8-97049-193-4	01	1	9112-9504		●
6	CONNECTOR; HTR & COOLER HOSE TURBOCHARGER<K51>	8-97049-193-4	01	1	9505-		●
6	CONNECTOR; HTR & COOLER HOSE EXC. TURBOCHARGER<K51>	8-97110-511-2	01	1	9505-		●
10	PIPE; SUCTION	8-94340-786-3	01	1	9112-9504	●
10	PIPE; SUCTION	8-97041-039-3	01	1	9112-		●
14	WASHER; PL,INL PIPE TO BRKT ID=8.4 OD=18	9-09160-608-0	01	1	9112-9211	●	●
14	WASHER; PL,INL PIPE TO BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	9212-9504	●	●
14	WASHER; PL,INL PIPE TO BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	9505-		●
16	BOLT; INL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9112-9504	●	●
16	BOLT; INL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9505-		●
17	BOLT; SUCTION PIPE M8X22 W/LK WASHER	0-50040-822-0	01	1	9112-9504	●	●
17	BOLT; SUCTION PIPE M8X22 W/LK WASHER	0-50040-822-0	01	1	9505-		●
17	BOLT; SUCTION PIPE M8X45 W/LK WASHER	0-50040-845-0	01	1	9112-9504	●	●
17	BOLT; SUCTION PIPE M8X45 W/LK WASHER	0-50040-845-0	01	1	9505-		●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9112-9504	●	●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9505-		●
29	CLIP; PIPE EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR<EE2>, EUROPE/CANARY EQUIPMENT(EK4),TURBOCHARGER<K51> ID=14.8	8-94448-727-0	02	1	9505-		●
31	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=12	5-09700-331-0	01	1	9112-9504	●
31	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> ID=12	5-09700-331-0	01	1	9505-9506		●
31	BOLT; CLIP EXC. TURBOCHARGER<K51> ID=12	5-09700-331-0	01	1	9507-		●
31	BOLT; CLIP TURBOCHARGER<K51> M8X12 FLANGE	0-28080-812-0	02	1	9608-		●
84	CLIP; HOSE,W/CSD (B) ID=15.5	8-94221-519-0	04	1	9112-		●
84	CLIP; HOSE,W/CSD TURBOCHARGER<K51> (A) ID=12	5-09700-331-0	01	1	9112-		●
88	CLIP; HOSE,HTR EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> ID=20.8	8-94125-862-0	02	1	9505-		●
95	BOLT; CLIP M8X12	0-28010-812-0	02	1	9112-9204	●
95	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	02	1	9205-9404	●
95	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	01	1	9405-9504	●
95	BOLT; CLIP EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> M8X12 FLANGE	0-28080-812-0	01	1	9505-		●
95	BOLT; CLIP M8X14 W/LK WASHER	0-50040-814-0	02	1	9112-9504		●
95	BOLT; CLIP TURBOCHARGER<K51> M8X14 W/LK WASHER	0-50040-814-0	02	1	9505-9507		●
95	BOLT; CLIP TURBOCHARGER<K51> M8X12 FLANGE	0-28080-812-0	02	1	9508-9607		●
132	HOSE; WATER PIPE	8-94382-247-1	01	1	9112-9504	●	●
132	HOSE; WATER PIPE	8-94382-247-1	01	1	9505-		●
171	HOSE; RUBBER,WAX CSD EUROPE/CANARY EQUIPMENT(EK4)	8-97048-903-3	01	1	9112-		●
171	HOSE; RUBBER,WAX CSD EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97049-001-2	01	1	9112-		●
171	HOSE; RUBBER,WAX CSD HEATER&DEFROSTER(C41)	8-97110-423-0	01	1	9505-		●
790	CAP EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> (B)	8-94414-688-0	02	1	9505-		●
790	CAP EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),HIGH ALTITUDE COMPENSATOR<EE2>, EUROPE/CANARY EQUIPMENT(EK4),TURBOCHARGER<K51> (A)	8-94366-898-1	02	1	9505-		●

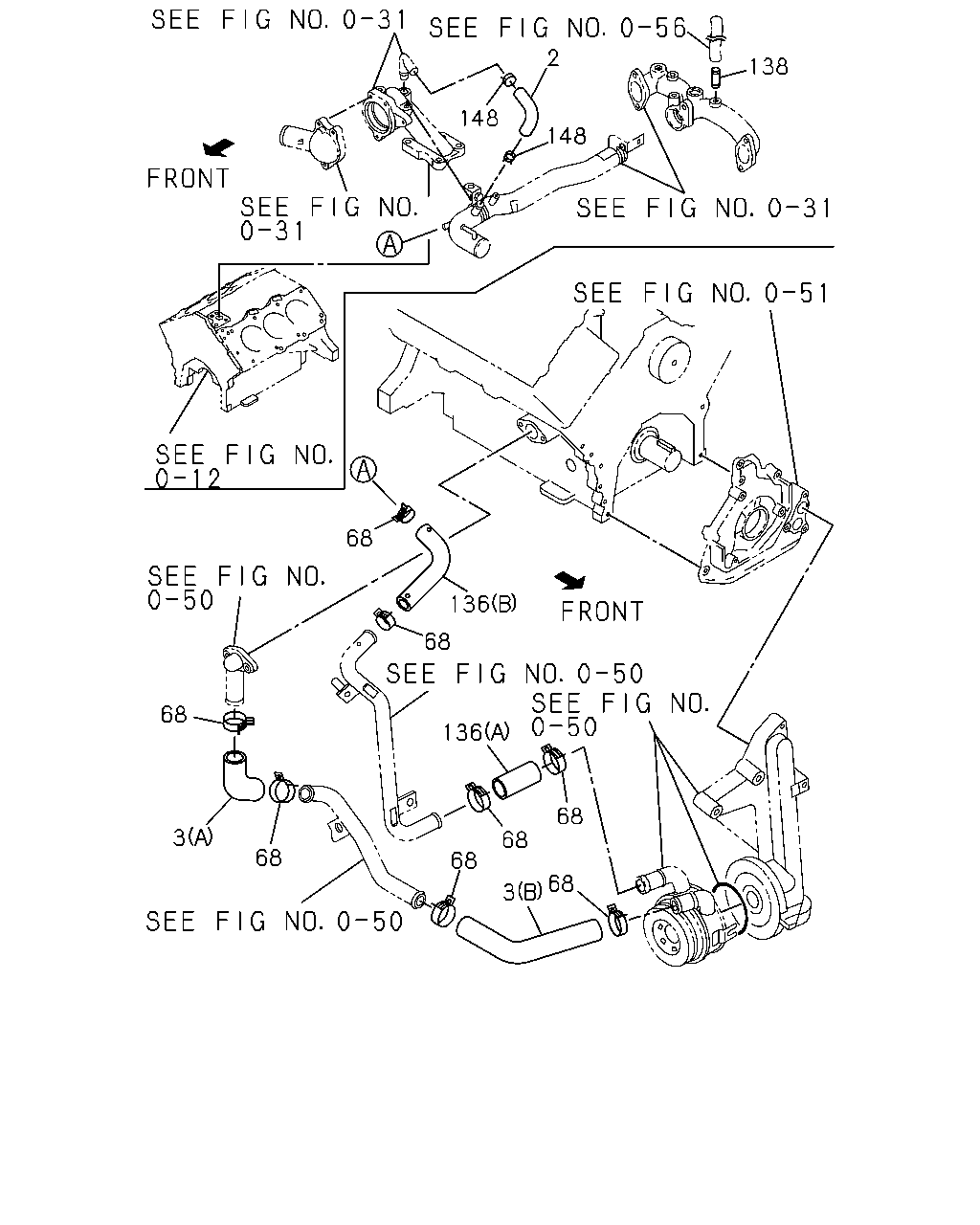

2 138 148 148 68 136 68 68 136 68 3 68 68 68 68 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	HOSE; WATER,BY-PASS	8-94384-326-3	01	1	9112-9309			●
2	HOSE; WATER,BY-PASS	8-97088-139-0	01	1	9310-			●
3	HOSE; WATER,OIL COOLER	8-97038-809-1	01	1	9112-9504	●
3	HOSE; WATER,OIL COOLER	8-97043-720-1	01	1	9112-9504		●
3	HOSE; WATER,OIL COOLER TURBOCHARGER<K51>	8-97043-720-1	01	1	9505-		●
3	HOSE; WATER,OIL COOLER EXC. TURBOCHARGER<K51> (A)	8-97110-425-0	01	1	9505-		●
3	HOSE; WATER,OIL COOLER EXC. TURBOCHARGER<K51> (B)	8-97110-426-0	01	1	9505-		●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97031-438-0	01	1	9112-9209			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (A) 920907-	8-97079-997-0	01	1	9209-9211			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97037-387-1	01	1	9112-9209			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (B) 920907-	8-97079-995-0	01	1	9209-9505			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (B)	8-97079-995-0	01	1	9506-9506			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B)	8-97119-654-0	01	1	9507-9611			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97119-654-0	01	1	9612-			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (A)	8-97079-997-0	01	1	9212-9505			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (A)	8-97079-997-0	01	1	9506-9506			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A)	8-97079-997-0	01	1	9507-9611			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A)	8-97079-997-0	01	1	9612-			●
68	CLIP; WATER HOSE,OIL COOLER CHILE EQUIPMENT(S2G) 920907- ID=22	8-94382-401-0	01	1	9209-9308			●
68	CLIP; WATER HOSE,OIL COOLER CHILE EQUIPMENT(S2G) 920907- ID=22	8-94382-401-0	01	1	9209-9308			●
68	CLIP; WATER HOSE,OIL COOLER SAUDI ARABIA EQUIPMENT(EU2) 920907- ID=22	8-94382-401-0	01	1	9209-9308			●
68	CLIP; WATER HOSE,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G) 920907- ID=22	8-94382-401-0	02	1	9209-9308			●
68	CLIP; WATER HOSE,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) ID=22	8-94382-401-0	01	1	9309-9505			●
68	CLIP; WATER HOSE,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) ID=22	8-94382-401-0	01	1	9309-9505			●
68	CLIP; WATER HOSE,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) ID=22	8-94382-401-0	01	1	9506-9506			●
68	CLIP; WATER HOSE,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=22	8-94382-401-0	01	1	9507-9611			●
68	CLIP; WATER HOSE,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=22	8-94382-401-0	01	1	9612-			●
68	CLIP; WATER HOSE,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) ID=20.8	8-94125-862-0	08	1	9112-9209			●
68	CLIP; WATER HOSE,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) 920907- ID=18.9	8-94478-875-0	06	1	9209-9505			●
68	CLIP; WATER HOSE,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) ID=18.9	8-94478-875-0	06	1	9506-9506			●
68	CLIP; WATER HOSE,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=18.9	8-94478-875-0	06	1	9507-9611			●
68	CLIP; WATER HOSE,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) ID=18.9	8-94478-875-0	06	1	9612-			●
136	HOSE; OIL COOLER,RETURN	8-97038-808-1	01	1	9112-9504	●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (B) L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9112-9209			●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (B)920907-	8-97061-307-2	01	1	9209-9505			●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (B)	8-97061-307-2	01	1	9506-9506			●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B)	8-97061-307-2	01	1	9507-9611			●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B)	8-97061-307-2	01	1	9612-			●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (A)	8-97037-386-0	01	1	9112-9209			●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (A)920907- L=60	8-97079-996-0	01	1	9209-9505			●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (A) L=60	8-97079-996-0	01	1	9506-9506			●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) L=60	8-97079-996-0	01	1	9507-9611			●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) L=60	8-97079-996-0	01	1	9612-			●
138	PIPE; WATER OD=10 L=28	8-94221-275-1	01	1	9112-			●
148	CLIP; BYPASS HOSE ID=21.7	8-94413-822-0	02	1	9112-9401			●
148	CLIP; BYPASS HOSE ID=20.4	8-94121-113-0	02	1	9402-			●

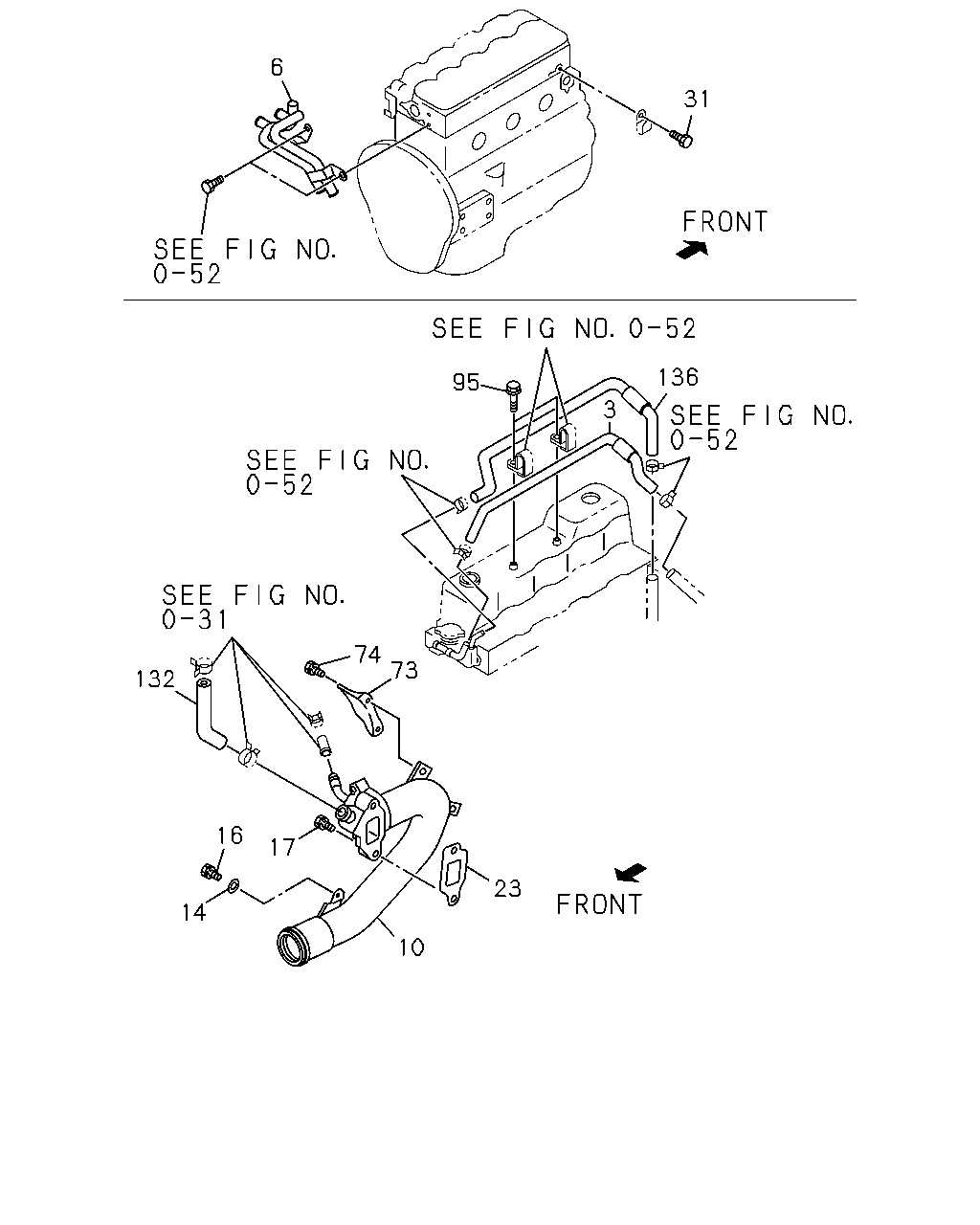

6 31 136 95 3 74 73 132 16 17 23 14 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	HOSE; WATER,OIL COOLER	8-97038-809-1	01	1	9112-9504	●
3	HOSE; WATER,OIL COOLER	8-97043-720-1	01	1	9112-9504		●
3	HOSE; WATER,OIL COOLER TURBOCHARGER<K51>	8-97043-720-1	01	1	9505-		●
3	HOSE; WATER,OIL COOLER EXC. TURBOCHARGER<K51> (A)	8-97110-425-0	01	1	9505-		●
3	HOSE; WATER,OIL COOLER EXC. TURBOCHARGER<K51> (B)	8-97110-426-0	01	1	9505-		●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) (A)	8-97031-438-0	01	1	9112-9209			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (A) 920907-	8-97079-997-0	01	1	9209-9211			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2) (B)	8-97037-387-1	01	1	9112-9209			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (B) 920907-	8-97079-995-0	01	1	9209-9505			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (B)	8-97079-995-0	01	1	9506-9506			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B)	8-97119-654-0	01	1	9507-9611			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97119-654-0	01	1	9612-			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (A)	8-97079-997-0	01	1	9212-9505			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (A)	8-97079-997-0	01	1	9506-9506			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A)	8-97079-997-0	01	1	9507-9611			●
3	HOSE; WATER,OIL COOLER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A)	8-97079-997-0	01	1	9612-			●
6	CONNECTOR; HTR & COOLER HOSE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97038-114-1	01	1	9112-9504	●
6	CONNECTOR; HTR & COOLER HOSE EXC. HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-97038-113-1	01	1	9112-9504	●
6	CONNECTOR; HTR & COOLER HOSE	8-97049-193-4	01	1	9112-9504		●
6	CONNECTOR; HTR & COOLER HOSE TURBOCHARGER<K51>	8-97049-193-4	01	1	9505-		●
6	CONNECTOR; HTR & COOLER HOSE EXC. TURBOCHARGER<K51>	8-97110-511-2	01	1	9505-		●
10	PIPE; SUCTION	8-94340-786-3	01	1	9112-9504	●
10	PIPE; SUCTION	8-97041-039-3	01	1	9112-		●
14	WASHER; PL,INL PIPE TO BRKT ID=8.4 OD=18	9-09160-608-0	01	1	9112-9211	●	●
14	WASHER; PL,INL PIPE TO BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	9212-9504	●	●
14	WASHER; PL,INL PIPE TO BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	9505-		●
16	BOLT; INL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9112-9504	●	●
16	BOLT; INL PIPE M8X20 W/LK WASHER	0-50040-820-0	01	1	9505-		●
17	BOLT; SUCTION PIPE M8X22 W/LK WASHER	0-50040-822-0	01	1	9112-9504	●	●
17	BOLT; SUCTION PIPE M8X22 W/LK WASHER	0-50040-822-0	01	1	9505-		●
17	BOLT; SUCTION PIPE M8X45 W/LK WASHER	0-50040-845-0	01	1	9112-9504	●	●
17	BOLT; SUCTION PIPE M8X45 W/LK WASHER	0-50040-845-0	01	1	9505-		●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9112-9504	●	●
23	GASKET; SUCTION PIPE TO BLOCK ALSO INCLUDED IN GASKET SET(ENGINE).	8-94365-676-2	01	1	9505-		●
31	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=12	5-09700-331-0	01	1	9112-9504	●
31	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> ID=12	5-09700-331-0	01	1	9505-9506		●
31	BOLT; CLIP EXC. TURBOCHARGER<K51> ID=12	5-09700-331-0	01	1	9507-		●
31	BOLT; CLIP TURBOCHARGER<K51> M8X12 FLANGE	0-28080-812-0	02	1	9608-		●
73	PROTECTOR; HEAT,WATER PIPE	8-94470-560-1	01	1	9112-9504	●
74	BOLT; HEAT PROTECTOR FIX M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9112-9504	●
95	BOLT; CLIP M8X12	0-28010-812-0	02	1	9112-9204	●
95	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	02	1	9205-9404	●
95	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	01	1	9405-9504	●
95	BOLT; CLIP EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> M8X12 FLANGE	0-28080-812-0	01	1	9505-		●
95	BOLT; CLIP M8X14 W/LK WASHER	0-50040-814-0	02	1	9112-9504		●
95	BOLT; CLIP TURBOCHARGER<K51> M8X14 W/LK WASHER	0-50040-814-0	02	1	9505-9507		●
95	BOLT; CLIP TURBOCHARGER<K51> M8X12 FLANGE	0-28080-812-0	02	1	9508-9607		●
132	HOSE; WATER PIPE	8-94382-247-1	01	1	9112-9504	●	●
132	HOSE; WATER PIPE	8-94382-247-1	01	1	9505-		●
136	HOSE; OIL COOLER,RETURN	8-97038-808-1	01	1	9112-9504	●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (B) L=60 SERVICED BY L=3000	0-03266-300-0	01	1	9112-9209			●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (B)920907-	8-97061-307-2	01	1	9209-9505			●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (B)	8-97061-307-2	01	1	9506-9506			●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B)	8-97061-307-2	01	1	9507-9611			●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B)	8-97061-307-2	01	1	9612-			●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (A)	8-97037-386-0	01	1	9112-9209			●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) (A)920907- L=60	8-97079-996-0	01	1	9209-9505			●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) (A) L=60	8-97079-996-0	01	1	9506-9506			●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) L=60	8-97079-996-0	01	1	9507-9611			●
136	HOSE; OIL COOLER,RETURN EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) L=60	8-97079-996-0	01	1	9612-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
