Sayfa 0-31 - Isuzu EPC

0-31 — THERMOSTAT AND HOUSING (#33137) — 192 parça

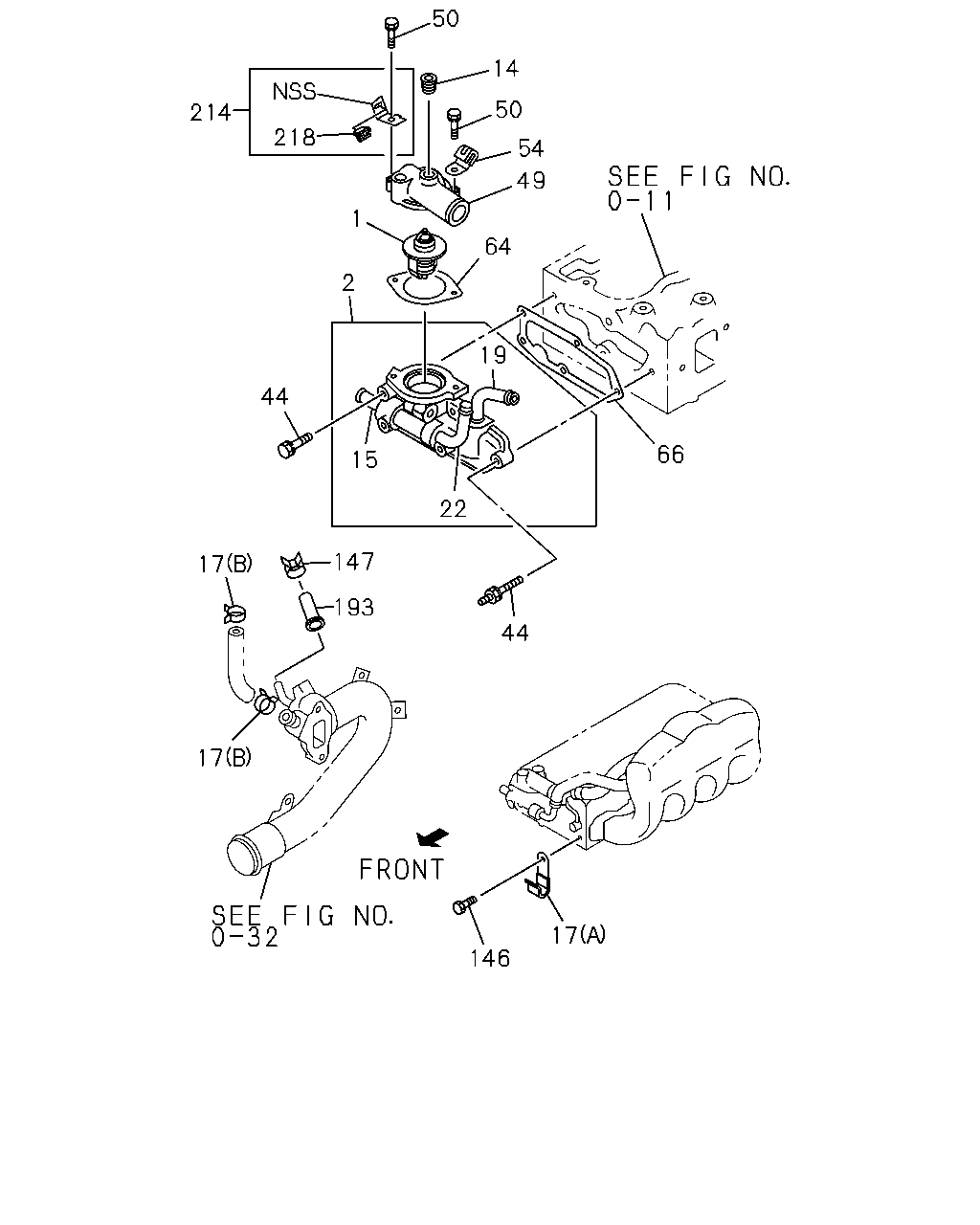

50 14 50 214 218 54 49 1 64 2 19 44 66 15 22 147 17 193 44 17 17 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	THERMOSTAT 82?C	8-94214-962-0	01	1	9112-9404	●
1	THERMOSTAT 82?C	8-97062-818-1	01	1	9112-9303		●
1	THERMOSTAT 82?C	8-97094-283-0	01	1	9304-9307		●
1	THERMOSTAT 82?C	8-97089-891-0	01	1	9308-9404		●
1	THERMOSTAT 82?C	8-97089-891-0	01	1	9405-9504	●	●
1	THERMOSTAT 82?C	8-97089-891-0	01	1	9505-		●
1	THERMOSTAT 82?C	8-94336-069-0	01	1	9112-			●
1	THERMOSTAT 76.5?C	8-97032-508-0	01	1	9112-				●
2	HOUSING; THERMOSTAT	8-94382-202-0	01	1	9112-9307	●
2	HOUSING; THERMOSTAT	8-97038-191-4	01	1	9112-9307		●
2	HOUSING; THERMOSTAT	8-97104-440-1	01	1	9308-9504	●	●
2	HOUSING; THERMOSTAT	8-97117-243-0	01	1	9505-		●
2	HOUSING; THERMOSTAT W/PIPE:BYPASS	8-97031-546-3	01	1	9112-				●
14	PLUG; SW PT3/8	5-09605-005-0	01	1	9112-9504	●
14	PLUG; SW EUROPE/CANARY EQUIPMENT(EK4) TURBOCHARGER<K51> PT3/8	5-09605-005-0	01	1	9505-		●
14	PLUG; SW EXC. TURBOCHARGER<K51> PT3/8	5-09605-005-0	01	1	9505-		●
14	PLUG; SW EXC. EUROPE/CANARY EQUIPMENT(EK4) PT3/8	5-09605-005-0	02	1	9112-9504		●
14	PLUG; SW TURBOCHARGER<K51> EXC. EUROPE/CANARY EQUIPMENT(EK4) PT3/8	5-09605-005-0	02	1	9506-		●
15	PIPE; BYPASS	8-94343-211-1	01	1	9112-9504	●	●
15	PIPE; BYPASS	8-94343-211-1	01	1	9505-		●
15	PIPE; BYPASS	8-97014-716-0	01	1	9112-9309				●
15	PIPE; BYPASS	8-97086-465-0	01	1	9310-				●
17	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) ID=12	5-09700-331-0	01	1	9112-9504	●
17	CLIP; WATER HOSE (B) ID=20.8	8-94125-862-0	02	1	9112-9504	●	●
17	CLIP; WATER HOSE (B) ID=20.8	8-94125-862-0	02	1	9505-		●
17	CLIP; WATER HOSE (A) ID=12	5-09700-331-0	02	1	9112-9504		●
17	CLIP; WATER HOSE (A) ID=12	5-09700-331-0	01	1	9505-		●
17	CLIP; WATER HOSE ID=11 WIRE W/BOLT	8-94169-543-0	01	1	9201-9506				●
17	CLIP; WATER HOSE	8-97134-858-0	01	1	9507-				●
19	PIPE; HSG TO HTR	8-94478-870-1	01	1	9112-9504	●	●
19	PIPE; HSG TO HTR	8-94478-870-1	01	1	9505-		●
19	PIPE; HSG TO HTR	8-94384-231-3	01	1	9112-				●
22	PIPE; HTR,RETURN	8-94478-869-1	01	1	9112-9504	●	●
22	PIPE; HTR,RETURN	8-94478-869-1	01	1	9505-		●
44	BOLT; HSG TO HD M8X30 W/LK WASHER	0-50040-830-0	04	1	9112-9504	●	●
44	BOLT; HSG TO HD M8X30 W/LK WASHER	0-50040-830-0	04	1	9505-		●
44	BOLT; HSG TO HD M8X28,M8X34 L=69	8-94479-011-1	01	1	9112-9504	●	●
44	BOLT; HSG TO HD M8X28,M8X34 L=69	8-94479-011-1	01	1	9505-		●
49	PIPE; WATER OUTLET	8-94368-589-0	01	1	9112-9504	●
49	PIPE; WATER OUTLET	8-94368-587-0	01	1	9112-9504		●
49	PIPE; WATER OUTLET EXC. TURBOCHARGER<K51>	8-94368-589-0	01	1	9505-9606		●
49	PIPE; WATER OUTLET EXC. TURBOCHARGER<K51>	8-97139-712-0	01	1	9607-		●
49	PIPE; WATER OUTLET TURBOCHARGER<K51>	8-94368-587-0	01	1	9505-9709		●
49	PIPE; WATER OUTLET TURBOCHARGER<K51>	8-97183-181-0	01	1	9710-		●
49	PIPE; WATER OUTLET	8-94172-420-1	01	1	9112-			●
49	PIPE; WATER OUTLET EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97037-385-6	01	1	9112-9112				●
49	PIPE; WATER OUTLET EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB)	8-97075-467-1	01	1	9201-9505				●
49	PIPE; WATER OUTLET EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB)	8-97075-467-1	01	1	9506-9506				●
49	PIPE; WATER OUTLET EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97075-467-1	01	1	9507-9611				●
49	PIPE; WATER OUTLET EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97075-467-1	01	1	9612-				●
49	PIPE; WATER OUTLET EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-94382-118-6	01	1	9112-9112				●
49	PIPE; WATER OUTLET EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB)	8-97075-466-0	01	1	9201-9505				●
49	PIPE; WATER OUTLET EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB)	8-97075-466-0	01	1	9506-9506				●
49	PIPE; WATER OUTLET EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97075-466-0	01	1	9507-9611				●
49	PIPE; WATER OUTLET EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COST A RICA EQUIPMENT(7LD)	8-97075-466-0	01	1	9612-				●
50	BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9112-9504	●	●
50	BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9505-		●
50	BOLT; OUTLET PIPE M8X25 W/LK WASHER	0-50040-825-0	01	1	9112-			●
50	BOLT; OUTLET PIPE M8X16 FLANGE	0-28080-816-0	01	1	9112-9211				●
50	BOLT; OUTLET PIPE M8X25 FLANGE	0-28080-825-0	01	1	9112-9211				●
50	BOLT; OUTLET PIPE M8X16 FLANGE	0-28080-816-0	01	1	9212-				●
50	BOLT; OUTLET PIPE M8X25 FLANGE	0-28080-825-0	01	1	9212-9407				●
50	BOLT; OUTLET PIPE M8X28 FLANGE	0-28080-828-0	01	1	9408-				●
54	CLIP; THERMO SWITCH,OUTLET PIPE ID=12	5-09700-331-0	01	1	9112-9504	●	●
54	CLIP; THERMO SWITCH,OUTLET PIPE ID=12	5-09700-331-0	01	1	9505-		●
64	GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94365-674-0	01	1	9112-9504	●	●
64	GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94365-674-1	01	1	9505-		●
64	GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94324-197-0	01	1	9112-			●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94365-675-0	01	1	9112-9504	●	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94365-675-1	01	1	9505-		●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94382-250-0	01	1	9112-				●
146	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6X12 FLANGE	0-28080-612-0	01	1	9112-9504	●
146	BOLT; CLIP M6X12 FLANGE	0-28080-612-0	01	1	9112-9504		●
146	BOLT; CLIP AIR CONDITIONER MANUAL CONT(C60) M6X12 FLANGE	0-28080-612-0	01	1	9505-		●
146	BOLT; CLIP M6X12 FLANGE	0-28080-612-0	01	1	9505-		●
147	CLIP; RUBBER CAP ID=14.8	8-94448-727-0	01	1	9112-9504	●
147	CLIP; RUBBER CAP EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> ID=14.8	8-94448-727-0	01	1	9505-		●
193	CAP; RUBBER	8-94366-898-1	01	1	9112-9504	●
193	CAP; RUBBER EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51>	8-94366-898-1	01	1	9505-		●
214	BRACKET; HARNESS EUROPE/CANARY EQUIPMENT(EK4)	8-97048-961-0	01	1	9112-		●
218	CLIP; CONNECTOR EUROPE/CANARY EQUIPMENT(EK4)	8-94456-949-0	01	1	9209-		●

53 50 62 49 64 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	THERMOSTAT 82?C	8-94214-962-0	01	1	9112-9404	●
1	THERMOSTAT 82?C	8-97062-818-1	01	1	9112-9303		●
1	THERMOSTAT 82?C	8-97094-283-0	01	1	9304-9307		●
1	THERMOSTAT 82?C	8-97089-891-0	01	1	9308-9404		●
1	THERMOSTAT 82?C	8-97089-891-0	01	1	9405-9504	●	●
1	THERMOSTAT 82?C	8-97089-891-0	01	1	9505-		●
1	THERMOSTAT 82?C	8-94336-069-0	01	1	9112-			●
1	THERMOSTAT 76.5?C	8-97032-508-0	01	1	9112-				●
49	PIPE; WATER OUTLET	8-94368-589-0	01	1	9112-9504	●
49	PIPE; WATER OUTLET	8-94368-587-0	01	1	9112-9504		●
49	PIPE; WATER OUTLET EXC. TURBOCHARGER<K51>	8-94368-589-0	01	1	9505-9606		●
49	PIPE; WATER OUTLET EXC. TURBOCHARGER<K51>	8-97139-712-0	01	1	9607-		●
49	PIPE; WATER OUTLET TURBOCHARGER<K51>	8-94368-587-0	01	1	9505-9709		●
49	PIPE; WATER OUTLET TURBOCHARGER<K51>	8-97183-181-0	01	1	9710-		●
49	PIPE; WATER OUTLET	8-94172-420-1	01	1	9112-			●
49	PIPE; WATER OUTLET EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97037-385-6	01	1	9112-9112				●
49	PIPE; WATER OUTLET EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB)	8-97075-467-1	01	1	9201-9505				●
49	PIPE; WATER OUTLET EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB)	8-97075-467-1	01	1	9506-9506				●
49	PIPE; WATER OUTLET EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97075-467-1	01	1	9507-9611				●
49	PIPE; WATER OUTLET EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97075-467-1	01	1	9612-				●
49	PIPE; WATER OUTLET EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-94382-118-6	01	1	9112-9112				●
49	PIPE; WATER OUTLET EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB)	8-97075-466-0	01	1	9201-9505				●
49	PIPE; WATER OUTLET EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB)	8-97075-466-0	01	1	9506-9506				●
49	PIPE; WATER OUTLET EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97075-466-0	01	1	9507-9611				●
49	PIPE; WATER OUTLET EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COST A RICA EQUIPMENT(7LD)	8-97075-466-0	01	1	9612-				●
50	BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9112-9504	●	●
50	BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9505-		●
50	BOLT; OUTLET PIPE M8X25 W/LK WASHER	0-50040-825-0	01	1	9112-			●
50	BOLT; OUTLET PIPE M8X16 FLANGE	0-28080-816-0	01	1	9112-9211				●
50	BOLT; OUTLET PIPE M8X25 FLANGE	0-28080-825-0	01	1	9112-9211				●
50	BOLT; OUTLET PIPE M8X16 FLANGE	0-28080-816-0	01	1	9212-				●
50	BOLT; OUTLET PIPE M8X25 FLANGE	0-28080-825-0	01	1	9212-9407				●
50	BOLT; OUTLET PIPE M8X28 FLANGE	0-28080-828-0	01	1	9408-				●
53	NUT; OUTLET PIPE M8 FLANGE	5-09440-005-0	01	1	9112-			●
62	STUD; OUTLET PIPE TO INL MANIF M8X22 L=34	9-04110-822-0	01	1	9112-			●
64	GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94365-674-0	01	1	9112-9504	●	●
64	GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94365-674-1	01	1	9505-		●
64	GASKET; OUTLET PIPE TO HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94324-197-0	01	1	9112-			●

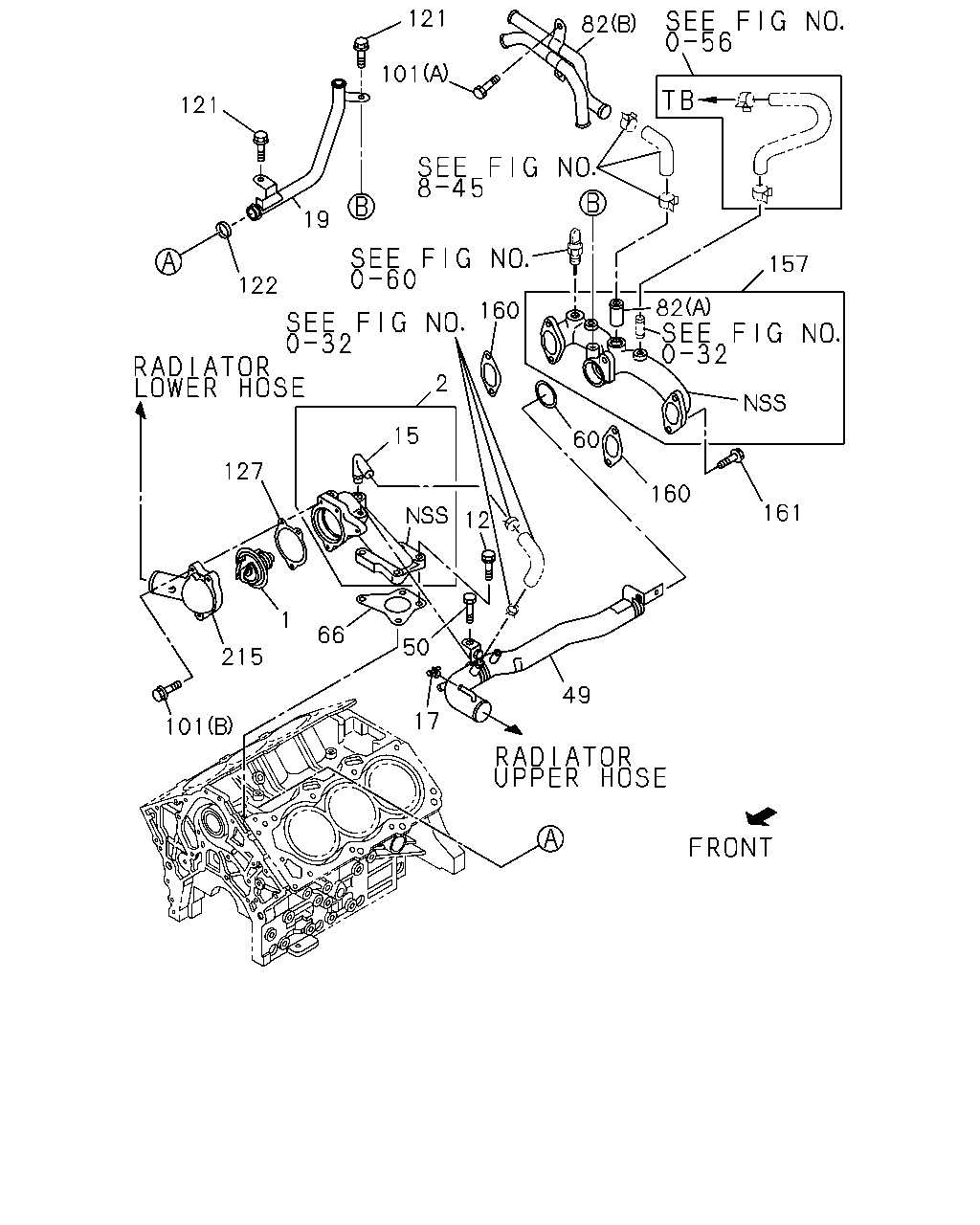

121 82 101 121 19 157 122 82 160 2 15 60 127 160 12 161 50 1 66 215 49 17 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	THERMOSTAT 82?C	8-94214-962-0	01	1	9112-9404	●
1	THERMOSTAT 82?C	8-97062-818-1	01	1	9112-9303		●
1	THERMOSTAT 82?C	8-97094-283-0	01	1	9304-9307		●
1	THERMOSTAT 82?C	8-97089-891-0	01	1	9308-9404		●
1	THERMOSTAT 82?C	8-97089-891-0	01	1	9405-9504	●	●
1	THERMOSTAT 82?C	8-97089-891-0	01	1	9505-		●
1	THERMOSTAT 82?C	8-94336-069-0	01	1	9112-			●
1	THERMOSTAT 76.5?C	8-97032-508-0	01	1	9112-				●
2	HOUSING; THERMOSTAT	8-94382-202-0	01	1	9112-9307	●
2	HOUSING; THERMOSTAT	8-97038-191-4	01	1	9112-9307		●
2	HOUSING; THERMOSTAT	8-97104-440-1	01	1	9308-9504	●	●
2	HOUSING; THERMOSTAT	8-97117-243-0	01	1	9505-		●
2	HOUSING; THERMOSTAT W/PIPE:BYPASS	8-97031-546-3	01	1	9112-				●
12	BOLT; HSG M8X30 FLANGE	0-28080-830-0	04	1	9112-				●
15	PIPE; BYPASS	8-94343-211-1	01	1	9112-9504	●	●
15	PIPE; BYPASS	8-94343-211-1	01	1	9505-		●
15	PIPE; BYPASS	8-97014-716-0	01	1	9112-9309				●
15	PIPE; BYPASS	8-97086-465-0	01	1	9310-				●
17	CLIP; WATER HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) ID=12	5-09700-331-0	01	1	9112-9504	●
17	CLIP; WATER HOSE (B) ID=20.8	8-94125-862-0	02	1	9112-9504	●	●
17	CLIP; WATER HOSE (B) ID=20.8	8-94125-862-0	02	1	9505-		●
17	CLIP; WATER HOSE (A) ID=12	5-09700-331-0	02	1	9112-9504		●
17	CLIP; WATER HOSE (A) ID=12	5-09700-331-0	01	1	9505-		●
17	CLIP; WATER HOSE ID=11 WIRE W/BOLT	8-94169-543-0	01	1	9201-9506				●
17	CLIP; WATER HOSE	8-97134-858-0	01	1	9507-				●
19	PIPE; HSG TO HTR	8-94478-870-1	01	1	9112-9504	●	●
19	PIPE; HSG TO HTR	8-94478-870-1	01	1	9505-		●
19	PIPE; HSG TO HTR	8-94384-231-3	01	1	9112-				●
49	PIPE; WATER OUTLET	8-94368-589-0	01	1	9112-9504	●
49	PIPE; WATER OUTLET	8-94368-587-0	01	1	9112-9504		●
49	PIPE; WATER OUTLET EXC. TURBOCHARGER<K51>	8-94368-589-0	01	1	9505-9606		●
49	PIPE; WATER OUTLET EXC. TURBOCHARGER<K51>	8-97139-712-0	01	1	9607-		●
49	PIPE; WATER OUTLET TURBOCHARGER<K51>	8-94368-587-0	01	1	9505-9709		●
49	PIPE; WATER OUTLET TURBOCHARGER<K51>	8-97183-181-0	01	1	9710-		●
49	PIPE; WATER OUTLET	8-94172-420-1	01	1	9112-			●
49	PIPE; WATER OUTLET EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-97037-385-6	01	1	9112-9112				●
49	PIPE; WATER OUTLET EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB)	8-97075-467-1	01	1	9201-9505				●
49	PIPE; WATER OUTLET EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB)	8-97075-467-1	01	1	9506-9506				●
49	PIPE; WATER OUTLET EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97075-467-1	01	1	9507-9611				●
49	PIPE; WATER OUTLET EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97075-467-1	01	1	9612-				●
49	PIPE; WATER OUTLET EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2)	8-94382-118-6	01	1	9112-9112				●
49	PIPE; WATER OUTLET EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB)	8-97075-466-0	01	1	9201-9505				●
49	PIPE; WATER OUTLET EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB)	8-97075-466-0	01	1	9506-9506				●
49	PIPE; WATER OUTLET EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97075-466-0	01	1	9507-9611				●
49	PIPE; WATER OUTLET EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COST A RICA EQUIPMENT(7LD)	8-97075-466-0	01	1	9612-				●
50	BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9112-9504	●	●
50	BOLT; OUTLET PIPE M8X30 W/LK&PL WASHER	0-50140-830-0	02	1	9505-		●
50	BOLT; OUTLET PIPE M8X25 W/LK WASHER	0-50040-825-0	01	1	9112-			●
50	BOLT; OUTLET PIPE M8X16 FLANGE	0-28080-816-0	01	1	9112-9211				●
50	BOLT; OUTLET PIPE M8X25 FLANGE	0-28080-825-0	01	1	9112-9211				●
50	BOLT; OUTLET PIPE M8X16 FLANGE	0-28080-816-0	01	1	9212-				●
50	BOLT; OUTLET PIPE M8X25 FLANGE	0-28080-825-0	01	1	9212-9407				●
50	BOLT; OUTLET PIPE M8X28 FLANGE	0-28080-828-0	01	1	9408-				●
60	GASKET; OUTLET PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	9-09561-338-0	01	1	9112-				●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94365-675-0	01	1	9112-9504	●	●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94365-675-1	01	1	9505-		●
66	GASKET; THERMOSTAT HSG ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94382-250-0	01	1	9112-				●
82	PIPE; WATER,HTR (A)	8-94379-756-0	01	1	9112-				●
82	PIPE; WATER,HTR EXC. COOLER WO/HEATER(YL1) (B)	8-97018-912-2	01	1	9112-9209				●
82	PIPE; WATER,HTR HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-97018-912-2	01	1	9210-				●
101	BOLT; PIPE (B) M8X30 FLANGE	0-28080-830-0	03	1	9112-				●
101	BOLT; PIPE EXC. COOLER WO/HEATER(YL1) (A) M8X12 FLANGE	0-28080-812-0	02	1	9112-9209				●
101	BOLT; PIPE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) M8X12 FLANGE	0-28080-812-0	02	1	9210-9407				●
101	BOLT; PIPE HEATER&DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) M8X14 FLANGE	0-28080-814-0	02	1	9408-				●
121	BOLT; HTR PIPE M8X16 FLANGE	0-28080-816-0	02	1	9112-				●
122	GASKET; HSG TO PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09561-220-0	01	1	9112-9703				●
122	GASKET; HSG TO PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09561-220-0	02	1	9704-				●
127	GASKET; INL PIPE TO THERMOSTAT HSG	8-97014-696-0	01	1	9112-				●
157	MANIFOLD; WATER	8-94364-730-1	01	1	9112-				●
160	GASKET; WATER MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-94364-756-0	02	1	9112-				●
161	BOLT; MANIF TO HD M8X30 FLANGE	0-28080-830-0	04	1	9112-9112				●
161	BOLT; MANIF TO HD M8X30 W/LK WASHER	0-50040-830-0	04	1	9201-				●
215	PIPE; WATER,INL	8-94374-967-3	01	1	9112-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
