Isuzu WW
▶
SUV
▶
UBS
▶
50659 - UBS-LHD
▶
0 - Engine, Emission, Engine Electrical
▶
0-30 - WATER PUMP AND CORROSION RESISTOR
▶
0-30 — WATER PUMP AND CORROSION RESISTOR
(#33136) — 94 parça
Tümü
A - 4JG2 ENG
B - 4JG1 ENG
C - 4ZE1 ENG
D - 6VD1 SOHC ENG
◀

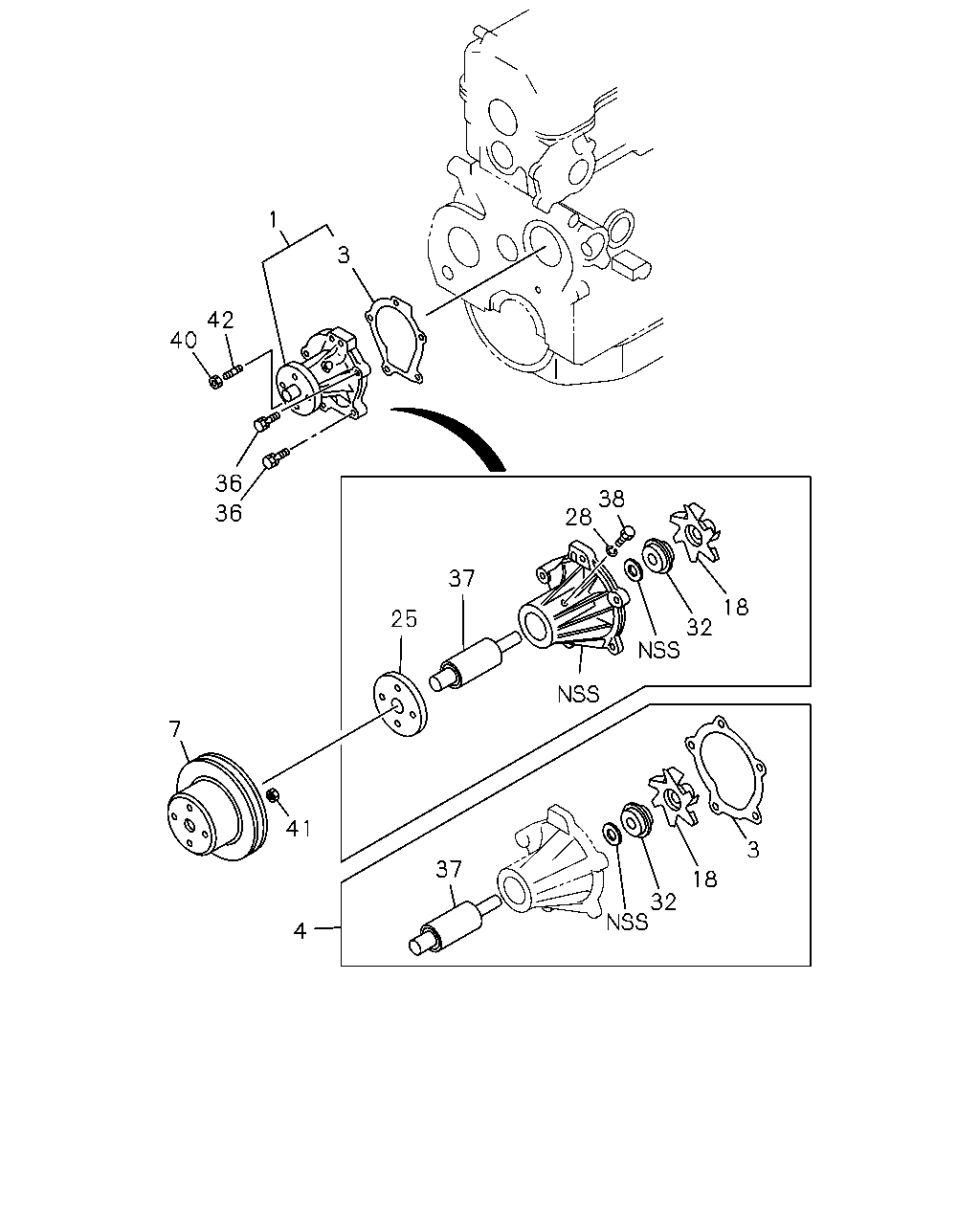

[030A] 4JG1,4JG2 ENG (28 parça)

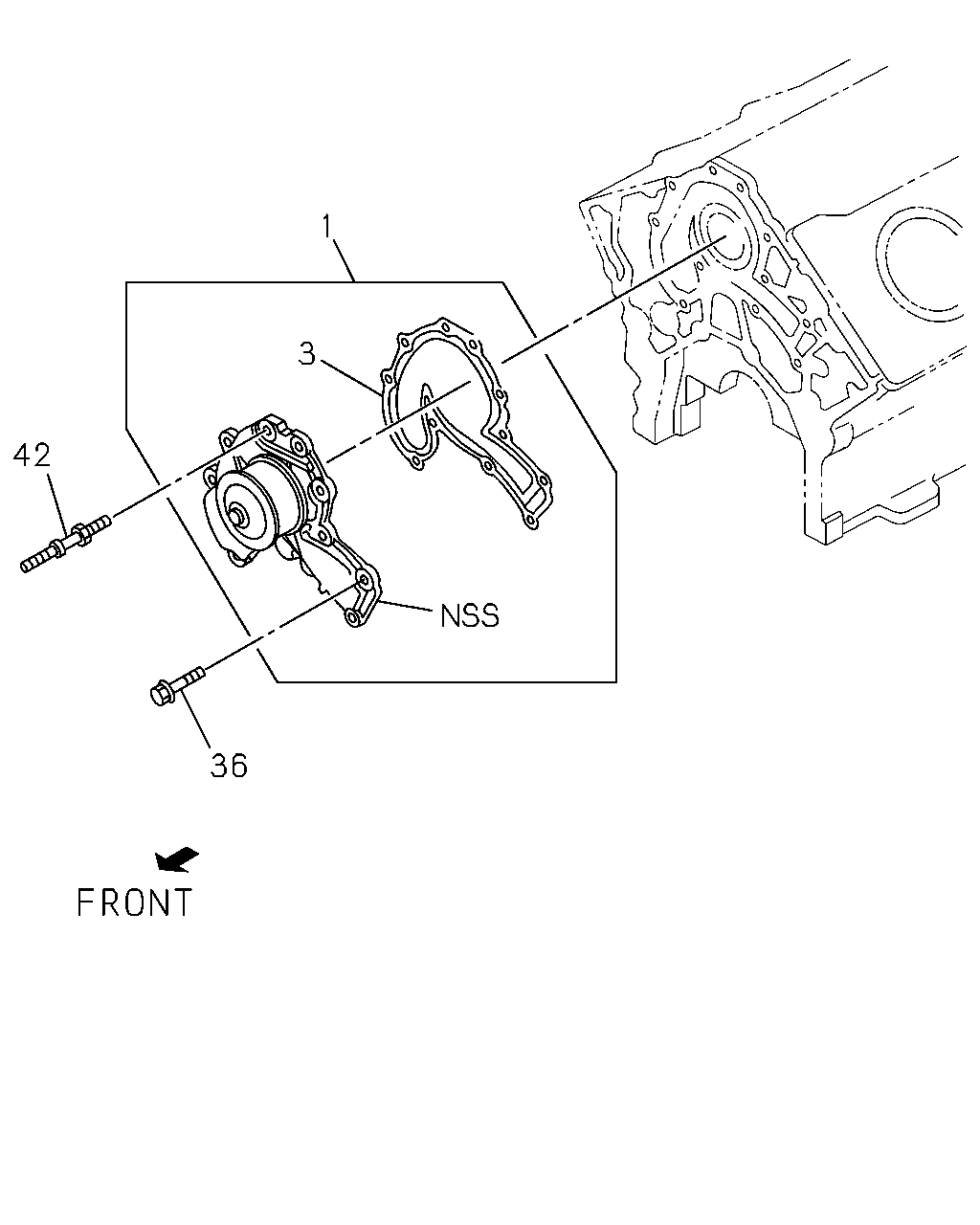

[030A] 6VD1 SOHC ENG (25 parça)

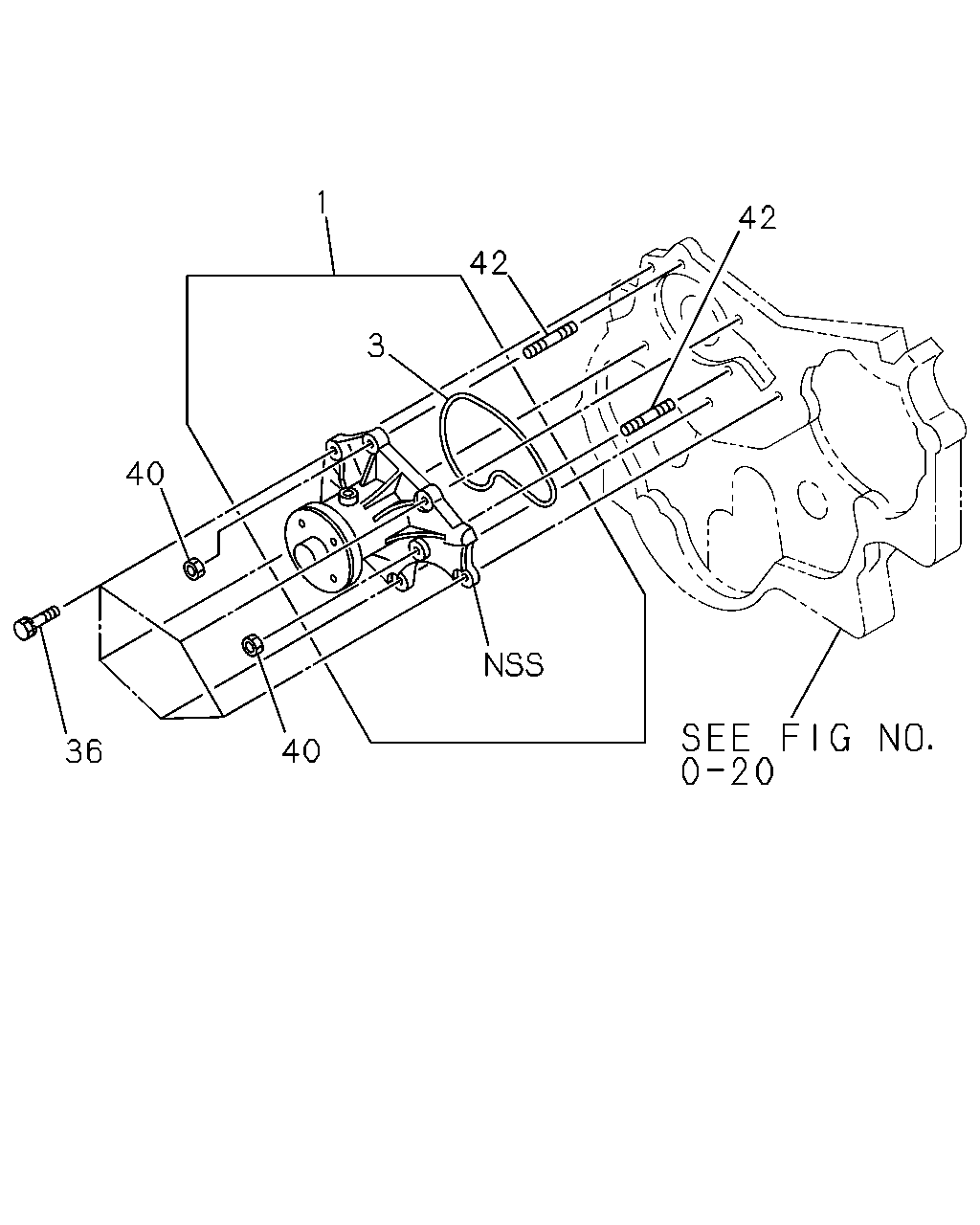

[030A] 4ZE1 ENG (41 parça)
▶
1
42
42
3
40
40
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
PUMP ASM; WATER,W/GASKET
8-97062-796-0
01
1
9112-9309
●
●
1
PUMP ASM; WATER,W/GASKET
930921-
8-97105-012-0
01
1
9309-9504
●
●
1
PUMP ASM; WATER,W/GASKET
8-97105-012-0
01
1
9505-
●
1
PUMP ASM; WATER,W/GASKET
8-97021-774-0
01
1
9112-9306
●
1
PUMP ASM; WATER,W/GASKET
8-97081-623-1
01
1
9307-
●
1
PUMP ASM; WATER,W/GASKET
8-97061-280-0
01
1
9112-9412
●
1
PUMP ASM; WATER,W/GASKET
8-97125-975-0
01
1
9501-
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94178-081-0
01
1
9112-9504
●
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94178-081-0
01
1
9505-
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94324-195-0
01
1
9112-
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97014-207-0
01
1
9112-9512
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97135-478-0
01
1
9601-
●
36
BOLT; WATER PUMP TO C/BL
M8X55 W/LK WASHER
5-09000-084-1
05
1
9112-9504
●
●
36
BOLT; WATER PUMP TO C/BL
M8X55 W/LK WASHER
5-09000-084-1
05
1
9505-
●
36
BOLT; WATER PUMP TO C/BL
M8X25 W/LK WASHER
0-50040-825-0
02
1
9112-
●
36
BOLT; WATER PUMP TO C/BL
M8X35 W/LK WASHER
0-50040-835-0
02
1
9112-
●
36
BOLT; WATER PUMP TO C/BL
M8X20 FLANGE
0-28080-820-0
09
1
9112-9705
●
36
BOLT; WATER PUMP TO C/BL
M8X20 FLANGE
0-28080-820-0
08
1
9706-
●
36
BOLT; WATER PUMP TO C/BL
M8X20 W/DRY-ROCK
8-97021-210-0
01
1
9706-
●
40
NUT; WATER PUMP
M8 FLANGE
0-91150-108-0
02
1
9112-9504
●
●
40
NUT; WATER PUMP
M8 FLANGE
0-91150-108-0
02
1
9505-
●
40
NUT; WATER PUMP
M8 FLANGE
5-09440-005-0
01
1
9112-
●
42
STUD; WATER PUMP
M8X22 L=34
9-04110-822-0
02
1
9112-9504
●
●
42
STUD; WATER PUMP
M8X22 L=34
9-04110-822-0
02
1
9505-
●
42
STUD; WATER PUMP
M8X25 L=37
9-04110-825-0
01
1
9112-9204
●
42
STUD; WATER PUMP
M8X25 L=36
1-09300-050-0
01
1
9205-
●
42
STUD; WATER PUMP
M8X65 L=86
8-97019-062-0
01
1
9112-9301
●
42
STUD; WATER PUMP
M8X21 L=86
8-97088-691-0
01
1
9302-
●
1
3
42
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
PUMP ASM; WATER,W/GASKET
8-97062-796-0
01
1
9112-9309
●
●
1
PUMP ASM; WATER,W/GASKET
930921-
8-97105-012-0
01
1
9309-9504
●
●
1
PUMP ASM; WATER,W/GASKET
8-97105-012-0
01
1
9505-
●
1
PUMP ASM; WATER,W/GASKET
8-97021-774-0
01
1
9112-9306
●
1
PUMP ASM; WATER,W/GASKET
8-97081-623-1
01
1
9307-
●
1
PUMP ASM; WATER,W/GASKET
8-97061-280-0
01
1
9112-9412
●
1
PUMP ASM; WATER,W/GASKET
8-97125-975-0
01
1
9501-
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94178-081-0
01
1
9112-9504
●
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94178-081-0
01
1
9505-
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94324-195-0
01
1
9112-
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97014-207-0
01
1
9112-9512
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97135-478-0
01
1
9601-
●
36
BOLT; WATER PUMP TO C/BL
M8X55 W/LK WASHER
5-09000-084-1
05
1
9112-9504
●
●
36
BOLT; WATER PUMP TO C/BL
M8X55 W/LK WASHER
5-09000-084-1
05
1
9505-
●
36
BOLT; WATER PUMP TO C/BL
M8X25 W/LK WASHER
0-50040-825-0
02
1
9112-
●
36
BOLT; WATER PUMP TO C/BL
M8X35 W/LK WASHER
0-50040-835-0
02
1
9112-
●
36
BOLT; WATER PUMP TO C/BL
M8X20 FLANGE
0-28080-820-0
09
1
9112-9705
●
36
BOLT; WATER PUMP TO C/BL
M8X20 FLANGE
0-28080-820-0
08
1
9706-
●
36
BOLT; WATER PUMP TO C/BL
M8X20 W/DRY-ROCK
8-97021-210-0
01
1
9706-
●
42
STUD; WATER PUMP
M8X22 L=34
9-04110-822-0
02
1
9112-9504
●
●
42
STUD; WATER PUMP
M8X22 L=34
9-04110-822-0
02
1
9505-
●
42
STUD; WATER PUMP
M8X25 L=37
9-04110-825-0
01
1
9112-9204
●
42
STUD; WATER PUMP
M8X25 L=36
1-09300-050-0
01
1
9205-
●
42
STUD; WATER PUMP
M8X65 L=86
8-97019-062-0
01
1
9112-9301
●
42
STUD; WATER PUMP
M8X21 L=86
8-97088-691-0
01
1
9302-
●
1
3
42
40
36
36
38
28
37
18
32
25
7
41
3
37
18
32
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
PUMP ASM; WATER,W/GASKET
8-97062-796-0
01
1
9112-9309
●
●
1
PUMP ASM; WATER,W/GASKET
930921-
8-97105-012-0
01
1
9309-9504
●
●
1
PUMP ASM; WATER,W/GASKET
8-97105-012-0
01
1
9505-
●
1
PUMP ASM; WATER,W/GASKET
8-97021-774-0
01
1
9112-9306
●
1
PUMP ASM; WATER,W/GASKET
8-97081-623-1
01
1
9307-
●
1
PUMP ASM; WATER,W/GASKET
8-97061-280-0
01
1
9112-9412
●
1
PUMP ASM; WATER,W/GASKET
8-97125-975-0
01
1
9501-
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94178-081-0
01
1
9112-9504
●
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94178-081-0
01
1
9505-
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-94324-195-0
01
1
9112-
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97014-207-0
01
1
9112-9512
●
3
GASKET; PUMP TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97135-478-0
01
1
9601-
●
4
REPAIR KIT; WATER PUMP
8-94332-680-0
01
1
9112-9306
●
4
REPAIR KIT; WATER PUMP
8-97080-692-0
01
1
9307-9504
●
7
PULLEY; WATER PUMP
8-94472-589-0
01
1
9112-
●
18
IMPELLER; WATER PUMP
8-94146-329-0
01
1
9112-9504
●
25
CENTER; WATER PUMP
8-94146-330-0
01
1
9112-9504
●
28
WASHER; WATER PUMP
ID=8.2
9-09150-508-0
01
1
9112-9411
●
32
SEAL UNIT; WATER PUMP
8-94311-754-0
01
1
9112-9306
●
32
SEAL UNIT; WATER PUMP
8-97080-691-0
01
1
9307-9504
●
36
BOLT; WATER PUMP TO C/BL
M8X55 W/LK WASHER
5-09000-084-1
05
1
9112-9504
●
●
36
BOLT; WATER PUMP TO C/BL
M8X55 W/LK WASHER
5-09000-084-1
05
1
9505-
●
36
BOLT; WATER PUMP TO C/BL
M8X25 W/LK WASHER
0-50040-825-0
02
1
9112-
●
36
BOLT; WATER PUMP TO C/BL
M8X35 W/LK WASHER
0-50040-835-0
02
1
9112-
●
36
BOLT; WATER PUMP TO C/BL
M8X20 FLANGE
0-28080-820-0
09
1
9112-9705
●
36
BOLT; WATER PUMP TO C/BL
M8X20 FLANGE
0-28080-820-0
08
1
9706-
●
36
BOLT; WATER PUMP TO C/BL
M8X20 W/DRY-ROCK
8-97021-210-0
01
1
9706-
●
37
BEARING UNIT; WATER PUMP
8-94146-328-1
01
1
9112-9306
●
37
BEARING UNIT; WATER PUMP
8-97080-690-0
01
1
9307-9504
●
38
SCREW; WATER PUMP
9-09814-014-1
01
1
9112-9411
●
40
NUT; WATER PUMP
M8 FLANGE
0-91150-108-0
02
1
9112-9504
●
●
40
NUT; WATER PUMP
M8 FLANGE
0-91150-108-0
02
1
9505-
●
40
NUT; WATER PUMP
M8 FLANGE
5-09440-005-0
01
1
9112-
●
41
NUT; PULLEY
M8 FLANGE
5-09440-005-0
04
1
9112-9207
●
41
NUT; PULLEY
M8 FLANGE
0-91150-108-0
04
1
9208-
●
42
STUD; WATER PUMP
M8X22 L=34
9-04110-822-0
02
1
9112-9504
●
●
42
STUD; WATER PUMP
M8X22 L=34
9-04110-822-0
02
1
9505-
●
42
STUD; WATER PUMP
M8X25 L=37
9-04110-825-0
01
1
9112-9204
●
42
STUD; WATER PUMP
M8X25 L=36
1-09300-050-0
01
1
9205-
●
42
STUD; WATER PUMP
M8X65 L=86
8-97019-062-0
01
1
9112-9301
●
42
STUD; WATER PUMP
M8X21 L=86
8-97088-691-0
01
1
9302-
●
