Sayfa 0-28 - Isuzu EPC

0-28 — VENTILATION SYSTEM (#33135) — 81 parça

133 52 42

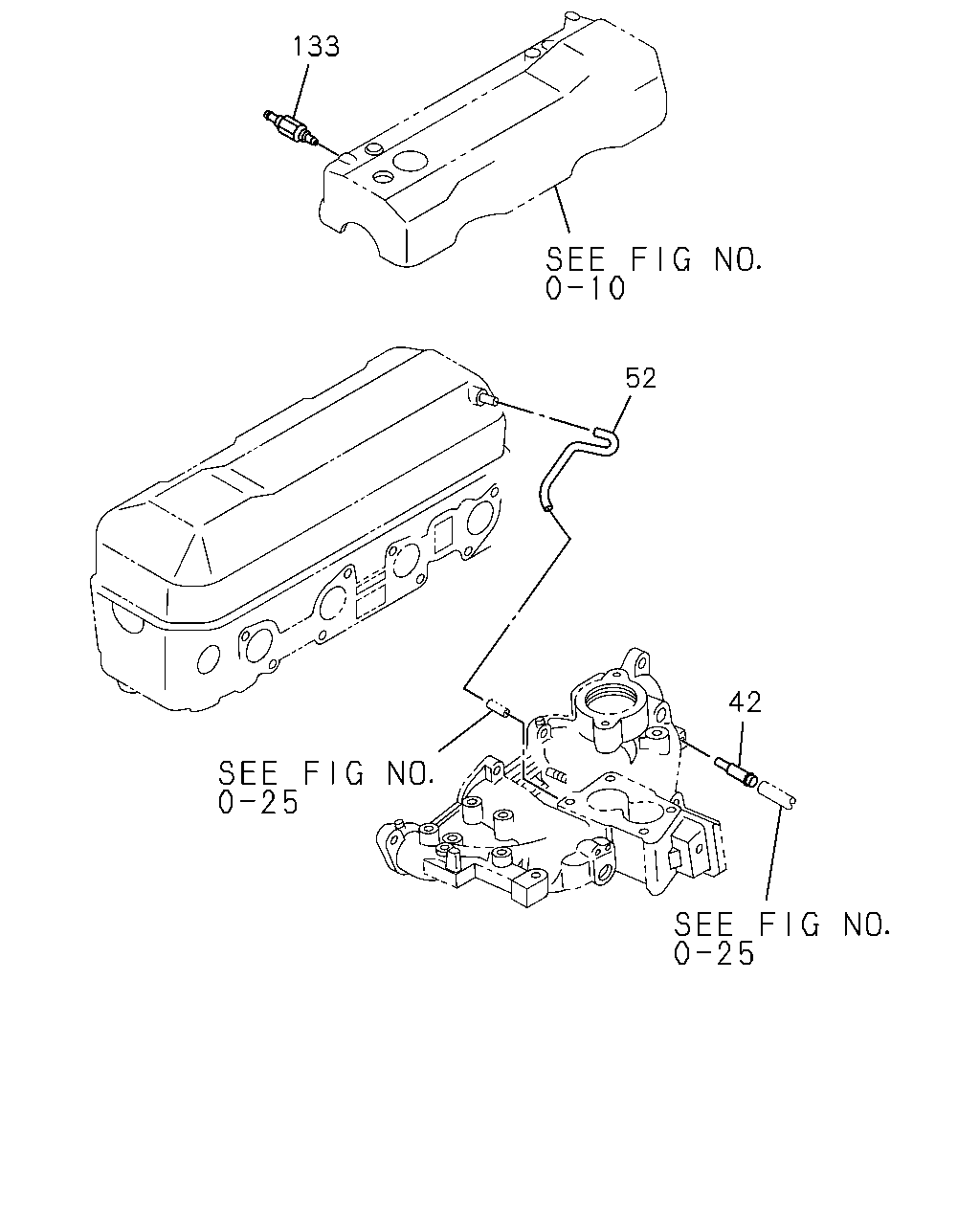

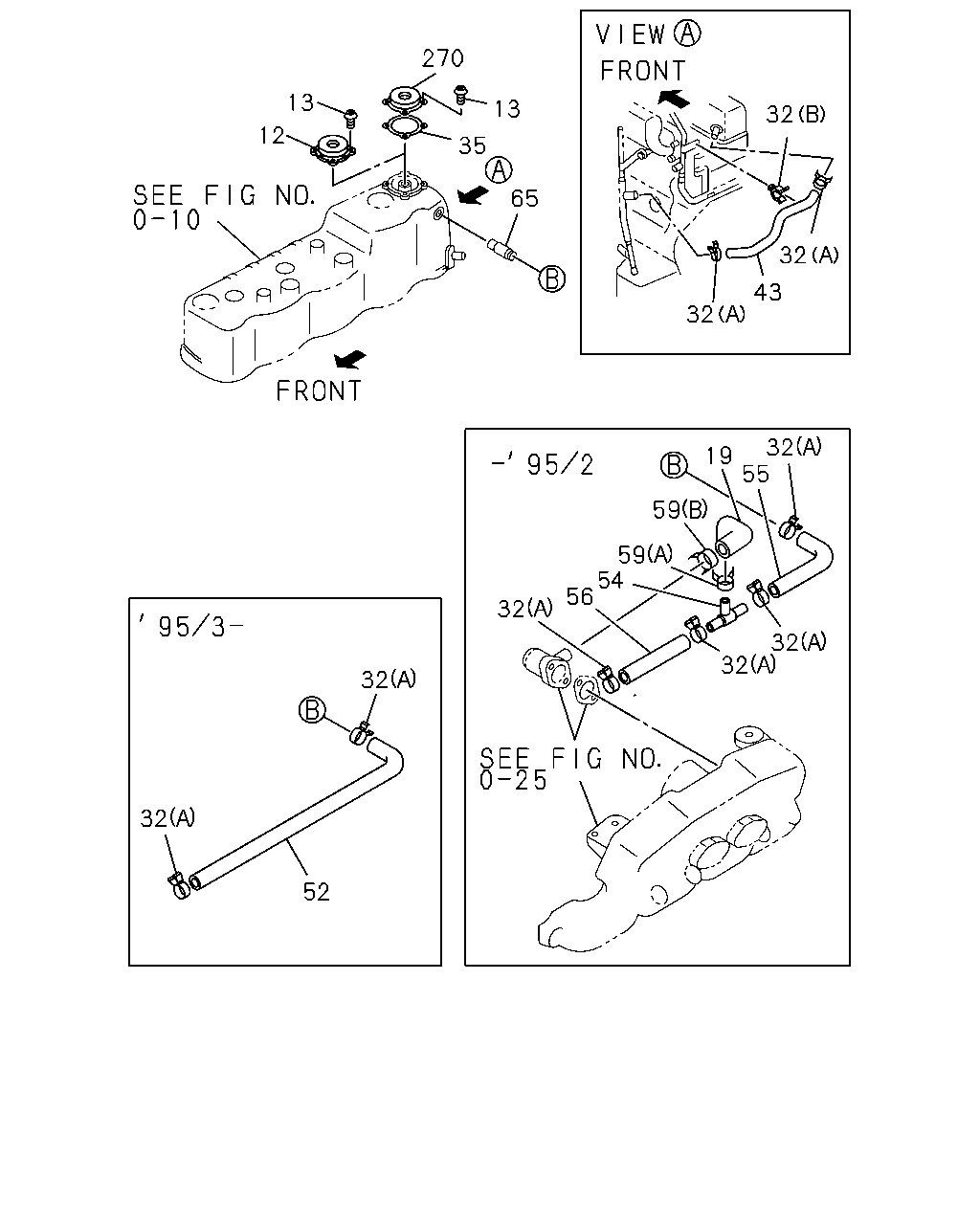

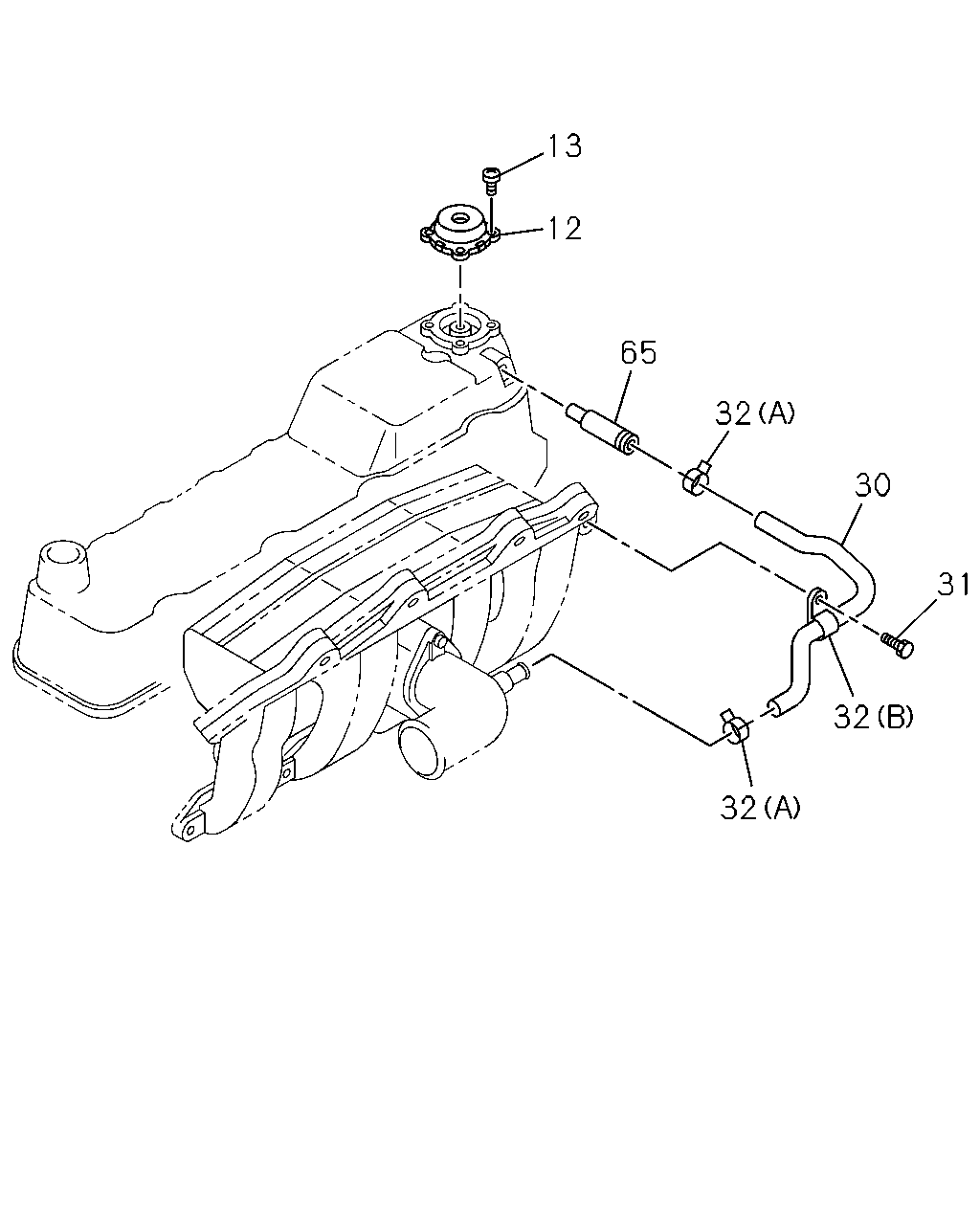

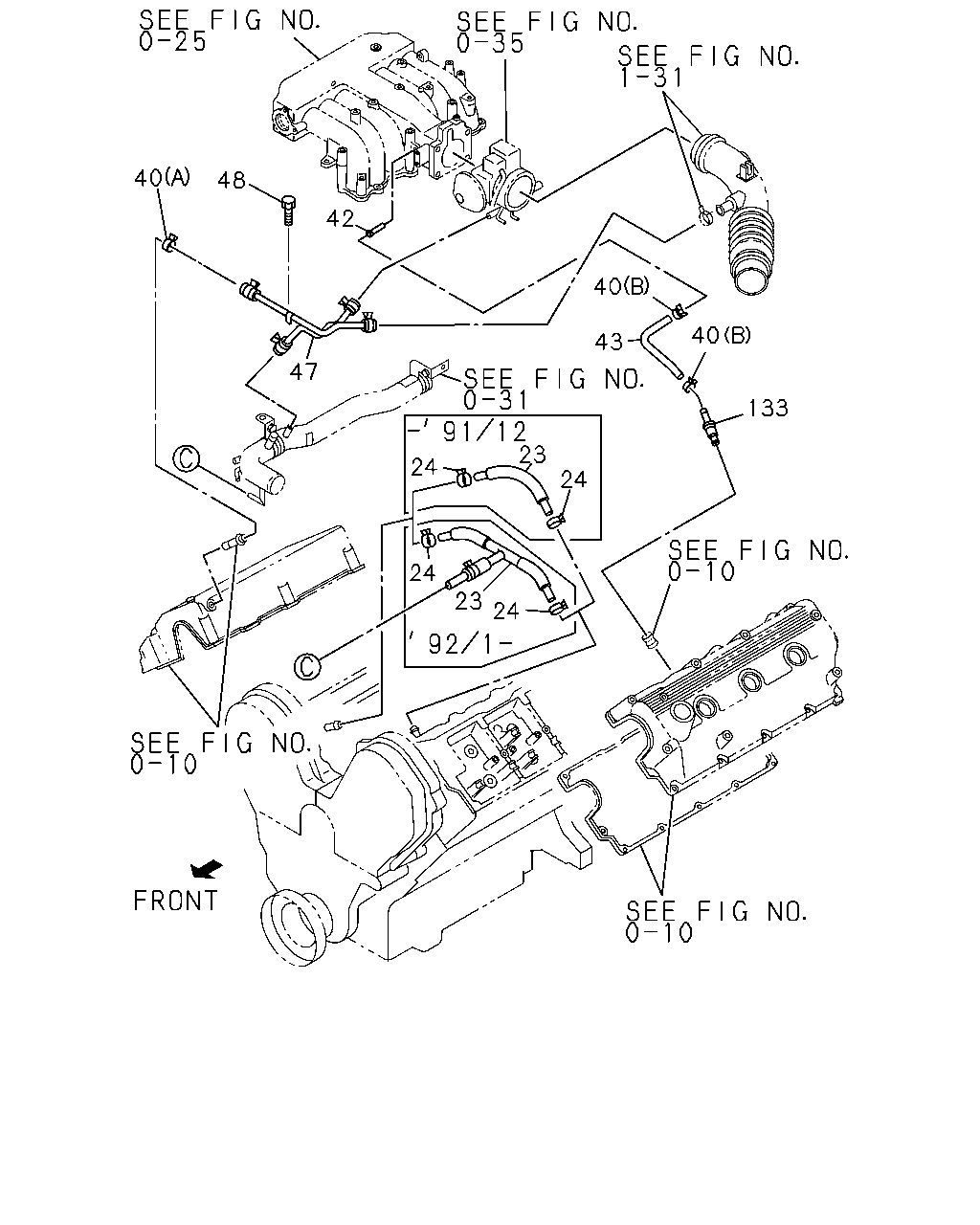

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
42	PIPE; PCV,INL MANIF	8-94153-176-0	01	1	9112-	●
42	PIPE; PCV,INL MANIF	8-97029-376-0	01	1	9112-9208		●
52	HOSE; PCV	8-94437-494-2	01	1	9503-9504			●
52	HOSE; PCV TURBOCHARGER<K51>	8-94437-494-3	01	1	9505-			●
52	HOSE; PCV EXC. TURBOCHARGER<K51>	8-97110-427-0	01	1	9505-			●
52	HOSE; PCV	8-94146-248-1	01	1	9112-9207	●
52	HOSE; PCV	8-97069-260-0	01	1	9208-	●
133	VALVE; PCV L=58.5	8-94331-209-0	01	1	9112-	●
133	VALVE; PCV	8-94386-755-0	01	1	9112-		●

13 12 65 32 30 31 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
12	VENTILATOR; AIR	8-94250-172-0	01	1	9112-9308			●
12	VENTILATOR; AIR EXC. CHILE EQUIPMENT(S2G)	8-94250-172-0	01	1	9112-9308		●
12	VENTILATOR; AIR	8-94250-172-0	01	1	9309-9504			●
12	VENTILATOR; AIR EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94250-172-0	01	1	9309-9504		●
12	VENTILATOR; AIR EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94250-172-0	01	1	9505-		●
13	SCREW; VENTILATOR TO HD COVER M4X8 W/LK WASHER	9-03910-408-0	04	1	9112-9504		●	●
13	SCREW; VENTILATOR TO HD COVER M4X8 W/LK WASHER	9-03910-408-0	04	1	9505-		●
30	HOSE; VENTILATOR,CYL HD COVER	8-97039-413-0	01	1	9112-9504			●
31	BOLT; HOSE CLIP M8X12 W/LK WASHER	0-50040-812-0	01	1	9112-9206			●
31	BOLT; HOSE CLIP M8X12 FLANGE	0-28080-812-0	01	1	9207-9504			●
32	CLIP; VENT HOSE (A) ID=20.4	8-94121-113-0	02	1	9112-9504			●
32	CLIP; VENT HOSE (B) ID=20 L=25	9-09916-078-0	01	1	9112-9504			●
32	CLIP; VENT HOSE (A) ID=20.4	8-94121-113-0	06	1	9112-9607		●
32	CLIP; VENT HOSE (B) ID=21 BLACK	8-94422-733-0	02	1	9112-9408		●
32	CLIP; VENT HOSE (B) ID=21 BLACK	8-94422-733-0	01	1	9409-9504		●
32	CLIP; VENT HOSE TURBOCHARGER<K51> (B) ID=21 BLACK	8-94422-733-0	01	1	9505-		●
32	CLIP; VENT HOSE (A) ID=20.4	8-94121-113-0	02	1	9705-		●
32	CLIP; VENT HOSE ID=12.8	8-94367-943-0	02	1	9112-9211	●
65	PIPE; BREATHER	8-94250-615-1	01	1	9112-9504		●	●
65	PIPE; BREATHER	8-94250-615-1	01	1	9505-		●

40 48 42 40 40 43 47 23 24 24 133 24 23 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
23	HOSE; RUBBER,VENTILATOR PIPE	8-97037-254-1	01	1	9112-9112		●
23	HOSE; RUBBER,VENTILATOR PIPE W/JOINT:3WAY & 3-HOSE	8-97075-341-1	01	1	9201-		●
24	CLIP; RUBBER HOSE,VENTILATOR ID=12 WO/PVC COATING	8-94123-526-0	02	1	9112-		●
40	CLIP; PCV HOSE (A) ID=16	8-94238-568-0	01	1	9112-		●
40	CLIP; PCV HOSE (B) ID=13	8-94238-571-0	02	1	9112-		●
42	PIPE; PCV,INL MANIF	8-94153-176-0	01	1	9112-	●
42	PIPE; PCV,INL MANIF	8-97029-376-0	01	1	9112-9208		●
43	HOSE; PCV OD=22	8-97039-185-2	01	1	9112-9504			●
43	HOSE; PCV TURBOCHARGER<K51> OD=22	8-97039-185-2	01	1	9505-			●
43	HOSE; PCV OD=13	8-94364-503-1	01	1	9112-		●
47	PIPE ASM; PCV	8-97032-383-5	01	1	9112-		●
48	BOLT; PIPE M6X12 FLANGE	0-28080-612-0	01	1	9112-		●
133	VALVE; PCV L=58.5	8-94331-209-0	01	1	9112-	●
133	VALVE; PCV	8-94386-755-0	01	1	9112-		●

270 13 12 13 32 35 65 32 43 32 32 19 55 59 59 54 56 32 32 32 32 32 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
12	VENTILATOR; AIR	8-94250-172-0	01	1	9112-9308				●
12	VENTILATOR; AIR EXC. CHILE EQUIPMENT(S2G)	8-94250-172-0	01	1	9112-9308			●
12	VENTILATOR; AIR	8-94250-172-0	01	1	9309-9504				●
12	VENTILATOR; AIR EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94250-172-0	01	1	9309-9504			●
12	VENTILATOR; AIR EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94250-172-0	01	1	9505-			●
13	SCREW; VENTILATOR TO HD COVER M4X8 W/LK WASHER	9-03910-408-0	04	1	9112-9504			●	●
13	SCREW; VENTILATOR TO HD COVER M4X8 W/LK WASHER	9-03910-408-0	04	1	9505-			●
19	HOSE; RUBBER BREATHER	8-94369-188-0	01	1	9112-9502			●
32	CLIP; VENT HOSE (A) ID=20.4	8-94121-113-0	02	1	9112-9504				●
32	CLIP; VENT HOSE (B) ID=20 L=25	9-09916-078-0	01	1	9112-9504				●
32	CLIP; VENT HOSE (A) ID=20.4	8-94121-113-0	06	1	9112-9607			●
32	CLIP; VENT HOSE (B) ID=21 BLACK	8-94422-733-0	02	1	9112-9408			●
32	CLIP; VENT HOSE (B) ID=21 BLACK	8-94422-733-0	01	1	9409-9504			●
32	CLIP; VENT HOSE TURBOCHARGER<K51> (B) ID=21 BLACK	8-94422-733-0	01	1	9505-			●
32	CLIP; VENT HOSE (A) ID=20.4	8-94121-113-0	02	1	9705-			●
32	CLIP; VENT HOSE ID=12.8	8-94367-943-0	02	1	9112-9211		●
35	GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHILE EQUIPMENT(S2G)	8-94363-004-0	01	1	9112-9203			●
35	GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) CHILE EQUIPMENT(S2G)	8-97074-771-0	01	1	9204-9308			●
35	GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EUROPE/CANARY EQUIPMENT(EK4)	8-97074-771-0	01	1	9309-9512			●
35	GASKET; VENTILATOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EUROPE/CANARY EQUIPMENT(EK4)	8-97138-782-0	01	1	9601-			●
43	HOSE; PCV OD=22	8-97039-185-2	01	1	9112-9504			●
43	HOSE; PCV TURBOCHARGER<K51> OD=22	8-97039-185-2	01	1	9505-			●
43	HOSE; PCV OD=13	8-94364-503-1	01	1	9112-		●
52	HOSE; PCV	8-94437-494-2	01	1	9503-9504			●
52	HOSE; PCV TURBOCHARGER<K51>	8-94437-494-3	01	1	9505-			●
52	HOSE; PCV EXC. TURBOCHARGER<K51>	8-97110-427-0	01	1	9505-			●
52	HOSE; PCV	8-94146-248-1	01	1	9112-9207	●
52	HOSE; PCV	8-97069-260-0	01	1	9208-	●
54	HOSE; PCV,3 WAY	8-94366-847-0	01	1	9112-9502			●
55	HOSE; PCV,CHECK VLV TO 3 WAY OD=22.5	8-94369-187-0	01	1	9112-9502			●
56	HOSE; PCV,3 WAY TO INT DUCT L=240	0-02614-240-0	01	1	9112-9502			●
59	CLIP; HOSE (A) ID=20.4	8-94121-113-0	02	1	9112-9502			●
59	CLIP; HOSE (B) ID=24.3	8-94366-846-0	01	1	9112-9502			●
65	PIPE; BREATHER	8-94250-615-1	01	1	9112-9504			●	●
65	PIPE; BREATHER	8-94250-615-1	01	1	9505-			●
270	COVER; VENTILATOR CHILE EQUIPMENT(S2G)	8-97062-460-0	01	1	9112-9308			●
270	COVER; VENTILATOR EUROPE/CANARY EQUIPMENT(EK4)	8-97062-460-0	01	1	9309-9512			●
270	COVER; VENTILATOR EUROPE/CANARY EQUIPMENT(EK4)	8-94163-368-0	01	1	9601-			●
