◀ 🏠 ▶ Isuzu WW ▶ SUV ▶ UBS ▶ 50659 - UBS-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-27 - EXHAUST MANIFOLD ▶
0-27 — EXHAUST MANIFOLD (#33134) — 353 parça

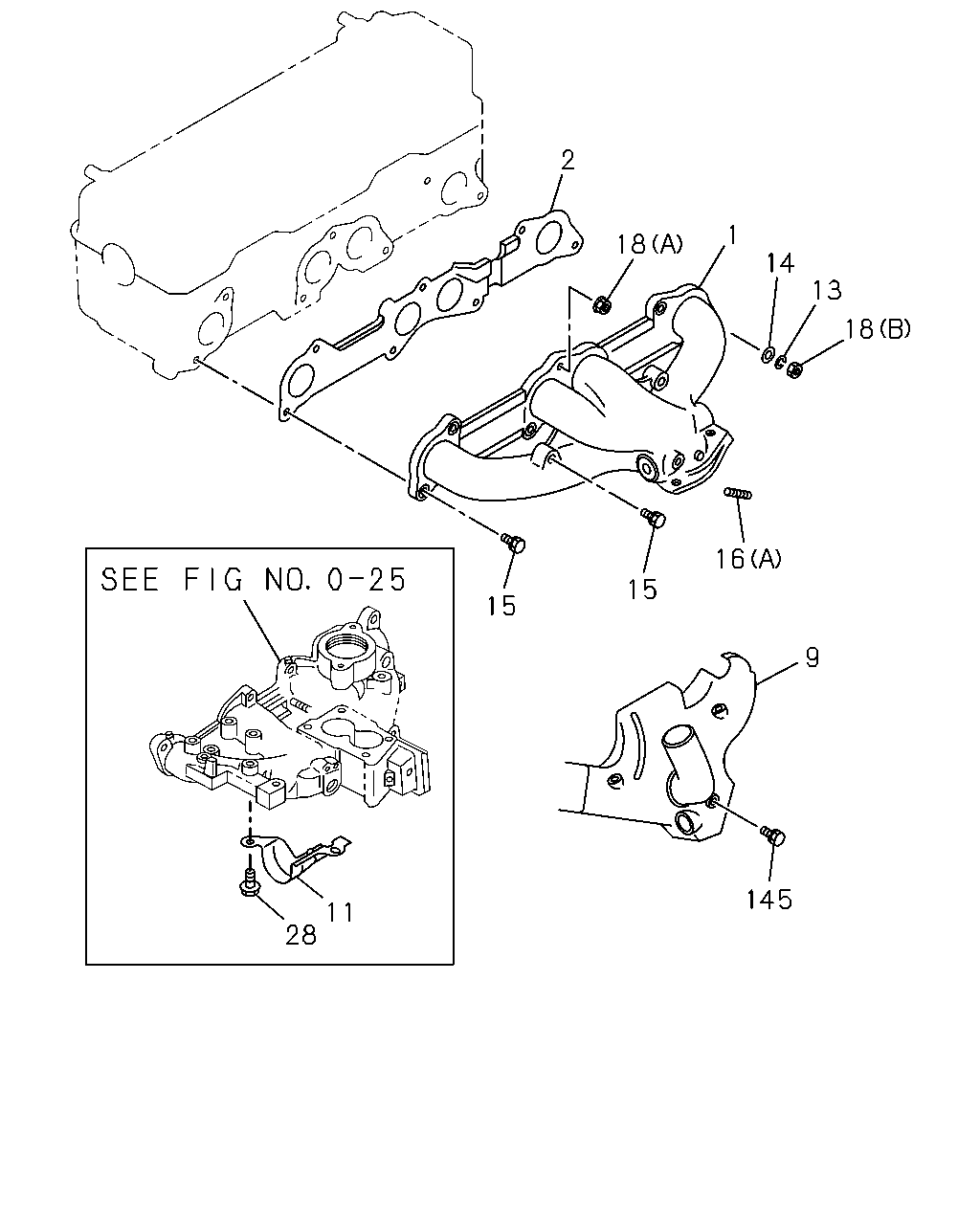

çizim 16277
2 1 18 14 13 18 16 15 15 9 145 11 28
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 MANIFOLD; EXHAUST 8-94259-880-2 01 1 9112-9305 ●
1 MANIFOLD; EXHAUST 8-97065-960-1 01 1 9306-9504 ●
1 MANIFOLD; EXHAUST
EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> 		8-97065-960-1 01 1 9505- ●
1 MANIFOLD; EXHAUST
EUROPE/CANARY EQUIPMENT(EK4) 		8-97039-474-3 01 1 9112- ●
1 MANIFOLD; EXHAUST
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97039-473-2 01 1 9112-9504 ●
1 MANIFOLD; EXHAUST
TURBOCHARGER<K51> EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97039-473-3 01 1 9505- ●
1 MANIFOLD; EXHAUST 8-94454-598-2 01 1 9112-9209 ●
1 MANIFOLD; EXHAUST
920915- 		8-97083-579-0 01 1 9209-9504 ●
1 MANIFOLD; EXHAUST
EXC. CHINA EQUIPMENT(YT2) 		8-97083-579-0 01 1 9505- ●
1 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97127-546-0 01 1 9505- ●
1 MANIFOLD; EXHAUST 8-94364-773-6 01 1 9112-9510 ●
1 MANIFOLD; EXHAUST 8-97115-618-1 01 1 9511- ●
1 MANIFOLD; EXHAUST
EUROPE/CANARY EQUIPMENT(EK4) 		8-94364-775-4 01 1 9112-9208 ●
1 MANIFOLD; EXHAUST
CHILE EQUIPMENT(S2G) 		8-94364-775-5 01 1 9209-9308 ●
1 MANIFOLD; EXHAUST
EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G) 		8-97081-232-0 01 1 9209-9308 ●
1 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97081-232-2 01 1 9309-9510 ●
1 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97115-611-1 01 1 9511- ●
1 MANIFOLD; EXHAUST
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97037-422-7 01 1 9112-9510 ●
1 MANIFOLD; EXHAUST
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97128-510-0 01 1 9511- ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97020-591-0 01 1 9112-9408 ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97109-216-1 01 1 9409-9504 ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97109-216-1 01 1 9505- ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94324-054-0 01 1 9112-9308 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97117-182-0 01 1 9309-9501 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94324-054-0 01 1 9502- ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94323-173-0 02 1 9112-9510 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97104-316-0 02 1 9511- ●
9 COVER; HOT AIR
HOT AIR INTAKE(RN4) 		8-94148-909-2 01 1 9112-9207 ●
9 COVER; HOT AIR
HOT AIR INTAKE(RN4) 		8-97083-580-1 01 1 9208- ●
11 PROTECTOR; HEAT,FUEL PUMP
CHINA EQUIPMENT(YT2) 		8-97072-441-0 01 1 9505-9508 ●
11 PROTECTOR; HEAT,FUEL PUMP
CHINA EQUIPMENT(YT2) 		8-97136-056-0 01 1 9509- ●
13 WASHER; LK,EXH MANIF
ID=8.2 		9-09150-508-0 02 1 9112-9504 ● ●
13 WASHER; LK,EXH MANIF
ID=8.2 		9-09150-508-0 02 1 9505-9606 ●
13 WASHER; LK,EXH MANIF
ID=8.2 		9-09150-508-0 07 1 9112- ●
14 WASHER; PL,EXH MANIF
ID=8.4 OD=18 		9-09160-608-0 01 1 9112-9210 ●
14 WASHER; PL,EXH MANIF
ID=8.4 OD=18 		9-09164-608-0 01 1 9211-9504 ●
14 WASHER; PL,EXH MANIF
TURBOCHARGER<K51> ID=8.4 OD=18 		9-09164-608-0 01 1 9505-9606 ●
14 WASHER; PL,EXH MANIF
TURBOCHARGER<K51> ID=8.5 OD=15 T=4 		1-09503-219-0 02 1 9607- ●
14 WASHER; PL,EXH MANIF
ID=8.4 OD=18 		9-09164-608-0 02 1 9209- ●
15 BOLT; EXH MANIF
M8X35 		8-97045-441-0 06 1 9112-9504 ● ●
15 BOLT; EXH MANIF
M8X35 		8-97045-441-0 06 1 9505-9606 ●
15 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 9607- ●
15 BOLT; EXH MANIF
M8X25 W/LK WASHER 		0-50040-825-0 04 1 9112- ●
16 STUD; EXH PIPE TO MANIF
M10X45 L=60 STAINLESS 		8-97032-977-0 02 1 9209-9210 ●
16 STUD; EXH PIPE TO MANIF
M10X45 L=60 PLATING 		5-09302-008-1 02 1 9211-9504 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> M10X38 L=53 		5-09302-007-0 02 1 9505- ●
16 STUD; EXH PIPE TO MANIF
(A) M10X25 L=40 		9-04411-025-0 02 1 9112-9211 ●
16 STUD; EXH PIPE TO MANIF
CHILE EQUIPMENT(S2G) (A) M10X25 L=40 		9-04411-025-0 02 1 9112-9211 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) M10X25 L=40 		9-04411-025-0 02 1 9112-9211 ●
16 STUD; EXH PIPE TO MANIF
(A) M10X25 L=40 		9-04411-025-0 02 1 9309-9506 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (A) M10X25 L=40 		9-04411-025-0 02 1 9309-9506 ●
16 STUD; EXH PIPE TO MANIF
(A) M10X25 L=40 		9-04411-025-0 02 1 9507-9510 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) M10X25 L=40 		9-04411-025-0 02 1 9507-9510 ●
16 STUD; EXH PIPE TO MANIF
(A) M10X25 L=40 		9-04411-025-0 02 1 9511- ●
16 STUD; EXH PIPE TO MANIF
CHILE EQUIPMENT(S2G) (A) M8X18 L=29 		8-97061-377-0 01 1 9211-9211 ●
16 STUD; EXH PIPE TO MANIF
CHILE EQUIPMENT(S2G) (B) M10X25 L=40 		9-04411-025-0 04 1 9211-9211 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) M10X25 L=40 		9-04411-025-0 04 1 9211-9211 ●
16 STUD; EXH PIPE TO MANIF
CHILE EQUIPMENT(S2G) (A) M8X18 L=29 		8-97061-377-0 01 1 9212-9308 ●
16 STUD; EXH PIPE TO MANIF
CHILE EQUIPMENT(S2G) (B) M10X25 L=40 		9-04411-025-0 04 1 9212-9308 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) M10X25 L=40 		9-04411-025-0 04 1 9212-9308 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4) (A) M8X18 L=29 		8-97061-377-0 01 1 9112-9210 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G) (A) M8X18 L=29 		8-97061-377-0 01 1 9211-9211 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G) (B) M10X25 L=40 		9-04411-025-0 04 1 9112-9211 ●
16 STUD; EXH PIPE TO MANIF
(A) M10X25 L=40 		9-04411-025-0 02 1 9212-9301 ●
16 STUD; EXH PIPE TO MANIF
(A) M10X25 L=40 		9-04411-025-0 02 1 9302-9308 ●
16 STUD; EXH PIPE TO MANIF
CHILE EQUIPMENT(S2G) (A) M10X25 L=40 		9-04411-025-0 02 1 9302-9308 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) M10X25 L=40 		9-04411-025-0 02 1 9302-9308 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G) (A) M8X18 L=29 		8-97061-377-0 02 1 9212-9308 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G) (A) M10X25 L=40 		9-04411-025-0 08 1 9212-9308 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (A) M8X18 L=29 		8-97061-377-0 02 1 9309-9504 ●
16 STUD; EXH PIPE TO MANIF
4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) (A) M8X18 L=29 		8-97061-377-0 02 1 9505-9506 ●
16 STUD; EXH PIPE TO MANIF
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (A) M8X18 L=29 		8-97061-377-0 02 1 9505-9506 ●
16 STUD; EXH PIPE TO MANIF
4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) (A) M8X18 L=29 		8-97061-377-1 02 1 9507- ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) M8X18 L=29 		8-97061-377-1 02 1 9507- ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (B) M10X25 L=40 		9-04411-025-0 04 1 9309-9510 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (B) M12X15 L=46.6 		8-97115-132-0 06 1 9511-9607 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) M12X15 L=46.6 		8-97115-132-0 06 1 9608- ●
16 STUD; EXH PIPE TO MANIF
(B) M12X15 L=46.6 		8-97115-132-0 06 1 9608- ●
18 NUT; EXH MANIF
M8 		9-09110-508-0 02 1 9112-9504 ● ●
18 NUT; EXH MANIF
M8 		9-09110-508-0 02 1 9505-9606 ●
18 NUT; EXH MANIF
M8 FLANGE 		0-91150-208-0 02 1 9607- ●
18 NUT; EXH MANIF
(A) M8 FLANGE 		5-09440-005-0 04 1 9112- ●
18 NUT; EXH MANIF
(B) M8 		9-09110-408-0 07 1 9112- ●
18 NUT; EXH MANIF
M10 LOCK NUT 		8-94375-110-0 14 1 9112-9510 ●
18 NUT; EXH MANIF
M10 LOCK NUT 		8-94375-110-0 16 1 9511- ●
28 BOLT; HEAT PROTECTOR,FUEL PUMP
CHINA EQUIPMENT(YT2) M8X12 FLANGE 		0-28080-812-0 02 1 9505-9508 ●
28 BOLT; HEAT PROTECTOR,FUEL PUMP
CHINA EQUIPMENT(YT2) M8X20 FLANGE 		0-28080-820-0 02 1 9509- ●
145 BOLT; COVER TO MANIF
HOT AIR INTAKE(RN4) M8X14 W/LK WASHERT 		8-94370-634-0 03 1 9112- ●

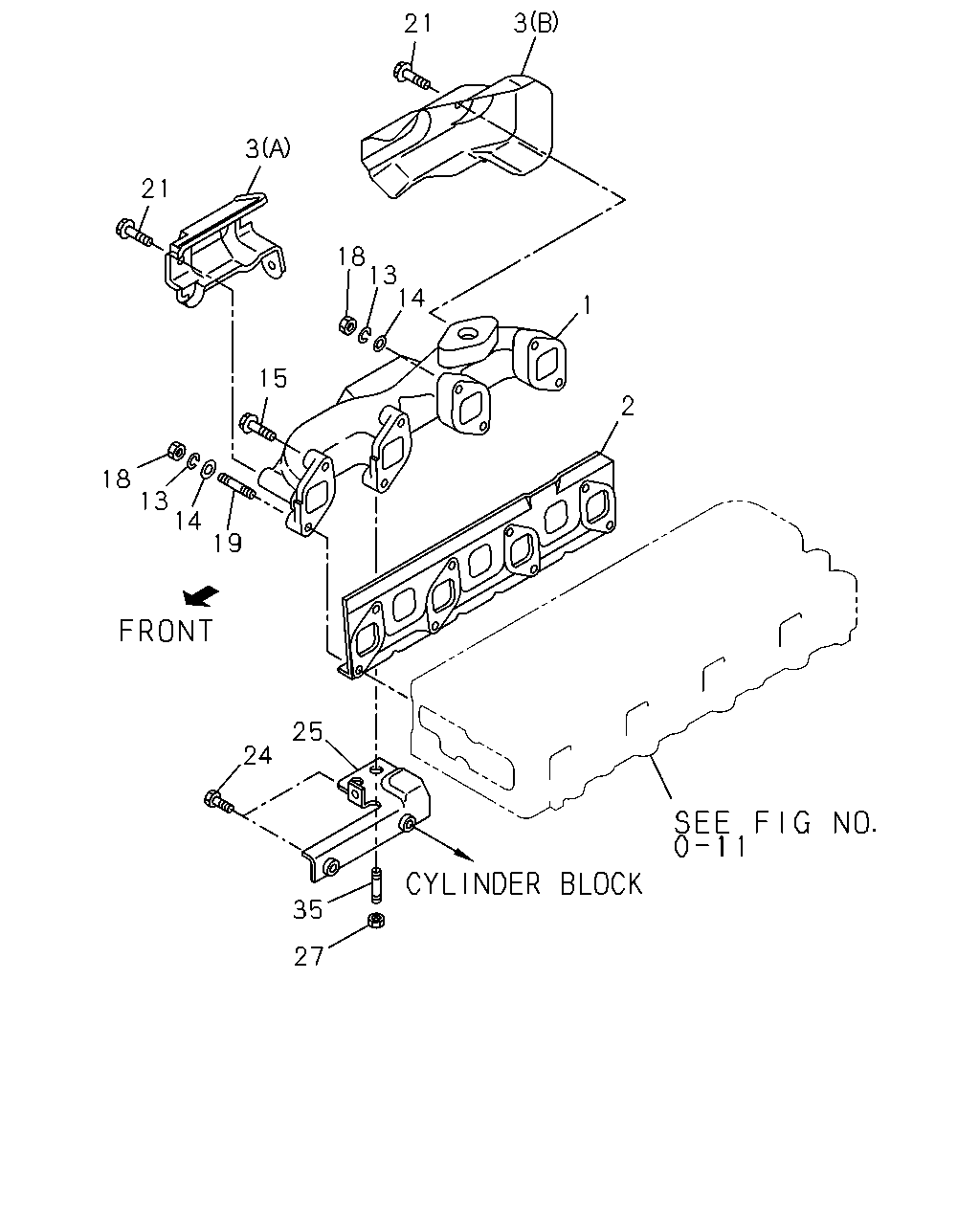

çizim 68360
3 21 3 21 18 13 14 1 15 2 18 13 14 19 25 24 35 27
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 MANIFOLD; EXHAUST 8-94259-880-2 01 1 9112-9305 ●
1 MANIFOLD; EXHAUST 8-97065-960-1 01 1 9306-9504 ●
1 MANIFOLD; EXHAUST
EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> 		8-97065-960-1 01 1 9505- ●
1 MANIFOLD; EXHAUST
EUROPE/CANARY EQUIPMENT(EK4) 		8-97039-474-3 01 1 9112- ●
1 MANIFOLD; EXHAUST
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97039-473-2 01 1 9112-9504 ●
1 MANIFOLD; EXHAUST
TURBOCHARGER<K51> EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97039-473-3 01 1 9505- ●
1 MANIFOLD; EXHAUST 8-94454-598-2 01 1 9112-9209 ●
1 MANIFOLD; EXHAUST
920915- 		8-97083-579-0 01 1 9209-9504 ●
1 MANIFOLD; EXHAUST
EXC. CHINA EQUIPMENT(YT2) 		8-97083-579-0 01 1 9505- ●
1 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97127-546-0 01 1 9505- ●
1 MANIFOLD; EXHAUST 8-94364-773-6 01 1 9112-9510 ●
1 MANIFOLD; EXHAUST 8-97115-618-1 01 1 9511- ●
1 MANIFOLD; EXHAUST
EUROPE/CANARY EQUIPMENT(EK4) 		8-94364-775-4 01 1 9112-9208 ●
1 MANIFOLD; EXHAUST
CHILE EQUIPMENT(S2G) 		8-94364-775-5 01 1 9209-9308 ●
1 MANIFOLD; EXHAUST
EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G) 		8-97081-232-0 01 1 9209-9308 ●
1 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97081-232-2 01 1 9309-9510 ●
1 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97115-611-1 01 1 9511- ●
1 MANIFOLD; EXHAUST
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97037-422-7 01 1 9112-9510 ●
1 MANIFOLD; EXHAUST
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97128-510-0 01 1 9511- ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97020-591-0 01 1 9112-9408 ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97109-216-1 01 1 9409-9504 ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97109-216-1 01 1 9505- ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94324-054-0 01 1 9112-9308 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97117-182-0 01 1 9309-9501 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94324-054-0 01 1 9502- ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94323-173-0 02 1 9112-9510 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97104-316-0 02 1 9511- ●
3 PROTECTOR; HEAT,EXH MANIF 8-94472-396-0 01 1 9112-9504 ●
3 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97038-107-0 01 1 9112-9504 ●
3 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (B) 		8-97038-107-1 01 1 9505- ●
3 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97066-757-1 01 1 9112-9504 ●
3 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (A) 		8-97066-757-1 01 1 9505-9511 ●
3 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (A) 		8-97133-936-0 01 1 9512- ●
3 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51> 		8-94472-396-0 01 1 9505-9701 ●
3 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51> 		8-97131-704-0 01 1 9702- ●
3 PROTECTOR; HEAT,EXH MANIF 8-94364-943-5 01 1 9112-9510 ●
3 PROTECTOR; HEAT,EXH MANIF 8-97101-976-0 01 1 9511- ●
3 PROTECTOR; HEAT,EXH MANIF 8-94364-942-5 01 1 9112-9510 ●
3 PROTECTOR; HEAT,EXH MANIF 8-97101-975-1 01 1 9511- ●
13 WASHER; LK,EXH MANIF
ID=8.2 		9-09150-508-0 02 1 9112-9504 ● ●
13 WASHER; LK,EXH MANIF
ID=8.2 		9-09150-508-0 02 1 9505-9606 ●
13 WASHER; LK,EXH MANIF
ID=8.2 		9-09150-508-0 07 1 9112- ●
14 WASHER; PL,EXH MANIF
ID=8.4 OD=18 		9-09160-608-0 01 1 9112-9210 ●
14 WASHER; PL,EXH MANIF
ID=8.4 OD=18 		9-09164-608-0 01 1 9211-9504 ●
14 WASHER; PL,EXH MANIF
TURBOCHARGER<K51> ID=8.4 OD=18 		9-09164-608-0 01 1 9505-9606 ●
14 WASHER; PL,EXH MANIF
TURBOCHARGER<K51> ID=8.5 OD=15 T=4 		1-09503-219-0 02 1 9607- ●
14 WASHER; PL,EXH MANIF
ID=8.4 OD=18 		9-09164-608-0 02 1 9209- ●
15 BOLT; EXH MANIF
M8X35 		8-97045-441-0 06 1 9112-9504 ● ●
15 BOLT; EXH MANIF
M8X35 		8-97045-441-0 06 1 9505-9606 ●
15 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 9607- ●
15 BOLT; EXH MANIF
M8X25 W/LK WASHER 		0-50040-825-0 04 1 9112- ●
18 NUT; EXH MANIF
M8 		9-09110-508-0 02 1 9112-9504 ● ●
18 NUT; EXH MANIF
M8 		9-09110-508-0 02 1 9505-9606 ●
18 NUT; EXH MANIF
M8 FLANGE 		0-91150-208-0 02 1 9607- ●
18 NUT; EXH MANIF
(A) M8 FLANGE 		5-09440-005-0 04 1 9112- ●
18 NUT; EXH MANIF
(B) M8 		9-09110-408-0 07 1 9112- ●
18 NUT; EXH MANIF
M10 LOCK NUT 		8-94375-110-0 14 1 9112-9510 ●
18 NUT; EXH MANIF
M10 LOCK NUT 		8-94375-110-0 16 1 9511- ●
19 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-0 02 1 9112-9504 ● ●
19 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-1 02 1 9505- ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 9112-9504 ● ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 9505- ●
21 BOLT; HEAT PROTECTOR
M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9112-9504 ●
21 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9505-9611 ●
21 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> M6X12 FLANGE 		0-28080-612-0 01 1 9612- ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		8-97012-320-1 10 1 9112-9510 ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		8-97012-320-1 04 1 9511- ●
24 BOLT; BRKT,EXH MANIF
M8X25 W/LK&PL WASHER 		0-50140-825-0 01 1 9112-9504 ●
24 BOLT; BRKT,EXH MANIF
TURBOCHARGER<K51> M8X25 W/LK&PL WASHER 		0-50140-825-0 01 1 9505- ●
24 BOLT; BRKT,EXH MANIF
M10X32 W/LK WASHER 		0-50141-032-0 01 1 9112-9504 ●
24 BOLT; BRKT,EXH MANIF
TURBOCHARGER<K51> M10X32 W/LK WASHER 		0-50141-032-0 01 1 9505- ●
25 BRACKET; EXH MANIF 8-97038-106-2 01 1 9112-9504 ●
25 BRACKET; EXH MANIF
TURBOCHARGER<K51> 		8-97038-106-2 01 1 9505-9603 ●
25 BRACKET; EXH MANIF
TURBOCHARGER<K51> 		8-97145-973-0 01 1 9604- ●
27 NUT; BRKT,EXH MANIF
M8 FLANGE 		0-91150-208-0 02 1 9112-9504 ●
27 NUT; BRKT,EXH MANIF
TURBOCHARGER<K51> M8 FLANGE 		0-91150-208-0 02 1 9505-9603 ●
27 NUT; BRKT,EXH MANIF
TURBOCHARGER<K51> M8 FLANGE 		0-91150-208-0 01 1 9604- ●
35 STUD; BRKT
M8X20 L=29 		5-09300-069-0 02 1 9112-9504 ●
35 STUD; BRKT
TURBOCHARGER<K51> M8X20 L=29 		5-09300-069-0 02 1 9505-9603 ●
35 STUD; BRKT
TURBOCHARGER<K51> M8X20 L=29 		5-09300-069-0 01 1 9604- ●

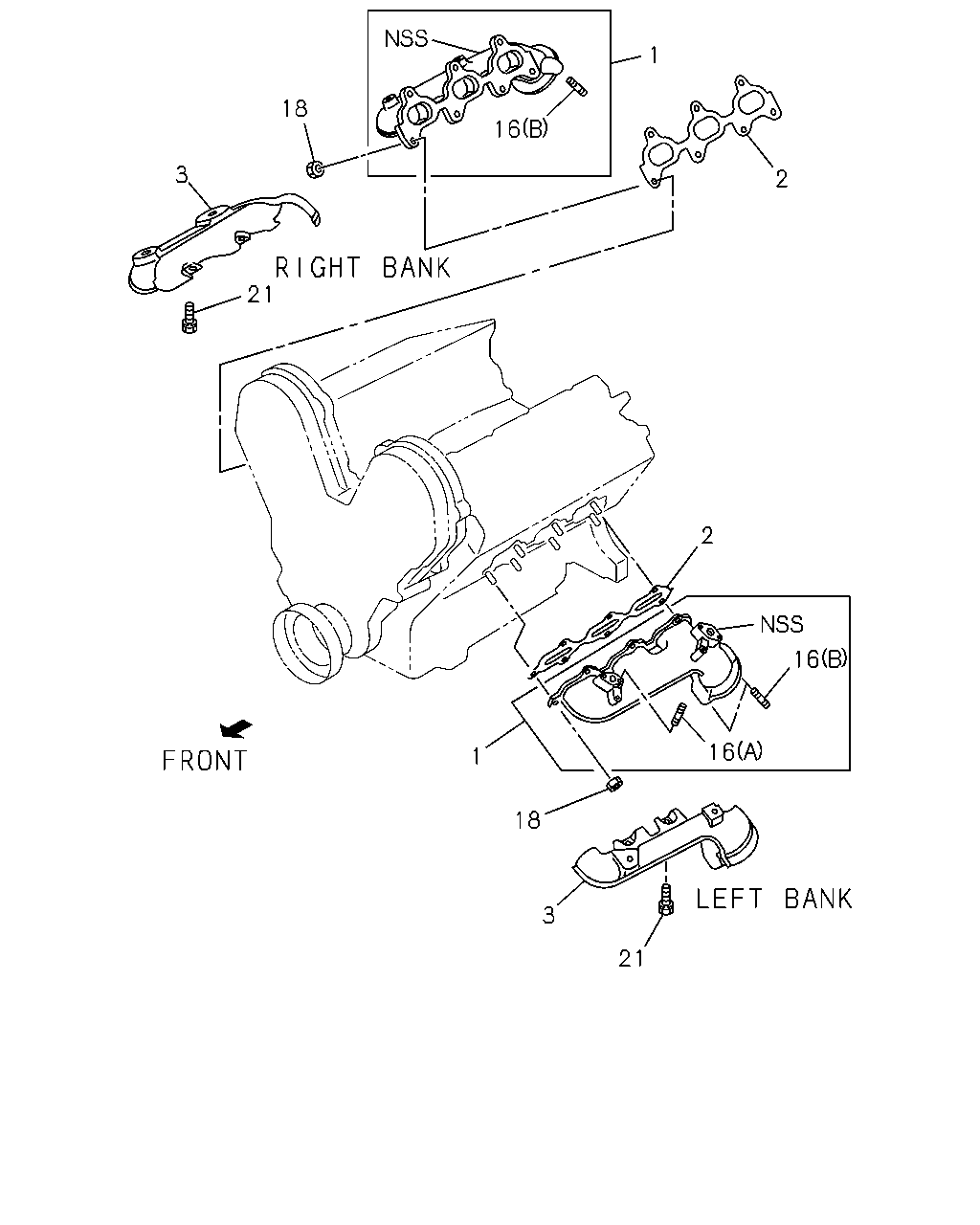

çizim 68615
1 18 16 3 2 21 2 16 16 1 18 3 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 MANIFOLD; EXHAUST 8-94259-880-2 01 1 9112-9305 ●
1 MANIFOLD; EXHAUST 8-97065-960-1 01 1 9306-9504 ●
1 MANIFOLD; EXHAUST
EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> 		8-97065-960-1 01 1 9505- ●
1 MANIFOLD; EXHAUST
EUROPE/CANARY EQUIPMENT(EK4) 		8-97039-474-3 01 1 9112- ●
1 MANIFOLD; EXHAUST
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97039-473-2 01 1 9112-9504 ●
1 MANIFOLD; EXHAUST
TURBOCHARGER<K51> EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97039-473-3 01 1 9505- ●
1 MANIFOLD; EXHAUST 8-94454-598-2 01 1 9112-9209 ●
1 MANIFOLD; EXHAUST
920915- 		8-97083-579-0 01 1 9209-9504 ●
1 MANIFOLD; EXHAUST
EXC. CHINA EQUIPMENT(YT2) 		8-97083-579-0 01 1 9505- ●
1 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97127-546-0 01 1 9505- ●
1 MANIFOLD; EXHAUST 8-94364-773-6 01 1 9112-9510 ●
1 MANIFOLD; EXHAUST 8-97115-618-1 01 1 9511- ●
1 MANIFOLD; EXHAUST
EUROPE/CANARY EQUIPMENT(EK4) 		8-94364-775-4 01 1 9112-9208 ●
1 MANIFOLD; EXHAUST
CHILE EQUIPMENT(S2G) 		8-94364-775-5 01 1 9209-9308 ●
1 MANIFOLD; EXHAUST
EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G) 		8-97081-232-0 01 1 9209-9308 ●
1 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97081-232-2 01 1 9309-9510 ●
1 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97115-611-1 01 1 9511- ●
1 MANIFOLD; EXHAUST
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97037-422-7 01 1 9112-9510 ●
1 MANIFOLD; EXHAUST
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97128-510-0 01 1 9511- ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97020-591-0 01 1 9112-9408 ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97109-216-1 01 1 9409-9504 ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97109-216-1 01 1 9505- ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94324-054-0 01 1 9112-9308 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97117-182-0 01 1 9309-9501 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94324-054-0 01 1 9502- ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94323-173-0 02 1 9112-9510 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97104-316-0 02 1 9511- ●
3 PROTECTOR; HEAT,EXH MANIF 8-94472-396-0 01 1 9112-9504 ●
3 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97038-107-0 01 1 9112-9504 ●
3 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (B) 		8-97038-107-1 01 1 9505- ●
3 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97066-757-1 01 1 9112-9504 ●
3 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (A) 		8-97066-757-1 01 1 9505-9511 ●
3 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (A) 		8-97133-936-0 01 1 9512- ●
3 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51> 		8-94472-396-0 01 1 9505-9701 ●
3 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51> 		8-97131-704-0 01 1 9702- ●
3 PROTECTOR; HEAT,EXH MANIF 8-94364-943-5 01 1 9112-9510 ●
3 PROTECTOR; HEAT,EXH MANIF 8-97101-976-0 01 1 9511- ●
3 PROTECTOR; HEAT,EXH MANIF 8-94364-942-5 01 1 9112-9510 ●
3 PROTECTOR; HEAT,EXH MANIF 8-97101-975-1 01 1 9511- ●
16 STUD; EXH PIPE TO MANIF
M10X45 L=60 STAINLESS 		8-97032-977-0 02 1 9209-9210 ●
16 STUD; EXH PIPE TO MANIF
M10X45 L=60 PLATING 		5-09302-008-1 02 1 9211-9504 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> M10X38 L=53 		5-09302-007-0 02 1 9505- ●
16 STUD; EXH PIPE TO MANIF
(A) M10X25 L=40 		9-04411-025-0 02 1 9112-9211 ●
16 STUD; EXH PIPE TO MANIF
CHILE EQUIPMENT(S2G) (A) M10X25 L=40 		9-04411-025-0 02 1 9112-9211 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) M10X25 L=40 		9-04411-025-0 02 1 9112-9211 ●
16 STUD; EXH PIPE TO MANIF
(A) M10X25 L=40 		9-04411-025-0 02 1 9309-9506 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (A) M10X25 L=40 		9-04411-025-0 02 1 9309-9506 ●
16 STUD; EXH PIPE TO MANIF
(A) M10X25 L=40 		9-04411-025-0 02 1 9507-9510 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) M10X25 L=40 		9-04411-025-0 02 1 9507-9510 ●
16 STUD; EXH PIPE TO MANIF
(A) M10X25 L=40 		9-04411-025-0 02 1 9511- ●
16 STUD; EXH PIPE TO MANIF
CHILE EQUIPMENT(S2G) (A) M8X18 L=29 		8-97061-377-0 01 1 9211-9211 ●
16 STUD; EXH PIPE TO MANIF
CHILE EQUIPMENT(S2G) (B) M10X25 L=40 		9-04411-025-0 04 1 9211-9211 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) M10X25 L=40 		9-04411-025-0 04 1 9211-9211 ●
16 STUD; EXH PIPE TO MANIF
CHILE EQUIPMENT(S2G) (A) M8X18 L=29 		8-97061-377-0 01 1 9212-9308 ●
16 STUD; EXH PIPE TO MANIF
CHILE EQUIPMENT(S2G) (B) M10X25 L=40 		9-04411-025-0 04 1 9212-9308 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) M10X25 L=40 		9-04411-025-0 04 1 9212-9308 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4) (A) M8X18 L=29 		8-97061-377-0 01 1 9112-9210 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G) (A) M8X18 L=29 		8-97061-377-0 01 1 9211-9211 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G) (B) M10X25 L=40 		9-04411-025-0 04 1 9112-9211 ●
16 STUD; EXH PIPE TO MANIF
(A) M10X25 L=40 		9-04411-025-0 02 1 9212-9301 ●
16 STUD; EXH PIPE TO MANIF
(A) M10X25 L=40 		9-04411-025-0 02 1 9302-9308 ●
16 STUD; EXH PIPE TO MANIF
CHILE EQUIPMENT(S2G) (A) M10X25 L=40 		9-04411-025-0 02 1 9302-9308 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) M10X25 L=40 		9-04411-025-0 02 1 9302-9308 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G) (A) M8X18 L=29 		8-97061-377-0 02 1 9212-9308 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G) (A) M10X25 L=40 		9-04411-025-0 08 1 9212-9308 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (A) M8X18 L=29 		8-97061-377-0 02 1 9309-9504 ●
16 STUD; EXH PIPE TO MANIF
4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) (A) M8X18 L=29 		8-97061-377-0 02 1 9505-9506 ●
16 STUD; EXH PIPE TO MANIF
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (A) M8X18 L=29 		8-97061-377-0 02 1 9505-9506 ●
16 STUD; EXH PIPE TO MANIF
4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) (A) M8X18 L=29 		8-97061-377-1 02 1 9507- ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) M8X18 L=29 		8-97061-377-1 02 1 9507- ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (B) M10X25 L=40 		9-04411-025-0 04 1 9309-9510 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (B) M12X15 L=46.6 		8-97115-132-0 06 1 9511-9607 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) M12X15 L=46.6 		8-97115-132-0 06 1 9608- ●
16 STUD; EXH PIPE TO MANIF
(B) M12X15 L=46.6 		8-97115-132-0 06 1 9608- ●
18 NUT; EXH MANIF
M8 		9-09110-508-0 02 1 9112-9504 ● ●
18 NUT; EXH MANIF
M8 		9-09110-508-0 02 1 9505-9606 ●
18 NUT; EXH MANIF
M8 FLANGE 		0-91150-208-0 02 1 9607- ●
18 NUT; EXH MANIF
(A) M8 FLANGE 		5-09440-005-0 04 1 9112- ●
18 NUT; EXH MANIF
(B) M8 		9-09110-408-0 07 1 9112- ●
18 NUT; EXH MANIF
M10 LOCK NUT 		8-94375-110-0 14 1 9112-9510 ●
18 NUT; EXH MANIF
M10 LOCK NUT 		8-94375-110-0 16 1 9511- ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 9112-9504 ● ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 9505- ●
21 BOLT; HEAT PROTECTOR
M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9112-9504 ●
21 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9505-9611 ●
21 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> M6X12 FLANGE 		0-28080-612-0 01 1 9612- ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		8-97012-320-1 10 1 9112-9510 ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		8-97012-320-1 04 1 9511- ●
çizim 68645
3 21 18 13 1 19 2 15 16
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 MANIFOLD; EXHAUST 8-94259-880-2 01 1 9112-9305 ●
1 MANIFOLD; EXHAUST 8-97065-960-1 01 1 9306-9504 ●
1 MANIFOLD; EXHAUST
EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> 		8-97065-960-1 01 1 9505- ●
1 MANIFOLD; EXHAUST
EUROPE/CANARY EQUIPMENT(EK4) 		8-97039-474-3 01 1 9112- ●
1 MANIFOLD; EXHAUST
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97039-473-2 01 1 9112-9504 ●
1 MANIFOLD; EXHAUST
TURBOCHARGER<K51> EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97039-473-3 01 1 9505- ●
1 MANIFOLD; EXHAUST 8-94454-598-2 01 1 9112-9209 ●
1 MANIFOLD; EXHAUST
920915- 		8-97083-579-0 01 1 9209-9504 ●
1 MANIFOLD; EXHAUST
EXC. CHINA EQUIPMENT(YT2) 		8-97083-579-0 01 1 9505- ●
1 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97127-546-0 01 1 9505- ●
1 MANIFOLD; EXHAUST 8-94364-773-6 01 1 9112-9510 ●
1 MANIFOLD; EXHAUST 8-97115-618-1 01 1 9511- ●
1 MANIFOLD; EXHAUST
EUROPE/CANARY EQUIPMENT(EK4) 		8-94364-775-4 01 1 9112-9208 ●
1 MANIFOLD; EXHAUST
CHILE EQUIPMENT(S2G) 		8-94364-775-5 01 1 9209-9308 ●
1 MANIFOLD; EXHAUST
EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G) 		8-97081-232-0 01 1 9209-9308 ●
1 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97081-232-2 01 1 9309-9510 ●
1 MANIFOLD; EXHAUST
CHINA EQUIPMENT(YT2) 		8-97115-611-1 01 1 9511- ●
1 MANIFOLD; EXHAUST
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97037-422-7 01 1 9112-9510 ●
1 MANIFOLD; EXHAUST
EXC. EUROPE/CANARY EQUIPMENT(EK4) 		8-97128-510-0 01 1 9511- ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97020-591-0 01 1 9112-9408 ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97109-216-1 01 1 9409-9504 ● ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97109-216-1 01 1 9505- ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94324-054-0 01 1 9112-9308 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97117-182-0 01 1 9309-9501 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94324-054-0 01 1 9502- ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94323-173-0 02 1 9112-9510 ●
2 GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97104-316-0 02 1 9511- ●
3 PROTECTOR; HEAT,EXH MANIF 8-94472-396-0 01 1 9112-9504 ●
3 PROTECTOR; HEAT,EXH MANIF
(B) 		8-97038-107-0 01 1 9112-9504 ●
3 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (B) 		8-97038-107-1 01 1 9505- ●
3 PROTECTOR; HEAT,EXH MANIF
(A) 		8-97066-757-1 01 1 9112-9504 ●
3 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (A) 		8-97066-757-1 01 1 9505-9511 ●
3 PROTECTOR; HEAT,EXH MANIF
TURBOCHARGER<K51> (A) 		8-97133-936-0 01 1 9512- ●
3 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51> 		8-94472-396-0 01 1 9505-9701 ●
3 PROTECTOR; HEAT,EXH MANIF
EXC. TURBOCHARGER<K51> 		8-97131-704-0 01 1 9702- ●
3 PROTECTOR; HEAT,EXH MANIF 8-94364-943-5 01 1 9112-9510 ●
3 PROTECTOR; HEAT,EXH MANIF 8-97101-976-0 01 1 9511- ●
3 PROTECTOR; HEAT,EXH MANIF 8-94364-942-5 01 1 9112-9510 ●
3 PROTECTOR; HEAT,EXH MANIF 8-97101-975-1 01 1 9511- ●
13 WASHER; LK,EXH MANIF
ID=8.2 		9-09150-508-0 02 1 9112-9504 ● ●
13 WASHER; LK,EXH MANIF
ID=8.2 		9-09150-508-0 02 1 9505-9606 ●
13 WASHER; LK,EXH MANIF
ID=8.2 		9-09150-508-0 07 1 9112- ●
15 BOLT; EXH MANIF
M8X35 		8-97045-441-0 06 1 9112-9504 ● ●
15 BOLT; EXH MANIF
M8X35 		8-97045-441-0 06 1 9505-9606 ●
15 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 9607- ●
15 BOLT; EXH MANIF
M8X25 W/LK WASHER 		0-50040-825-0 04 1 9112- ●
16 STUD; EXH PIPE TO MANIF
M10X45 L=60 STAINLESS 		8-97032-977-0 02 1 9209-9210 ●
16 STUD; EXH PIPE TO MANIF
M10X45 L=60 PLATING 		5-09302-008-1 02 1 9211-9504 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> M10X38 L=53 		5-09302-007-0 02 1 9505- ●
16 STUD; EXH PIPE TO MANIF
(A) M10X25 L=40 		9-04411-025-0 02 1 9112-9211 ●
16 STUD; EXH PIPE TO MANIF
CHILE EQUIPMENT(S2G) (A) M10X25 L=40 		9-04411-025-0 02 1 9112-9211 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) M10X25 L=40 		9-04411-025-0 02 1 9112-9211 ●
16 STUD; EXH PIPE TO MANIF
(A) M10X25 L=40 		9-04411-025-0 02 1 9309-9506 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (A) M10X25 L=40 		9-04411-025-0 02 1 9309-9506 ●
16 STUD; EXH PIPE TO MANIF
(A) M10X25 L=40 		9-04411-025-0 02 1 9507-9510 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) M10X25 L=40 		9-04411-025-0 02 1 9507-9510 ●
16 STUD; EXH PIPE TO MANIF
(A) M10X25 L=40 		9-04411-025-0 02 1 9511- ●
16 STUD; EXH PIPE TO MANIF
CHILE EQUIPMENT(S2G) (A) M8X18 L=29 		8-97061-377-0 01 1 9211-9211 ●
16 STUD; EXH PIPE TO MANIF
CHILE EQUIPMENT(S2G) (B) M10X25 L=40 		9-04411-025-0 04 1 9211-9211 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) M10X25 L=40 		9-04411-025-0 04 1 9211-9211 ●
16 STUD; EXH PIPE TO MANIF
CHILE EQUIPMENT(S2G) (A) M8X18 L=29 		8-97061-377-0 01 1 9212-9308 ●
16 STUD; EXH PIPE TO MANIF
CHILE EQUIPMENT(S2G) (B) M10X25 L=40 		9-04411-025-0 04 1 9212-9308 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4) (B) M10X25 L=40 		9-04411-025-0 04 1 9212-9308 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4) (A) M8X18 L=29 		8-97061-377-0 01 1 9112-9210 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G) (A) M8X18 L=29 		8-97061-377-0 01 1 9211-9211 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G) (B) M10X25 L=40 		9-04411-025-0 04 1 9112-9211 ●
16 STUD; EXH PIPE TO MANIF
(A) M10X25 L=40 		9-04411-025-0 02 1 9212-9301 ●
16 STUD; EXH PIPE TO MANIF
(A) M10X25 L=40 		9-04411-025-0 02 1 9302-9308 ●
16 STUD; EXH PIPE TO MANIF
CHILE EQUIPMENT(S2G) (A) M10X25 L=40 		9-04411-025-0 02 1 9302-9308 ●
16 STUD; EXH PIPE TO MANIF
EXC. EUROPE/CANARY EQUIPMENT(EK4) (A) M10X25 L=40 		9-04411-025-0 02 1 9302-9308 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G) (A) M8X18 L=29 		8-97061-377-0 02 1 9212-9308 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4) EXC. CHILE EQUIPMENT(S2G) (A) M10X25 L=40 		9-04411-025-0 08 1 9212-9308 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (A) M8X18 L=29 		8-97061-377-0 02 1 9309-9504 ●
16 STUD; EXH PIPE TO MANIF
4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) (A) M8X18 L=29 		8-97061-377-0 02 1 9505-9506 ●
16 STUD; EXH PIPE TO MANIF
4 DOOR LONG(UB***F) EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (A) M8X18 L=29 		8-97061-377-0 02 1 9505-9506 ●
16 STUD; EXH PIPE TO MANIF
4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) (A) M8X18 L=29 		8-97061-377-1 02 1 9507- ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (A) M8X18 L=29 		8-97061-377-1 02 1 9507- ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (B) M10X25 L=40 		9-04411-025-0 04 1 9309-9510 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) (B) M12X15 L=46.6 		8-97115-132-0 06 1 9511-9607 ●
16 STUD; EXH PIPE TO MANIF
EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) (B) M12X15 L=46.6 		8-97115-132-0 06 1 9608- ●
16 STUD; EXH PIPE TO MANIF
(B) M12X15 L=46.6 		8-97115-132-0 06 1 9608- ●
18 NUT; EXH MANIF
M8 		9-09110-508-0 02 1 9112-9504 ● ●
18 NUT; EXH MANIF
M8 		9-09110-508-0 02 1 9505-9606 ●
18 NUT; EXH MANIF
M8 FLANGE 		0-91150-208-0 02 1 9607- ●
18 NUT; EXH MANIF
(A) M8 FLANGE 		5-09440-005-0 04 1 9112- ●
18 NUT; EXH MANIF
(B) M8 		9-09110-408-0 07 1 9112- ●
18 NUT; EXH MANIF
M10 LOCK NUT 		8-94375-110-0 14 1 9112-9510 ●
18 NUT; EXH MANIF
M10 LOCK NUT 		8-94375-110-0 16 1 9511- ●
19 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-0 02 1 9112-9504 ● ●
19 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97048-055-1 02 1 9505- ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 9112-9504 ● ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		0-28080-812-0 02 1 9505- ●
21 BOLT; HEAT PROTECTOR
M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9112-9504 ●
21 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 9505-9611 ●
21 BOLT; HEAT PROTECTOR
TURBOCHARGER<K51> M6X12 FLANGE 		0-28080-612-0 01 1 9612- ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		8-97012-320-1 10 1 9112-9510 ●
21 BOLT; HEAT PROTECTOR
M8X12 FLANGE 		8-97012-320-1 04 1 9511- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
