Sayfa 0-25 - Isuzu EPC

0-25 — INLET MANIFOLD (#33133) — 283 parça

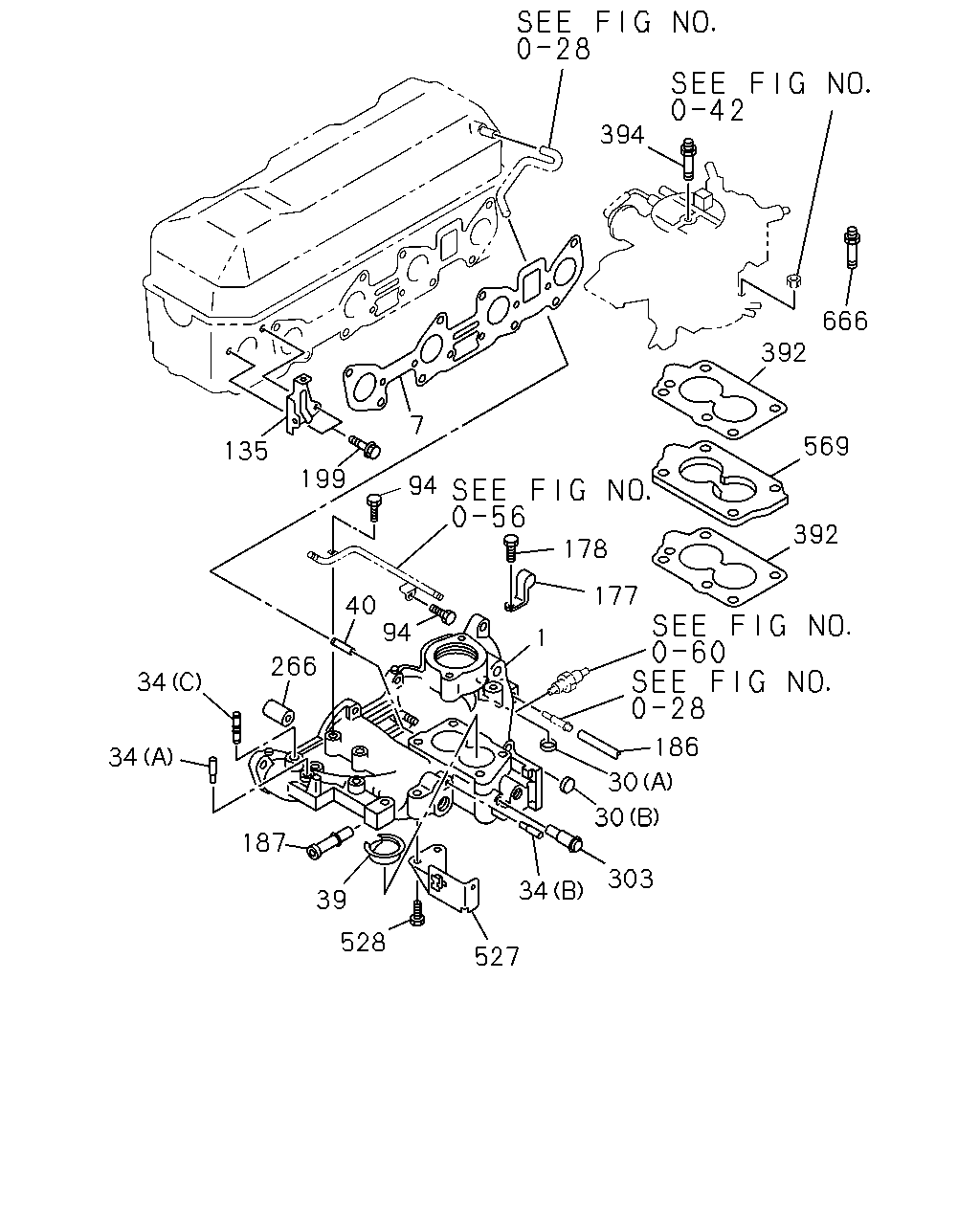

394 666 392 7 569 135 199 94 392 178 40 94 177 186 30 30 1 266 34 34 187 303 34 39 528 527

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MANIFOLD; INL	8-94463-544-4	01	1	9112-9504	●
1	MANIFOLD; INL EUROPE/CANARY EQUIPMENT(EK4)	8-94340-616-3	01	1	9112-9502		●
1	MANIFOLD; INL EUROPE/CANARY EQUIPMENT(EK4)	8-97118-883-0	01	1	9503-9504		●
1	MANIFOLD; INL EUROPE/CANARY EQUIPMENT(EK4)	8-97116-137-0	01	1	9505-9511		●
1	MANIFOLD; INL EUROPE/CANARY EQUIPMENT(EK4)	8-97139-649-0	01	1	9512-		●
1	MANIFOLD; INL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94340-619-3	01	1	9112-9502		●
1	MANIFOLD; INL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97116-132-0	01	1	9503-9504		●
1	MANIFOLD; INL TURBOCHARGER<K51> EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97116-132-1	01	1	9505-		●
1	MANIFOLD; INL EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51>	8-97110-514-0	01	1	9505-		●
1	MANIFOLD; INL	8-97044-025-1	01	1	9112-9504			●
1	MANIFOLD; INL EXC. CHINA EQUIPMENT(YT2)	8-97044-025-1	01	1	9505-			●
1	MANIFOLD; INL CHINA EQUIPMENT(YT2)	8-97123-735-0	01	1	9505-9506			●
1	MANIFOLD; INL CHINA EQUIPMENT(YT2)	8-97135-420-0	01	1	9507-9602			●
1	MANIFOLD; INL CHINA EQUIPMENT(YT2)	8-97136-242-0	01	1	9603-			●
1	MANIFOLD; INL	8-94376-248-1	01	1	9112-9605				●
1	MANIFOLD; INL	8-97095-786-0	01	1	9606-				●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9112-9504	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9505-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94324-052-0	01	1	9112-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94364-579-0	02	1	9112-9408				●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97095-861-0	02	1	9409-				●
30	CUP; SEALING,INL MANIF EUROPE/CANARY EQUIPMENT(EK4) OD=16	5-11129-006-0	04	1	9112-9502		●
30	CUP; SEALING,INL MANIF (A) OD=16	9-11129-081-0	02	1	9112-9504			●
30	CUP; SEALING,INL MANIF (A) OD=16	9-11129-081-0	02	1	9505-			●
30	CUP; SEALING,INL MANIF (B) OD=20	9-11219-192-0	02	1	9112-9504			●
30	CUP; SEALING,INL MANIF (B) OD=20	9-11219-192-0	02	1	9505-			●
30	CUP; SEALING,INL MANIF (A) OD=35	8-97029-374-0	01	1	9112-9208				●
30	CUP; SEALING,INL MANIF (B) OD=40	8-97029-375-0	01	1	9112-9208				●
34	PIPE; VAC (A) OD=4 L=21	8-94145-897-2	01	1	9112-			●
34	PIPE; VAC (B) OD=5 L=34	8-94200-851-2	01	1	9112-			●
34	PIPE; VAC (C) OD=10 L=50	8-94330-262-0	01	1	9112-			●
39	TUBE; DISTR,INL MANIF	8-94463-029-0	01	1	9112-			●
40	PIPE; VAC LINE,INL MANIF OD=6 L=28	8-94214-981-0	01	1	9112-			●
94	BOLT M6X12 W/LK&PL WASHER	0-50140-612-0	02	1	9608-			●
94	BOLT 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M6X12 FLANGE	0-28080-612-0	02	1	9608-			●
135	BRACKET; VAC PIPE 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-94403-443-0	01	1	9505-			●
177	CLIP; CABLE TO MANIF ID=11 H=20 L=20	9-09527-010-0	01	1	9112-9204			●
177	CLIP; CABLE TO MANIF ID=13 H=24 L=20	9-09527-012-0	01	1	9205-			●
178	BOLT; CARB CABLE CLIP M6X12 W/LK WASHER	9-01900-612-0	01	1	9112-9204			●
178	BOLT; CARB CABLE CLIP M6X12 W/LK WASHER	0-50040-612-0	01	1	9205-			●
186	HOSE; IDLE COMPENSATOR L=380 SERVICED BY L=3000	0-04750-300-0	01	1	9112-			●
187	CONNECTOR; HTR	8-94136-759-3	01	1	9112-			●
199	BOLT; VAC PIPE BRKT 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X16 W/LK WASHER	0-50040-816-0	02	1	9505-			●
266	CAP; RUBBER,CONNECTOR ID=4	8-94217-809-0	01	1	9112-9504			●
266	CAP; RUBBER,CONNECTOR EXC. CHINA EQUIPMENT(YT2) ID=4	8-94217-809-0	01	1	9505-			●
266	CAP; RUBBER,CONNECTOR OD=7	8-94206-392-0	01	1	9505-			●
303	PIPE; AIR 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2)	8-97135-494-0	01	1	9507-9602			●
392	GASKET; EFE HTR	8-94146-256-0	02	1	9112-			●
394	STUD; ACL TO CARB,CARB CENTER M8X84	8-94159-217-2	01	1	9112-			●
527	BRACKET; UNION	8-97038-927-2	01	1	9112-			●
528	BOLT; BRKT,UNION M8X14 W/LK WASHERT	8-94208-228-0	02	1	9112-9602			●
528	BOLT; BRKT,UNION EXC. CHINA EQUIPMENT(YT2) M8X12 FLANGE	0-28080-812-0	02	1	9603-			●
528	BOLT; BRKT,UNION 4 DOOR LONG(UB***F) CHINA EQUIPMENT(YT2) M8X12 FLANGE	0-28080-812-0	01	1	9603-			●
569	INSULATOR; HEAT	8-94463-028-0	01	1	9112-			●
666	STUD; FUEL PUMP EXC. CHINA EQUIPMENT(YT2) M8X18 L=38	8-94146-549-0	02	1	9608-			●

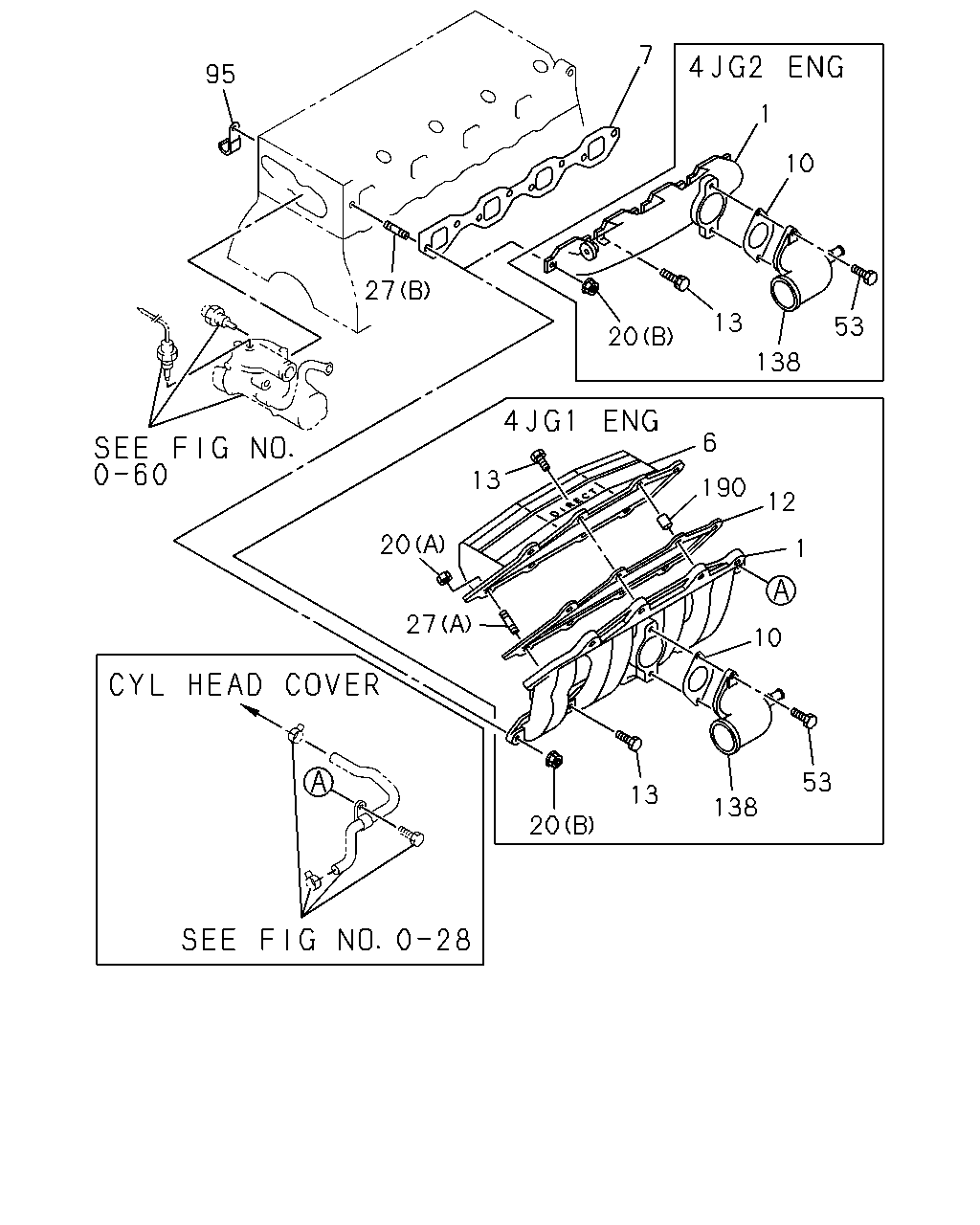

7 95 1 10 27 13 53 20 138 6 13 190 12 20 1 27 10 53 13 138 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MANIFOLD; INL	8-94463-544-4	01	1	9112-9504	●
1	MANIFOLD; INL EUROPE/CANARY EQUIPMENT(EK4)	8-94340-616-3	01	1	9112-9502		●
1	MANIFOLD; INL EUROPE/CANARY EQUIPMENT(EK4)	8-97118-883-0	01	1	9503-9504		●
1	MANIFOLD; INL EUROPE/CANARY EQUIPMENT(EK4)	8-97116-137-0	01	1	9505-9511		●
1	MANIFOLD; INL EUROPE/CANARY EQUIPMENT(EK4)	8-97139-649-0	01	1	9512-		●
1	MANIFOLD; INL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94340-619-3	01	1	9112-9502		●
1	MANIFOLD; INL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97116-132-0	01	1	9503-9504		●
1	MANIFOLD; INL TURBOCHARGER<K51> EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97116-132-1	01	1	9505-		●
1	MANIFOLD; INL EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51>	8-97110-514-0	01	1	9505-		●
1	MANIFOLD; INL	8-97044-025-1	01	1	9112-9504			●
1	MANIFOLD; INL EXC. CHINA EQUIPMENT(YT2)	8-97044-025-1	01	1	9505-			●
1	MANIFOLD; INL CHINA EQUIPMENT(YT2)	8-97123-735-0	01	1	9505-9506			●
1	MANIFOLD; INL CHINA EQUIPMENT(YT2)	8-97135-420-0	01	1	9507-9602			●
1	MANIFOLD; INL CHINA EQUIPMENT(YT2)	8-97136-242-0	01	1	9603-			●
1	MANIFOLD; INL	8-94376-248-1	01	1	9112-9605				●
1	MANIFOLD; INL	8-97095-786-0	01	1	9606-				●
6	MANIFOLD; INL,UPR	8-94320-921-1	01	1	9112-9504	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9112-9504	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9505-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94324-052-0	01	1	9112-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94364-579-0	02	1	9112-9408				●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97095-861-0	02	1	9409-				●
10	GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97046-015-0	01	1	9112-9209	●
10	GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97035-883-0	01	1	9210-9504	●
10	GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51>	8-97035-883-0	01	1	9505-		●
12	GASKET; INL MANIF,UPR TO LWR	8-94320-923-0	01	1	9112-9504	●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50040-825-0	06	1	9112-9504	●
13	BOLT; INL MANIF M6X28	0-50140-628-0	06	1	9112-9504	●
13	BOLT; INL MANIF M8X30 W/LK WASHER	0-50040-830-0	06	1	9112-9209		●
13	BOLT; INL MANIF M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9210-9504		●
13	BOLT; INL MANIF TURBOCHARGER<K51> M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9505-9612		●
13	BOLT; INL MANIF TURBOCHARGER<K51> M8X25 FLANGE	0-28080-825-0	06	1	9701-		●
13	BOLT; INL MANIF EXC. TURBOCHARGER<K51> M8X25 W/LK WASHER	0-50040-825-0	06	1	9505-		●
13	BOLT; INL MANIF M8X28 FLANGE	0-28080-828-0	02	1	9112-				●
20	NUT; INL MANIF (A) M6 FLANGE	5-09440-004-0	02	1	9112-9504	●
20	NUT; INL MANIF (B) M8 FLANGE	5-09440-005-0	02	1	9112-9504	●	●
20	NUT; INL MANIF (B) M8 FLANGE	5-09440-005-0	02	1	9505-		●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	06	1	9112-				●
27	STUD; INL MANIF (A) M6X20 L=29	9-04110-620-0	02	1	9112-9504	●
27	STUD; INL MANIF (B) M8X25 L=37	9-04110-825-0	02	1	9112-9504	●	●
27	STUD; INL MANIF (B) M8X25 L=37	9-04110-825-0	02	1	9505-		●
27	STUD; INL MANIF (B) M8X35 L=47	0-49540-828-0	01	1	9112-9211				●
27	STUD; INL MANIF (A) M8X117 L=128	8-97015-836-0	01	1	9112-9211				●
27	STUD; INL MANIF (B) M8X35 L=47	0-49540-828-0	01	1	9212-9406				●
27	STUD; INL MANIF (B) M8X28 L=46	0-49740-828-0	01	1	9407-				●
27	STUD; INL MANIF (A) M8X117 L=128	8-97015-836-0	01	1	9212-9406				●
27	STUD; INL MANIF (A) M8X117 L=128	8-97111-477-0	01	1	9407-				●
53	BOLT; INL PIPE M10X28 W/LK WASHER	0-50041-028-0	02	1	9112-9504	●
53	BOLT; INL PIPE EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> M10X30 W/LK WASHER	0-50051-030-0	02	1	9505-		●
53	BOLT; INL PIPE M8X40 FLANGE	0-28080-840-0	04	1	9112-				●
95	CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=12	5-09700-331-0	01	1	9112-9504	●
95	CLIP; RUBBER HOSE	8-94406-478-0	01	1	9112-9504		●
95	CLIP; RUBBER HOSE TURBOCHARGER<K51>	8-94406-478-0	01	1	9505-9506		●
95	CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> ID=12	5-09700-331-0	01	1	9505-9506		●
95	CLIP; RUBBER HOSE	8-94406-478-0	01	1	9507-9607		●
95	CLIP; RUBBER HOSE TURBOCHARGER<K51>	8-94406-478-0	01	1	9608-9608		●
95	CLIP; RUBBER HOSE	8-94406-478-0	01	1	9609-		●
95	CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> ID=12	5-09700-331-0	01	1	9608-9608		●
138	PIPE; INL	8-97023-536-0	01	1	9112-9504	●
138	PIPE; INL EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51>	8-97023-536-0	01	1	9505-		●
190	COLLAR; INLET MANIFOLD	8-94320-924-0	08	1	9112-9504	●

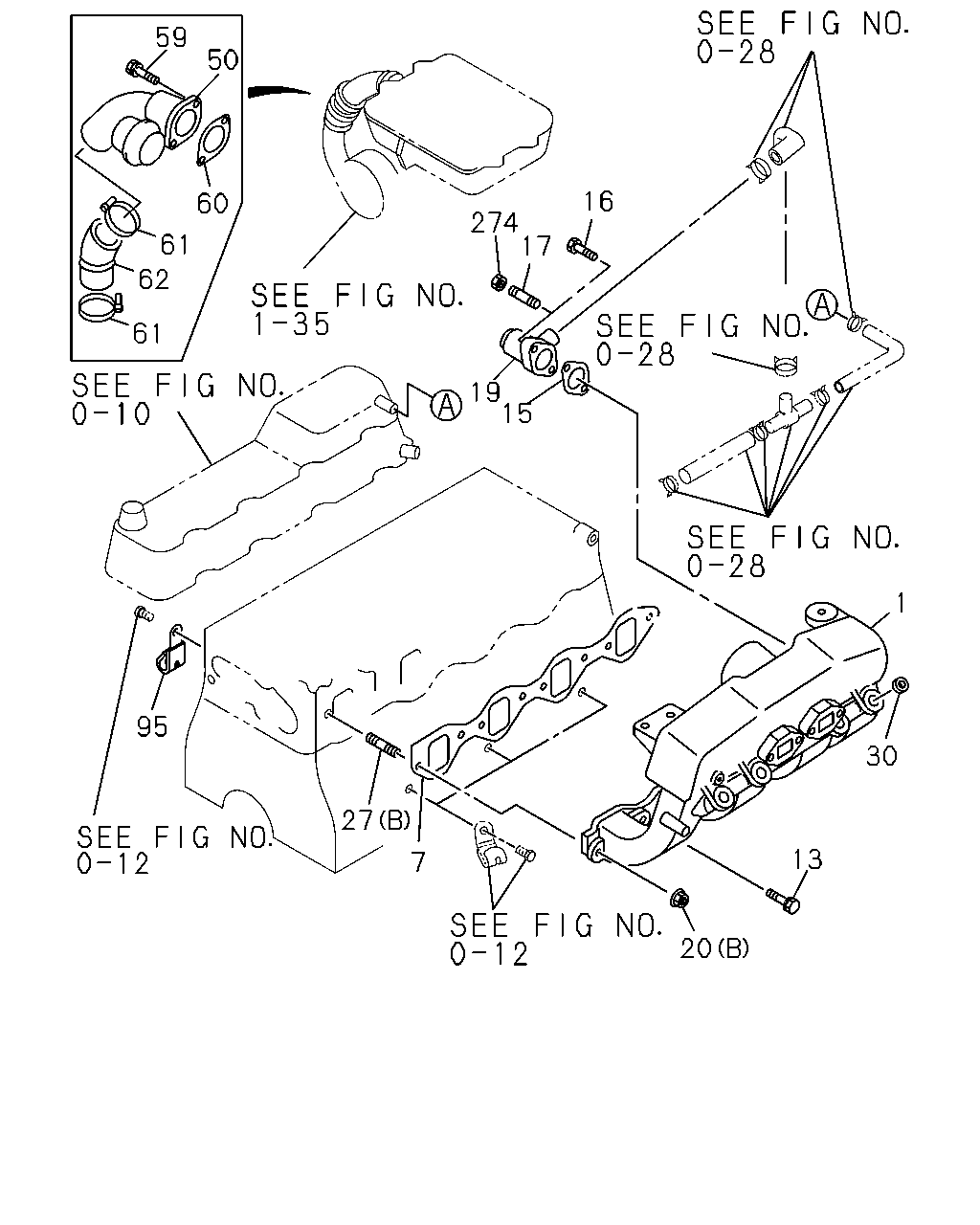

59 50 16 60 274 17 61 62 61 19 1 95 30 27 13 7 20 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MANIFOLD; INL	8-94463-544-4	01	1	9112-9504	●
1	MANIFOLD; INL EUROPE/CANARY EQUIPMENT(EK4)	8-94340-616-3	01	1	9112-9502		●
1	MANIFOLD; INL EUROPE/CANARY EQUIPMENT(EK4)	8-97118-883-0	01	1	9503-9504		●
1	MANIFOLD; INL EUROPE/CANARY EQUIPMENT(EK4)	8-97116-137-0	01	1	9505-9511		●
1	MANIFOLD; INL EUROPE/CANARY EQUIPMENT(EK4)	8-97139-649-0	01	1	9512-		●
1	MANIFOLD; INL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94340-619-3	01	1	9112-9502		●
1	MANIFOLD; INL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97116-132-0	01	1	9503-9504		●
1	MANIFOLD; INL TURBOCHARGER<K51> EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97116-132-1	01	1	9505-		●
1	MANIFOLD; INL EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51>	8-97110-514-0	01	1	9505-		●
1	MANIFOLD; INL	8-97044-025-1	01	1	9112-9504			●
1	MANIFOLD; INL EXC. CHINA EQUIPMENT(YT2)	8-97044-025-1	01	1	9505-			●
1	MANIFOLD; INL CHINA EQUIPMENT(YT2)	8-97123-735-0	01	1	9505-9506			●
1	MANIFOLD; INL CHINA EQUIPMENT(YT2)	8-97135-420-0	01	1	9507-9602			●
1	MANIFOLD; INL CHINA EQUIPMENT(YT2)	8-97136-242-0	01	1	9603-			●
1	MANIFOLD; INL	8-94376-248-1	01	1	9112-9605				●
1	MANIFOLD; INL	8-97095-786-0	01	1	9606-				●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9112-9504	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9505-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94324-052-0	01	1	9112-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94364-579-0	02	1	9112-9408				●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97095-861-0	02	1	9409-				●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50040-825-0	06	1	9112-9504	●
13	BOLT; INL MANIF M6X28	0-50140-628-0	06	1	9112-9504	●
13	BOLT; INL MANIF M8X30 W/LK WASHER	0-50040-830-0	06	1	9112-9209		●
13	BOLT; INL MANIF M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9210-9504		●
13	BOLT; INL MANIF TURBOCHARGER<K51> M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9505-9612		●
13	BOLT; INL MANIF TURBOCHARGER<K51> M8X25 FLANGE	0-28080-825-0	06	1	9701-		●
13	BOLT; INL MANIF EXC. TURBOCHARGER<K51> M8X25 W/LK WASHER	0-50040-825-0	06	1	9505-		●
13	BOLT; INL MANIF M8X28 FLANGE	0-28080-828-0	02	1	9112-				●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97045-361-0	01	1	9112-9209		●
15	GASKET; VLV ALSO INCLUDED IN GASKET SET(ENGINE).	8-97086-759-0	01	1	9210-9502		●
16	BOLT; VLV,BOOST RELIEF M6X22 W/LK WASHER	0-50040-622-0	02	1	9206-9502		●
17	STUD; VLV M6X20 L=29	9-04110-620-0	02	1	9112-9205		●
19	VALVE; RELIEF,TURBOCHARGER BOOST	8-94155-545-1	01	1	9112-9502		●
20	NUT; INL MANIF (A) M6 FLANGE	5-09440-004-0	02	1	9112-9504	●
20	NUT; INL MANIF (B) M8 FLANGE	5-09440-005-0	02	1	9112-9504	●	●
20	NUT; INL MANIF (B) M8 FLANGE	5-09440-005-0	02	1	9505-		●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	06	1	9112-				●
27	STUD; INL MANIF (A) M6X20 L=29	9-04110-620-0	02	1	9112-9504	●
27	STUD; INL MANIF (B) M8X25 L=37	9-04110-825-0	02	1	9112-9504	●	●
27	STUD; INL MANIF (B) M8X25 L=37	9-04110-825-0	02	1	9505-		●
27	STUD; INL MANIF (B) M8X35 L=47	0-49540-828-0	01	1	9112-9211				●
27	STUD; INL MANIF (A) M8X117 L=128	8-97015-836-0	01	1	9112-9211				●
27	STUD; INL MANIF (B) M8X35 L=47	0-49540-828-0	01	1	9212-9406				●
27	STUD; INL MANIF (B) M8X28 L=46	0-49740-828-0	01	1	9407-				●
27	STUD; INL MANIF (A) M8X117 L=128	8-97015-836-0	01	1	9212-9406				●
27	STUD; INL MANIF (A) M8X117 L=128	8-97111-477-0	01	1	9407-				●
30	CUP; SEALING,INL MANIF EUROPE/CANARY EQUIPMENT(EK4) OD=16	5-11129-006-0	04	1	9112-9502		●
30	CUP; SEALING,INL MANIF (A) OD=16	9-11129-081-0	02	1	9112-9504			●
30	CUP; SEALING,INL MANIF (A) OD=16	9-11129-081-0	02	1	9505-			●
30	CUP; SEALING,INL MANIF (B) OD=20	9-11219-192-0	02	1	9112-9504			●
30	CUP; SEALING,INL MANIF (B) OD=20	9-11219-192-0	02	1	9505-			●
30	CUP; SEALING,INL MANIF (A) OD=35	8-97029-374-0	01	1	9112-9208				●
30	CUP; SEALING,INL MANIF (B) OD=40	8-97029-375-0	01	1	9112-9208				●
50	PIPE; INL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97038-185-0	01	1	9112-9504		●
50	PIPE; INL TURBOCHARGER<K51> EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97038-185-0	01	1	9505-9505		●
50	PIPE; INL TURBOCHARGER<K51>	8-97038-185-0	01	1	9506-9607		●
50	PIPE; INL	8-97038-185-0	01	1	9608-9609		●
50	PIPE; INL	8-97139-402-0	01	1	9610-		●
59	BOLT; INL PIPE TO MANIF M10X30 W/LK WASHER	0-50041-030-0	02	1	9112-9504		●
59	BOLT; INL PIPE TO MANIF TURBOCHARGER<K51> M10X30 W/LK WASHER	0-50041-030-0	02	1	9505-		●
60	GASKET; INL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97045-364-0	01	1	9112-9210		●
60	GASKET; INL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97086-961-0	01	1	9211-9504		●
60	GASKET; INL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER<K51>	8-97086-961-0	01	1	9505-		●
61	CLIP; CONNECTOR HOSE ID=65 ID=44-60	8-94175-940-0	02	1	9112-9403		●
61	CLIP; CONNECTOR HOSE ID=44-60	8-94126-770-0	02	1	9404-9504		●
61	CLIP; CONNECTOR HOSE TURBOCHARGER<K51> ID=44-60	8-94126-770-0	02	1	9505-9508		●
61	CLIP; CONNECTOR HOSE TURBOCHARGER<K51> ID=45.5-56.5	8-97131-943-0	02	1	9509-		●
62	HOSE; CONNECTOR	8-94340-603-1	01	1	9112-9412		●
62	HOSE; CONNECTOR	8-97120-496-0	01	1	9501-9504		●
62	HOSE; CONNECTOR TURBOCHARGER<K51>	8-97120-496-0	01	1	9505-		●
95	CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=12	5-09700-331-0	01	1	9112-9504	●
95	CLIP; RUBBER HOSE	8-94406-478-0	01	1	9112-9504		●
95	CLIP; RUBBER HOSE TURBOCHARGER<K51>	8-94406-478-0	01	1	9505-9506		●
95	CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> ID=12	5-09700-331-0	01	1	9505-9506		●
95	CLIP; RUBBER HOSE	8-94406-478-0	01	1	9507-9607		●
95	CLIP; RUBBER HOSE TURBOCHARGER<K51>	8-94406-478-0	01	1	9608-9608		●
95	CLIP; RUBBER HOSE	8-94406-478-0	01	1	9609-		●
95	CLIP; RUBBER HOSE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> ID=12	5-09700-331-0	01	1	9608-9608		●
274	NUT; RELIEF VLV M6 FLANGE	5-09440-004-0	02	1	9112-9205		●

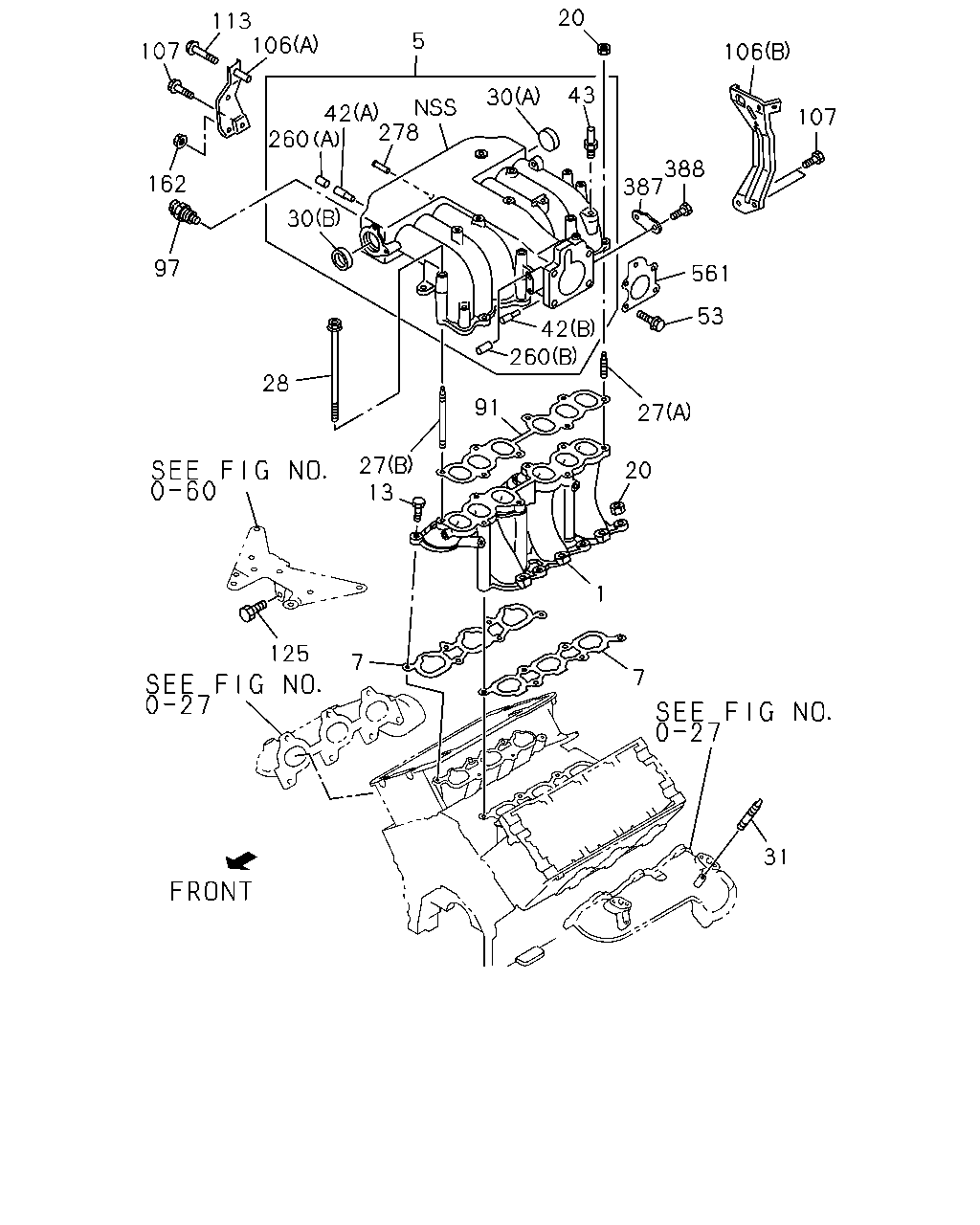

20 113 106 5 106 107 30 43 42 278 260 107 388 387 162 30 42 260 97 561 53 28 91 27 27 13 20 1 125 7 7 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MANIFOLD; INL	8-94463-544-4	01	1	9112-9504	●
1	MANIFOLD; INL EUROPE/CANARY EQUIPMENT(EK4)	8-94340-616-3	01	1	9112-9502		●
1	MANIFOLD; INL EUROPE/CANARY EQUIPMENT(EK4)	8-97118-883-0	01	1	9503-9504		●
1	MANIFOLD; INL EUROPE/CANARY EQUIPMENT(EK4)	8-97116-137-0	01	1	9505-9511		●
1	MANIFOLD; INL EUROPE/CANARY EQUIPMENT(EK4)	8-97139-649-0	01	1	9512-		●
1	MANIFOLD; INL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94340-619-3	01	1	9112-9502		●
1	MANIFOLD; INL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97116-132-0	01	1	9503-9504		●
1	MANIFOLD; INL TURBOCHARGER<K51> EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97116-132-1	01	1	9505-		●
1	MANIFOLD; INL EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51>	8-97110-514-0	01	1	9505-		●
1	MANIFOLD; INL	8-97044-025-1	01	1	9112-9504			●
1	MANIFOLD; INL EXC. CHINA EQUIPMENT(YT2)	8-97044-025-1	01	1	9505-			●
1	MANIFOLD; INL CHINA EQUIPMENT(YT2)	8-97123-735-0	01	1	9505-9506			●
1	MANIFOLD; INL CHINA EQUIPMENT(YT2)	8-97135-420-0	01	1	9507-9602			●
1	MANIFOLD; INL CHINA EQUIPMENT(YT2)	8-97136-242-0	01	1	9603-			●
1	MANIFOLD; INL	8-94376-248-1	01	1	9112-9605				●
1	MANIFOLD; INL	8-97095-786-0	01	1	9606-				●
5	CHAMBER; COMMON	8-94385-045-6	01	1	9112-9504				●
5	CHAMBER; COMMON	8-97102-898-1	01	1	9505-				●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9112-9504	●	●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97066-741-1	01	1	9505-		●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94324-052-0	01	1	9112-			●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94364-579-0	02	1	9112-9408				●
7	GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97095-861-0	02	1	9409-				●
13	BOLT; INL MANIF M8X25 W/LK WASHER	0-50040-825-0	06	1	9112-9504	●
13	BOLT; INL MANIF M6X28	0-50140-628-0	06	1	9112-9504	●
13	BOLT; INL MANIF M8X30 W/LK WASHER	0-50040-830-0	06	1	9112-9209		●
13	BOLT; INL MANIF M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9210-9504		●
13	BOLT; INL MANIF TURBOCHARGER<K51> M8X30 W/LK&PL WASHER	0-50140-830-0	06	1	9505-9612		●
13	BOLT; INL MANIF TURBOCHARGER<K51> M8X25 FLANGE	0-28080-825-0	06	1	9701-		●
13	BOLT; INL MANIF EXC. TURBOCHARGER<K51> M8X25 W/LK WASHER	0-50040-825-0	06	1	9505-		●
13	BOLT; INL MANIF M8X28 FLANGE	0-28080-828-0	02	1	9112-				●
20	NUT; INL MANIF (A) M6 FLANGE	5-09440-004-0	02	1	9112-9504	●
20	NUT; INL MANIF (B) M8 FLANGE	5-09440-005-0	02	1	9112-9504	●	●
20	NUT; INL MANIF (B) M8 FLANGE	5-09440-005-0	02	1	9505-		●
20	NUT; INL MANIF M8 FLANGE	0-91150-108-0	06	1	9112-				●
27	STUD; INL MANIF (A) M6X20 L=29	9-04110-620-0	02	1	9112-9504	●
27	STUD; INL MANIF (B) M8X25 L=37	9-04110-825-0	02	1	9112-9504	●	●
27	STUD; INL MANIF (B) M8X25 L=37	9-04110-825-0	02	1	9505-		●
27	STUD; INL MANIF (B) M8X35 L=47	0-49540-828-0	01	1	9112-9211				●
27	STUD; INL MANIF (A) M8X117 L=128	8-97015-836-0	01	1	9112-9211				●
27	STUD; INL MANIF (B) M8X35 L=47	0-49540-828-0	01	1	9212-9406				●
27	STUD; INL MANIF (B) M8X28 L=46	0-49740-828-0	01	1	9407-				●
27	STUD; INL MANIF (A) M8X117 L=128	8-97015-836-0	01	1	9212-9406				●
27	STUD; INL MANIF (A) M8X117 L=128	8-97111-477-0	01	1	9407-				●
28	BOLT; CHAMBER M8X126	8-94128-482-1	02	1	9112-				●
28	BOLT; CHAMBER M8X205	8-97012-566-1	04	1	9112-9211				●
28	BOLT; CHAMBER M8X210	8-97086-385-0	04	1	9302-				●
30	CUP; SEALING,INL MANIF EUROPE/CANARY EQUIPMENT(EK4) OD=16	5-11129-006-0	04	1	9112-9502		●
30	CUP; SEALING,INL MANIF (A) OD=16	9-11129-081-0	02	1	9112-9504			●
30	CUP; SEALING,INL MANIF (A) OD=16	9-11129-081-0	02	1	9505-			●
30	CUP; SEALING,INL MANIF (B) OD=20	9-11219-192-0	02	1	9112-9504			●
30	CUP; SEALING,INL MANIF (B) OD=20	9-11219-192-0	02	1	9505-			●
30	CUP; SEALING,INL MANIF (A) OD=35	8-97029-374-0	01	1	9112-9208				●
30	CUP; SEALING,INL MANIF (B) OD=40	8-97029-375-0	01	1	9112-9208				●
31	STUD; COMMON CHAMBER M10X35 L=50	8-97015-835-0	02	1	9112-9510				●
31	STUD; COMMON CHAMBER M10X35 L=50	8-97015-835-0	04	1	9511-				●
42	PIPE; VAC,COMMON CHAMBER (A)	8-97029-377-0	01	1	9112-9206				●
42	PIPE; VAC,COMMON CHAMBER (B)	8-97036-810-0	02	1	9112-9208				●
43	CONNECTOR; M/VAC	8-97029-379-0	01	1	9112-9312				●
53	BOLT; INL PIPE M10X28 W/LK WASHER	0-50041-028-0	02	1	9112-9504	●
53	BOLT; INL PIPE EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> M10X30 W/LK WASHER	0-50051-030-0	02	1	9505-		●
53	BOLT; INL PIPE M8X40 FLANGE	0-28080-840-0	04	1	9112-				●
91	GASKET; COMMON CHAMBER TO INL MANIF	8-94364-577-0	01	1	9112-				●
97	SENSOR; INTAKE,AIR TEMPERATURE	8-25037-334-0	01	1	9112-9308				●
106	STAY; COMMON CHAMBER (B)	8-94376-905-4	01	1	9112-				●
106	STAY; COMMON CHAMBER (A)	8-94376-251-4	01	1	9112-9510				●
106	STAY; COMMON CHAMBER (A)	8-97103-830-1	01	1	9511-				●
107	BOLT; STAY,COMMON CHAMBER M8X14 FLANGE	0-28080-814-0	04	1	9112-				●
113	BOLT; STAY M8X16 FLANGE	0-28080-816-0	01	1	9112-9211				●
113	BOLT; STAY M8X55 FLANGE	8-97015-522-0	01	1	9112-9211				●
113	BOLT; STAY M8X16 FLANGE	0-28080-816-0	01	1	9212-9510				●
113	BOLT; STAY M8X60 W/LK WASHER	0-50040-860-0	01	1	9302-				●
125	BOLT; BRKT TO INL MANIF M8X16 FLANGE	0-28080-816-0	03	1	9112-9206				●
125	BOLT; BRKT TO INL MANIF	8-11090-651-0	03	1	9207-				●
162	NUT; STAY M10 LOCK NUT	8-94375-110-0	01	1	9112-9510				●
162	NUT; STAY M10 LOCK NUT	8-94375-110-0	02	1	9511-				●
260	CAP; RUBBER (A) ID=4	8-94217-809-0	01	1	9112-9208				●
260	CAP; RUBBER (B)	8-97029-378-0	01	1	9112-9206				●
260	CAP; RUBBER EXC. CHILE EQUIPMENT(S2G) (A) ID=4	8-94217-809-0	01	1	9209-9211				●
260	CAP; RUBBER EXC. CHILE EQUIPMENT(S2G) (A) OD=7	8-94206-392-0	01	1	9212-9308				●
260	CAP; RUBBER (A) OD=7	8-94206-392-0	01	1	9309-				●
278	PIPE; MAP SENSOR	8-97029-380-0	01	1	9112-9208				●
387	PLATE; EGR,INL MANIF EXC. EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB)	8-97037-425-0	01	1	9112-9506				●
387	PLATE; EGR,INL MANIF EXC. EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD)	8-97037-425-0	01	1	9507-				●
388	BOLT; EGR PLATE,INL MANIF EXC. EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB) M6X12 FLANGE	0-28080-612-0	02	1	9112-9506				●
388	BOLT; EGR PLATE,INL MANIF EXC. EUROPE/CANARY EQUIPMENT(EK4),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M6X12 FLANGE	0-28080-612-0	02	1	9507-				●
561	GASKET; TB ALSO INCLUDED IN GASKET SET(ENGINE).	8-94389-939-0	01	1	9112-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
