Sayfa 0-22 - Isuzu EPC

0-22 — ENGINE MOUNTING (#33132) — 211 parça

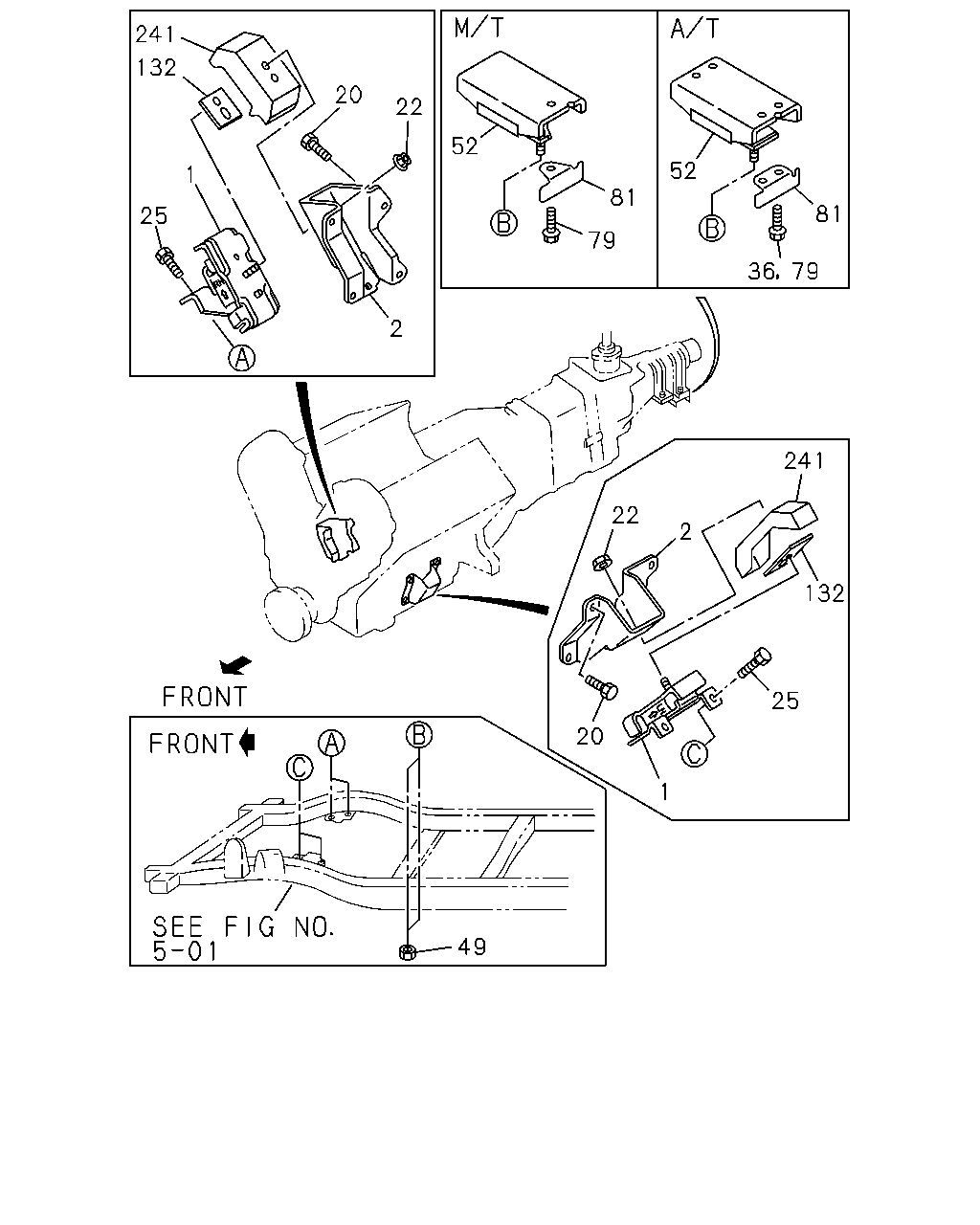

241 132 20 22 52 52 1 81 81 25 79 2 241 22 2 132 25 20 1 49 36 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RUBBER; ENG FOOT,FRT	8-97039-190-2	01	1	9112-9504	●	●
1	RUBBER; ENG FOOT,FRT	8-97039-190-3	01	1	9505-	●
1	RUBBER; ENG FOOT,FRT	8-97039-189-2	01	1	9112-9504	●	●
1	RUBBER; ENG FOOT,FRT	8-97039-189-3	01	1	9505-	●
1	RUBBER; ENG FOOT,FRT	8-94375-285-0	01	1	9112-			●
1	RUBBER; ENG FOOT,FRT	8-94375-284-0	01	1	9112-			●
1	RUBBER; ENG FOOT,FRT	8-94375-283-2	01	1	9112-9607				●
1	RUBBER; ENG FOOT,FRT EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94375-283-2	01	1	9608-9608				●
1	RUBBER; ENG FOOT,FRT EXC. AIR BAG DRIVER<AJ3>	8-94375-283-2	01	1	9609-				●
1	RUBBER; ENG FOOT,FRT	8-94375-282-5	01	1	9112-9607				●
1	RUBBER; ENG FOOT,FRT EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94375-282-5	01	1	9608-9608				●
1	RUBBER; ENG FOOT,FRT EXC. AIR BAG DRIVER<AJ3>	8-94375-282-5	01	1	9609-				●
1	RUBBER; ENG FOOT,FRT EUROPE/CANARY EQUIPMENT(EK4)	8-97104-158-1	01	1	9608-9608				●
1	RUBBER; ENG FOOT,FRT AIR BAG DRIVER<AJ3>	8-97104-158-1	01	1	9609-				●
1	RUBBER; ENG FOOT,FRT EUROPE/CANARY EQUIPMENT(EK4)	8-97104-157-1	01	1	9608-9608				●
1	RUBBER; ENG FOOT,FRT AIR BAG DRIVER<AJ3>	8-97104-157-1	01	1	9609-				●
2	FOOT; ENG	8-97038-196-1	01	1	9112-9504	●	●
2	FOOT; ENG	8-97038-196-1	01	1	9505-	●
2	FOOT; ENG	8-97038-195-1	01	1	9112-9504	●	●
2	FOOT; ENG	8-97038-195-1	01	1	9505-	●
2	FOOT; ENG	8-94449-473-3	01	1	9112-			●
2	FOOT; ENG	8-94449-474-3	01	1	9112-			●
2	FOOT; ENG	8-94374-504-0	01	1	9112-9301				●
2	FOOT; ENG	8-97088-678-0	01	1	9302-9607				●
2	FOOT; ENG EXC. AIR BAG DRIVER<AJ3>	8-97088-678-0	01	1	9608-				●
2	FOOT; ENG AIR BAG DRIVER<AJ3>	8-97110-078-0	01	1	9608-				●
2	FOOT; ENG	8-94374-503-1	01	1	9112-9301				●
2	FOOT; ENG	8-97088-677-0	01	1	9302-9607				●
2	FOOT; ENG EXC. AIR BAG DRIVER<AJ3>	8-97088-677-0	01	1	9608-				●
2	FOOT; ENG AIR BAG DRIVER<AJ3>	8-97110-077-0	01	1	9608-				●
20	BOLT; ENG FOOT (A) M10X22 W/LK WASHER	0-50041-022-0	06	1	9112-9504	●	●
20	BOLT; ENG FOOT (A) M10X22 W/LK WASHER	0-50041-022-0	06	1	9505-	●
20	BOLT; ENG FOOT (C) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-9504	●	●
20	BOLT; ENG FOOT (C) M10X35 W/LK WASHER	0-50041-035-0	01	1	9505-	●
20	BOLT; ENG FOOT (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	9112-9504	●	●
20	BOLT; ENG FOOT (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	9505-	●
20	BOLT; ENG FOOT M14X22	0-20801-422-0	01	1	9112-9303			●
20	BOLT; ENG FOOT M14X25 W/LK&PL WASHER	0-50141-425-0	01	1	9304-			●
20	BOLT; ENG FOOT M8X16 W/LK WASHER	0-50040-816-0	01	1	9112-			●
20	BOLT; ENG FOOT M10X22 W/LK WASHER	0-50041-022-0	01	1	9112-			●
20	BOLT; ENG FOOT M12X25 W/LK WASHER	0-50041-225-0	05	1	9112-			●
20	BOLT; ENG FOOT M10X22 FLANGE	0-28181-022-0	07	1	9112-9301				●
20	BOLT; ENG FOOT M10X20 FLANGE	0-28181-020-0	07	1	9302-				●
20	BOLT; ENG FOOT M10X40 FLANGE	0-28181-040-0	01	1	9112-				●
22	NUT; CUSHION RUBBER TO BRKT M12 FLANGE	0-91150-112-0	02	1	9112-9607			●	●
22	NUT; CUSHION RUBBER TO BRKT M12 FLANGE	0-91150-112-0	02	1	9608-9608			●
22	NUT; CUSHION RUBBER TO BRKT EXC. EUROPE/CANARY EQUIPMENT(EK4) M12 FLANGE	0-91150-112-0	02	1	9608-9608				●
22	NUT; CUSHION RUBBER TO BRKT M12 FLANGE	0-91150-112-0	02	1	9609-			●
22	NUT; CUSHION RUBBER TO BRKT EXC. AIR BAG DRIVER<AJ3> M12 FLANGE	0-91150-112-0	02	1	9609-				●
22	NUT; CUSHION RUBBER TO BRKT EUROPE/CANARY EQUIPMENT(EK4) M10 FLANGE	0-91150-110-0	04	1	9608-9608				●
22	NUT; CUSHION RUBBER TO BRKT AIR BAG DRIVER<AJ3> M10 FLANGE	0-91150-110-0	04	1	9609-				●
25	BOLT; CUSHION RUBBER TO BRKT M10X28 W/LK WASHER	8-97035-564-0	04	1	9112-9504	●	●	●	●
25	BOLT; CUSHION RUBBER TO BRKT M10X28 W/LK WASHER	8-97035-564-0	04	1	9505-	●		●	●
36	BOLT; MTG RUBBER A/T THM(RMQ) M10X35 FLANGE	0-28681-035-0	02	1	9510-				●
49	NUT; CUSHION RUBBER TO FRAME M10 FLANGE	8-94126-973-0	02	1	9112-9504	●	●	●	●
49	NUT; CUSHION RUBBER TO FRAME M10 FLANGE	8-94126-973-0	02	1	9505-	●		●	●
52	RUBBER; CUSHION,ENG MTG,RR	8-97039-196-6	01	1	9112-9504	●	●
52	RUBBER; CUSHION,ENG MTG,RR	8-97039-196-6	01	1	9505-	●
52	RUBBER; CUSHION,ENG MTG,RR	8-94375-289-2	01	1	9112-			●
52	RUBBER; CUSHION,ENG MTG,RR A/T THM(RMQ)	8-94375-288-1	01	1	9112-				●
52	RUBBER; CUSHION,ENG MTG,RR M/T MUA 5 SPEED(RMN)	8-94386-486-1	01	1	9112-9607				●
52	RUBBER; CUSHION,ENG MTG,RR M/T MUA 5 SPEED(RMN)	8-97123-260-0	01	1	9608-				●
79	BOLT; SUPPORT RUBBER TO TRANS M10X25 W/LK WASHER	0-50041-025-0	02	1	9112-9504	●	●	●	●
79	BOLT; SUPPORT RUBBER TO TRANS M/T MUA 5 SPEED(RMN) M10X25 W/LK WASHER	0-50041-025-0	02	1	9505-	●		●	●
81	PROTECTOR; HEAT,ENG MTG A/T THM(RMQ)	8-97022-766-0	01	1	9112-9607				●
81	PROTECTOR; HEAT,ENG MTG	8-97022-766-0	01	1	9608-			●	●
81	PROTECTOR; HEAT,ENG MTG M/T MUA 5 SPEED(RMN)	8-97022-765-0	01	1	9112-9607				●
132	PLATE; ENG MTG EUROPE/CANARY EQUIPMENT(EK4)	8-97139-639-0	02	1	9608-9608				●
132	PLATE; ENG MTG AIR BAG DRIVER<AJ3>	8-97139-639-0	02	1	9609-				●
241	COVER; ENG MTG EUROPE/CANARY EQUIPMENT(EK4)	8-97137-834-0	01	1	9608-9608				●
241	COVER; ENG MTG AIR BAG DRIVER<AJ3>	8-97137-834-0	01	1	9609-				●
241	COVER; ENG MTG EUROPE/CANARY EQUIPMENT(EK4)	8-97137-833-0	01	1	9608-9608				●
241	COVER; ENG MTG AIR BAG DRIVER<AJ3>	8-97137-833-0	01	1	9609-				●

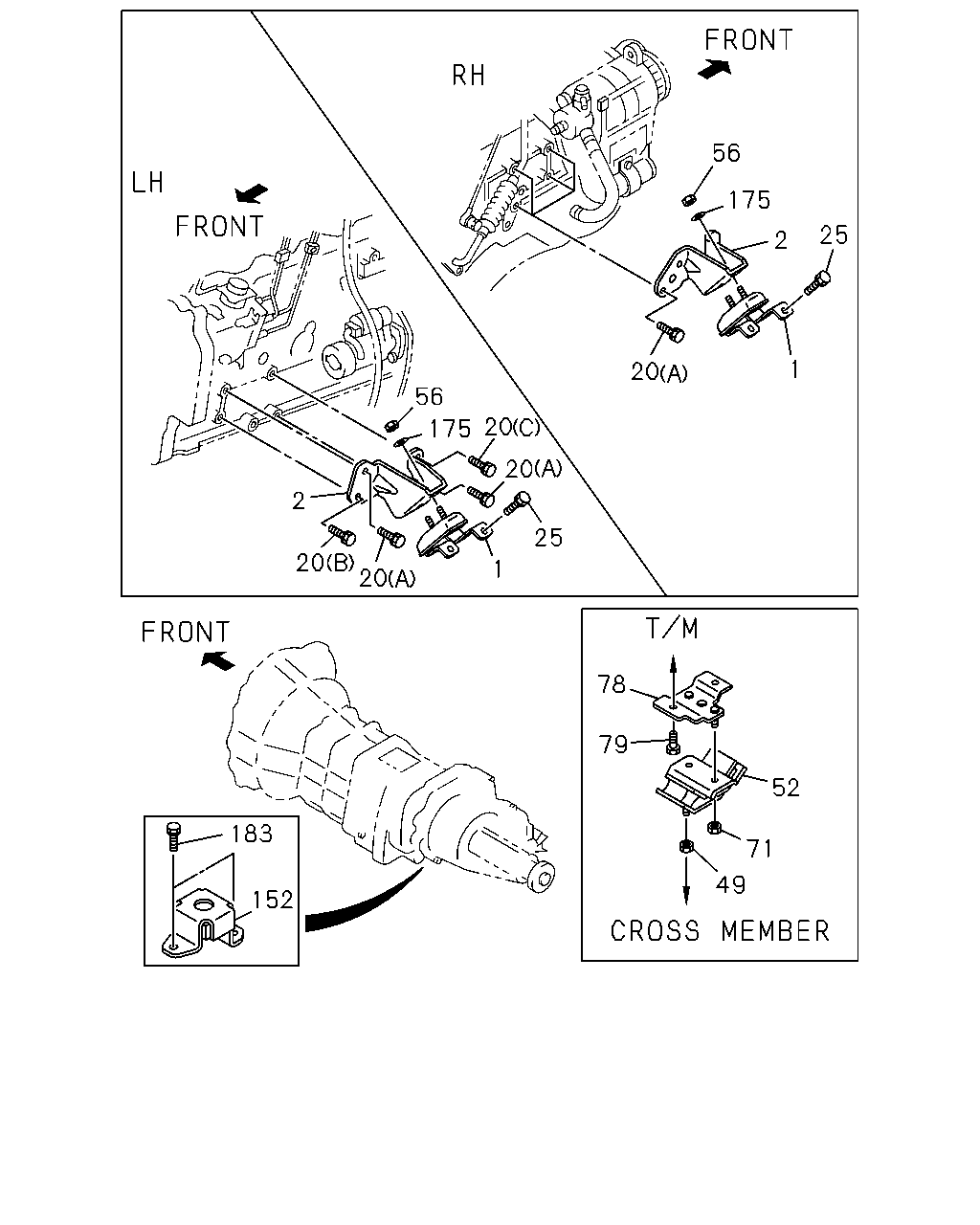

56 175 25 2 56 175 20 1 20 20 2 25 20 20 1 78 79 52 183 71 49 152

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RUBBER; ENG FOOT,FRT	8-97039-190-2	01	1	9112-9504	●	●
1	RUBBER; ENG FOOT,FRT	8-97039-190-3	01	1	9505-	●
1	RUBBER; ENG FOOT,FRT	8-97039-189-2	01	1	9112-9504	●	●
1	RUBBER; ENG FOOT,FRT	8-97039-189-3	01	1	9505-	●
1	RUBBER; ENG FOOT,FRT	8-94375-285-0	01	1	9112-			●
1	RUBBER; ENG FOOT,FRT	8-94375-284-0	01	1	9112-			●
1	RUBBER; ENG FOOT,FRT	8-94375-283-2	01	1	9112-9607				●
1	RUBBER; ENG FOOT,FRT EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94375-283-2	01	1	9608-9608				●
1	RUBBER; ENG FOOT,FRT EXC. AIR BAG DRIVER<AJ3>	8-94375-283-2	01	1	9609-				●
1	RUBBER; ENG FOOT,FRT	8-94375-282-5	01	1	9112-9607				●
1	RUBBER; ENG FOOT,FRT EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94375-282-5	01	1	9608-9608				●
1	RUBBER; ENG FOOT,FRT EXC. AIR BAG DRIVER<AJ3>	8-94375-282-5	01	1	9609-				●
1	RUBBER; ENG FOOT,FRT EUROPE/CANARY EQUIPMENT(EK4)	8-97104-158-1	01	1	9608-9608				●
1	RUBBER; ENG FOOT,FRT AIR BAG DRIVER<AJ3>	8-97104-158-1	01	1	9609-				●
1	RUBBER; ENG FOOT,FRT EUROPE/CANARY EQUIPMENT(EK4)	8-97104-157-1	01	1	9608-9608				●
1	RUBBER; ENG FOOT,FRT AIR BAG DRIVER<AJ3>	8-97104-157-1	01	1	9609-				●
2	FOOT; ENG	8-97038-196-1	01	1	9112-9504	●	●
2	FOOT; ENG	8-97038-196-1	01	1	9505-	●
2	FOOT; ENG	8-97038-195-1	01	1	9112-9504	●	●
2	FOOT; ENG	8-97038-195-1	01	1	9505-	●
2	FOOT; ENG	8-94449-473-3	01	1	9112-			●
2	FOOT; ENG	8-94449-474-3	01	1	9112-			●
2	FOOT; ENG	8-94374-504-0	01	1	9112-9301				●
2	FOOT; ENG	8-97088-678-0	01	1	9302-9607				●
2	FOOT; ENG EXC. AIR BAG DRIVER<AJ3>	8-97088-678-0	01	1	9608-				●
2	FOOT; ENG AIR BAG DRIVER<AJ3>	8-97110-078-0	01	1	9608-				●
2	FOOT; ENG	8-94374-503-1	01	1	9112-9301				●
2	FOOT; ENG	8-97088-677-0	01	1	9302-9607				●
2	FOOT; ENG EXC. AIR BAG DRIVER<AJ3>	8-97088-677-0	01	1	9608-				●
2	FOOT; ENG AIR BAG DRIVER<AJ3>	8-97110-077-0	01	1	9608-				●
20	BOLT; ENG FOOT (A) M10X22 W/LK WASHER	0-50041-022-0	06	1	9112-9504	●	●
20	BOLT; ENG FOOT (A) M10X22 W/LK WASHER	0-50041-022-0	06	1	9505-	●
20	BOLT; ENG FOOT (C) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-9504	●	●
20	BOLT; ENG FOOT (C) M10X35 W/LK WASHER	0-50041-035-0	01	1	9505-	●
20	BOLT; ENG FOOT (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	9112-9504	●	●
20	BOLT; ENG FOOT (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	9505-	●
20	BOLT; ENG FOOT M14X22	0-20801-422-0	01	1	9112-9303			●
20	BOLT; ENG FOOT M14X25 W/LK&PL WASHER	0-50141-425-0	01	1	9304-			●
20	BOLT; ENG FOOT M8X16 W/LK WASHER	0-50040-816-0	01	1	9112-			●
20	BOLT; ENG FOOT M10X22 W/LK WASHER	0-50041-022-0	01	1	9112-			●
20	BOLT; ENG FOOT M12X25 W/LK WASHER	0-50041-225-0	05	1	9112-			●
20	BOLT; ENG FOOT M10X22 FLANGE	0-28181-022-0	07	1	9112-9301				●
20	BOLT; ENG FOOT M10X20 FLANGE	0-28181-020-0	07	1	9302-				●
20	BOLT; ENG FOOT M10X40 FLANGE	0-28181-040-0	01	1	9112-				●
25	BOLT; CUSHION RUBBER TO BRKT M10X28 W/LK WASHER	8-97035-564-0	04	1	9112-9504	●	●	●	●
25	BOLT; CUSHION RUBBER TO BRKT M10X28 W/LK WASHER	8-97035-564-0	04	1	9505-	●		●	●
49	NUT; CUSHION RUBBER TO FRAME M10 FLANGE	8-94126-973-0	02	1	9112-9504	●	●	●	●
49	NUT; CUSHION RUBBER TO FRAME M10 FLANGE	8-94126-973-0	02	1	9505-	●		●	●
52	RUBBER; CUSHION,ENG MTG,RR	8-97039-196-6	01	1	9112-9504	●	●
52	RUBBER; CUSHION,ENG MTG,RR	8-97039-196-6	01	1	9505-	●
52	RUBBER; CUSHION,ENG MTG,RR	8-94375-289-2	01	1	9112-			●
52	RUBBER; CUSHION,ENG MTG,RR A/T THM(RMQ)	8-94375-288-1	01	1	9112-				●
52	RUBBER; CUSHION,ENG MTG,RR M/T MUA 5 SPEED(RMN)	8-94386-486-1	01	1	9112-9607				●
52	RUBBER; CUSHION,ENG MTG,RR M/T MUA 5 SPEED(RMN)	8-97123-260-0	01	1	9608-				●
56	NUT; ENG MTG M10	9-09110-410-0	04	1	9112-9504	●	●
56	NUT; ENG MTG M10	9-09110-410-0	04	1	9505-9710	●
56	NUT; ENG MTG M10 FLANGE	0-91150-110-0	04	1	9711-	●
71	NUT; SUPPORT RUBBER TO BRKT M10 FLANGE	0-91150-110-0	02	1	9112-9504	●	●
71	NUT; SUPPORT RUBBER TO BRKT M10 FLANGE	0-91150-110-0	02	1	9505-	●
78	BRACKET; ENG MTG,RR	8-97063-019-3	01	1	9112-9504	●	●
78	BRACKET; ENG MTG,RR	8-97063-019-3	01	1	9505-	●
79	BOLT; SUPPORT RUBBER TO TRANS M10X25 W/LK WASHER	0-50041-025-0	02	1	9112-9504	●	●	●	●
79	BOLT; SUPPORT RUBBER TO TRANS M/T MUA 5 SPEED(RMN) M10X25 W/LK WASHER	0-50041-025-0	02	1	9505-	●		●	●
152	DAMPER; DYNAMIC,ENG MTG	8-97061-853-0	01	1	9112-9410	●	●
175	WASHER; PL,HEAT PROTECTOR ID=10.2	9-09150-810-0	04	1	9112-9504	●	●
175	WASHER; PL,HEAT PROTECTOR ID=10.2	9-09150-810-0	04	1	9505-9710	●
183	BOLT; DAMPER M10X16 FLANGE	0-28081-016-0	02	1	9112-9410	●	●

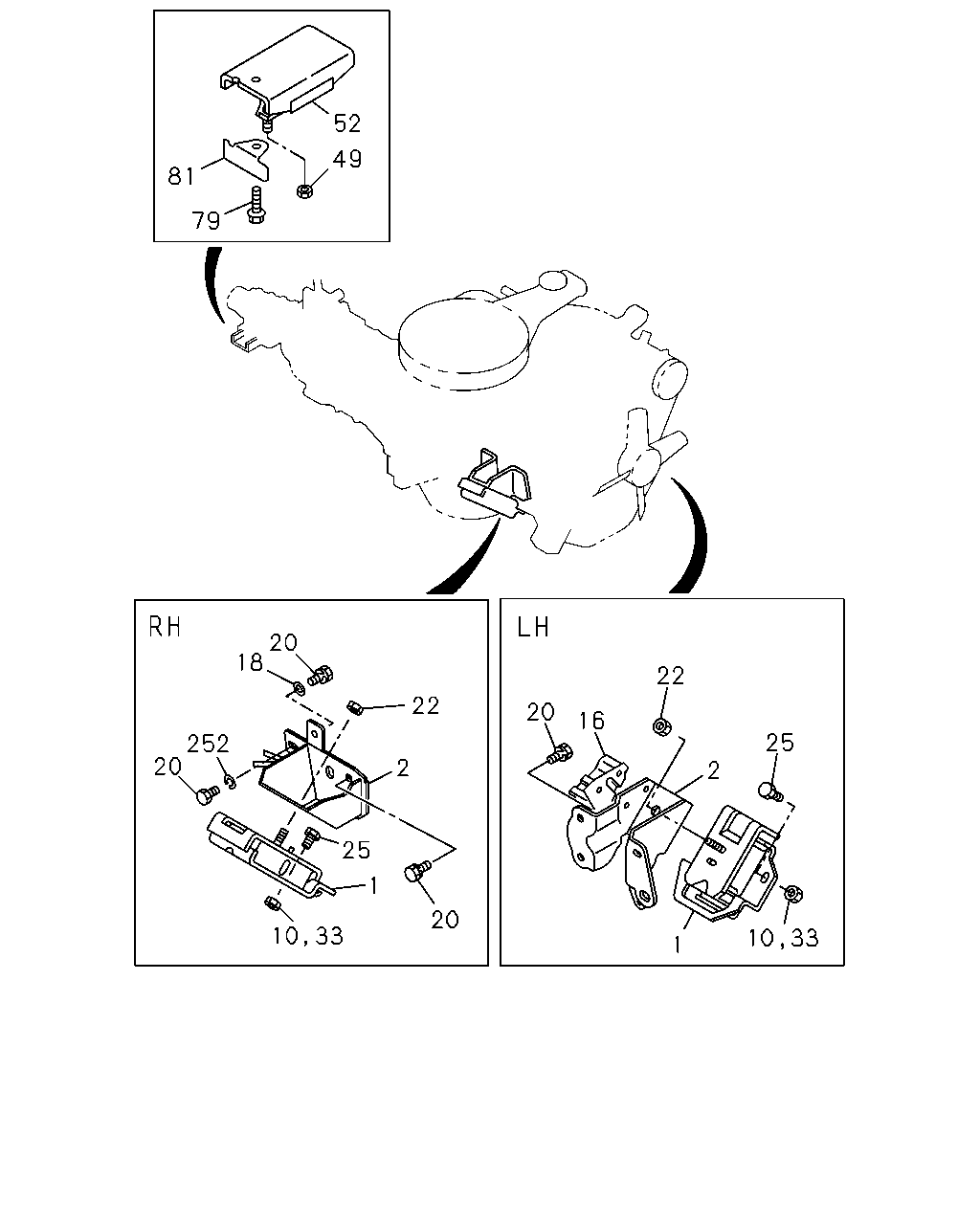

52 49 81 79 20 18 22 22 20 16 25 252 20 2 2 25 1 20 1 10 33 10 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RUBBER; ENG FOOT,FRT	8-97039-190-2	01	1	9112-9504	●	●
1	RUBBER; ENG FOOT,FRT	8-97039-190-3	01	1	9505-	●
1	RUBBER; ENG FOOT,FRT	8-97039-189-2	01	1	9112-9504	●	●
1	RUBBER; ENG FOOT,FRT	8-97039-189-3	01	1	9505-	●
1	RUBBER; ENG FOOT,FRT	8-94375-285-0	01	1	9112-			●
1	RUBBER; ENG FOOT,FRT	8-94375-284-0	01	1	9112-			●
1	RUBBER; ENG FOOT,FRT	8-94375-283-2	01	1	9112-9607				●
1	RUBBER; ENG FOOT,FRT EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94375-283-2	01	1	9608-9608				●
1	RUBBER; ENG FOOT,FRT EXC. AIR BAG DRIVER<AJ3>	8-94375-283-2	01	1	9609-				●
1	RUBBER; ENG FOOT,FRT	8-94375-282-5	01	1	9112-9607				●
1	RUBBER; ENG FOOT,FRT EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94375-282-5	01	1	9608-9608				●
1	RUBBER; ENG FOOT,FRT EXC. AIR BAG DRIVER<AJ3>	8-94375-282-5	01	1	9609-				●
1	RUBBER; ENG FOOT,FRT EUROPE/CANARY EQUIPMENT(EK4)	8-97104-158-1	01	1	9608-9608				●
1	RUBBER; ENG FOOT,FRT AIR BAG DRIVER<AJ3>	8-97104-158-1	01	1	9609-				●
1	RUBBER; ENG FOOT,FRT EUROPE/CANARY EQUIPMENT(EK4)	8-97104-157-1	01	1	9608-9608				●
1	RUBBER; ENG FOOT,FRT AIR BAG DRIVER<AJ3>	8-97104-157-1	01	1	9609-				●
2	FOOT; ENG	8-97038-196-1	01	1	9112-9504	●	●
2	FOOT; ENG	8-97038-196-1	01	1	9505-	●
2	FOOT; ENG	8-97038-195-1	01	1	9112-9504	●	●
2	FOOT; ENG	8-97038-195-1	01	1	9505-	●
2	FOOT; ENG	8-94449-473-3	01	1	9112-			●
2	FOOT; ENG	8-94449-474-3	01	1	9112-			●
2	FOOT; ENG	8-94374-504-0	01	1	9112-9301				●
2	FOOT; ENG	8-97088-678-0	01	1	9302-9607				●
2	FOOT; ENG EXC. AIR BAG DRIVER<AJ3>	8-97088-678-0	01	1	9608-				●
2	FOOT; ENG AIR BAG DRIVER<AJ3>	8-97110-078-0	01	1	9608-				●
2	FOOT; ENG	8-94374-503-1	01	1	9112-9301				●
2	FOOT; ENG	8-97088-677-0	01	1	9302-9607				●
2	FOOT; ENG EXC. AIR BAG DRIVER<AJ3>	8-97088-677-0	01	1	9608-				●
2	FOOT; ENG AIR BAG DRIVER<AJ3>	8-97110-077-0	01	1	9608-				●
10	NUT; MTG RUBBER M10 FLANGE	0-91150-110-0	04	1	9608-			●
16	PROTECTOR; HEAT,ENG MTG,FRT	8-94317-740-0	01	1	9112-			●
18	WASHER; PL,ENG FOOT ID=8.4	9-09164-508-0	01	1	9112-			●
20	BOLT; ENG FOOT (A) M10X22 W/LK WASHER	0-50041-022-0	06	1	9112-9504	●	●
20	BOLT; ENG FOOT (A) M10X22 W/LK WASHER	0-50041-022-0	06	1	9505-	●
20	BOLT; ENG FOOT (C) M10X35 W/LK WASHER	0-50041-035-0	01	1	9112-9504	●	●
20	BOLT; ENG FOOT (C) M10X35 W/LK WASHER	0-50041-035-0	01	1	9505-	●
20	BOLT; ENG FOOT (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	9112-9504	●	●
20	BOLT; ENG FOOT (B) M14X25 W/LK WASHER	0-50041-425-0	01	1	9505-	●
20	BOLT; ENG FOOT M14X22	0-20801-422-0	01	1	9112-9303			●
20	BOLT; ENG FOOT M14X25 W/LK&PL WASHER	0-50141-425-0	01	1	9304-			●
20	BOLT; ENG FOOT M8X16 W/LK WASHER	0-50040-816-0	01	1	9112-			●
20	BOLT; ENG FOOT M10X22 W/LK WASHER	0-50041-022-0	01	1	9112-			●
20	BOLT; ENG FOOT M12X25 W/LK WASHER	0-50041-225-0	05	1	9112-			●
20	BOLT; ENG FOOT M10X22 FLANGE	0-28181-022-0	07	1	9112-9301				●
20	BOLT; ENG FOOT M10X20 FLANGE	0-28181-020-0	07	1	9302-				●
20	BOLT; ENG FOOT M10X40 FLANGE	0-28181-040-0	01	1	9112-				●
22	NUT; CUSHION RUBBER TO BRKT M12 FLANGE	0-91150-112-0	02	1	9112-9607			●	●
22	NUT; CUSHION RUBBER TO BRKT M12 FLANGE	0-91150-112-0	02	1	9608-9608			●
22	NUT; CUSHION RUBBER TO BRKT EXC. EUROPE/CANARY EQUIPMENT(EK4) M12 FLANGE	0-91150-112-0	02	1	9608-9608				●
22	NUT; CUSHION RUBBER TO BRKT M12 FLANGE	0-91150-112-0	02	1	9609-			●
22	NUT; CUSHION RUBBER TO BRKT EXC. AIR BAG DRIVER<AJ3> M12 FLANGE	0-91150-112-0	02	1	9609-				●
22	NUT; CUSHION RUBBER TO BRKT EUROPE/CANARY EQUIPMENT(EK4) M10 FLANGE	0-91150-110-0	04	1	9608-9608				●
22	NUT; CUSHION RUBBER TO BRKT AIR BAG DRIVER<AJ3> M10 FLANGE	0-91150-110-0	04	1	9609-				●
25	BOLT; CUSHION RUBBER TO BRKT M10X28 W/LK WASHER	8-97035-564-0	04	1	9112-9504	●	●	●	●
25	BOLT; CUSHION RUBBER TO BRKT M10X28 W/LK WASHER	8-97035-564-0	04	1	9505-	●		●	●
33	NUT; CUSHION RUBBER TO BRKT M10 FLANGE	0-91150-110-0	04	1	9112-9607			●
49	NUT; CUSHION RUBBER TO FRAME M10 FLANGE	8-94126-973-0	02	1	9112-9504	●	●	●	●
49	NUT; CUSHION RUBBER TO FRAME M10 FLANGE	8-94126-973-0	02	1	9505-	●		●	●
52	RUBBER; CUSHION,ENG MTG,RR	8-97039-196-6	01	1	9112-9504	●	●
52	RUBBER; CUSHION,ENG MTG,RR	8-97039-196-6	01	1	9505-	●
52	RUBBER; CUSHION,ENG MTG,RR	8-94375-289-2	01	1	9112-			●
52	RUBBER; CUSHION,ENG MTG,RR A/T THM(RMQ)	8-94375-288-1	01	1	9112-				●
52	RUBBER; CUSHION,ENG MTG,RR M/T MUA 5 SPEED(RMN)	8-94386-486-1	01	1	9112-9607				●
52	RUBBER; CUSHION,ENG MTG,RR M/T MUA 5 SPEED(RMN)	8-97123-260-0	01	1	9608-				●
79	BOLT; SUPPORT RUBBER TO TRANS M10X25 W/LK WASHER	0-50041-025-0	02	1	9112-9504	●	●	●	●
79	BOLT; SUPPORT RUBBER TO TRANS M/T MUA 5 SPEED(RMN) M10X25 W/LK WASHER	0-50041-025-0	02	1	9505-	●		●	●
81	PROTECTOR; HEAT,ENG MTG A/T THM(RMQ)	8-97022-766-0	01	1	9112-9607				●
81	PROTECTOR; HEAT,ENG MTG	8-97022-766-0	01	1	9608-			●	●
81	PROTECTOR; HEAT,ENG MTG M/T MUA 5 SPEED(RMN)	8-97022-765-0	01	1	9112-9607				●
252	WASHER; LK,SUPPORT RUBBER ID=14.2	9-09150-514-0	01	1	9112-9303			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
