Sayfa 0-20 - Isuzu EPC

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#33131) — 254 parça

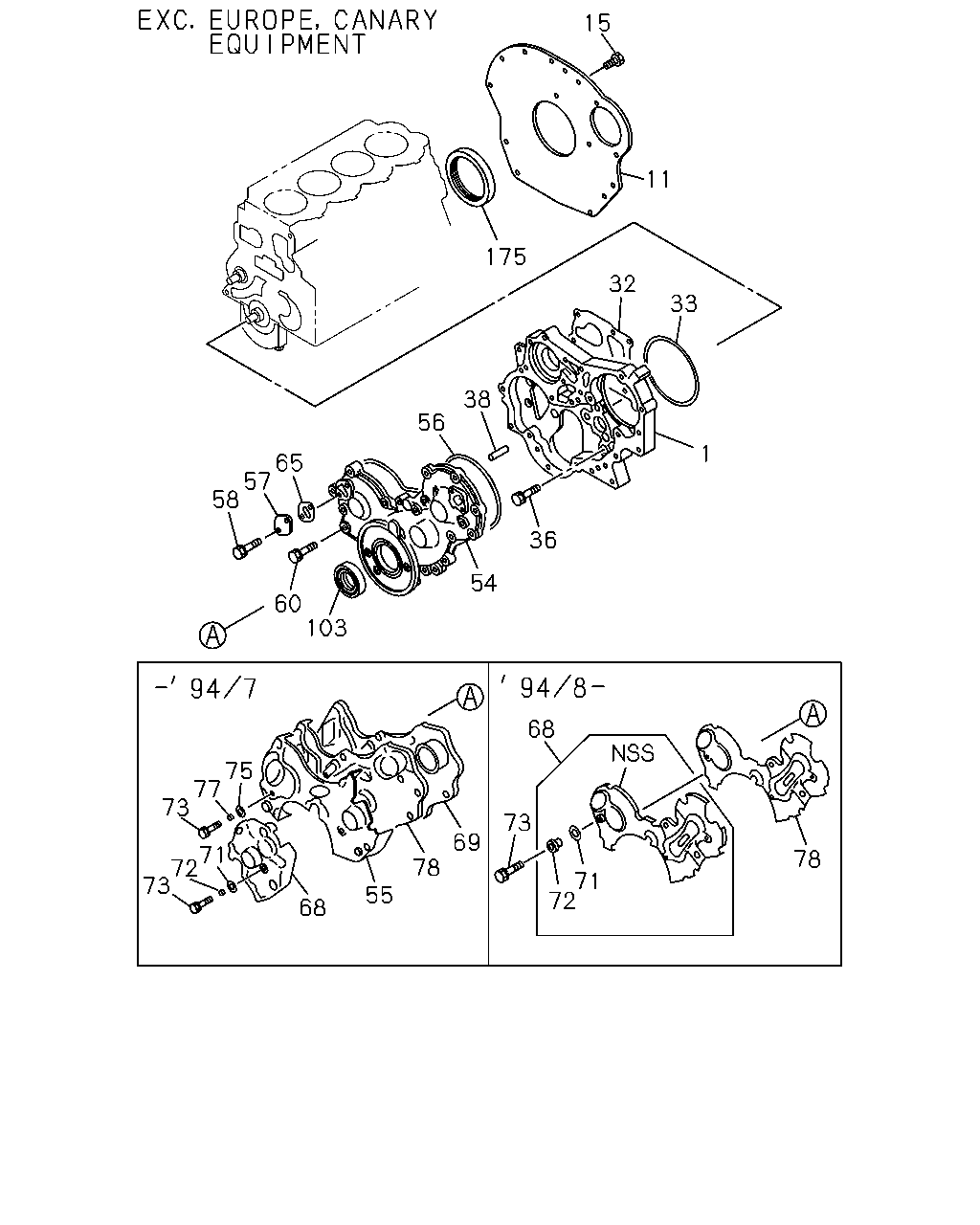

15 11 175 32 33 38 56 1 65 57 58 36 54 60 103 68 75 77 73 71 72 73 73 69 78 78 71 72 55 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CASE; TIMING GEAR EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94155-361-3	01	1	9112-9504	●	●
1	CASE; TIMING GEAR EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94155-361-3	01	1	9505-9506	●
1	CASE; TIMING GEAR EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97129-982-1	01	1	9507-	●
1	CASE; TIMING GEAR EUROPE/CANARY EQUIPMENT(EK4)	8-94133-497-6	01	1	9112-9206	●
1	CASE; TIMING GEAR EUROPE/CANARY EQUIPMENT(EK4)	8-97083-629-2	01	1	9207-9410	●
1	CASE; TIMING GEAR EUROPE/CANARY EQUIPMENT(EK4)	8-97115-133-0	01	1	9411-9606	●
1	CASE; TIMING GEAR EUROPE/CANARY EQUIPMENT(EK4)	8-97160-960-0	01	1	9607-	●
1	CASE; TIMING GEAR	8-94405-608-3	01	1	9112-			●
11	PLATE; RR,C/BL	8-94437-923-2	01	1	9112-9504	●	●
11	PLATE; RR,C/BL	8-94437-923-2	01	1	9505-	●
11	PLATE; RR,C/BL	8-94443-574-2	01	1	9112-			●
15	BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9112-9504	●	●
15	BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9505-	●
15	BOLT; RR PLATE TO C/BL (A) M10X18	8-94214-903-1	02	1	9112-			●
15	BOLT; RR PLATE TO C/BL (B) M10X50 REAMER	8-94215-044-1	01	1	9112-			●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97046-469-1	01	1	9112-9504	●	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97046-469-1	01	1	9505-9507	●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97129-427-0	01	1	9508-	●
33	GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94109-707-0	01	1	9112-9504	●	●
33	GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94109-707-0	01	1	9505-	●
36	BOLT; GEAR CASE EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X20 W/LK WASHER	0-50040-820-0	06	1	9112-9504	●	●
36	BOLT; GEAR CASE EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X20 W/LK WASHER	0-50040-820-0	06	1	9505-	●
36	BOLT; GEAR CASE EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X45 W/LK WASHER	0-50040-845-0	02	1	9112-9504	●	●
36	BOLT; GEAR CASE EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X45 W/LK WASHER	0-50040-845-0	02	1	9505-	●
38	PIN; GEAR CASE COVER EXC. EUROPE/CANARY EQUIPMENT(EK4) OD=10 L=20	9-08151-020-0	02	1	9112-9504	●	●
38	PIN; GEAR CASE COVER EXC. EUROPE/CANARY EQUIPMENT(EK4) OD=10 L=20	9-08151-020-0	02	1	9505-	●
54	COVER; GEAR CASE EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94155-360-2	01	1	9112-9504	●	●
54	COVER; GEAR CASE EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94155-360-2	01	1	9505-	●
55	COVER; NOISE SHIELD EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94420-293-3	01	1	9112-9407	●	●
56	GASKET; GEAR CASE TO COVER EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94140-117-1	01	1	9112-9504	●	●
56	GASKET; GEAR CASE TO COVER EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94140-117-1	01	1	9505-	●
57	COVER; TIMING CHECK HOLE EXC. EUROPE/CANARY EQUIPMENT(EK4)	5-11321-009-0	02	1	9112-9504	●	●
57	COVER; TIMING CHECK HOLE EXC. EUROPE/CANARY EQUIPMENT(EK4)	5-11321-009-0	02	1	9505-	●
58	BOLT; CHECK HOLE COVER EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X14 W/LK WASHER	9-01900-614-0	04	1	9112-9204	●	●
58	BOLT; CHECK HOLE COVER EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X14 W/LK WASHER	0-50040-614-0	04	1	9205-9504	●	●
58	BOLT; CHECK HOLE COVER EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X14 W/LK WASHER	0-50040-614-0	04	1	9505-	●
60	BOLT; COVER TO CASE EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X32 W/LK WASHER	0-50040-832-0	08	1	9112-9504	●	●
60	BOLT; COVER TO CASE EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X32 W/LK WASHER	0-50040-832-0	08	1	9505-	●
60	BOLT; COVER TO CASE EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X60 W/LK WASHER	0-50040-860-0	01	1	9112-9504	●	●
60	BOLT; COVER TO CASE EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X60 W/LK WASHER	0-50040-860-0	01	1	9505-	●
60	BOLT; COVER TO CASE EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X65 W/LK WASHER	8-94205-986-1	06	1	9112-9504	●	●
60	BOLT; COVER TO CASE EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X65 W/LK WASHER	8-94205-986-1	06	1	9505-	●
60	BOLT; COVER TO CASE EXC. EUROPE/CANARY EQUIPMENT(EK4) M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9112-9504	●	●
60	BOLT; COVER TO CASE EXC. EUROPE/CANARY EQUIPMENT(EK4) M12X55 W/HEX-SOCKET	9-95821-255-0	01	1	9505-	●
65	GASKET; COVER,TIMING CHECK HOLE EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97045-362-1	02	1	9112-9412	●	●
65	GASKET; COVER,TIMING CHECK HOLE EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97118-698-0	02	1	9501-9504	●	●
65	GASKET; COVER,TIMING CHECK HOLE EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97118-698-0	02	1	9505-	●
68	COVER ASM; GEAR CASE COVER EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94423-518-3	01	1	9112-9407	●	●
68	COVER ASM; GEAR CASE COVER EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94155-721-1	01	1	9408-	●
69	SEAL; RUBBER,COVER TO COVER EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94423-517-2	01	1	9112-9407	●	●
71	RUBBER; MTG,COVER EXC. EUROPE/CANARY EQUIPMENT(EK4)	5-19389-002-0	02	1	9112-9407	●	●
71	RUBBER; MTG,COVER EXC. EUROPE/CANARY EQUIPMENT(EK4)	5-19389-002-0	04	1	9408-9504	●	●
71	RUBBER; MTG,COVER EXC. EUROPE/CANARY EQUIPMENT(EK4)	5-19389-002-0	04	1	9505-	●
72	BUSHING; SPACER,COVER TO COVER EXC. EUROPE/CANARY EQUIPMENT(EK4)	5-19389-009-0	02	1	9112-9407	●	●
72	BUSHING; SPACER,COVER TO COVER EXC. EUROPE/CANARY EQUIPMENT(EK4)	5-19389-009-0	04	1	9408-9504	●	●
72	BUSHING; SPACER,COVER TO COVER EXC. EUROPE/CANARY EQUIPMENT(EK4)	5-19389-009-0	04	1	9505-	●
73	BOLT; COVER FIX EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9112-9504	●	●
73	BOLT; COVER FIX EXC. EUROPE/CANARY EQUIPMENT(EK4) M6X18 W/LK&PL WASHER	0-50140-618-0	04	1	9505-	●
75	RUBBER; NOISE COVER MTG,TIMING GEAR CA EXC. EUROPE/CANARY EQUIPMENT(EK4)	5-19389-002-0	02	1	9112-9407	●	●
77	BUSHING; MTG RUBBER,NOISE COVER EXC. EUROPE/CANARY EQUIPMENT(EK4)	5-19389-009-0	02	1	9112-9407	●	●
78	SPACER; MTG RUBBER,NOISE COVER EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94420-559-6	01	1	9112-9407	●	●
78	SPACER; MTG RUBBER,NOISE COVER EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94155-722-2	01	1	9408-9504	●	●
78	SPACER; MTG RUBBER,NOISE COVER EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94155-722-3	01	1	9505-	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9112-9308	●	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97049-145-0	01	1	9309-9504	●	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97049-145-0	01	1	9505-	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4)	8-97071-560-1	01	1	9309-	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-146-0	01	1	9112-9308	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9309-9504	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9505-	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9112-			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9112-				●

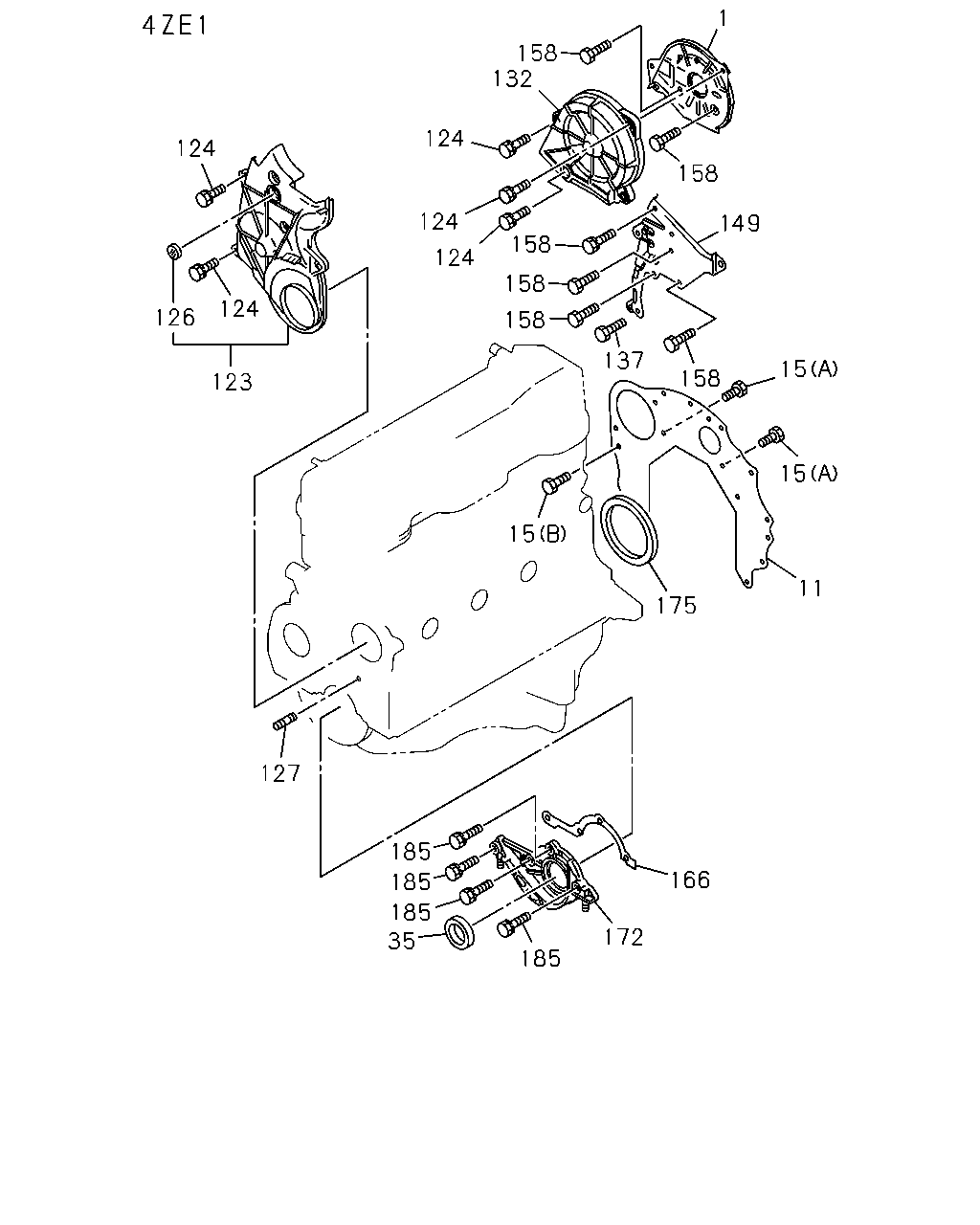

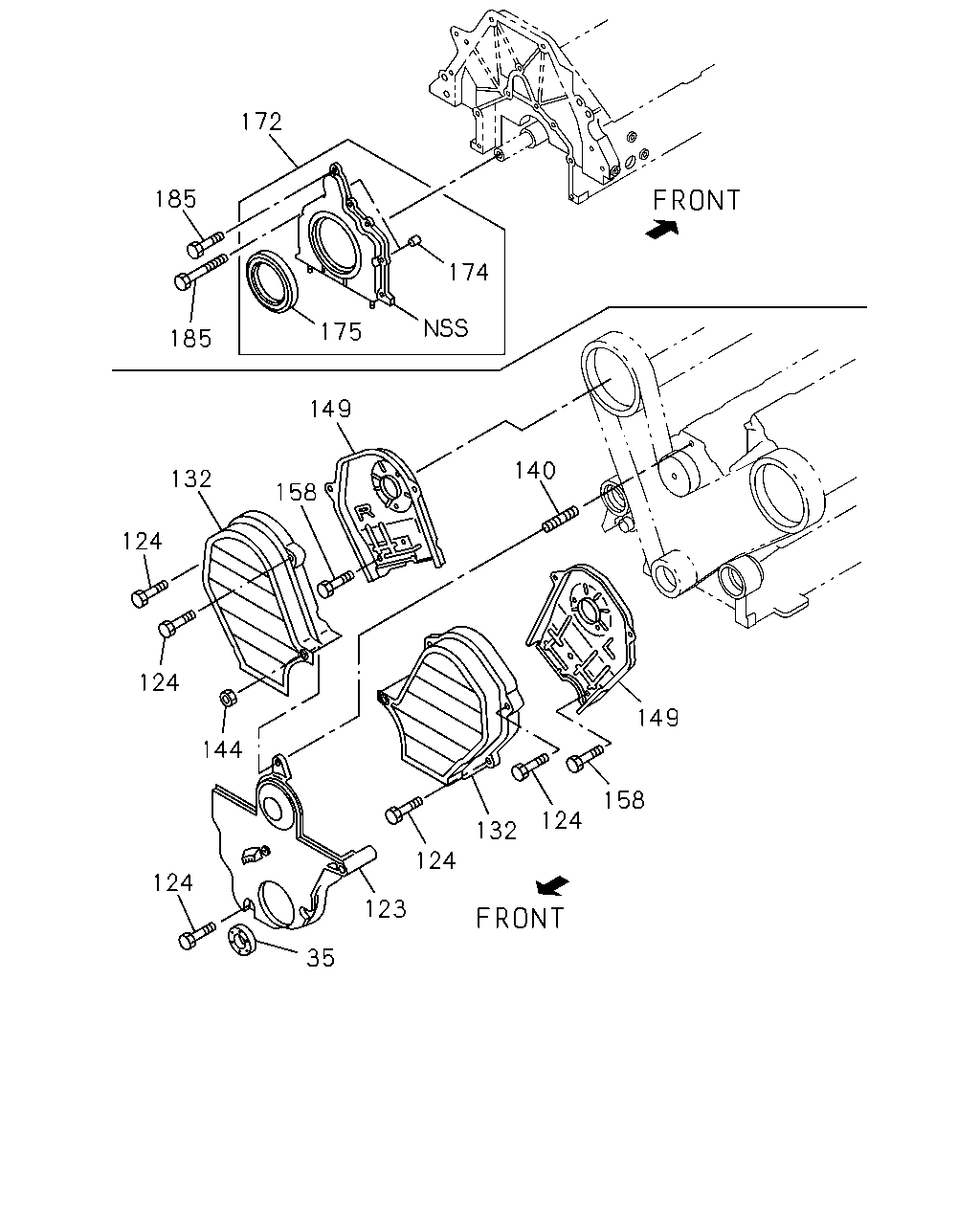

172 185 174 175 185 149 140 132 158 124 124 149 144 158 124 132 124 124 123 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=56 T=6.5	8-94339-997-0	01	1	9112-			●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=55 T=6.0	8-97023-373-0	01	1	9112-				●
123	COVER; TIMING,LWR EUROPE/CANARY EQUIPMENT(EK4)	8-97038-105-1	01	1	9112-	●
123	COVER; TIMING,LWR	8-94449-471-4	01	1	9112-			●
123	COVER; TIMING,LWR	8-94374-960-1	01	1	9112-				●
124	BOLT; TIMING COVER EUROPE/CANARY EQUIPMENT(EK4) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9112-	●
124	BOLT; TIMING COVER EUROPE/CANARY EQUIPMENT(EK4) M6X50 W/LK WASHER	8-94152-616-1	03	1	9112-	●
124	BOLT; TIMING COVER M6X50 FLANGE	0-28010-650-0	01	1	9112-9204			●
124	BOLT; TIMING COVER M6X50 FLANGE	0-28080-650-0	01	1	9205-			●
124	BOLT; TIMING COVER M6X16 W/LK WASHER	9-01900-616-0	06	1	9112-9204			●
124	BOLT; TIMING COVER M6X16 W/LK WASHER	0-50040-616-0	06	1	9205-			●
124	BOLT; TIMING COVER M6X25 W/LK WASHER	9-01900-625-0	01	1	9112-9204			●
124	BOLT; TIMING COVER M6X25 W/LK WASHER	0-50040-625-0	01	1	9205-			●
124	BOLT; TIMING COVER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) M8X20 FLANGE	0-28080-820-0	07	1	9112-9505				●
124	BOLT; TIMING COVER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) M8X20 FLANGE	0-28080-820-0	07	1	9506-9506				●
124	BOLT; TIMING COVER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M8X20 FLANGE	0-28080-820-0	07	1	9507-9611				●
124	BOLT; TIMING COVER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M8X20 FLANGE	0-28080-820-0	07	1	9612-				●
124	BOLT; TIMING COVER EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) M8X20 FLANGE	0-28080-820-0	09	1	9112-9505				●
124	BOLT; TIMING COVER EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) M8X20 FLANGE	0-28080-820-0	09	1	9506-9506				●
124	BOLT; TIMING COVER EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M8X20 FLANGE	0-28080-820-0	09	1	9507-9611				●
124	BOLT; TIMING COVER EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COST A RICA EQUIPMENT(7LD) M8X20 FLANGE	0-28080-820-0	09	1	9612-				●
132	COVER; TIMING,UPR EUROPE/CANARY EQUIPMENT(EK4)	8-97038-103-1	01	1	9112-	●
132	COVER; TIMING,UPR	8-94452-421-1	01	1	9112-			●
132	COVER; TIMING,UPR	8-94374-963-0	01	1	9112-				●
132	COVER; TIMING,UPR	8-94374-964-0	01	1	9112-				●
140	STUD; COVER M8X90 L=106	5-09300-067-0	01	1	9112-				●
144	NUT; COVER M8 FLANGE	0-91150-108-0	01	1	9112-				●
149	PLATE; FRT,C/BL	8-94405-609-3	01	1	9112-			●
149	PLATE; FRT,C/BL	8-94374-962-2	01	1	9112-				●
149	PLATE; FRT,C/BL	8-94374-961-2	01	1	9112-				●
158	BOLT; FRT PLATE M6X16 W/LK&PL WASHER	9-01960-616-0	03	1	9112-9204			●
158	BOLT; FRT PLATE M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9205-9207			●
158	BOLT; FRT PLATE M6X12 FLANGE	0-28080-612-0	03	1	9208-			●
158	BOLT; FRT PLATE M8X18 W/LK&PL WASHER	9-01960-818-0	01	1	9112-9204			●
158	BOLT; FRT PLATE M8X18 W/LK&PL WASHER	0-50140-818-0	01	1	9205-			●
158	BOLT; FRT PLATE M8X12 FLANGE	0-28080-812-0	08	1	9112-				●
172	RETAINER; CR/SHF	8-94174-212-3	01	1	9112-			●
172	RETAINER; CR/SHF	8-97016-140-2	01	1	9112-9307				●
172	RETAINER; CR/SHF	8-97102-450-1	01	1	9308-				●
174	DOWEL; RET TO C/BL	8-94339-958-0	02	1	9112-9309				●
174	DOWEL; RET TO C/BL 930920-	8-97103-336-0	02	1	9309-				●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-146-0	01	1	9112-9308	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9309-9504	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9505-	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9112-			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9112-				●
185	BOLT; RET TO C/BL M8X25 W/LK WASHER	0-50040-825-0	02	1	9112-			●
185	BOLT; RET TO C/BL M8X32 W/LK WASHER	0-50040-832-0	02	1	9112-			●
185	BOLT; RET TO C/BL M8X25 FLANGE	0-28080-825-0	02	1	9112-				●
185	BOLT; RET TO C/BL M8X16 FLANGE	0-28080-816-0	06	1	9112-9407				●
185	BOLT; RET TO C/BL M8X20 FLANGE	0-28080-820-0	06	1	9408-9601				●
185	BOLT; RET TO C/BL M8X16 FLANGE	0-28080-816-0	06	1	9602-				●

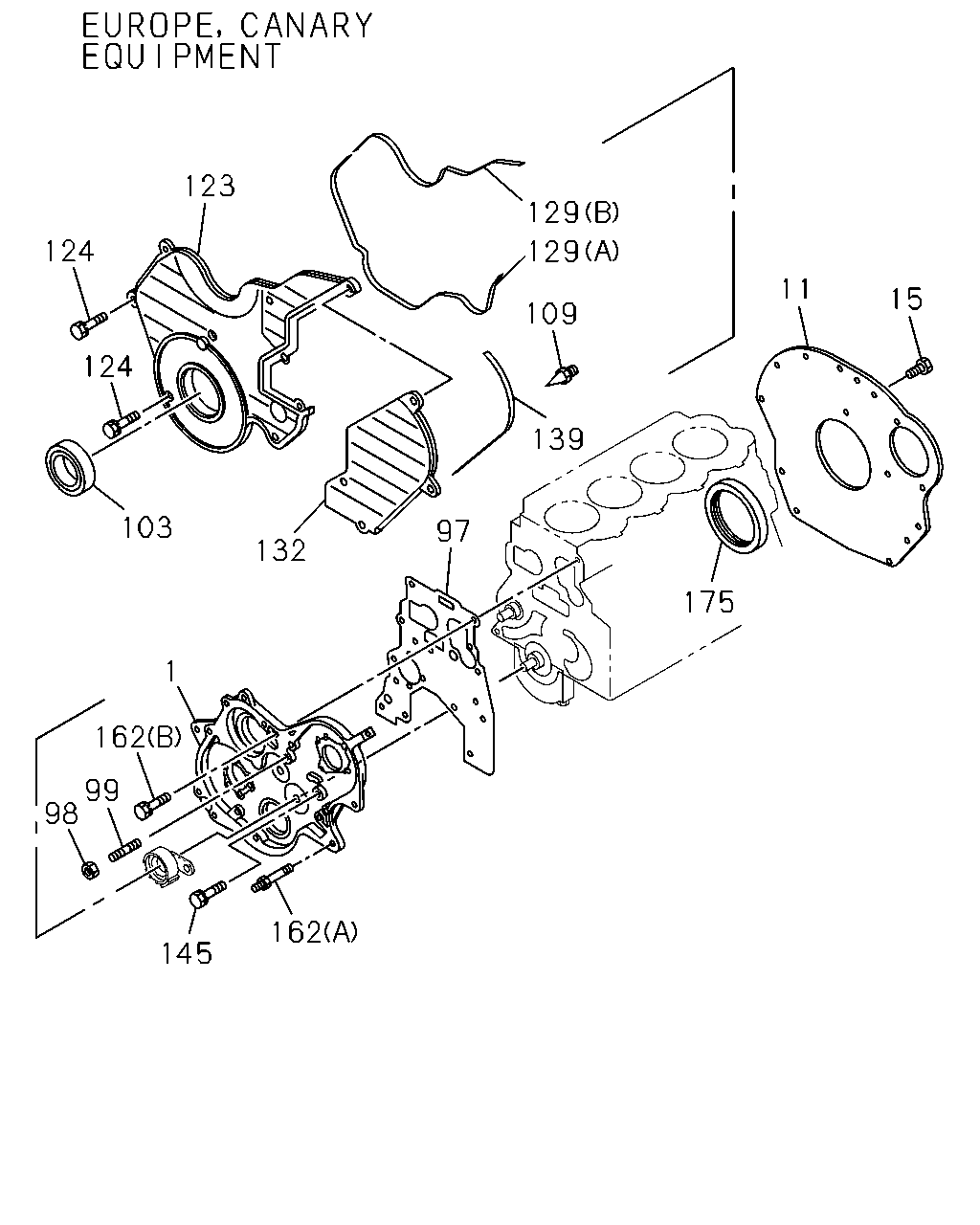

123 129 129 124 11 15 109 124 139 103 97 132 175 1 162 99 98 162 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CASE; TIMING GEAR EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94155-361-3	01	1	9112-9504	●	●
1	CASE; TIMING GEAR EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94155-361-3	01	1	9505-9506	●
1	CASE; TIMING GEAR EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97129-982-1	01	1	9507-	●
1	CASE; TIMING GEAR EUROPE/CANARY EQUIPMENT(EK4)	8-94133-497-6	01	1	9112-9206	●
1	CASE; TIMING GEAR EUROPE/CANARY EQUIPMENT(EK4)	8-97083-629-2	01	1	9207-9410	●
1	CASE; TIMING GEAR EUROPE/CANARY EQUIPMENT(EK4)	8-97115-133-0	01	1	9411-9606	●
1	CASE; TIMING GEAR EUROPE/CANARY EQUIPMENT(EK4)	8-97160-960-0	01	1	9607-	●
1	CASE; TIMING GEAR	8-94405-608-3	01	1	9112-			●
11	PLATE; RR,C/BL	8-94437-923-2	01	1	9112-9504	●	●
11	PLATE; RR,C/BL	8-94437-923-2	01	1	9505-	●
11	PLATE; RR,C/BL	8-94443-574-2	01	1	9112-			●
15	BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9112-9504	●	●
15	BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9505-	●
15	BOLT; RR PLATE TO C/BL (A) M10X18	8-94214-903-1	02	1	9112-			●
15	BOLT; RR PLATE TO C/BL (B) M10X50 REAMER	8-94215-044-1	01	1	9112-			●
97	GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4)	8-97046-470-0	01	1	9112-9305	●
97	GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4)	8-97080-302-0	01	1	9306-9504	●
97	GASKET; BLOCK TO HSG ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4)	8-97129-429-0	01	1	9505-	●
98	NUT; STUD,INJ PUMP EUROPE/CANARY EQUIPMENT(EK4) M8	8-94224-829-0	03	1	9112-	●
99	STUD; INJ PUMP EUROPE/CANARY EQUIPMENT(EK4) M8X25 L=41	9-04020-825-0	03	1	9112-9406	●
99	STUD; INJ PUMP EUROPE/CANARY EQUIPMENT(EK4) M8X28 L=44	9-04020-828-0	03	1	9407-	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-145-0	01	1	9112-9308	●	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97049-145-0	01	1	9309-9504	●	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97049-145-0	01	1	9505-	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4)	8-97071-560-1	01	1	9309-	●
109	POINTER; TIMING EUROPE/CANARY EQUIPMENT(EK4) M5X7.5	8-94133-500-0	01	1	9112-	●
123	COVER; TIMING,LWR EUROPE/CANARY EQUIPMENT(EK4)	8-97038-105-1	01	1	9112-	●
123	COVER; TIMING,LWR	8-94449-471-4	01	1	9112-			●
123	COVER; TIMING,LWR	8-94374-960-1	01	1	9112-				●
124	BOLT; TIMING COVER EUROPE/CANARY EQUIPMENT(EK4) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9112-	●
124	BOLT; TIMING COVER EUROPE/CANARY EQUIPMENT(EK4) M6X50 W/LK WASHER	8-94152-616-1	03	1	9112-	●
124	BOLT; TIMING COVER M6X50 FLANGE	0-28010-650-0	01	1	9112-9204			●
124	BOLT; TIMING COVER M6X50 FLANGE	0-28080-650-0	01	1	9205-			●
124	BOLT; TIMING COVER M6X16 W/LK WASHER	9-01900-616-0	06	1	9112-9204			●
124	BOLT; TIMING COVER M6X16 W/LK WASHER	0-50040-616-0	06	1	9205-			●
124	BOLT; TIMING COVER M6X25 W/LK WASHER	9-01900-625-0	01	1	9112-9204			●
124	BOLT; TIMING COVER M6X25 W/LK WASHER	0-50040-625-0	01	1	9205-			●
124	BOLT; TIMING COVER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) M8X20 FLANGE	0-28080-820-0	07	1	9112-9505				●
124	BOLT; TIMING COVER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) M8X20 FLANGE	0-28080-820-0	07	1	9506-9506				●
124	BOLT; TIMING COVER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M8X20 FLANGE	0-28080-820-0	07	1	9507-9611				●
124	BOLT; TIMING COVER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M8X20 FLANGE	0-28080-820-0	07	1	9612-				●
124	BOLT; TIMING COVER EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) M8X20 FLANGE	0-28080-820-0	09	1	9112-9505				●
124	BOLT; TIMING COVER EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) M8X20 FLANGE	0-28080-820-0	09	1	9506-9506				●
124	BOLT; TIMING COVER EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M8X20 FLANGE	0-28080-820-0	09	1	9507-9611				●
124	BOLT; TIMING COVER EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COST A RICA EQUIPMENT(7LD) M8X20 FLANGE	0-28080-820-0	09	1	9612-				●
129	GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4) (A) L=560	8-94464-695-1	01	1	9112-	●
129	GASKET; TIMING COVER,LWR ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4) (B) L=366	8-94464-696-0	01	1	9112-	●
132	COVER; TIMING,UPR EUROPE/CANARY EQUIPMENT(EK4)	8-97038-103-1	01	1	9112-	●
132	COVER; TIMING,UPR	8-94452-421-1	01	1	9112-			●
132	COVER; TIMING,UPR	8-94374-963-0	01	1	9112-				●
132	COVER; TIMING,UPR	8-94374-964-0	01	1	9112-				●
139	GASKET; TIMING COVER,UPR ALSO INCLUDED IN GASKET SET(ENGINE). EUROPE/CANARY EQUIPMENT(EK4) L=215	8-94139-961-0	01	1	9112-	●
145	BOLT; TENSIONER GUIDE EUROPE/CANARY EQUIPMENT(EK4) M8X20	8-94152-617-1	01	1	9112-	●
162	BOLT; FRT PLATE EUROPE/CANARY EQUIPMENT(EK4) (B) M8X45 W/LK&PL WASHER	0-50140-845-0	04	1	9112-9205	●
162	BOLT; FRT PLATE EUROPE/CANARY EQUIPMENT(EK4) (B) M8X45 W/LK WASHER	0-50040-845-0	04	1	9206-	●
162	BOLT; FRT PLATE EUROPE/CANARY EQUIPMENT(EK4) (A) M8X19.5,M8X42.5 L=69	8-94167-314-1	01	1	9112-9605	●
162	BOLT; FRT PLATE EUROPE/CANARY EQUIPMENT(EK4) (A) M8X42.5 L=69	8-97148-539-0	01	1	9606-	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-146-0	01	1	9112-9308	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9309-9504	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9505-	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9112-			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9112-				●

1 158 132 124 124 158 124 149 158 124 158 124 126 158 137 15 158 123 15 15 11 175 127 185 185 185 35 166 172 185

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CASE; TIMING GEAR EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94155-361-3	01	1	9112-9504	●	●
1	CASE; TIMING GEAR EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94155-361-3	01	1	9505-9506	●
1	CASE; TIMING GEAR EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97129-982-1	01	1	9507-	●
1	CASE; TIMING GEAR EUROPE/CANARY EQUIPMENT(EK4)	8-94133-497-6	01	1	9112-9206	●
1	CASE; TIMING GEAR EUROPE/CANARY EQUIPMENT(EK4)	8-97083-629-2	01	1	9207-9410	●
1	CASE; TIMING GEAR EUROPE/CANARY EQUIPMENT(EK4)	8-97115-133-0	01	1	9411-9606	●
1	CASE; TIMING GEAR EUROPE/CANARY EQUIPMENT(EK4)	8-97160-960-0	01	1	9607-	●
1	CASE; TIMING GEAR	8-94405-608-3	01	1	9112-			●
11	PLATE; RR,C/BL	8-94437-923-2	01	1	9112-9504	●	●
11	PLATE; RR,C/BL	8-94437-923-2	01	1	9505-	●
11	PLATE; RR,C/BL	8-94443-574-2	01	1	9112-			●
15	BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9112-9504	●	●
15	BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	9505-	●
15	BOLT; RR PLATE TO C/BL (A) M10X18	8-94214-903-1	02	1	9112-			●
15	BOLT; RR PLATE TO C/BL (B) M10X50 REAMER	8-94215-044-1	01	1	9112-			●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=56 T=6.5	8-94339-997-0	01	1	9112-			●
35	SEAL; OIL,CRANKSHAFT FRT ALSO INCLUDED IN GASKET SET(ENGINE). OD=55 T=6.0	8-97023-373-0	01	1	9112-				●
123	COVER; TIMING,LWR EUROPE/CANARY EQUIPMENT(EK4)	8-97038-105-1	01	1	9112-	●
123	COVER; TIMING,LWR	8-94449-471-4	01	1	9112-			●
123	COVER; TIMING,LWR	8-94374-960-1	01	1	9112-				●
124	BOLT; TIMING COVER EUROPE/CANARY EQUIPMENT(EK4) M6X35 W/LK&PL WASHER	0-50140-635-0	07	1	9112-	●
124	BOLT; TIMING COVER EUROPE/CANARY EQUIPMENT(EK4) M6X50 W/LK WASHER	8-94152-616-1	03	1	9112-	●
124	BOLT; TIMING COVER M6X50 FLANGE	0-28010-650-0	01	1	9112-9204			●
124	BOLT; TIMING COVER M6X50 FLANGE	0-28080-650-0	01	1	9205-			●
124	BOLT; TIMING COVER M6X16 W/LK WASHER	9-01900-616-0	06	1	9112-9204			●
124	BOLT; TIMING COVER M6X16 W/LK WASHER	0-50040-616-0	06	1	9205-			●
124	BOLT; TIMING COVER M6X25 W/LK WASHER	9-01900-625-0	01	1	9112-9204			●
124	BOLT; TIMING COVER M6X25 W/LK WASHER	0-50040-625-0	01	1	9205-			●
124	BOLT; TIMING COVER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) M8X20 FLANGE	0-28080-820-0	07	1	9112-9505				●
124	BOLT; TIMING COVER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) M8X20 FLANGE	0-28080-820-0	07	1	9506-9506				●
124	BOLT; TIMING COVER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M8X20 FLANGE	0-28080-820-0	07	1	9507-9611				●
124	BOLT; TIMING COVER EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M8X20 FLANGE	0-28080-820-0	07	1	9612-				●
124	BOLT; TIMING COVER EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHILE EQUIPMENT(6KB) M8X20 FLANGE	0-28080-820-0	09	1	9112-9505				●
124	BOLT; TIMING COVER EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB) M8X20 FLANGE	0-28080-820-0	09	1	9506-9506				●
124	BOLT; TIMING COVER EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COSTA RICA EQUIPMENT(7LD) M8X20 FLANGE	0-28080-820-0	09	1	9507-9611				●
124	BOLT; TIMING COVER EXC. EUROPE/CANARY EQUIPMENT(EK4),SAUDI ARABIA EQUIPMENT(EU2),PHILIPPINE EQUIPMENT(S2U),CHINA EQUIPMENT(YT2),CHILE EQUIPMENT(6KB),GUATEMALA/COST A RICA EQUIPMENT(7LD) M8X20 FLANGE	0-28080-820-0	09	1	9612-				●
126	GROMMET; TIMING COVER,LWR	8-94150-996-0	01	1	9112-			●
127	STUD; TENSIONER M8X50 L=62	9-04110-850-0	01	1	9112-			●
132	COVER; TIMING,UPR EUROPE/CANARY EQUIPMENT(EK4)	8-97038-103-1	01	1	9112-	●
132	COVER; TIMING,UPR	8-94452-421-1	01	1	9112-			●
132	COVER; TIMING,UPR	8-94374-963-0	01	1	9112-				●
132	COVER; TIMING,UPR	8-94374-964-0	01	1	9112-				●
137	BOLT; FRT PLATE M6X18 W/LK&PL WASHER	0-50140-618-0	02	1	9505-			●
149	PLATE; FRT,C/BL	8-94405-609-3	01	1	9112-			●
149	PLATE; FRT,C/BL	8-94374-962-2	01	1	9112-				●
149	PLATE; FRT,C/BL	8-94374-961-2	01	1	9112-				●
158	BOLT; FRT PLATE M6X16 W/LK&PL WASHER	9-01960-616-0	03	1	9112-9204			●
158	BOLT; FRT PLATE M6X16 W/LK&PL WASHER	0-50140-616-0	03	1	9205-9207			●
158	BOLT; FRT PLATE M6X12 FLANGE	0-28080-612-0	03	1	9208-			●
158	BOLT; FRT PLATE M8X18 W/LK&PL WASHER	9-01960-818-0	01	1	9112-9204			●
158	BOLT; FRT PLATE M8X18 W/LK&PL WASHER	0-50140-818-0	01	1	9205-			●
158	BOLT; FRT PLATE M8X12 FLANGE	0-28080-812-0	08	1	9112-				●
166	GASKET; RET TO C/BL	8-94214-914-0	01	1	9112-9602			●
166	GASKET; RET TO C/BL	8-97143-478-0	01	1	9603-			●
172	RETAINER; CR/SHF	8-94174-212-3	01	1	9112-			●
172	RETAINER; CR/SHF	8-97016-140-2	01	1	9112-9307				●
172	RETAINER; CR/SHF	8-97102-450-1	01	1	9308-				●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97049-146-0	01	1	9112-9308	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9309-9504	●	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	9505-	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97025-206-0	01	1	9112-			●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-94381-233-0	01	1	9112-				●
185	BOLT; RET TO C/BL M8X25 W/LK WASHER	0-50040-825-0	02	1	9112-			●
185	BOLT; RET TO C/BL M8X32 W/LK WASHER	0-50040-832-0	02	1	9112-			●
185	BOLT; RET TO C/BL M8X25 FLANGE	0-28080-825-0	02	1	9112-				●
185	BOLT; RET TO C/BL M8X16 FLANGE	0-28080-816-0	06	1	9112-9407				●
185	BOLT; RET TO C/BL M8X20 FLANGE	0-28080-820-0	06	1	9408-9601				●
185	BOLT; RET TO C/BL M8X16 FLANGE	0-28080-816-0	06	1	9602-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
