0-87 — COUPLING; INJECTION PUMP (#3313) — 26 parça

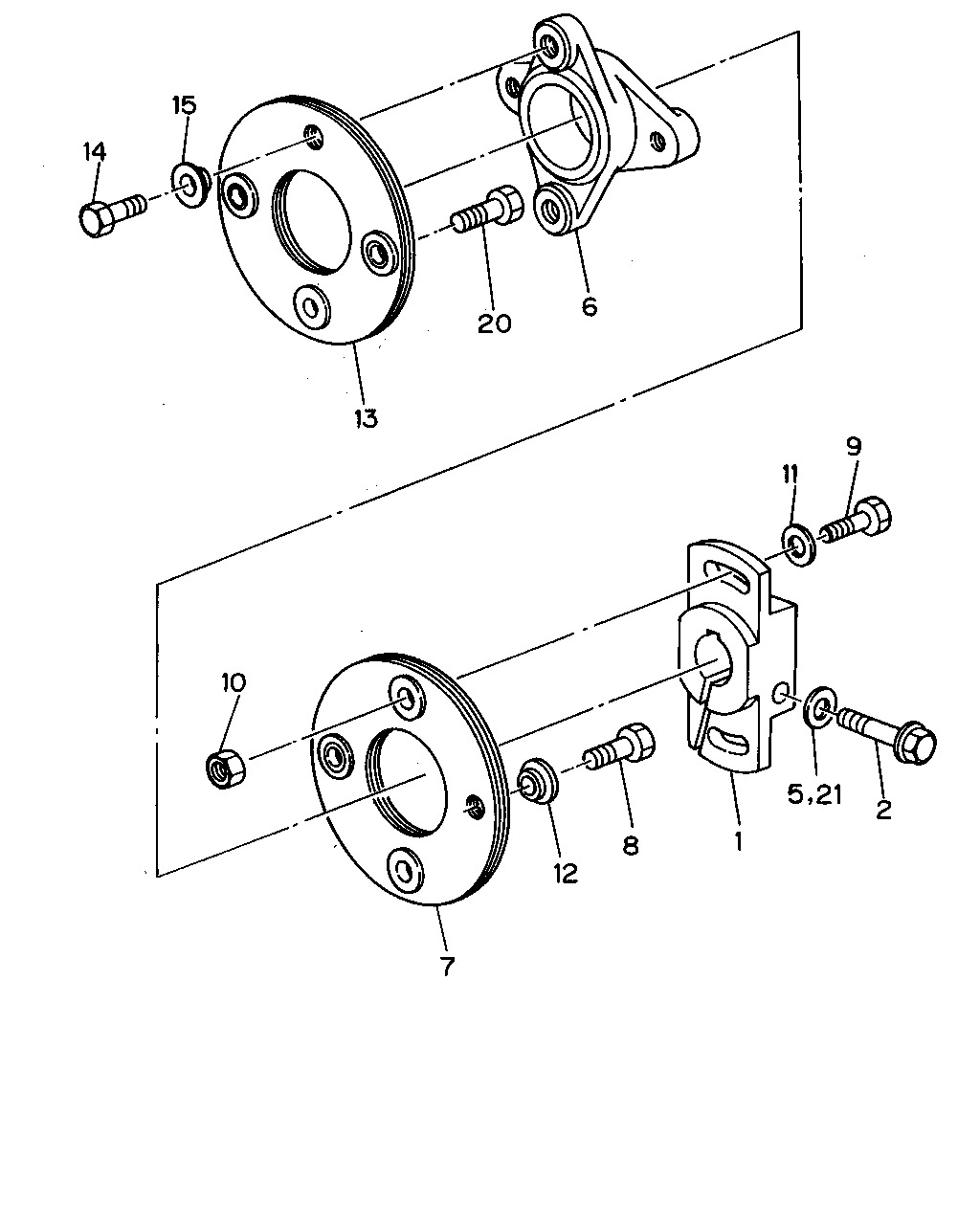

çizim 37019
14 15 13 20 6 9 11 2 21 5 1 8 12 7 10
BalonParca AdiParca NoAdetTipApplied Date
1 COUPLING; INJ PUMP DRIVE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-004-0 01 1 9002-
1 COUPLING; INJ PUMP DRIVE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15781-017-0 01 1 9002-
2 BOLT; COUPLING FIX,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-010-0 01 1 9002-
2 BOLT; COUPLING FIX,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-020-0 01 1 9002-
5 WASHER; COUPLING FIX,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-021-0 01 1 9002-
6 COUPLING; CROSS,INJ PUMP DRIVE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-81381-309-0 01 1 9002-
6 COUPLING; CROSS,INJ PUMP DRIVE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-100-0 01 1 9002-
7 PLATE; COUPLING,COUPLING SIDE
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-81381-116-0 01 1 9002-
7 PLATE; COUPLING,COUPLING SIDE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-096-0 01 1 9002-
8 BOLT; PLATE TO CROSS COUPLING
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-81385-022-0 02 1 9002-
8 BOLT; PLATE TO CROSS COUPLING
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-029-0 02 1 9002-
9 BOLT; PLATE TO COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-81385-023-0 02 1 9002-
9 BOLT; PLATE TO COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-029-0 02 1 9002-
10 NUT; PLATE TO COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) M8 		9-09110-508-0 02 1 9002-
10 NUT; PLATE TO COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-073-0 02 1 9002-
11 WASHER; PLATE TO COUPLING,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-007-0 02 1 9002-
11 WASHER; PLATE TO COUPLING,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-095-0 02 1 9002-
12 WASHER; PLATE TO CROSS COUPLING
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-014-0 02 1 9002-
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-81381-116-0 01 1 9002-
13 PLATE; COUPLING,TIMER SIDE,INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-065-0 01 1 9002-
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
AIR COMPRESSOR HEAVY DUTY(E1Q) 		9-81385-022-0 02 1 9002-
14 BOLT; PLATE TO CROSS COUPLING,TIMER SI
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-064-0 02 1 9002-
15 WASHER; PLATE TO CROSS COUPLING
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-014-0 02 1 9002-
20 BOLT; COUPLING TO INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-040-0 02 1 9002-
20 BOLT; COUPLING TO INJ PUMP
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-084-0 02 1 9002-
21 WASHER; LK,COUPLING TO INJ PUMP
AIR COMPRESSOR HEAVY DUTY(E1Q) 		1-15789-011-0 02 1 9002-
