Sayfa 0-14 - Isuzu EPC

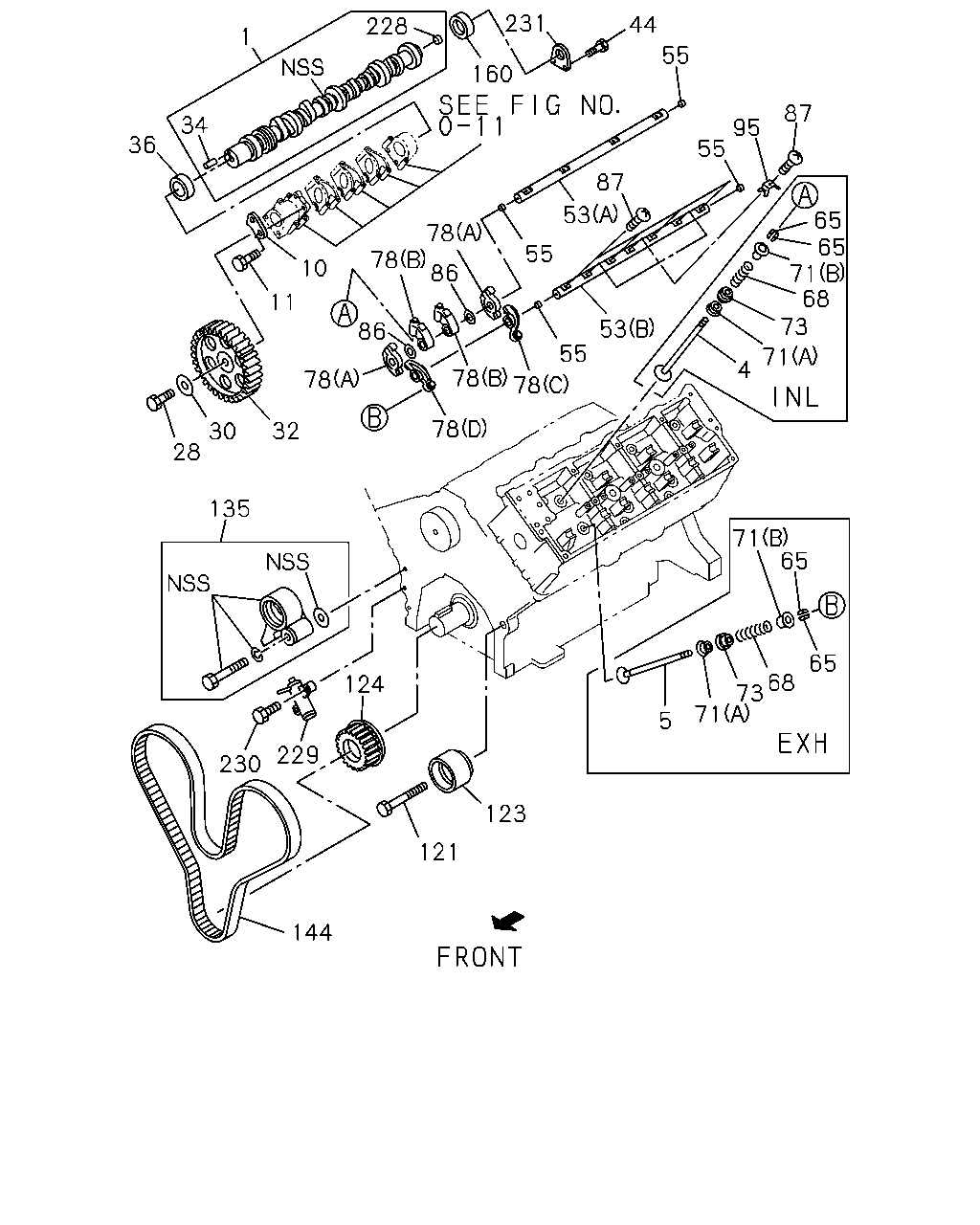

0-14 — CAMSHAFT AND VALVE (#33129) — 410 parça

231 44 55 228 1 160 87 34 95 55 36 87 53 65 65 71 68 73 71 4 78 78 86 55 10 11 86 53 55 78 78 78 78 32 30 28 135 71 65 65 68 73 71 124 5 229 230 123 121 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAMSHAFT	8-94127-797-4	01	1	9112-9504	●	●
1	CAMSHAFT	8-94127-797-4	01	1	9505-	●
1	CAMSHAFT	8-94136-784-1	01	1	9112-			●
1	CAMSHAFT	8-97027-958-2	01	1	9112-				●
1	CAMSHAFT	8-97027-957-2	01	1	9112-				●
4	VALVE; INL	8-94363-134-0	04	1	9309-9504		●
4	VALVE; INL	8-94363-134-0	04	1	9112-9307	●	●
4	VALVE; INL	8-94363-134-0	04	1	9308-9308		●
4	VALVE; INL EUROPE/CANARY EQUIPMENT(EK4)	8-94363-134-0	04	1	9308-9308	●
4	VALVE; INL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97080-214-1	04	1	9308-9308	●
4	VALVE; INL	8-97080-214-1	04	1	9309-9504	●
4	VALVE; INL	8-97131-729-0	04	1	9505-	●
4	VALVE; INL	8-94174-222-1	04	1	9112-			●
4	VALVE; INL EUROPE/CANARY EQUIPMENT(EK4)	8-97015-546-2	12	1	9112-				●
4	VALVE; INL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97037-373-0	12	1	9112-				●
5	VALVE; EXH	8-97043-861-1	04	1	9112-9504	●	●
5	VALVE; EXH TURBOCHARGER<K51>	8-97043-861-1	04	1	9505-	●
5	VALVE; EXH EXC. TURBOCHARGER<K51>	8-97118-767-0	04	1	9505-	●
5	VALVE; EXH	8-94174-223-1	04	1	9112-9403			●
5	VALVE; EXH	8-97110-256-0	04	1	9404-			●
5	VALVE; EXH EUROPE/CANARY EQUIPMENT(EK4)	8-97015-547-1	12	1	9112-				●
5	VALVE; EXH EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97037-374-0	12	1	9112-				●
10	PLATE; THRUST EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94110-480-1	01	1	9112-9504	●	●
10	PLATE; THRUST EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94110-480-1	01	1	9505-	●
10	PLATE; THRUST	8-94364-753-0	02	1	9112-				●
11	BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9112-9504	●	●
11	BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9505-	●
11	BOLT; THRUST PLATE TO C/BL M6X12 HEX SOCKET	9-05820-612-0	04	1	9112-				●
28	BOLT; CAM PULLEY M10X35	9-02061-035-0	01	1	9112-			●
28	BOLT; CAM PULLEY M10X32	9-02061-032-0	02	1	9112-9401				●
28	BOLT; CAM PULLEY M10X32	8-97109-673-0	02	1	9402-				●
30	WASHER; PULLEY ID=10.5	8-94174-283-1	01	1	9112-			●
30	WASHER; PULLEY	8-94232-045-0	02	1	9112-				●
32	SPROCKET; CM/SHF INL LEFT BANK	8-97016-141-2	01	1	9112-9411				●
32	SPROCKET; CM/SHF INL RIGHT BANK	8-97066-480-2	01	1	9112-9411				●
32	SPROCKET; CM/SHF INL	8-97065-823-2	02	1	9412-				●
34	PIN; CM/SHF	9-08160-512-0	01	1	9112-			●
34	PIN; CM/SHF OD=5 L=10	9-08160-510-0	02	1	9112-				●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EUROPE/CANARY EQUIPMENT(EK4) OD=56 T=7.0	8-94214-912-0	01	1	9112-9305	●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EUROPE/CANARY EQUIPMENT(EK4) OD=56 T=7.0	8-97080-562-0	01	1	9306-	●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=45	8-94334-845-0	01	1	9112-			●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94389-593-1	02	1	9112-				●
44	BOLT EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X16 W/LK WASHER	0-50040-816-0	02	1	9112-9504	●	●
44	BOLT EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X16 W/LK WASHER	0-50040-816-0	02	1	9505-	●
44	BOLT M8X14 FLANGE	0-28080-814-0	04	1	9404-				●
53	SHAFT; ROCKER ARM	8-94343-205-0	01	1	9112-9504	●	●
53	SHAFT; ROCKER ARM	8-94343-205-0	01	1	9505-	●
53	SHAFT; ROCKER ARM (A) INLET	8-94110-646-1	01	1	9112-			●
53	SHAFT; ROCKER ARM (B) EXHAUST	8-94129-227-0	01	1	9112-			●
53	SHAFT; ROCKER ARM (A)	8-94364-723-2	02	1	9112-				●
53	SHAFT; ROCKER ARM (B)	8-94364-724-1	02	1	9112-				●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9112-9504	●	●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9505-	●
55	PLUG; ROCKER SHAFT END (A) INLET	8-94116-940-0	02	1	9112-			●
55	PLUG; ROCKER SHAFT END (B) EXHAUST	8-94116-941-0	02	1	9112-			●
55	PLUG; ROCKER SHAFT END	8-94454-615-0	08	1	9112-				●
65	COLLAR; SPLIT	5-12565-004-0	16	1	9112-9504	●	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	9505-	●
65	COLLAR; SPLIT	8-94200-714-0	16	1	9112-			●
65	COLLAR; SPLIT	8-94429-487-0	48	1	9112-				●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	9112-9504	●	●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	9505-	●
68	SPRING; VLV	8-94259-483-0	08	1	9112-			●
68	SPRING; VLV	8-97023-108-1	24	1	9112-				●
71	SEAT; SPR (A) LOWER	5-12563-001-0	08	1	9112-9504	●	●
71	SEAT; SPR (A) LOWER OD=34	5-12563-001-0	08	1	9505-	●
71	SEAT; SPR (B) UPPER	8-94133-731-2	08	1	9112-9504	●	●
71	SEAT; SPR (B) UPPER OD=32.8	8-94133-731-2	08	1	9505-	●
71	SEAT; SPR (A) LOWER	8-94200-749-0	08	1	9112-			●
71	SEAT; SPR (B) UPPER	8-94233-232-1	08	1	9112-			●
71	SEAT; SPR (A) LOWER	8-94316-354-0	24	1	9112-				●
71	SEAT; SPR (B) UPPER	8-94370-633-1	24	1	9112-				●
73	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97033-673-0	08	1	9112-			●
73	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94324-158-1	24	1	9112-				●
78	ARM; ROCKER	8-94152-344-0	08	1	9112-9504	●	●
78	ARM; ROCKER	8-94152-344-0	08	1	9505-	●
78	ARM; ROCKER JBK	8-94102-416-0	08	1	9112-			●
78	ARM; ROCKER NPR	8-94102-413-0	08	1	9209-			●
78	ARM; ROCKER (A) EXHAUST	8-97021-542-0	12	1	9112-9207				●
78	ARM; ROCKER (A) EXHAUST	8-97084-929-1	12	1	9208-				●
78	ARM; ROCKER (B) INLET	8-97032-012-0	12	1	9112-9207				●
78	ARM; ROCKER (B) INLET	8-97084-927-1	12	1	9208-9308				●
78	ARM; ROCKER (B) INLET	8-97089-270-2	12	1	9309-				●
78	ARM; ROCKER (C) EXHAUST	8-97032-013-1	06	1	9112-				●
78	ARM; ROCKER (D) EXHAUST	8-97032-014-1	06	1	9112-				●
86	WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9112-9504	●	●
86	WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9505-	●
86	WASHER; ROCKER ARM FIX	8-94360-876-0	12	1	9112-				●
87	BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9112-9504	●	●
87	BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9505-	●
87	BOLT; ROCKER SHAFT M8X32 HEX SOCKET	8-94365-130-0	22	1	9112-				●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9112-9504	●	●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9505-	●
95	SPRING; ROCKER SHAFT (A) L=57.0	8-94200-814-1	04	1	9112-			●
95	SPRING; ROCKER SHAFT (B) L=38.0	8-94200-815-1	04	1	9112-			●
95	SPRING; ROCKER SHAFT	8-94379-497-1	06	1	9112-				●
121	BOLT; IDLE PULLEY EUROPE/CANARY EQUIPMENT(EK4) M12X60	0-10811-260-0	01	1	9112-9206	●
121	BOLT; IDLE PULLEY EUROPE/CANARY EQUIPMENT(EK4) M12X57 FLANGE	8-94433-408-0	01	1	9207-	●
121	BOLT; IDLE PULLEY M10X60 FLANGE	0-28191-060-0	01	1	9112-				●
123	PULLEY; IDLE,TIMING EUROPE/CANARY EQUIPMENT(EK4)	8-94382-215-0	01	1	9112-	●
123	PULLEY; IDLE,TIMING	8-94386-488-3	01	1	9112-				●
124	PULLEY; TIMING,CR/SHF EUROPE/CANARY EQUIPMENT(EK4)	8-94133-501-3	01	1	9112-	●
124	PULLEY; TIMING,CR/SHF	8-94457-889-0	01	1	9112-			●
124	PULLEY; TIMING,CR/SHF Z=26	8-94344-559-3	01	1	9112-				●
135	PULLEY; TENSIONER	8-94472-349-0	01	1	9112-			●
135	PULLEY; TENSIONER	8-94364-816-1	01	1	9112-9408				●
135	PULLEY; TENSIONER	8-97116-002-0	01	1	9409-				●
144	BELT; TIMING EUROPE/CANARY EQUIPMENT(EK4) BLUE	8-94380-679-0	01	1	9112-9304	●
144	BELT; TIMING EUROPE/CANARY EQUIPMENT(EK4) BLUE	8-97065-986-0	01	1	9305-9503	●
144	BELT; TIMING EUROPE/CANARY EQUIPMENT(EK4) BLUE	8-94380-679-0	01	1	9504-	●
144	BELT; TIMING	8-97042-268-0	01	1	9112-			●
144	BELT; TIMING BANDO L=1784	8-97016-326-0	01	1	9112-				●
160	PLUG; CM/SHF END NOK OD=45	8-94471-941-2	02	1	9112-				●
228	CUP; SEALING,CAMSHAFT OD=8	8-97039-526-0	02	1	9112-				●
229	ROD ASM; PUSH,TENSIONER	8-94364-817-0	01	1	9112-9408				●
229	ROD ASM; PUSH,TENSIONER	8-97116-003-1	01	1	9409-				●
230	BOLT; PUSH ROD M8X25 FLANGE	0-28080-825-0	02	1	9112-				●
231	PLATE; CAP ID=35 & 2-8.5	8-97113-327-0	02	1	9404-				●

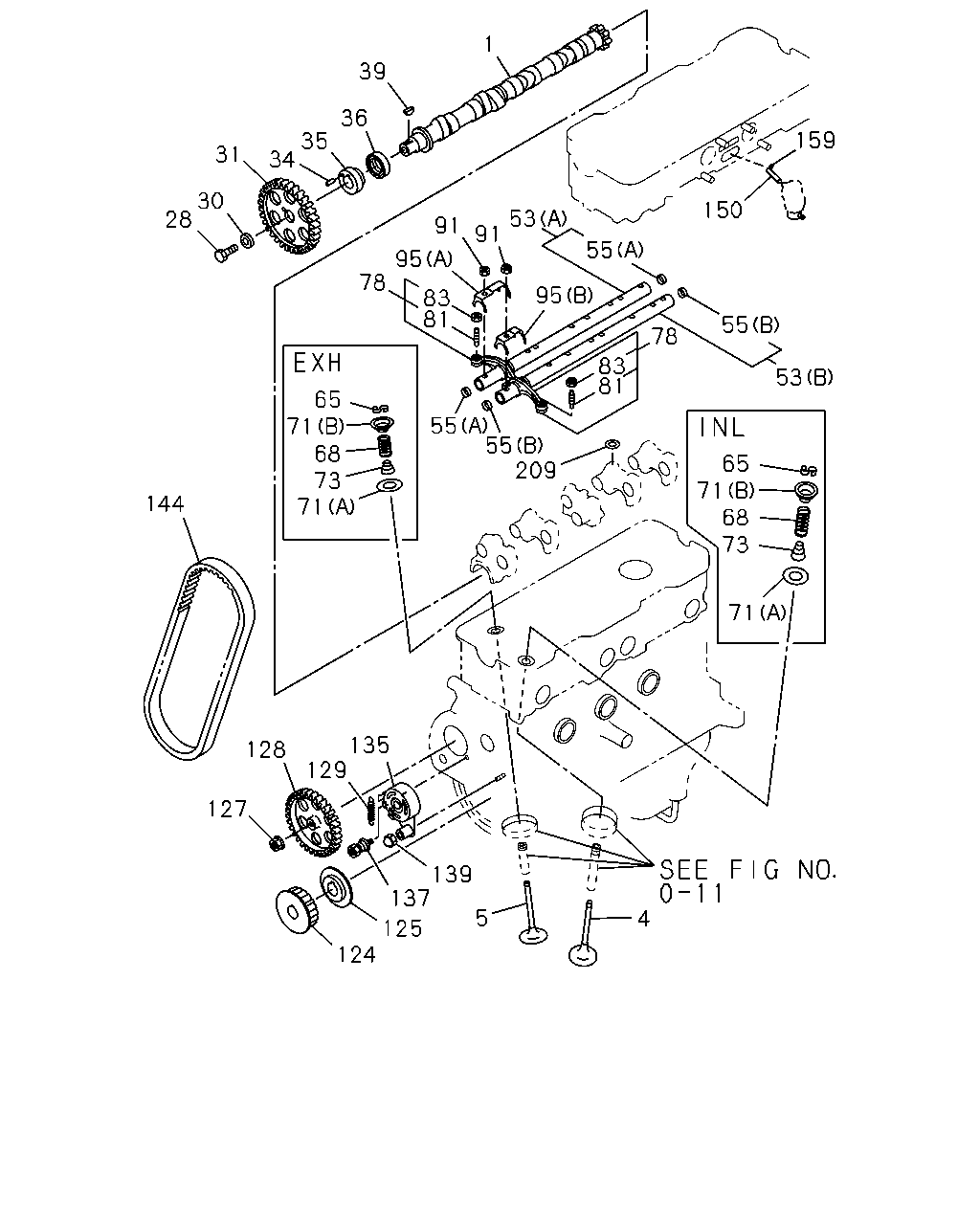

1 39 36 35 34 159 31 30 28 150 53 91 91 95 78 55 95 83 81 55 78 83 81 53 65 71 68 73 71 55 55 209 65 71 68 73 144 71 135 129 128 127 4 139 137 125 124 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAMSHAFT	8-94127-797-4	01	1	9112-9504	●	●
1	CAMSHAFT	8-94127-797-4	01	1	9505-	●
1	CAMSHAFT	8-94136-784-1	01	1	9112-			●
1	CAMSHAFT	8-97027-958-2	01	1	9112-				●
1	CAMSHAFT	8-97027-957-2	01	1	9112-				●
4	VALVE; INL	8-94363-134-0	04	1	9309-9504		●
4	VALVE; INL	8-94363-134-0	04	1	9112-9307	●	●
4	VALVE; INL	8-94363-134-0	04	1	9308-9308		●
4	VALVE; INL EUROPE/CANARY EQUIPMENT(EK4)	8-94363-134-0	04	1	9308-9308	●
4	VALVE; INL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97080-214-1	04	1	9308-9308	●
4	VALVE; INL	8-97080-214-1	04	1	9309-9504	●
4	VALVE; INL	8-97131-729-0	04	1	9505-	●
4	VALVE; INL	8-94174-222-1	04	1	9112-			●
4	VALVE; INL EUROPE/CANARY EQUIPMENT(EK4)	8-97015-546-2	12	1	9112-				●
4	VALVE; INL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97037-373-0	12	1	9112-				●
5	VALVE; EXH	8-97043-861-1	04	1	9112-9504	●	●
5	VALVE; EXH TURBOCHARGER<K51>	8-97043-861-1	04	1	9505-	●
5	VALVE; EXH EXC. TURBOCHARGER<K51>	8-97118-767-0	04	1	9505-	●
5	VALVE; EXH	8-94174-223-1	04	1	9112-9403			●
5	VALVE; EXH	8-97110-256-0	04	1	9404-			●
5	VALVE; EXH EUROPE/CANARY EQUIPMENT(EK4)	8-97015-547-1	12	1	9112-				●
5	VALVE; EXH EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97037-374-0	12	1	9112-				●
28	BOLT; CAM PULLEY M10X35	9-02061-035-0	01	1	9112-			●
28	BOLT; CAM PULLEY M10X32	9-02061-032-0	02	1	9112-9401				●
28	BOLT; CAM PULLEY M10X32	8-97109-673-0	02	1	9402-				●
30	WASHER; PULLEY ID=10.5	8-94174-283-1	01	1	9112-			●
30	WASHER; PULLEY	8-94232-045-0	02	1	9112-				●
31	SPROCKET; CM/SHF EUROPE/CANARY EQUIPMENT(EK4) Z=44	8-94133-510-2	01	1	9112-9210	●
31	SPROCKET; CM/SHF EUROPE/CANARY EQUIPMENT(EK4) Z=44	8-97043-288-0	01	1	9211-9503	●
31	SPROCKET; CM/SHF EUROPE/CANARY EQUIPMENT(EK4) Z=44	8-97116-059-0	01	1	9504-9607	●
31	SPROCKET; CM/SHF EUROPE/CANARY EQUIPMENT(EK4) Z=44	8-97147-983-0	01	1	9608-	●
31	SPROCKET; CM/SHF Z=52	8-94174-282-2	01	1	9112-			●
34	PIN; CM/SHF	9-08160-512-0	01	1	9112-			●
34	PIN; CM/SHF OD=5 L=10	9-08160-510-0	02	1	9112-				●
35	BOSS; CM/SHF	8-94251-272-1	01	1	9112-			●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EUROPE/CANARY EQUIPMENT(EK4) OD=56 T=7.0	8-94214-912-0	01	1	9112-9305	●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EUROPE/CANARY EQUIPMENT(EK4) OD=56 T=7.0	8-97080-562-0	01	1	9306-	●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=45	8-94334-845-0	01	1	9112-			●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94389-593-1	02	1	9112-				●
39	KEY; WOODRUFF,BOSS	9-08055-516-0	01	1	9112-			●
53	SHAFT; ROCKER ARM	8-94343-205-0	01	1	9112-9504	●	●
53	SHAFT; ROCKER ARM	8-94343-205-0	01	1	9505-	●
53	SHAFT; ROCKER ARM (A) INLET	8-94110-646-1	01	1	9112-			●
53	SHAFT; ROCKER ARM (B) EXHAUST	8-94129-227-0	01	1	9112-			●
53	SHAFT; ROCKER ARM (A)	8-94364-723-2	02	1	9112-				●
53	SHAFT; ROCKER ARM (B)	8-94364-724-1	02	1	9112-				●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9112-9504	●	●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9505-	●
55	PLUG; ROCKER SHAFT END (A) INLET	8-94116-940-0	02	1	9112-			●
55	PLUG; ROCKER SHAFT END (B) EXHAUST	8-94116-941-0	02	1	9112-			●
55	PLUG; ROCKER SHAFT END	8-94454-615-0	08	1	9112-				●
65	COLLAR; SPLIT	5-12565-004-0	16	1	9112-9504	●	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	9505-	●
65	COLLAR; SPLIT	8-94200-714-0	16	1	9112-			●
65	COLLAR; SPLIT	8-94429-487-0	48	1	9112-				●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	9112-9504	●	●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	9505-	●
68	SPRING; VLV	8-94259-483-0	08	1	9112-			●
68	SPRING; VLV	8-97023-108-1	24	1	9112-				●
71	SEAT; SPR (A) LOWER	5-12563-001-0	08	1	9112-9504	●	●
71	SEAT; SPR (A) LOWER OD=34	5-12563-001-0	08	1	9505-	●
71	SEAT; SPR (B) UPPER	8-94133-731-2	08	1	9112-9504	●	●
71	SEAT; SPR (B) UPPER OD=32.8	8-94133-731-2	08	1	9505-	●
71	SEAT; SPR (A) LOWER	8-94200-749-0	08	1	9112-			●
71	SEAT; SPR (B) UPPER	8-94233-232-1	08	1	9112-			●
71	SEAT; SPR (A) LOWER	8-94316-354-0	24	1	9112-				●
71	SEAT; SPR (B) UPPER	8-94370-633-1	24	1	9112-				●
73	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97033-673-0	08	1	9112-			●
73	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94324-158-1	24	1	9112-				●
78	ARM; ROCKER	8-94152-344-0	08	1	9112-9504	●	●
78	ARM; ROCKER	8-94152-344-0	08	1	9505-	●
78	ARM; ROCKER JBK	8-94102-416-0	08	1	9112-			●
78	ARM; ROCKER NPR	8-94102-413-0	08	1	9209-			●
78	ARM; ROCKER (A) EXHAUST	8-97021-542-0	12	1	9112-9207				●
78	ARM; ROCKER (A) EXHAUST	8-97084-929-1	12	1	9208-				●
78	ARM; ROCKER (B) INLET	8-97032-012-0	12	1	9112-9207				●
78	ARM; ROCKER (B) INLET	8-97084-927-1	12	1	9208-9308				●
78	ARM; ROCKER (B) INLET	8-97089-270-2	12	1	9309-				●
78	ARM; ROCKER (C) EXHAUST	8-97032-013-1	06	1	9112-				●
78	ARM; ROCKER (D) EXHAUST	8-97032-014-1	06	1	9112-				●
81	SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-0	08	1	9112-9504	●	●
81	SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9505-	●
81	SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	16	1	9112-			●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	9112-9504	●	●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	9505-	●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	16	1	9112-			●
91	NUT; ROCKER SHAFT M8	9-09110-508-0	10	1	9112-			●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9112-9504	●	●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9505-	●
95	SPRING; ROCKER SHAFT (A) L=57.0	8-94200-814-1	04	1	9112-			●
95	SPRING; ROCKER SHAFT (B) L=38.0	8-94200-815-1	04	1	9112-			●
95	SPRING; ROCKER SHAFT	8-94379-497-1	06	1	9112-				●
124	PULLEY; TIMING,CR/SHF EUROPE/CANARY EQUIPMENT(EK4)	8-94133-501-3	01	1	9112-	●
124	PULLEY; TIMING,CR/SHF	8-94457-889-0	01	1	9112-			●
124	PULLEY; TIMING,CR/SHF Z=26	8-94344-559-3	01	1	9112-				●
125	PLATE; GUIDE,TIMING BELT	8-94215-184-0	01	1	9112-			●
127	NUT; PULLEY M12	8-94221-051-0	01	1	9112-			●
128	PULLEY; TIMING,OIL PUMP Z=45	8-94174-224-1	01	1	9112-			●
129	SPRING; TENSIONER L=65	8-94472-329-0	01	1	9112-			●
135	PULLEY; TENSIONER	8-94472-349-0	01	1	9112-			●
135	PULLEY; TENSIONER	8-94364-816-1	01	1	9112-9408				●
135	PULLEY; TENSIONER	8-97116-002-0	01	1	9409-				●
137	BOLT; TENSIONER EUROPE/CANARY EQUIPMENT(EK4) M12X57 FLANGE	8-94433-408-0	01	1	9112-	●
137	BOLT; TENSIONER M8 L=46	8-94214-934-2	01	1	9112-			●
139	NUT; TENSIONER M8	9-09110-508-0	01	1	9112-			●
144	BELT; TIMING EUROPE/CANARY EQUIPMENT(EK4) BLUE	8-94380-679-0	01	1	9112-9304	●
144	BELT; TIMING EUROPE/CANARY EQUIPMENT(EK4) BLUE	8-97065-986-0	01	1	9305-9503	●
144	BELT; TIMING EUROPE/CANARY EQUIPMENT(EK4) BLUE	8-94380-679-0	01	1	9504-	●
144	BELT; TIMING	8-97042-268-0	01	1	9112-			●
144	BELT; TIMING BANDO L=1784	8-97016-326-0	01	1	9112-				●
150	ROD ASM; PUSH,FUEL PUMP W/RING	8-94159-290-1	01	1	9112-			●
159	RING; SNAP,PUSH ROD,FUEL PUMP	8-94159-292-0	01	1	9112-			●
209	WASHER; LK,ROCKER ARM BRKT ID=8.4	9-09160-508-0	02	1	9112-			●

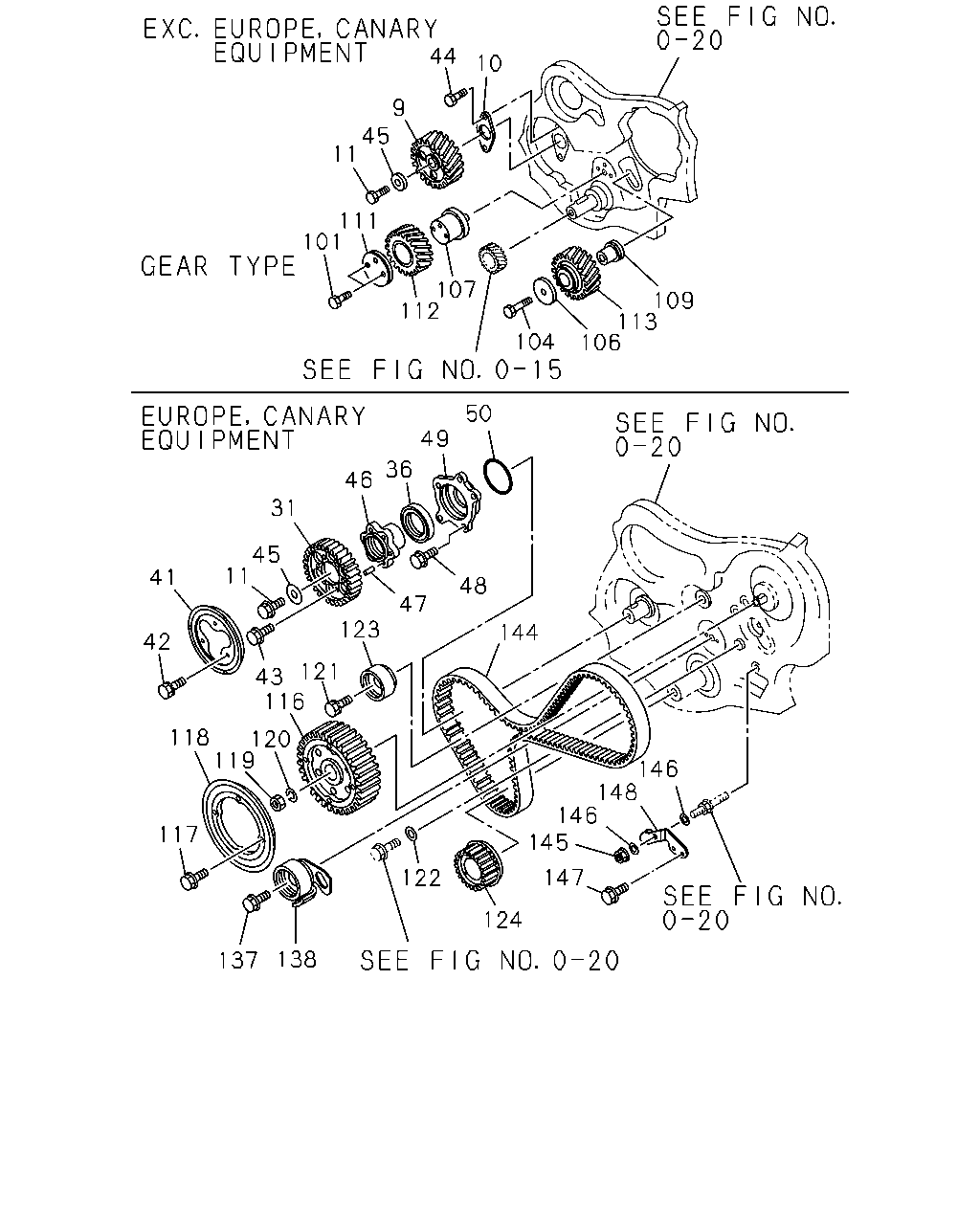

44 10 9 45 11 111 101 107 112 109 113 106 104 50 49 36 46 31 45 11 41 48 47 123 144 42 121 43 116 118 120 119 146 148 146 145 117 147 122 124 138 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
9	GEAR; CM/SHF EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94110-479-1	01	1	9112-9212	●	●
9	GEAR; CM/SHF EXC. EUROPE/CANARY EQUIPMENT(EK4) Z=42	8-97079-212-0	01	1	9301-9504	●	●
9	GEAR; CM/SHF EXC. EUROPE/CANARY EQUIPMENT(EK4) Z=42	8-97079-212-0	01	1	9505-	●
10	PLATE; THRUST EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94110-480-1	01	1	9112-9504	●	●
10	PLATE; THRUST EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94110-480-1	01	1	9505-	●
10	PLATE; THRUST	8-94364-753-0	02	1	9112-				●
11	BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9112-9504	●	●
11	BOLT; THRUST PLATE TO C/BL M12X47	8-94433-407-0	01	1	9505-	●
11	BOLT; THRUST PLATE TO C/BL M6X12 HEX SOCKET	9-05820-612-0	04	1	9112-				●
31	SPROCKET; CM/SHF EUROPE/CANARY EQUIPMENT(EK4) Z=44	8-94133-510-2	01	1	9112-9210	●
31	SPROCKET; CM/SHF EUROPE/CANARY EQUIPMENT(EK4) Z=44	8-97043-288-0	01	1	9211-9503	●
31	SPROCKET; CM/SHF EUROPE/CANARY EQUIPMENT(EK4) Z=44	8-97116-059-0	01	1	9504-9607	●
31	SPROCKET; CM/SHF EUROPE/CANARY EQUIPMENT(EK4) Z=44	8-97147-983-0	01	1	9608-	●
31	SPROCKET; CM/SHF Z=52	8-94174-282-2	01	1	9112-			●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EUROPE/CANARY EQUIPMENT(EK4) OD=56 T=7.0	8-94214-912-0	01	1	9112-9305	●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EUROPE/CANARY EQUIPMENT(EK4) OD=56 T=7.0	8-97080-562-0	01	1	9306-	●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=45	8-94334-845-0	01	1	9112-			●
36	SEAL; OIL,CM/SHF,FRT ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94389-593-1	02	1	9112-				●
41	FLANGE; CAM PULLEY EUROPE/CANARY EQUIPMENT(EK4)	8-94157-492-0	01	1	9112-	●
42	BOLT; FLANGE CAM EUROPE/CANARY EQUIPMENT(EK4) M8X16 W/LK WASHER	0-50040-816-0	03	1	9112-9307	●
42	BOLT; FLANGE CAM EUROPE/CANARY EQUIPMENT(EK4) M8X18 W/LK WASHER	0-50040-818-0	03	1	9308-	●
43	BOLT; PULLEY EUROPE/CANARY EQUIPMENT(EK4) M6X16 W/LK WASHER	0-50040-616-0	03	1	9112-	●
44	BOLT EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X16 W/LK WASHER	0-50040-816-0	02	1	9112-9504	●	●
44	BOLT EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X16 W/LK WASHER	0-50040-816-0	02	1	9505-	●
44	BOLT M8X14 FLANGE	0-28080-814-0	04	1	9404-				●
45	WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9112-9504	●	●
45	WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	9505-	●
46	CENTER ASM; TIMING PULLEY EUROPE/CANARY EQUIPMENT(EK4)	8-94133-513-1	01	1	9112-9501	●
46	CENTER ASM; TIMING PULLEY EUROPE/CANARY EQUIPMENT(EK4)	8-97118-491-0	01	1	9502-	●
47	PIN; STRAIGHT,CENTER EUROPE/CANARY EQUIPMENT(EK4) OD=4 L=12	9-08160-412-0	01	1	9112-	●
48	BOLT; RET EUROPE/CANARY EQUIPMENT(EK4) M8X35 W/LK WASHER	0-50040-835-0	05	1	9112-	●
49	RETAINER; OIL SEAL,CM/SHF EUROPE/CANARY EQUIPMENT(EK4)	8-94133-516-2	01	1	9112-	●
50	GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EUROPE/CANARY EQUIPMENT(EK4)	9-09561-250-0	01	1	9112-9305	●
50	GASKET; RET ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EUROPE/CANARY EQUIPMENT(EK4)	8-97080-893-0	01	1	9306-	●
101	BOLT; THRUST COLLAR EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X55 W/LK WASHER	5-09000-084-1	02	1	9112-9504	●	●
101	BOLT; THRUST COLLAR EXC. EUROPE/CANARY EQUIPMENT(EK4) M8X55 W/LK WASHER	5-09000-084-1	02	1	9505-	●
104	BOLT; SHAFT IDLE EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94109-706-1	01	1	9112-9504	●	●
104	BOLT; SHAFT IDLE EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94109-706-1	01	1	9505-	●
106	WASHER; IDLE GEAR SHAFT EXC. EUROPE/CANARY EQUIPMENT(EK4) ID=13 OD=36	5-12519-002-1	01	1	9112-9504	●	●
106	WASHER; IDLE GEAR SHAFT EXC. EUROPE/CANARY EQUIPMENT(EK4) ID=13 OD=36	5-12519-002-1	01	1	9505-	●
107	SHAFT; IDLE GEAR EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94139-758-1	01	1	9112-9504	●	●
107	SHAFT; IDLE GEAR EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94139-758-1	01	1	9505-	●
109	SHAFT; IDLE GEAR EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94109-913-1	01	1	9112-9504	●	●
109	SHAFT; IDLE GEAR EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94109-913-1	01	1	9505-	●
111	COLLAR; THRUST,IDLE GEAR EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94141-937-1	01	1	9112-9504	●	●
111	COLLAR; THRUST,IDLE GEAR EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-94141-937-1	01	1	9505-	●
112	GEAR; IDLE EXC. EUROPE/CANARY EQUIPMENT(EK4) Z=31	8-94139-759-0	01	1	9112-9504	●	●
112	GEAR; IDLE EXC. EUROPE/CANARY EQUIPMENT(EK4) Z=31	8-94139-759-0	01	1	9505-9611	●
112	GEAR; IDLE EXC. EUROPE/CANARY EQUIPMENT(EK4) Z=31	8-97164-773-0	01	1	9612-	●
113	GEAR; IDLE EXC. EUROPE/CANARY EQUIPMENT(EK4) Z=37	8-94139-761-0	01	1	9112-9504	●	●
113	GEAR; IDLE EXC. EUROPE/CANARY EQUIPMENT(EK4) Z=37	8-94139-761-0	01	1	9505-	●
116	PULLEY; TIMING,INJ PUMP EUROPE/CANARY EQUIPMENT(EK4)	8-94387-652-0	01	1	9112-9211	●
116	PULLEY; TIMING,INJ PUMP EUROPE/CANARY EQUIPMENT(EK4) Z=44 B=37.7	8-97043-289-0	01	1	9212-	●
117	BOLT; FLANGE EUROPE/CANARY EQUIPMENT(EK4) M6X12 W/LK WASHER	0-50040-612-0	04	1	9112-	●
118	FLANGE; INJ PUMP PULLEY EUROPE/CANARY EQUIPMENT(EK4)	5-12539-020-0	01	1	9112-9608	●
119	NUT; PULLEY EUROPE/CANARY EQUIPMENT(EK4) M14	8-94226-565-0	01	1	9112-	●
120	WASHER; LK,PULLEY,INJ PUMP EUROPE/CANARY EQUIPMENT(EK4)	8-94226-554-0	01	1	9112-	●
121	BOLT; IDLE PULLEY EUROPE/CANARY EQUIPMENT(EK4) M12X60	0-10811-260-0	01	1	9112-9206	●
121	BOLT; IDLE PULLEY EUROPE/CANARY EQUIPMENT(EK4) M12X57 FLANGE	8-94433-408-0	01	1	9207-	●
121	BOLT; IDLE PULLEY M10X60 FLANGE	0-28191-060-0	01	1	9112-				●
122	WASHER; IDLE,TIMING BELT EUROPE/CANARY EQUIPMENT(EK4) ID=12.5	9-09164-512-0	01	1	9112-9206	●
123	PULLEY; IDLE,TIMING EUROPE/CANARY EQUIPMENT(EK4)	8-94382-215-0	01	1	9112-	●
123	PULLEY; IDLE,TIMING	8-94386-488-3	01	1	9112-				●
124	PULLEY; TIMING,CR/SHF EUROPE/CANARY EQUIPMENT(EK4)	8-94133-501-3	01	1	9112-	●
124	PULLEY; TIMING,CR/SHF	8-94457-889-0	01	1	9112-			●
124	PULLEY; TIMING,CR/SHF Z=26	8-94344-559-3	01	1	9112-				●
137	BOLT; TENSIONER EUROPE/CANARY EQUIPMENT(EK4) M12X57 FLANGE	8-94433-408-0	01	1	9112-	●
137	BOLT; TENSIONER M8 L=46	8-94214-934-2	01	1	9112-			●
138	TENSIONER; TIMING BELT EUROPE/CANARY EQUIPMENT(EK4)	8-94382-214-0	01	1	9112-	●
144	BELT; TIMING EUROPE/CANARY EQUIPMENT(EK4) BLUE	8-94380-679-0	01	1	9112-9304	●
144	BELT; TIMING EUROPE/CANARY EQUIPMENT(EK4) BLUE	8-97065-986-0	01	1	9305-9503	●
144	BELT; TIMING EUROPE/CANARY EQUIPMENT(EK4) BLUE	8-94380-679-0	01	1	9504-	●
144	BELT; TIMING	8-97042-268-0	01	1	9112-			●
144	BELT; TIMING BANDO L=1784	8-97016-326-0	01	1	9112-				●
145	NUT; FLANGE EUROPE/CANARY EQUIPMENT(EK4) M8	8-94224-829-0	01	1	9112-9606	●
145	NUT; FLANGE EUROPE/CANARY EQUIPMENT(EK4) M8 FLANGE	0-91150-208-0	01	1	9607-	●
146	WASHER; PL,TENSION LEVER EUROPE/CANARY EQUIPMENT(EK4) ID=8.4 OD=22	9-09164-708-0	02	1	9112-	●
147	BOLT; TENSION LEVER EUROPE/CANARY EQUIPMENT(EK4) M6X20 W/LK&PL WASHER	0-50140-620-0	01	1	9112-9605	●
147	BOLT; TENSION LEVER EUROPE/CANARY EQUIPMENT(EK4) M6X12 FLANGE	0-28080-612-0	01	1	9606-	●
148	LEVER; TENSION,TIMING BELT EUROPE/CANARY EQUIPMENT(EK4)	8-94167-317-0	01	1	9112-9605	●
148	LEVER; TENSION,TIMING BELT EUROPE/CANARY EQUIPMENT(EK4)	8-97146-370-0	01	1	9606-	●

87 86 55 85 86 83 81 53 54 95 78 84 78 56 55 65 71 68 72 71 65 88 89 5 4 14 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	CAMSHAFT	8-94127-797-4	01	1	9112-9504	●	●
1	CAMSHAFT	8-94127-797-4	01	1	9505-	●
1	CAMSHAFT	8-94136-784-1	01	1	9112-			●
1	CAMSHAFT	8-97027-958-2	01	1	9112-				●
1	CAMSHAFT	8-97027-957-2	01	1	9112-				●
4	VALVE; INL	8-94363-134-0	04	1	9309-9504		●
4	VALVE; INL	8-94363-134-0	04	1	9112-9307	●	●
4	VALVE; INL	8-94363-134-0	04	1	9308-9308		●
4	VALVE; INL EUROPE/CANARY EQUIPMENT(EK4)	8-94363-134-0	04	1	9308-9308	●
4	VALVE; INL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97080-214-1	04	1	9308-9308	●
4	VALVE; INL	8-97080-214-1	04	1	9309-9504	●
4	VALVE; INL	8-97131-729-0	04	1	9505-	●
4	VALVE; INL	8-94174-222-1	04	1	9112-			●
4	VALVE; INL EUROPE/CANARY EQUIPMENT(EK4)	8-97015-546-2	12	1	9112-				●
4	VALVE; INL EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97037-373-0	12	1	9112-				●
5	VALVE; EXH	8-97043-861-1	04	1	9112-9504	●	●
5	VALVE; EXH TURBOCHARGER<K51>	8-97043-861-1	04	1	9505-	●
5	VALVE; EXH EXC. TURBOCHARGER<K51>	8-97118-767-0	04	1	9505-	●
5	VALVE; EXH	8-94174-223-1	04	1	9112-9403			●
5	VALVE; EXH	8-97110-256-0	04	1	9404-			●
5	VALVE; EXH EUROPE/CANARY EQUIPMENT(EK4)	8-97015-547-1	12	1	9112-				●
5	VALVE; EXH EXC. EUROPE/CANARY EQUIPMENT(EK4)	8-97037-374-0	12	1	9112-				●
14	KEY; CM/SHF	9-08000-718-0	01	1	9112-9504	●	●
14	KEY; CM/SHF	9-08000-718-0	01	1	9505-	●
53	SHAFT; ROCKER ARM	8-94343-205-0	01	1	9112-9504	●	●
53	SHAFT; ROCKER ARM	8-94343-205-0	01	1	9505-	●
53	SHAFT; ROCKER ARM (A) INLET	8-94110-646-1	01	1	9112-			●
53	SHAFT; ROCKER ARM (B) EXHAUST	8-94129-227-0	01	1	9112-			●
53	SHAFT; ROCKER ARM (A)	8-94364-723-2	02	1	9112-				●
53	SHAFT; ROCKER ARM (B)	8-94364-724-1	02	1	9112-				●
54	WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9112-9504	●	●
54	WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	9505-	●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9112-9504	●	●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	9505-	●
55	PLUG; ROCKER SHAFT END (A) INLET	8-94116-940-0	02	1	9112-			●
55	PLUG; ROCKER SHAFT END (B) EXHAUST	8-94116-941-0	02	1	9112-			●
55	PLUG; ROCKER SHAFT END	8-94454-615-0	08	1	9112-				●
56	RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9112-9504	●	●
56	RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	9505-	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	9112-9504	●	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	9505-	●
65	COLLAR; SPLIT	8-94200-714-0	16	1	9112-			●
65	COLLAR; SPLIT	8-94429-487-0	48	1	9112-				●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	9112-9504	●	●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	9505-	●
68	SPRING; VLV	8-94259-483-0	08	1	9112-			●
68	SPRING; VLV	8-97023-108-1	24	1	9112-				●
71	SEAT; SPR (A) LOWER	5-12563-001-0	08	1	9112-9504	●	●
71	SEAT; SPR (A) LOWER OD=34	5-12563-001-0	08	1	9505-	●
71	SEAT; SPR (B) UPPER	8-94133-731-2	08	1	9112-9504	●	●
71	SEAT; SPR (B) UPPER OD=32.8	8-94133-731-2	08	1	9505-	●
71	SEAT; SPR (A) LOWER	8-94200-749-0	08	1	9112-			●
71	SEAT; SPR (B) UPPER	8-94233-232-1	08	1	9112-			●
71	SEAT; SPR (A) LOWER	8-94316-354-0	24	1	9112-				●
71	SEAT; SPR (B) UPPER	8-94370-633-1	24	1	9112-				●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	5-12569-006-0	08	1	9112-9504	●	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	5-12569-006-0	08	1	9505-9604	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	9605-	●
78	ARM; ROCKER	8-94152-344-0	08	1	9112-9504	●	●
78	ARM; ROCKER	8-94152-344-0	08	1	9505-	●
78	ARM; ROCKER JBK	8-94102-416-0	08	1	9112-			●
78	ARM; ROCKER NPR	8-94102-413-0	08	1	9209-			●
78	ARM; ROCKER (A) EXHAUST	8-97021-542-0	12	1	9112-9207				●
78	ARM; ROCKER (A) EXHAUST	8-97084-929-1	12	1	9208-				●
78	ARM; ROCKER (B) INLET	8-97032-012-0	12	1	9112-9207				●
78	ARM; ROCKER (B) INLET	8-97084-927-1	12	1	9208-9308				●
78	ARM; ROCKER (B) INLET	8-97089-270-2	12	1	9309-				●
78	ARM; ROCKER (C) EXHAUST	8-97032-013-1	06	1	9112-				●
78	ARM; ROCKER (D) EXHAUST	8-97032-014-1	06	1	9112-				●
81	SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-0	08	1	9112-9504	●	●
81	SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	9505-	●
81	SCREW; ADJ,ROCKER ARM M8X27	8-94200-786-0	16	1	9112-			●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	9112-9504	●	●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	9505-	●
83	NUT; ADJ SCREW,LK M8 FLANGE	9-09844-574-0	16	1	9112-			●
84	BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9112-9504	●	●
84	BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	9505-	●
85	BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	02	1	9112-9504	●	●
85	BOLT; BRKT TURBOCHARGER<K51> M8X15,M10X60 L=82	8-94433-304-0	02	1	9505-	●
85	BOLT; BRKT M8X37 & M10X60 L=104	8-94437-493-1	01	1	9112-9504	●	●
85	BOLT; BRKT TURBOCHARGER<K51> M8X37 & M10X60 L=104	8-94437-493-1	01	1	9505-	●
85	BOLT; BRKT EXC. EUROPE/CANARY EQUIPMENT(EK4), TURBOCHARGER<K51> M8X15,M10X60 L=82	8-94433-304-0	03	1	9505-	●
86	WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9112-9504	●	●
86	WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	9505-	●
86	WASHER; ROCKER ARM FIX	8-94360-876-0	12	1	9112-				●
87	BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9112-9504	●	●
87	BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	9505-	●
87	BOLT; ROCKER SHAFT M8X32 HEX SOCKET	8-94365-130-0	22	1	9112-				●
88	ROD; PUSH	8-94143-202-0	08	1	9112-9308	●	●
88	ROD; PUSH	8-97071-673-0	08	1	9309-9504	●	●
88	ROD; PUSH	8-97071-673-0	08	1	9505-	●
89	TAPPET; VLV	8-94438-305-0	08	1	9112-9504	●	●
89	TAPPET; VLV	8-94438-305-0	08	1	9505-	●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9112-9504	●	●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	9505-	●
95	SPRING; ROCKER SHAFT (A) L=57.0	8-94200-814-1	04	1	9112-			●
95	SPRING; ROCKER SHAFT (B) L=38.0	8-94200-815-1	04	1	9112-			●
95	SPRING; ROCKER SHAFT	8-94379-497-1	06	1	9112-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
