Sayfa 8-90 - Isuzu EPC

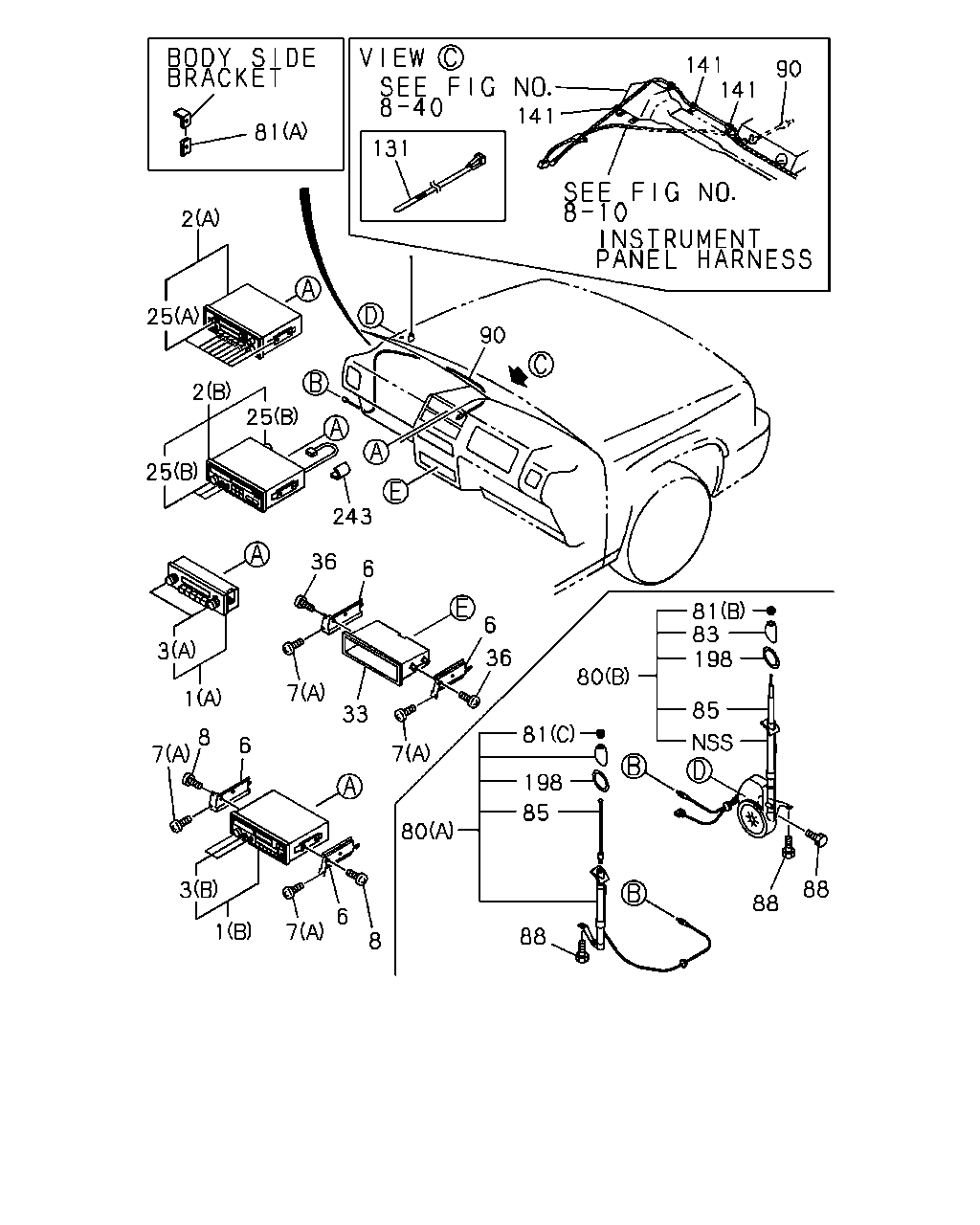

8-90 — RADIO AND TV (#33121) — 141 parça

90 141 141 141 131 81 2 25 2 90 25 25 243 36 6 6 36 7 33 7 3 1 7 8 6 3 1 7 6 8 80 88 88 88 85 198 81 80 81 83 198 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.650 RADIO AM RADIO(U63) (A) NATIONAL	8-94474-070-0	01	1	9112-9208	●	●
1	09.650 RADIO AM/FM CASSETTE W/TRAFFIC DECODER(S4R) (B) CLARION	8-97069-109-2	01	1	9112-9504	●	●
2	09.645 RADIO & CASSETTE DECK ASM AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B)	8-97069-108-1	01	1	9112-9504	●	●
2	09.645 RADIO & CASSETTE DECK ASM AM/FM W/CASSETTE 4 SPEAKERS(UM6) (C)	8-97103-558-0	01	1	9505-	●	●
2	09.645 RADIO & CASSETTE DECK ASM AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-97070-493-0	01	1	9209-9504	●	●
2	09.645 RADIO & CASSETTE DECK ASM AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (C)	8-97125-188-0	01	1	9505-	●	●
2	09.645 RADIO & CASSETTE DECK ASM AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3) (A)	8-97018-459-0	01	1	9112-9205	●	●
2	09.645 RADIO & CASSETTE DECK ASM AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3) (A)	8-97082-108-0	01	1	9206-9208	●	●
3	09.649 ATTACH KIT; AM/FM RADIO AM RADIO(U63) (A)	8-94326-268-0	01	1	9112-9208	●	●
3	09.649 ATTACH KIT; AM/FM RADIO AM/FM CASSETTE W/TRAFFIC DECODER(S4R) (B)	8-97069-221-0	01	1	9112-9504	●	●
6	09.645 BRACKET; RADIO TO PANEL 09.667	8-94359-616-3	02	1	9112-9504	●	●
6	09.645 BRACKET; RADIO TO PANEL CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97102-092-1	02	1	9505-9607	●	●
6	09.645 BRACKET; RADIO TO PANEL EXC. CLUSTER AUDIO DIN 'E' FORM<7LG>	8-97102-092-1	02	1	9505-9607	●	●
6	09.645 BRACKET; RADIO TO PANEL	8-97102-092-1	02	1	9505-9607	●	●
6	09.645 BRACKET; RADIO TO PANEL CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97102-092-1	01	1	9608-	●	●
6	09.645 BRACKET; RADIO TO PANEL EXC. CLUSTER AUDIO DIN 'E' FORM<7LG>	8-97102-092-1	01	1	9608-	●	●
6	09.645 BRACKET; RADIO TO PANEL	8-97102-092-1	01	1	9608-	●	●
6	09.645 BRACKET; RADIO TO PANEL 09.667	8-94359-615-3	02	1	9112-9504	●	●
6	09.645 BRACKET; RADIO TO PANEL CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97085-169-1	02	1	9505-9607	●	●
6	09.645 BRACKET; RADIO TO PANEL EXC. CLUSTER AUDIO DIN 'E' FORM<7LG>	8-97085-169-1	02	1	9505-9607	●	●
6	09.645 BRACKET; RADIO TO PANEL	8-97085-169-1	02	1	9505-9607	●	●
6	09.645 BRACKET; RADIO TO PANEL CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97085-169-1	01	1	9608-	●	●
6	09.645 BRACKET; RADIO TO PANEL EXC. CLUSTER AUDIO DIN 'E' FORM<7LG>	8-97085-169-1	01	1	9608-	●	●
6	09.645 BRACKET; RADIO TO PANEL	8-97085-169-1	01	1	9608-	●	●
7	09.650 SCREW; RADIO 16.085 (A) M5X16 TAPPING	9-09829-323-1	08	1	9112-9504	●	●
7	09.650 SCREW; RADIO CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX> 16.085 (A) M5X16 TAPPING	9-09829-323-1	04	1	9505-9607	●	●
7	09.650 SCREW; RADIO EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> 16.085 (A) M5X16 TAPPING	9-09829-323-1	04	1	9505-9607	●	●
7	09.650 SCREW; RADIO 16.085 (A) M5X16 TAPPING	9-09829-323-1	04	1	9505-9607	●	●
7	09.650 SCREW; RADIO CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX> 16.085 (A) M5X16 TAPPING	9-09829-323-1	02	1	9608-	●	●
7	09.650 SCREW; RADIO EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> 16.085 (A) M5X16 TAPPING	9-09829-323-1	02	1	9608-	●	●
7	09.650 SCREW; RADIO 16.085 (A) M5X16 TAPPING	9-09829-323-1	02	1	9608-	●	●
7	09.650 SCREW; RADIO AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) 04.054 (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9505-	●	●
7	09.650 SCREW; RADIO EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 16.085 (A) M5X16 TAPPING	9-09829-323-1	01	1	9505-	●	●
8	09.667 BOLT; RADIO TO BRKT 09.663 M5X8	8-94182-728-0	04	1	9112-9504	●	●
25	09.649 ATTACH KIT; CASSETTE DECK AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-94381-132-0	01	1	9112-9504	●	●
25	09.649 ATTACH KIT; CASSETTE DECK AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (C)	8-97130-980-0	01	1	9505-	●	●
25	09.649 ATTACH KIT; CASSETTE DECK AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3) (A)	8-94167-958-0	01	1	9112-9205	●	●
25	09.649 ATTACH KIT; CASSETTE DECK AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3) (A)	8-97084-966-0	01	1	9206-9208	●	●
33	09.650 COVER; RADIO EXC. DIGITAL CLOCK<UE8> 10.260 44X184	8-94435-504-2	01	1	9112-9504	●	●
33	09.650 COVER; RADIO EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6), AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),4 SPEAKERS WO/RADIO TYPE<7DX>	8-97066-253-2	01	1	9505-	●	●
33	09.650 COVER; RADIO	8-97066-253-2	01	1	9505-	●	●
36	09.779 SCREW; COVER 09.744 M5X14 TAPPING	9-09829-322-1	04	1	9112-9504	●	●
36	09.779 SCREW; COVER EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6), AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),4 SPEAKERS WO/RADIO TYPE<7DX> 02.689 M5X10	8-94428-816-0	04	1	9505-	●	●
36	09.779 SCREW; COVER 02.689 M5X10	8-94428-816-0	04	1	9505-	●	●
80	09.645 ANTENNA ANTENNA<U73> (A)	8-97069-107-1	01	1	9112-	●	●
80	09.645 ANTENNA POWER ANTENNA<U75> (B)	8-97068-838-2	01	1	9112-9304	●	●
80	09.645 ANTENNA POWER ANTENNA<U75> (B)	8-97092-571-1	01	1	9305-9411	●	●
80	09.645 ANTENNA POWER ANTENNA<U75> (B)	8-97119-137-0	01	1	9412-9510	●	●
80	09.645 ANTENNA POWER ANTENNA<U75> (B)	8-97136-820-0	01	1	9511-	●	●
81	09.647 NUT; ANTENNA POLE 08.143 (A)	8-94334-769-0	01	1	9112-9302	●	●
81	09.647 NUT; ANTENNA POLE POWER ANTENNA<U75> 08.143 (A)	8-94334-769-0	01	1	9303-	●	●
81	09.647 NUT; ANTENNA POLE ANTENNA<U73> (C)	8-97072-734-0	01	1	9112-	●	●
81	09.647 NUT; ANTENNA POLE POWER ANTENNA<U75> (B)	8-97072-733-0	01	1	9112-	●	●
83	09.647 GROMMET; BASE,ANTENNA POLE INNER POWER ANTENNA<U75>	8-97072-729-0	01	1	9112-	●	●
85	09.645 POLE; ANTENNA ANTENNA<U73>	8-97072-735-0	01	1	9112-	●	●
85	09.645 POLE; ANTENNA POWER ANTENNA<U75>	8-97087-197-0	01	1	9112-	●	●
88	09.647 BOLT; ANTENNA EARTH ANTENNA<U73>,POWER ANTENNA<U75> 13.090 M6X14	8-94153-946-0	01	1	9112-9209	●	●
88	09.647 BOLT; ANTENNA EARTH ANTENNA<U73>,POWER ANTENNA<U75> 02.559 M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9210-9504	●	●
88	09.647 BOLT; ANTENNA EARTH POWER ANTENNA<U75> 02.559 M6X14 W/LK&PL WASHER	8-97086-822-0	01	1	9505-	●	●
88	09.647 BOLT; ANTENNA EARTH POWER ANTENNA<U75> 12.188 M6X20	8-97025-797-0	01	1	9112-	●	●
90	09.647 CABLE; ANTENNA,FEEDER	8-97036-954-5	01	1	9112-9411	●	●
90	09.647 CABLE; ANTENNA,FEEDER	8-97125-244-0	01	1	9412-9504	●	●
90	09.647 CABLE; ANTENNA,FEEDER	8-97126-797-2	01	1	9505-	●	●
131	03.438 CLIP ANTENNA<U73>,POWER ANTENNA<U75> 03.162 L=140	5-09707-031-0	02	1	9505-	●	●
131	03.438 CLIP AUSTRALIA EQUIPMENT(RR3) EXC. ANTENNA<U73>,POWER ANTENNA<U75>,NEW ZEALAND EQUIPMENT(7AZ) 03.162 L=140	5-09707-031-0	02	1	9505-	●	●
141	03.162 CLIP; ANTENNA CABLE 02.559 L=80	5-09700-307-1	03	1	9112-9504	●	●
198	09.647 SHEET; ANTENNA ANTENNA<U73>,POWER ANTENNA<U75>	8-97072-732-0	01	1	9112-9308	●	●
198	09.647 SHEET; ANTENNA POWER ANTENNA<U75>	8-97072-732-0	01	1	9309-	●	●
243	09.764 TAPE; SOFT SOUTH AFRICA EQUIPMENT(SW2) AM/FM W/CASSETTE 4 SPEAKERS(UM6) 100X50	8-94232-621-0	01	1	9309-9504		●

55 221 221 59 49 48 55 49 48 49 171 52 52 52 52 49

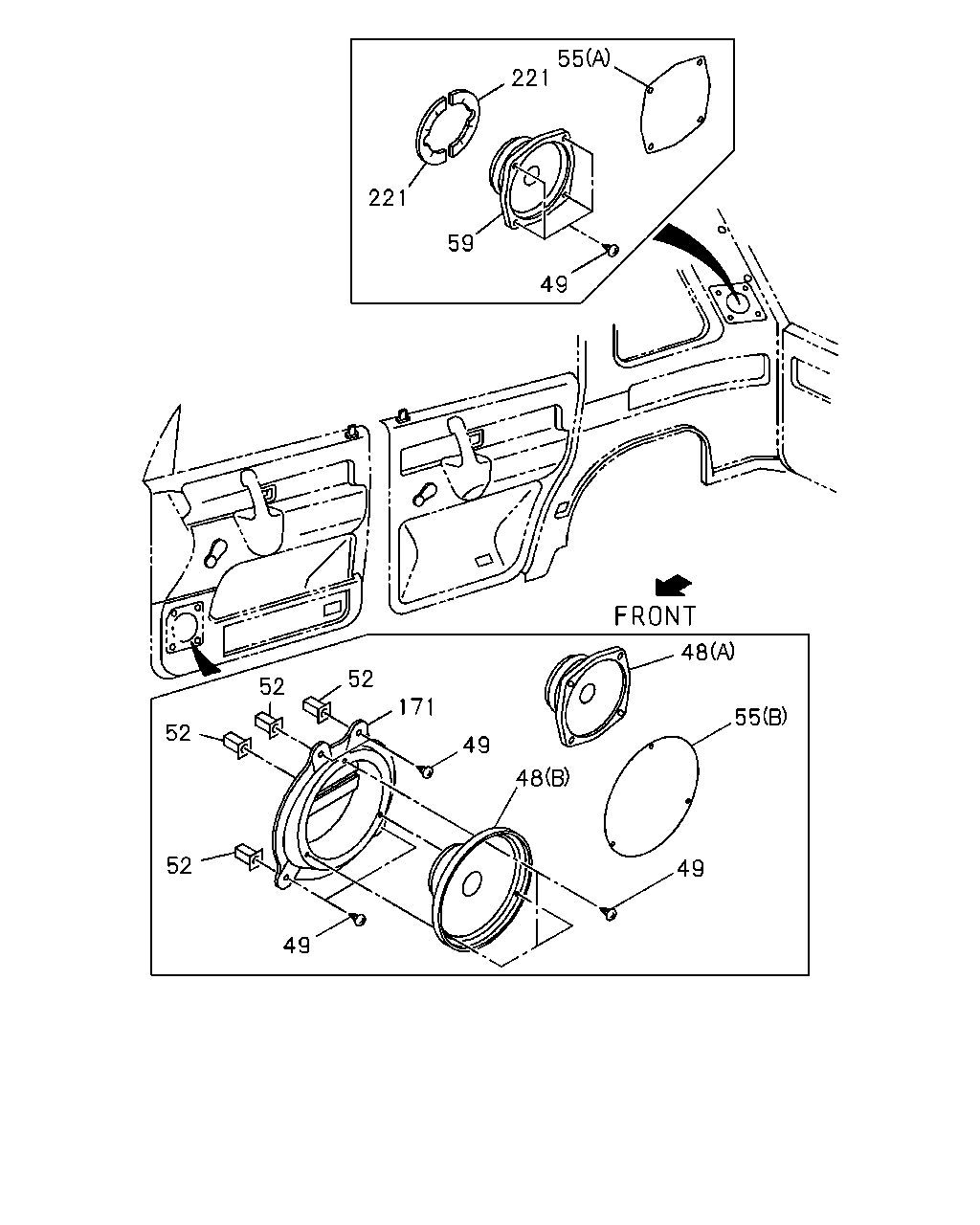

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	09.650 SPEAKER; AUDIO AM RADIO(U63) (A)	8-94434-600-0	01	1	9112-9208	●	●
48	09.650 SPEAKER; AUDIO AM/FM CASSETTE W/TRAFFIC DECODER(S4R), AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-94376-084-1	02	1	9112-9308	●	●
48	09.650 SPEAKER; AUDIO AM/FM CASSETTE W/TRAFFIC DECODER(S4R), AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-94376-084-1	02	1	9309-9504	●	●
48	09.650 SPEAKER; AUDIO 4 SPEAKERS WO/RADIO TYPE<7DX> (B)	8-94376-084-1	02	1	9309-9504	●	●
48	09.650 SPEAKER; AUDIO AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-97109-483-0	02	1	9505-9508	●	●
48	09.650 SPEAKER; AUDIO 4 SPEAKERS WO/RADIO TYPE<7DX> (B)	8-97109-483-0	02	1	9505-9508	●	●
48	09.650 SPEAKER; AUDIO AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-97132-159-0	02	1	9509-	●	●
48	09.650 SPEAKER; AUDIO 4 SPEAKERS WO/RADIO TYPE<7DX> (B)	8-97132-159-0	02	1	9509-	●	●
49	09.655 SCREW; SPEAKER 16.085 M5X16 TAPPING	9-09829-323-1	22	1	9112-9305	●	●
49	09.655 SCREW; SPEAKER 16.085 M5X16 TAPPING	9-09829-323-1	20	1	9306-9504	●	●
49	09.655 SCREW; SPEAKER 16.085 M5X16 TAPPING	9-09829-323-1	06	1	9608-	●	●
49	09.655 SCREW; SPEAKER 16.085 M5X16 TAPPING	9-09829-323-1	20	1	9505-9607	●	●
49	09.655 SCREW; SPEAKER 16.085 M5X16 TAPPING	9-09829-323-1	14	1	9608-	●	●
49	09.655 SCREW; SPEAKER AM RADIO(U63) 16.175 M4X12 TAPPING	9-07066-412-0	04	1	9112-9206	●	●
49	09.655 SCREW; SPEAKER AM RADIO(U63) 08.010 M5X12 TAPPING	9-07066-512-0	04	1	9207-9208	●	●
52	09.655 GROMMET; SCREW,SPEAKER 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	08	1	9112-9305	●	●
52	09.655 GROMMET; SCREW,SPEAKER 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	06	1	9306-	●	●
55	09.650 COVER; SPEAKER HOLE EXC. AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (A)	8-94372-840-0	02	1	9112-9308	●	●
55	09.650 COVER; SPEAKER HOLE EXC. AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),4 SPEAKERS WO/RADIO TYPE<7DX> (A)	8-94372-840-0	02	1	9309-9504	●	●
55	09.650 COVER; SPEAKER HOLE EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6), AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),4 SPEAKERS WO/RADIO TYPE<7DX> (A)	8-94372-840-0	02	1	9505-	●	●
55	09.650 COVER; SPEAKER HOLE EXC. AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-97035-686-0	02	1	9112-9308	●	●
55	09.650 COVER; SPEAKER HOLE EXC. AM/FM CASSETTE W/TRAFFIC DECODER(S4R),AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),4 SPEAKERS WO/RADIO TYPE<7DX> (B)	8-97035-686-0	02	1	9309-9504	●	●
55	09.650 COVER; SPEAKER HOLE EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6), AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),4 SPEAKERS WO/RADIO TYPE<7DX> (B)	8-97035-686-0	02	1	9505-	●	●
59	09.665 SPEAKER; AUDIO AM/FM CASSETTE W/TRAFFIC DECODER(S4R), AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4)	8-97033-278-1	02	1	9112-9308	●	●
59	09.665 SPEAKER; AUDIO AM/FM CASSETTE W/TRAFFIC DECODER(S4R), AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4)	8-97033-278-1	02	1	9309-9504	●	●
59	09.665 SPEAKER; AUDIO 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97033-278-1	02	1	9309-9504	●	●
59	09.665 SPEAKER; AUDIO AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4)	8-97109-484-0	02	1	9505-	●	●
59	09.665 SPEAKER; AUDIO 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97109-484-0	02	1	9505-	●	●
171	09.650 COVER; SPEAKER 09.655	8-94376-087-2	02	1	9112-9502	●	●
171	09.650 COVER; SPEAKER	8-97130-328-0	02	1	9503-	●	●
221	16.165 SEAL; SPEAKER PANEL DUST PROTECTION PACKAGE<7HQ>	8-97811-261-0	04	1	9410-	●	●

103 247 7 7 6 7 25 2 7 6 7 7 36 33 7 6 36 6

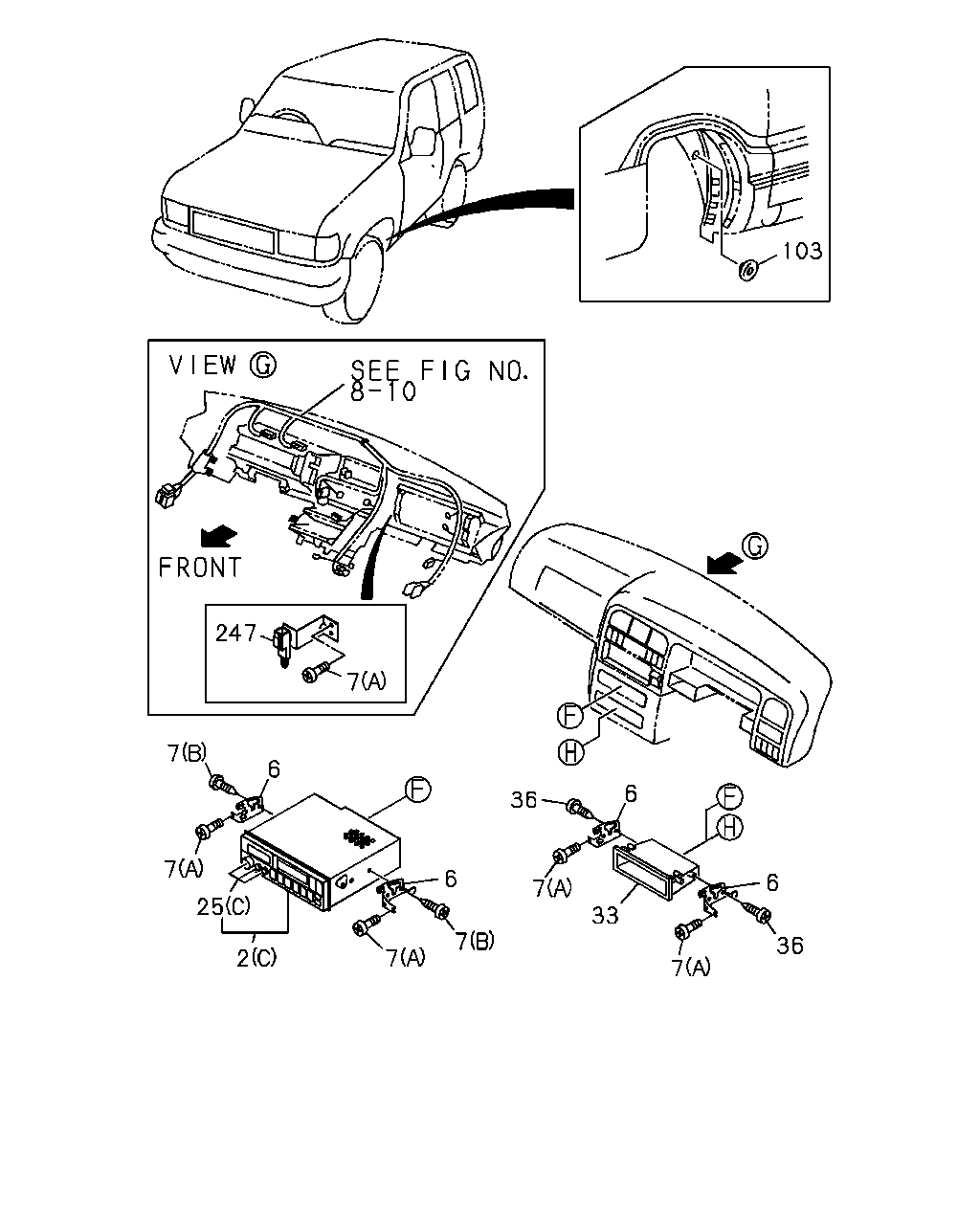

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	09.645 RADIO & CASSETTE DECK ASM AM/FM W/CASSETTE 4 SPEAKERS(UM6) (B)	8-97069-108-1	01	1	9112-9504	●	●
2	09.645 RADIO & CASSETTE DECK ASM AM/FM W/CASSETTE 4 SPEAKERS(UM6) (C)	8-97103-558-0	01	1	9505-	●	●
2	09.645 RADIO & CASSETTE DECK ASM AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-97070-493-0	01	1	9209-9504	●	●
2	09.645 RADIO & CASSETTE DECK ASM AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (C)	8-97125-188-0	01	1	9505-	●	●
2	09.645 RADIO & CASSETTE DECK ASM AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3) (A)	8-97018-459-0	01	1	9112-9205	●	●
2	09.645 RADIO & CASSETTE DECK ASM AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3) (A)	8-97082-108-0	01	1	9206-9208	●	●
6	09.645 BRACKET; RADIO TO PANEL 09.667	8-94359-616-3	02	1	9112-9504	●	●
6	09.645 BRACKET; RADIO TO PANEL CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97102-092-1	02	1	9505-9607	●	●
6	09.645 BRACKET; RADIO TO PANEL EXC. CLUSTER AUDIO DIN 'E' FORM<7LG>	8-97102-092-1	02	1	9505-9607	●	●
6	09.645 BRACKET; RADIO TO PANEL	8-97102-092-1	02	1	9505-9607	●	●
6	09.645 BRACKET; RADIO TO PANEL CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97102-092-1	01	1	9608-	●	●
6	09.645 BRACKET; RADIO TO PANEL EXC. CLUSTER AUDIO DIN 'E' FORM<7LG>	8-97102-092-1	01	1	9608-	●	●
6	09.645 BRACKET; RADIO TO PANEL	8-97102-092-1	01	1	9608-	●	●
6	09.645 BRACKET; RADIO TO PANEL 09.667	8-94359-615-3	02	1	9112-9504	●	●
6	09.645 BRACKET; RADIO TO PANEL CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97085-169-1	02	1	9505-9607	●	●
6	09.645 BRACKET; RADIO TO PANEL EXC. CLUSTER AUDIO DIN 'E' FORM<7LG>	8-97085-169-1	02	1	9505-9607	●	●
6	09.645 BRACKET; RADIO TO PANEL	8-97085-169-1	02	1	9505-9607	●	●
6	09.645 BRACKET; RADIO TO PANEL CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX>	8-97085-169-1	01	1	9608-	●	●
6	09.645 BRACKET; RADIO TO PANEL EXC. CLUSTER AUDIO DIN 'E' FORM<7LG>	8-97085-169-1	01	1	9608-	●	●
6	09.645 BRACKET; RADIO TO PANEL	8-97085-169-1	01	1	9608-	●	●
7	09.650 SCREW; RADIO 16.085 (A) M5X16 TAPPING	9-09829-323-1	08	1	9112-9504	●	●
7	09.650 SCREW; RADIO CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX> 16.085 (A) M5X16 TAPPING	9-09829-323-1	04	1	9505-9607	●	●
7	09.650 SCREW; RADIO EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> 16.085 (A) M5X16 TAPPING	9-09829-323-1	04	1	9505-9607	●	●
7	09.650 SCREW; RADIO 16.085 (A) M5X16 TAPPING	9-09829-323-1	04	1	9505-9607	●	●
7	09.650 SCREW; RADIO CLUSTER AUDIO DIN 'E' FORM<7LG> EXC. 4 SPEAKERS WO/RADIO TYPE<7DX> 16.085 (A) M5X16 TAPPING	9-09829-323-1	02	1	9608-	●	●
7	09.650 SCREW; RADIO EXC. CLUSTER AUDIO DIN 'E' FORM<7LG> 16.085 (A) M5X16 TAPPING	9-09829-323-1	02	1	9608-	●	●
7	09.650 SCREW; RADIO 16.085 (A) M5X16 TAPPING	9-09829-323-1	02	1	9608-	●	●
7	09.650 SCREW; RADIO AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) 04.054 (B) M5X10 W/LK+PL WASHER	9-03920-510-0	04	1	9505-	●	●
7	09.650 SCREW; RADIO EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2) 16.085 (A) M5X16 TAPPING	9-09829-323-1	01	1	9505-	●	●
25	09.649 ATTACH KIT; CASSETTE DECK AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (B)	8-94381-132-0	01	1	9112-9504	●	●
25	09.649 ATTACH KIT; CASSETTE DECK AM/FM W/CASSETTE 4 SPEAKERS(UM6),AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4) (C)	8-97130-980-0	01	1	9505-	●	●
25	09.649 ATTACH KIT; CASSETTE DECK AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3) (A)	8-94167-958-0	01	1	9112-9205	●	●
25	09.649 ATTACH KIT; CASSETTE DECK AM/FM PUSH BUTTON STEREO 4 SPEAKERS(UX3) (A)	8-97084-966-0	01	1	9206-9208	●	●
33	09.650 COVER; RADIO EXC. DIGITAL CLOCK<UE8> 10.260 44X184	8-94435-504-2	01	1	9112-9504	●	●
33	09.650 COVER; RADIO EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6), AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),4 SPEAKERS WO/RADIO TYPE<7DX>	8-97066-253-2	01	1	9505-	●	●
33	09.650 COVER; RADIO	8-97066-253-2	01	1	9505-	●	●
36	09.779 SCREW; COVER 09.744 M5X14 TAPPING	9-09829-322-1	04	1	9112-9504	●	●
36	09.779 SCREW; COVER EXC. AM/FM W/CASSETTE 4 SPEAKERS(UM6), AM/FM ETR 3IN1 W/CASSETTE 4 SPEAKERS(UX4),4 SPEAKERS WO/RADIO TYPE<7DX> 02.689 M5X10	8-94428-816-0	04	1	9505-	●	●
36	09.779 SCREW; COVER 02.689 M5X10	8-94428-816-0	04	1	9505-	●	●
103	09.647 GROMMET; ANTENNA HOLE,FRT EXC. ANTENNA<U73>,POWER ANTENNA<U75> 09.775	8-94111-420-0	01	1	9112-	●	●
247	02.530 CONNECTOR EXC. EUROPE EQUIPMENT(EK4),SOUTH AFRICA EQUIPMENT(SW2)	8-97117-667-1	01	1	9505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
