Sayfa 8-80 - Isuzu EPC

8-80 — WINDSHIELD WIPER AND WASHER (#33119) — 82 parça

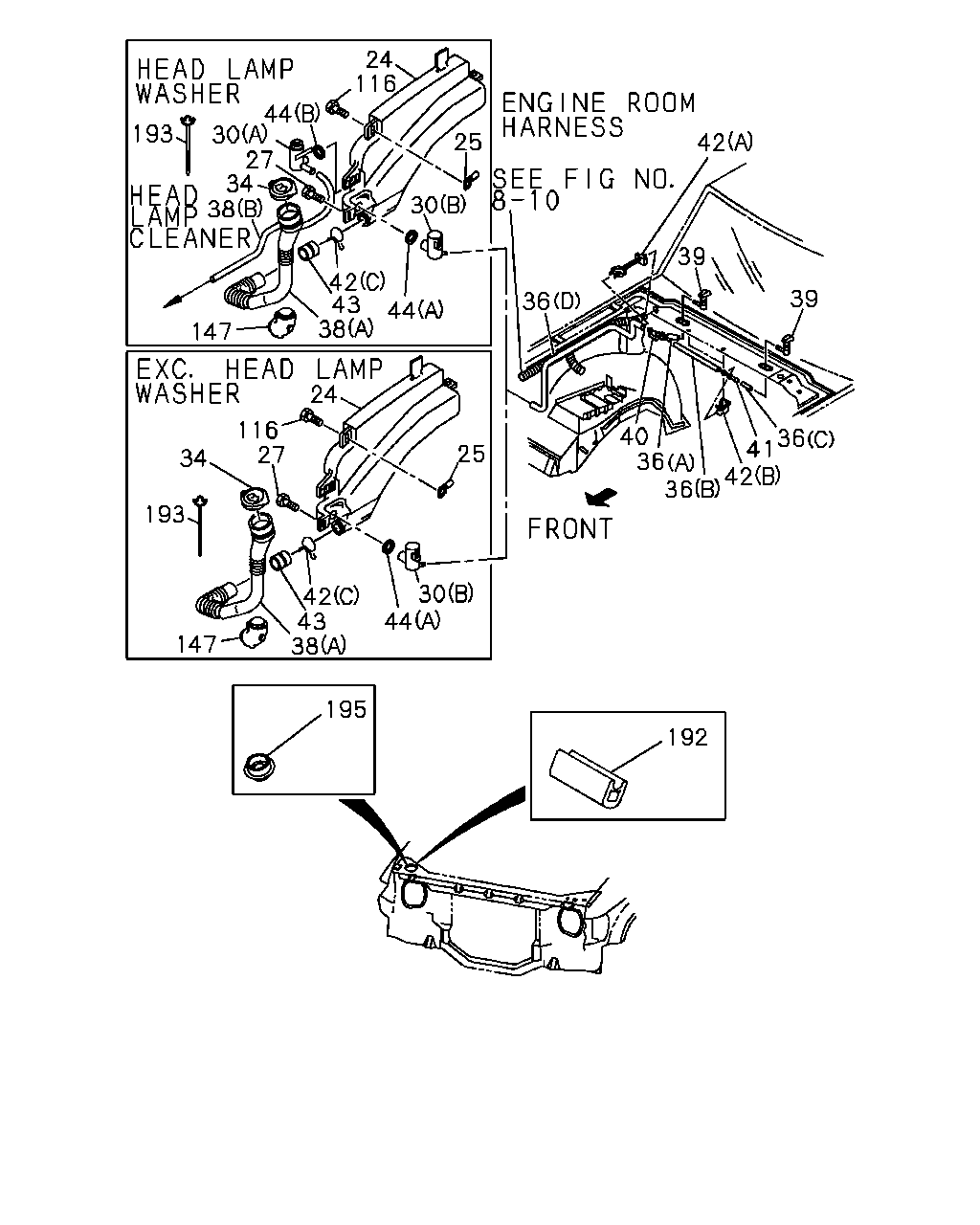

42 39 39 36 40 36 36 36 42 41 25 116 24 44 30 193 27 34 38 147 38 43 42 44 30 25 24 116 27 34 193 147 38 43 42 44 30 195 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	16.065 TANK ASM; WASHER HEADLAMP WASHER<CE3>	8-97807-517-3	01	1	9112-	●	●
24	16.065 TANK ASM; WASHER EXC. HEADLAMP WASHER<CE3>	8-97807-510-3	01	1	9112-	●	●
25	16.065 BRACKET; WASHER TANK	8-97807-513-0	01	1	9112-	●	●
27	16.065 BOLT; WASHER TANK 07.833 M6X14 W/LK&PL WASHER	8-94382-066-1	02	1	9112-	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK (B)	8-97807-511-0	01	1	9112-	●	●
30	16.065 MOTOR ASM; FRT WASHER TANK HEADLAMP WASHER<CE3> (A)	8-97807-538-0	01	1	9112-	●	●
34	16.065 CAP; WASHER TANK	8-97807-514-0	01	1	9112-	●	●
36	16.065 HOSE; WASHER 10.155 (A)L=155,(B)L=650, (C)L=80SERVICED BY L=10000	8-94389-303-0	01	1	9112-	●	●
36	16.065 HOSE; WASHER (D) L=1260	8-97808-066-0	01	1	9112-9504	●	●
36	16.065 HOSE; WASHER (D) L=1260	8-97118-916-0	01	1	9505-9607	●	●
36	16.065 HOSE; WASHER (D) L=1260	8-97130-714-0	01	1	9608-	●	●
38	16.065 HOSE; JOINT,TANK (A)	8-94358-854-0	01	1	9112-	●	●
38	16.065 HOSE; JOINT,TANK HEADLAMP WASHER<CE3> (B)	8-97807-636-0	01	1	9112-	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-97802-674-0	01	1	9112-	●	●
39	16.065 NOZZLE; WINDSHIELD WASHER	8-94358-853-0	01	1	9112-	●	●
40	16.065 JOINT; WASHER HOSE	8-97807-498-0	01	1	9112-	●	●
41	16.065 VALVE; CHECK,WASHER TANK	8-97807-499-0	01	1	9112-	●	●
42	16.065 CLIP; WASHER HOSE 10.156 (A) L=46	8-94154-654-1	01	1	9112-	●	●
42	16.065 CLIP; WASHER HOSE 10.156 (B) ID=5.8 L=8	8-94155-681-0	02	1	9112-	●	●
42	16.065 CLIP; WASHER HOSE (C)	8-97807-516-3	01	1	9112-	●	●
43	16.065 RUBBER; GASKET,TANK	8-97807-515-0	01	1	9112-	●	●
44	16.065 GASKET; MOTOR TO TANK (A)	8-97807-512-0	01	1	9112-	●	●
44	16.065 GASKET; MOTOR TO TANK HEADLAMP WASHER<CE3> 10.154 (B)	8-94352-050-0	01	1	9112-	●	●
116	16.065 SCREW; TANK TO BRKT	8-97807-451-0	01	1	9112-	●	●
147	16.065 PROTECTOR; WASHER TANK	8-97807-637-0	01	1	9112-	●	●
192	16.065 PROTECTOR; EDGE 02.530 L=30	8-94366-689-0	01	1	9112-9308	●	●
192	16.065 PROTECTOR; EDGE 02.530 L=30 L=65	8-94235-856-0	01	1	9309-9403	●	●
193	16.065 GAUGE; LEVEL,WASHER TANK	8-97807-982-0	01	1	9112-9504	●	●
195	16.065 PROTECTOR; FILLER NECK 03.008	8-97803-032-0	01	1	9112-9405	●	●
195	16.065 PROTECTOR; FILLER NECK	8-97114-362-0	01	1	9406-	●	●

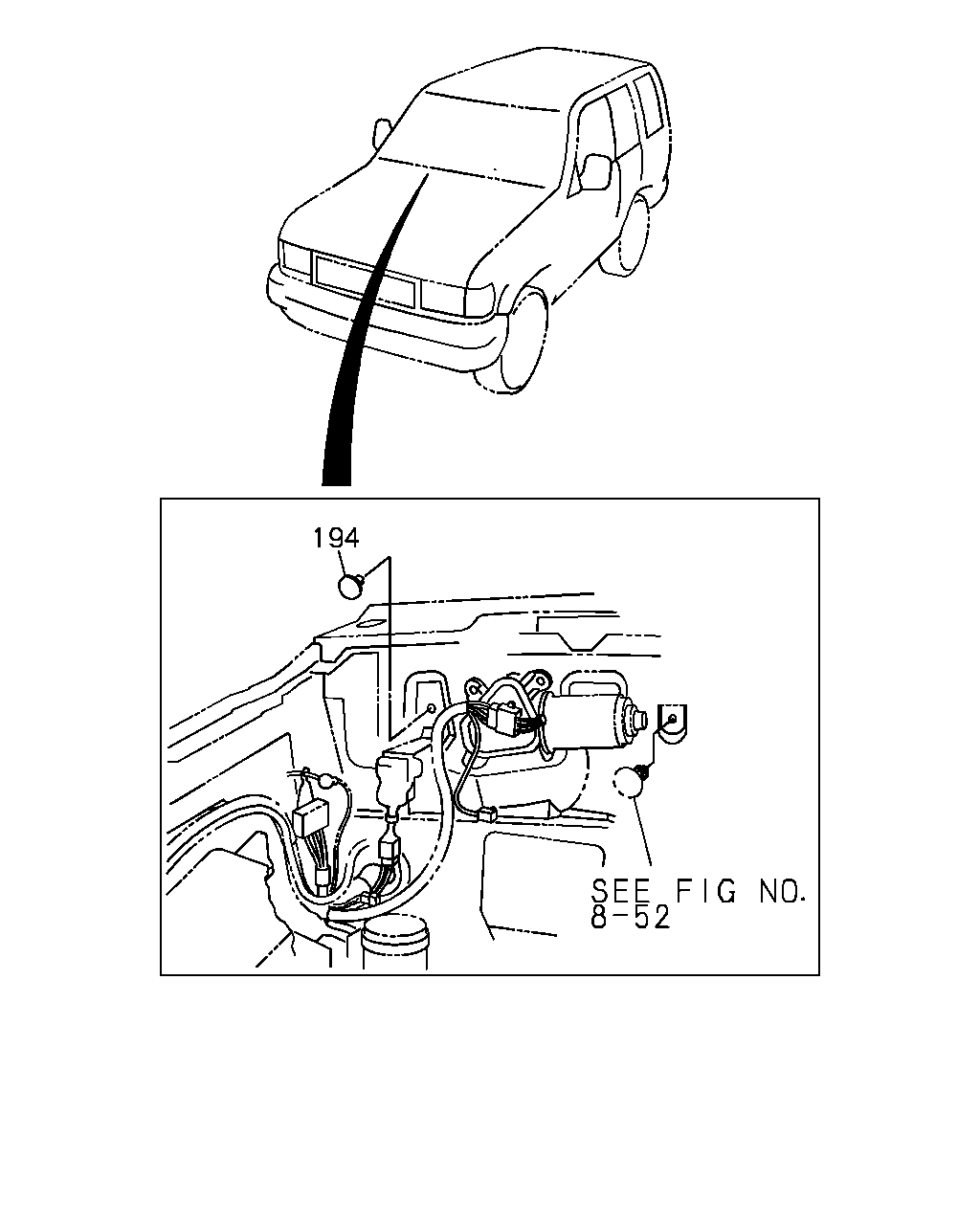

194

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	194	16.065 PLUG; HOLE,CLIP 6VD1 SOHC ENG(RLU) A/T THM(RMQ) EXC. ANTI THEFT<UA6>	8-97807-966-0	01	1	9112-	●	●
	194	16.065 PLUG; HOLE,CLIP ANTI THEFT<UA6>	8-97807-966-0	01	1	9112-	●	●

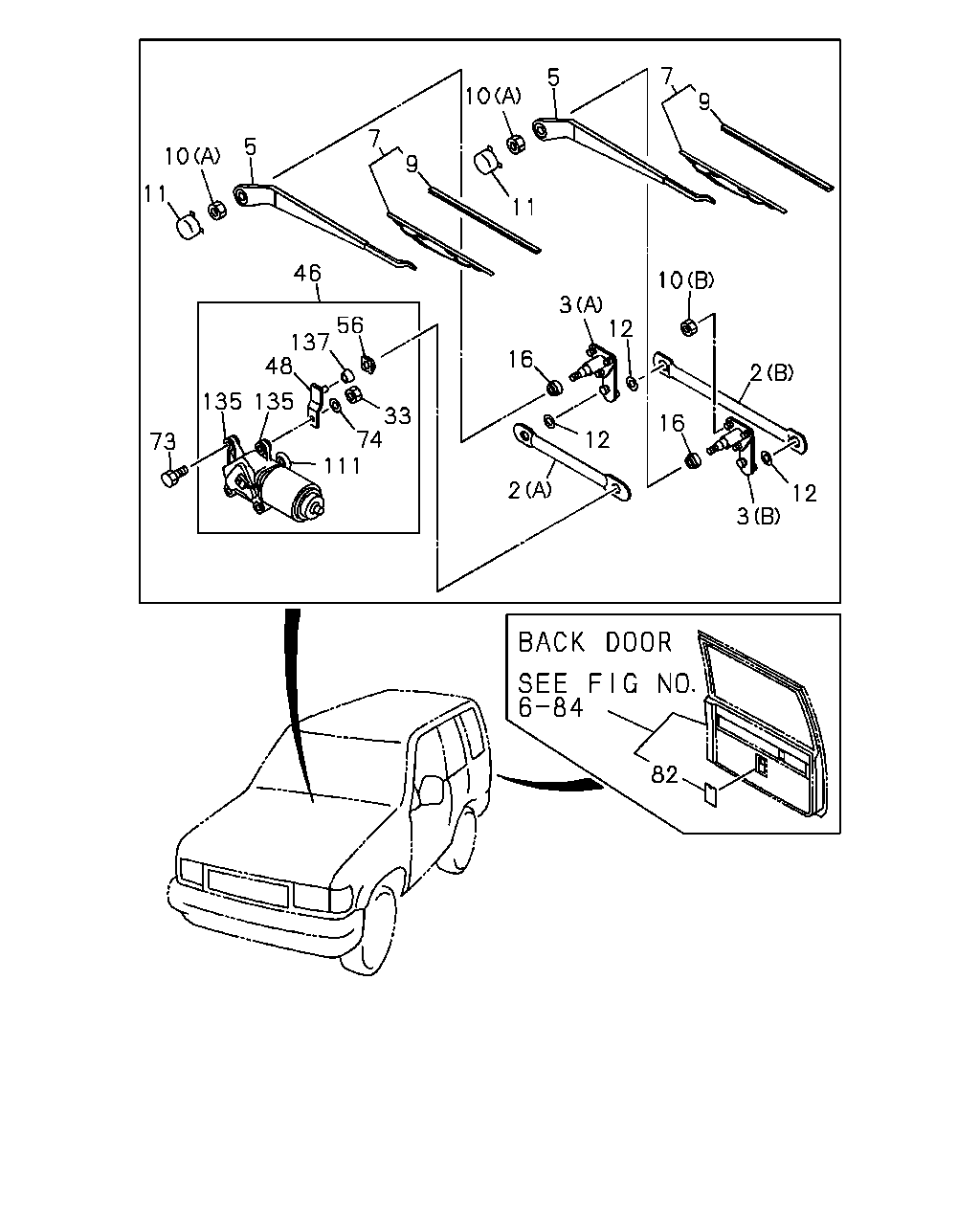

9 7 10 2 12 3 16 12 12 2 16 3 11 10 5 9 7 5 10 11 46 56 137 48 73 135 135 33 74 111 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	16.063 LINK; FRT WIPER (A)	8-97807-520-0	01	1	9112-	●	●
2	16.063 LINK; FRT WIPER (B)	8-97807-523-0	01	1	9112-	●	●
3	16.063 PIVOT ASM; FRT WIPER (B)	8-97807-522-0	01	1	9112-	●	●
3	16.063 PIVOT ASM; FRT WIPER (A)	8-97807-524-0	01	1	9112-	●	●
5	16.063 ARM; WIPER	8-94358-847-2	01	1	9112-9208	●	●
5	16.063 ARM; WIPER	8-97808-695-1	01	1	9209-9607	●	●
5	16.063 ARM; WIPER EUROPE EQUIPMENT(EK4)	8-97808-695-1	01	1	9608-	●	●
5	16.063 ARM; WIPER	8-94358-845-2	01	1	9112-9208	●	●
5	16.063 ARM; WIPER	8-97808-693-1	01	1	9209-9607	●	●
5	16.063 ARM; WIPER EUROPE EQUIPMENT(EK4)	8-97808-693-1	01	1	9608-	●	●
5	16.063 ARM; WIPER EXC. EUROPE EQUIPMENT(EK4)	8-97139-595-1	01	1	9608-	●	●
5	16.063 ARM; WIPER EXC. EUROPE EQUIPMENT(EK4)	8-97139-593-1	01	1	9608-	●	●
7	16.062 BLADE; WIPER	8-97804-038-2	01	1	9112-9403	●	●
7	16.062 BLADE; WIPER	8-97107-562-0	01	1	9404-9508	●	●
7	16.062 BLADE; WIPER L=500	8-97134-563-0	01	1	9509-9607	●	●
7	16.062 BLADE; WIPER EUROPE EQUIPMENT(EK4) L=500	8-97134-563-0	01	1	9608-	●	●
7	16.062 BLADE; WIPER	8-97804-037-2	01	1	9112-9403	●	●
7	16.062 BLADE; WIPER	8-97107-561-0	01	1	9404-9508	●	●
7	16.062 BLADE; WIPER L=500	8-97134-562-0	01	1	9509-9607	●	●
7	16.062 BLADE; WIPER EUROPE EQUIPMENT(EK4) L=500	8-97134-562-0	01	1	9608-	●	●
7	16.062 BLADE; WIPER EXC. EUROPE EQUIPMENT(EK4) L=500	8-97139-626-0	02	1	9608-	●	●
9	16.062 RUBBER; FRT WIPER BLADE EXC. EUROPE EQUIPMENT(EK4) L=500	8-97178-835-0	02	1	9608-	●	●
9	16.062 RUBBER; FRT WIPER BLADE L=500	8-97807-965-0	01	1	9112-9607	●	●
9	16.062 RUBBER; FRT WIPER BLADE EUROPE EQUIPMENT(EK4) L=500	8-97807-965-0	01	1	9608-	●	●
9	16.062 RUBBER; FRT WIPER BLADE L=500	8-97807-964-0	01	1	9112-9607	●	●
9	16.062 RUBBER; FRT WIPER BLADE EUROPE EQUIPMENT(EK4) L=500	8-97807-964-0	01	1	9608-	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 07.347 (A) M10 FLANGE	8-94144-220-0	02	1	9112-	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 03.602 (B)	8-94380-160-0	06	1	9112-9607	●	●
10	16.063 NUT; WIPER ARM TO WIPER PIVOT 10.147 (B) M6 W/DISHED WASHER	8-94423-325-0	06	1	9608-	●	●
11	16.063 COVER; WIPER ARM 10.147	8-94367-999-0	02	1	9112-9607	●	●
11	16.063 COVER; WIPER ARM	8-97148-349-0	02	1	9608-	●	●
12	16.063 RETAINER; BALL JOINT,FRT WIPER L 10.159	8-97025-889-0	03	1	9112-	●	●
16	16.063 SEAL; BALL JOINT	8-97807-525-0	02	1	9112-9206	●	●
16	16.063 SEAL; BALL JOINT 10.159	8-94377-722-0	02	1	9207-	●	●
33	16.064 NUT; MOTOR TO ARM 00.787 M8	9-09111-408-0	01	1	9112-	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-94358-838-2	01	1	9112-9301	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER EXC. SOUTH AFRICA EQUIPMENT(SW2)	8-94358-838-2	01	1	9302-9308	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER	8-94358-838-2	01	1	9309-	●	●
46	16.064 MOTOR ASM; FRT WINDSHIELD WIPER SOUTH AFRICA EQUIPMENT(SW2)	8-97094-723-0	01	1	9302-9308		●
48	16.063 ARM; WIPER MOTOR 02.780	8-97807-638-0	01	1	9112-	●	●
56	16.063 JOINT; OUTER,WIPER MOTOR 10.151	8-94323-719-0	01	1	9112-	●	●
73	16.063 BOLT 10.152 M6X28 W/PL WASHER	8-94148-420-0	04	1	9112-9607	●	●
73	16.063 BOLT M6X33 W/PL WASHER	8-97164-266-0	04	1	9608-	●	●
74	16.063 WASHER; ARM TO MOTOR 00.002 ID=8.2	9-09150-508-0	01	1	9112-	●	●
82	16.067 LID; WASHER TANK INTERIOR COLOR BROWN(130) DARK BROWN	8-97804-236-2	01	1	9112-9504	●	●
82	16.067 LID; WASHER TANK DARK GRAY	8-97098-644-2	01	1	9505-	●	●
82	16.067 LID; WASHER TANK INTERIOR COLOR GRAY(153) DARK GRAY	8-97804-238-2	01	1	9112-9504	●	●
111	16.064 SEAL; FRT WIPER MOTOR TO BRKT 10.152	8-94387-086-0	01	1	9112-	●	●
135	16.250 RUBBER; CUSHION,WIPER MOTOR 10.152	8-94387-088-0	04	1	9112-	●	●
137	16.063 SEAL; JOINT,WIPER MOTOR 10.151	8-94167-624-0	01	1	9112-	●	●
