Sayfa 8-75 - Isuzu EPC

8-75 — CONDENSER (#33118) — 194 parça

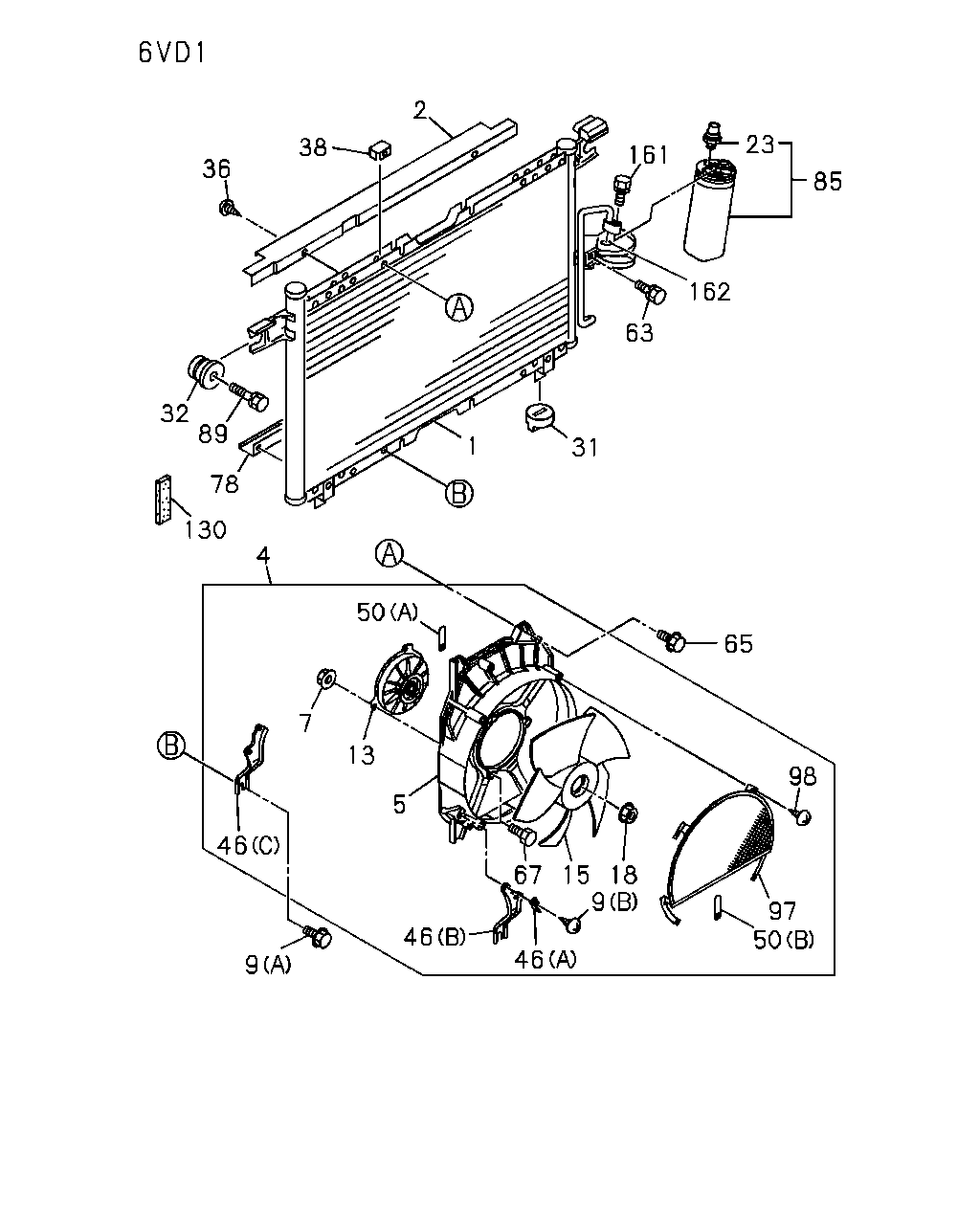

85 161 162 63 31 1 2 38 36 32 89 78 130 4 65 98 97 50 9 46 46 9 18 15 67 5 13 7 50 23 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.190 CONDENSER; A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-270-3	01	1	9112-9303	●	●
1	09.190 CONDENSER; A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-657-1	01	1	9304-9412	●	●
1	09.190 CONDENSER; A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97123-980-0	01	1	9501-9504	●	●
1	09.190 CONDENSER; A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97123-980-0	01	1	9505-	●	●
1	09.190 CONDENSER; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-250-2	01	1	9112-9208	●	●
1	09.190 CONDENSER; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97085-800-0	01	1	9209-9303	●	●
1	09.190 CONDENSER; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97096-049-1	01	1	9304-9412	●	●
1	09.190 CONDENSER; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97116-761-0	01	1	9501-9504	●	●
1	09.190 CONDENSER; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97116-761-0	01	1	9505-9511	●	●
1	09.190 CONDENSER; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97123-979-0	01	1	9512-	●	●
2	09.190 PLATE; UPR,CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-256-0	01	1	9112-9412	●	●
2	09.190 PLATE; UPR,CONDENSER 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-256-0	01	1	9501-9504	●	●
2	09.190 PLATE; UPR,CONDENSER 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-97049-256-0	01	1	9505-9511	●	●
2	09.190 PLATE; UPR,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97049-256-0	01	1	9512-	●	●
2	09.190 PLATE; UPR,CONDENSER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97116-762-0	01	1	9501-9504	●	●
2	09.190 PLATE; UPR,CONDENSER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97116-762-0	01	1	9505-9511	●	●
4	09.216 MOTOR ASM; FAN 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9)	8-97139-116-0	01	1	9609-		●
5	09.216 SHROUD; FAN MOTOR 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9)	8-97139-118-0	01	1	9609-		●
7	09.190 NUT; FAN 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) 07.829 M6 FLANGE	5-09440-004-0	03	1	9609-		●
9	09.190 BOLT; BRKT 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) 09.216 (A) M5X35 TAPPING	8-97071-786-0	02	1	9609-		●
9	09.190 BOLT; BRKT 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) 06.514 (B) M5X14 TAPPING	9-07076-514-0	04	1	9609-		●
13	09.215 MOTOR; FAN 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9)	8-97139-120-0	01	1	9609-		●
15	09.216 FAN; MOTOR 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9)	8-97091-323-0	01	1	9609-		●
18	09.190 NUT; FAN,CENTER 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) 16.176 M6	9-09110-406-0	01	1	9609-		●
23	09.172 SWITCH; PRESSURE,CONDENSER 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) "R-134A"	8-97093-509-0	01	1	9609-		●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-659-0	01	1	9304-9504	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97095-659-0	01	1	9505-9608	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60) EXC. THAILAND EQUIPMENT(PM9) "R-134A"	8-97095-659-0	01	1	9609-	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) M/T MUA 5 SPEED(RMN) "R-134A"	8-97095-659-0	01	1	9609-		●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97018-673-0	02	1	9112-9504	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97018-673-0	02	1	9505-	●	●
32	09.190 GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-94481-685-1	02	1	9112-9412	●	●
32	09.190 GROMMET; CONDENSER 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-94481-685-1	02	1	9501-9504	●	●
32	09.190 GROMMET; CONDENSER 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-94481-685-1	02	1	9505-9511	●	●
32	09.190 GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-94481-685-1	02	1	9512-	●	●
32	09.190 GROMMET; CONDENSER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97096-063-0	02	1	9501-9504	●	●
32	09.190 GROMMET; CONDENSER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97096-063-0	02	1	9505-9511	●	●
36	09.190 SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X14 TAPPING	8-97049-258-0	06	1	9112-9208	●	●
36	09.190 SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X14 TAPPING	8-97049-258-0	06	1	9209-9308	●	●
36	09.190 SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X14 TAPPING	8-97049-258-0	04	1	9309-9504	●	●
36	09.190 SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60) M5X14 TAPPING	8-97049-258-0	04	1	9505-9511	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) M5X14 TAPPING	8-97049-258-0	04	1	9512-	●	●
36	09.190 SCREW; PLATE TO CONDENSER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97142-815-0	04	1	9512-	●	●
38	09.190 PLATE; CONDENSER 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9)	8-97049-267-0	04	1	9609-		●
46	09.216 BRACKET; SHROUD 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) (A)	8-97139-122-0	01	1	9609-		●
46	09.216 BRACKET; SHROUD 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) (B)	8-97139-123-0	01	1	9609-		●
46	09.216 BRACKET; SHROUD 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) (C)	8-97139-124-0	01	1	9609-		●
50	09.220 CLIP; CABLE 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) (A)	8-97139-125-0	01	1	9609-		●
50	09.220 CLIP; CABLE 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) (B)	8-97139-126-0	01	1	9609-		●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) 02.559 M6X25	8-97095-660-0	01	1	9501-	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) M6X20	8-97049-253-0	01	1	9112-9412	●	●
63	09.175 BOLT; RECEIVER TANK 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.190 (B) M5X14 TAPPING	8-97049-258-0	02	1	9209-9412	●	●
65	09.216 BOLT; SHROUD 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) M5X35 TAPPING	8-97071-786-0	02	1	9609-		●
67	09.216 SCREW; COVER 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9)	5-83569-122-0	03	1	9609-		●
78	09.190 PLATE; LWR,CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-257-0	01	1	9112-9504	●	●
78	09.190 PLATE; LWR,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97049-257-0	01	1	9505-	●	●
85	09.172 DRYER; RECEIVER 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9)	8-97139-115-0	01	1	9609-		●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-251-0	01	1	9112-9303	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-658-0	01	1	9304-9504	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97095-658-0	01	1	9505-9608	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60) EXC. THAILAND EQUIPMENT(PM9) "R-134A"	8-97095-658-0	01	1	9609-	●	●
85	09.172 DRYER; RECEIVER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) M/T MUA 5 SPEED(RMN) "R-134A"	8-97095-658-0	01	1	9609-		●
89	09.190 BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-255-0	02	1	9112-9504	●	●
89	09.190 BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60)	8-97049-255-0	02	1	9505-	●	●
97	09.190 NET; CONDENSER UNIT 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9)	8-97139-121-0	01	1	9609-		●
98	09.190 SCREW; NET TO SHROUD 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9)	8-97161-840-0	04	1	9609-		●
130	09.190 LINING; CONDENSER 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9)	8-97071-857-0	01	1	9609-		●
161	02.559 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-254-0	01	1	9112-9303	●	●
161	02.559 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6X25	8-97095-660-0	01	1	9304-9504	●	●
161	02.559 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60) M6X25	8-97095-660-0	01	1	9505-	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.214 ID=6	8-94481-700-0	01	1	9112-9412	●	●
162	09.195 GASKET; PIPE TO DRYER 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.214 ID=6	8-94481-700-0	01	1	9501-9504	●	●
162	09.195 GASKET; PIPE TO DRYER 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6	8-94481-700-0	01	1	9505-9511	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6	8-94481-700-0	01	1	9512-	●	●
162	09.195 GASKET; PIPE TO DRYER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	01	1	9501-9504	●	●
162	09.195 GASKET; PIPE TO DRYER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	01	1	9505-9511	●	●

161 23 85 162 63 31 1 2 36 32 89 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.190 CONDENSER; A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-270-3	01	1	9112-9303	●	●
1	09.190 CONDENSER; A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-657-1	01	1	9304-9412	●	●
1	09.190 CONDENSER; A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97123-980-0	01	1	9501-9504	●	●
1	09.190 CONDENSER; A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97123-980-0	01	1	9505-	●	●
1	09.190 CONDENSER; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-250-2	01	1	9112-9208	●	●
1	09.190 CONDENSER; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97085-800-0	01	1	9209-9303	●	●
1	09.190 CONDENSER; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97096-049-1	01	1	9304-9412	●	●
1	09.190 CONDENSER; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97116-761-0	01	1	9501-9504	●	●
1	09.190 CONDENSER; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97116-761-0	01	1	9505-9511	●	●
1	09.190 CONDENSER; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97123-979-0	01	1	9512-	●	●
2	09.190 PLATE; UPR,CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-256-0	01	1	9112-9412	●	●
2	09.190 PLATE; UPR,CONDENSER 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-256-0	01	1	9501-9504	●	●
2	09.190 PLATE; UPR,CONDENSER 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-97049-256-0	01	1	9505-9511	●	●
2	09.190 PLATE; UPR,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97049-256-0	01	1	9512-	●	●
2	09.190 PLATE; UPR,CONDENSER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97116-762-0	01	1	9501-9504	●	●
2	09.190 PLATE; UPR,CONDENSER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97116-762-0	01	1	9505-9511	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) "R-134A"	8-97093-509-0	01	1	9609-		●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-659-0	01	1	9304-9504	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97095-659-0	01	1	9505-9608	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60) EXC. THAILAND EQUIPMENT(PM9) "R-134A"	8-97095-659-0	01	1	9609-	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) M/T MUA 5 SPEED(RMN) "R-134A"	8-97095-659-0	01	1	9609-		●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97018-673-0	02	1	9112-9504	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97018-673-0	02	1	9505-	●	●
32	09.190 GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-94481-685-1	02	1	9112-9412	●	●
32	09.190 GROMMET; CONDENSER 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-94481-685-1	02	1	9501-9504	●	●
32	09.190 GROMMET; CONDENSER 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-94481-685-1	02	1	9505-9511	●	●
32	09.190 GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-94481-685-1	02	1	9512-	●	●
32	09.190 GROMMET; CONDENSER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97096-063-0	02	1	9501-9504	●	●
32	09.190 GROMMET; CONDENSER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97096-063-0	02	1	9505-9511	●	●
36	09.190 SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X14 TAPPING	8-97049-258-0	06	1	9112-9208	●	●
36	09.190 SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X14 TAPPING	8-97049-258-0	06	1	9209-9308	●	●
36	09.190 SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X14 TAPPING	8-97049-258-0	04	1	9309-9504	●	●
36	09.190 SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60) M5X14 TAPPING	8-97049-258-0	04	1	9505-9511	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) M5X14 TAPPING	8-97049-258-0	04	1	9512-	●	●
36	09.190 SCREW; PLATE TO CONDENSER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97142-815-0	04	1	9512-	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) 02.559 M6X25	8-97095-660-0	01	1	9501-	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) M6X20	8-97049-253-0	01	1	9112-9412	●	●
63	09.175 BOLT; RECEIVER TANK 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.190 (B) M5X14 TAPPING	8-97049-258-0	02	1	9209-9412	●	●
78	09.190 PLATE; LWR,CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-257-0	01	1	9112-9504	●	●
78	09.190 PLATE; LWR,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97049-257-0	01	1	9505-	●	●
85	09.172 DRYER; RECEIVER 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9)	8-97139-115-0	01	1	9609-		●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-251-0	01	1	9112-9303	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-658-0	01	1	9304-9504	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97095-658-0	01	1	9505-9608	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60) EXC. THAILAND EQUIPMENT(PM9) "R-134A"	8-97095-658-0	01	1	9609-	●	●
85	09.172 DRYER; RECEIVER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) M/T MUA 5 SPEED(RMN) "R-134A"	8-97095-658-0	01	1	9609-		●
89	09.190 BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-255-0	02	1	9112-9504	●	●
89	09.190 BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60)	8-97049-255-0	02	1	9505-	●	●
161	02.559 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-254-0	01	1	9112-9303	●	●
161	02.559 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6X25	8-97095-660-0	01	1	9304-9504	●	●
161	02.559 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60) M6X25	8-97095-660-0	01	1	9505-	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.214 ID=6	8-94481-700-0	01	1	9112-9412	●	●
162	09.195 GASKET; PIPE TO DRYER 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.214 ID=6	8-94481-700-0	01	1	9501-9504	●	●
162	09.195 GASKET; PIPE TO DRYER 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6	8-94481-700-0	01	1	9505-9511	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6	8-94481-700-0	01	1	9512-	●	●
162	09.195 GASKET; PIPE TO DRYER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	01	1	9501-9504	●	●
162	09.195 GASKET; PIPE TO DRYER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	01	1	9505-9511	●	●

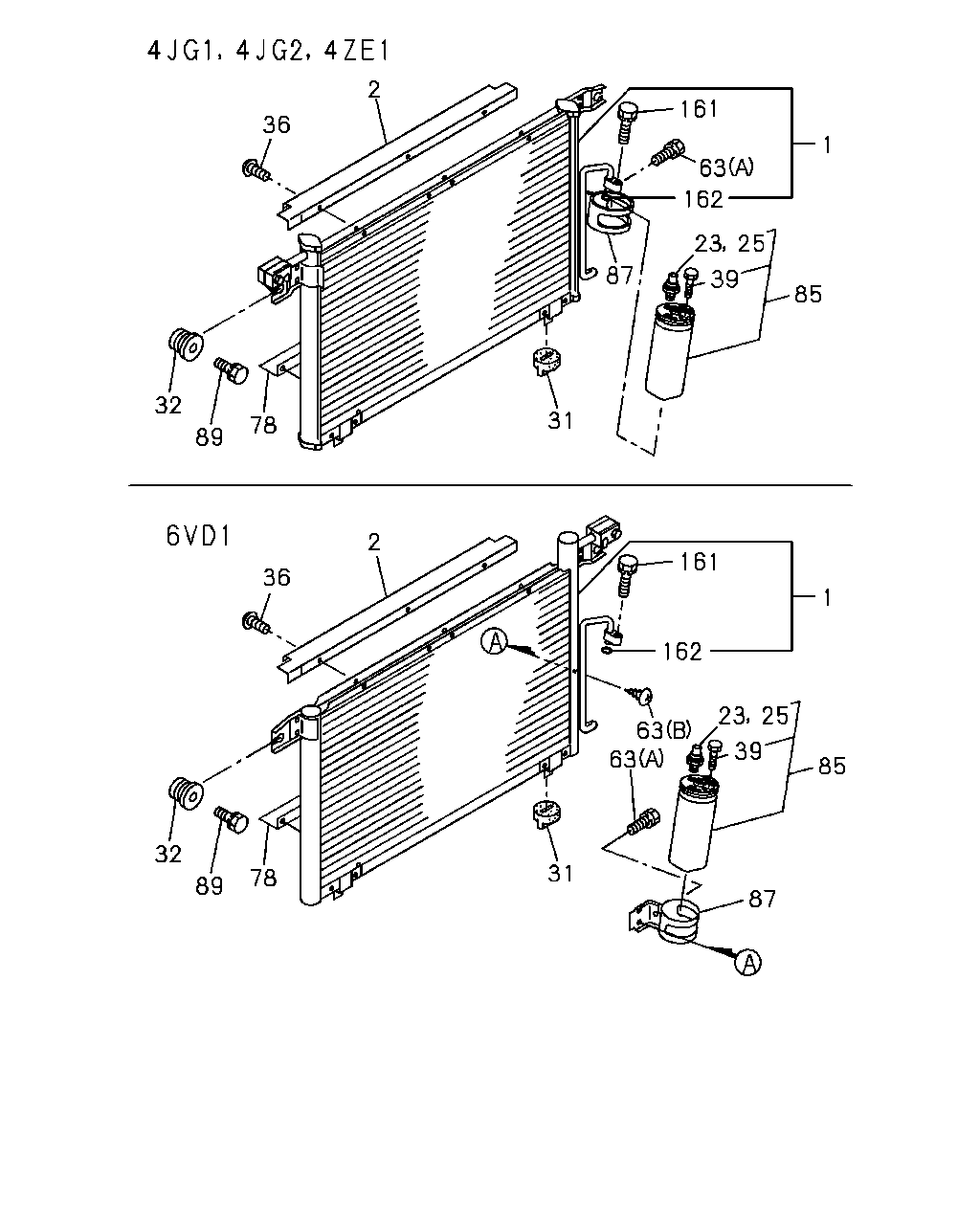

2 36 32 89 78 161 1 63 162 23 25 39 85 87 31 2 36 32 89 78 161 1 162 63 63 31 87 85 39 25 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.190 CONDENSER; A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-270-3	01	1	9112-9303	●	●
1	09.190 CONDENSER; A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-657-1	01	1	9304-9412	●	●
1	09.190 CONDENSER; A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97123-980-0	01	1	9501-9504	●	●
1	09.190 CONDENSER; A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97123-980-0	01	1	9505-	●	●
1	09.190 CONDENSER; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-250-2	01	1	9112-9208	●	●
1	09.190 CONDENSER; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97085-800-0	01	1	9209-9303	●	●
1	09.190 CONDENSER; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97096-049-1	01	1	9304-9412	●	●
1	09.190 CONDENSER; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97116-761-0	01	1	9501-9504	●	●
1	09.190 CONDENSER; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97116-761-0	01	1	9505-9511	●	●
1	09.190 CONDENSER; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97123-979-0	01	1	9512-	●	●
2	09.190 PLATE; UPR,CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-256-0	01	1	9112-9412	●	●
2	09.190 PLATE; UPR,CONDENSER 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-256-0	01	1	9501-9504	●	●
2	09.190 PLATE; UPR,CONDENSER 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60)	8-97049-256-0	01	1	9505-9511	●	●
2	09.190 PLATE; UPR,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97049-256-0	01	1	9512-	●	●
2	09.190 PLATE; UPR,CONDENSER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97116-762-0	01	1	9501-9504	●	●
2	09.190 PLATE; UPR,CONDENSER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97116-762-0	01	1	9505-9511	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) "R-134A"	8-97093-509-0	01	1	9609-		●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-659-0	01	1	9304-9504	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97095-659-0	01	1	9505-9608	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER AIR CONDITIONER MANUAL CONT(C60) EXC. THAILAND EQUIPMENT(PM9) "R-134A"	8-97095-659-0	01	1	9609-	●	●
23	09.172 SWITCH; PRESSURE,CONDENSER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) M/T MUA 5 SPEED(RMN) "R-134A"	8-97095-659-0	01	1	9609-		●
25	09.172 SWITCH; DUAL PRESSURE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-271-0	01	1	9112-9303	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97018-673-0	02	1	9112-9504	●	●
31	09.190 RUBBER; MTG,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97018-673-0	02	1	9505-	●	●
32	09.190 GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-94481-685-1	02	1	9112-9412	●	●
32	09.190 GROMMET; CONDENSER 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-94481-685-1	02	1	9501-9504	●	●
32	09.190 GROMMET; CONDENSER 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-94481-685-1	02	1	9505-9511	●	●
32	09.190 GROMMET; CONDENSER AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-94481-685-1	02	1	9512-	●	●
32	09.190 GROMMET; CONDENSER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97096-063-0	02	1	9501-9504	●	●
32	09.190 GROMMET; CONDENSER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97096-063-0	02	1	9505-9511	●	●
36	09.190 SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X14 TAPPING	8-97049-258-0	06	1	9112-9208	●	●
36	09.190 SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X14 TAPPING	8-97049-258-0	06	1	9209-9308	●	●
36	09.190 SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X14 TAPPING	8-97049-258-0	04	1	9309-9504	●	●
36	09.190 SCREW; PLATE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60) M5X14 TAPPING	8-97049-258-0	04	1	9505-9511	●	●
36	09.190 SCREW; PLATE TO CONDENSER 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) M5X14 TAPPING	8-97049-258-0	04	1	9512-	●	●
36	09.190 SCREW; PLATE TO CONDENSER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60)	8-97142-815-0	04	1	9512-	●	●
39	09.196 PLUG; FUSIBLE,RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97035-706-0	02	1	9112-9303	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60) 02.559 M6X25	8-97095-660-0	01	1	9501-	●	●
63	09.175 BOLT; RECEIVER TANK AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) M6X20	8-97049-253-0	01	1	9112-9412	●	●
63	09.175 BOLT; RECEIVER TANK 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.190 (B) M5X14 TAPPING	8-97049-258-0	02	1	9209-9412	●	●
78	09.190 PLATE; LWR,CONDENSER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-257-0	01	1	9112-9504	●	●
78	09.190 PLATE; LWR,CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97049-257-0	01	1	9505-	●	●
85	09.172 DRYER; RECEIVER 6VD1 SOHC ENG(RLU) A/T THM(RMQ) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9)	8-97139-115-0	01	1	9609-		●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-251-0	01	1	9112-9303	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-658-0	01	1	9304-9504	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97095-658-0	01	1	9505-9608	●	●
85	09.172 DRYER; RECEIVER AIR CONDITIONER MANUAL CONT(C60) EXC. THAILAND EQUIPMENT(PM9) "R-134A"	8-97095-658-0	01	1	9609-	●	●
85	09.172 DRYER; RECEIVER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) THAILAND EQUIPMENT(PM9) M/T MUA 5 SPEED(RMN) "R-134A"	8-97095-658-0	01	1	9609-		●
87	09.196 BRACKET; RECEIVER DRYER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97085-816-0	01	1	9112-9303	●	●
87	09.196 BRACKET; RECEIVER DRYER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97085-816-0	01	1	9304-9412	●	●
89	09.190 BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-255-0	02	1	9112-9504	●	●
89	09.190 BOLT; CONDENSER TO BODY AIR CONDITIONER MANUAL CONT(C60)	8-97049-255-0	02	1	9505-	●	●
161	02.559 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97049-254-0	01	1	9112-9303	●	●
161	02.559 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M6X25	8-97095-660-0	01	1	9304-9504	●	●
161	02.559 BOLT; PIPE AIR CONDITIONER MANUAL CONT(C60) M6X25	8-97095-660-0	01	1	9505-	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.214 ID=6	8-94481-700-0	01	1	9112-9412	●	●
162	09.195 GASKET; PIPE TO DRYER 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.214 ID=6	8-94481-700-0	01	1	9501-9504	●	●
162	09.195 GASKET; PIPE TO DRYER 4JG2 ENG(RJC),4ZE1 ENG(RLJ) AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6	8-94481-700-0	01	1	9505-9511	●	●
162	09.195 GASKET; PIPE TO DRYER AIR CONDITIONER MANUAL CONT(C60) 09.214 ID=6	8-94481-700-0	01	1	9512-	●	●
162	09.195 GASKET; PIPE TO DRYER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) ID=6.07	8-94461-902-0	01	1	9501-9504	●	●
162	09.195 GASKET; PIPE TO DRYER 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60) ID=6.07	8-94461-902-0	01	1	9505-9511	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
