Sayfa 8-74 - Isuzu EPC

8-74 — EVAPORATOR (#33117) — 186 parça

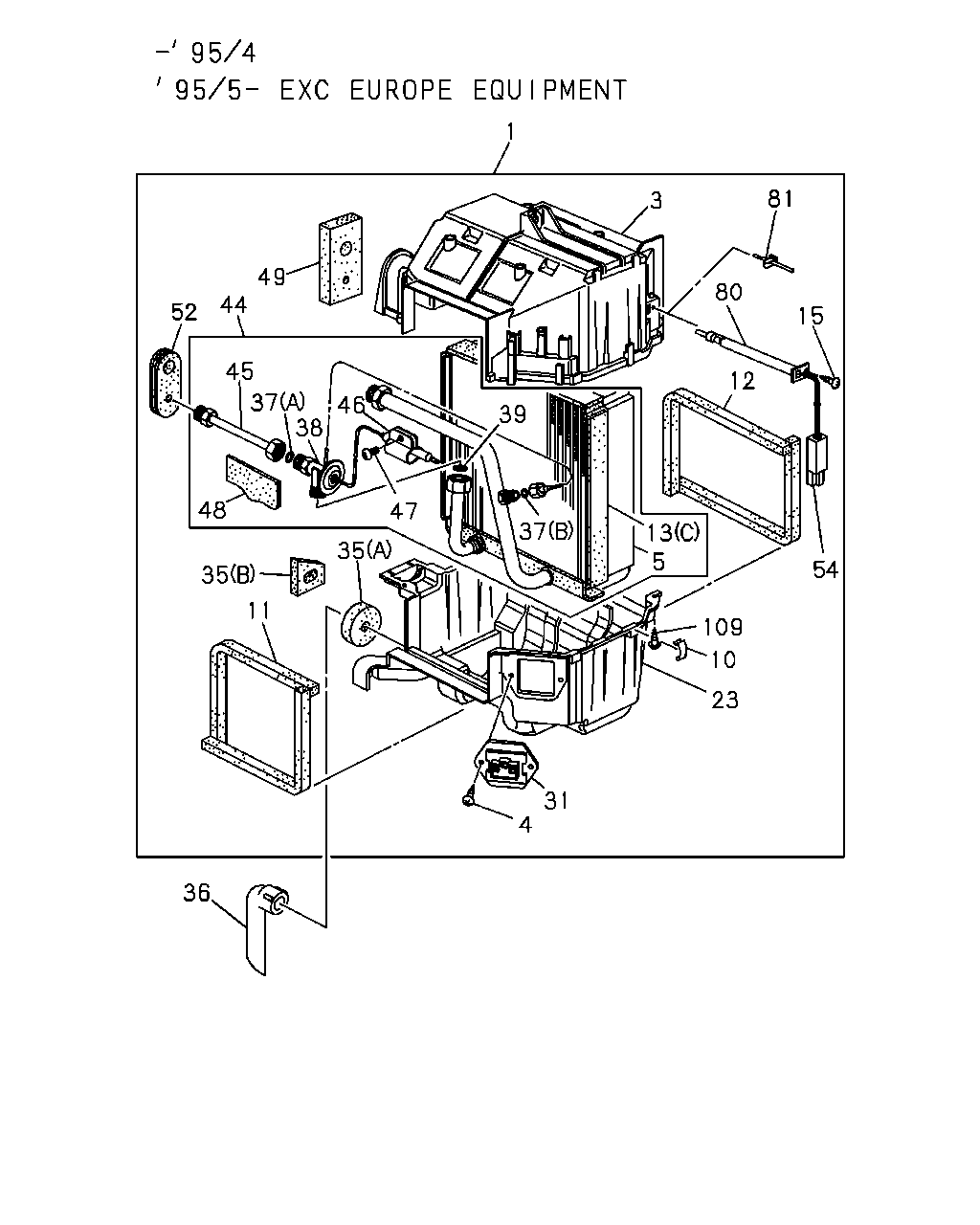

1 3 81 80 15 12 54 13 5 109 10 23 31 4 36 11 35 35 47 37 39 46 38 48 37 45 52 44 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.210 EVAPORATOR ASM 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-094-1	01	1	9112-9202	●	●
1	09.210 EVAPORATOR ASM 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94380-198-1	01	1	9112-9202	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94380-198-1	01	1	9203-9303	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-851-1	01	1	9304-9404	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97109-570-1	01	1	9405-9504	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) "R-134A"	8-97109-570-2	01	1	9505-	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97109-573-3	01	1	9505-	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-498-0	01	1	9112-9308	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-498-0	01	1	9309-9404	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97112-510-1	01	1	9405-9504	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97112-510-1	01	1	9505-	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97111-811-2	01	1	9505-	●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 08.852 M4X16	8-94324-850-0	02	1	9505-9607	●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 08.852 M4X16	8-94324-850-0	02	1	9608-	●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 08.855	8-94248-807-0	02	1	9112-9504	●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) 08.855	8-94248-807-0	02	1	9505-	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97124-433-0	01	1	9505-9602	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97143-359-0	01	1	9603-	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-501-0	01	1	9112-9504	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97046-501-0	01	1	9505-9602	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97143-243-0	01	1	9603-	●	●
10	09.211 CLIP; EVAP CASE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 08.854	1-83574-148-0	03	1	9112-9504	●	●
10	09.211 CLIP; EVAP CASE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) 08.854	1-83574-148-0	03	1	9505-	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-804-0	02	1	9112-9307	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97105-793-0	01	1	9308-9404	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97103-724-0	01	1	9405-9504	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97103-724-0	01	1	9505-	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-805-0	02	1	9112-9307	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97105-794-0	01	1	9308-9404	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97103-723-0	01	1	9405-9504	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-723-0	01	1	9505-	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) (A)	8-97111-792-0	01	1	9505-	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) (B) SERVICED BY L=665	8-97111-793-0	01	1	9505-	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C) T=5.0	8-97069-402-0	01	1	9112-9504	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) (C) T=5.0	8-97069-402-0	01	1	9505-	●	●
15	09.211 SCREW; BRKT TO CASE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	01	1	9112-9307	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97111-703-0	01	1	9505-	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-499-1	01	1	9112-9504	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97046-499-1	01	1	9505-	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97083-136-1	01	1	9505-	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 08.855	8-97078-452-0	01	1	9112-9504	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) 08.855	8-97078-452-1	01	1	9505-	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97069-405-1	01	1	9112-9504	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60) (A)	8-97069-405-2	01	1	9505-	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97069-406-0	01	1	9112-9307	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97034-121-1	01	1	9112-9504	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97034-121-1	01	1	9505-9511	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97140-076-0	01	1	9512-	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) ID=4.5	8-94248-212-0	01	1	9112-9404	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) ID=6	8-94481-700-0	01	1	9112-9504	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=6	8-94481-700-0	01	1	9505-	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94327-421-0	01	1	9112-9303	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-275-0	01	1	9304-9404	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97112-753-0	01	1	9405-9504	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97112-753-0	01	1	9505-9602	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-97143-242-0	01	1	9603-	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94481-717-0	01	1	9112-9504	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9505-	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97127-460-0	01	1	9505-9602	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97143-363-0	01	1	9603-	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-500-0	01	1	9209-9303	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-628-1	01	1	9304-9504	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) "R-134A"	8-97095-628-1	01	1	9505-9602	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97143-364-0	01	1	9603-	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97124-432-0	01	1	9505-	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-489-0	01	1	9112-9504	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97046-489-0	01	1	9505-	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 02.559 ID=8X2	8-94344-881-1	01	1	9505-	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	1-83574-124-0	01	1	9112-9504	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	1-83574-124-1	01	1	9505-	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X14	8-94244-002-0	01	1	9112-9504	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9505-9602	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	9603-	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	5-83579-024-0	01	1	9112-9307	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97105-792-0	01	1	9308-9404	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97103-725-0	01	1	9405-9504	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-725-0	01	1	9505-	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97069-404-1	01	1	9112-9504	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	9505-	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-801-0	01	1	9112-9504	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60)	8-94324-801-0	01	1	9505-	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97125-393-0	01	1	9505-9602	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97123-946-0	01	1	9603-	●	●
54	09.172 THERMOSTAT; A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.275	8-97046-491-0	01	1	9112-9202	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.275	8-97046-491-0	01	1	9203-9303	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.275 "R-134A"	8-97087-577-0	01	1	9304-9504	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) 09.275 "R-134A"	8-97087-577-0	01	1	9505-	●	●
54	09.172 THERMOSTAT; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.275	8-94387-717-0	01	1	9112-9202	●	●
80	09.211 BRACKET AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-494-0	01	1	9112-9307	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94481-724-0	01	1	9304-9504	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9505-	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 08.852 M4X16	8-94324-850-0	06	1	9608-	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	04	1	9112-9504	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) 08.852 M4X16	8-94324-850-0	04	1	9505-	●	●

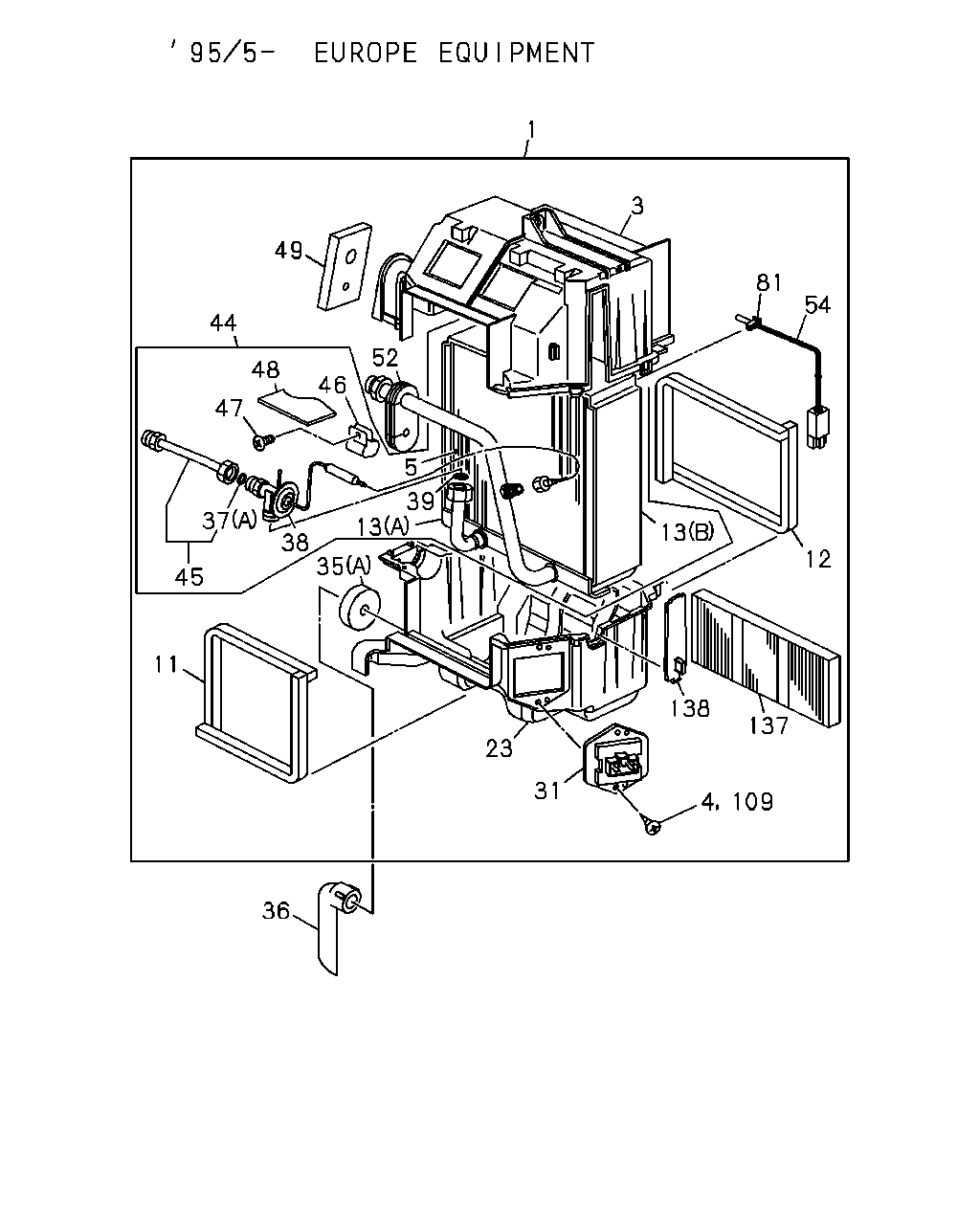

1 3 81 54 12 13 138 137 109 31 23 4 49 44 48 46 52 5 39 13 35 38 45 37 47 11 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	09.210 EVAPORATOR ASM 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94376-094-1	01	1	9112-9202	●	●
1	09.210 EVAPORATOR ASM 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94380-198-1	01	1	9112-9202	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94380-198-1	01	1	9203-9303	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-851-1	01	1	9304-9404	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97109-570-1	01	1	9405-9504	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) "R-134A"	8-97109-570-2	01	1	9505-	●	●
1	09.210 EVAPORATOR ASM AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97109-573-3	01	1	9505-	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-498-0	01	1	9112-9308	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-498-0	01	1	9309-9404	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97112-510-1	01	1	9405-9504	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97112-510-1	01	1	9505-	●	●
3	09.211 CASE; EVAP,UPR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97111-811-2	01	1	9505-	●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 08.852 M4X16	8-94324-850-0	02	1	9505-9607	●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 08.852 M4X16	8-94324-850-0	02	1	9608-	●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 08.855	8-94248-807-0	02	1	9112-9504	●	●
4	09.211 SCREW; RESISTOR TO CASE AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) 08.855	8-94248-807-0	02	1	9505-	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97124-433-0	01	1	9505-9602	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97143-359-0	01	1	9603-	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-501-0	01	1	9112-9504	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97046-501-0	01	1	9505-9602	●	●
5	09.210 EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97143-243-0	01	1	9603-	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-804-0	02	1	9112-9307	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97105-793-0	01	1	9308-9404	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97103-724-0	01	1	9405-9504	●	●
11	09.211 LINING; EVAP A/C AIR CONDITIONER MANUAL CONT(C60)	8-97103-724-0	01	1	9505-	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-805-0	02	1	9112-9307	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97105-794-0	01	1	9308-9404	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97103-723-0	01	1	9405-9504	●	●
12	09.211 LINING; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-723-0	01	1	9505-	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) (A)	8-97111-792-0	01	1	9505-	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) (B) SERVICED BY L=665	8-97111-793-0	01	1	9505-	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (C) T=5.0	8-97069-402-0	01	1	9112-9504	●	●
13	09.211 SEAL; EVAP AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) (C) T=5.0	8-97069-402-0	01	1	9505-	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97111-703-0	01	1	9505-	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-499-1	01	1	9112-9504	●	●
23	09.211 CASE; EVAP,LWR AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97046-499-1	01	1	9505-	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97083-136-1	01	1	9505-	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 08.855	8-97078-452-0	01	1	9112-9504	●	●
31	09.277 RESISTOR; POWER EVAP AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) 08.855	8-97078-452-1	01	1	9505-	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A)	8-97069-405-1	01	1	9112-9504	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60) (A)	8-97069-405-2	01	1	9505-	●	●
35	09.211 GROMMET; EVAP,LOW AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B)	8-97069-406-0	01	1	9112-9307	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97034-121-1	01	1	9112-9504	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97034-121-1	01	1	9505-9511	●	●
36	09.211 HOSE; DRAIN EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97140-076-0	01	1	9512-	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (B) ID=4.5	8-94248-212-0	01	1	9112-9404	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) (A) ID=6	8-94481-700-0	01	1	9112-9504	●	●
37	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60) (A) ID=6	8-94481-700-0	01	1	9505-	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94327-421-0	01	1	9112-9303	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97085-275-0	01	1	9304-9404	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97112-753-0	01	1	9405-9504	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60) "R-134A"	8-97112-753-0	01	1	9505-9602	●	●
38	09.213 VALVE; EXPANSION AIR CONDITIONER MANUAL CONT(C60)	8-97143-242-0	01	1	9603-	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94481-717-0	01	1	9112-9504	●	●
39	09.214 GASKET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-94481-717-0	01	1	9505-	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97127-460-0	01	1	9505-9602	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97143-363-0	01	1	9603-	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-500-0	01	1	9209-9303	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) "R-134A"	8-97095-628-1	01	1	9304-9504	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) "R-134A"	8-97095-628-1	01	1	9505-9602	●	●
44	09.210 EVAPORATOR ASM; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97143-364-0	01	1	9603-	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97124-432-0	01	1	9505-	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97046-489-0	01	1	9112-9504	●	●
45	09.220 PIPE; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	8-97046-489-0	01	1	9505-	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 02.559 ID=8X2	8-94344-881-1	01	1	9505-	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	1-83574-124-0	01	1	9112-9504	●	●
46	09.214 CLIP; EXPANSION VLV AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4)	1-83574-124-1	01	1	9505-	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) M5X14	8-94244-002-0	01	1	9112-9504	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60) M5X14	8-94244-002-0	01	1	9505-9602	●	●
47	09.214 SCREW; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97130-601-0	01	1	9603-	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	5-83579-024-0	01	1	9112-9307	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97105-792-0	01	1	9308-9404	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97103-725-0	01	1	9405-9504	●	●
48	09.214 INSULATOR; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97103-725-0	01	1	9505-	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-97069-404-1	01	1	9112-9504	●	●
49	09.211 GROMMET; EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97069-404-1	01	1	9505-	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94324-801-0	01	1	9112-9504	●	●
52	09.242 GROMMET; EVAP,A/C AIR CONDITIONER MANUAL CONT(C60)	8-94324-801-0	01	1	9505-	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97125-393-0	01	1	9505-9602	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4)	8-97123-946-0	01	1	9603-	●	●
54	09.172 THERMOSTAT; A/C 4JG2 ENG(RJC),4ZE1 ENG(RLJ),4JG1 ENG(RLT) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.275	8-97046-491-0	01	1	9112-9202	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.275	8-97046-491-0	01	1	9203-9303	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.275 "R-134A"	8-97087-577-0	01	1	9304-9504	●	●
54	09.172 THERMOSTAT; A/C AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) 09.275 "R-134A"	8-97087-577-0	01	1	9505-	●	●
54	09.172 THERMOSTAT; A/C 6VD1 SOHC ENG(RLU) AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 09.275	8-94387-717-0	01	1	9112-9202	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1)	8-94481-724-0	01	1	9304-9504	●	●
81	09.211 CLIP; THERMOSTAT A/C AIR CONDITIONER MANUAL CONT(C60)	8-94481-724-0	01	1	9505-	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 08.852 M4X16	8-94324-850-0	06	1	9608-	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(YL1) 08.852 M4X16	8-94324-850-0	04	1	9112-9504	●	●
109	09.211 BOLT; EVAP AIR CONDITIONER MANUAL CONT(C60) EXC. EUROPE EQUIPMENT(EK4) 08.852 M4X16	8-94324-850-0	04	1	9505-	●	●
137	09.210 FILTER; EVAPORATOR AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 09.264	8-97111-788-0	02	1	9505-	●	●
138	09.211 COVER; CASE AIR CONDITIONER MANUAL CONT(C60) EUROPE EQUIPMENT(EK4) 08.845	8-97111-790-0	01	1	9505-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
