0-52 — OIL AND VACUUM PIPING; ENGINE (#33116) — 129 parça
çizim 46525
339 339 332 339 338 339 331 330 331 335 26 28
BalonParca AdiParca NoAdetTipApplied Date A B
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-2 01 1 9811- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 9811- ● ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 9811- ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9811- ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 9811- ● ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 9811- ● ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 9811- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9811- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9811- ● ●

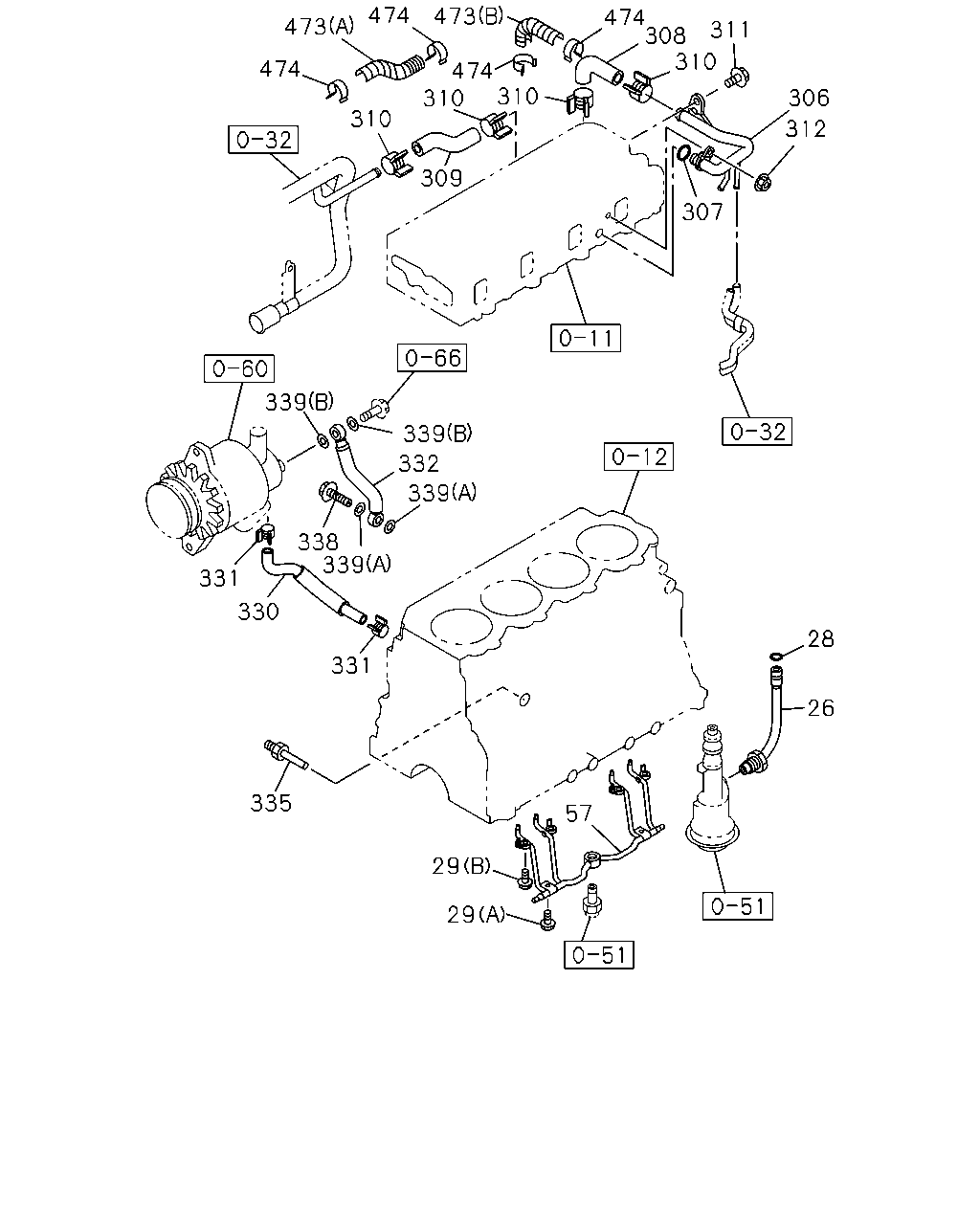

çizim 47152
474 473 474 308 310 473 311 474 474 306 310 312 309 307 339 339 332 339 338 339 331 330 28 331 26 335 57 29 29 310 310
BalonParca AdiParca NoAdetTipApplied Date A B
26 01.519 PIPE; OIL,PUMP TO C/BL 8-97080-301-2 01 1 9811- ● ●
28 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 01.516 ID=11 		5-09623-002-0 02 1 9811- ● ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9811-0004 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 0005-0202 ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 0005-0202 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0203- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0203- ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9811-0004 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 0005- ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 0005- ●
57 01.519 PIPE; OIL,OIL JET
TURBOCHARGER<K51> 		8-94469-709-3 01 1 0005- ●
57 01.519 PIPE; OIL,OIL JET 8-97043-741-2 01 1 9811- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> 		8-94450-627-0 01 1 9811- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> 		8-97225-604-1 01 1 0005-0201 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> 		8-97225-604-1 01 1 0202- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97225-604-1 01 1 0202- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97176-316-1 01 1 9811-0201 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> 		8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE 8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0106- ● ●
308 01.540 HOSE; OIL COOLER FEED
OIL COOLER<KC4> 		8-94174-464-0 01 1 9811-0004 ●
308 01.540 HOSE; OIL COOLER FEED
OIL COOLER<KC4> 		8-94174-464-0 01 1 0005-0105 ●
308 01.540 HOSE; OIL COOLER FEED
TURBOCHARGER<K51> 		8-94174-464-0 01 1 0005-0105 ●
308 01.540 HOSE; OIL COOLER FEED 8-94174-464-0 01 1 0106- ●
308 01.540 HOSE; OIL COOLER FEED 8-97078-193-3 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN
OIL COOLER<KC4> 		8-97022-314-0 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> 		8-97224-318-0 01 1 0005- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97147-960-0 01 1 9811- ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> 01.166 ID=20.8 		8-94125-862-1 04 1 9811-0105 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 9811-0105 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 0106- ● ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0105 ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0105 ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0106- ● ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0105 ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0105 ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 0106- ● ●
330 03.278 HOSE; VAC PUMP,RETURN 8-97073-920-1 01 1 9811- ● ●
331 03.278 CLAMP; VAC HOSE,PUMP RETURN 8-97108-102-0 02 1 9811- ● ●
332 01.519 PIPE; OIL,C/BL TO VAC PUMP 8-94443-644-1 01 1 9811- ● ●
335 01.531 STOPPER; OIL PIPE 8-97203-568-0 01 1 9811- ● ●
338 01.531 BOLT; JOINT,OIL PIPE
M8X20 EYE-BOLT 		5-09675-018-1 01 1 9811- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 05.398 (A) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 02 1 9811- ● ●
339 01.531 GASKET; OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 9811- ● ●
473 01.540 INSULATOR; HOSE
TURBOCHARGER<K51> (C) 		8-97101-331-0 02 1 0005- ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 9811- ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 9811- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 9811-0004 ●
474 01.540 CLIP; INSULATOR
TURBOCHARGER<K51> 		8-97101-337-0 04 1 0005- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 0005- ●
çizim 47153
308 310 309 473 310 310 474 310 474 306 58 29 29 57
BalonParca AdiParca NoAdetTipApplied Date A B
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 9811-0004 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 0005-0202 ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 02 1 0005-0202 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0203- ●
29 01.531 BOLT; OIL PIPE,OIL JET
00.206 (A) M8X10 FLANGE 		0-28080-810-0 01 1 0203- ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 9811-0004 ●
29 01.531 BOLT; OIL PIPE,OIL JET
TURBOCHARGER<K51> 01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 0005- ●
29 01.531 BOLT; OIL PIPE,OIL JET
01.540 (B) M6X25 W/LK&PL WASHER 		0-50140-625-0 04 1 0005- ●
57 01.519 PIPE; OIL,OIL JET
TURBOCHARGER<K51> 		8-94469-709-3 01 1 0005- ●
57 01.519 PIPE; OIL,OIL JET 8-97043-741-2 01 1 9811- ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
TURBOCHARGER<K51> 		8-97145-612-0 01 1 0005-0104 ●
58 01.531 VALVE; RELIEF,OIL JET,PISTON COO
TURBOCHARGER<K51> 01.639 		8-97311-976-0 01 1 0105- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> 		8-94450-627-0 01 1 9811- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> 		8-97225-604-1 01 1 0005-0201 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> 		8-97225-604-1 01 1 0202- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97225-604-1 01 1 0202- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97176-316-1 01 1 9811-0201 ●
308 01.540 HOSE; OIL COOLER FEED
OIL COOLER<KC4> 		8-94174-464-0 01 1 9811-0004 ●
308 01.540 HOSE; OIL COOLER FEED
OIL COOLER<KC4> 		8-94174-464-0 01 1 0005-0105 ●
308 01.540 HOSE; OIL COOLER FEED
TURBOCHARGER<K51> 		8-94174-464-0 01 1 0005-0105 ●
308 01.540 HOSE; OIL COOLER FEED 8-94174-464-0 01 1 0106- ●
308 01.540 HOSE; OIL COOLER FEED 8-97078-193-3 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN
OIL COOLER<KC4> 		8-97022-314-0 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> 		8-97224-318-0 01 1 0005- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97147-960-0 01 1 9811- ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> 01.166 ID=20.8 		8-94125-862-1 04 1 9811-0105 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 9811-0105 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 0106- ● ●
473 01.540 INSULATOR; HOSE
TURBOCHARGER<K51> (C) 		8-97101-331-0 02 1 0005- ●
473 01.540 INSULATOR; HOSE
(A) 		8-97101-331-0 01 1 9811- ●
473 01.540 INSULATOR; HOSE
(B) 		8-97101-333-1 01 1 9811- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 9811-0004 ●
474 01.540 CLIP; INSULATOR
TURBOCHARGER<K51> 		8-97101-337-0 04 1 0005- ●
474 01.540 CLIP; INSULATOR 8-97101-337-0 04 1 0005- ●

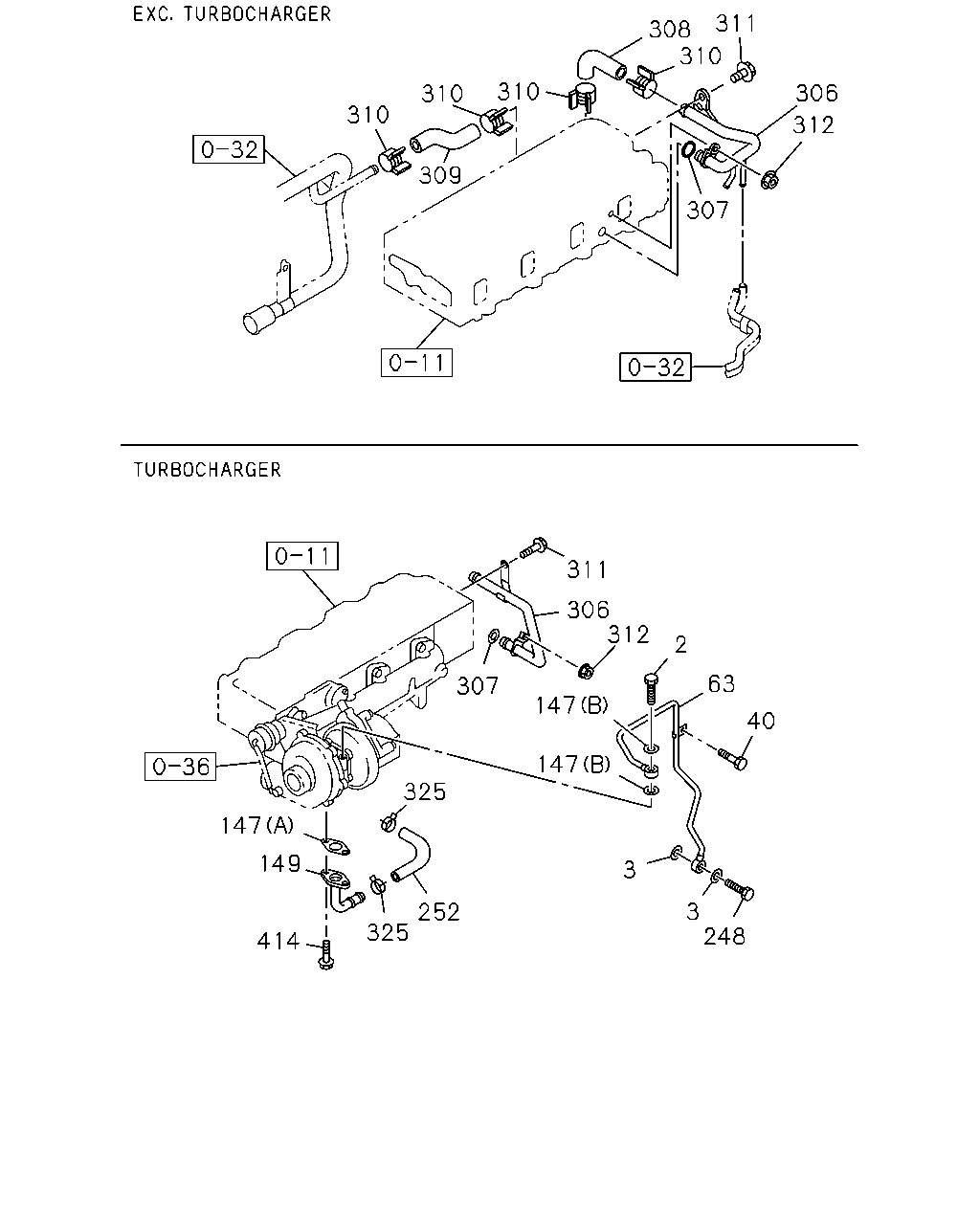

çizim 47689
311 308 310 310 306 310 310 312 309 307 311 306 312 2 63 307 147 40 147 325 147 149 3 3 248 252 325 414
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.531 BOLT; EYE,OIL PIPE
TURBOCHARGER<K51> 03.358 M10X23 FLANGE 		8-94332-831-1 01 1 0005- ●
3 01.531 GASKET; EYE BOLT,OIL PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 08.955 ID=14.2 OD=20.0 		9-09571-414-0 02 1 0005- ●
40 01.531 BOLT; OIL PIPE
TURBOCHARGER<K51> 02.500 M6X10 FLANGE 		0-28080-610-0 01 1 0005- ●
63 01.519 PIPE; OIL,TURBOCHARGER FEED
TURBOCHARGER<K51> 		8-97224-297-0 01 1 0005- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 03.358 (A) 		8-94362-672-0 01 1 0005- ●
147 01.531 GASKET; OIL PIPE TO TURBOCHARGER
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 08.955 (B) ID=10.2 OD=16.0 		9-09571-410-0 02 1 0005- ●
149 01.519 PIPE; OIL RETURN,TURBOCHARGER
TURBOCHARGER<K51> 		8-97192-313-0 01 1 0005- ●
248 01.519 CONNECTOR; TURBOCHARGER OIL FEED
TURBOCHARGER<K51> 03.162 M14X27 FLANGE 		1-09675-086-0 01 1 0005- ●
252 01.855 HOSE; RUBBER,TURBOCHARGER RETURN
TURBOCHARGER<K51> 		8-97176-141-0 01 1 0005- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
OIL COOLER<KC4> 		8-94450-627-0 01 1 9811- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> 		8-97225-604-1 01 1 0005-0201 ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER
TURBOCHARGER<K51> 		8-97225-604-1 01 1 0202- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97225-604-1 01 1 0202- ●
306 01.519 PIPE ASM; CYL HD TO OIL COOLER 8-97176-316-1 01 1 9811-0201 ●
307 01.531 GASKET; WATER PIPE
OIL COOLER<KC4> 		8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE 8-97124-640-0 01 1 9811-0105 ●
307 01.531 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97264-168-0 01 1 0106- ● ●
308 01.540 HOSE; OIL COOLER FEED
OIL COOLER<KC4> 		8-94174-464-0 01 1 9811-0004 ●
308 01.540 HOSE; OIL COOLER FEED
OIL COOLER<KC4> 		8-94174-464-0 01 1 0005-0105 ●
308 01.540 HOSE; OIL COOLER FEED
TURBOCHARGER<K51> 		8-94174-464-0 01 1 0005-0105 ●
308 01.540 HOSE; OIL COOLER FEED 8-94174-464-0 01 1 0106- ●
308 01.540 HOSE; OIL COOLER FEED 8-97078-193-3 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN
OIL COOLER<KC4> 		8-97022-314-0 01 1 9811- ●
309 01.540 HOSE; OIL COOLER RETURN
TURBOCHARGER<K51> 		8-97224-318-0 01 1 0005- ●
309 01.540 HOSE; OIL COOLER RETURN 8-97147-960-0 01 1 9811- ●
310 01.540 CLIP; WATER HOSE FIX
OIL COOLER<KC4> 01.166 ID=20.8 		8-94125-862-1 04 1 9811-0105 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 9811-0105 ●
310 01.540 CLIP; WATER HOSE FIX
01.166 ID=20.8 		8-94125-862-1 04 1 0106- ● ●
311 01.531 BOLT; PIPE FIX
OIL COOLER<KC4> 00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0105 ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 9811-0105 ●
311 01.531 BOLT; PIPE FIX
00.662 M8X14 FLANGE 		0-28080-814-0 01 1 0106- ● ●
312 01.531 NUT; PIPE FIX
OIL COOLER<KC4> 00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0105 ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 9811-0105 ●
312 01.531 NUT; PIPE FIX
00.854 M8 FLANGE 		5-09440-005-0 01 1 0106- ● ●
325 01.519 CLIP; RUBBER HOSE,OIL RETURN
TURBOCHARGER<K51> 01.166 ID=20.8 		8-94125-862-1 02 1 0005- ●
414 01.531 BOLT; OIL PIPE
TURBOCHARGER<K51> 02.559 M6X20 W/LK&PL WASHER 		0-50140-620-0 02 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
