0-51 — OIL PUMP AND OIL STRAINER (#33115) — 15 parça

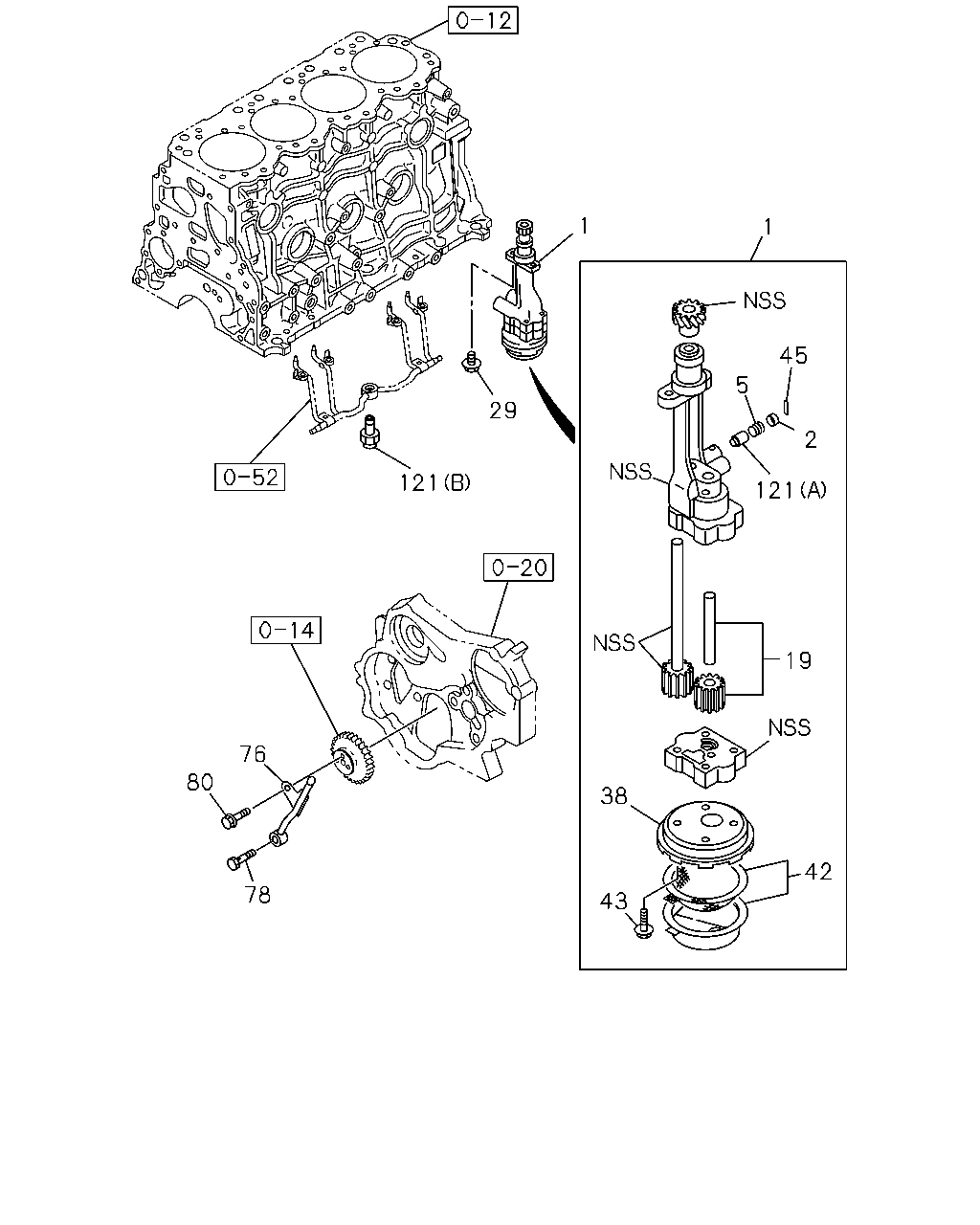

çizim 44735
1 1 45 5 29 2 121 121 19 76 80 38 42 78 43
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.652 PUMP ASM; OIL 8-97033-175-4 01 1 9811- ● ●
2 01.609 SEAT; SPR 5-13165-004-0 01 1 9811- ● ●
5 01.609 SPRING; COIL 8-97036-834-0 01 1 9811- ● ●
19 01.639 GEAR SET; OIL PUMP 8-94384-778-1 01 1 9811- ● ●
29 01.652 BOLT; OIL PUMP
01.531 M8X25 FLANGE 		0-28080-825-0 02 1 9811- ● ●
38 01.657 CASE; OIL STRAINER 8-97036-832-0 01 1 9811- ● ●
42 01.656 STRAINER; OIL,OIL PUMP 8-97038-379-0 01 1 9811- ● ●
43 01.656 BOLT; CASE
04.866 M8X30 FLANGE 		0-28010-830-0 04 1 9811- ● ●
45 01.609 PIN; SPLIT,RELIEF VLV
06.022 L=30 		9-08104-030-0 01 1 9811- ● ●
76 01.519 PIPE ASM; OIL 8-97160-706-0 01 1 9811- ●
78 01.531 BOLT; EYE JOINT,OIL PIPE
M8X23 FLANGE 		8-94454-199-0 01 1 9811- ●
80 01.531 BOLT; OIL PIPE FIX
00.727 M8X22 W/LK WASHER 		0-50040-822-0 01 1 9811- ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.837 (A) 		8-94235-567-1 01 1 9811- ● ●
121 01.639 VALVE; RELIEF,OIL PUMP
01.531 (B) 		8-97145-612-0 01 1 9811-0104 ●
121 01.639 VALVE; RELIEF,OIL PUMP
(B) 		8-97311-976-0 01 1 0105- ●
