◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 50808 - NHR ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶
0-50 — OIL COOLER AND OIL FILTER (#33114) — 235 parça
çizim 9381
272 1 329 1 329 11 9 62 63 64 2 67 70 65
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.540 FILTER & COOLER ASM; OIL
OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> 		8-94144-296-1 01 1 9811-0004 ●
1 01.540 FILTER & COOLER ASM; OIL
OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51> 		8-94144-296-2 01 1 0005-0212 ●
1 01.540 FILTER & COOLER ASM; OIL
OIL COOLER<KC4> EXC. PARTIAL OIL FILTER<S6A> 		8-94327-272-1 01 1 9811-0004 ●
1 01.540 FILTER & COOLER ASM; OIL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A> 		8-94327-272-1 01 1 0005-0212 ●
1 01.540 FILTER & COOLER ASM; OIL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94327-272-1 01 1 0301- ●
1 01.540 FILTER & COOLER ASM; OIL
TURBOCHARGER<K51> 		8-97224-298-1 01 1 0005- ●
1 01.540 FILTER & COOLER ASM; OIL 8-97120-286-3 01 1 9811- ●
2 01.836 ELEMENT; OIL FILTER
TURBOCHARGER<K51> 		8-97329-911-0 01 1 0205- ●
2 01.836 ELEMENT; OIL FILTER
PARTIAL OIL FILTER<S6A> 		8-94423-701-0 01 1 9811-0005 ●
2 01.836 ELEMENT; OIL FILTER
PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51> 		8-94423-701-0 01 1 0006-0204 ●
2 01.836 ELEMENT; OIL FILTER
PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51> 		8-97331-292-0 01 1 0205-0212 ●
2 01.836 ELEMENT; OIL FILTER
EXC. PARTIAL OIL FILTER<S6A> 		8-97049-708-0 01 1 9811-0004 ●
2 01.836 ELEMENT; OIL FILTER
EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A> 		8-97049-708-0 01 1 0005-0212 ●
2 01.836 ELEMENT; OIL FILTER
EXC. TURBOCHARGER<K51> 		8-97049-708-1 01 1 0301- ●
2 01.836 ELEMENT; OIL FILTER 8-94340-697-1 01 1 9811-0004 ●
2 01.836 ELEMENT; OIL FILTER
TURBOCHARGER<K51> 		8-94340-697-1 01 1 0005-0204 ●
2 01.836 ELEMENT; OIL FILTER 8-94340-697-1 01 1 0005-0204 ●
2 01.836 ELEMENT; OIL FILTER 8-94340-697-1 01 1 0205-0206 ●
2 01.836 ELEMENT; OIL FILTER
01.826 		8-97301-752-0 01 1 0207- ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97047-000-0 01 1 9811-0004 ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 		8-97047-000-0 01 1 0005- ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97047-000-0 01 1 0005- ●
11 01.840 BOLT; CENTER 8-97144-713-0 01 1 9811-0004 ●
11 01.840 BOLT; CENTER
TURBOCHARGER<K51> 		8-97144-713-0 01 1 0005- ●
11 01.840 BOLT; CENTER 8-97144-713-0 01 1 0005- ●
62 01.540 COOLER ASM; OIL
OIL COOLER<KC4> 		8-94401-680-0 01 1 9811-9910 ●
62 01.540 COOLER ASM; OIL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94401-680-0 01 1 9911- ●
62 01.540 COOLER ASM; OIL
TURBOCHARGER<K51> 		8-97226-391-0 01 1 0005- ●
62 01.540 COOLER ASM; OIL 8-97144-716-1 01 1 9811- ●
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 9811- ● ●
64 01.540 BODY; OIL FILTER & OIL COOLER
OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> 		8-94423-698-1 01 1 9811-9910 ●
64 01.540 BODY; OIL FILTER & OIL COOLER
OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51> 		8-94423-698-2 01 1 9911-0212 ●
64 01.540 BODY; OIL FILTER & OIL COOLER
OIL COOLER<KC4> EXC. PARTIAL OIL FILTER<S6A> 		8-97081-756-0 01 1 9811-9910 ●
64 01.540 BODY; OIL FILTER & OIL COOLER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A> 		8-97081-756-0 01 1 9911-0212 ●
64 01.540 BODY; OIL FILTER & OIL COOLER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97081-756-0 01 1 0301- ●
64 01.540 BODY; OIL FILTER & OIL COOLER
TURBOCHARGER<K51> 		8-97166-497-1 01 1 0005- ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97144-712-0 01 1 9811- ●
65 01.540 VALVE; OIL COOLER
OIL COOLER<KC4> 01.837 		8-94167-882-0 01 1 9811-9910 ●
65 01.540 VALVE; OIL COOLER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.837 		8-94167-882-0 01 1 9911- ●
65 01.540 VALVE; OIL COOLER 8-94450-772-0 01 1 9811-0004 ●
65 01.540 VALVE; OIL COOLER
TURBOCHARGER<K51> 		8-94450-772-0 01 1 0005- ●
65 01.540 VALVE; OIL COOLER 8-94450-772-0 01 1 0005- ●
67 01.550 GASKET; VLV
01.837 		9-09920-975-0 01 1 9811-0004 ●
67 01.550 GASKET; VLV
TURBOCHARGER<K51> 01.837 		9-09920-975-0 01 1 0005- ●
67 01.550 GASKET; VLV
01.837 		9-09920-975-0 01 1 0005- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (A) ID=13.6 		8-94167-884-0 01 1 9811-9910 ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (A) ID=13.6 		8-94167-884-0 01 1 9911- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (B) ID=8.8 		8-94167-885-0 01 1 9811-9910 ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (B) ID=8.8 		8-94167-885-0 01 1 9911- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (C) ID=6.8 		8-94167-886-0 01 1 9811-9910 ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) ID=6.8 		8-94167-886-0 01 1 9911- ●
70 01.844 GASKET; PLUG,OIL FILTER
(D) 		9-09921-193-0 01 1 9811-0004 ●
70 01.844 GASKET; PLUG,OIL FILTER
TURBOCHARGER<K51> (D) 		9-09921-193-0 01 1 0005- ●
70 01.844 GASKET; PLUG,OIL FILTER
(D) 		9-09921-193-0 01 1 0005- ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-0 01 1 9811- ● ●
329 01.840 BOLT; OIL FILTER
00.780 (C) M8X30 W/LK WASHER 		0-50040-830-0 04 1 9811-9906 ●
329 01.840 BOLT; OIL FILTER
01.531 (C) M8X25 FLANGE 		0-28080-825-0 04 1 9907-0004 ●
329 01.840 BOLT; OIL FILTER
EXC. TURBOCHARGER<K51> 01.531 (C) M8X25 FLANGE 		0-28080-825-0 04 1 0005- ●
329 01.840 BOLT; OIL FILTER
01.540 (A) M8X35 W/LK WASHER 		0-50040-835-0 02 1 9811-9906 ●
329 01.840 BOLT; OIL FILTER
00.004 (A) M8X32 FLANGE 		0-28080-832-0 02 1 9907-0004 ●
329 01.840 BOLT; OIL FILTER
TURBOCHARGER<K51> 00.004 (A) M8X32 FLANGE 		0-28080-832-0 02 1 0005- ●
329 01.840 BOLT; OIL FILTER
00.004 (A) M8X32 FLANGE 		0-28080-832-0 02 1 0005- ●
329 01.840 BOLT; OIL FILTER
00.206 (B) M8X65 W/LK WASHER 		8-94205-986-1 02 1 9811-9903 ●
329 01.840 BOLT; OIL FILTER
01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 9904-0004 ●
329 01.840 BOLT; OIL FILTER
TURBOCHARGER<K51> 01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 0005- ●
329 01.840 BOLT; OIL FILTER
01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 0005- ●

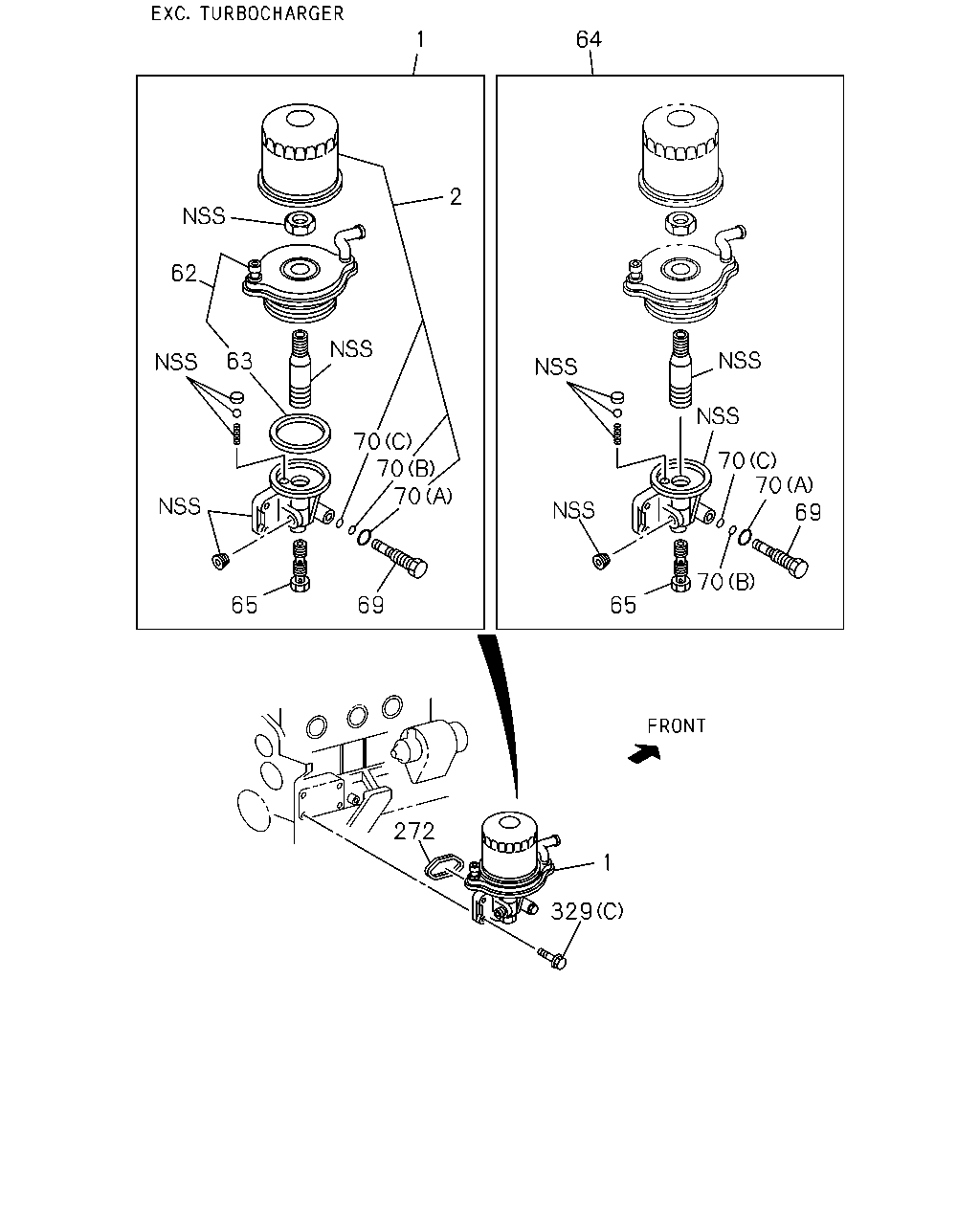

çizim 46554
64 1 2 62 63 70 70 70 70 70 69 70 65 69 65 272 1 329
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.540 FILTER & COOLER ASM; OIL
OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> 		8-94144-296-1 01 1 9811-0004 ●
1 01.540 FILTER & COOLER ASM; OIL
OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51> 		8-94144-296-2 01 1 0005-0212 ●
1 01.540 FILTER & COOLER ASM; OIL
OIL COOLER<KC4> EXC. PARTIAL OIL FILTER<S6A> 		8-94327-272-1 01 1 9811-0004 ●
1 01.540 FILTER & COOLER ASM; OIL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A> 		8-94327-272-1 01 1 0005-0212 ●
1 01.540 FILTER & COOLER ASM; OIL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94327-272-1 01 1 0301- ●
1 01.540 FILTER & COOLER ASM; OIL
TURBOCHARGER<K51> 		8-97224-298-1 01 1 0005- ●
1 01.540 FILTER & COOLER ASM; OIL 8-97120-286-3 01 1 9811- ●
2 01.836 ELEMENT; OIL FILTER
TURBOCHARGER<K51> 		8-97329-911-0 01 1 0205- ●
2 01.836 ELEMENT; OIL FILTER
PARTIAL OIL FILTER<S6A> 		8-94423-701-0 01 1 9811-0005 ●
2 01.836 ELEMENT; OIL FILTER
PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51> 		8-94423-701-0 01 1 0006-0204 ●
2 01.836 ELEMENT; OIL FILTER
PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51> 		8-97331-292-0 01 1 0205-0212 ●
2 01.836 ELEMENT; OIL FILTER
EXC. PARTIAL OIL FILTER<S6A> 		8-97049-708-0 01 1 9811-0004 ●
2 01.836 ELEMENT; OIL FILTER
EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A> 		8-97049-708-0 01 1 0005-0212 ●
2 01.836 ELEMENT; OIL FILTER
EXC. TURBOCHARGER<K51> 		8-97049-708-1 01 1 0301- ●
2 01.836 ELEMENT; OIL FILTER 8-94340-697-1 01 1 9811-0004 ●
2 01.836 ELEMENT; OIL FILTER
TURBOCHARGER<K51> 		8-94340-697-1 01 1 0005-0204 ●
2 01.836 ELEMENT; OIL FILTER 8-94340-697-1 01 1 0005-0204 ●
2 01.836 ELEMENT; OIL FILTER 8-94340-697-1 01 1 0205-0206 ●
2 01.836 ELEMENT; OIL FILTER
01.826 		8-97301-752-0 01 1 0207- ●
62 01.540 COOLER ASM; OIL
OIL COOLER<KC4> 		8-94401-680-0 01 1 9811-9910 ●
62 01.540 COOLER ASM; OIL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94401-680-0 01 1 9911- ●
62 01.540 COOLER ASM; OIL
TURBOCHARGER<K51> 		8-97226-391-0 01 1 0005- ●
62 01.540 COOLER ASM; OIL 8-97144-716-1 01 1 9811- ●
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 9811- ● ●
64 01.540 BODY; OIL FILTER & OIL COOLER
OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> 		8-94423-698-1 01 1 9811-9910 ●
64 01.540 BODY; OIL FILTER & OIL COOLER
OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51> 		8-94423-698-2 01 1 9911-0212 ●
64 01.540 BODY; OIL FILTER & OIL COOLER
OIL COOLER<KC4> EXC. PARTIAL OIL FILTER<S6A> 		8-97081-756-0 01 1 9811-9910 ●
64 01.540 BODY; OIL FILTER & OIL COOLER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A> 		8-97081-756-0 01 1 9911-0212 ●
64 01.540 BODY; OIL FILTER & OIL COOLER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97081-756-0 01 1 0301- ●
64 01.540 BODY; OIL FILTER & OIL COOLER
TURBOCHARGER<K51> 		8-97166-497-1 01 1 0005- ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97144-712-0 01 1 9811- ●
65 01.540 VALVE; OIL COOLER
OIL COOLER<KC4> 01.837 		8-94167-882-0 01 1 9811-9910 ●
65 01.540 VALVE; OIL COOLER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.837 		8-94167-882-0 01 1 9911- ●
65 01.540 VALVE; OIL COOLER 8-94450-772-0 01 1 9811-0004 ●
65 01.540 VALVE; OIL COOLER
TURBOCHARGER<K51> 		8-94450-772-0 01 1 0005- ●
65 01.540 VALVE; OIL COOLER 8-94450-772-0 01 1 0005- ●
69 01.837 PLUG; BODY,OIL FILTER
OIL COOLER<KC4> 		8-94167-883-0 01 1 9811-9910 ●
69 01.837 PLUG; BODY,OIL FILTER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94167-883-0 01 1 9911- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (A) ID=13.6 		8-94167-884-0 01 1 9811-9910 ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (A) ID=13.6 		8-94167-884-0 01 1 9911- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (B) ID=8.8 		8-94167-885-0 01 1 9811-9910 ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (B) ID=8.8 		8-94167-885-0 01 1 9911- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (C) ID=6.8 		8-94167-886-0 01 1 9811-9910 ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) ID=6.8 		8-94167-886-0 01 1 9911- ●
70 01.844 GASKET; PLUG,OIL FILTER
(D) 		9-09921-193-0 01 1 9811-0004 ●
70 01.844 GASKET; PLUG,OIL FILTER
TURBOCHARGER<K51> (D) 		9-09921-193-0 01 1 0005- ●
70 01.844 GASKET; PLUG,OIL FILTER
(D) 		9-09921-193-0 01 1 0005- ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-0 01 1 9811- ● ●
329 01.840 BOLT; OIL FILTER
00.780 (C) M8X30 W/LK WASHER 		0-50040-830-0 04 1 9811-9906 ●
329 01.840 BOLT; OIL FILTER
01.531 (C) M8X25 FLANGE 		0-28080-825-0 04 1 9907-0004 ●
329 01.840 BOLT; OIL FILTER
EXC. TURBOCHARGER<K51> 01.531 (C) M8X25 FLANGE 		0-28080-825-0 04 1 0005- ●
329 01.840 BOLT; OIL FILTER
01.540 (A) M8X35 W/LK WASHER 		0-50040-835-0 02 1 9811-9906 ●
329 01.840 BOLT; OIL FILTER
00.004 (A) M8X32 FLANGE 		0-28080-832-0 02 1 9907-0004 ●
329 01.840 BOLT; OIL FILTER
TURBOCHARGER<K51> 00.004 (A) M8X32 FLANGE 		0-28080-832-0 02 1 0005- ●
329 01.840 BOLT; OIL FILTER
00.004 (A) M8X32 FLANGE 		0-28080-832-0 02 1 0005- ●
329 01.840 BOLT; OIL FILTER
00.206 (B) M8X65 W/LK WASHER 		8-94205-986-1 02 1 9811-9903 ●
329 01.840 BOLT; OIL FILTER
01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 9904-0004 ●
329 01.840 BOLT; OIL FILTER
TURBOCHARGER<K51> 01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 0005- ●
329 01.840 BOLT; OIL FILTER
01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 0005- ●

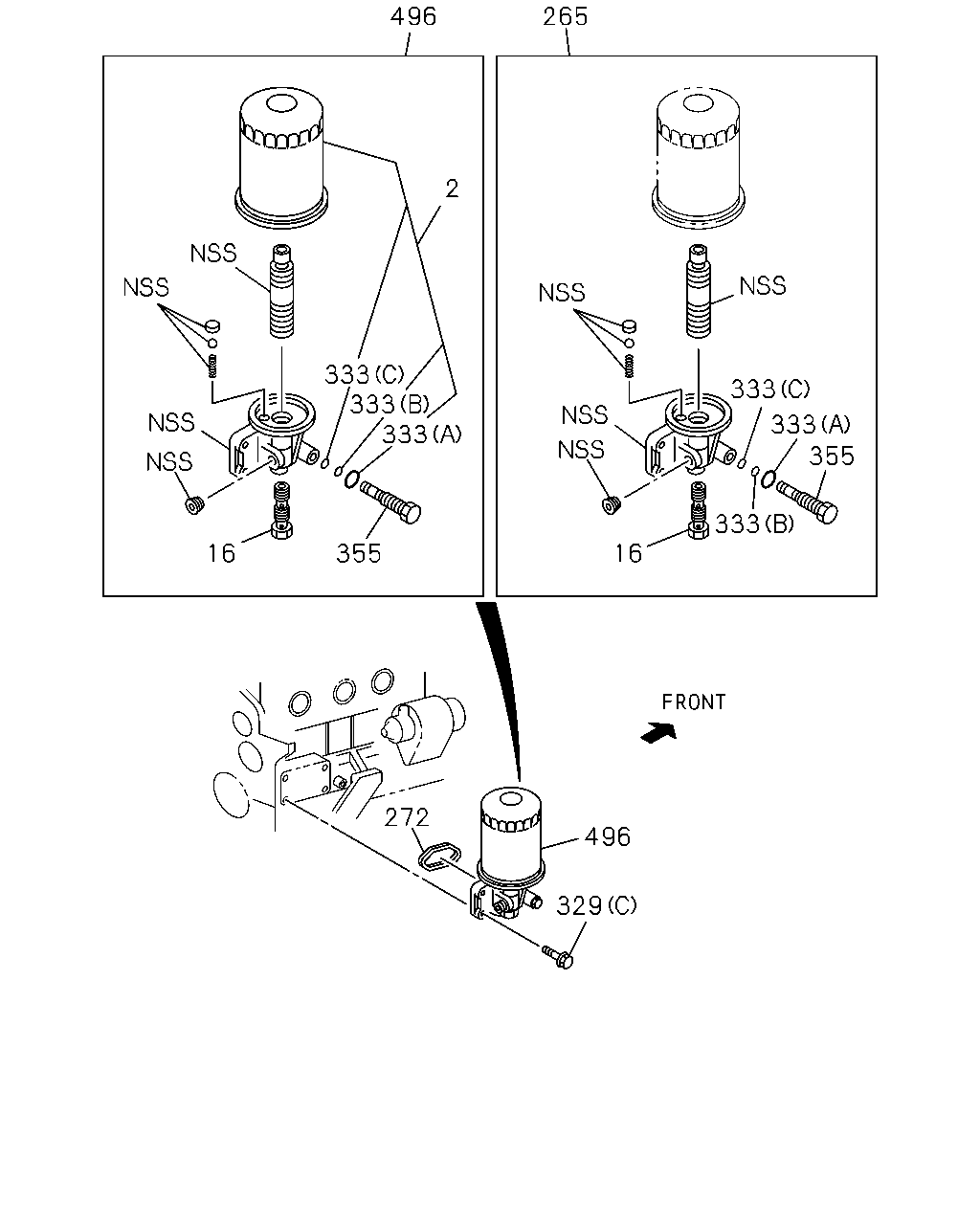

çizim 46647
496 265 2 333 333 333 333 333 355 333 16 355 16 272 496 329
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.836 ELEMENT; OIL FILTER
TURBOCHARGER<K51> 		8-97329-911-0 01 1 0205- ●
2 01.836 ELEMENT; OIL FILTER
PARTIAL OIL FILTER<S6A> 		8-94423-701-0 01 1 9811-0005 ●
2 01.836 ELEMENT; OIL FILTER
PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51> 		8-94423-701-0 01 1 0006-0204 ●
2 01.836 ELEMENT; OIL FILTER
PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51> 		8-97331-292-0 01 1 0205-0212 ●
2 01.836 ELEMENT; OIL FILTER
EXC. PARTIAL OIL FILTER<S6A> 		8-97049-708-0 01 1 9811-0004 ●
2 01.836 ELEMENT; OIL FILTER
EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A> 		8-97049-708-0 01 1 0005-0212 ●
2 01.836 ELEMENT; OIL FILTER
EXC. TURBOCHARGER<K51> 		8-97049-708-1 01 1 0301- ●
2 01.836 ELEMENT; OIL FILTER 8-94340-697-1 01 1 9811-0004 ●
2 01.836 ELEMENT; OIL FILTER
TURBOCHARGER<K51> 		8-94340-697-1 01 1 0005-0204 ●
2 01.836 ELEMENT; OIL FILTER 8-94340-697-1 01 1 0005-0204 ●
2 01.836 ELEMENT; OIL FILTER 8-94340-697-1 01 1 0205-0206 ●
2 01.836 ELEMENT; OIL FILTER
01.826 		8-97301-752-0 01 1 0207- ●
16 01.540 VALVE ASM; RELIEF
EXC. OIL COOLER<KC4> 01.837 		8-94167-882-0 01 1 9811-9910 ●
16 01.540 VALVE ASM; RELIEF
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 01.837 		8-94167-882-0 01 1 9911- ●
265 01.837 BODY; OIL FILTER
EXC. OIL COOLER<KC4>,PARTIAL OIL FILTER<S6A> 		8-94329-622-0 01 1 9811-0004 ●
265 01.837 BODY; OIL FILTER
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51>, PARTIAL OIL FILTER<S6A> 		8-94329-622-0 01 1 0005-0212 ●
265 01.837 BODY; OIL FILTER
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 		8-94329-622-1 01 1 0301- ●
265 01.837 BODY; OIL FILTER
PARTIAL OIL FILTER<S6A> EXC. OIL COOLER<KC4> 01.540 		8-94423-698-1 01 1 9811-0004 ●
265 01.837 BODY; OIL FILTER
PARTIAL OIL FILTER<S6A> EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 01.540 		8-94423-698-2 01 1 0005-0212 ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-0 01 1 9811- ● ●
329 01.840 BOLT; OIL FILTER
00.780 (C) M8X30 W/LK WASHER 		0-50040-830-0 04 1 9811-9906 ●
329 01.840 BOLT; OIL FILTER
01.531 (C) M8X25 FLANGE 		0-28080-825-0 04 1 9907-0004 ●
329 01.840 BOLT; OIL FILTER
EXC. TURBOCHARGER<K51> 01.531 (C) M8X25 FLANGE 		0-28080-825-0 04 1 0005- ●
329 01.840 BOLT; OIL FILTER
01.540 (A) M8X35 W/LK WASHER 		0-50040-835-0 02 1 9811-9906 ●
329 01.840 BOLT; OIL FILTER
00.004 (A) M8X32 FLANGE 		0-28080-832-0 02 1 9907-0004 ●
329 01.840 BOLT; OIL FILTER
TURBOCHARGER<K51> 00.004 (A) M8X32 FLANGE 		0-28080-832-0 02 1 0005- ●
329 01.840 BOLT; OIL FILTER
00.004 (A) M8X32 FLANGE 		0-28080-832-0 02 1 0005- ●
329 01.840 BOLT; OIL FILTER
00.206 (B) M8X65 W/LK WASHER 		8-94205-986-1 02 1 9811-9903 ●
329 01.840 BOLT; OIL FILTER
01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 9904-0004 ●
329 01.840 BOLT; OIL FILTER
TURBOCHARGER<K51> 01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 0005- ●
329 01.840 BOLT; OIL FILTER
01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 0005- ●
333 01.844 GASKET; OIL FILTER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. OIL COOLER<KC4> (A) ID=13.6 		8-94167-884-0 01 1 9811-9910 ●
333 01.844 GASKET; OIL FILTER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (A) ID=13.6 		8-94167-884-0 01 1 9911- ●
333 01.844 GASKET; OIL FILTER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. OIL COOLER<KC4> (B) ID=8.8 		8-94167-885-0 01 1 9811-9910 ●
333 01.844 GASKET; OIL FILTER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (B) ID=8.8 		8-94167-885-0 01 1 9911- ●
333 01.844 GASKET; OIL FILTER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. OIL COOLER<KC4> (C) ID=6.8 		8-94167-886-0 01 1 9811-9910 ●
333 01.844 GASKET; OIL FILTER
ALSO INCLUDED IN GASKET SET(ENGINE). EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> (C) ID=6.8 		8-94167-886-0 01 1 9911- ●
355 01.837 PLUG; OIL PRESS
EXC. OIL COOLER<KC4> 		8-94167-883-0 01 1 9811-9910 ●
355 01.837 PLUG; OIL PRESS
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 		8-94167-883-0 01 1 9911- ●
496 01.835 FILTER ASM; OIL
EXC. OIL COOLER<KC4>,PARTIAL OIL FILTER<S6A> 		8-94462-137-1 01 1 9811-9910 ●
496 01.835 FILTER ASM; OIL
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51>, PARTIAL OIL FILTER<S6A> 		8-94462-137-1 01 1 9911-0212 ●
496 01.835 FILTER ASM; OIL
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 		8-94462-137-2 01 1 0301- ●
496 01.835 FILTER ASM; OIL
PARTIAL OIL FILTER<S6A> EXC. OIL COOLER<KC4> 		8-94144-297-1 01 1 9811-9910 ●
496 01.835 FILTER ASM; OIL
PARTIAL OIL FILTER<S6A> EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 		8-94144-297-2 01 1 9911-0212 ●

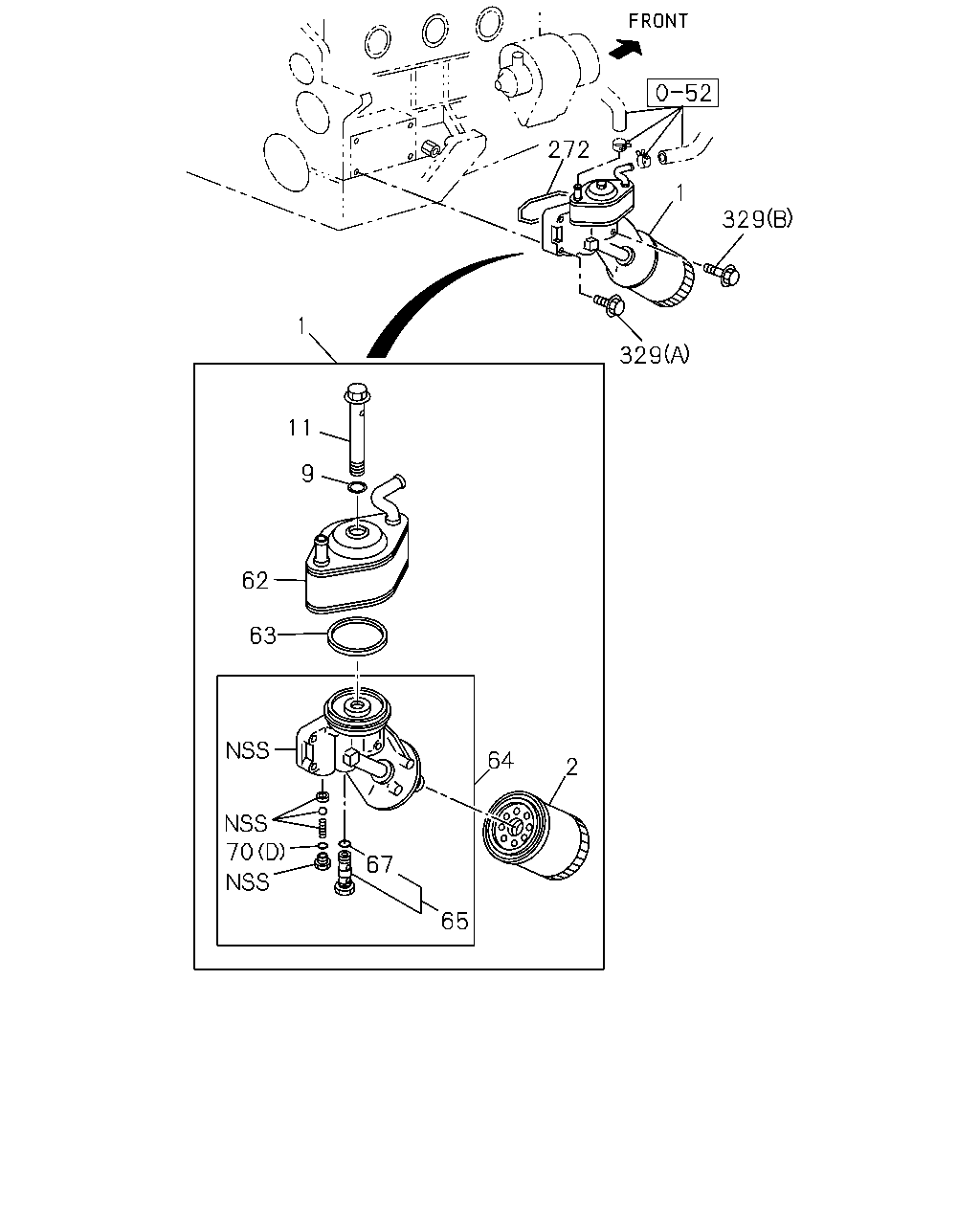

çizim 47150
272 1 329 1 329 11 9 62 63 64 2 70 67 65
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.540 FILTER & COOLER ASM; OIL
OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> 		8-94144-296-1 01 1 9811-0004 ●
1 01.540 FILTER & COOLER ASM; OIL
OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51> 		8-94144-296-2 01 1 0005-0212 ●
1 01.540 FILTER & COOLER ASM; OIL
OIL COOLER<KC4> EXC. PARTIAL OIL FILTER<S6A> 		8-94327-272-1 01 1 9811-0004 ●
1 01.540 FILTER & COOLER ASM; OIL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A> 		8-94327-272-1 01 1 0005-0212 ●
1 01.540 FILTER & COOLER ASM; OIL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94327-272-1 01 1 0301- ●
1 01.540 FILTER & COOLER ASM; OIL
TURBOCHARGER<K51> 		8-97224-298-1 01 1 0005- ●
1 01.540 FILTER & COOLER ASM; OIL 8-97120-286-3 01 1 9811- ●
2 01.836 ELEMENT; OIL FILTER
TURBOCHARGER<K51> 		8-97329-911-0 01 1 0205- ●
2 01.836 ELEMENT; OIL FILTER
PARTIAL OIL FILTER<S6A> 		8-94423-701-0 01 1 9811-0005 ●
2 01.836 ELEMENT; OIL FILTER
PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51> 		8-94423-701-0 01 1 0006-0204 ●
2 01.836 ELEMENT; OIL FILTER
PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51> 		8-97331-292-0 01 1 0205-0212 ●
2 01.836 ELEMENT; OIL FILTER
EXC. PARTIAL OIL FILTER<S6A> 		8-97049-708-0 01 1 9811-0004 ●
2 01.836 ELEMENT; OIL FILTER
EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A> 		8-97049-708-0 01 1 0005-0212 ●
2 01.836 ELEMENT; OIL FILTER
EXC. TURBOCHARGER<K51> 		8-97049-708-1 01 1 0301- ●
2 01.836 ELEMENT; OIL FILTER 8-94340-697-1 01 1 9811-0004 ●
2 01.836 ELEMENT; OIL FILTER
TURBOCHARGER<K51> 		8-94340-697-1 01 1 0005-0204 ●
2 01.836 ELEMENT; OIL FILTER 8-94340-697-1 01 1 0005-0204 ●
2 01.836 ELEMENT; OIL FILTER 8-94340-697-1 01 1 0205-0206 ●
2 01.836 ELEMENT; OIL FILTER
01.826 		8-97301-752-0 01 1 0207- ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97047-000-0 01 1 9811-0004 ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51>. 		8-97047-000-0 01 1 0005- ●
9 01.840 GASKET; CENTER BOLT
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97047-000-0 01 1 0005- ●
11 01.840 BOLT; CENTER 8-97144-713-0 01 1 9811-0004 ●
11 01.840 BOLT; CENTER
TURBOCHARGER<K51> 		8-97144-713-0 01 1 0005- ●
11 01.840 BOLT; CENTER 8-97144-713-0 01 1 0005- ●
62 01.540 COOLER ASM; OIL
OIL COOLER<KC4> 		8-94401-680-0 01 1 9811-9910 ●
62 01.540 COOLER ASM; OIL
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-94401-680-0 01 1 9911- ●
62 01.540 COOLER ASM; OIL
TURBOCHARGER<K51> 		8-97226-391-0 01 1 0005- ●
62 01.540 COOLER ASM; OIL 8-97144-716-1 01 1 9811- ●
63 01.550 GASKET; COOLER TO BRKT 8-94383-720-0 01 1 9811- ● ●
64 01.540 BODY; OIL FILTER & OIL COOLER
OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> 		8-94423-698-1 01 1 9811-9910 ●
64 01.540 BODY; OIL FILTER & OIL COOLER
OIL COOLER<KC4> PARTIAL OIL FILTER<S6A> EXC. TURBOCHARGER<K51> 		8-94423-698-2 01 1 9911-0212 ●
64 01.540 BODY; OIL FILTER & OIL COOLER
OIL COOLER<KC4> EXC. PARTIAL OIL FILTER<S6A> 		8-97081-756-0 01 1 9811-9910 ●
64 01.540 BODY; OIL FILTER & OIL COOLER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51>,PARTIAL OIL FILTER<S6A> 		8-97081-756-0 01 1 9911-0212 ●
64 01.540 BODY; OIL FILTER & OIL COOLER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97081-756-0 01 1 0301- ●
64 01.540 BODY; OIL FILTER & OIL COOLER
TURBOCHARGER<K51> 		8-97166-497-1 01 1 0005- ●
64 01.540 BODY; OIL FILTER & OIL COOLER 8-97144-712-0 01 1 9811- ●
65 01.540 VALVE; OIL COOLER
OIL COOLER<KC4> 01.837 		8-94167-882-0 01 1 9811-9910 ●
65 01.540 VALVE; OIL COOLER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 01.837 		8-94167-882-0 01 1 9911- ●
65 01.540 VALVE; OIL COOLER 8-94450-772-0 01 1 9811-0004 ●
65 01.540 VALVE; OIL COOLER
TURBOCHARGER<K51> 		8-94450-772-0 01 1 0005- ●
65 01.540 VALVE; OIL COOLER 8-94450-772-0 01 1 0005- ●
67 01.550 GASKET; VLV
01.837 		9-09920-975-0 01 1 9811-0004 ●
67 01.550 GASKET; VLV
TURBOCHARGER<K51> 01.837 		9-09920-975-0 01 1 0005- ●
67 01.550 GASKET; VLV
01.837 		9-09920-975-0 01 1 0005- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (A) ID=13.6 		8-94167-884-0 01 1 9811-9910 ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (A) ID=13.6 		8-94167-884-0 01 1 9911- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (B) ID=8.8 		8-94167-885-0 01 1 9811-9910 ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (B) ID=8.8 		8-94167-885-0 01 1 9911- ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> (C) ID=6.8 		8-94167-886-0 01 1 9811-9910 ●
70 01.844 GASKET; PLUG,OIL FILTER
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> (C) ID=6.8 		8-94167-886-0 01 1 9911- ●
70 01.844 GASKET; PLUG,OIL FILTER
(D) 		9-09921-193-0 01 1 9811-0004 ●
70 01.844 GASKET; PLUG,OIL FILTER
TURBOCHARGER<K51> (D) 		9-09921-193-0 01 1 0005- ●
70 01.844 GASKET; PLUG,OIL FILTER
(D) 		9-09921-193-0 01 1 0005- ●
272 01.844 GASKET; OIL FILTER TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97065-983-0 01 1 9811- ● ●
329 01.840 BOLT; OIL FILTER
00.780 (C) M8X30 W/LK WASHER 		0-50040-830-0 04 1 9811-9906 ●
329 01.840 BOLT; OIL FILTER
01.531 (C) M8X25 FLANGE 		0-28080-825-0 04 1 9907-0004 ●
329 01.840 BOLT; OIL FILTER
EXC. TURBOCHARGER<K51> 01.531 (C) M8X25 FLANGE 		0-28080-825-0 04 1 0005- ●
329 01.840 BOLT; OIL FILTER
01.540 (A) M8X35 W/LK WASHER 		0-50040-835-0 02 1 9811-9906 ●
329 01.840 BOLT; OIL FILTER
00.004 (A) M8X32 FLANGE 		0-28080-832-0 02 1 9907-0004 ●
329 01.840 BOLT; OIL FILTER
TURBOCHARGER<K51> 00.004 (A) M8X32 FLANGE 		0-28080-832-0 02 1 0005- ●
329 01.840 BOLT; OIL FILTER
00.004 (A) M8X32 FLANGE 		0-28080-832-0 02 1 0005- ●
329 01.840 BOLT; OIL FILTER
00.206 (B) M8X65 W/LK WASHER 		8-94205-986-1 02 1 9811-9903 ●
329 01.840 BOLT; OIL FILTER
01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 9904-0004 ●
329 01.840 BOLT; OIL FILTER
TURBOCHARGER<K51> 01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 0005- ●
329 01.840 BOLT; OIL FILTER
01.251 (B) M8X60 FLANGE 		0-28080-860-0 02 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
