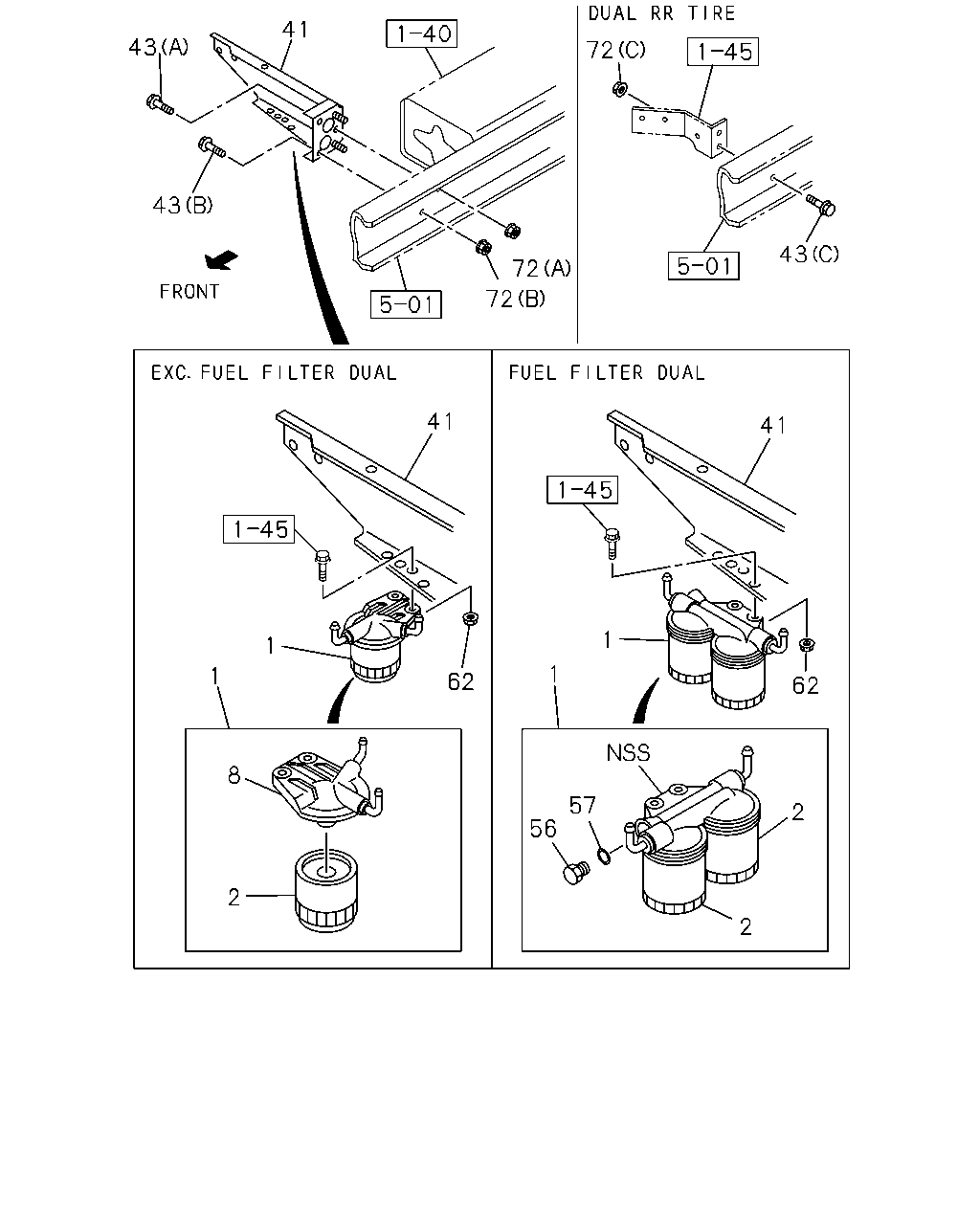

0-41 — FUEL FILTER AND BRACKET (#33112) — 32 parça

41 43 43 72 72 1 41 1 62 8 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL<S6B>	8-97070-864-0	01	1	9811-	●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL<S6B>	8-97070-865-0	01	1	9811-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL<S6B> 01.836	8-94144-613-0	02	1	9811-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-94246-908-0	01	1	9811-	●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-94254-730-0	01	1	9811-0105	●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-97363-518-0	01	1	0106-	●	●
41	03.890 BRACKET; FUEL FILTER SGL CAB(NH*S)	8-97090-294-3	01	1	9811-	●	●
41	03.890 BRACKET; FUEL FILTER DBL CAB(NH*W)	8-97103-345-1	01	1	9811-	●	●
43	03.890 BOLT; BRKT 01.531 (A) M8X25 FLANGE	0-28080-825-0	01	1	9811-	●	●
43	03.890 BOLT; BRKT 00.685 (B) M10X30 FLANGE	0-28081-030-0	02	1	9811-	●	●
43	03.890 BOLT; BRKT SMALL DUAL RR TIRE(NHN***) 01.531 (C) M8X25 FLANGE	0-28080-825-0	02	1	9811-	●	●
62	03.895 NUT; FUEL FILTER 08.917 M10 FLANGE	0-91150-210-0	02	1	9811-	●	●
72	03.890 NUT; BRKT,FUEL FILTER 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9811-	●	●
72	03.890 NUT; BRKT,FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9811-	●	●
72	03.890 NUT; BRKT,FUEL FILTER SMALL DUAL RR TIRE(NHN***) 01.540 (C) M8 FLANGE	0-91150-208-0	02	1	9811-	●	●

41 43 72 43 43 72 72 41 41 1 1 1 1 62 62 8 57 2 56 2 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.890 FILTER ASM; FUEL FUEL FILTER DUAL<S6B>	8-97070-864-0	01	1	9811-	●	●
1	03.890 FILTER ASM; FUEL EXC. FUEL FILTER DUAL<S6B>	8-97070-865-0	01	1	9811-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER FUEL FILTER DUAL<S6B> 01.836	8-94144-613-0	02	1	9811-	●	●
2	03.890 ELEMENT KIT; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-94246-908-0	01	1	9811-	●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-94254-730-0	01	1	9811-0105	●	●
8	03.890 COVER; FUEL FILTER EXC. FUEL FILTER DUAL<S6B>	8-97363-518-0	01	1	0106-	●	●
41	03.890 BRACKET; FUEL FILTER SGL CAB(NH*S)	8-97090-294-3	01	1	9811-	●	●
41	03.890 BRACKET; FUEL FILTER DBL CAB(NH*W)	8-97103-345-1	01	1	9811-	●	●
43	03.890 BOLT; BRKT 01.531 (A) M8X25 FLANGE	0-28080-825-0	01	1	9811-	●	●
43	03.890 BOLT; BRKT 00.685 (B) M10X30 FLANGE	0-28081-030-0	02	1	9811-	●	●
43	03.890 BOLT; BRKT SMALL DUAL RR TIRE(NHN***) 01.531 (C) M8X25 FLANGE	0-28080-825-0	02	1	9811-	●	●
56	03.890 PLUG; FUEL FILTER FUEL FILTER DUAL<S6B>	5-13226-001-0	01	1	9811-	●	●
57	03.890 GASKET; PLUG FUEL FILTER DUAL<S6B> 08.955 ID=14.2 OD=20.0	9-09571-414-0	01	1	9811-	●	●
62	03.895 NUT; FUEL FILTER 08.917 M10 FLANGE	0-91150-210-0	02	1	9811-	●	●
72	03.890 NUT; BRKT,FUEL FILTER 07.633 (A) M8 FLANGE	0-91150-108-0	01	1	9811-	●	●
72	03.890 NUT; BRKT,FUEL FILTER 04.785 (B) M10 FLANGE	0-91150-110-0	02	1	9811-	●	●
72	03.890 NUT; BRKT,FUEL FILTER SMALL DUAL RR TIRE(NHN***) 01.540 (C) M8 FLANGE	0-91150-208-0	02	1	9811-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
