0-85 — AUTO TIMER; INJECTION PUMP (#3311) — 166 parça

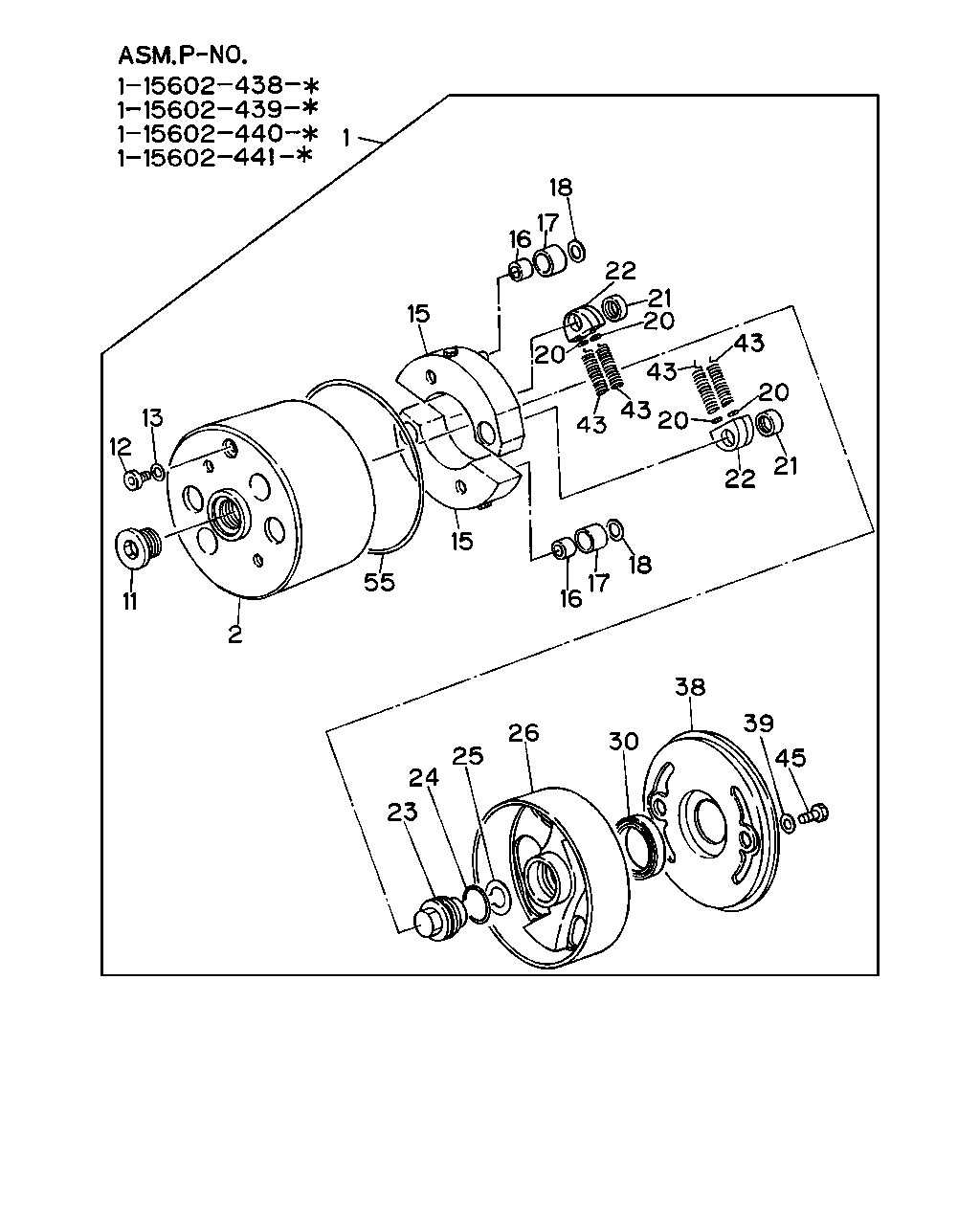

1 18 17 16 15 22 21 20 43 20 43 20 43 43 20 22 21 18 17 16 15 55 2 11 12 13 23 24 25 26 30 38 39 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15740-130-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15740-395-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: H = 1-15602-601-2	1-15740-401-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: K = 1-15602-914-0	1-15740-424-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15740-446-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15741-016-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	5-15741-002-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-115-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15749-192-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: J = 1-15602-913-0	1-15749-198-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: I = 1-15602-912-0, K = 1-15602-914-0	1-15749-698-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-031-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15743-017-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15743-077-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: H = 1-15602-601-2	1-15743-107-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15743-110-0	02	1	-
16	BUSHING; ROLLER,TIMER FLYWEIGHT,INJ PU ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	5-15749-042-0	02	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.00 ASM PART: D = 1-15602-440-3	5-15749-043-0	01	1	-9601
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.00 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2	5-15749-043-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.00 ASM PART: D = 1-15602-440-3	5-15749-043-0	AR	1	9602-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=17.90 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2	5-15749-044-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=17.90 ASM PART: D = 1-15602-440-3	5-15749-044-0	01	1	-9601
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=17.90 ASM PART: D = 1-15602-440-3	5-15749-044-0	AR	1	9602-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.10 ASM PART: D = 1-15602-440-3	5-15749-045-0	AR	1	9602-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.10 ASM PART: D = 1-15602-440-3	5-15749-045-0	01	1	-9601
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.10 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2	5-15749-045-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.20 ASM PART: D = 1-15602-440-3	5-15749-046-0	01	1	-9601
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.20 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, E = 1-15602-441-2	5-15749-046-0	01	1	-
17	ROLLER; FLYWEIGHT,TIMER,INJ PUMP OD=18.20 ASM PART: D = 1-15602-440-3	5-15749-046-0	AR	1	9602-
18	WASHER; ROLLER,TIMER FLYWEIGHT,INJ PUM ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	5-15749-047-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-390-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-391-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-392-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-393-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-493-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-494-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.25 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81325-382-0	AR	1	-
21	RETAINER; SPRING SEAT,TIMER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	5-15749-048-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (A) ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15749-182-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (A) ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-353-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (B) ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-519-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	5-15749-040-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-144-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	5-15749-051-0	01	1	-
24	GASKET; FLANGE,TIMER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-036-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-145-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15742-026-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15742-040-1	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15742-122-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: K = 1-15602-914-0	1-15742-132-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-073-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-072-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-283-0	01	1	-
39	GASKET; TIMER COVER BOLT,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-028-0	02	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-107-0	04	1	-
45	BOLT; TIMER COVER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-029-0	02	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3	1-15749-449-1	01	1	9602-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: E = 1-15602-441-2	1-15749-449-1	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3	5-15749-049-1	01	1	-9601

8 73 6 5 4 11 23 25 3 9 2 10 29 32 33 41 20 35 34 22 22 36 15 58 28 26 27 1 28 29 37 22 22 34 35 20 41 33 32 15 38 44 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15740-130-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15740-395-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: H = 1-15602-601-2	1-15740-401-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: K = 1-15602-914-0	1-15740-424-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15740-446-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15741-016-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	5-15741-002-0	01	1	-
3	GEAR; DRIVE,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-12524-034-0	01	1	-
4	BOLT; DRIVE GEAR FLANGE,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-188-0	04	1	-
5	WASHER; DRIVE GEAR FLANGE,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-189-0	04	1	-
6	FLANGE; DRIVE GEAR,INJ PUMP T=1.00 ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15742-036-0	01	1	-
8	BOLT; DRIVE GEAR FIX,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-186-0	04	1	-
9	BOLT; TIMER HSG,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-190-0	04	1	-
10	WASHER; HSG FIX BOLT,TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-191-0	04	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-115-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15749-192-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: J = 1-15602-913-0	1-15749-198-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: I = 1-15602-912-0, K = 1-15602-914-0	1-15749-698-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15743-017-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15743-077-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: H = 1-15602-601-2	1-15743-107-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15743-110-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-097-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-098-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-099-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-100-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-101-1	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.80 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-102-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-103-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.50 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-290-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=2.00 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-291-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-390-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-391-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-392-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-393-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-493-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-494-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81325-379-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.20 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81325-380-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.25 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81325-381-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	9-81325-382-0	AR	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (A) ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15749-182-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (A) ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-353-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (B) ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-519-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	5-15749-040-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-144-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	5-15749-051-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-034-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-145-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15742-026-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15742-040-1	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15742-122-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: K = 1-15602-914-0	1-15742-132-0	01	1	-
27	PLATE; CAM,TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-239-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-152-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-151-0	02	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15749-159-0	04	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-358-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15749-176-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-520-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: K = 1-15602-914-0	1-15749-574-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP OR ASM PART: J = 1-15602-913-0	1-15749-653-0	01	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15749-660-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15749-854-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP OR ASM PART: J = 1-15602-913-0	1-15749-652-0	01	1	-
35	SPRING; TIMER,OUTER,INJ PUMP ASM PART: K = 1-15602-914-0	1-15749-688-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15749-689-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP ASM PART: H = 1-15602-601-2	1-15749-691-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15749-853-0	04	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15749-174-0	02	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15749-530-0	02	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: K = 1-15602-914-0	1-15749-554-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15749-402-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: H = 1-15602-601-2	1-15749-418-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: B = 1-15602-438-2, C = 1-15602-439-2, D = 1-15602-440-3, E = 1-15602-441-2	1-15749-072-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-283-0	01	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15749-390-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15749-391-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15749-392-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15749-393-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15749-493-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2	1-15749-494-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-524-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-525-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-526-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-527-0	AR	1	-
42	RING; SNAP,TIMER COVER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-185-0	01	1	-
44	SHIM; TIMER COVER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-184-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: K = 1-15602-914-0	1-15743-086-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: H = 1-15602-601-2	1-15743-106-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1	1-15743-109-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: I = 1-15602-912-0, J = 1-15602-913-0	1-15743-134-0	01	1	-
73	WASHER; DRIVE GEAR,INJ PUMP ASM PART: A = 1-15602-434-5, F = 1-15602-599-1, G = 1-15602-600-1, H = 1-15602-601-2, I = 1-15602-912-0, J = 1-15602-913-0, K = 1-15602-914-0	1-15749-187-0	04	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
