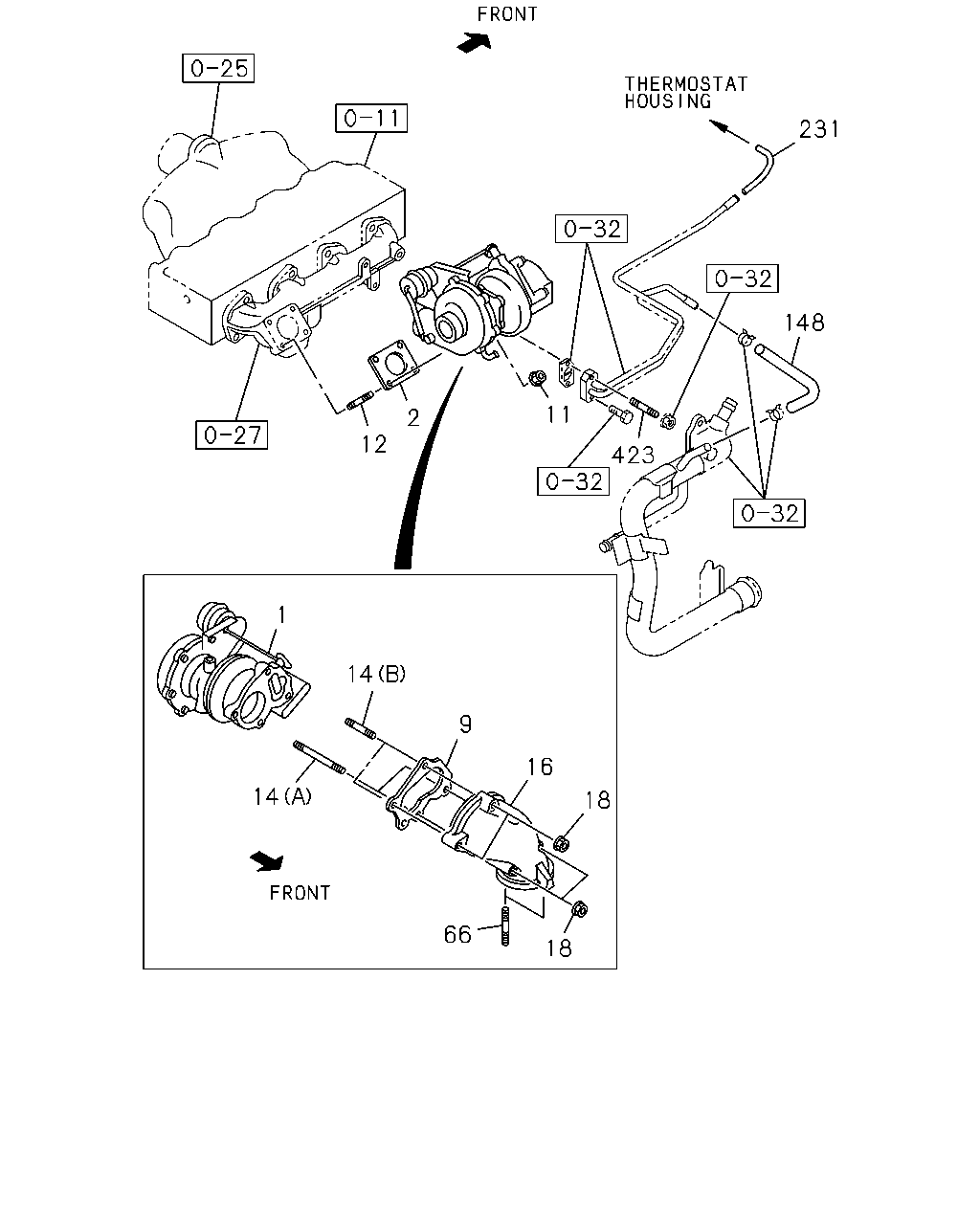

0-36 — TURBOCHARGER SYSTEM
(#33109) — 16 parça
231
148
11
2
12
423
1
14
9
16
14
18
66
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51>
8-97192-331-2
01
1
0005-0202
1
03.342 TURBOCHARGER ASM
SEE FIG-NO 0-37 FOR COMPONENT. TURBOCHARGER<K51>
8-97331-185-0
01
1
0203-
2
03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER<K51>
8-94481-980-0
01
1
0005-0109
2
03.342 GASKET; TURBOCHARGER TO EXH MANI
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER<K51>
8-97315-266-0
01
1
0110-
9
03.342 GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER<K51>
8-97224-296-0
01
1
0005-
11
03.342 NUT; TURBOCHARGER
TURBOCHARGER<K51> 03.613 M8 FLANGE
8-97161-607-0
04
1
0005-
12
03.342 STUD; TURBOCHARGER
TURBOCHARGER<K51> M8X20 L=31
8-97104-508-1
04
1
0005-
14
03.342 STUD; TURBOCHARGER TO EXH PIPE
TURBOCHARGER<K51> (B) M8X41 L=52
8-97188-452-0
02
1
0005-
14
03.342 STUD; TURBOCHARGER TO EXH PIPE
TURBOCHARGER<K51> (A) M8X126 L=137
8-97200-763-0
02
1
0005-
16
03.609 ADAPTER; EXH PIPE
TURBOCHARGER<K51>
8-97192-332-0
01
1
0005-
18
03.613 NUT; EXH PIPE
TURBOCHARGER<K51> M8 FLANGE
8-97161-607-0
04
1
0005-
66
03.342 STUD; EXH PIPE
TURBOCHARGER<K51> 03.613 M10X45 L=60 PLATING
5-09302-008-1
02
1
0005-
148
03.417 HOSE; TURBOCHARGER,INL
TURBOCHARGER<K51> 03.342 L=180 SERVICED BY L=3000
0-03259-300-0
01
1
0005-0204
148
03.417 HOSE; TURBOCHARGER,INL
TURBOCHARGER<K51> 01.097 L=180 SERVICED BY L=3000
0-03559-300-0
01
1
0205-
231
03.342 HOSE; RUBBER,TURBOCHARGER OUT
TURBOCHARGER<K51>
8-97212-155-0
01
1
0005-
423
03.373 STUD; WATER PIPE
TURBOCHARGER<K51> 03.162 M6X20 L=29
9-04110-620-0
01
1
0005-
