0-33 — FAN AND FAN BELT (#33107) — 38 parça

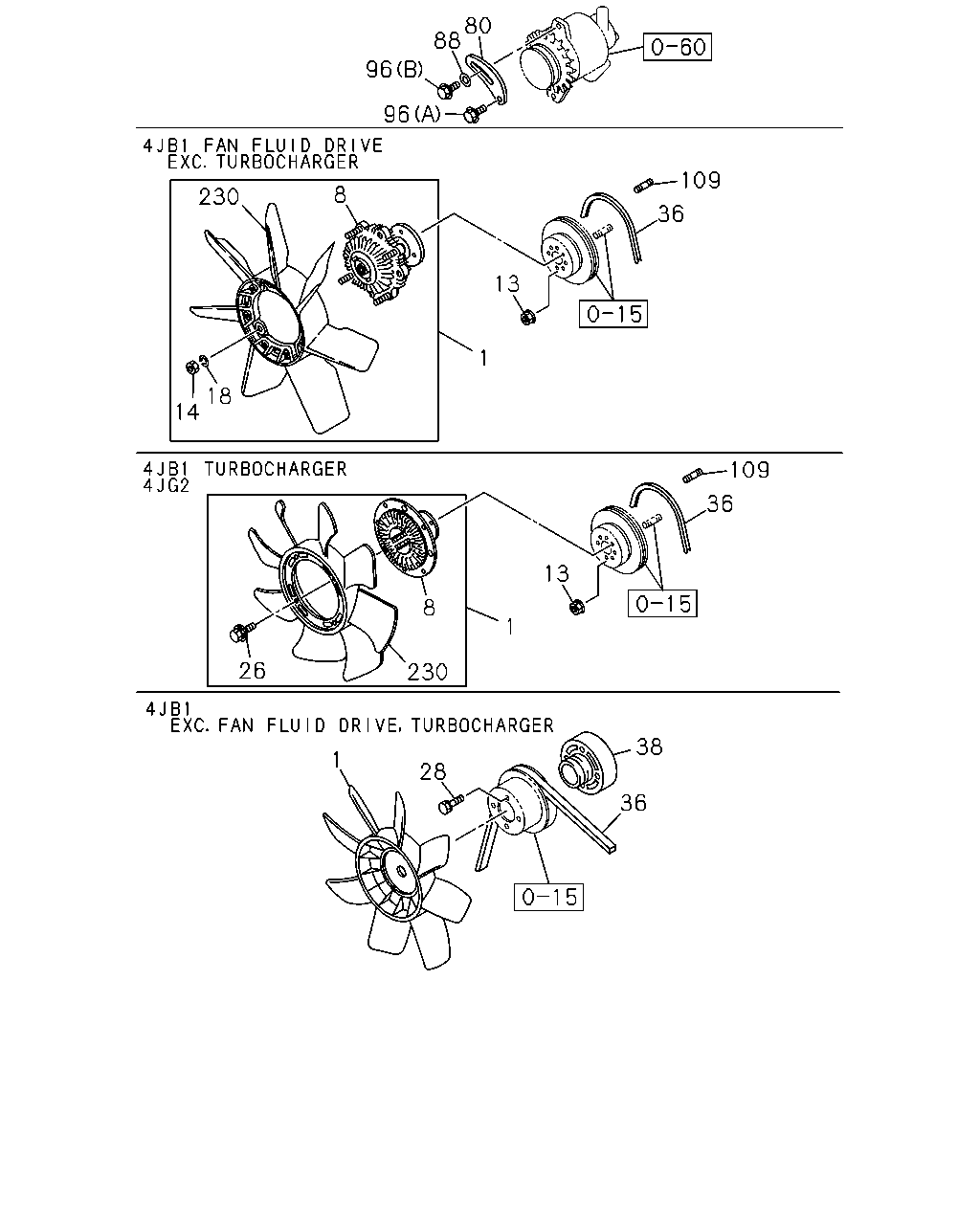

çizim 47066
80 88 96 96 109 8 230 36 13 1 18 14 109 36 13 8 1 26 230 38 1 28 36
BalonParca AdiParca NoAdetTipApplied Date A B
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> OD=390 		8-94239-651-0 01 1 9811-0004 ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> OD=390 		8-94239-651-0 01 1 0005-0105 ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3> OD=390 		5-13660-285-0 01 1 9811-0004 ●
1 01.064 FAN; COOLING
EXC. FAN FLUID DRIVE<KA3>, TURBOCHARGER<K51> OD=390 		5-13660-285-0 01 1 0005- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> OD=410 		8-97129-769-0 01 1 9811-0004 ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> TURBOCHARGER<K51> OD=410 		8-97129-769-0 01 1 0005- ●
1 01.064 FAN; COOLING
FAN FLUID DRIVE<KA3> OD=410 		8-97129-769-0 01 1 0005- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-94244-409-0 01 1 9811-0004 ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 		8-94244-409-0 01 1 0005-0105 ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-97129-735-0 01 1 9811-0004 ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> TURBOCHARGER<K51> 		8-97129-735-0 01 1 0005- ●
8 01.064 CLUTCH; COOLING FAN
FAN FLUID DRIVE<KA3> 		8-97129-735-0 01 1 0005- ●
13 01.062 NUT; COOLING FAN
FAN FLUID DRIVE<KA3> 07.829 M6 FLANGE 		5-09440-004-0 04 1 9811-0004 ●
13 01.062 NUT; COOLING FAN
TURBOCHARGER<K51> 07.829 M6 FLANGE 		5-09440-004-0 04 1 0005- ●
14 01.062 NUT; FAN TO CLU
FAN FLUID DRIVE<KA3> 00.413 M6 		9-09110-506-0 04 1 9811-0004 ●
14 01.062 NUT; FAN TO CLU
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 00.413 M6 		9-09110-506-0 04 1 0005-0105 ●
18 01.062 WASHER; FAN TO CLU
FAN FLUID DRIVE<KA3> 00.206 ID=6.1 		9-09150-506-0 04 1 9811-0004 ●
18 01.062 WASHER; FAN TO CLU
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 00.206 ID=6.1 		9-09150-506-0 04 1 0005-0105 ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 9811-0004 ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> TURBOCHARGER<K51> 		8-94389-764-0 04 1 0005- ●
26 01.062 BOLT; FAN TO CLU
FAN FLUID DRIVE<KA3> 		8-94389-764-0 04 1 0005- ●
28 01.062 BOLT; COOLING FAN
EXC. FAN FLUID DRIVE<KA3> M6X45 W/LK WASHER 		0-50040-645-0 04 1 9811-0105 ●
28 01.062 BOLT; COOLING FAN
EXC. TURBOCHARGER<K51> M6X45 W/LK WASHER 		0-50040-645-0 04 1 0106- ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97141-514-0 01 1 9811-0206 ● ●
36 01.066 BELT; COOLING FAN
L=1041 MITSUBOSHI 		8-97315-153-0 01 1 0207- ● ●
38 01.062 SPACER; FAN
EXC. FAN FLUID DRIVE<KA3> 01.064 		9-13642-078-0 01 1 9811-0105 ●
38 01.062 SPACER; FAN
EXC. TURBOCHARGER<K51> 01.064 		9-13642-078-0 01 1 0106- ●
80 02.317 PLATE; ADJ 8-97080-556-1 01 1 9811- ● ●
88 02.317 WASHER; PL,ADJ PLATE
07.633 ID=8.4 OD=22 		9-09164-708-0 01 1 9811- ● ●
96 02.317 BOLT; ADJ PLATE
01.540 (A) M8X45 FLANGE 		0-28080-845-0 01 1 9811- ● ●
96 02.317 BOLT; ADJ PLATE
01.073 (B) M8X25 W/LK WASHER 		0-50040-825-0 01 1 9811- ● ●
109 01.062 STUD; FAN CLU
FAN FLUID DRIVE<KA3> 01.073 M6X18 L=27 		9-04110-618-0 04 1 9811-0004 ●
109 01.062 STUD; FAN CLU
TURBOCHARGER<K51> 01.073 M6X18 L=27 		9-04110-618-0 04 1 0005- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 01.064 		5-13660-300-0 01 1 9811-0004 ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> EXC. TURBOCHARGER<K51> 01.064 		5-13660-300-0 01 1 0005-0105 ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 01.064 		8-97094-660-0 01 1 9811-0004 ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> TURBOCHARGER<K51> 01.064 		8-97094-660-0 01 1 0005- ●
230 01.055 FAN; COOLING
FAN FLUID DRIVE<KA3> 01.064 		8-97094-660-0 01 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
