0-32 — WATER PIPING; ENGINE (#33106) — 33 parça

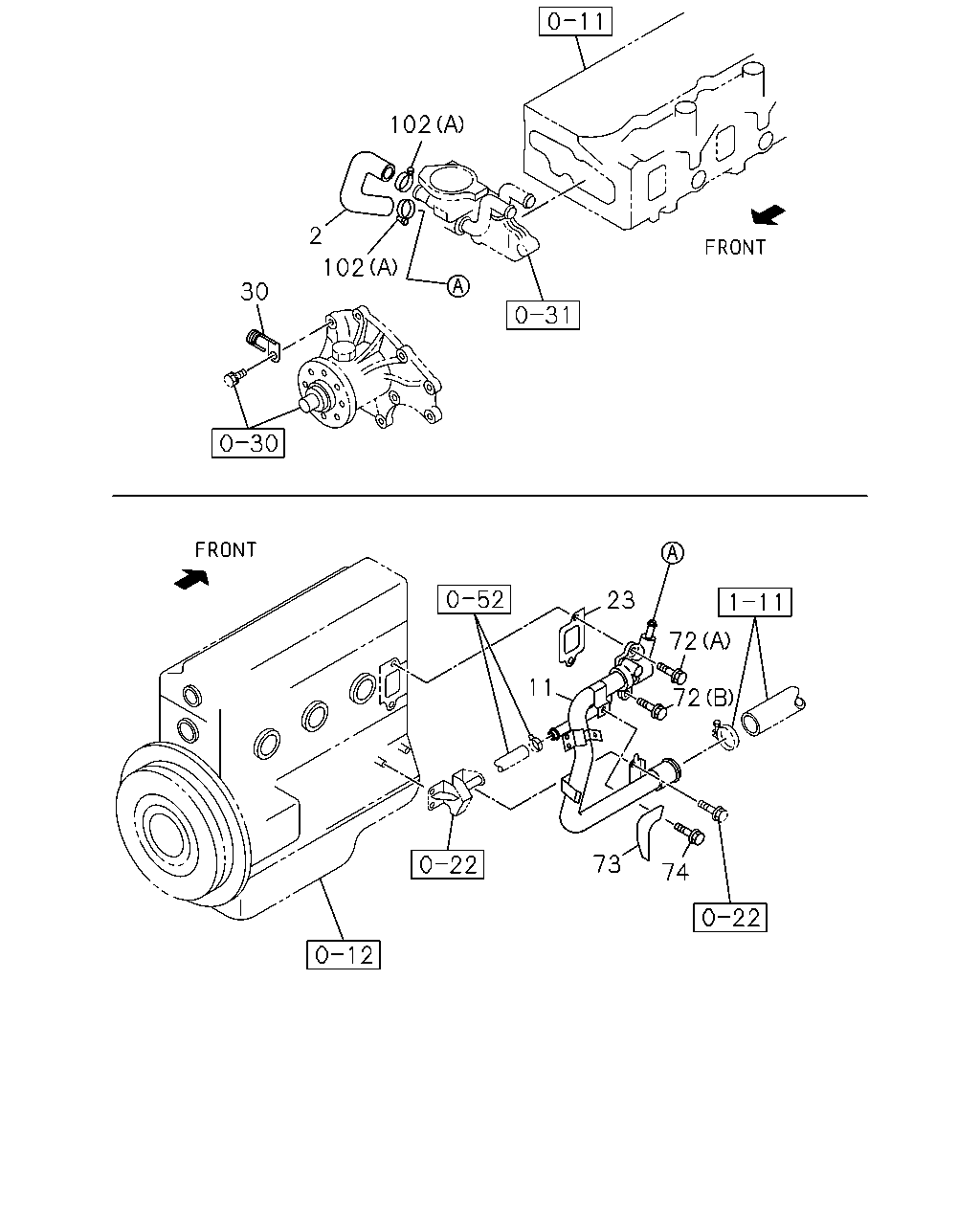

çizim 47026
102 2 102 30 23 72 11 72 73 74
BalonParca AdiParca NoAdetTipApplied Date A B
2 01.097 HOSE; WATER,BY-PASS 8-97037-464-0 01 1 9811- ● ●
11 01.097 PIPE; INL,WATER PUMP
OIL COOLER<KC4> 		8-97063-639-2 01 1 9811-0004 ●
11 01.097 PIPE; INL,WATER PUMP 8-97063-639-2 01 1 9811-0004 ●
11 01.097 PIPE; INL,WATER PUMP
OIL COOLER<KC4> EXC. TURBOCHARGER<K51> 		8-97063-639-3 01 1 0005- ●
11 01.097 PIPE; INL,WATER PUMP 8-97063-639-3 01 1 0005- ●
11 01.097 PIPE; INL,WATER PUMP
EXC. OIL COOLER<KC4> 		8-97070-871-1 01 1 9811-0004 ●
11 01.097 PIPE; INL,WATER PUMP
EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 		8-97070-871-2 01 1 0005- ●
11 01.097 PIPE; INL,WATER PUMP
TURBOCHARGER<K51> 		8-97213-400-1 01 1 0005- ●
23 01.079 GASKET; SUCTION PIPE TO BLOCK
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94365-676-3 01 1 9811- ● ●
30 01.150 CLIP; HARNESS
02.559 ID=12 		5-09700-331-0 01 1 9811- ● ●
72 00.206 BOLT; WATER PIPE
TURBOCHARGER<K51> 07.010 (A) M8X20 FLANGE 		0-28080-820-0 01 1 0005-0212 ●
72 00.206 BOLT; WATER PIPE
07.010 (A) M8X20 FLANGE 		0-28080-820-0 01 1 0301- ● ●
72 00.206 BOLT; WATER PIPE
00.727 (A) M8X22 W/LK WASHER 		0-50040-822-0 01 1 9811-0004 ● ●
72 00.206 BOLT; WATER PIPE
EXC. TURBOCHARGER<K51> 00.727 (A) M8X22 W/LK WASHER 		0-50040-822-0 01 1 0005-0212 ●
72 00.206 BOLT; WATER PIPE
00.727 (A) M8X22 W/LK WASHER 		0-50040-822-0 01 1 0005-0212 ●
72 00.206 BOLT; WATER PIPE
01.252 (B) M8X45 W/LK WASHER 		0-50040-845-0 01 1 9811- ● ●
73 01.097 PROTECTOR; HEAT,WATER PIPE 8-97043-743-1 01 1 9811- ● ●
74 01.097 BOLT; HEAT PROTECTOR FIX
12.187 M8X16 W/LK&PL WASHER 		0-50140-816-0 03 1 9811- ● ●
102 01.252 CLIP; WATER HOSE
TURBOCHARGER<K51> 01.153 (B) ID=12.8 		8-94367-943-0 04 1 0005- ●
102 01.252 CLIP; WATER HOSE
01.166 (A) ID=20.8 		8-94125-862-1 02 1 9811- ● ●

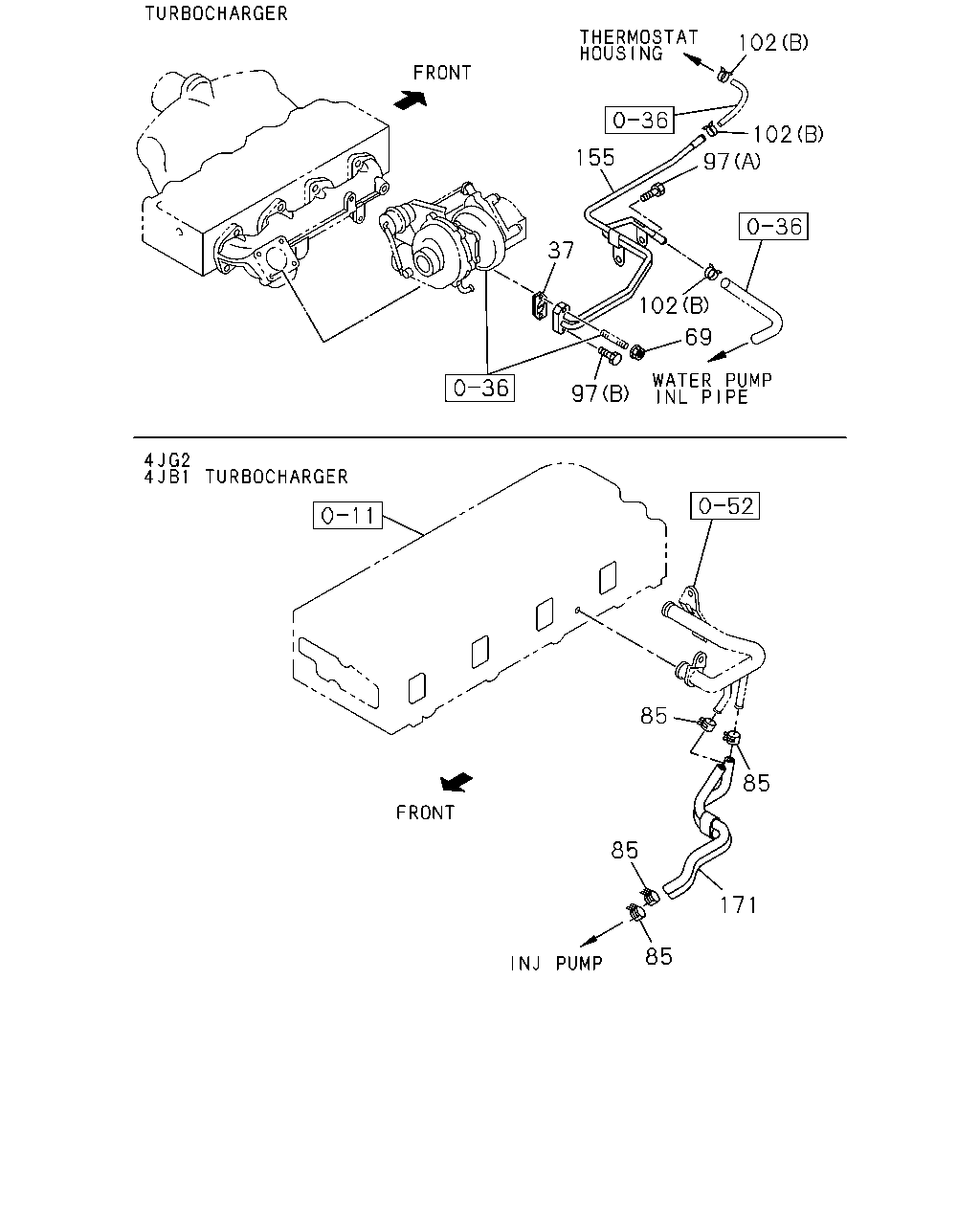

çizim 48914
102 102 155 97 37 102 69 97 85 85 85 171 85
BalonParca AdiParca NoAdetTipApplied Date A B
37 01.242 GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). TURBOCHARGER<K51> 03.374 		8-94321-135-1 01 1 0005- ●
69 01.153 NUT; WATER PIPE
TURBOCHARGER<K51> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0005- ●
85 01.240 CLIP; RUBBER,WAX CSD
03.162 ID=15.5 		8-94221-519-0 04 1 9811-9907 ●
85 01.240 CLIP; RUBBER,WAX CSD
01.153 ID=12.8 		8-94367-943-0 04 1 9908-0004 ●
85 01.240 CLIP; RUBBER,WAX CSD
TURBOCHARGER<K51> 01.153 ID=12.8 		8-94367-943-0 04 1 0005- ●
85 01.240 CLIP; RUBBER,WAX CSD
01.153 ID=12.8 		8-94367-943-0 04 1 0005- ●
97 04.866 BOLT; WATER PIPE
TURBOCHARGER<K51> 01.428 (A) M6X12 FLANGE 		0-28080-612-0 01 1 0005- ●
97 04.866 BOLT; WATER PIPE
TURBOCHARGER<K51> 04.930 (B) M6X20 FLANGE 		0-28680-620-0 01 1 0005- ●
102 01.252 CLIP; WATER HOSE
TURBOCHARGER<K51> 01.153 (B) ID=12.8 		8-94367-943-0 04 1 0005- ●
102 01.252 CLIP; WATER HOSE
01.166 (A) ID=20.8 		8-94125-862-1 02 1 9811- ● ●
155 01.153 PIPE ASM; WATER
TURBOCHARGER<K51> 		8-97207-954-0 01 1 0005- ●
171 01.240 HOSE; RUBBER,WAX CSD
TURBOCHARGER<K51> 		8-97225-605-0 01 1 0005- ●
171 01.240 HOSE; RUBBER,WAX CSD 8-97189-478-0 01 1 9811- ●
