0-25 — INLET MANIFOLD (#33101) — 127 parça

138 115 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	9811-0001	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EURO2 SPECIFICATION<7AF> 08.852 (A) ID=8 & 23	5-09707-002-0	02	1	0002-0004	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EURO2 SPECIFICATION<7AF> EXC. TURBOCHARGER<K51> 08.852 (A) ID=8 & 23	5-09707-002-0	02	1	0006-0105	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. EURO2 SPECIFICATION<7AF> 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	0106-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 16	5-09707-032-0	03	1	9811-0004	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 08.852 (A) ID=8 & 16	5-09707-032-0	03	1	0005-0105	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 08.852 (A) ID=8 & 16	5-09707-032-0	03	1	0106-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> 03.278 (B) ID=37	8-94481-468-0	01	1	9811-0001	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. EURO2 SPECIFICATION<7AF> 03.278 (B) ID=37	8-94481-468-0	01	1	0002-0004	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>,EURO2 SPECIFICATION<7AF> 03.278 (B) ID=37	8-94481-468-0	01	1	0006-0105	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. EURO2 SPECIFICATION<7AF> 03.278 (B) ID=37	8-94481-468-0	01	1	0106-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 03.483 (C) ID=6 & 6	8-94463-708-0	01	1	9811-0004	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> EXC. TURBOCHARGER<K51> 03.483 (C) ID=6 & 6	8-94463-708-0	01	1	0005-0105	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> AIR INTAKE SYSTEM FRONT<6PC> 03.483 (C) ID=6 & 6	8-94463-708-0	01	1	0106-	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. EURO2 SPECIFICATION<7AF> 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	0002-0004	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51>,EURO2 SPECIFICATION<7AF> 08.852 (A) ID=8 & 23	5-09707-002-0	01	1	0006-0105	●	●
115	03.265 CLIP; VAC HOSE,INT THROTTLE EXHAUST BRAKE<NF8> EURO2 SPECIFICATION<7AF> 08.852 (A) ID=8 & 23	5-09707-002-0	02	1	0106-	●	●
138	03.265 PIPE; INL AIR INTAKE REAR VERTICAL<KJ3> EXC. TURBOCHARGER<K51> 03.417	8-94417-173-1	01	1	9811-	●	●

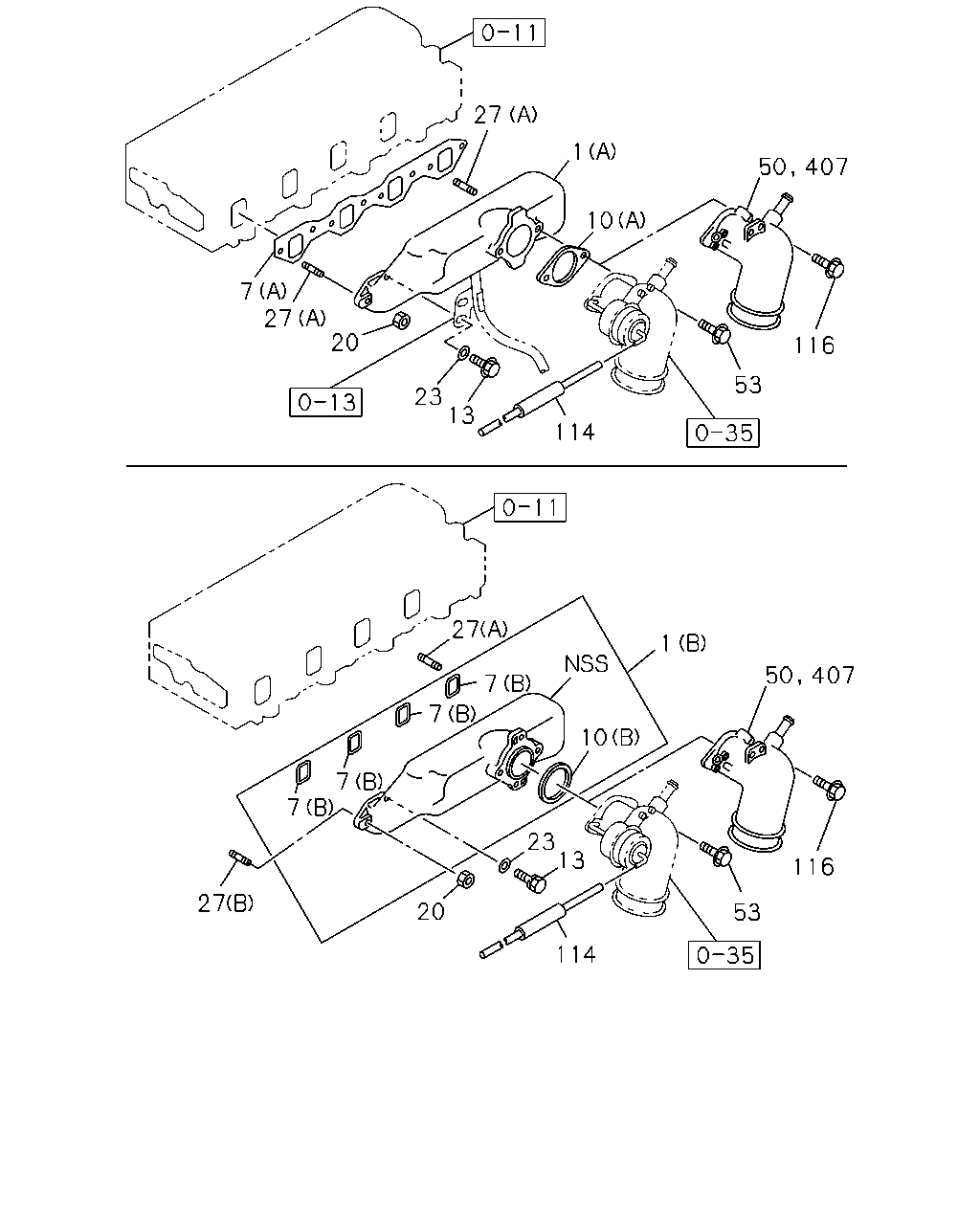

27 1 10 7 27 20 116 53 23 13 114 27 1 7 7 10 7 7 23 13 116 27 20 53 114 50 407 50 407

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.265 MANIFOLD; INL (A)	8-97107-744-1	01	1	9811-0004		●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51> (A)	8-97107-744-1	01	1	0005-		●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> (C)	8-97192-327-1	01	1	0005-		●
1	03.265 MANIFOLD; INL (B)	8-97147-920-0	01	1	9811-9910	●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<7AF> (B)	8-97147-920-0	01	1	9911-	●
1	03.265 MANIFOLD; INL EXC. EURO2 SPECIFICATION<7AF> (A)	8-97218-286-2	01	1	9911-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97066-741-1	01	1	9811-9905		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97228-044-0	01	1	9906-9910		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97228-044-0	01	1	9911-0101		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<7AF> EXC. HEATER & DEFROSTER(C41) (A)	8-97228-044-0	01	1	9911-0101	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97301-838-0	01	1	0102-0105		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<7AF> EXC. HEATER & DEFROSTER(C41) (A)	8-97301-838-0	01	1	0102-0105	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97301-838-0	01	1	0106-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97301-838-0	01	1	0106-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97144-623-0	04	1	9811-0105	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<7AF> (B)	8-97144-623-0	04	1	0106-	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97035-883-0	01	1	9811-0004	●	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. HONG KONG EQUIPMENT(PQ1),SINGAPORE EQUIPMENT(S9Y) (A)	8-97035-883-0	01	1	9811-0004	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. TURBOCHARGER<K51> (A)	8-97035-883-1	01	1	0005-		●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97035-883-1	01	1	0005-	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97144-622-0	01	1	9811-0105	●
10	03.406 GASKET; INL PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<7AF> (B)	8-97144-622-0	01	1	0106-	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	0005-		●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	0005-		●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9811-0004	●	●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	0005-		●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	0005-	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9811-	●	●
23	03.275 WASHER; PL,INL MANIF 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9811-	●	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9811-0004		●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9811-0004	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0005-0105		●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0005-0105		●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0005-0105	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0106-		●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0106-	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9811-0004		●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9811-0004	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0005-0105		●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0005-0105		●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0005-0105	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0106-		●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0106-	●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9811-9910		●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9911-		●
50	03.265 PIPE; INL AIR INTAKE SYSTEM FRONT<6PC> EXC. EXHAUST BRAKE<NF8>	8-97078-858-0	01	1	9811-	●	●
53	03.602 BOLT; INL PIPE TURBOCHARGER<K51> 09.181 M10X25 FLANGE	0-28781-025-0	02	1	0005-0208		●
53	03.602 BOLT; INL PIPE TURBOCHARGER<K51> 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0209-		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> (A) L=403	8-97228-401-0	01	1	0005-		●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> (B) L=1320	8-97096-148-1	01	1	9811-9904	●	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> (B) L=1320	8-97227-211-0	01	1	9905-0004	●	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B) L=1320	8-97227-211-0	01	1	0005-0105	●	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> (B) L=1320	8-97227-211-0	01	1	0106-	●	●
116	03.275 BOLT; MANIF TO INL PIPE 01.540 M10X20 FLANGE	0-28181-020-0	02	1	9811-0208	●	●
116	03.275 BOLT; MANIF TO INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0209-	●	●
407	03.265 PIPE; INL,REAR SGL TIRE&SGL CAB(NHBS) AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8>	8-94152-318-0	01	1	9811-0004	●	●
407	03.265 PIPE; INL,REAR AIR INTAKE REAR VERTICAL<KJ3> EXC. EXHAUST BRAKE<NF8>,CHARGE AIR COOLER<6PL>	8-94152-318-0	01	1	0005-	●	●

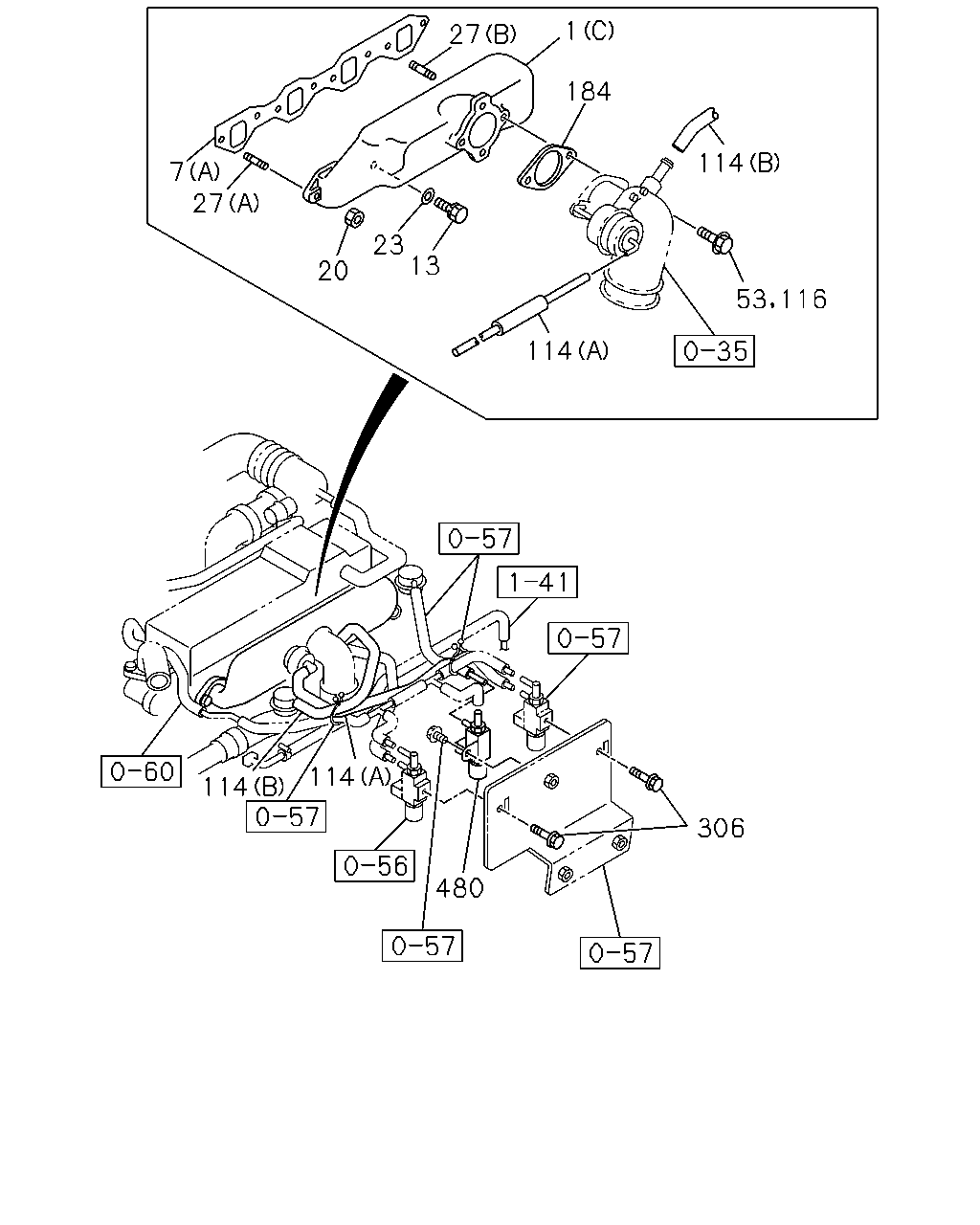

1 27 184 114 7 27 23 13 20 114 114 114 306 480 53 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	03.265 MANIFOLD; INL (A)	8-97107-744-1	01	1	9811-0004		●
1	03.265 MANIFOLD; INL EXC. TURBOCHARGER<K51> (A)	8-97107-744-1	01	1	0005-		●
1	03.265 MANIFOLD; INL TURBOCHARGER<K51> (C)	8-97192-327-1	01	1	0005-		●
1	03.265 MANIFOLD; INL (B)	8-97147-920-0	01	1	9811-9910	●
1	03.265 MANIFOLD; INL EURO2 SPECIFICATION<7AF> (B)	8-97147-920-0	01	1	9911-	●
1	03.265 MANIFOLD; INL EXC. EURO2 SPECIFICATION<7AF> (A)	8-97218-286-2	01	1	9911-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97066-741-1	01	1	9811-9905		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97228-044-0	01	1	9906-9910		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97228-044-0	01	1	9911-0101		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<7AF> EXC. HEATER & DEFROSTER(C41) (A)	8-97228-044-0	01	1	9911-0101	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97301-838-0	01	1	0102-0105		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<7AF> EXC. HEATER & DEFROSTER(C41) (A)	8-97301-838-0	01	1	0102-0105	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97301-838-0	01	1	0106-		●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97301-838-0	01	1	0106-	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-97144-623-0	04	1	9811-0105	●
7	03.270 GASKET; INL MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<7AF> (B)	8-97144-623-0	04	1	0106-	●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	05	1	0005-		●
13	03.275 BOLT; INL MANIF TURBOCHARGER<K51> 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	0005-		●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	9811-0004	●	●
13	03.275 BOLT; INL MANIF EXC. TURBOCHARGER<K51> 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	0005-		●
13	03.275 BOLT; INL MANIF 01.073 M8X25 W/LK WASHER	0-50040-825-0	06	1	0005-	●
20	03.275 NUT; INL MANIF 00.854 M8 FLANGE	5-09440-005-0	02	1	9811-	●	●
23	03.275 WASHER; PL,INL MANIF 07.633 ID=8.4 OD=22	9-09164-708-0	01	1	9811-	●	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9811-0004		●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	9811-0004	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0005-0105		●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0005-0105		●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0005-0105	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0106-		●
27	03.275 STUD; INL MANIF 03.901 (A) M8X25 L=37	9-04110-825-0	01	1	0106-	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9811-0004		●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	9811-0004	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0005-0105		●
27	03.275 STUD; INL MANIF TURBOCHARGER<K51> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0005-0105		●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0005-0105	●
27	03.275 STUD; INL MANIF OIL COOLER<KC4> 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0106-		●
27	03.275 STUD; INL MANIF 00.219 (B) M8X35 L=46	9-09630-034-1	01	1	0106-	●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9811-9910		●
27	03.275 STUD; INL MANIF EXC. OIL COOLER<KC4>,TURBOCHARGER<K51> 03.901 (A),(B) M8X25 L=37	9-04110-825-0	02	1	9911-		●
53	03.602 BOLT; INL PIPE TURBOCHARGER<K51> 09.181 M10X25 FLANGE	0-28781-025-0	02	1	0005-0208		●
53	03.602 BOLT; INL PIPE TURBOCHARGER<K51> 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0209-		●
114	03.265 HOSE; VAC,INT THROTTLE TURBOCHARGER<K51> (A) L=403	8-97228-401-0	01	1	0005-		●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> (B) L=1320	8-97096-148-1	01	1	9811-9904	●	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> (B) L=1320	8-97227-211-0	01	1	9905-0004	●	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B) L=1320	8-97227-211-0	01	1	0005-0105	●	●
114	03.265 HOSE; VAC,INT THROTTLE EXHAUST BRAKE<NF8> (B) L=1320	8-97227-211-0	01	1	0106-	●	●
116	03.275 BOLT; MANIF TO INL PIPE 01.540 M10X20 FLANGE	0-28181-020-0	02	1	9811-0208	●	●
116	03.275 BOLT; MANIF TO INL PIPE 04.525 M10X25 FLANGE	0-28181-025-0	02	1	0209-	●	●
184	03.275 GASKET; T/V ALSO INCLUDED IN GASKET SET(ENG. & HEAD) TURBOCHARGER<K51> 03.406	8-97035-883-1	01	1	0005-		●
306	03.265 BOLT; VLV TURBOCHARGER<K51> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0005-		●
306	03.265 BOLT; VLV TURBOCHARGER<K51> 04.054 M5X10 W/LK+PL WASHER	9-03920-510-0	02	1	0005-		●
480	03.314 VALVE ASM; VAC SW TURBOCHARGER<K51> 03.670	8-94144-597-1	01	1	0005-		●
